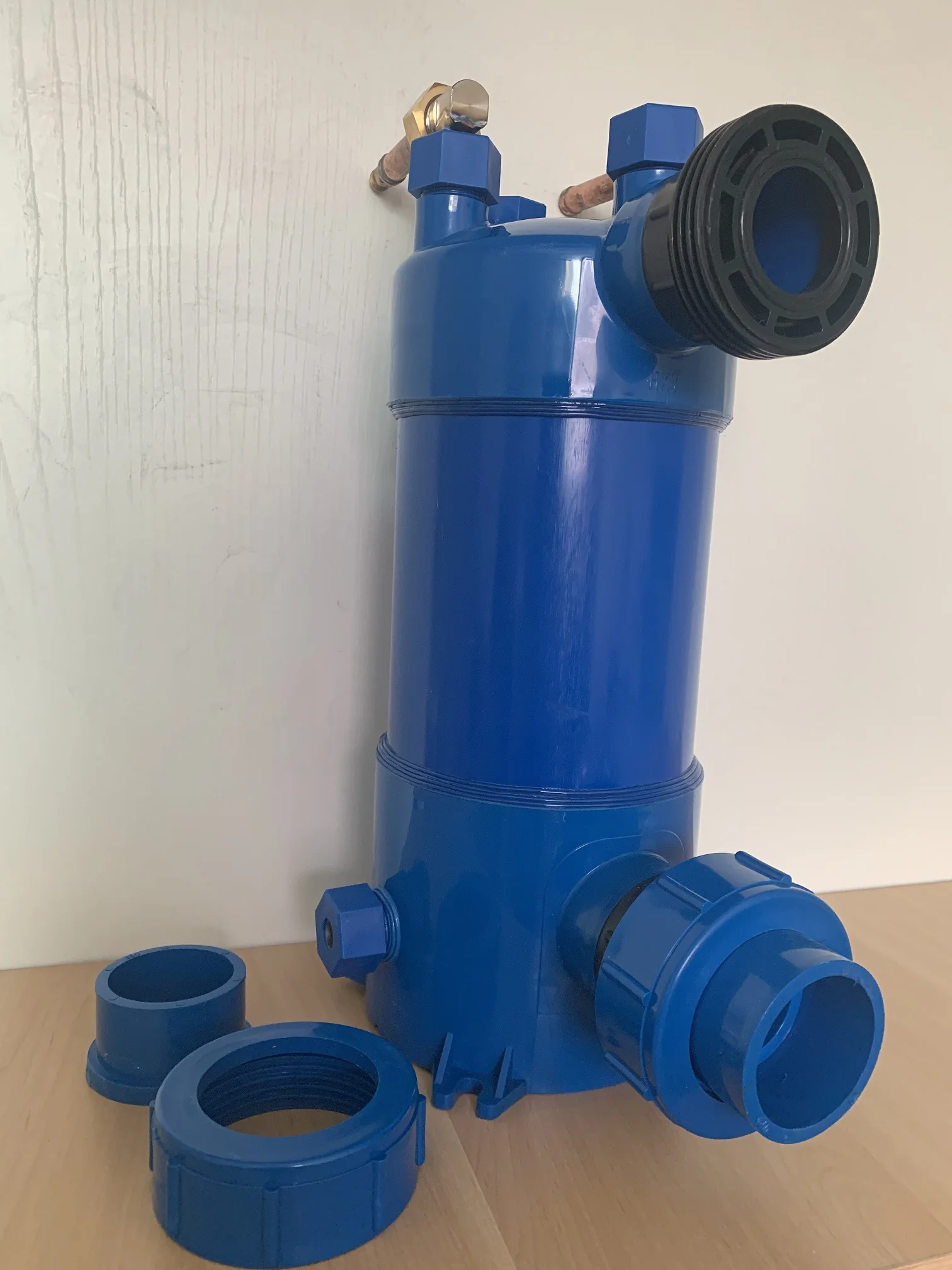

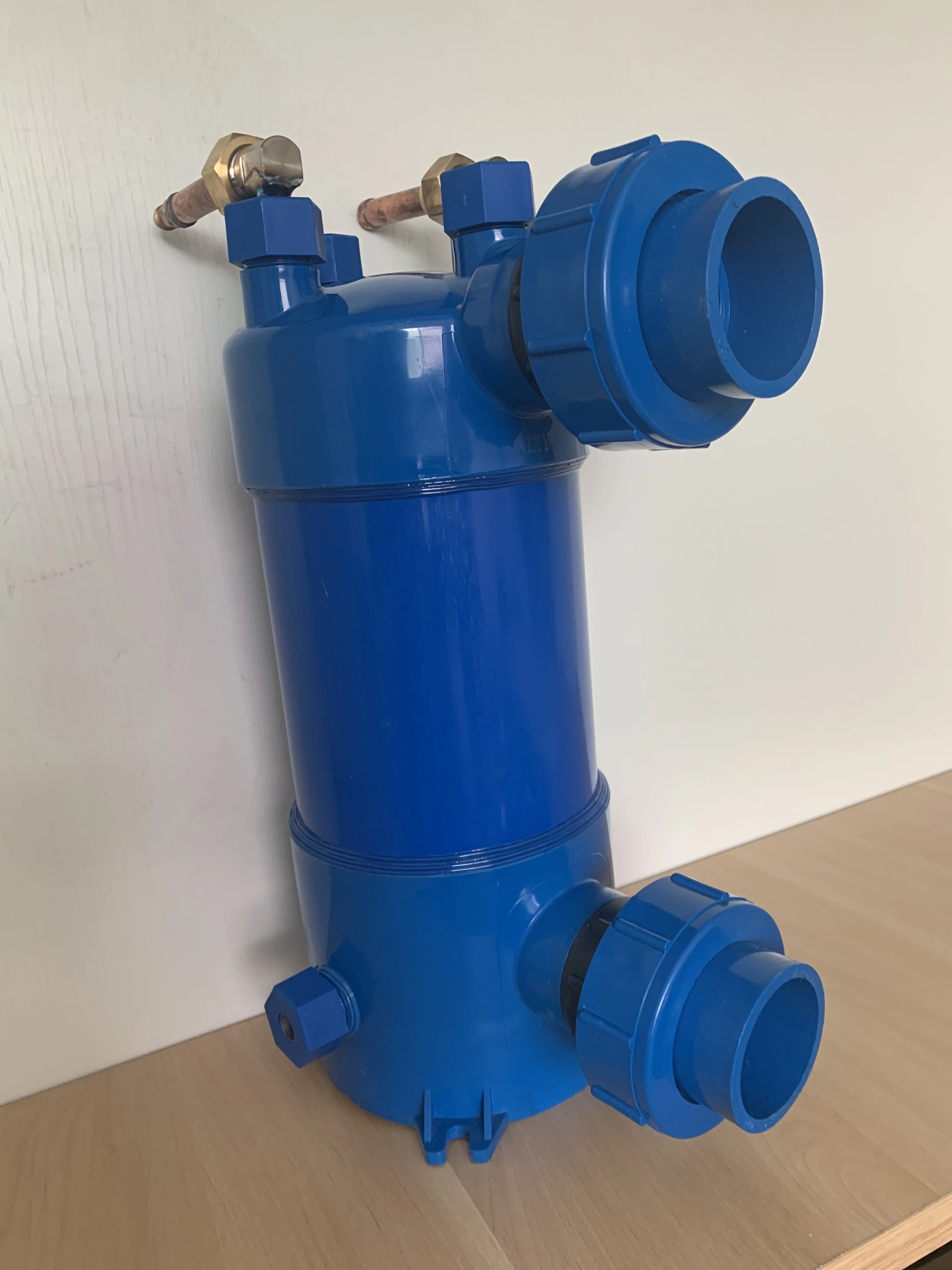

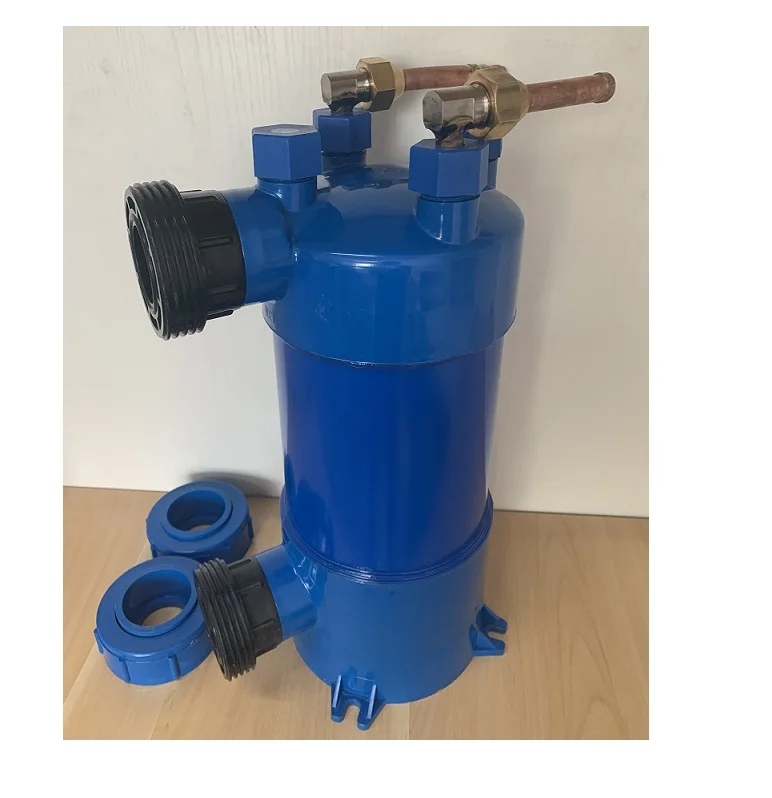

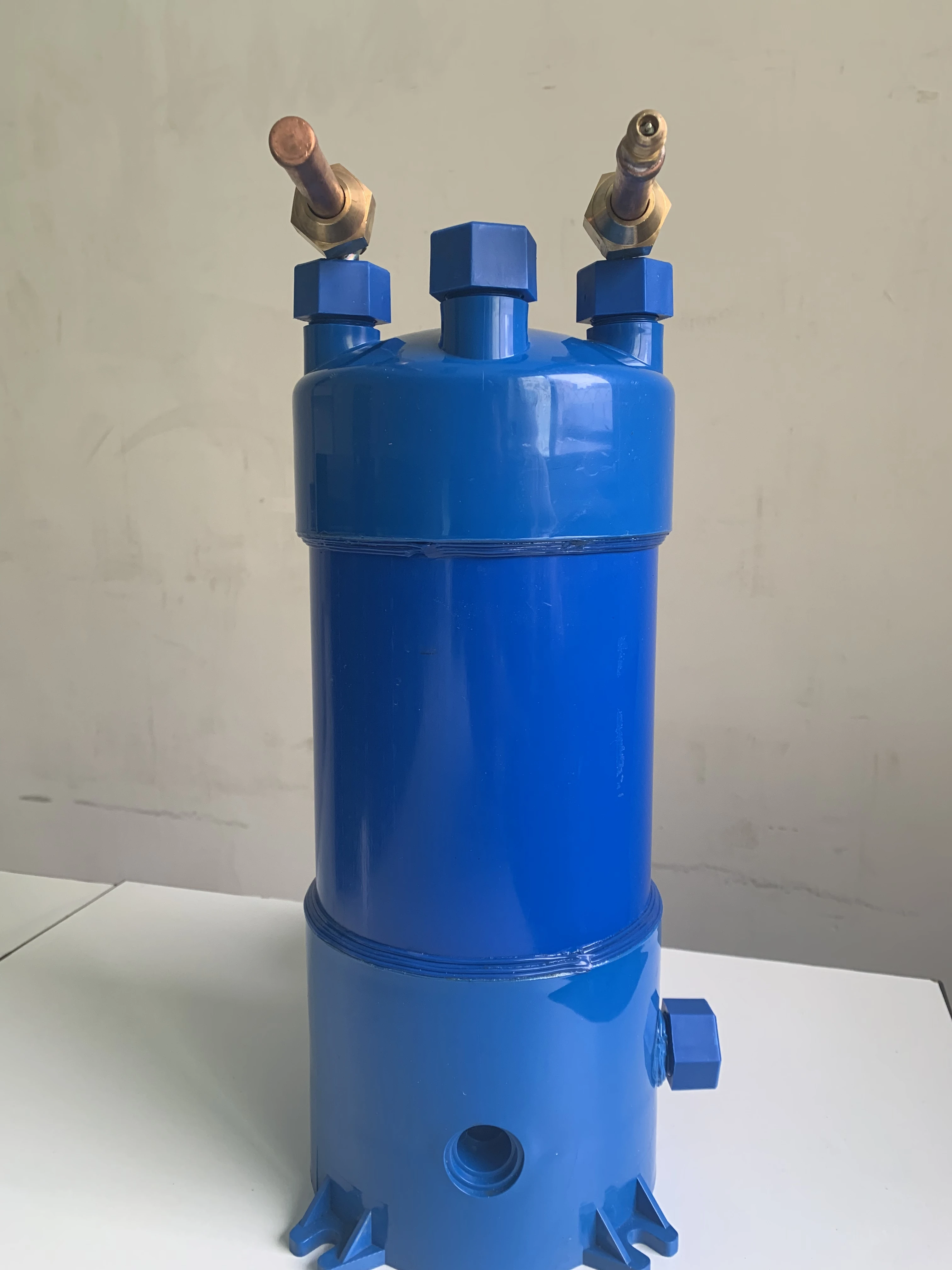

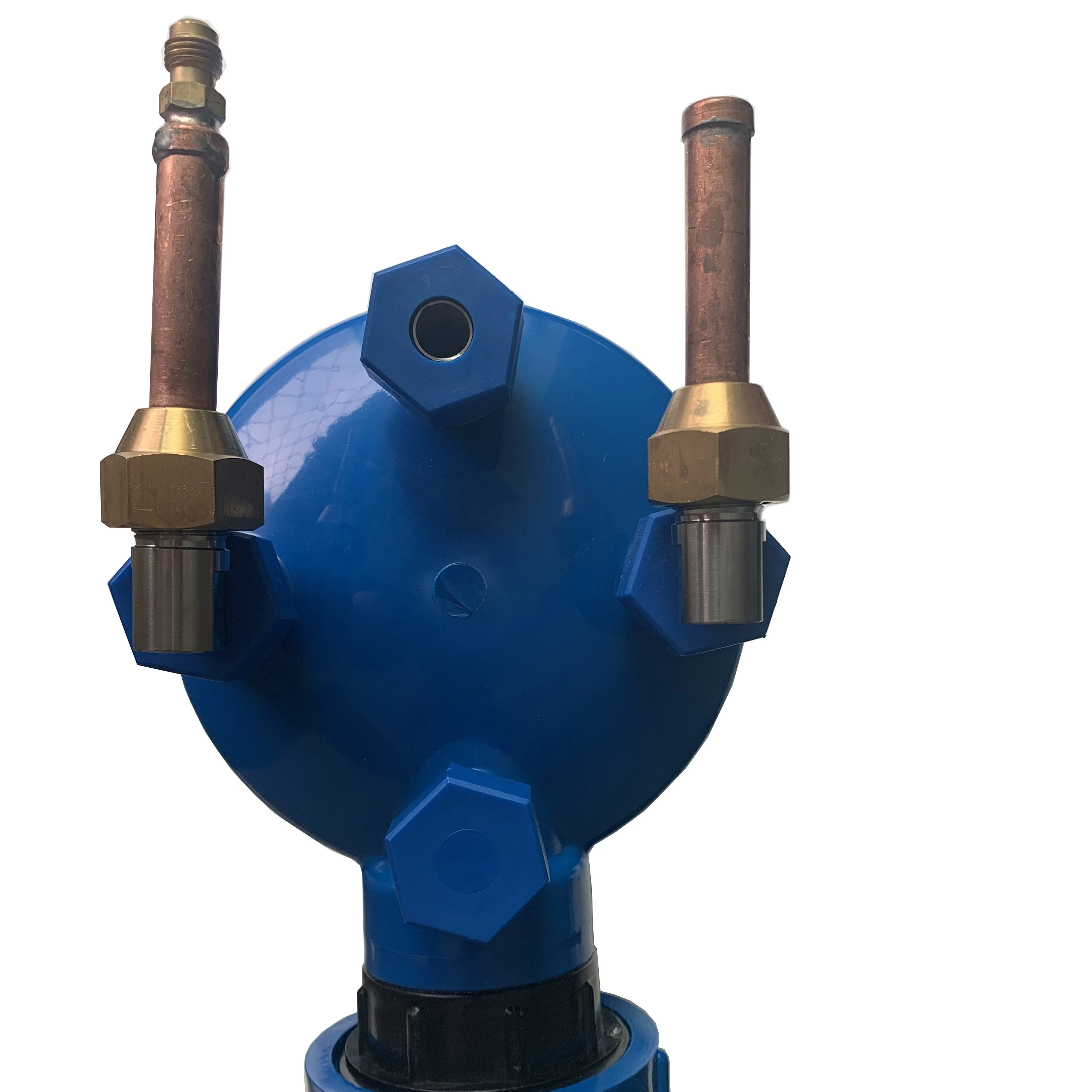

Screwed titanium tube pvc shell heat exchanger/PVC shell titanium coil tube heat exchanger for aquarium chiller
- Category: >>>
- Supplier: SHANDONG ECOICE REFRI CO. LTD
Share on (1600575330728):
Product Overview
Description
Product Description
Specification

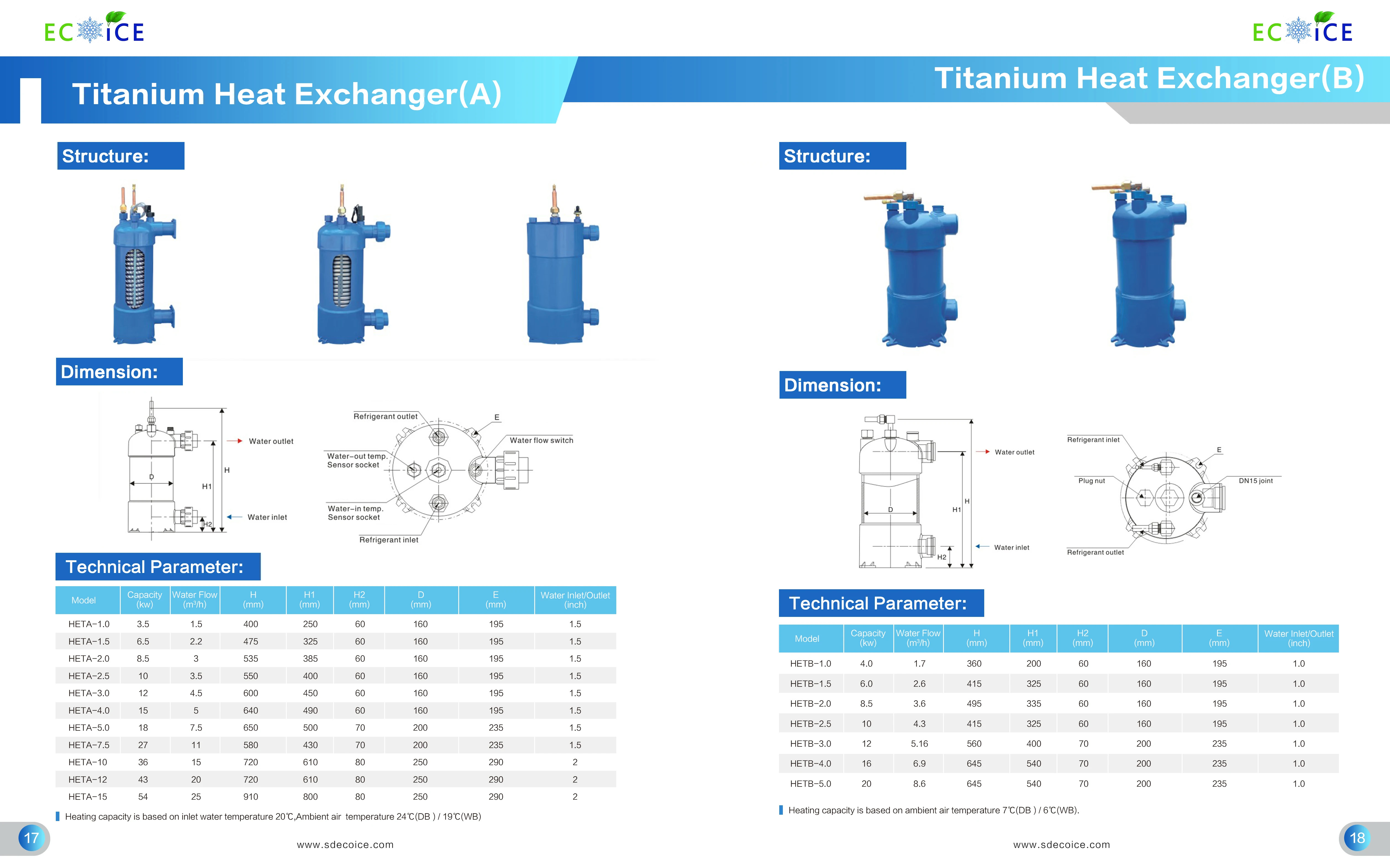

Model | Threaded tube | Heating capacity(KW) | Water flow(m3/h) |
HETA-1 | 12.7x0.6x3.8 | 3.5 | 1.5 |
HETA-1.5 | 12.7x0.6x5.4 | 5 | 2.2 |
HETA-2 | 12.7x0.6x6.8 | 7 | 3 |
HETA-2.5 | 12.7x0.6x8.3 | 8.8 | 3.8 |
HETA-3 | 12.7x0.6x10 | 10.5 | 4.5 |
HETA-4 | 12.7x0.6x12.8 | 14 | 6 |
HETA-5 | 12.7x.6x16 | 18 | 7.7 |
HETA-7.5 | 16x0.6x19 | 27 | 11 |
HETA-10 | 2-12.7x0.6x16 | 38.5 | 16.5 |
1) Pure seamless titanium tube . Thickness 0.6 mm. The Grade is TA1.
2) The titanium coil pressure loading capacity was designed base R410a high pressure work condition, The max. working pressure is
52 bar. and the extreme pressure was 360bar in our test.
3) 100,000 times alternating pressure (Low pressure 0 bar, high pressure 52bar) test shows it can be used more than 20 years.
Never corrosion.
Specification:
1) The data marked by orange is this model heat exchanger technical parameter. Please contact us to get the detail drawing.
2) The data list is our suggested data, We can produce any capacity heat exchangers according customer requirement and design.
Description:
Titanium has the super strong corrosion resistant ability. Our titanium heat exchanger use seamless pure titanium tube as heat
conductor, can ensure the titanium heat exchanger can be used for a long time, without any cost in the after-sale services.
Due to its good properties ,the titanium heat exchanger widely used in:
Swimming pool equipment, Aquarium chiller, Marine refrigerant system, Solar energy heater, Aquaculture, Pharmacy, Food industry,
Electroplating industry and some heat recovery from the waste water or exhaust gas.

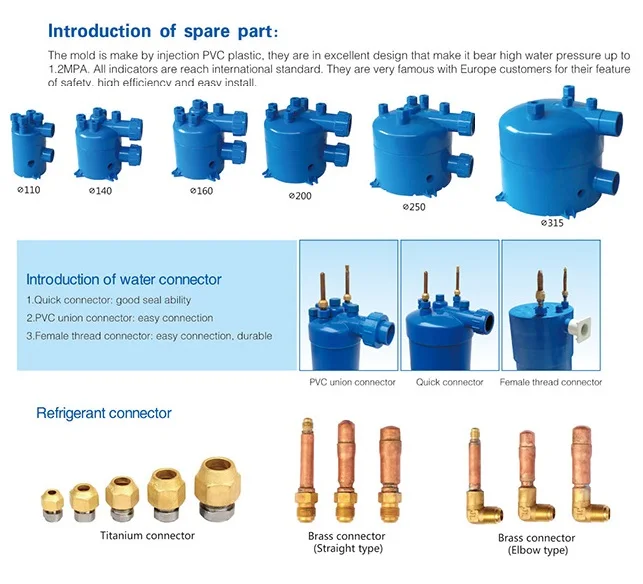

Main material and property: --Molded cups titanium heat exchanger
1) The cups molding by high quality PVC material .
2) Due to its perfect structure design, the PVC shell can stand high working pressure. The max working pressure can be 1.2 Mpa ,
and the bursting pressure can be 2.3Mpa.
3) Its loading capacity can pass the CE, UL, ETL requirement, 100,000 times alternating pressure test ( Low pressure 0 bar , high
pressure 8 bar ) shows it can be used more than 20 years.
4) Good appearance, more safe in using, high efficient of heat transfer, easy for installation. It must be your best choice.
Quality Controlling :
1) Research & development
R&D is the core of products technology, it has a crucial import on products performance ,working condition, production quality,
production cost and so on. Our R&D team has many years experience of heat pump, we are improving the COP technology and defrosting
items.
2)Purchasing
In order to control products quality ,meet engineer demand, Suoning purchasing department purchase good quality materials
according to each model heat pump BOM list .Suoning demand each spare parts supplier has products testing report, and relative
CCC, ISO certificated, from compressor, expansion vale and so on.

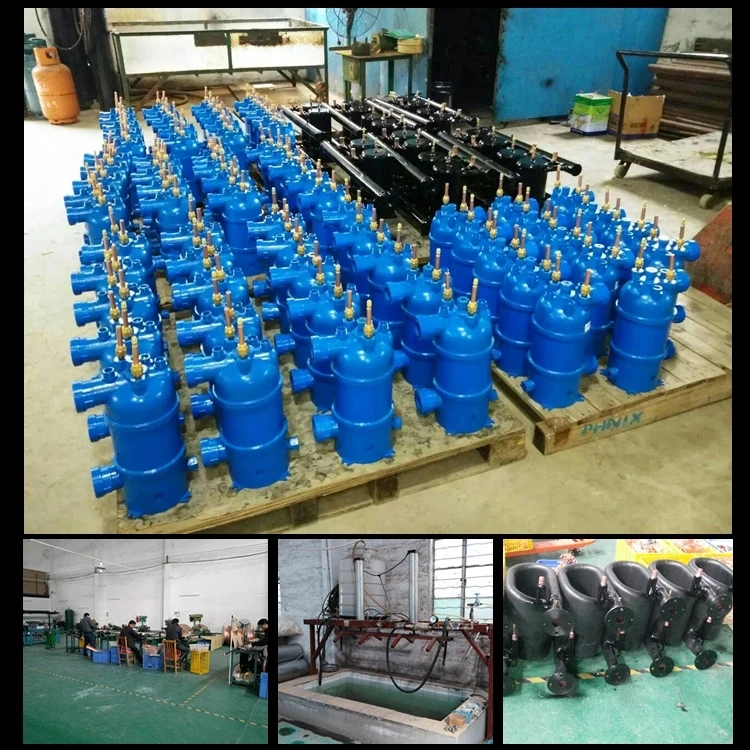

3). Production
Each worker must operate seriously according to production operating standard, pay attention to each installation link, both
copper pipe welding and electric controlling connection are both finished with professional technology.
4).Checking
Each heat pump must be checked seriously before leave our factory. COP, heating capacity must reach national standard, all
parameters such as current pressure, and water temperature and so on must be recorded, each heat pump test report is stored.
5). Package
After testing and checking , a qualified heat pump is packaged by plastic protective film and wooden case before send to our
warehouse, avoid hitting.
2) The titanium coil pressure loading capacity was designed base R410a high pressure work condition, The max. working pressure is
52 bar. and the extreme pressure was 360bar in our test.
3) 100,000 times alternating pressure (Low pressure 0 bar, high pressure 52bar) test shows it can be used more than 20 years.
Never corrosion.
Specification:
1) The data marked by orange is this model heat exchanger technical parameter. Please contact us to get the detail drawing.
2) The data list is our suggested data, We can produce any capacity heat exchangers according customer requirement and design.
Description:
Titanium has the super strong corrosion resistant ability. Our titanium heat exchanger use seamless pure titanium tube as heat
conductor, can ensure the titanium heat exchanger can be used for a long time, without any cost in the after-sale services.
Due to its good properties ,the titanium heat exchanger widely used in:
Swimming pool equipment, Aquarium chiller, Marine refrigerant system, Solar energy heater, Aquaculture, Pharmacy, Food industry,
Electroplating industry and some heat recovery from the waste water or exhaust gas.
Main material and property: --Molded cups titanium heat exchanger
1) The cups molding by high quality PVC material .
2) Due to its perfect structure design, the PVC shell can stand high working pressure. The max working pressure can be 1.2 Mpa ,
and the bursting pressure can be 2.3Mpa.
3) Its loading capacity can pass the CE, UL, ETL requirement, 100,000 times alternating pressure test ( Low pressure 0 bar , high
pressure 8 bar ) shows it can be used more than 20 years.
4) Good appearance, more safe in using, high efficient of heat transfer, easy for installation. It must be your best choice.
Quality Controlling :
1) Research & development
R&D is the core of products technology, it has a crucial import on products performance ,working condition, production quality,
production cost and so on. Our R&D team has many years experience of heat pump, we are improving the COP technology and defrosting
items.
2)Purchasing
In order to control products quality ,meet engineer demand, Suoning purchasing department purchase good quality materials
according to each model heat pump BOM list .Suoning demand each spare parts supplier has products testing report, and relative
CCC, ISO certificated, from compressor, expansion vale and so on.
3). Production
Each worker must operate seriously according to production operating standard, pay attention to each installation link, both
copper pipe welding and electric controlling connection are both finished with professional technology.
4).Checking
Each heat pump must be checked seriously before leave our factory. COP, heating capacity must reach national standard, all
parameters such as current pressure, and water temperature and so on must be recorded, each heat pump test report is stored.
5). Package
After testing and checking , a qualified heat pump is packaged by plastic protective film and wooden case before send to our
warehouse, avoid hitting.

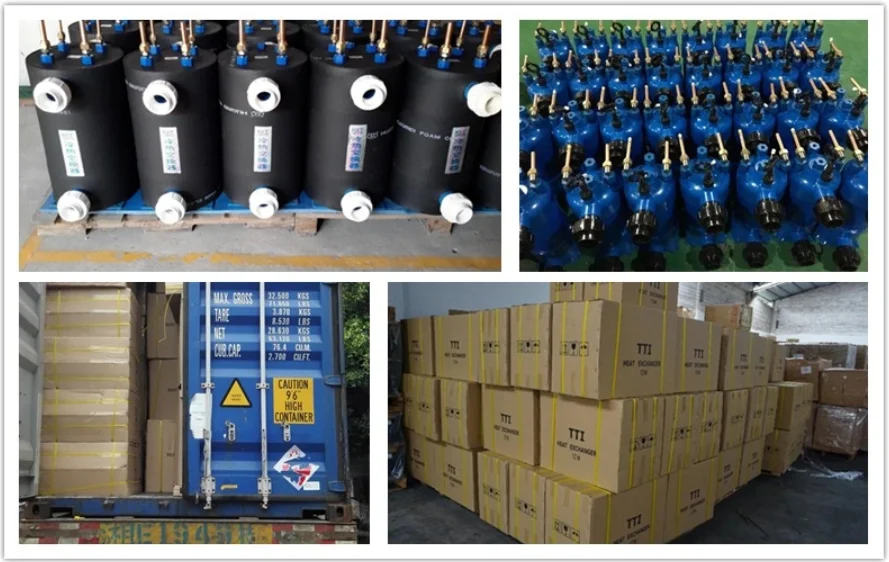

Packing & Delivery
Company Profile
ShanDong EcoIce Refrigeration Co., Ltd is specialized in manufacturing flake ice machine, heat exchanger,quick freezer , seafood process machines and water chiller in China.
With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products. For any new project, we could prepare samples for quality check on client request. Now our factory has been awarded ISO9001: 2000, ISO14000, RoHS and UL certificate.
With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia...
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.
With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products. For any new project, we could prepare samples for quality check on client request. Now our factory has been awarded ISO9001: 2000, ISO14000, RoHS and UL certificate.
With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia...
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.
