China Supply Intelligent Synchronous Hydraulic Control Hollow Jack System for Prestressed Tension
- Category: >>>
- Supplier: Gaode Equipment Co. Ltd.
Share on (1600575335676):
Product Overview
Description

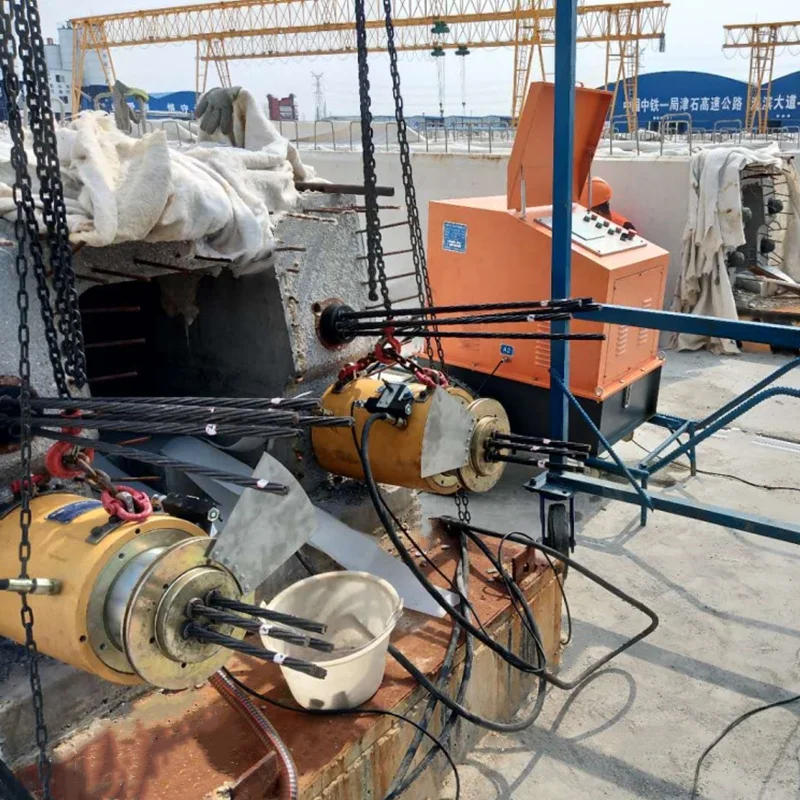

Intelligent Synchronous Hydraulic Control Hollow Jack System for Prestressed Tension
Product Description
Description of prestressed intelligent tension system
Intelligent tension means that the tensioning construction of steel strands is completed by using computer intelligent control technology and automatic operation of instruments without relying on manual control.

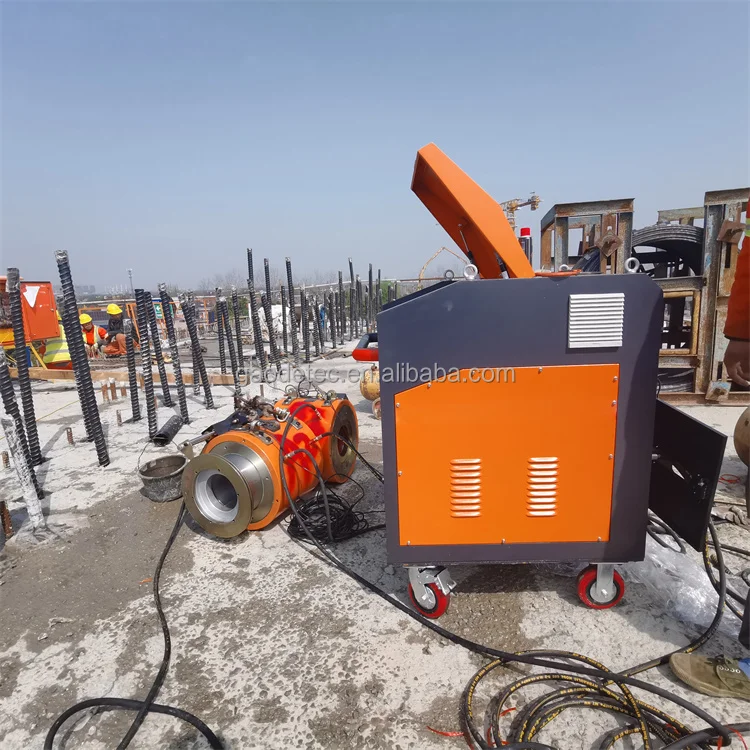

Prestressed intelligent tensioning system mainly includes three components: intelligent main pump station, intelligent auxiliary pump station, and intelligent jack.
Prestressed intelligent tensioning system mainly includes three components: intelligent main pump station, intelligent auxiliary pump station, and intelligent jack.
Product Application

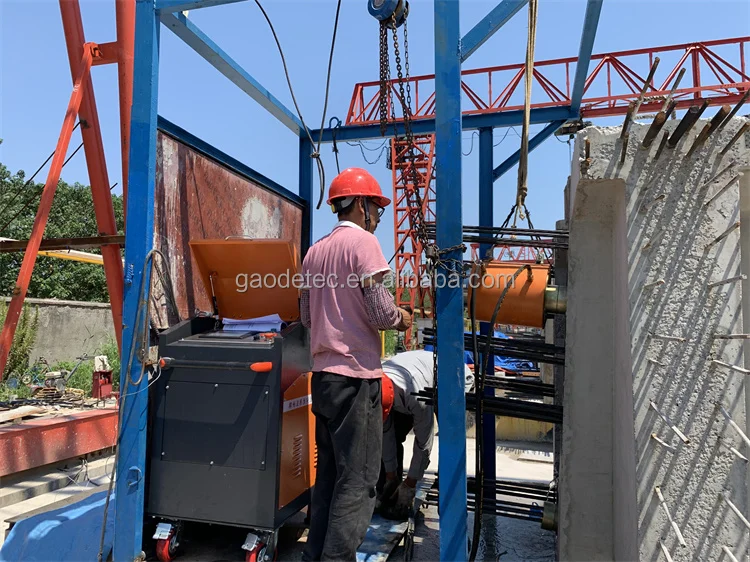

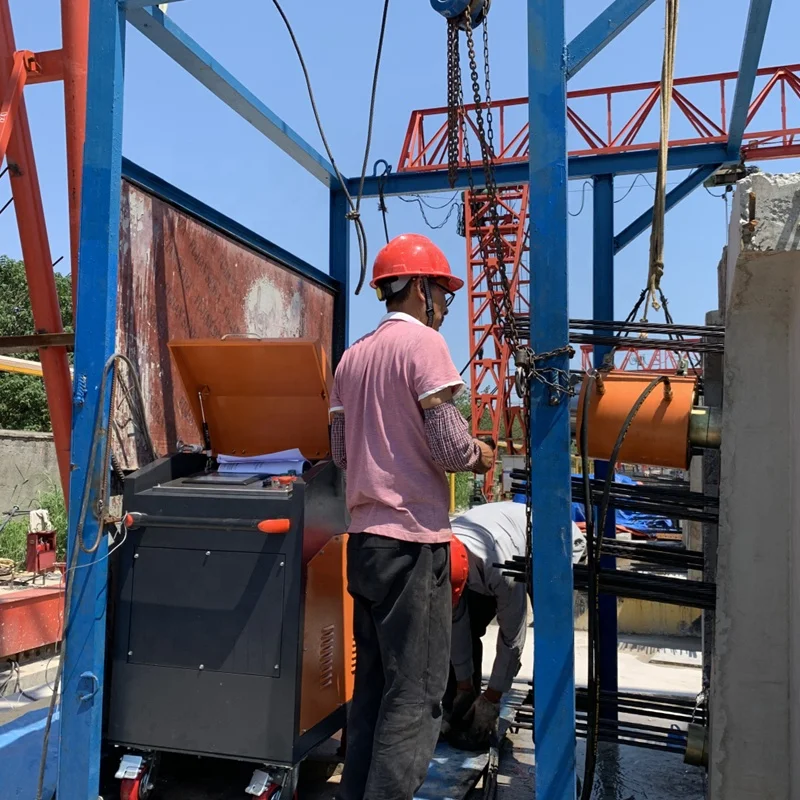

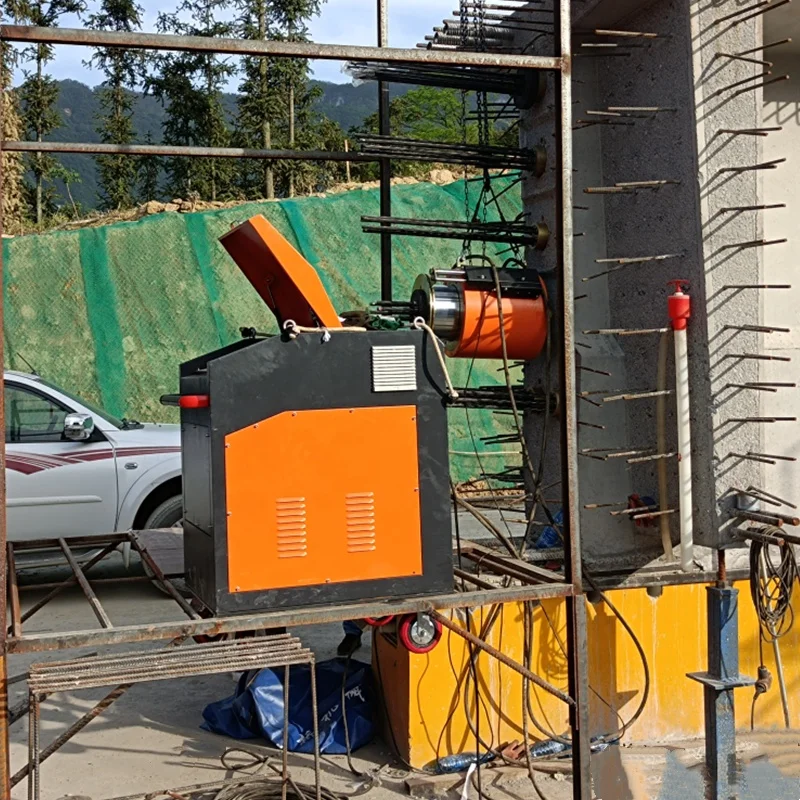

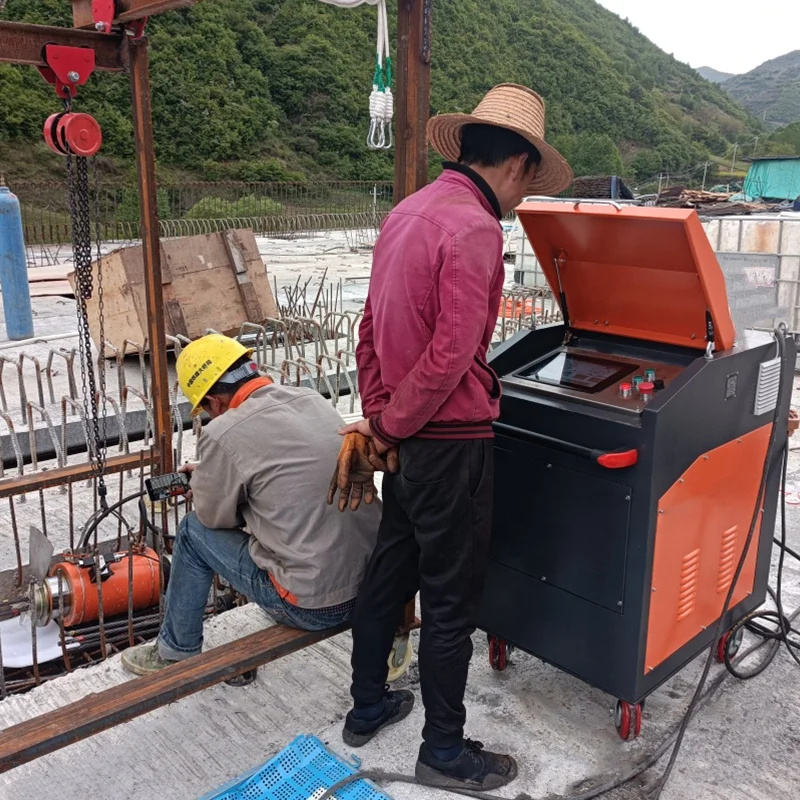

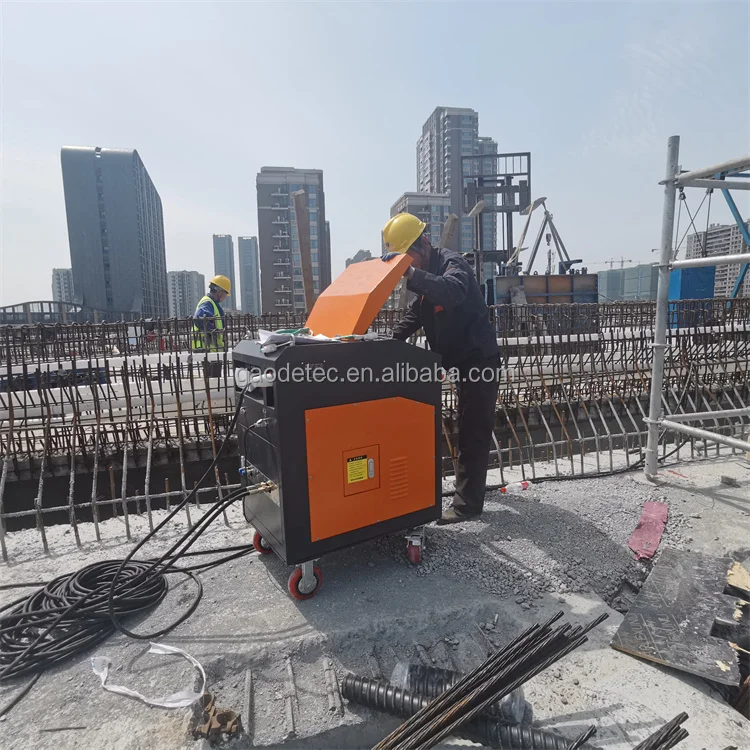

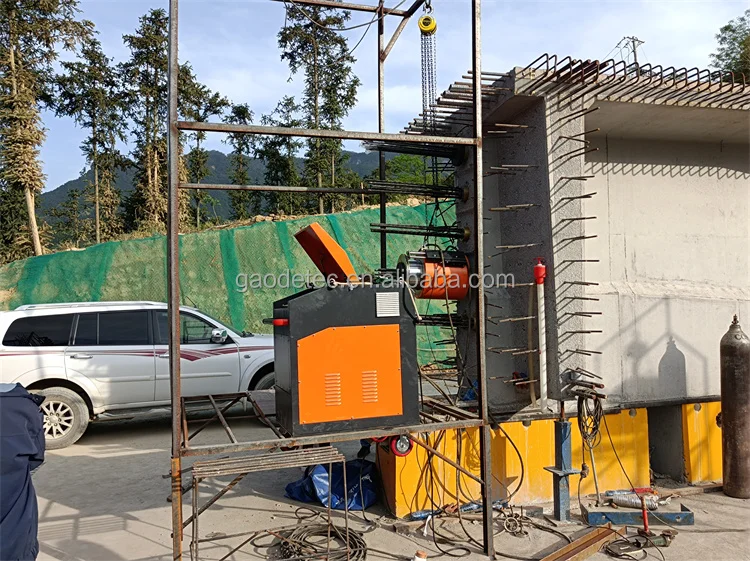

The prestressed intelligent tension system is widely used in bridges, highways, railways, hydropower stations, high-rise construction, etc.
And it is mainly used for the tensile construction and anchoring performance test of prestressing tendons, especially bridge prestress tendons and rock-soil anchor cables.
And it is mainly used for the tensile construction and anchoring performance test of prestressing tendons, especially bridge prestress tendons and rock-soil anchor cables.
Product parameters
Prestressed intelligent tension system composition table | ||||
Item | GZB2X2-500 （2JACKS Synchronous tension） | GZB2X3-500 （4JACKS Synchronous tension） | ||
Intelligent Tension Main pump | 1set | 1set | ||
Intelligent Tension auxiliary pump | 1set | 1set | ||
Intelligent hydraulic jack | 2sets | 4sets | ||
High pressure hoses | 4pcs | 8pcs | ||
High precision pressure transmitter | 2pcs | 4pcs | ||
displacement sensor | 2pcs | 4pcs | ||
Data monitoring computer | 1set | 1set | ||
Supporting operating system software, etc | 1pc | 1pc | ||
Voltage | Tension time | Measuring system accuracy | Stroke Accuracy | Double top to pull imbalance |
380V | 10M/S | 0.25%FS | 0.05% | 5KN |
YDC Hydraulic Jack | ||||||||||||||
Model | Tonnage ton | Tension Force KN | Stroke mm | Central Diameter mm | Tension area mm2 | Rated Oil Pressure Mpa | Numebr Of Max. Tension Strands | |||||||
YDC650 | 65 | 650 | 200 | Φ60 | 12638 | 51 | 3 Strands | |||||||
YDC1100 | 110 | 1100 | 200 | Φ80 | 20488 | 54 | 5 Strands | |||||||
YDC1500 | 150 | 1500 | 200 | Φ90 | 30242 | 50 | 7 Strands | |||||||
YDC2000 | 200 | 2000 | 200 | Φ114 | 35796 | 56 | 9 Strands | |||||||
YDC2500 | 250 | 2500 | 200 | Φ128 | 48356 | 52 | 12 Strands | |||||||
YDC3000 | 300 | 3000 | 200 | Φ142 | 57796 | 52 | 14 Strands | |||||||
YDC3500 | 350 | 3500 | 200 | Φ158 | 70765 | 49 | 17 Strands | |||||||
YDC4000 | 400 | 4000 | 200 | Φ158 | 76302 | 53 | 19 Strands | |||||||
YDC4600 | 460 | 4600 | 200 | Φ190 | 87606 | 53 | 22 Strands | |||||||
YDC5000 | 500 | 5000 | 200 | Φ193 | 93965 | 53 | 24 Strands | |||||||
YDC5600 | 560 | 5600 | 200 | Φ193 | 107156 | 52 | 27 Strands | |||||||
YDC6500 | 650 | 6500 | 200 | Φ205 | 124580 | 52 | 31 Strands | |||||||
The difference between prestressed intelligent tension system and ordinary prestressed tension system
Prestressed intelligent tension system | Ordinary prestressed tension system |
1. No manual operation, controlled by computer. | 1. Manually control the tensioning process. |
2. Use sensors to collect data and perform automatic analysis and judgment in real-time. | 2. Human reading and logging of data. |
3. Realize synchronous tensioning and complete the entire tensioning process automatically. | 3. To ensure synchronous tensioning, you need to use the walkie-talkie to talk or gesture hints. |
Feature
1. Two-way tension synchronization.
2. The oil rate can be loaded.
3. Precise control and memory.
4. Calculate the tension results and generate reports automatically to prevent data loss.
5. Real-time tracking, error correction timely, stability, and good performance.
6. With manual tensioning and automatic tensioning functions.
2. The oil rate can be loaded.
3. Precise control and memory.
4. Calculate the tension results and generate reports automatically to prevent data loss.
5. Real-time tracking, error correction timely, stability, and good performance.
6. With manual tensioning and automatic tensioning functions.

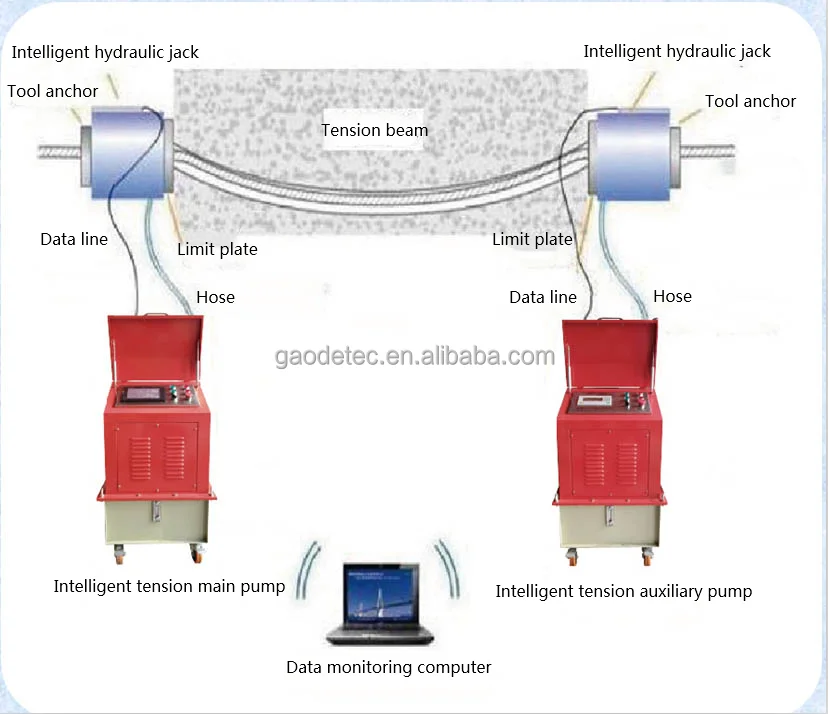

Working Principle
When using prestressed intelligent tension system, the main pump and the auxiliary pump are wirelessly connected, and the auxiliary pump will shift and pressure The signal is transmitted to the main pump.
After the main pump processes the signal, it transmits the control signal to the auxiliary pump to control the oil supply, and stops and returns the jack. During the tensioning construction, the on-site tensioning parameters of the main pump are wirelessly transmitted to the on-site monitoring computer for storage to prevent the tensioning parameters from being lost due to transmission problems.
Related Products
Company Profile
Contact Us
Contact us for price
Before we send the quotation, please let me know the following question:
1. What is the tonnage and stroke you need?
2. Do you need anchors or other prestressing equipment?
3. What's your local voltage? 3phase 380v 50Hz is OK for you?
1. What is the tonnage and stroke you need?
2. Do you need anchors or other prestressing equipment?
3. What's your local voltage? 3phase 380v 50Hz is OK for you?
