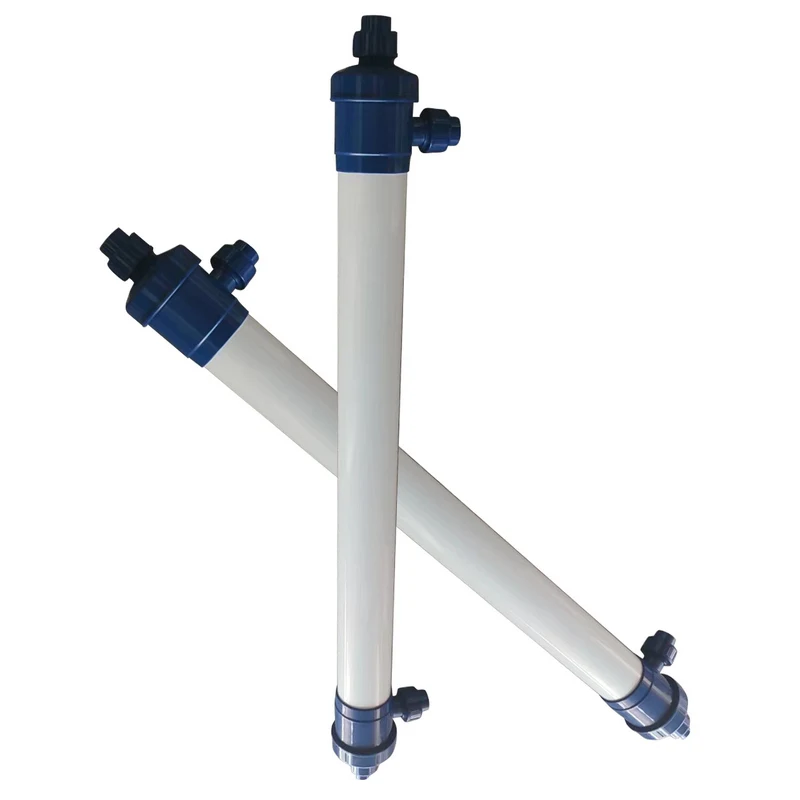

UF filter membrane hollow fiber UF membrane filter for concentration and separation of drinking liquids
- Category: >>>
- Supplier: Shenzhen Youber Technology Co. ltd
Share on (1600575343246):
Product Overview
Description
Product Description
Hollow fiber UF membrane Product characteristics:
(1) PVC material UF membrane module can remove bacteria, microorganisms, it can reduce turbidity, SDI and remove colloids, macromolecular organics;
(2) High mechanical strength of PVC modules, and good elongation make membrane has longer lifespan;
(3) PVC hollow fibers and UPVC shell make membrane modules have cheap price;
(4) PVC UF membrane module can be applied to drinking water purification, treatment of river water, seawater, groundwater, pre-treatment of RO, reclaimed water reuse,etc.

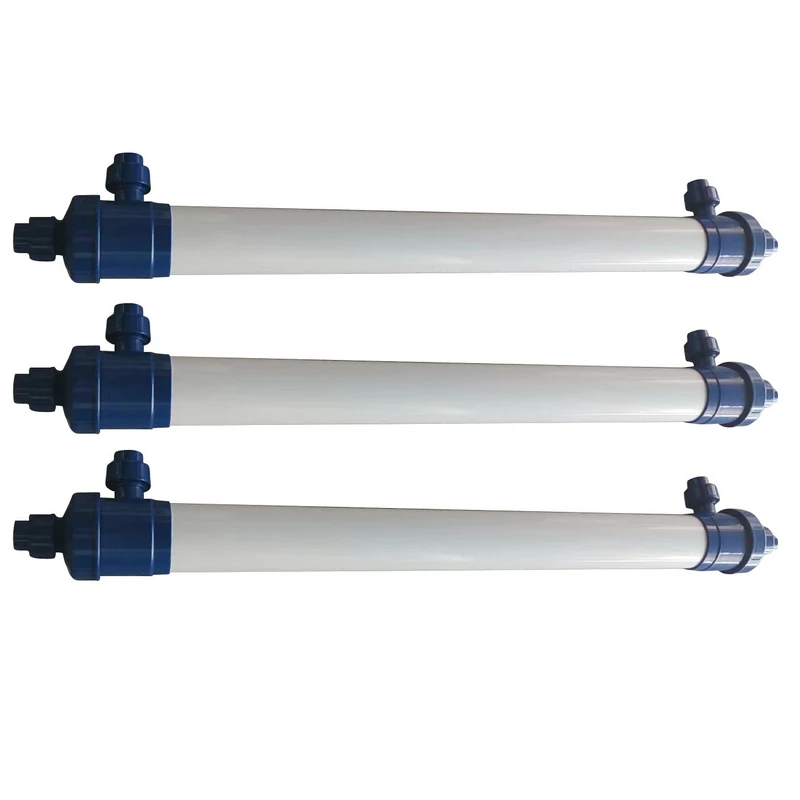

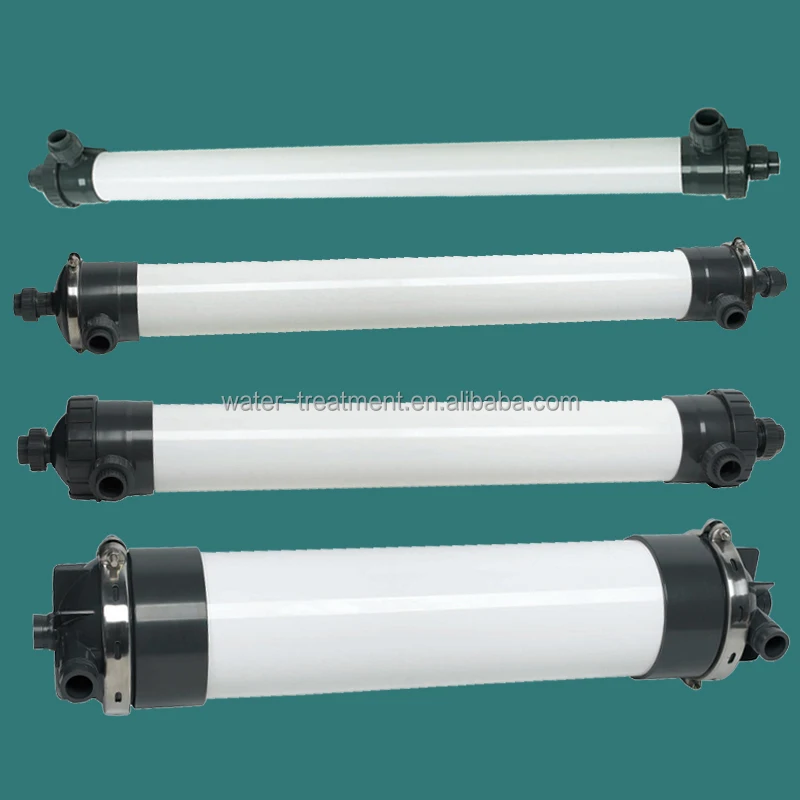

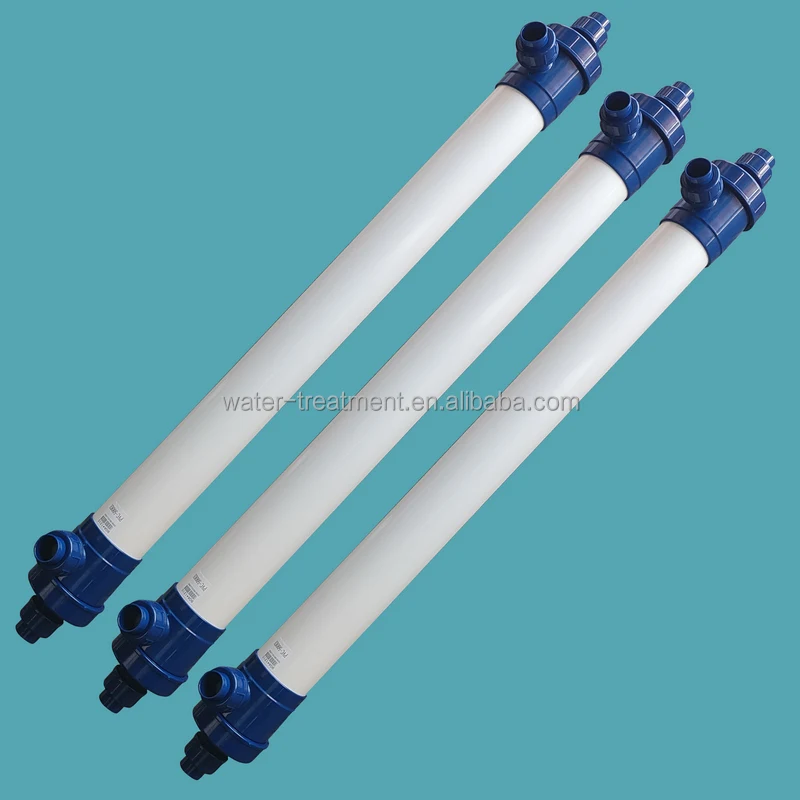

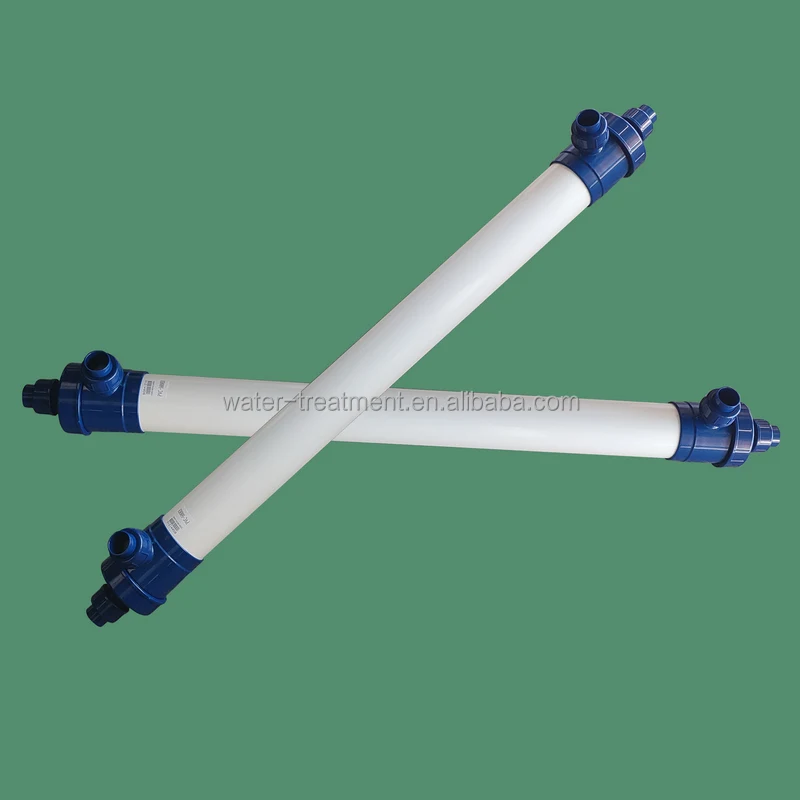

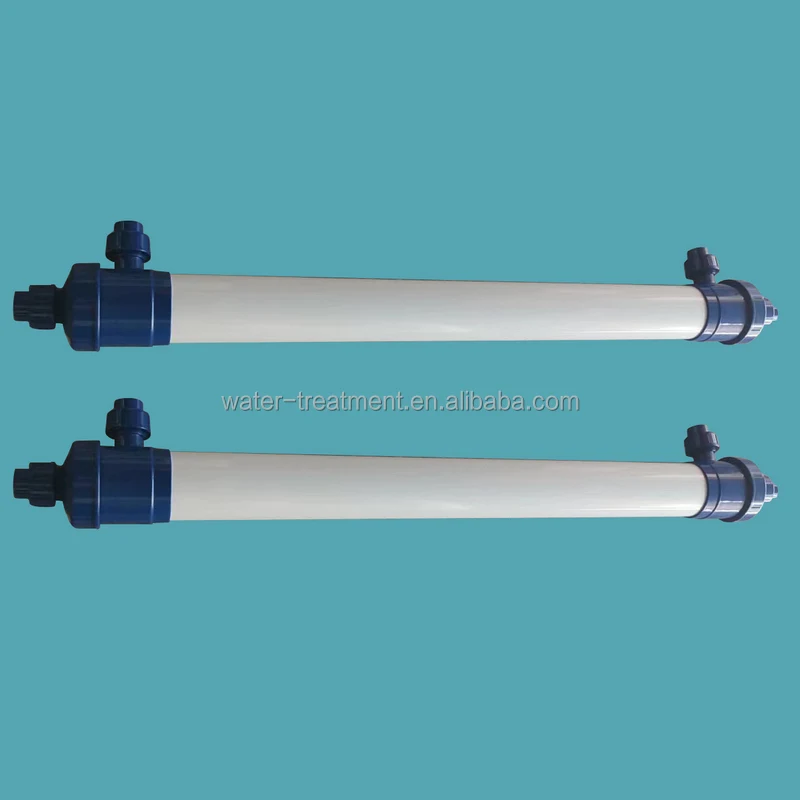

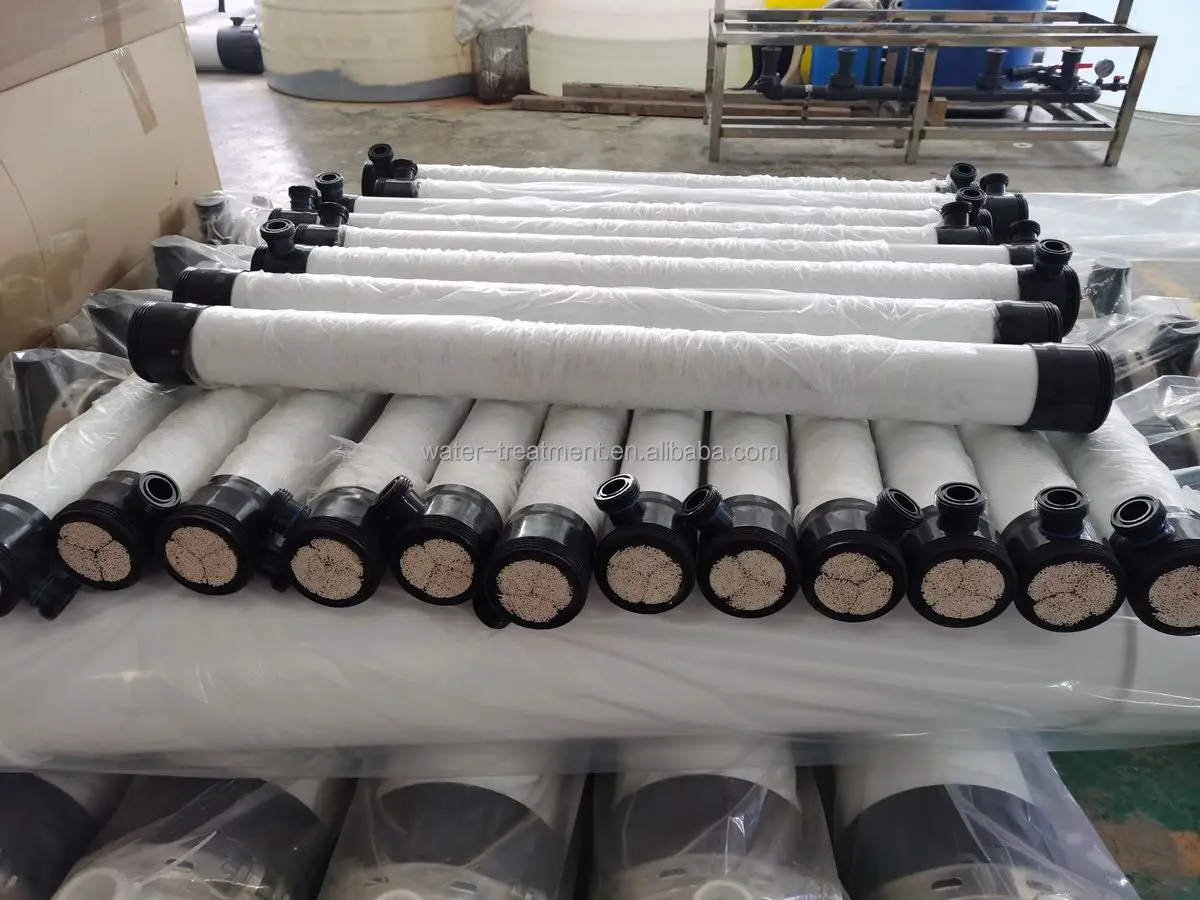

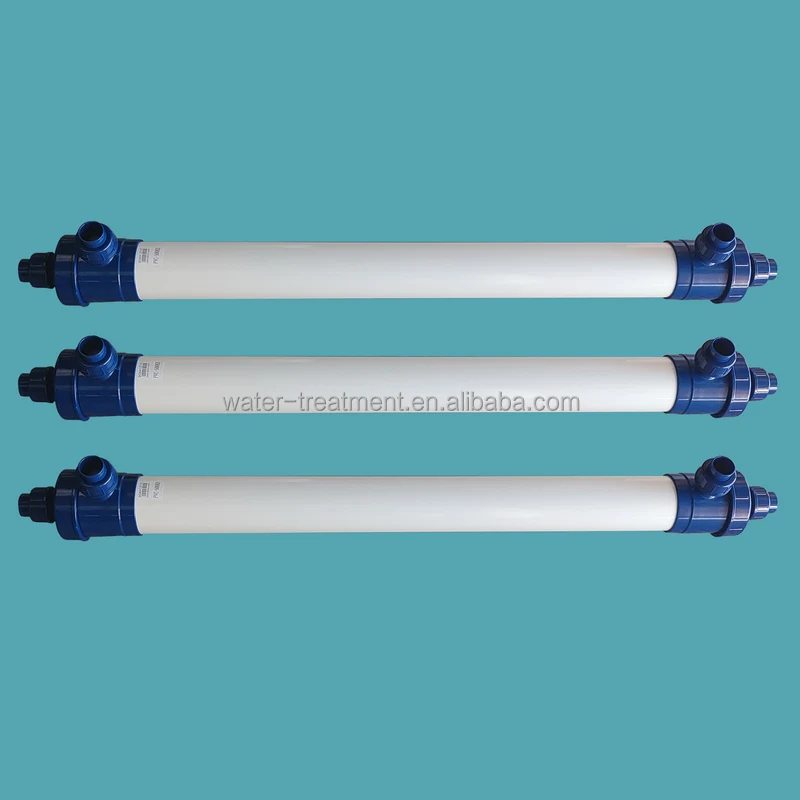

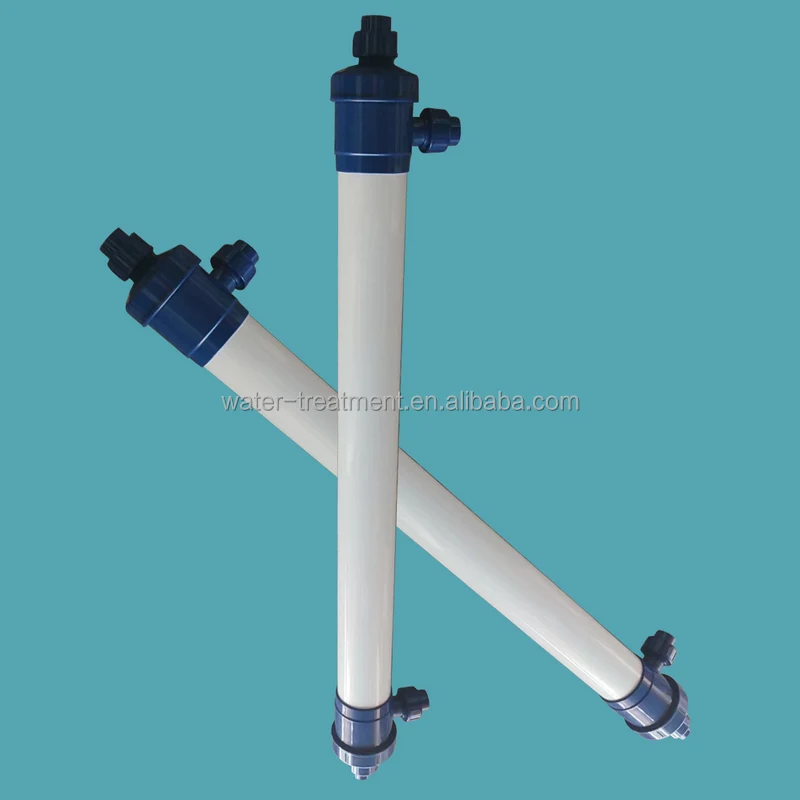

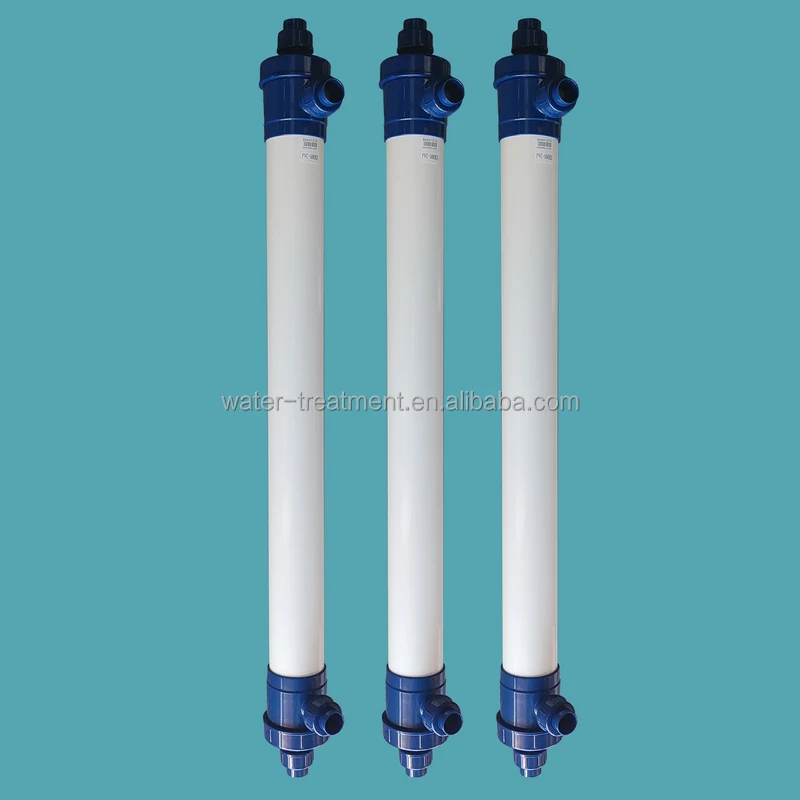

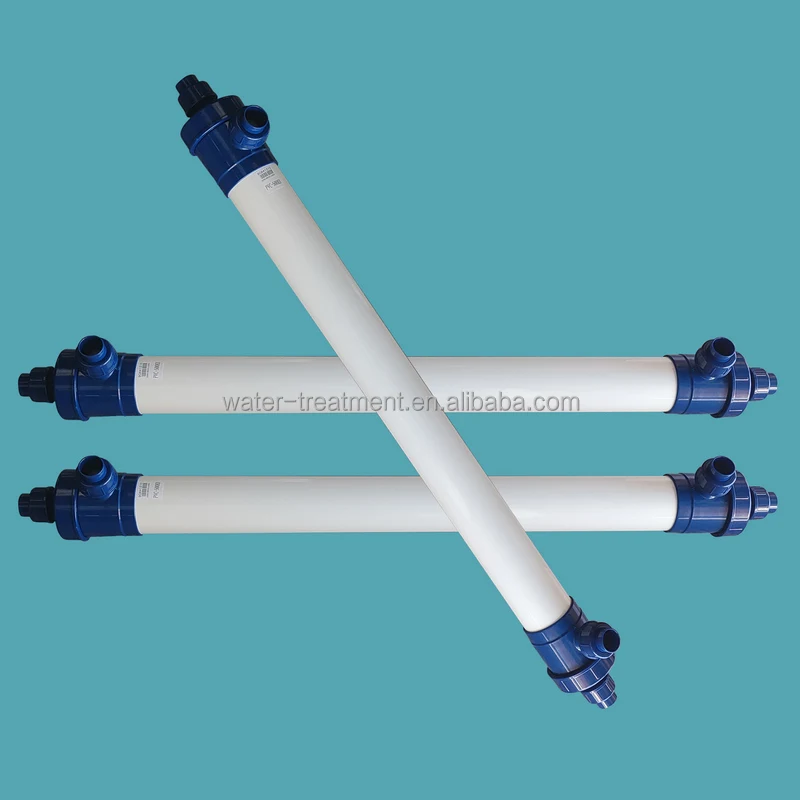

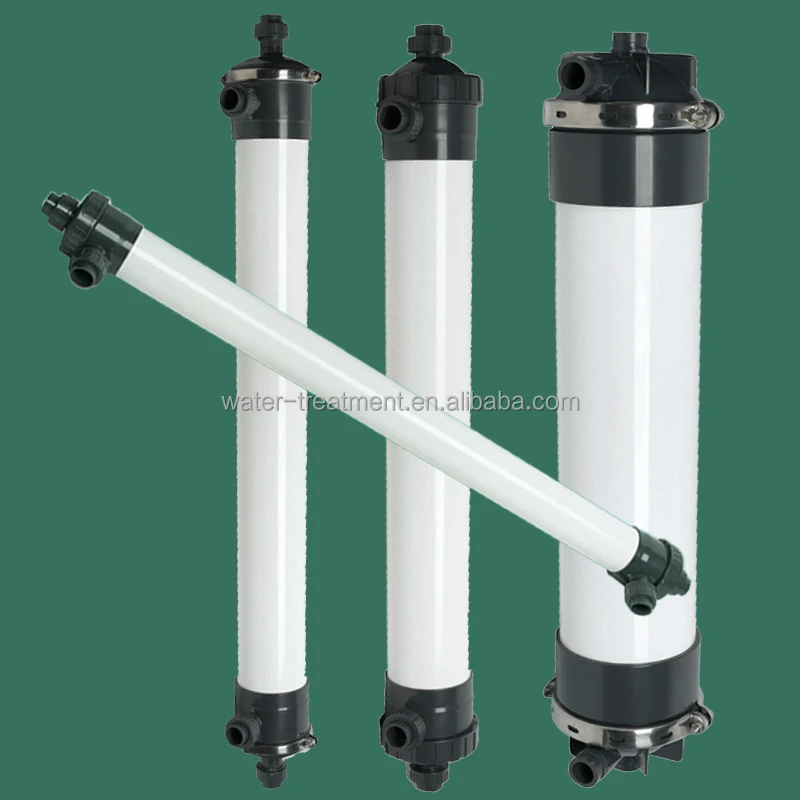

Photos for UF90-H-500KC 4'' Hollow fiber UF membrane:
(1) PVC material UF membrane module can remove bacteria, microorganisms, it can reduce turbidity, SDI and remove colloids, macromolecular organics;
(2) High mechanical strength of PVC modules, and good elongation make membrane has longer lifespan;
(3) PVC hollow fibers and UPVC shell make membrane modules have cheap price;
(4) PVC UF membrane module can be applied to drinking water purification, treatment of river water, seawater, groundwater, pre-treatment of RO, reclaimed water reuse,etc.
Photos for UF90-H-500KC 4'' Hollow fiber UF membrane:

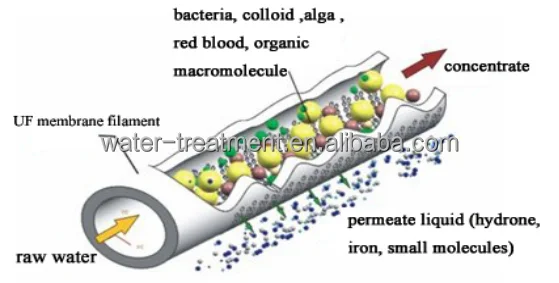

Ultrafiltration technology principle introduction:
* Ultrafiltration technology is one kind of nanometer level membrane separation technology;
* Ultrafiltration technology is one kind of nanometer level membrane separation technology;
* The hollow fiber ultra filtration process takes the hollow fiber membrane fiber as the filter medium;
* Take the membrane fiber inside and outside differential pressure as the driving influence;
* The different physical diameter size's material carries on the separation according to certain filtration aperture to the solution in the process, achieves to purification, separation, depuration, concentration.
* Take the membrane fiber inside and outside differential pressure as the driving influence;
* The different physical diameter size's material carries on the separation according to certain filtration aperture to the solution in the process, achieves to purification, separation, depuration, concentration.
Advantages and Features
A: High mechanical strength
To ensure the hollow fiber UF membrane fibers in the long-term stable running under various complicated working condition, without appearing broken fibers, ensure the effect of ultrafiltration water;
B: High elongation
It is in the swing of the disordered state during backwash, the higher elongation of the membrane fibers, the more effective to ensure no phenomenon of broken fibers, to ensure the effect of water;
C: High porosity
Membrane silk porosity rate is more than 90%, makes the internal and external cortex microporous numbers is more than low porosity of the membrane, to ensure the filtration precision, also increase the water flux of the membrane filter.
D: Good hydrophilia
Fibers have excellent hydrophilicity, contact Angle with water has low to 48, under low pressure difference water through the membrane, to ensure the membrane filter product with larger flux in the operation process;
Specification
Product name | Hollow fiber UF membrane |
Model | YB-UF90-H-500KC |
MWCO | 500K dalton (50K, 10K, 6K also can customize) |
Filtration pore size | 0.1micron |
Membrane material | PVC (PVDF, PES material also provide) |
Module design flow rate | 160-560L/H |
Membrane size | Diameter 90mm, Length 1190mm |
Function | To remove bacteria and decrease the turbidity |
Application | For industrial water treatment and liquid separation |
Certification | CE Certificate |
YOUBER UF membrane production water effect Double guarantee:
* YOUBER Hollow fiber ultrafiltration membrane fibers inside and outside double layers structure;
* YOUBER Hollow fiber ultrafiltration membrane fibers inside and outside double layers structure;
* The cortex is the densest part of the main filtering effec;
* Ensure that all of the fluid through the membrane fibers medium after double filtering;
* More good guarantee the quality of the output water.
* Ensure that all of the fluid through the membrane fibers medium after double filtering;
* More good guarantee the quality of the output water.
Application place
(1) Drinking water purification
To remove rust and suspended solids, E. coli, bacteria and viruses, and removal of organic humus macromolecules role. It is applied to municipal drinking water, rural drinking water, household water purification, etc.
(2) Pretreatment for ultrapure water and pure water:
UF can guarantee the high quality feed water for reverse osmosis plants, better protection of RO membrane, to extend the life of RO membrane, to reduce the replacement costs of ro membranes.It is applied for RO pretreatment.
(3) Municipal sewage and industrial greywater recycle
UF is mainly to reduce water turbidity and suspended solids content of waste water, to reduce color and fat content, as a means to protect the quality of recycle water quality.
(4) Separation of special liquid:
UF primary role is to isolate the material, protein with different pore size, amino acid refined electrophoresis paint recycling, etc.;
Used for food and drinking industry etc.
Youber Hot Products
Material: PVC, PES etc;
Dalton: 6k, 10k, 50k, 100k.
Housing: Stainless steel/FRP
Housing: Stainless steel/FRP
Material: PVC, PES etc;
Dalton: 6k, 10k, 50k, 100k.
Housing: Stainless steel/FRP
Housing: Stainless steel/FRP

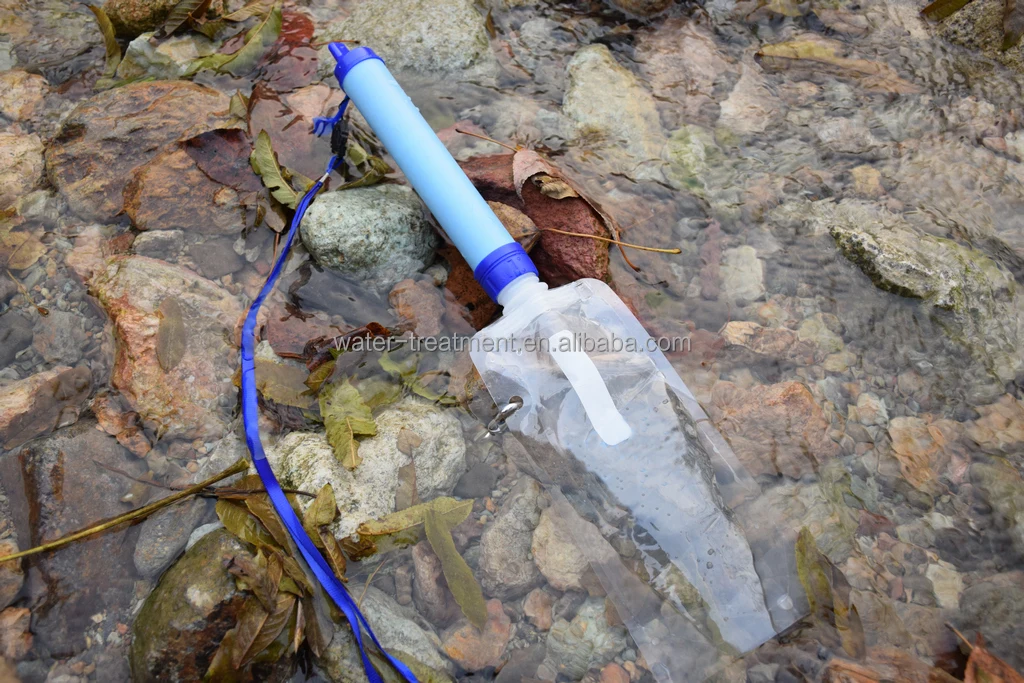

UF filter membrane material: PVC, PAN, PES, PVDF; For home, outdoor, emergency drinking water use;
-Model: YB-S2
-Filtration pore size: 0.01 micron
-Weight: 70g-Flow rate: 450ML/min
-Purified water capacity: 1500L
-Color:Sky blue, green, black etc. -Material: active carbon+UF membrane
-Spare parts: WIth syringe, hose, water bag, hanger, instruction manual etc.
-Feature: With thread in the end, easy to connect with water bottle or water bag.
-Function: 99.99% remove bacteria for drinking water;
-Filtration pore size: 0.01 micron
-Weight: 70g-Flow rate: 450ML/min
-Purified water capacity: 1500L
-Color:Sky blue, green, black etc. -Material: active carbon+UF membrane
-Spare parts: WIth syringe, hose, water bag, hanger, instruction manual etc.
-Feature: With thread in the end, easy to connect with water bottle or water bag.
-Function: 99.99% remove bacteria for drinking water;
Length: 10/20inch Diameter: 117MM
Material: PVDF
Material: PVDF
Fit in big blue filter housing;
Flow rate: > 2000L/H
Features: Washable to recover flow rate;
To remove bacteria and high turbidity.
Features: Washable to recover flow rate;
To remove bacteria and high turbidity.
