Product Overview
Description
Product Introduction

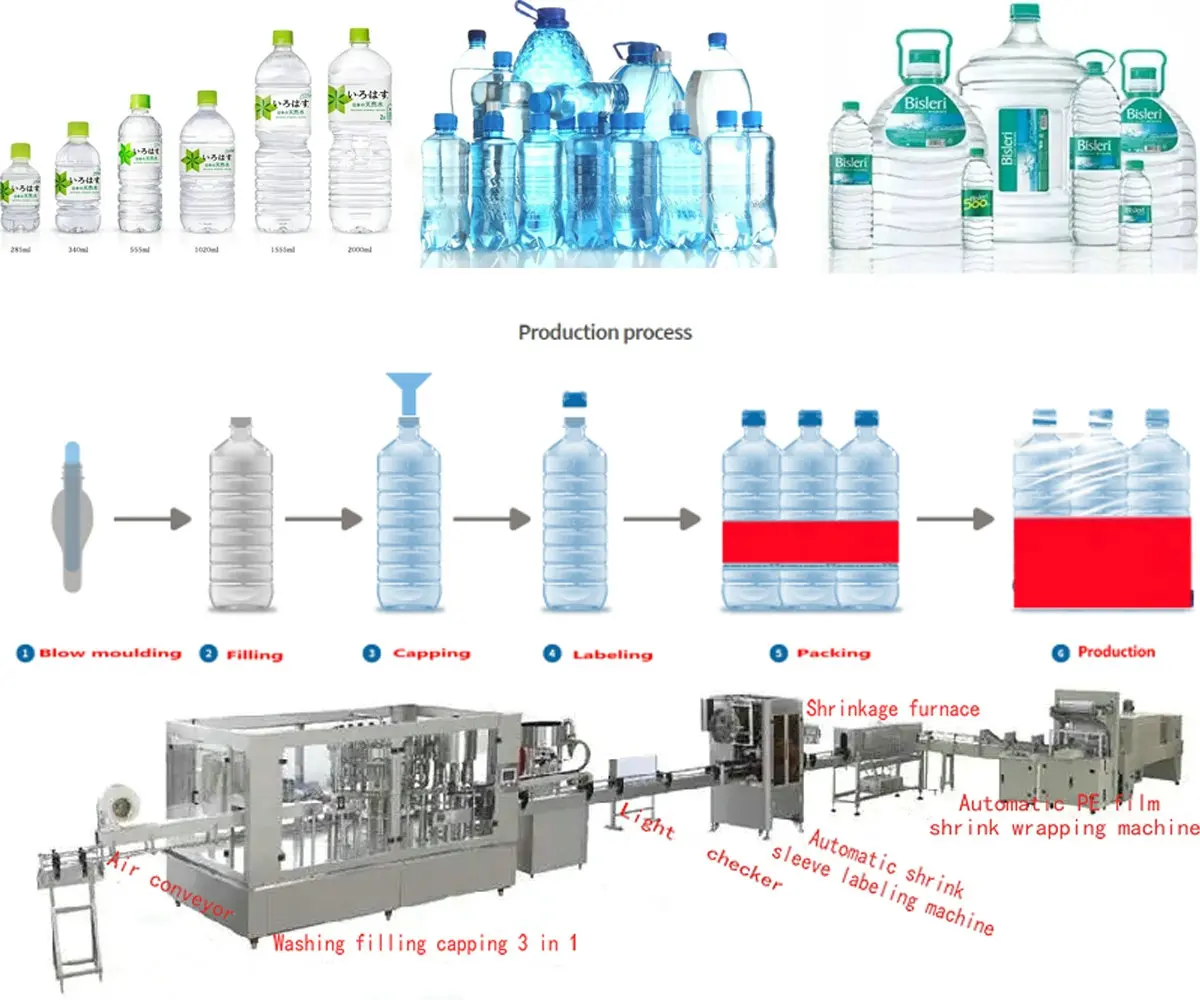

The series injection type gravity type dual-use filling machine is a high-tech product researched and developed by our company. It is suitable for products of various viscosities such as water injection, semi-fluid, ointment and shampoo etc. It is widely applied for filling of products in such industries as food, cosmetics, medicine, grease, daily chemical industry,detergent,pesticide and chemical industry etc. By adopting straight line filling model, it can be used to fill solution of different types without the need of adding any spare parts.
Application

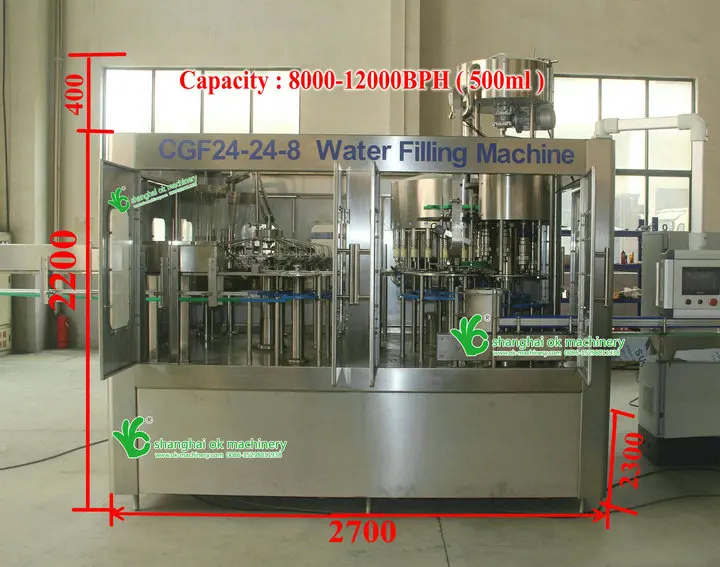

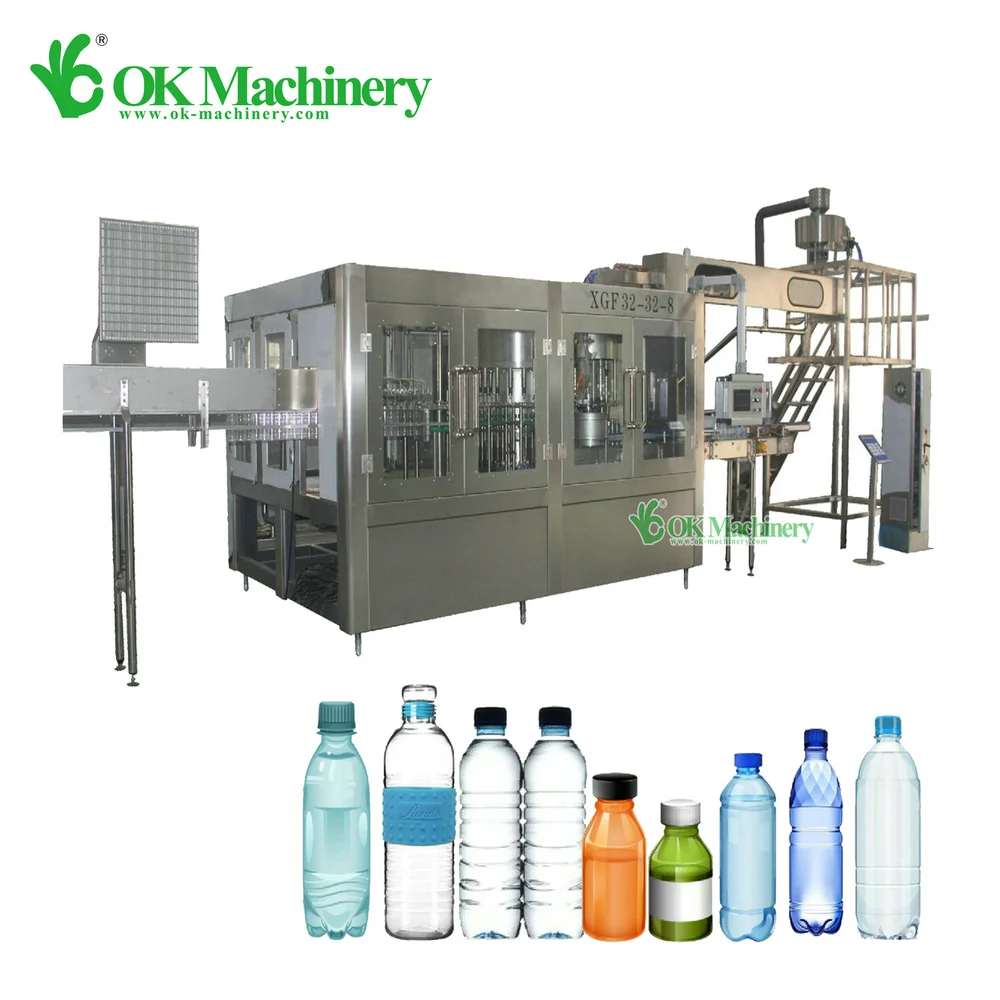

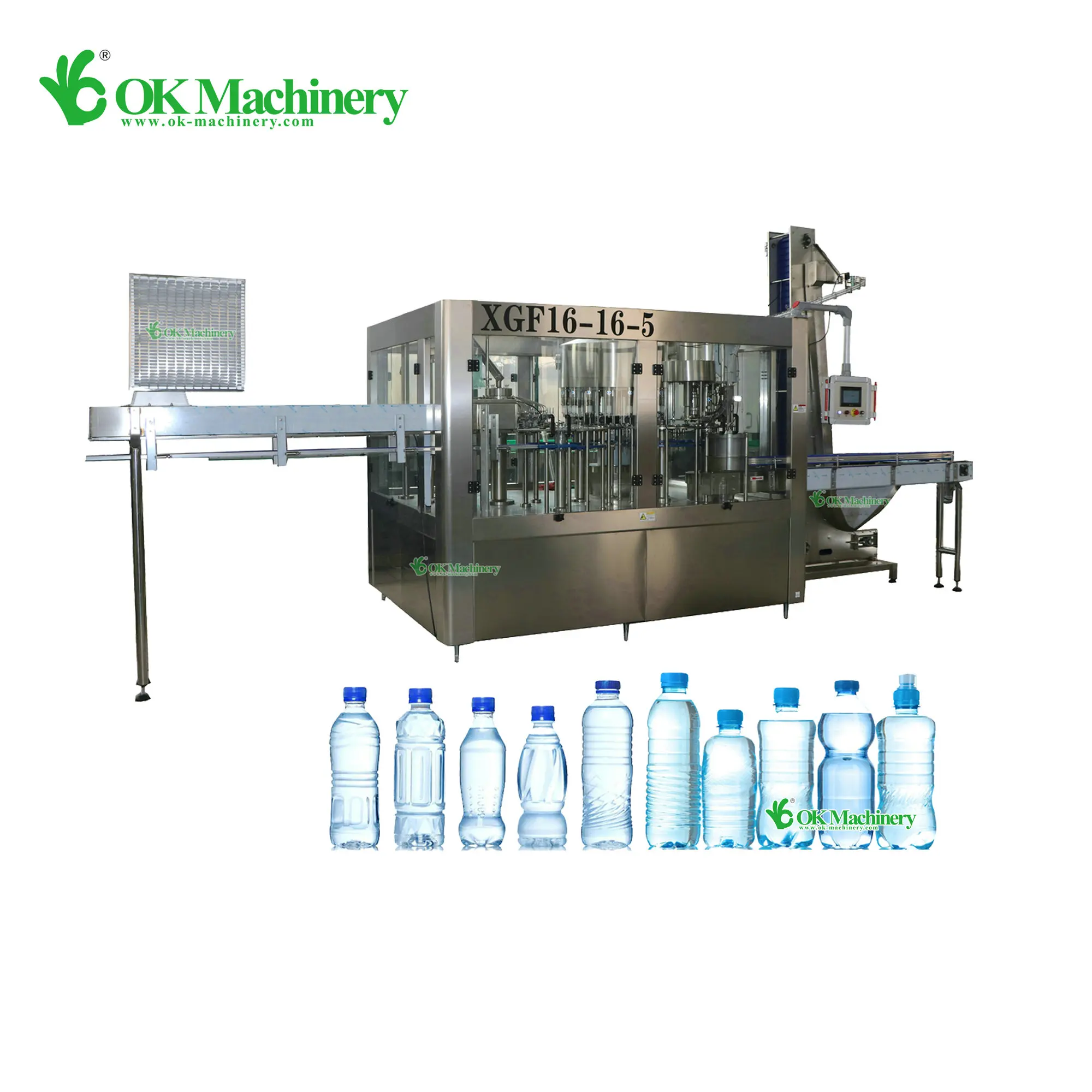

Model | XGF14-12-5 | XGF16-16-5 | XGF24-24-8 | XGF32-32-8 |
Capacity | 5000BPH | 8000BPH | 12000BPH | 15000BPH |
Machine power | 2.2kw | 3.5kw | 5.5kw | 7.5kw |
Weight | 3200kg | 3800kg | 4200kg | 5000kg |
Machine size | 236*177*220cm | 270*200*220cm | 270*230*220cm | 300*285*220cm |
Bottle high | 150-320mm | 150-320mm | 150-320mm | 150-320mm |
Bottle diameter | 50-110mm | 50-110mm | 50-110mm | 50-110mm |
Machine Specification

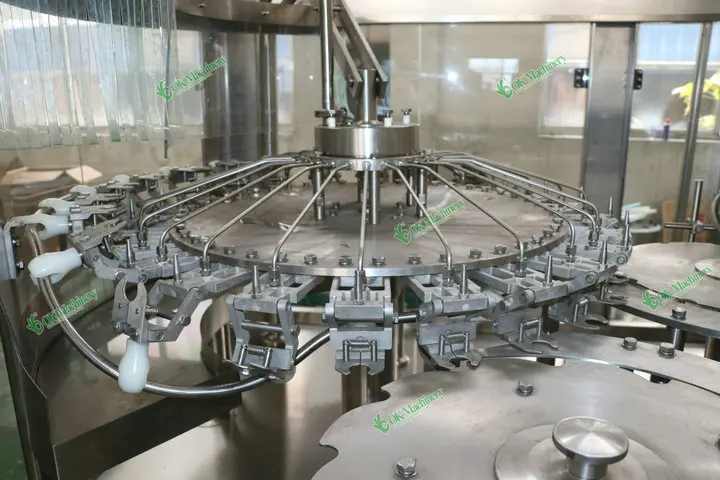

Washing Part
Function : washing bottle inside and outside dust .
Function : washing bottle inside and outside dust .
1.All 304/316 stainless steel rinse heads, water spray style inject design,more save water consumption and more clean.,
2.304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
3. 304/316 stainless steel washing pump
3. 304/316 stainless steel washing pump

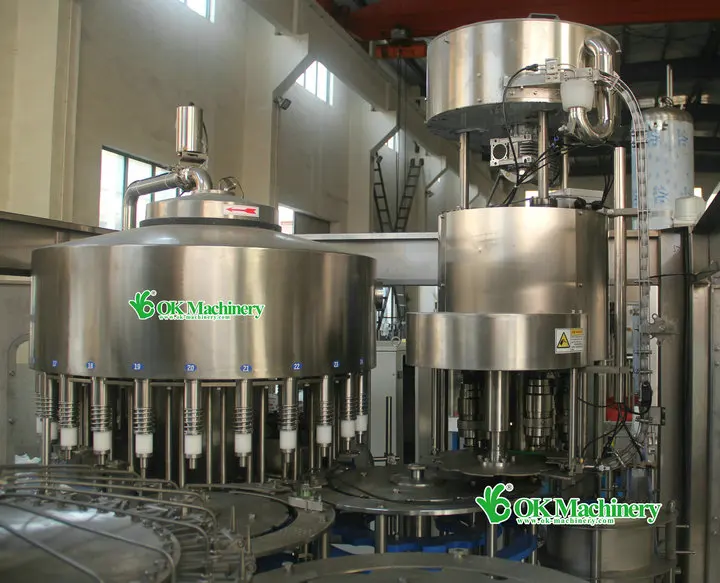

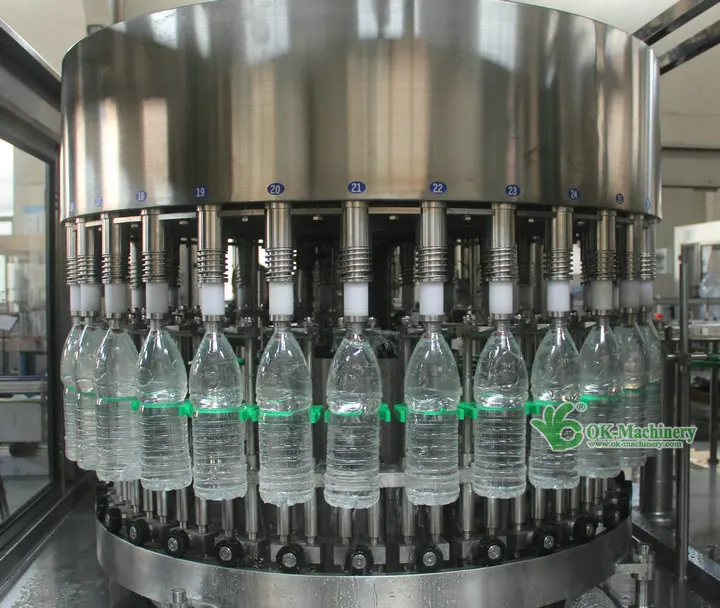

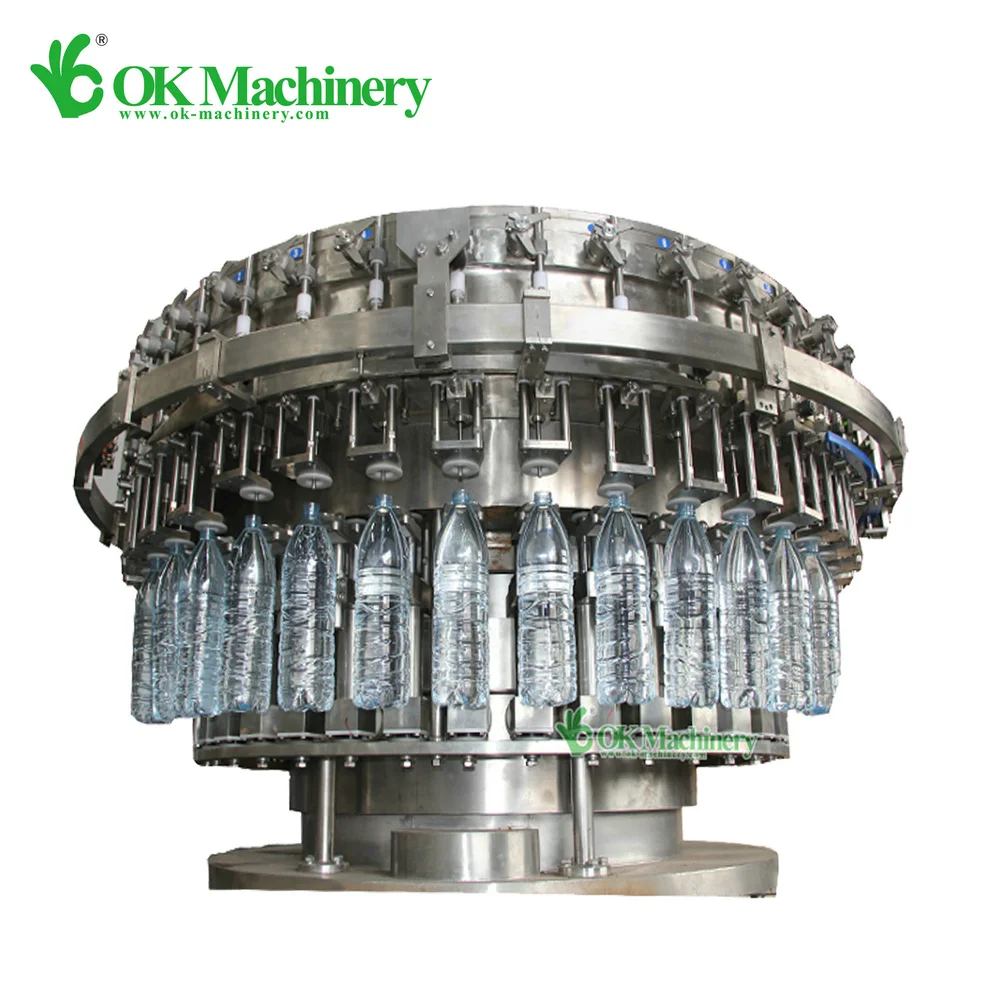

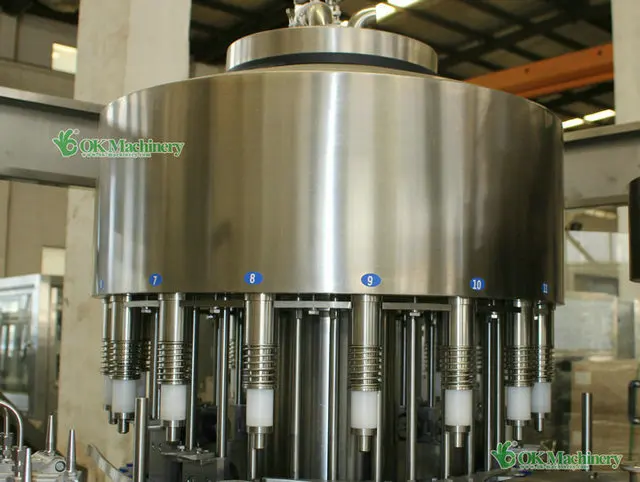

Filling Part
Function : filling water into bottle .
Function : filling water into bottle .
1. 304/316 Stainless steel high precision filling nozzle .
2. Filling volume adjustable infine rank, same liquid level after filling .
3.All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean .
4.304/316 stainless steel filling pump
3.All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean .
4.304/316 stainless steel filling pump

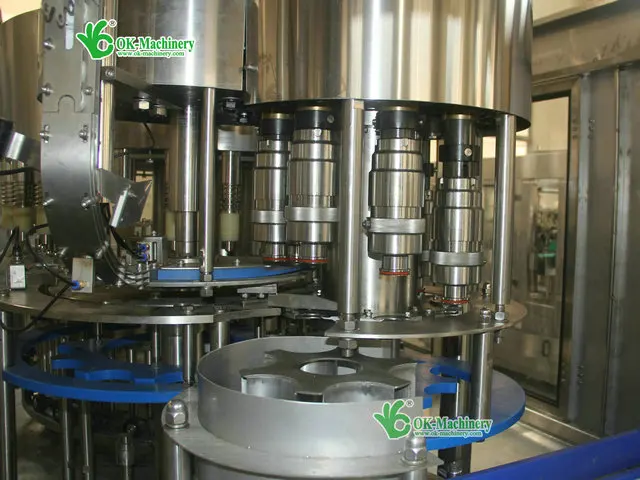

Capping part
Function : put caps on bottle .
Function : put caps on bottle .
1.Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2.All 304/316 stainless steel construction
3. No bottle no capping
4.Automatic stop when lack of bottle
2.All 304/316 stainless steel construction
3. No bottle no capping
4.Automatic stop when lack of bottle
Related Machinery
Depalletizer
The depalletizer is new style one which is researched and developed by absorbing
advanced technology aboard. It is suitable for different medium and large filling production line, some functions will be changed
or added according to the
customer’s actual requirement. The machine features as easy operation, smooth
running, large output and easy maintenance.
Technical Parameters:
Capacity: 12000CPH
Power: 3.75KW
Specification of pile: 1200×1200×150mm
Height of pallet 2300mm
advanced technology aboard. It is suitable for different medium and large filling production line, some functions will be changed
or added according to the
customer’s actual requirement. The machine features as easy operation, smooth
running, large output and easy maintenance.
Technical Parameters:
Capacity: 12000CPH
Power: 3.75KW
Specification of pile: 1200×1200×150mm
Height of pallet 2300mm
Automatic cap loader
Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Laser printer
Application: Printing the production date and life of quality assurance on the bottles. Model :OK-200 Capacity :7000bottles/hour
Material : SUS 304 Power : O.12KW 220v/110v 50HZ/60HZ Diameter : 620x320x 750mm Weight :40KG
Material : SUS 304 Power : O.12KW 220v/110v 50HZ/60HZ Diameter : 620x320x 750mm Weight :40KG

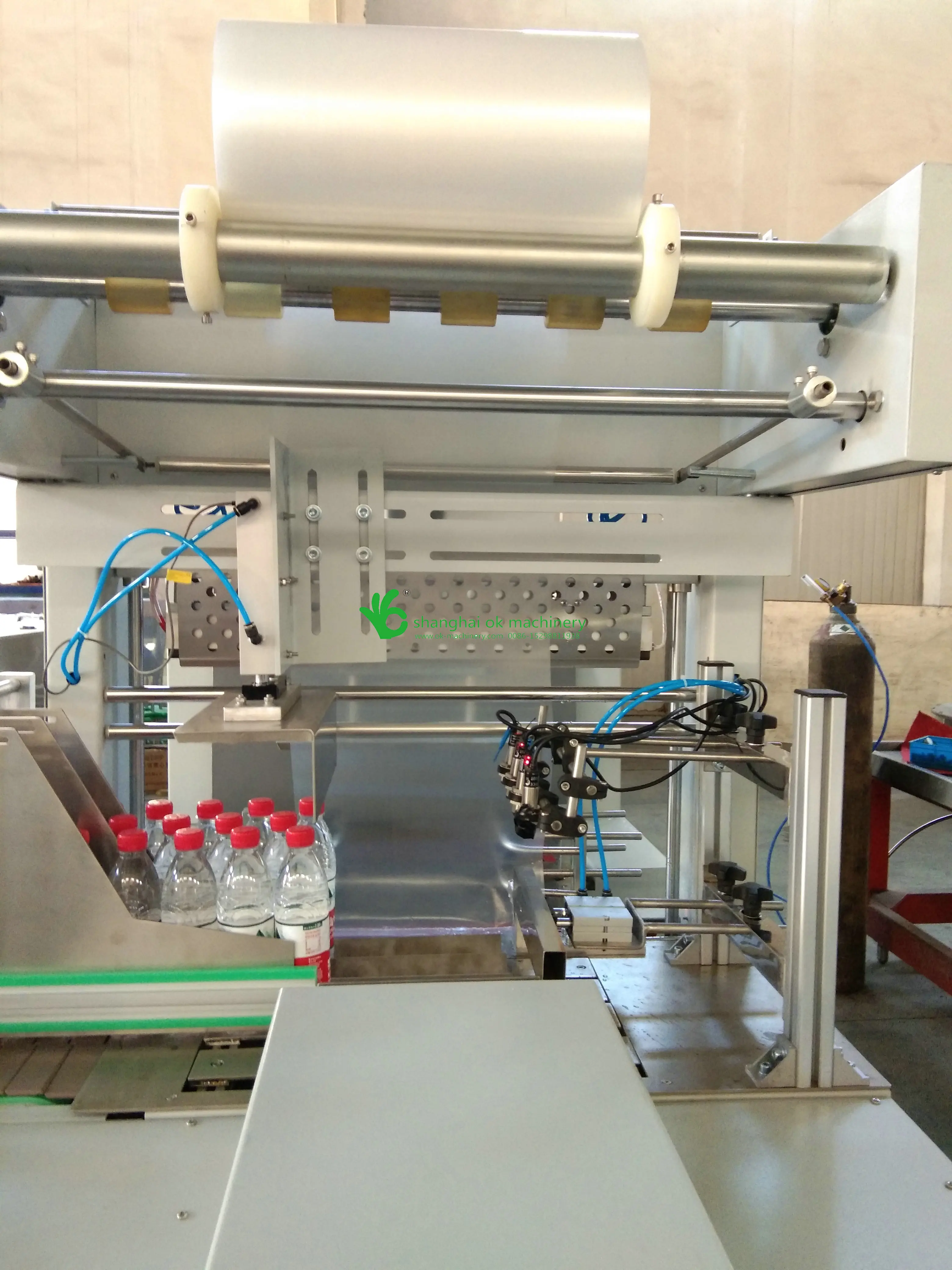

Film wrapping machine
PE film group packing machine is suitable for wrapping of such products as pop-top,mineral water,bottles,beer,drinks etc without
bottom-tray ,working with PE shrink tunnel to pack the goods perfectly ,the whole producing process adopts the Germany advanced
technology, and the main parts are imported from international famous companies ,Capability stable and using long-time It can
connect with the filling line directly by conveyor system,All processfrom bottle feeding ,packing ,sealing ,cutting can works
automatically
bottom-tray ,working with PE shrink tunnel to pack the goods perfectly ,the whole producing process adopts the Germany advanced
technology, and the main parts are imported from international famous companies ,Capability stable and using long-time It can
connect with the filling line directly by conveyor system,All processfrom bottle feeding ,packing ,sealing ,cutting can works
automatically
Conveyor belt
Stable conveying, using synchronous chasing control between the conveying belt and engine, making bottles in good condition in the
conveying: non-falling, non-block,non-jam. Conveying belt is designed by module, component can be interchanged easily, with
compact structure,
low noise, easy assembling and maintaining, good flexibility to combine the bottle type according to the different capacity.
conveying: non-falling, non-block,non-jam. Conveying belt is designed by module, component can be interchanged easily, with
compact structure,
low noise, easy assembling and maintaining, good flexibility to combine the bottle type according to the different capacity.

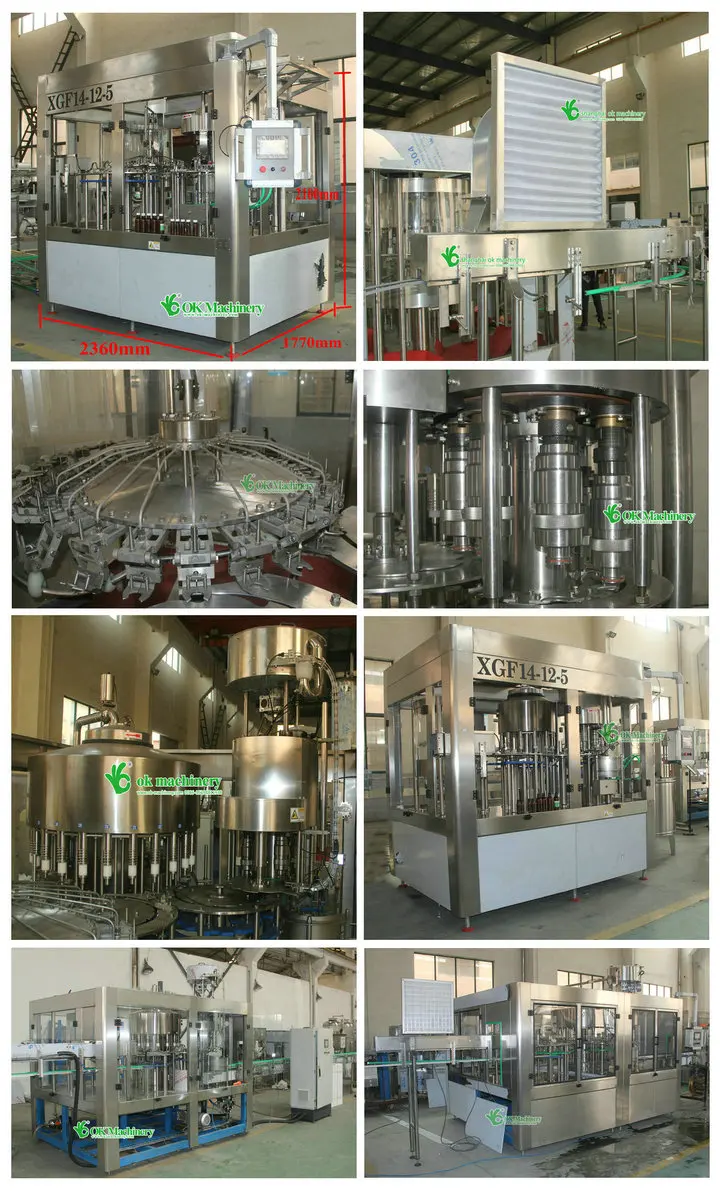

Detail of machine
Customer Photos & High Praise
About OK Machinery
Shanghai OK Machinery Co.,Ltd
Shanghai OK Machinery Co.,Ltd is located on Zhangjiagang City,Jiangsu Province with rich experience in the field of bottling packaging line ,that makes us not only become the industry expert but also have professional skill more than 20 years. So far we have provided more than 1000 water filling lines for more than 90 countries in the world. We will always keep researching and innovating in the fastest-growing market and make sure us and our customer to be the leader of our industry.OK Machine as beverage packing machinery manufacture has supplied excellent equipments and perfect service for many customers worldwide.
