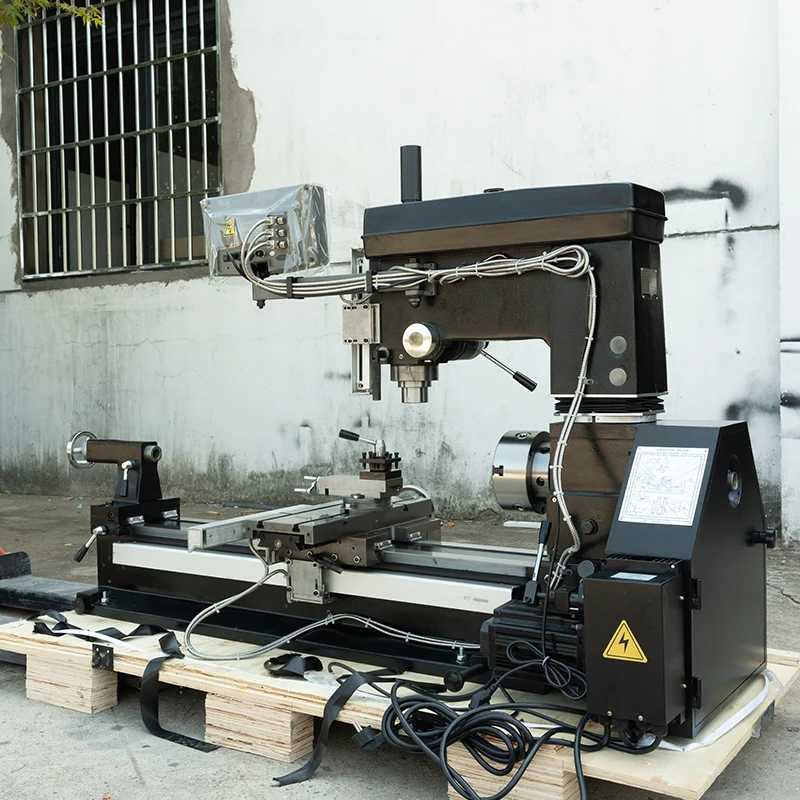

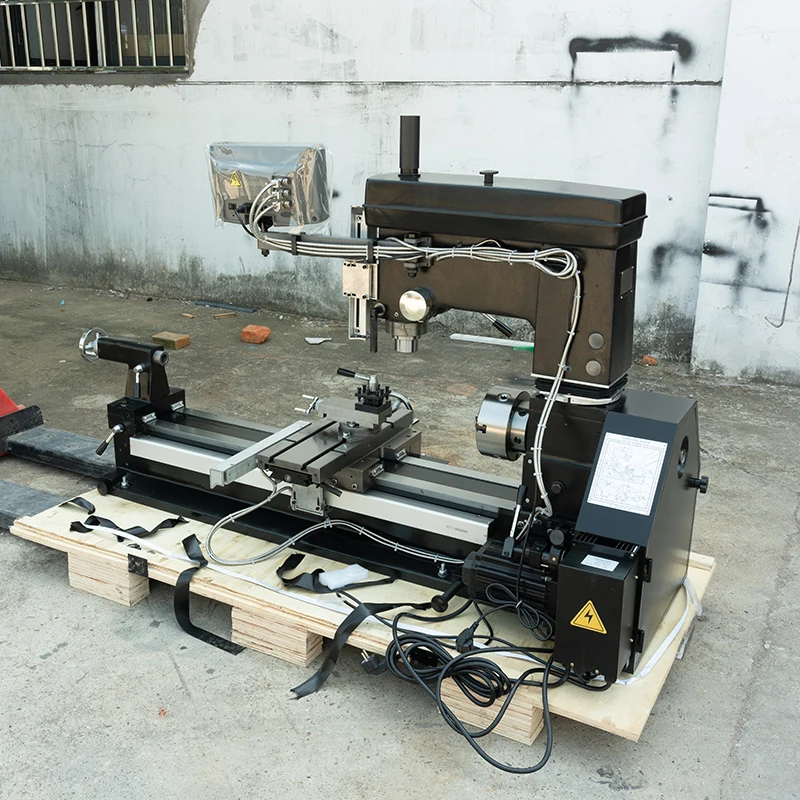

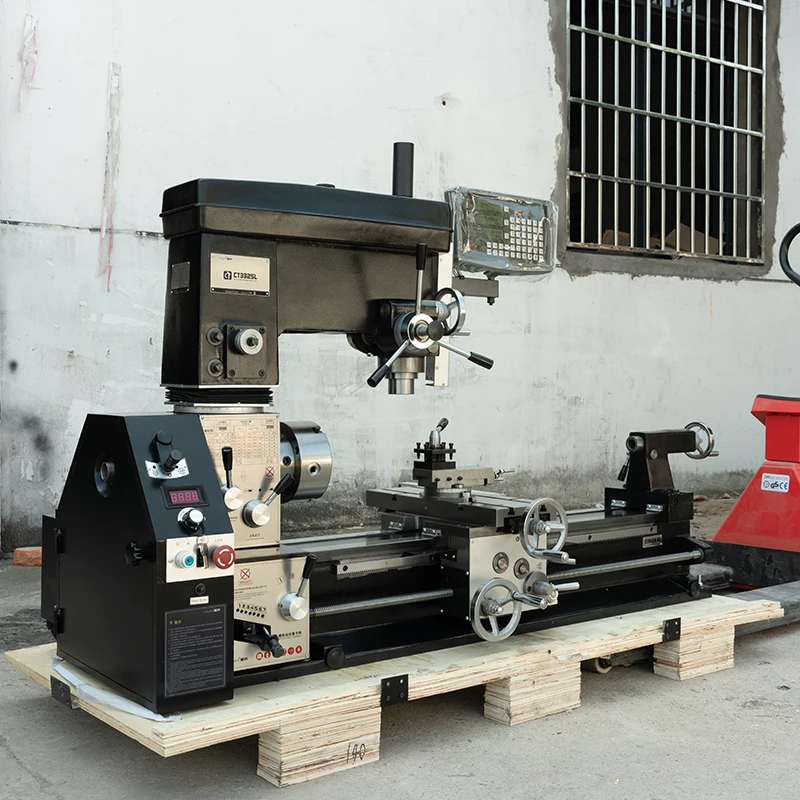

CT3325L high precision lathe mill drill lathe milling machine combo for metal working
CT3325L high precision lathe mill drill lathe milling machine combo for metal working
CT3325L high precision lathe mill drill lathe milling machine combo for metal working
CT3325L high precision lathe mill drill lathe milling machine combo for metal working
CT3325L high precision lathe mill drill lathe milling machine combo for metal working
CT3325L high precision lathe mill drill lathe milling machine combo for metal working
CT3325L high precision lathe mill drill lathe milling machine combo for metal working

CT3325L high precision lathe mill drill lathe milling machine combo for metal working

Share on (1600575389189):


Price:$3,820.00 - $4,360.00

Quantity:


Product Overview

Description



SIMILAR PRODUCTS




CT3325/CT3325L Lathe Mill Combo Ultimate Home Machine
* 13" Swing - 24" Between Centers - Compact and Flexible
* 2HP, 220V variable Drive - Cool and Efficient Running
* Standard R8 Spindle - Low Cost, Easy to Use Tooling
* Efficient Quick Change Operation - Well Balanced Design
* Accurate to +/-0.001" - You will produce quality parts


PRODUCT SPECIFICATIONS


MODEL
CT3325
CT3325L

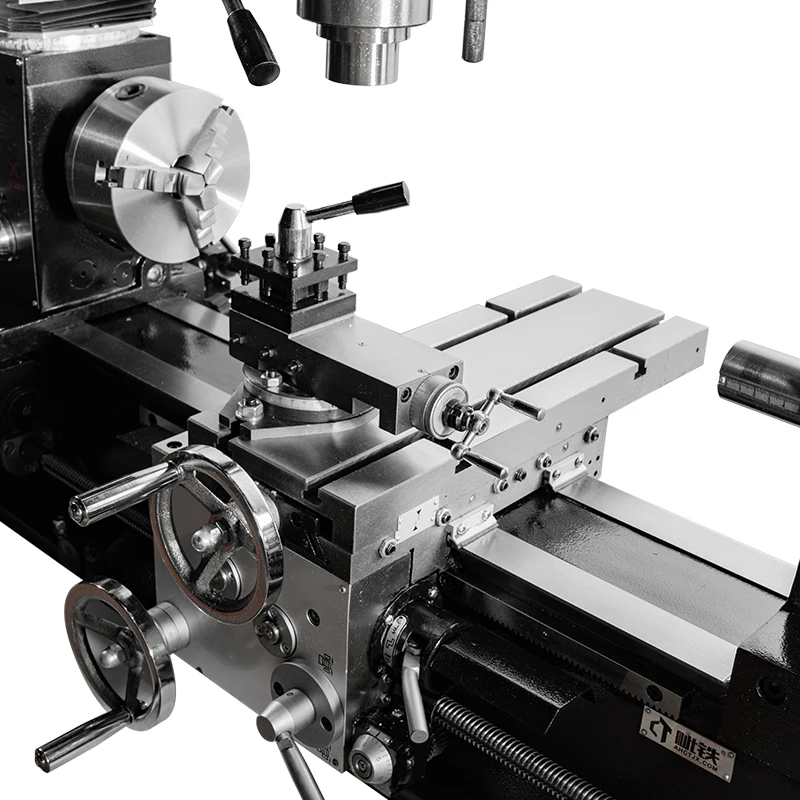

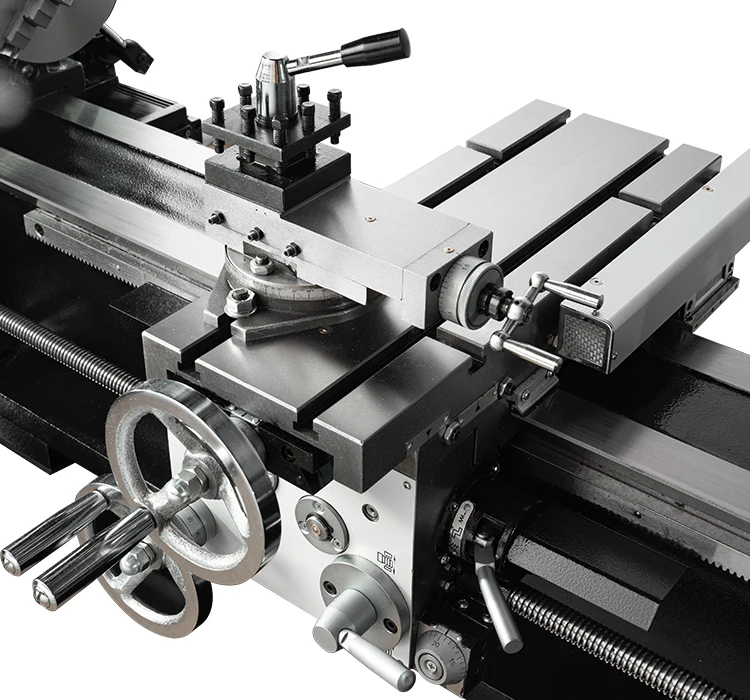

TURNING
Swing Over Bed
330mm
Swing Over Cross Slid
190mm
Worktable Size
450*170mm
Distance Between Centers
610mm
1000mm
Spindle Taper
MT4
Spindle Bore
28mm

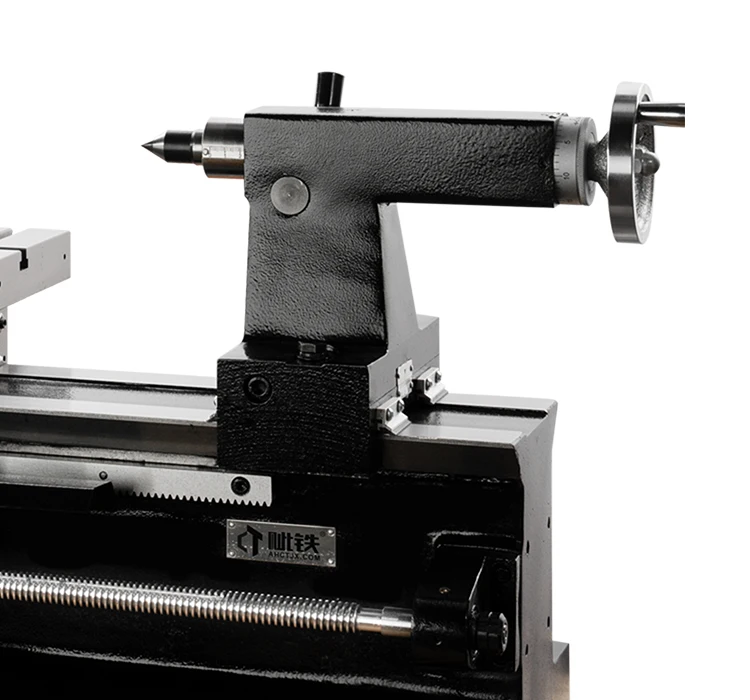

Tailstock Sleeve Travel
51mm
Tailstock Taper
MT3
Large Carriage Travel
508mm
890mm
Middle Carriage Travel
203mm
Lateral Feeds (Grade)
0.019-0.14mm/r (21)
Longitudinal Feeds (Grade)
0.038-0.284mm/r (21)
Metric Thread (Grade)
0.5-3mm (9)
Inch Thread (Grade)
7-52 T.P.I (21)
Spindle Speeds (Grade)
50-2600 R.P.M/ Steepless Speed

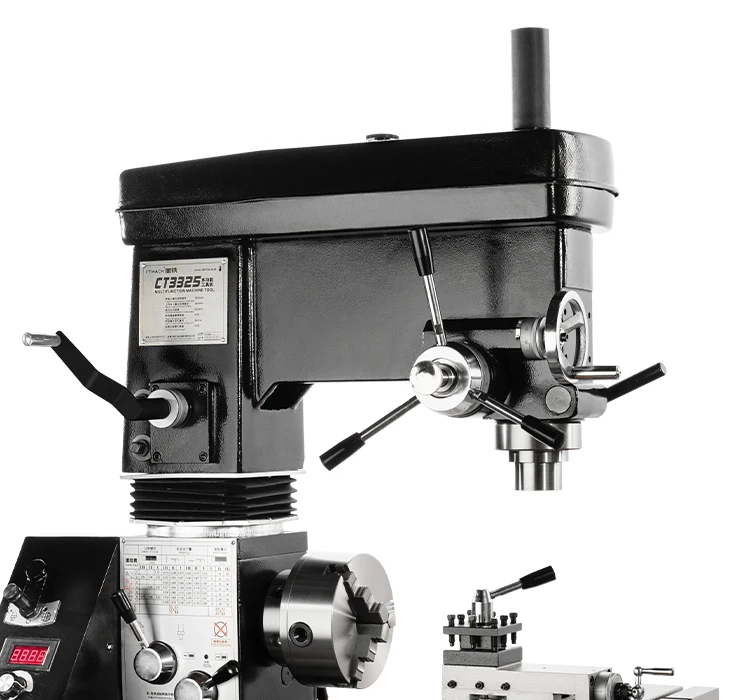

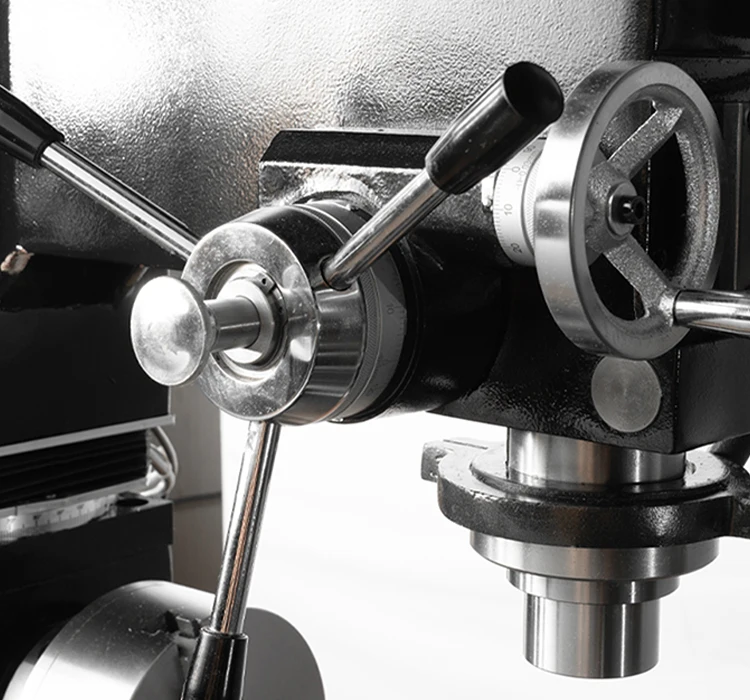

DRILLING AND MILLING
Max. Drilling Diamter
24mm
Max. Face Milling Capacity
63mm
Max. Vertical Milling Capacity
12mm
Drilling and Milling Box Travel (Z-Axis Travel)
110mm
Spindle Taper
MT3
Spindle Travel
127mm
Minimum Distance From Spindle End to Table
100mm
Rotation Angle of Drilling and Milling Box
360°
Spindle Speeds (Grade)
50-2600R.P.M/ Steepless Speed
OTHER
Motor Power
1.1kw
N.W./G.W.
300/350KG
330/380KG
Overall Dimensions
1325*585*1030mm
1705*585*1110mm


FEATURES AT A GLANCE

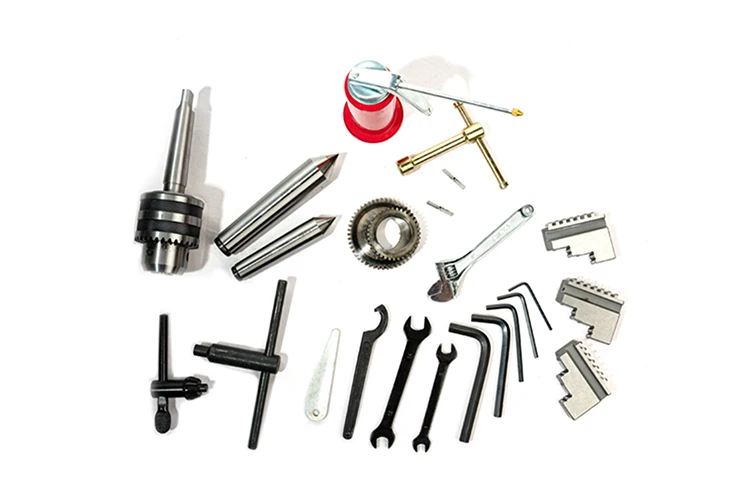

Product Acessories




SALES AND SERVICE NETWORK






Products are exported to more than 30 countries and regions in the world
EU CE standard, safe and reliable
ISO9001 quality system certification


Company Profile






FAQ


Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.

Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.

Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.

Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.

Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.

Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
