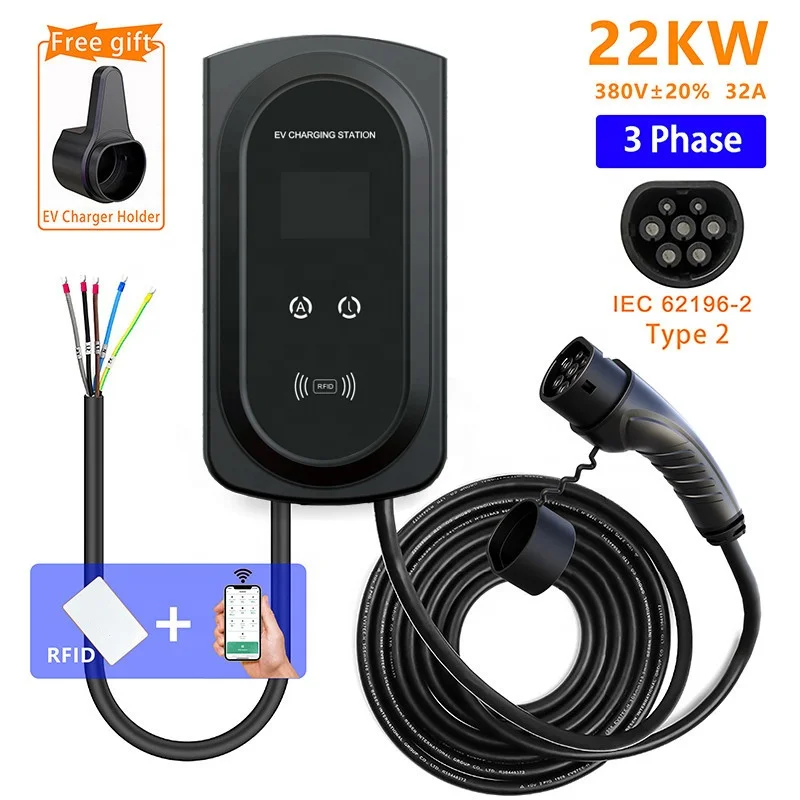

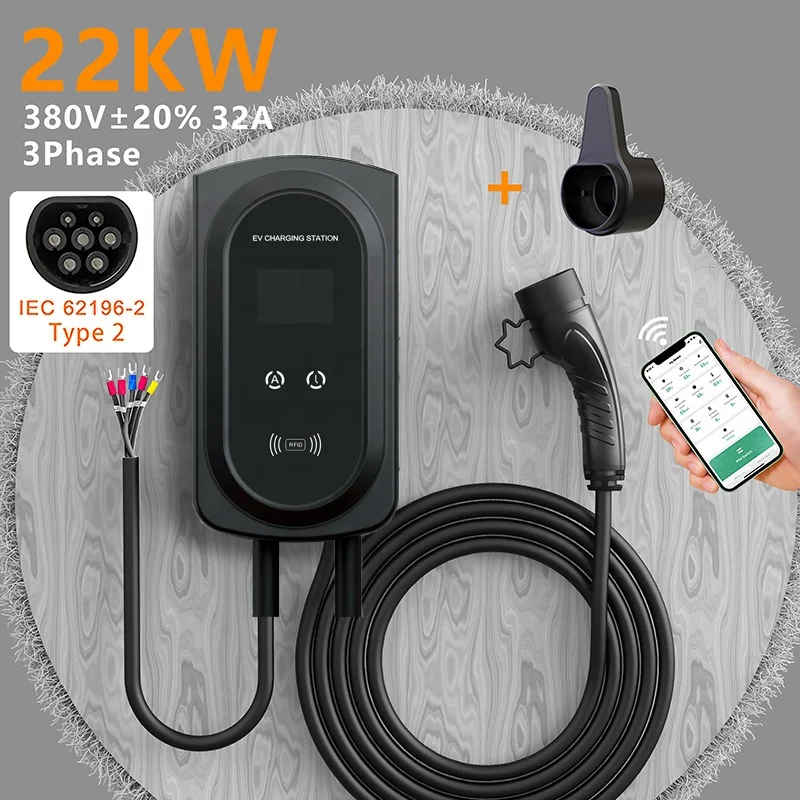

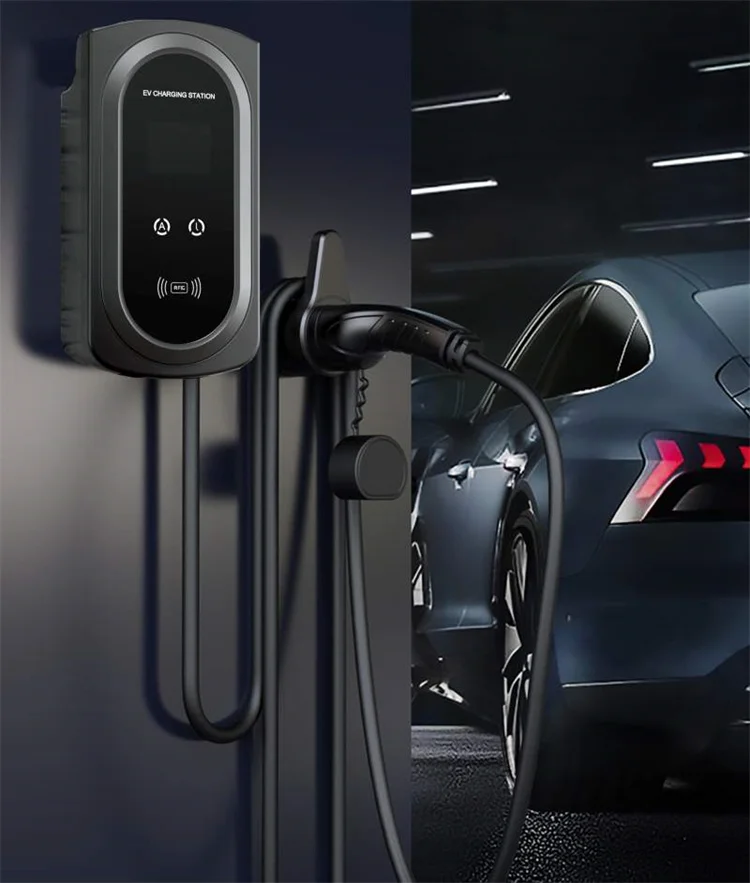

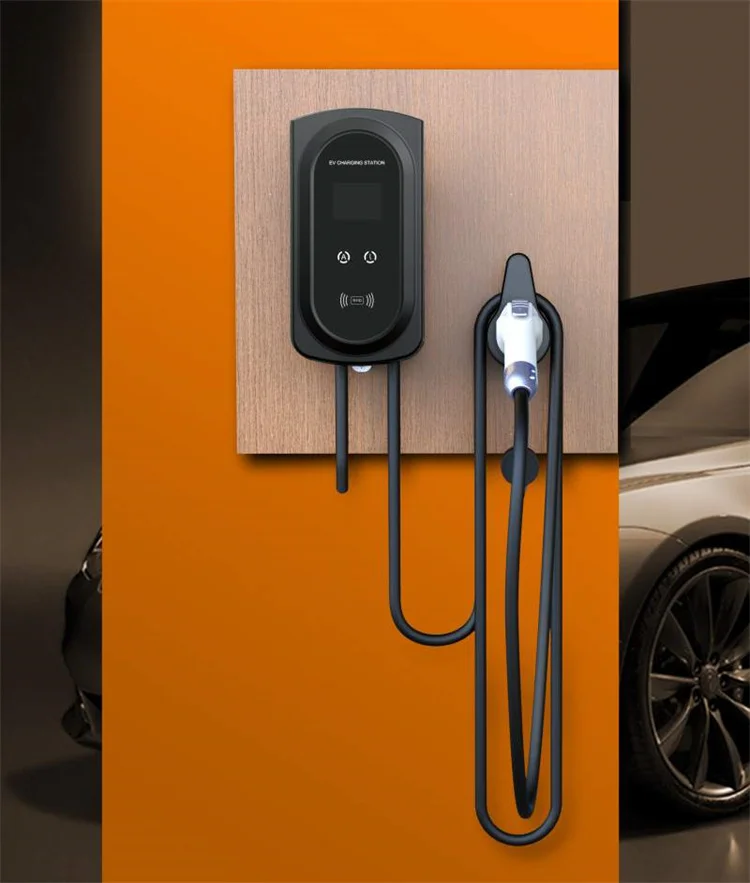

22kwh 32A Electric Car EV Charger Home EVSE Type 2 GBT Wallbox Charging Station EV Charger SAE J1772 16A 11KW 7 KW OEM IP65 WEV2

1. Economic: If you need to reduce electric bills, this awesome portable EV charger has a special feature called "Off-peak Charging", which allows you to benefit from lower energy prices by scheduling charging electric vehicles during off-peak hours.

2. Remote control: support remote control via Tuya app with WIFI, allows to monitor charging, set start or stop of the charging process, determine charging power or charging current, read charging data records and so on. The mobile application is free and can be accessed via the App Store and Google Play, valid for Android and iOS.

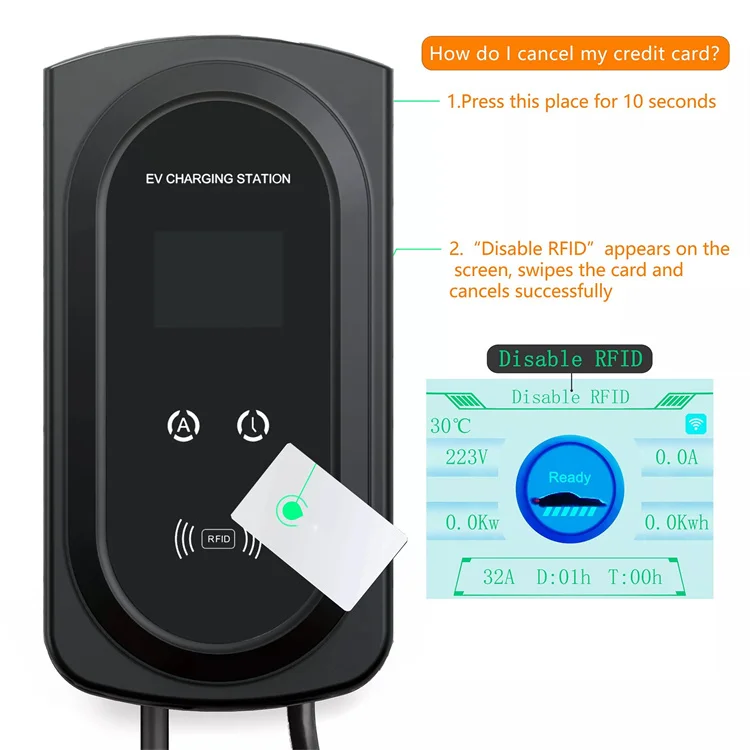

3. RFID support: build-in Radio-frequency identification (RFID) system helps to prevent strangers from misuse, when the EV wall box is installed outdoor, this helpful feature can also be turned off or turned on at will.

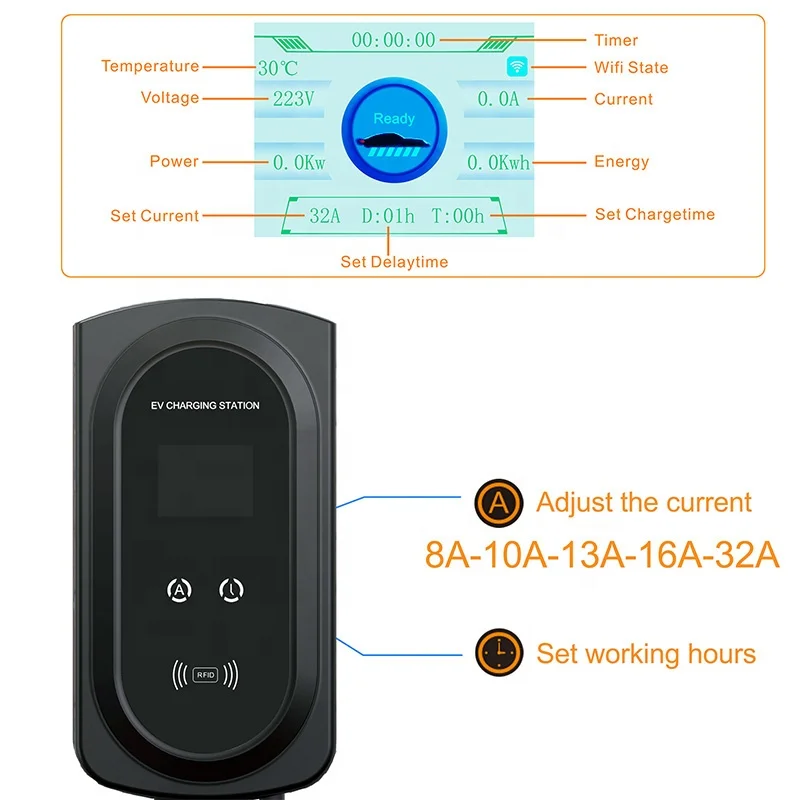

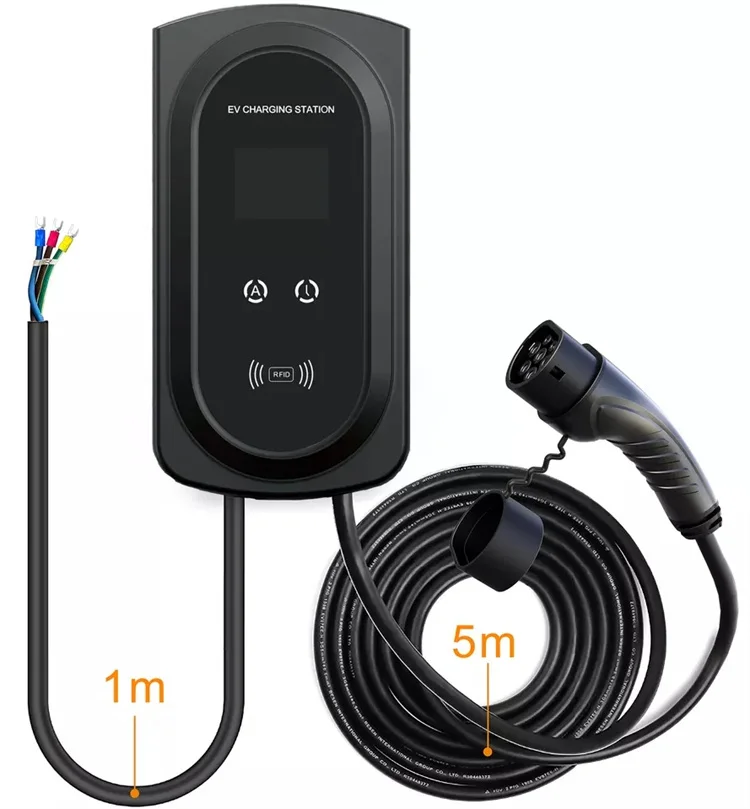

4. Large screen and high compatibility: 4.3 inch LCD screen shows charging current, charging voltage and temperature. The wallbox charging station also comes with 5-meter charging cable and is equipped with a IEC62196-2 Type 2 charge connector by default, or please contact us to designate Type 1 J1772 or Type GBT charge connector..

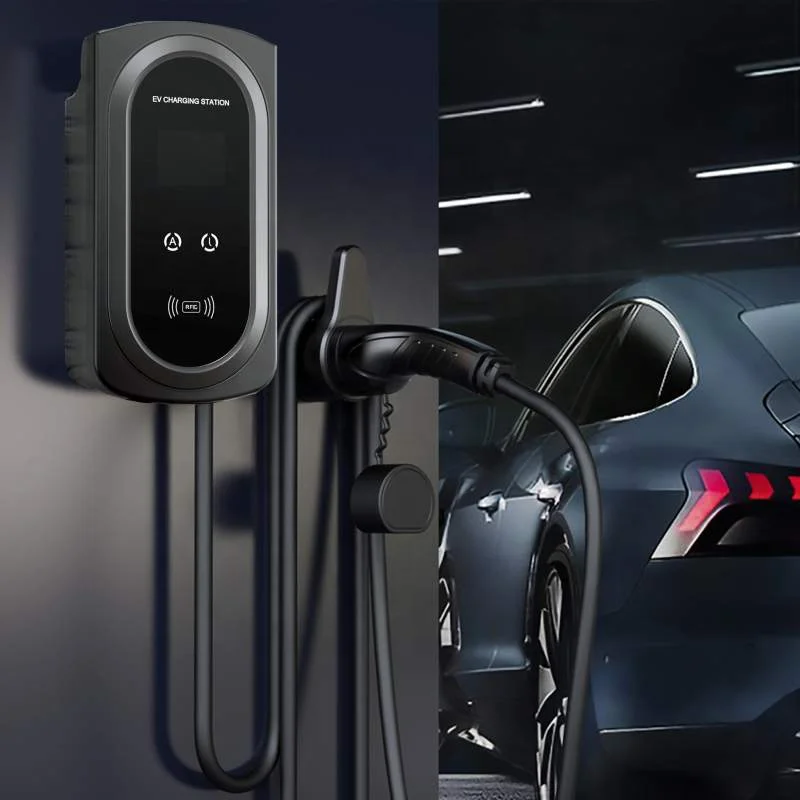

5. Weather and heat resistant: practical and intuitive wallbox/charging station for electric vehicles and plug-in hybrid, suitable for indoor and outdoor use. The EV charging cable provides not only heat-resistant connectors but also good electrical conductivity and faster transmission speed.

Features:

1. Charging plug meets IEC 62196-2 standard.

2. Control box meets IEC 61851 control principle.

3. Protection level: IP65 (working state)

4. Number of phases: single-phase 7KW, 3-phase 11KW and 22KW

5. Contact bush: copper alloy, silver plating

Electric Performance

1.Rated current: 32A(Max)

2.Insulation Resistance: >1000MD(DC50OV)

3.Terminal Temperature Rise:< 50K

Mechanical Properties:

1.Mechanical life: no-load plug in/pull out>10000times

2.Impact of external force: can sustain 1-meter drop and 2-Ton vehicle runover

1. OEM / ODM services are accepted.
2. Customization of packaging, logo or capacity.
3. Trade Terms, EXW, FOB or per clients' requirement.
4. Shipment can be arranged by sea, by air, freight company, etc.
5. Most products are certified with CE / ROHS / FCC / MSDS, etc.

Q1: Can I get a lower price?
Yes, the larger the quantity, the lower the price.

Q2: Can I get the pre-production sample?
Yes, we can provide pp sample.

Q3: When will my order be shipped?
Shipping time varies depending on quantity, normally 2 days after payment

Q4: How long is the quality guarantee period?
1~3 years depending on specific products.

Q5: How do you guarantee production quality?
Our team has more than 15 years of QC experience, the production quality follows ISO9001,  there are also multiple inspections on each finished product before packaging.

Q6: How to choose EV chargers?
Speed: There are 4 typical AC charging powers to choose from, 3.5KW, 7KW, 11KW or 22KW. Higher charging power enables faster charging speed, for example, if an electric car has a battery of 55kWh, it takes 8 hours to be charged from empty to full with a 7KW EV charger, while it takes only 2.5 hours with a 22KW EV charger. However, it is very important to make sure that your electric vehicle also supports the same charging power provided by the EV charger.

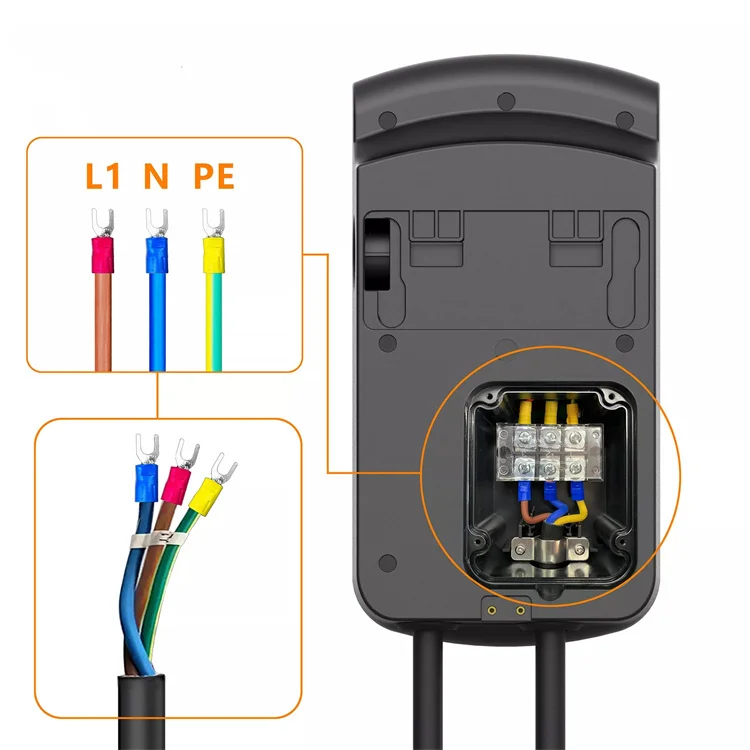

Supply: 3.5KW and 7KW AC electric car chargers require single phase power, while 11KW and 22KW ones require 3 phase power. As to an electrical circuit, it should to be rated for 25% greater amperage than your electric vehicle charger’s output. For example, if you have a 40-amp Level 2 charger, your circuit breaker should be rated for at least 50 amps. It is also sensible to choose an EV charger that allows to adjust electric current.

Location: It is a good idea to install EV chargers near your electrical panel, which helps to reduce expenses on unnecessary conduits. To get more flexibility and convenience, choosing a waterproof electric vehicle charger is also a wise decision, because such an EV charger can be installed indoor or outdoor depending on where you normally park your car.

Smartness: Some electric car chargers come with an app to manage charging, set a schedule, track charging costs and miles driven, etc. If you want to monitor charging status, while at office or taking a walk, such smart features would come in handy. Or if you want to reduce electric bills, charging scheduling can help to accomplish just that, all you need to do is schedule charging at off-peak hours.

Length: EV chargers come with cables of various lengths, 5 meters by default most of the time, be sure to choose an EV charging cable that is long enough to reach the charge port of your car.
