Product Overview

Description

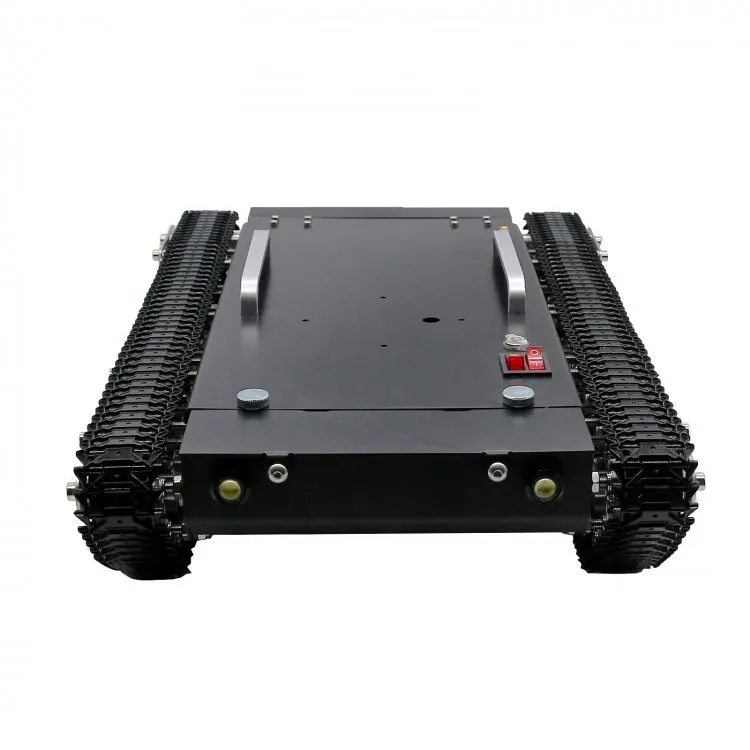

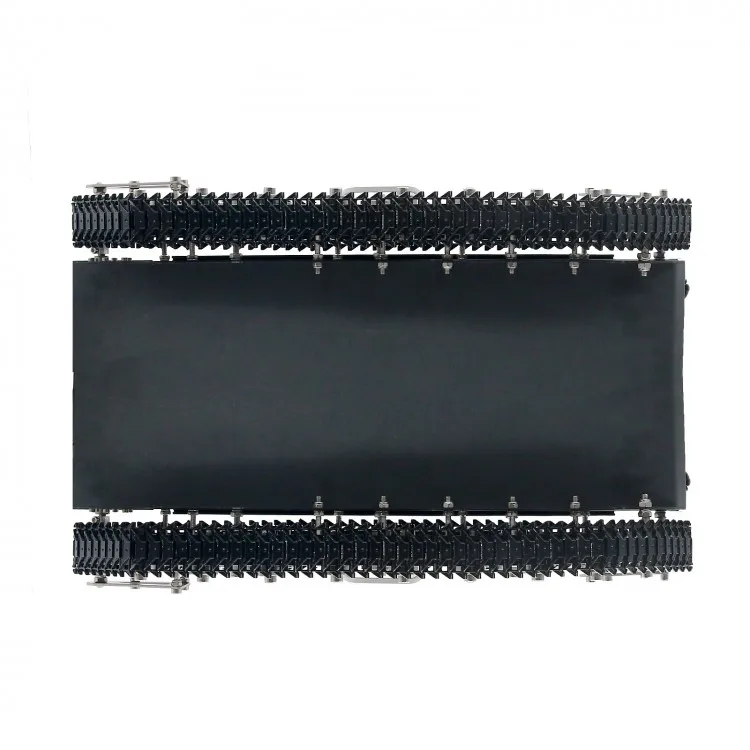

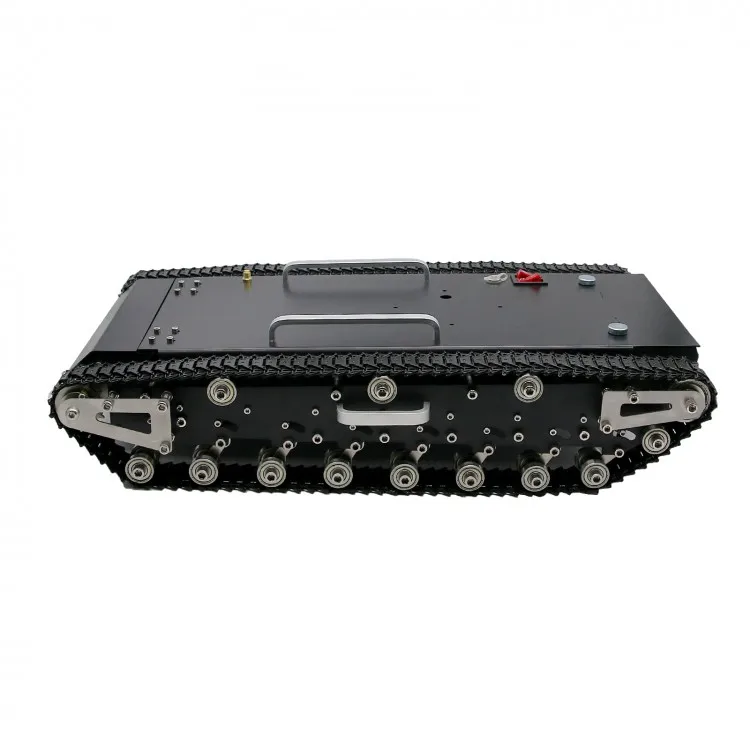

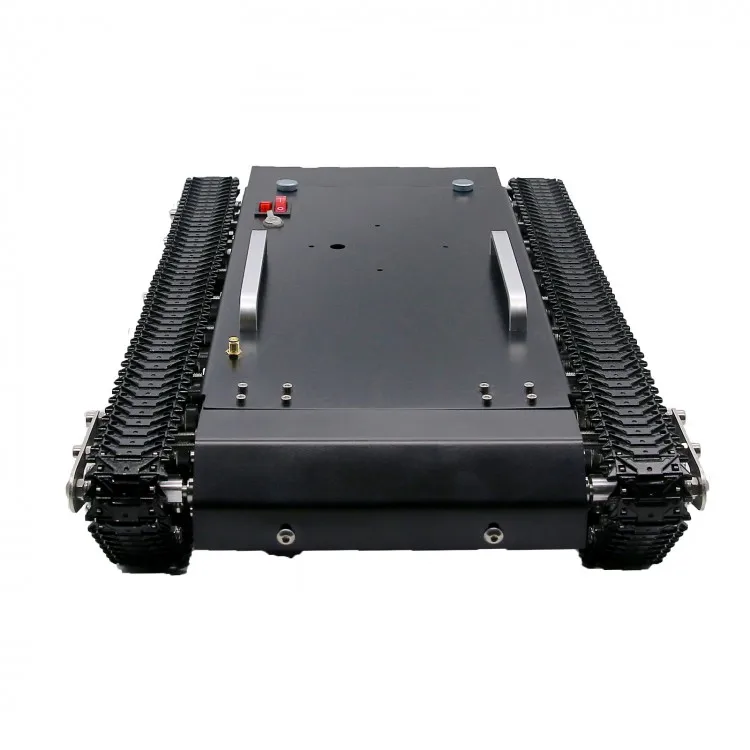

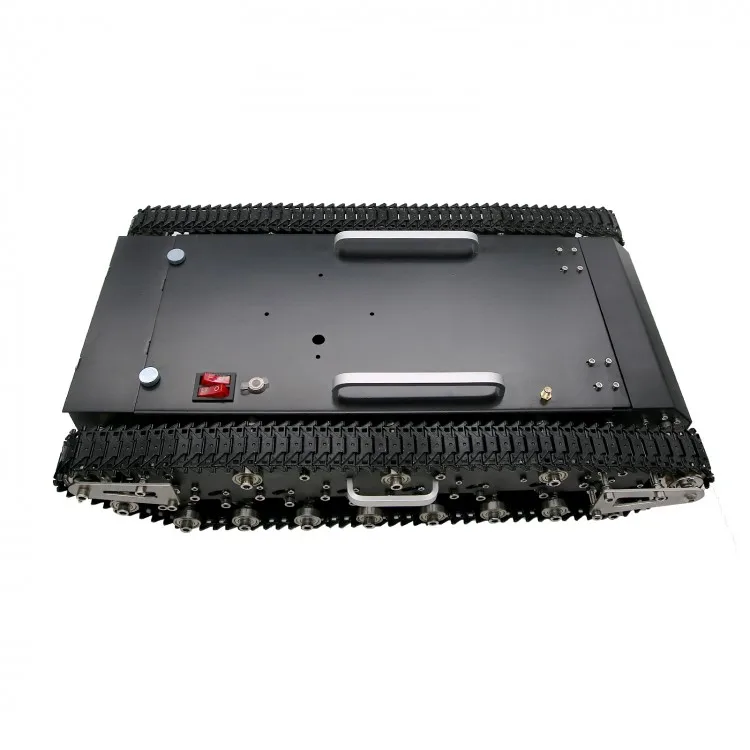

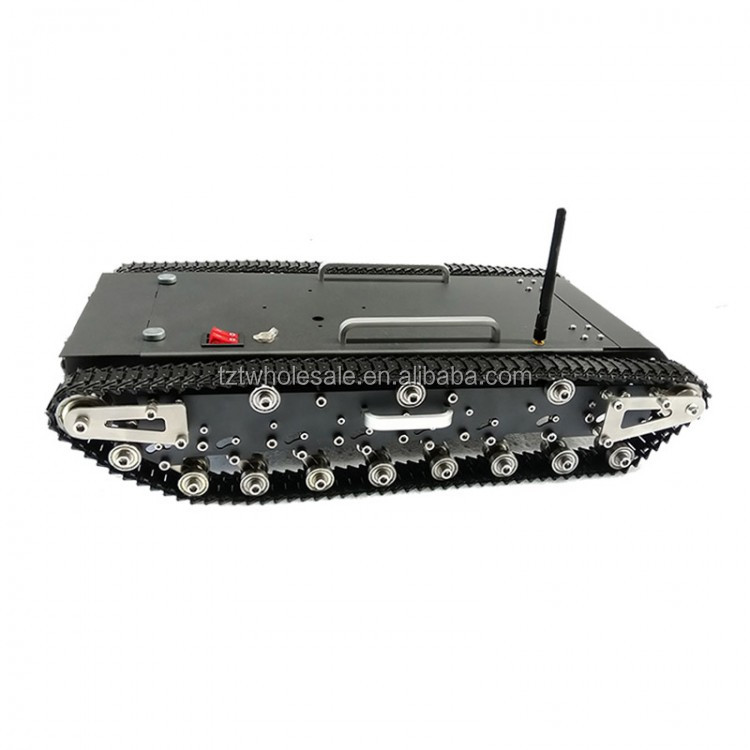

WT-500S RC Robot Tank Chassis Chassis Remote Control Smart Car with Complete Electronic Control System)



Features:
- All-metal construction and shock-absorbing design
- Large load and high torque. It can be used for competitions, graduation projects, engineering prototypes, robotic engineering, DIY creation, carrying heavy objects, etc.
- Stainless steel body process and high temperature surface treatment
- TW500S second-generation upgraded version: The technology, design and accessories have been upgraded. Its surface is more wear-resistant and scratch-resistant with a 600# frosted high-temperature coating
- Free installation and debugging; ready to use

Specifications:
- Working load: 30kg/66.1lb
- Weight: 8KG/17.6LB

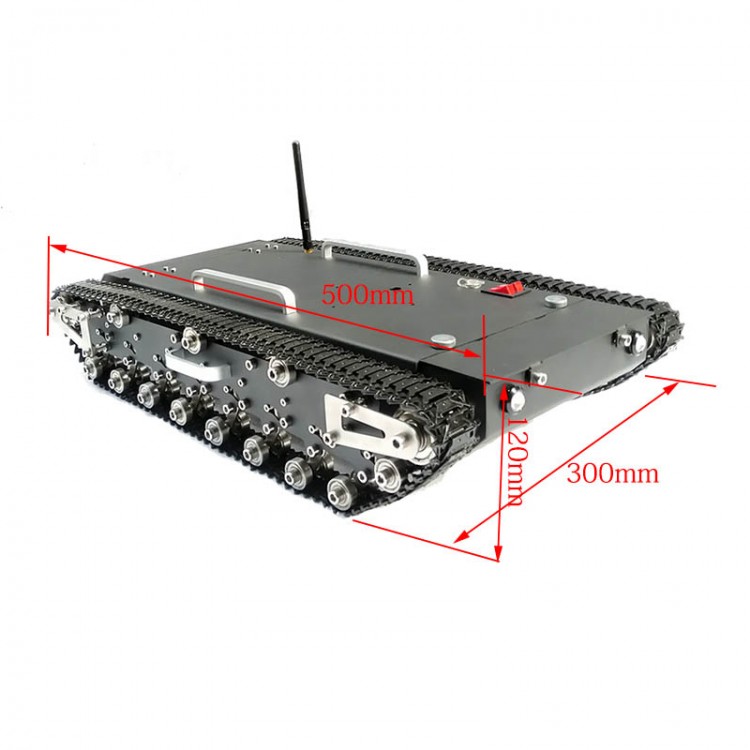

- Dimensions: 500 x 300 x 120mm/19.7 x 11.8 x 4.7"
- Track width system: 41mm/1.6"
- Reduction ratio: 1:30
- Rated power: 2-70W
- Rated voltage: 6-12V
- Maximum current: 1.5-8A

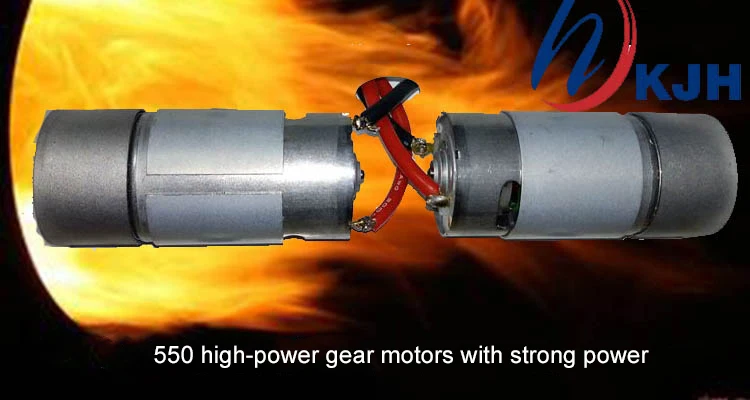

Motor Parameters:
- Reduction Ratio: 1:30
- Rated Voltage: 12V
- No Load Speed: 617±12% RPM
- No Load Current: 2000mA Max.
- Rated Speed: 560±12% RPM
- Rated Current: 8500mA Max.
- Rated Torque: 5.7Kgf·cm
- Stall Current: 56000mA Max.
- Stall Torque: 40 Kgf.cm Min.
- Stall allowed or not: No
- Direction (CW/CCW): CW
- Driving Motor Model: 550#
- No Load Speed: 18500±12% RPM
- No Load Current: 1300mA Max.
- End Play: 0.5mm Max.

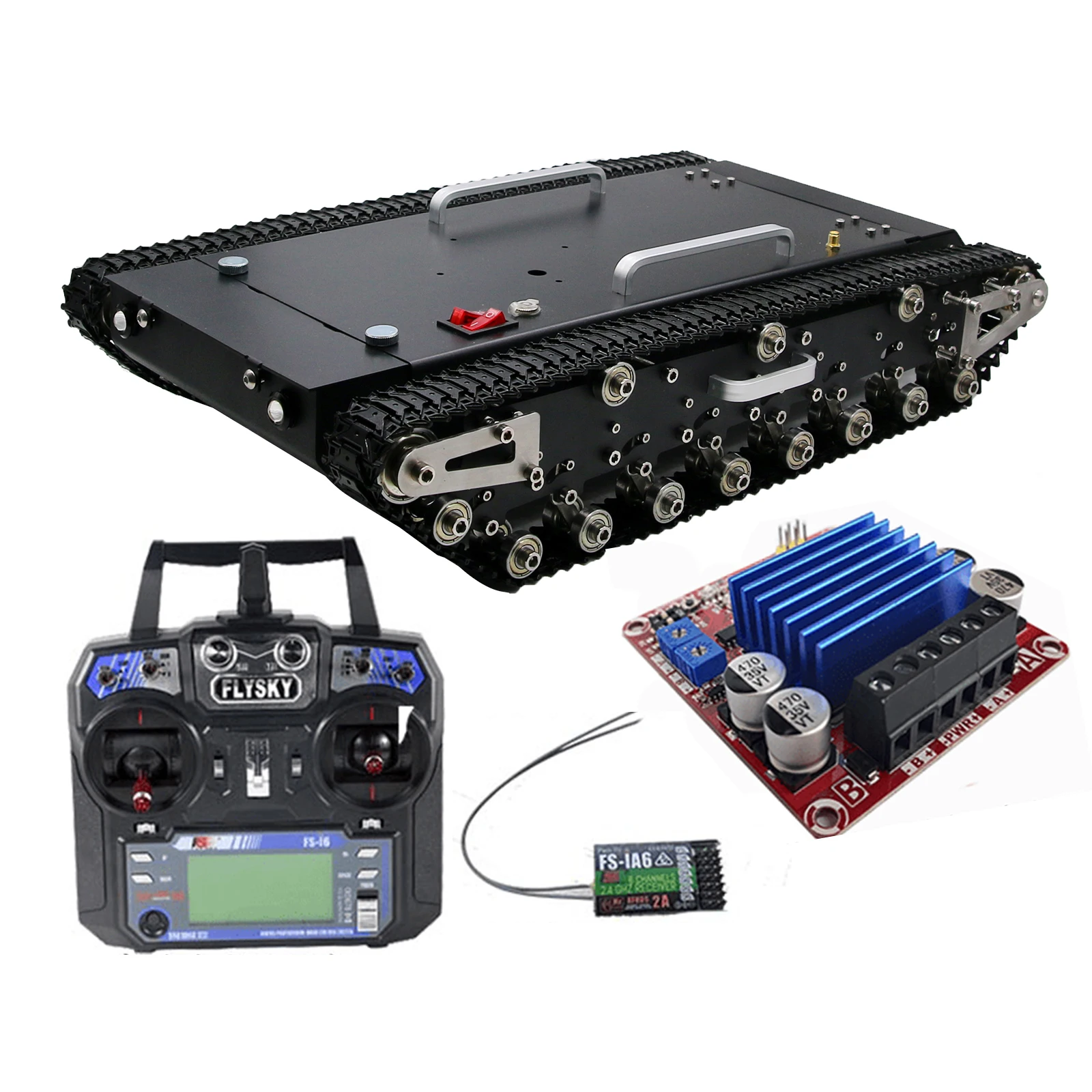

Package Included:
- 1 x Tank Chassis
- 1 x RC Transmitter for FLYSKY i6
- 1 x ESC (Built-in mixer)
- 1 x 6CH RC Receiver
- 1 x 12V 5C Lithium Battery (8000mA; including charger)



Detail photo

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: Samples arrived often need 3-5 days.



Q3. Do you have any MOQ (minimum order quality)limit?

A: Low MOQ, 1pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.



Q5. How to proceed an order?

A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.



Q6. Is it acceptable to print my logo on the product?

A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A: Yes, we offer one-year warranty for our products.



Q8: How to deal with the flaw?

A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
