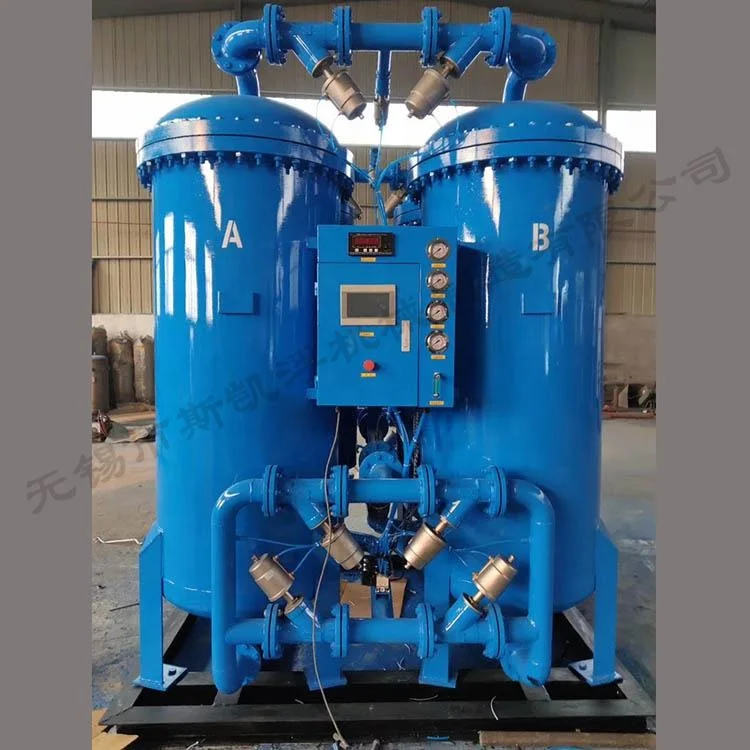

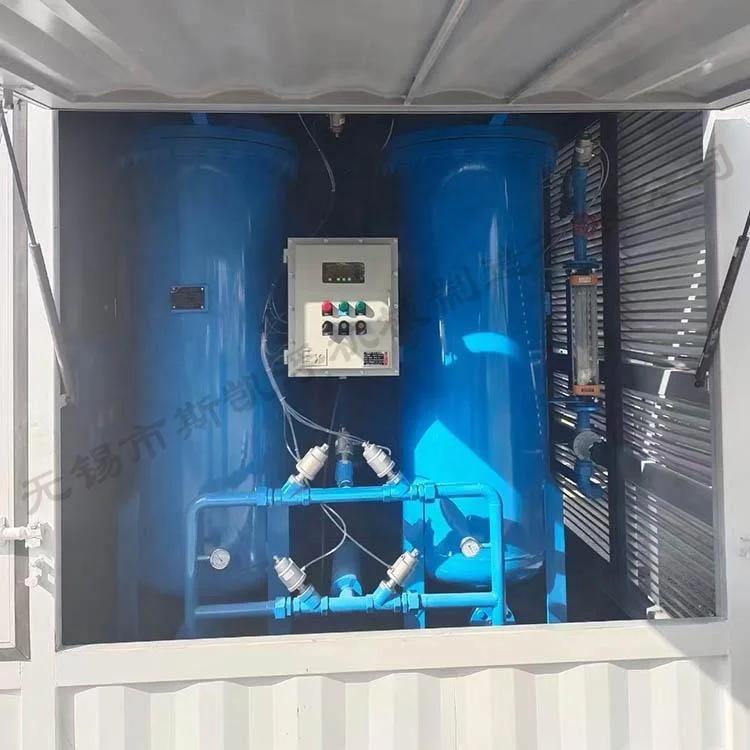

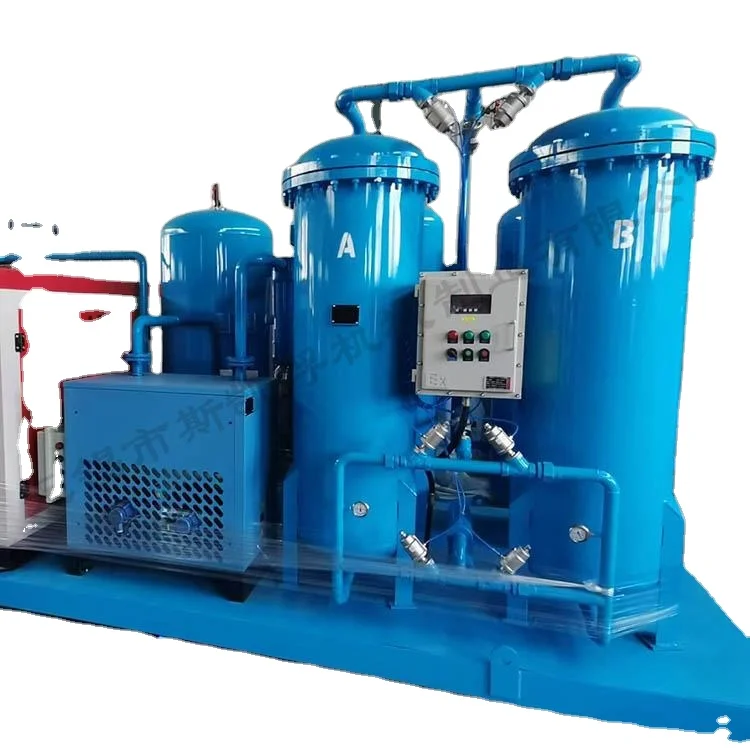

Air operated angle seat valve DN40 for Adsorption Nitrogen Generator Factory Supply
- Category: >>>
- Supplier: Wuxi Sikaifu Machinery Manufacturing Co. Ltd.
Share on (1600575395850):
Product Overview
Description
Air operated angle seat valve DN40 for Adsorption Nitrogen Generator Factory Supply
Product Details
Female Thread Angle Seat Valve Outline Dimension
| Size | Port D | Inner bore | A | B | C | ΦE | F | H | L | M | N | A/F |
| DN13 | G 3/8 | 13 | 65 | 137 | 12 | 53 | 36 | 113 | 70 | 210 | 24 | 22 |
| DN15 | G 1/2 | 15 | 85 | 170 | 16 | 63 | 42 | 145 | 80 | 222 | 24 | 28 |
| DN20 | G 3/4 | 20 | 95 | 176 | 16 | 63 | 42 | 150 | 90 | 232 | 24 | 34 |
| DN25 | G1 | 25 | 105 | 210 | 18 | 80 | 54 | 182 | 100 | 280 | 24 | 41 |
| DN32 | G1 1/4 | 32 | 120 | 222 | 18 | 80 | 54 | 192 | 116 | 292 | 24 | 48 |
| DN40 | G1 1/2 | 40 | 130 | 235 | 20 | 80 | 54 | 198 | 130 | 308 | 24 | 55 |
| DN50 | G2 | 50 | 150 | 266 | 20 | 100 | 60 | 228 | 155 | 350 | 24 | 69 |
| DN65 | G2 1/2 | 65 | 185 | 330 | 20 | 126 | 73 | 260 | 170 | 480 | 30 | 86 |
| DN80 | G3 | 75 | 220 | 393 | 27 | 156 | 87 | 343 | 220 | 510 | 30 | 100 |
Female Thread Angle Seat Valve Technical Parameters
| Size | Port C (inch) | Inner diameter | KV Value (m³/h) | working pressure | Required min. contorl pressure | Executive standard (diameter mm) |
| DN13 | G 3/8 | 13.0 | 3.7 | 25.0 | 4.0 | 40 |
| DN15 | G 1/2 | 13.0 | 4.2 | 25.0 | 4.0 | 50 |
| DN20 | G 3/4 | 20.0 | 8.0 | 25.0 | 4.0 | 50 |
| DN25 | G1 | 25.0 | 19.0 | 25.0 | 4.0 | 63 |
| DN32 | G1 1/4 | 32.0 | 27.5 | 25.0 | 4.0 | 63 |
| DN40 | G1 1/2 | 40.0 | 42.0 | 25.0 | 4.0 | 63 |
| DN50 | G2 | 50.0 | 52.0 | 25.0 | 4.0 | 80 |
| DN65 | G2 1/2 | 65.0 | 77.0 | 25.0 | 4.0 | 100 |
| DN80 | G3 | 75.0 | 25.0 | 4.0 | 125 |
About SIKAIFU
Wuxi Sikaifu Machinery Manufacturing Co.,LTD specialized in various types valves and actuators, such as Angle seat valve, Ball valve, Butterfly valve, Knife Gate valve, Control Valve and Globe valve as a professional manufacturer and seller.
SIKAIFU VALVE pholds breakthrough and innovative concepts for users with complete technical support and product services. Products are widely used in petrochemical, textile, industrial, beer and beverage, environmental protection water treatment, food processing and other fields. Products are closely monitored from design until loading for export.
Packaging & Shipping
1. Inner Packing: opp bag, then small carton box for each product.
2. Outside Packing: standard exporting carton box or wooden box or as you required,
Foam outside protecting the valves against damage
3. Usually we ship your order by sea or by express
4. Sample deliver: 3-7days after receiving payment by express;
100~500pcs: 10~15 working days by ship.
Above 500pcs: 30~45 working days by ship.
5. We accept T/T Bank transfer, Western Union, Moneygram, Paypal, Alipay
FAQ
1. Q: Is sample order acceptable?
A: Yes.
2. Q: When will make delivery ?
A: We have stock for standard products.
As usual, after payment, within 7 working days.
3. Q: After-sales Service
A: 1 year warranty for all kinds of products;
As an experienced manufacturer, you can rest assured of the quality and after-sales service.
4. Q: Payment
A: L/C, T/T, Western Union, Paypal, Alipay, Cash.
5. Q: Transportation
A: Transported by DHL, UPS, EMS, Fedex, SF, by Air, by sea.
