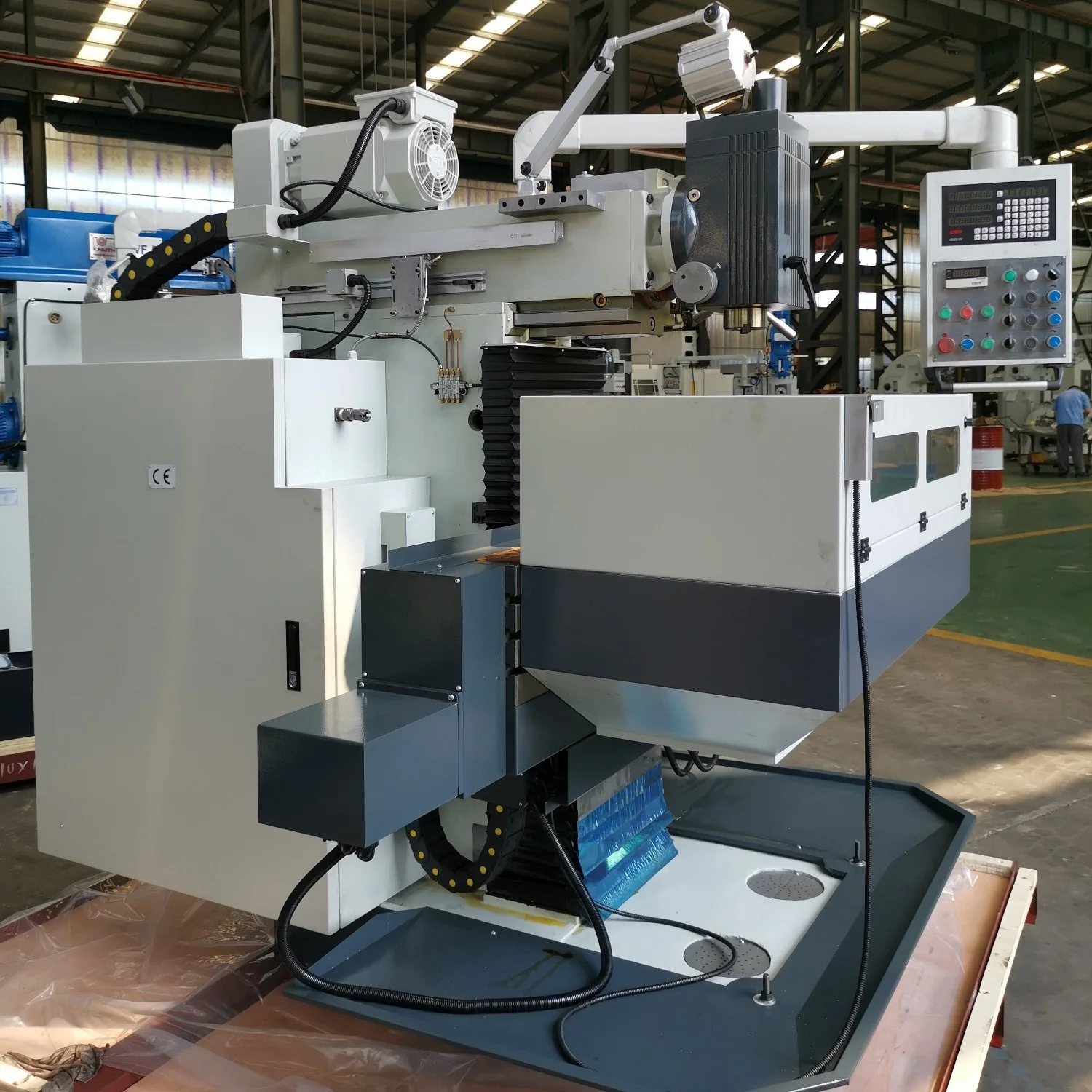

XL8145 CE certificate tool milling machine UM300A UM400A vertical and horizontal universal metal miller
- Category: >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (1600575396267):
Product Overview
Description

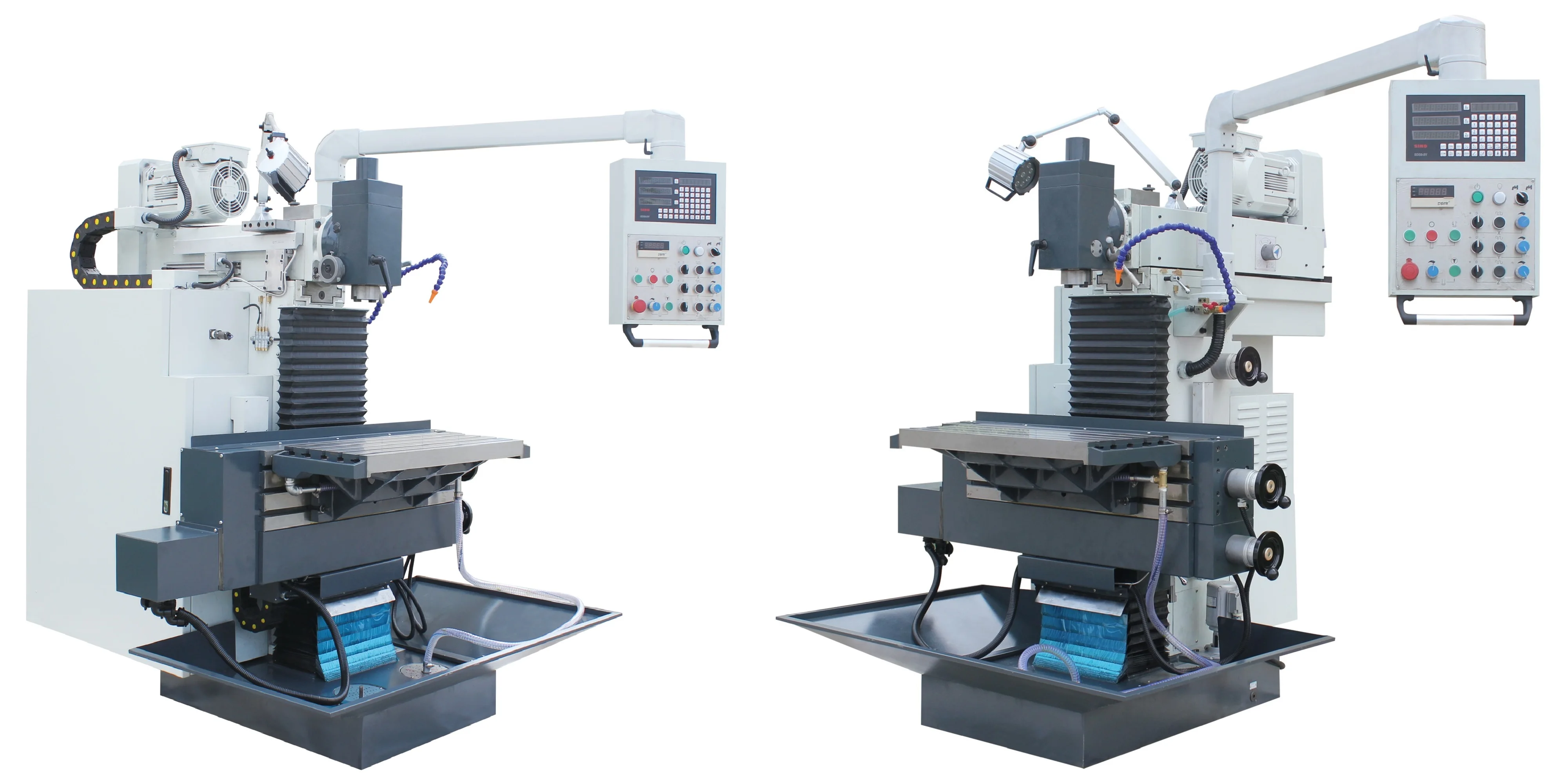

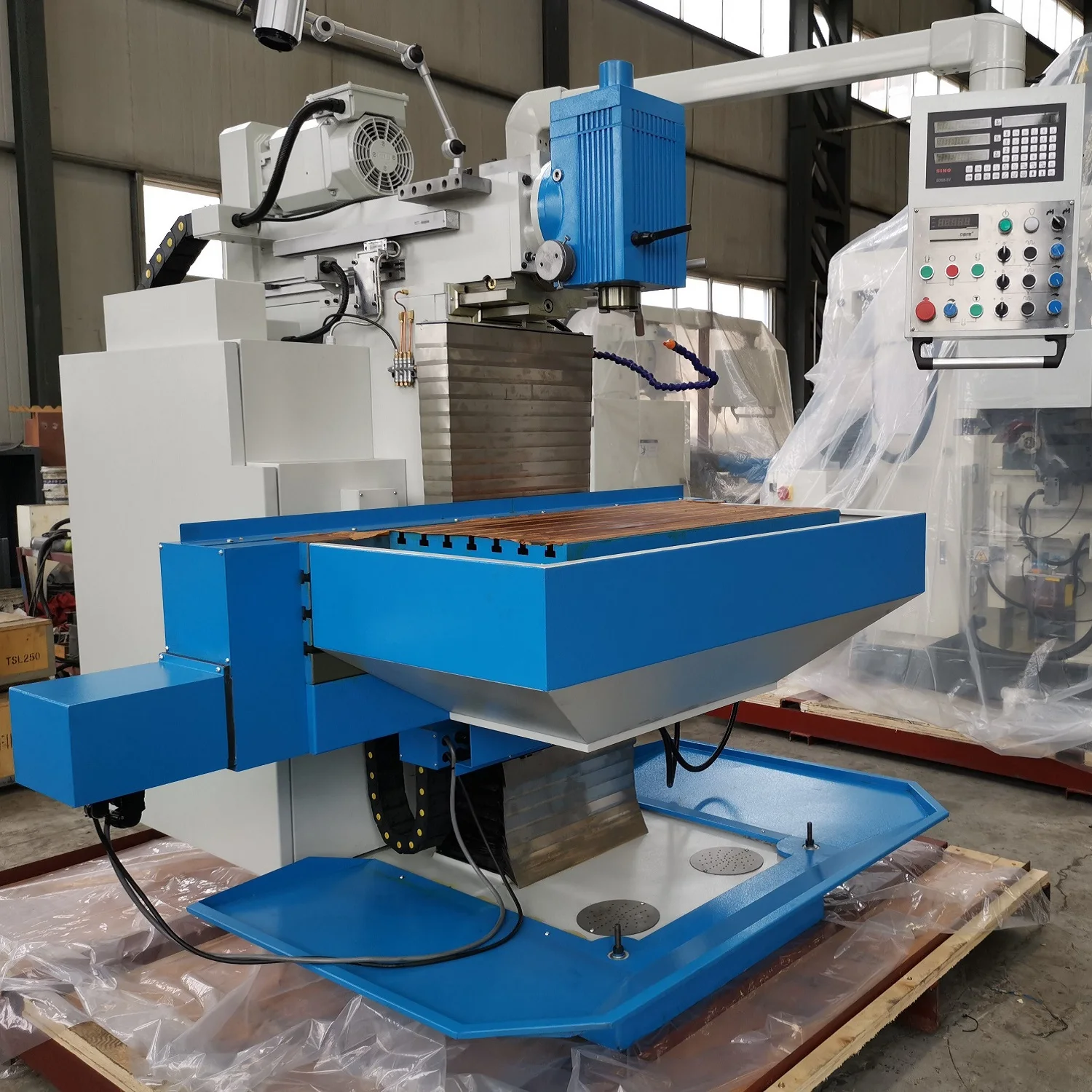

XL8145 CE certificate tool milling machine UM300A UM400A vertical and horizontal universal metal miller
Brief Introduction
Δ Spindle:
√ step-less spindle speed, in high & low speed ranges, suitable for high-speed-fine-machining & low-speed-powerful-machining

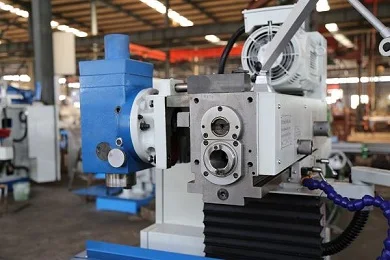

√ vertical & horizontal spindles combined, for flexible operation
√ 60mm spindle stroke, milling and drilling functions are available
Δ Working feed:
√ X/Y/Z-axis ball screws, good precision
√ X/Y/Z-axis driven by 3 independent servo motors, can realize X/Y/Z-axis synchronous feeding
√ servo motors for spindle and feeding, machine with low noise, good precision, easy to maintenance

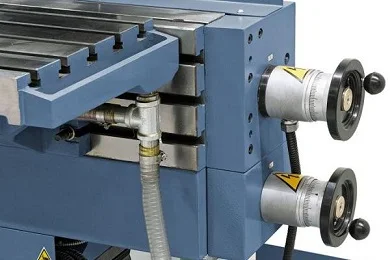

√ X/Y/Z-axis with electronic handwheels, for easy and precise manual-feeding
√ vertical & horizontal combined work-tables, for flexible clamping of workpiece

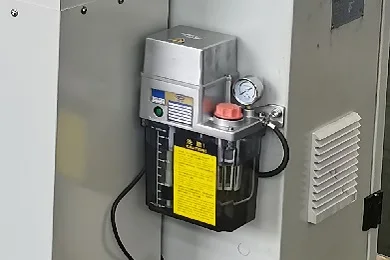

√ fitted with automatic centralized lubrication system, for automatic timing lubrication
√ X/Y/Z-axis ball screws, good precision
√ X/Y/Z-axis driven by 3 independent servo motors, can realize X/Y/Z-axis synchronous feeding
√ servo motors for spindle and feeding, machine with low noise, good precision, easy to maintenance
√ X/Y/Z-axis with electronic handwheels, for easy and precise manual-feeding
√ vertical & horizontal combined work-tables, for flexible clamping of workpiece
√ fitted with automatic centralized lubrication system, for automatic timing lubrication
Specificaitons of This Series
ITEM | UNIT | XL8132 | XL8140 | XL8145 | ||
horizontal table size | mm | 750*320 | 800*400 | 850*450 | ||
T-slots (N/W/D) | 5/14/63 | 6/14/63 | 7/14/63 | |||
vertical table size | mm | 890*225 | 1020*225 | 1190*250 | ||
T-slots (N/W/D) | 3/14/63 | |||||
max load | kg | 160 | 200 | 300 | ||
X/Y/Z axes travel | mm | 405/305/400 | 500/400/400 | 600/450/450 | ||
spindle taper (H&V) | NT40 | |||||
spindle speed (variable) | rpm | 40-2000 | ||||
stroke of vertical spindle | mm | 60 | ||||
feed speed (X/Y/Z) | mm/min | 10-1000 | ||||
rapid feed speed (X/Y/Z) | mm/min | 1200 | ||||
main motor power | kw | 3.7 | 5.5 | |||
feed motor torque (X/Y/Z) | Nm | 7.7/7.7/10 | 10/10/15 | |||
overall size | mm | 1500*1700*1800 | 1500*1700*1800 | 1600*1800*2000 | ||
N.W. | kg | 1450 | 1550 | 1750 | ||
packing size (L*W*H) | mm | 1750*2000*2200 | 1750*2000*2200 | 1900*2000*2200 | ||

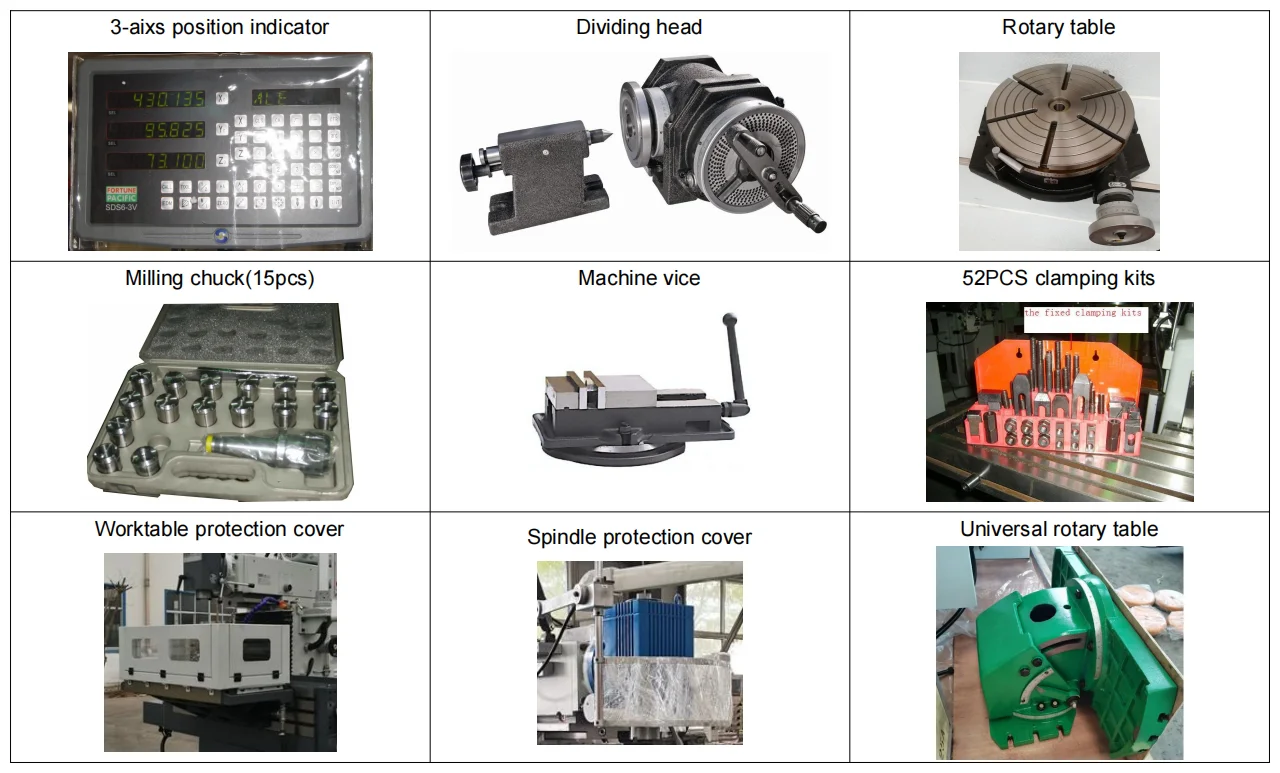

Accessories
standard | draw bar |
horizontal milling arbor Ø16, Ø22, Ø27, Ø32 | |
reducing sleeve MT1, MT2, MT3 | |
milling check set | |

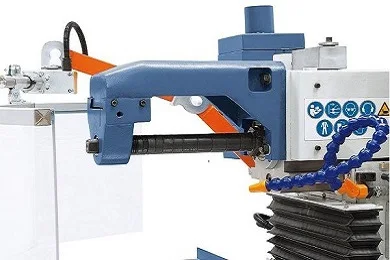

horizontal milling support bracket | |
tools & tool box |
3-axis DRO | |
spindle protection guard | |
work-table protection guard | |
LED work lamp | |
specialized universal rotary table (3-axis rotary) |

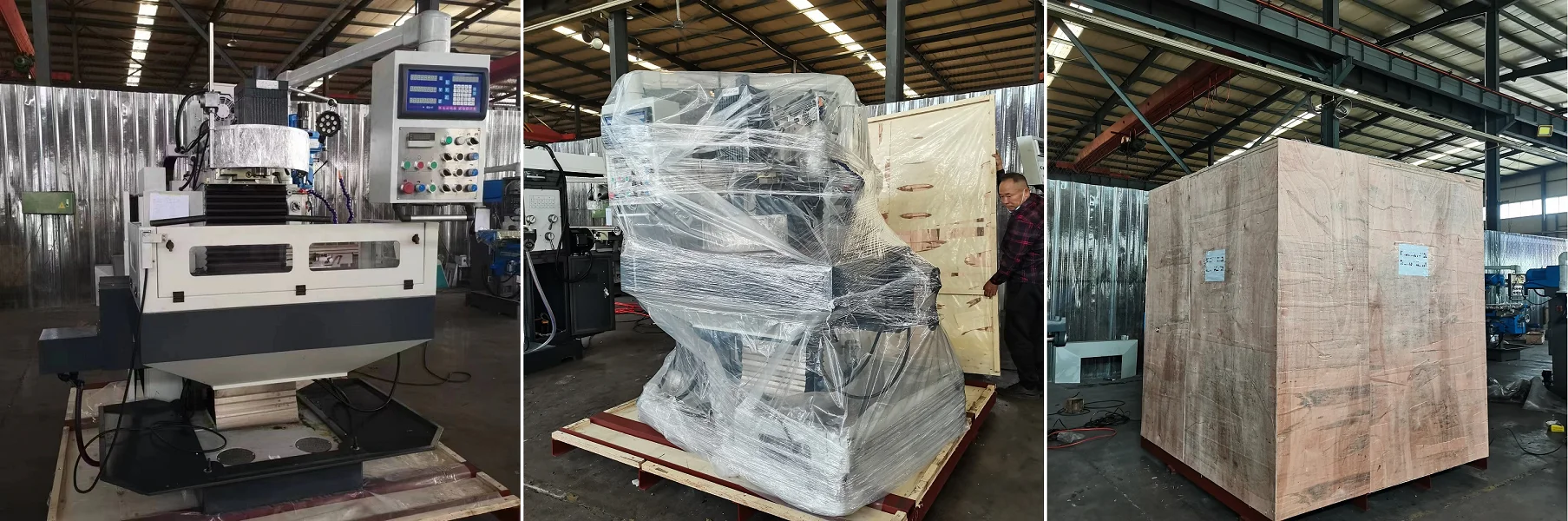

Packing & Shipping
Delivery time: generally 3 months production time after confirmation of order
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Packing size: 2100 x 1900 x 2250mm (L / W / H), can be delivered in 20GP container.
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Packing size: 2100 x 1900 x 2250mm (L / W / H), can be delivered in 20GP container.

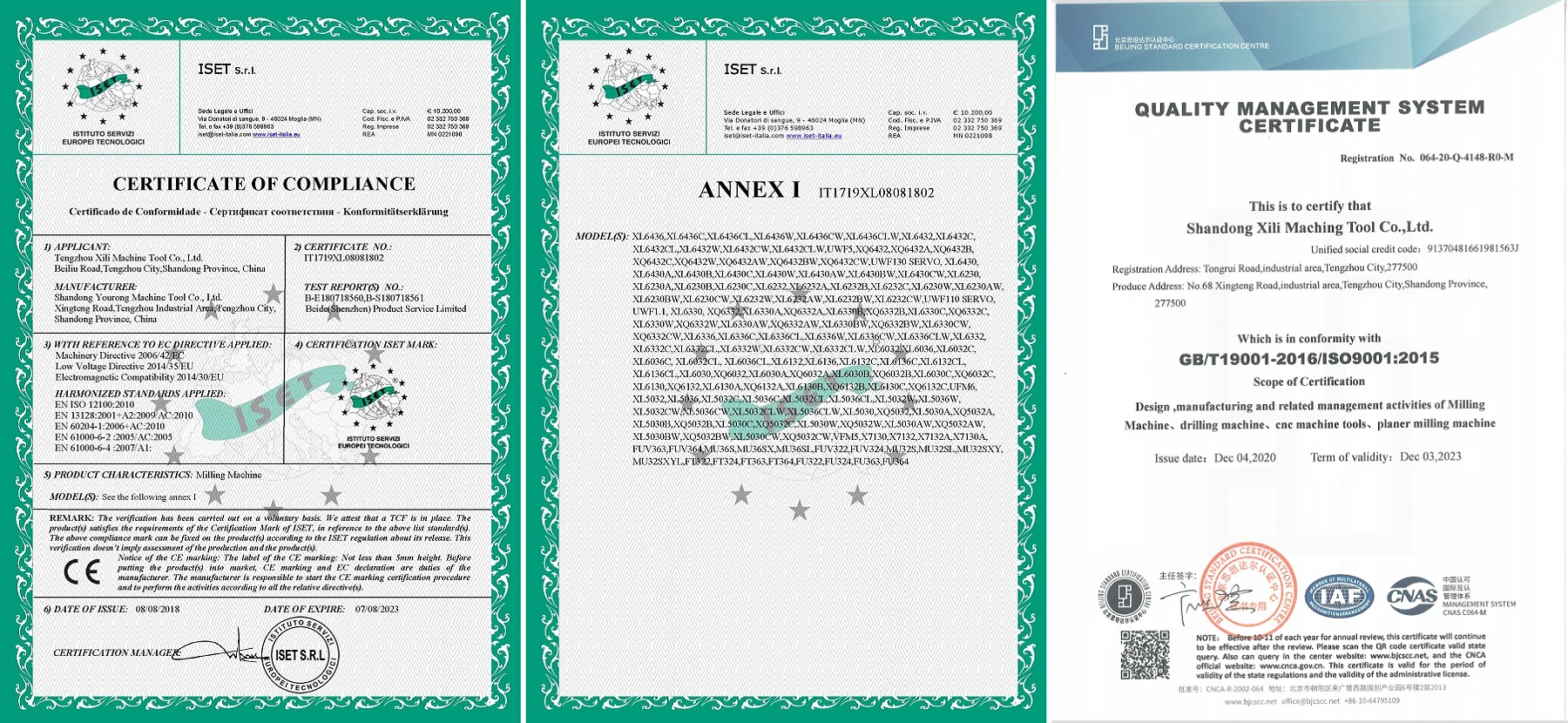

Certificate
Products are strictly according to Europe standard, with CE certificate

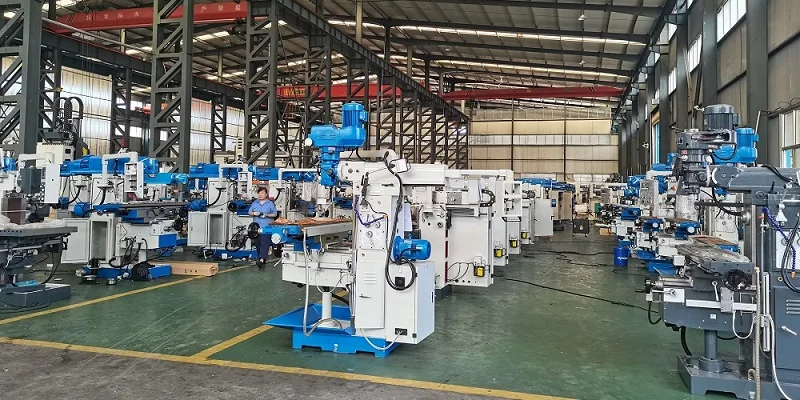

Our Company
