Printing Ink Friction Discoloration Abrasion Durability Tester
- Category: >>>
- Supplier: Quanzhou GESTER Instruments Co. Ltd.
Share on (1600575407130):
Product Overview
Description
WELCOM TO GESTER
Product Description
Product Overviews

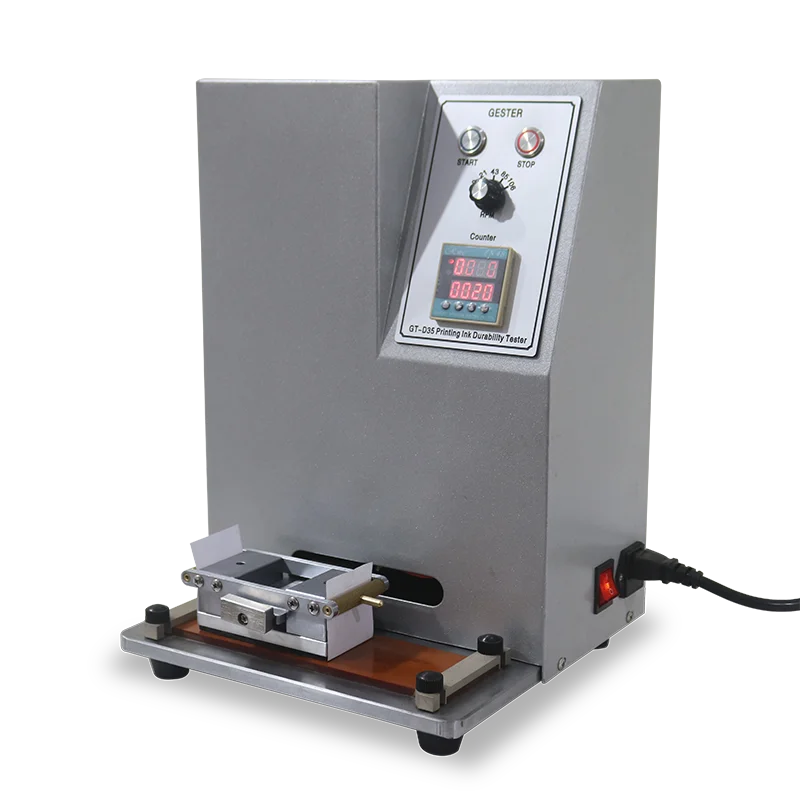

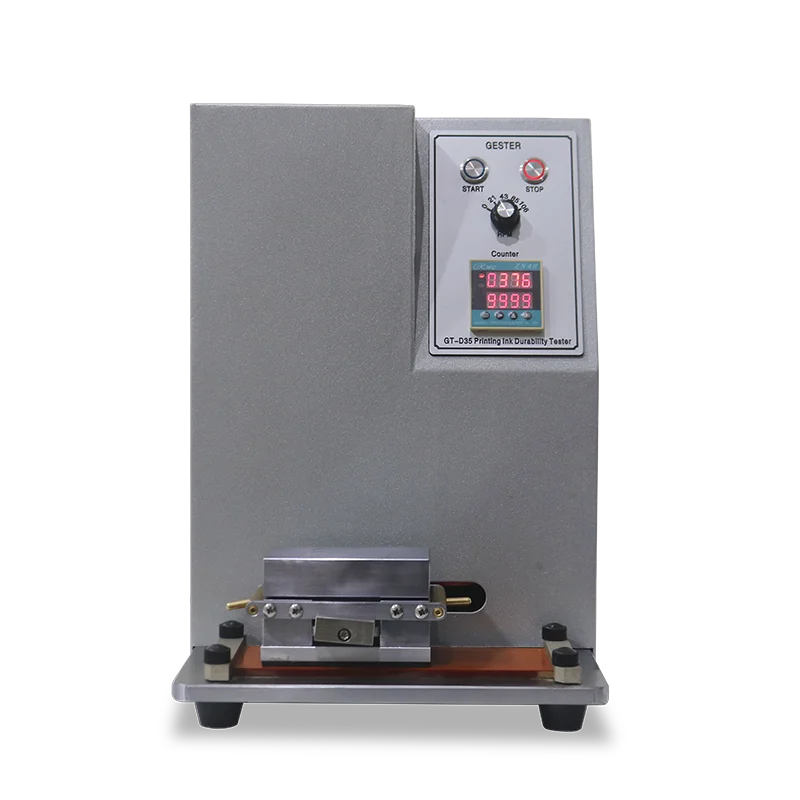

Printing Ink Friction Discoloration Abrasion Durability Tester
Application
It’s mainly used in testing the abrasive resistance of print ink layer, presensitized plate and related surface coating. It can analyze the quality of abrasion resistance, the shedding of ink layer, the pressrun of presensitized plate and the hardness differences of other products.
It’s mainly used in testing the abrasive resistance of print ink layer, presensitized plate and related surface coating. It can analyze the quality of abrasion resistance, the shedding of ink layer, the pressrun of presensitized plate and the hardness differences of other products.
Feature

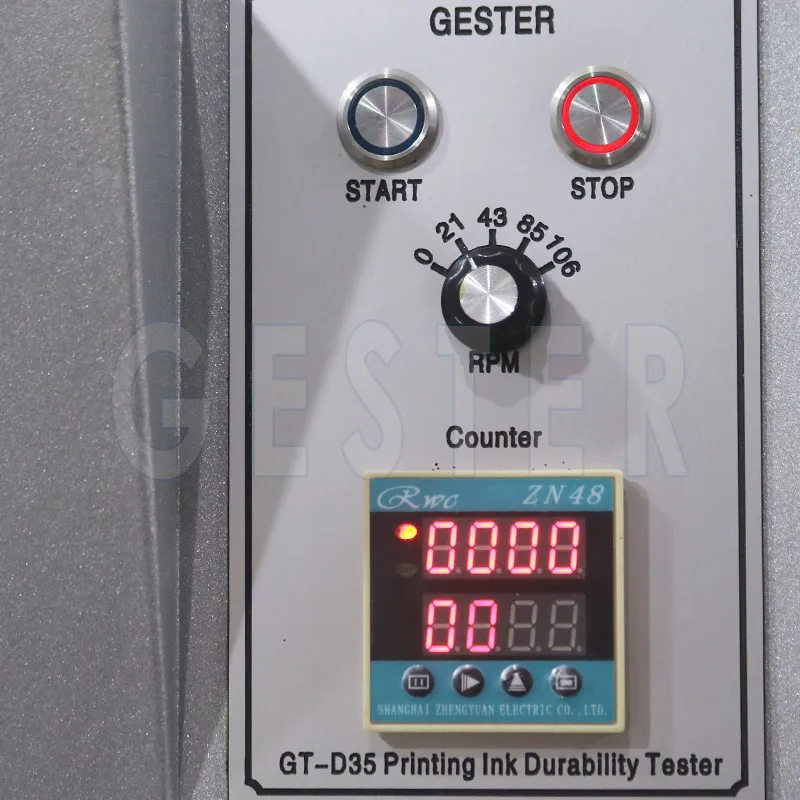

1.Microcomputer control, LCD display
2.Experiment parameter was set by buttons and it has the power cut memory function
3.To deal with the poor wearability of print ink layer, the low quality of abrasion resistance and easy to break off.
1.Microcomputer control, LCD display
2.Experiment parameter was set by buttons and it has the power cut memory function
3.To deal with the poor wearability of print ink layer, the low quality of abrasion resistance and easy to break off.
Standards
ASTM D5264, TAPPI T830, JIS K5701
ASTM D5264, TAPPI T830, JIS K5701
Key Specification
Model | GT-D35 |
Test Load | 2LB and 4LB |
Rubbing Stroke | 60mm |
Speed | 43rpm |
Sample dimensions | 230×50mm |
Rubbing Space | 50×100mm |
Dimensions | 560×550×340mm(L×W×H) |
Weight | 57kg |
Standard accessories | 1 set Friction Head |
| 1 set Weight | |
| 1 pc Power Line |
