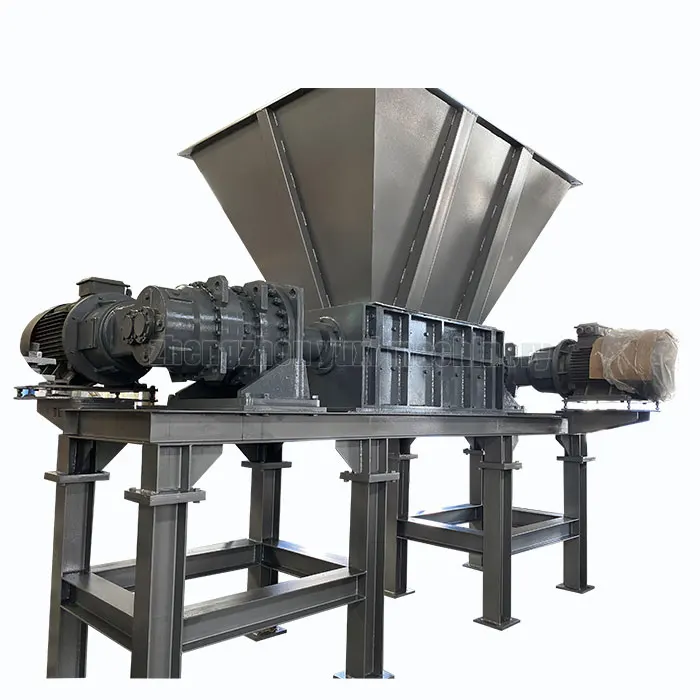

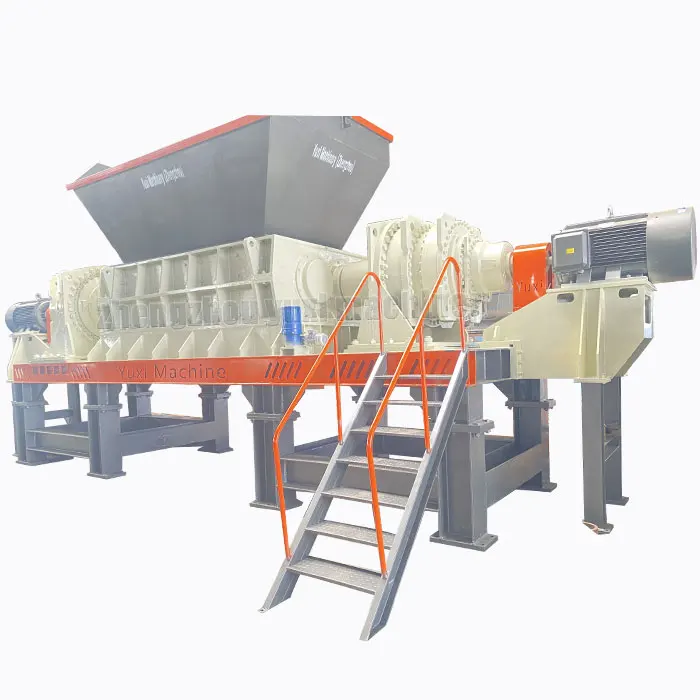

High Recovery Paint Bucket Waste Shredder China Used Car Shell Shredding Machine Line
- Category: >>>
- Supplier: Zhengzhou Yuxi Machinery Equipment Co. Ltd.
Share on (1600575436991):
Product Overview
Description
Product Description

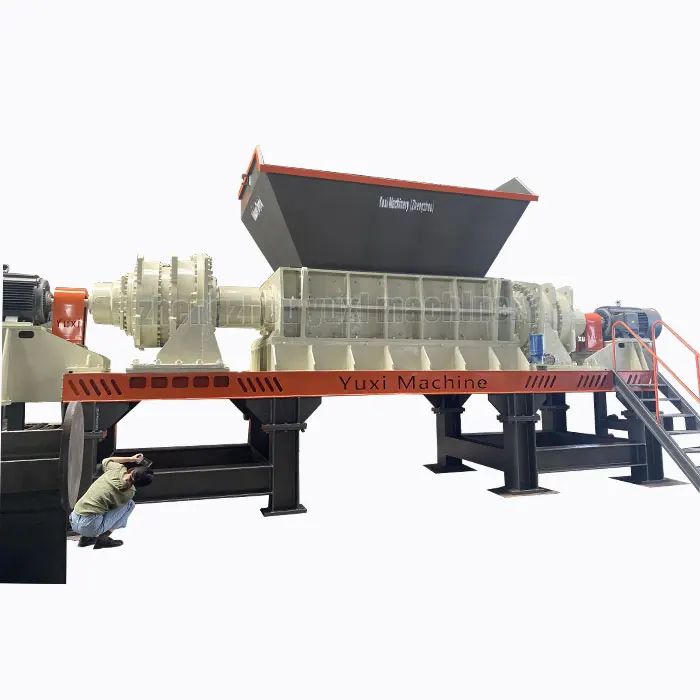

Two Shafts Shredders are small to large size reduction machines suitable for processing a wide range of materials to a smaller size. The products can often be sold as is, or be sent for further processing through additional equipment. Throughout typically range between 300kg/hr – 20,000kg/hr depending on the model, material type and application.

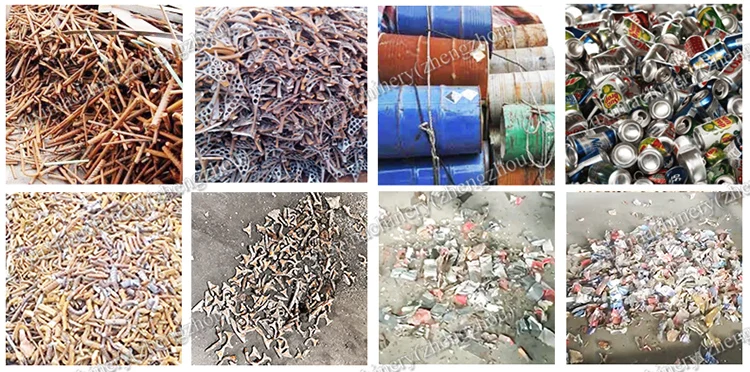

Application
1. All kinds of hollow containers: plastic beverage cans, plastic buckets, iron drums, packing boxes, packing drums.
2. Used household appliances: TV, washing machine, refrigerator shell.
3. Pipe material: large pipe, pipe fitting and PE pipe.
4. Used templates: wooden pallets, plastic pallets and forklifts
5. Used tires: car tires, truck tires.
6. Scrap metal: automobile housing, aluminum alloy, scrap cast aluminum parts, engine housing, lead and steel plates with thickness below 5mm.
7. Cooking garbage, living garbage, RDF derivative, medical waste, biological orange pole, garden garbage.
8. Glue head material, paper mill rope.

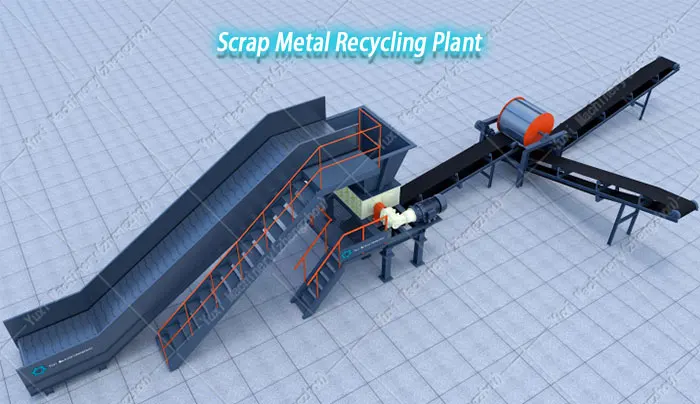

Configuration
1.Input Conveyor System
2.Crushing Process:shredder machine
3.Output Conveyor System
4.Separation Process:Drum Magnetic Separator
5.Controlling System:Control Cabinet
2.Crushing Process:shredder machine
3.Output Conveyor System
4.Separation Process:Drum Magnetic Separator
5.Controlling System:Control Cabinet
Machine Details

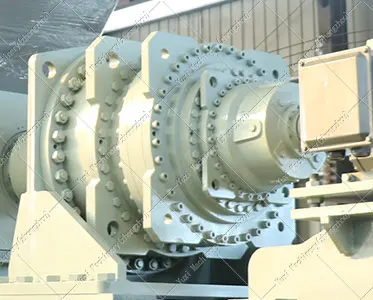

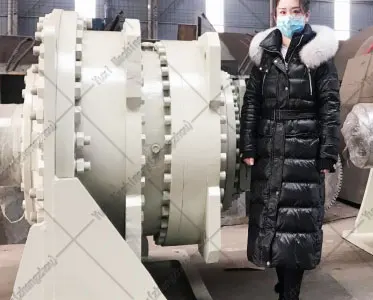

Reducer
The internal gear of planetary reducer is car burized and quenched with 20CrMnTi, which has the characteristics of small volume, light weight, high bearing capacity, long service life, stable operation, low noise, large output torque and high speed ratio.

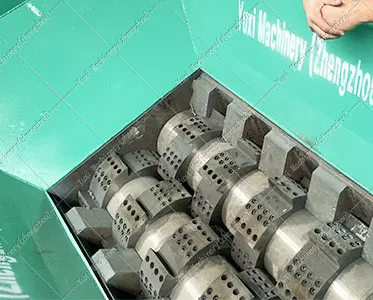

Working Chamber
The box is processed by high-precision CNC machining center and drilled as a whole to ensure the stable operation of the equipment under high load for a long time and prolong the service life of the transmission parts.
Working Chamber
The box is processed by high-precision CNC machining center and drilled as a whole to ensure the stable operation of the equipment under high load for a long time and prolong the service life of the transmission parts.

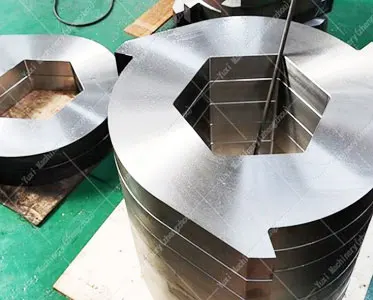

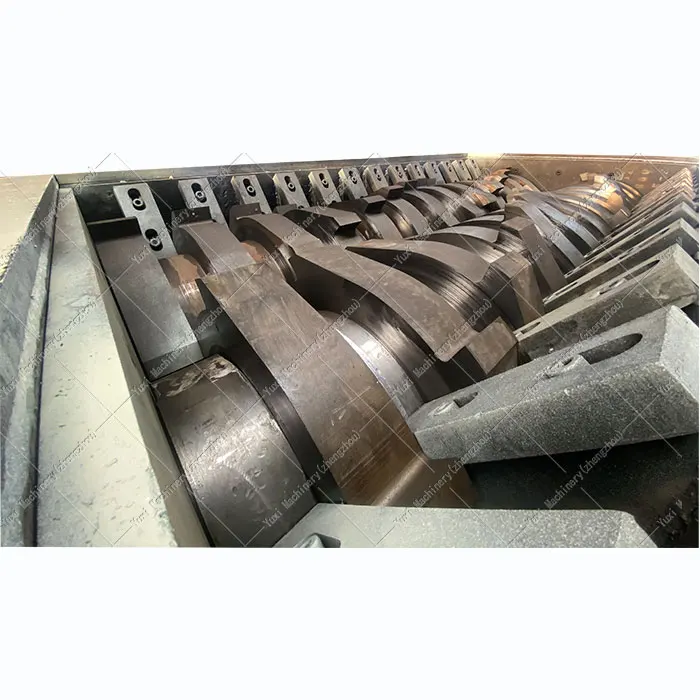

Blade
1.Raw material is H13, After special heat treatment, rock well hardness is 58-63HRC;
2.Knife edge groove design, cushion and reduce the resistance during shearing;
3.Can repair and reuse under normal temperature.
2.Knife edge groove design, cushion and reduce the resistance during shearing;
3.Can repair and reuse under normal temperature.

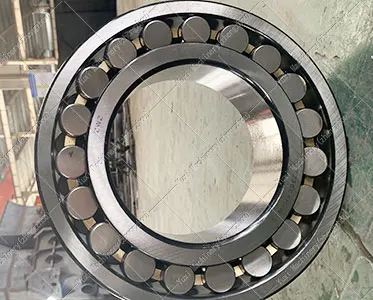

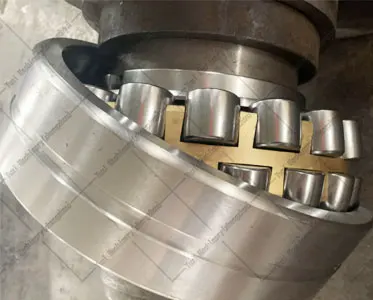

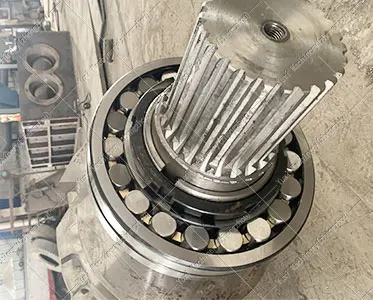

Bearing
Bearing with a adapter sleeve.Which can be disassembled and assembled according to customers' needs, which is very convenient for customers to change the blades, to keep good mechanical properties of bearings.

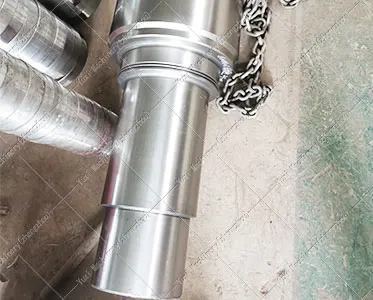

Main Shaft
High-strength alloy steel is used to improve the mechanical properties of the spindle after quenching and tempering. Surface nitriding treatment, surface hardness HRC55-58 after treatment, high spindle strength, easy to install the blade and spindle, ensuring good cooperation with the tool.
Successful Cases
Installation year: 2019
Model: YX-1600. Hour
Capacity：30 tons per hour.
This is a government bidding project for our factory.
Capacity：30 tons per hour.
This is a government bidding project for our factory.
Installation year: 2017
Model: YX-2200
Hammer Crusher.
The European scrap metal recycling project, the production line project is located in Bosnia and Herzegovina.
Our engineers go to the customer's factory to help the customer install the machine. The finished metal is in spherical shape and is directly sold to the steel plant for smelting and recycling.
Hammer Crusher.
The European scrap metal recycling project, the production line project is located in Bosnia and Herzegovina.
Our engineers go to the customer's factory to help the customer install the machine. The finished metal is in spherical shape and is directly sold to the steel plant for smelting and recycling.
Our Services
1.Installation operation manual and guidance
2.Installation disassemble and assembly video
3.Main core parts delivery without disassembled in convenient after -sale installation.
4.Main core parts mark with matched number in convenient install and connection. 5.Machine design drawing.
6.Installation drawing
7.Core parts drawing
8.Engineer on-line video conference for installation guidance
9.Electric appliances drawing and English operation manual
2.Installation disassemble and assembly video
3.Main core parts delivery without disassembled in convenient after -sale installation.
4.Main core parts mark with matched number in convenient install and connection. 5.Machine design drawing.
6.Installation drawing
7.Core parts drawing
8.Engineer on-line video conference for installation guidance
9.Electric appliances drawing and English operation manual

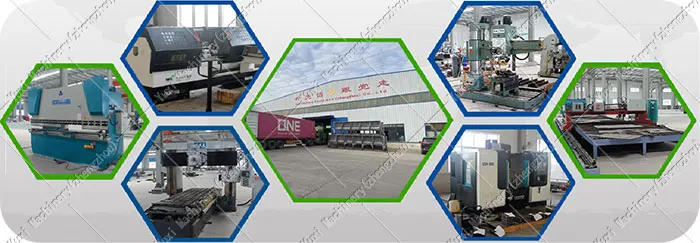

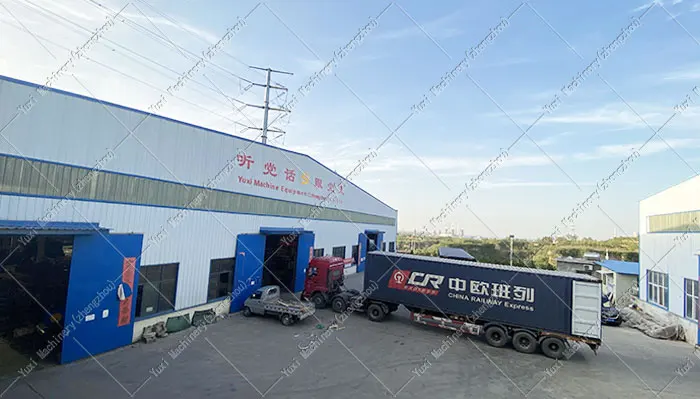

About Us
Yuxi Machinery Equipment (Zhengzhou) Co., Ltd was established in 1998. And we obtained 32 patents and 3 invention patents.Our company is specialized in designing, researching, producing the waste recycling equipment and provide waste treatment solutions. We have professional technical team to provide high quality and efficient after-sale service.
Our products are successfully exported to United States, Europe, Australia, Southeast Asia, Middle East, South America , Egypt and other countries.
High quality, high efficiency, energy saving and environmental protection is the belief that our company has been firmly established
Our products are successfully exported to United States, Europe, Australia, Southeast Asia, Middle East, South America , Egypt and other countries.
High quality, high efficiency, energy saving and environmental protection is the belief that our company has been firmly established
