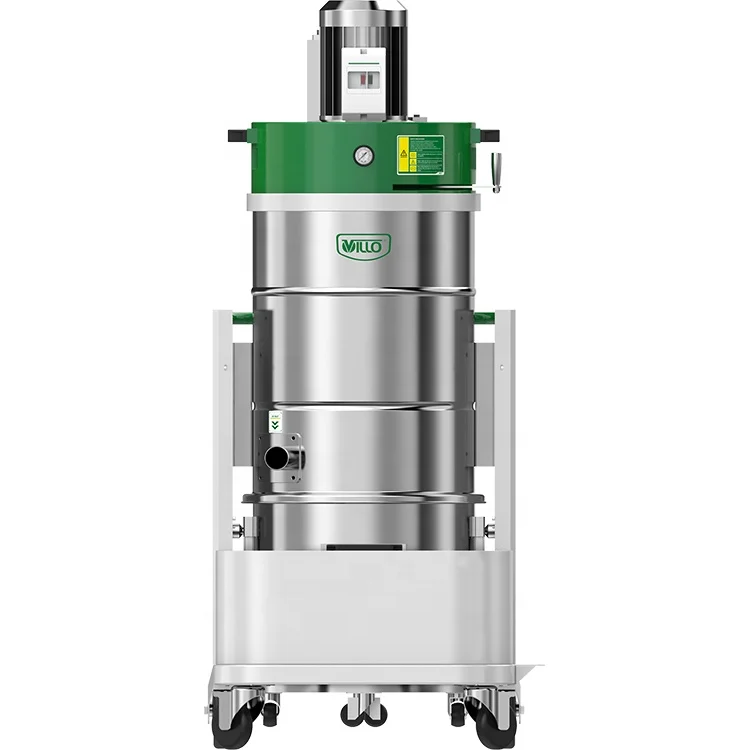

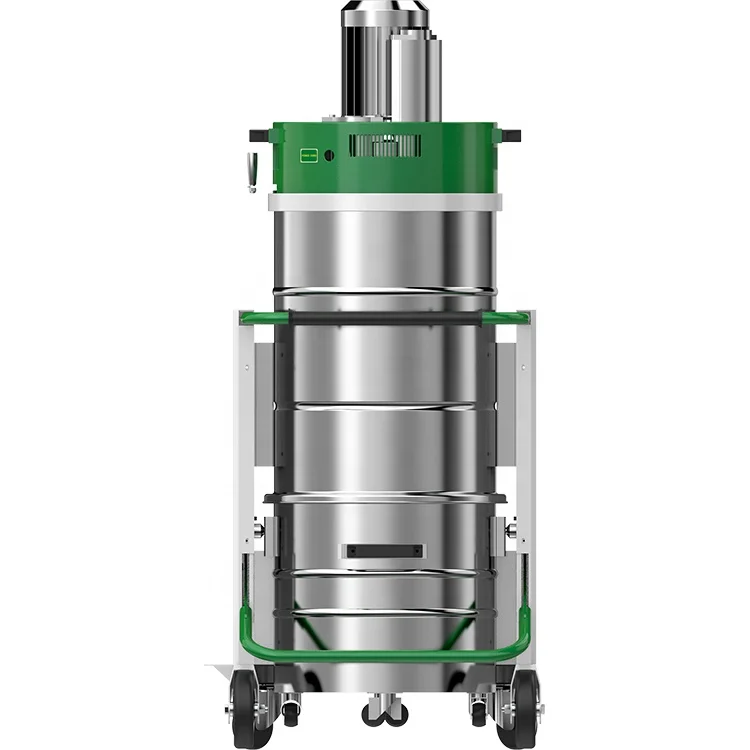

3kW Mobile Metal Chip Swarf Dust Cleaning Equipment Industrial Upright Vacuum Cleaner
- Category: >>>
- Supplier: Dongguan Villo Technology Inc.
Share on (1600575473063):
Product Overview
Description
VKD Series Upright Compact & Economic Industrial Vacuum Cleaners
Product description
VKD series are Compact Industrial Vacuum Cleaners with high pressure; very ideal for small footprint, high precision, mobility and continuous applications.
Applications
* Suitable for single or three phase working conditions.
* Highly efficient for continuous applications and the working conditions that require movability and heavy duty.

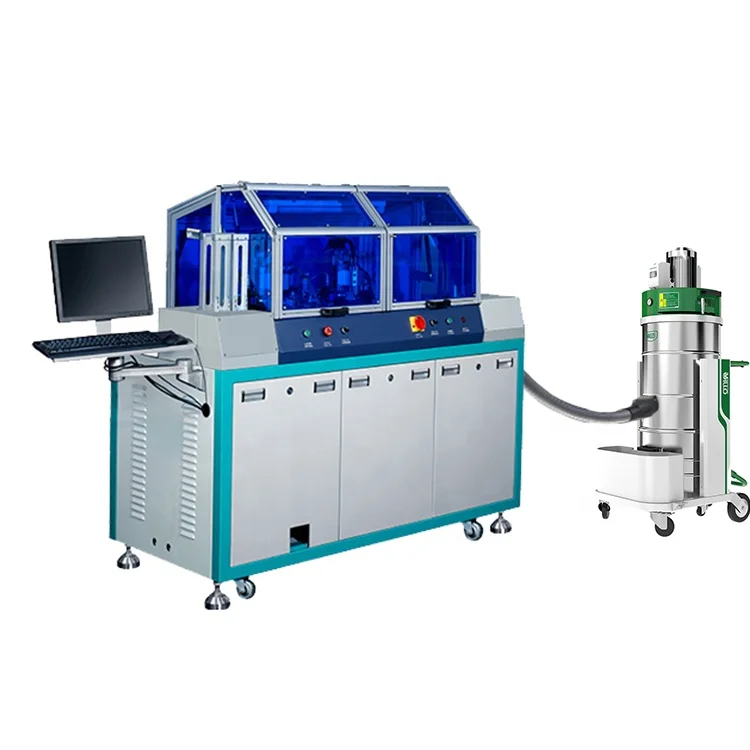

* Routing machine cleaning, etc.
Features
* Customizable voltage
Power less than or equal to 2.2 kilowatts can be made into single phase.
* Equipped with filter cleaning device for easy filter cleaning.
* Maintenance free powerful turbine motor can work continuously for 24 hours.
* Easy dust container cleaning.
Technology Parameters
Model | VKD-22 | VKD-30 | VKD-40 | ||
Voltage(V / Hz) | 380 / 50 | ||||
Power (kW) / (HP) | 2.2 / 3.0 | 3.0 / 4.0 | 4.0 / 5.5 | ||
Max vacuum (mmH₂O) / (kPa) | 2350 / 24 | 2600 / 25.5 | 2600 / 25.5 | ||
Noise dB (A) | 74±2 | 75±2 | 76±2 | ||
Dia. air inlet (mm) / (in) | Ø 50/2 | ||||
Filter area (m²)/ (sq.ft) | 1.9 / 20.5 | ||||
Filter efficiency | >99% | ||||
Capacity of collection barrel (L) / (gal) | 65/17.2 | ||||
Dimension [L*W*H] (mm) / (in) | 760*650*1460/ 30*25.6*57.5 | 760*650*1570 / 30*25.6*61.8 | |||
Weight(kg)/ (lb) | 94/207 | 125 / 275 | 130/287 | ||
Product Configuration
PTFE coated filter bag
Turbine Motor
Manual hand shaker cleaning device

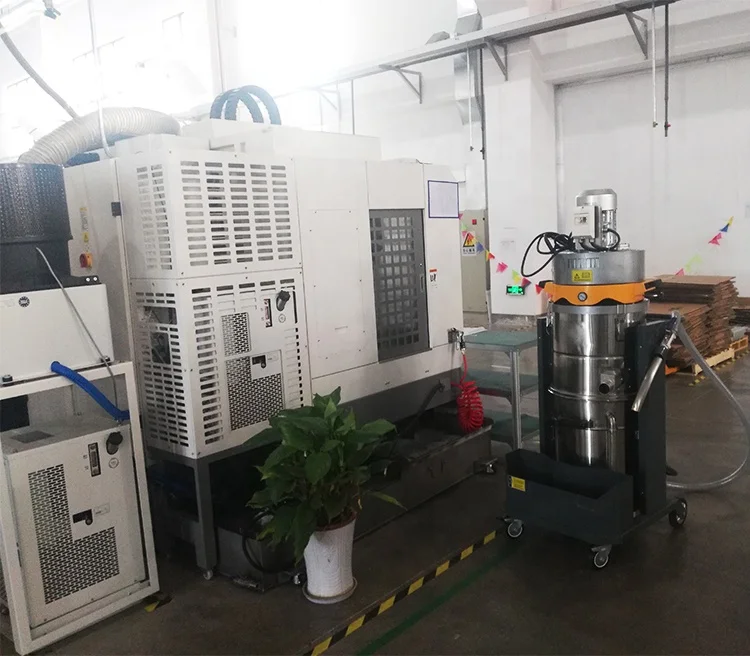

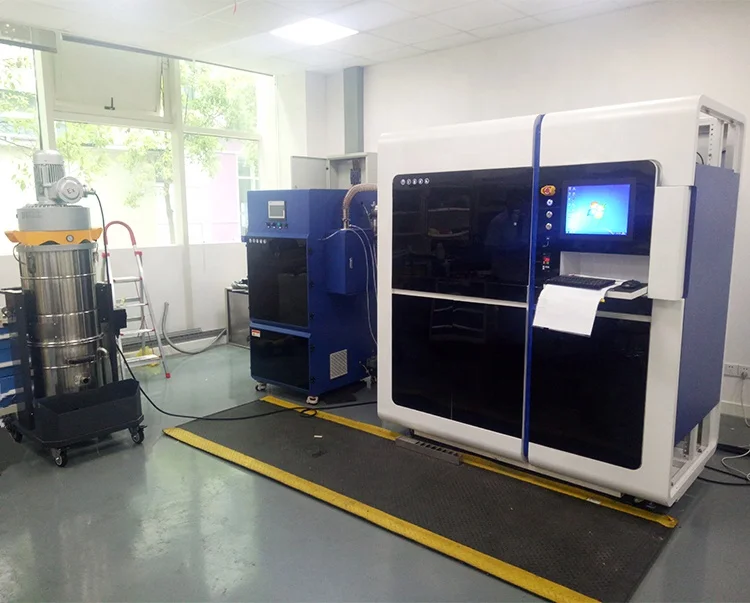

Successful Project
