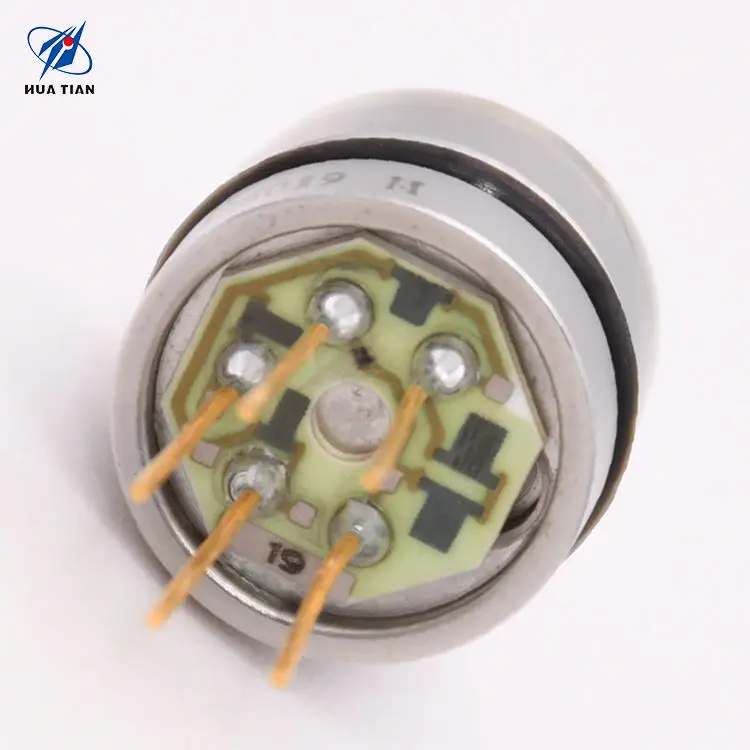

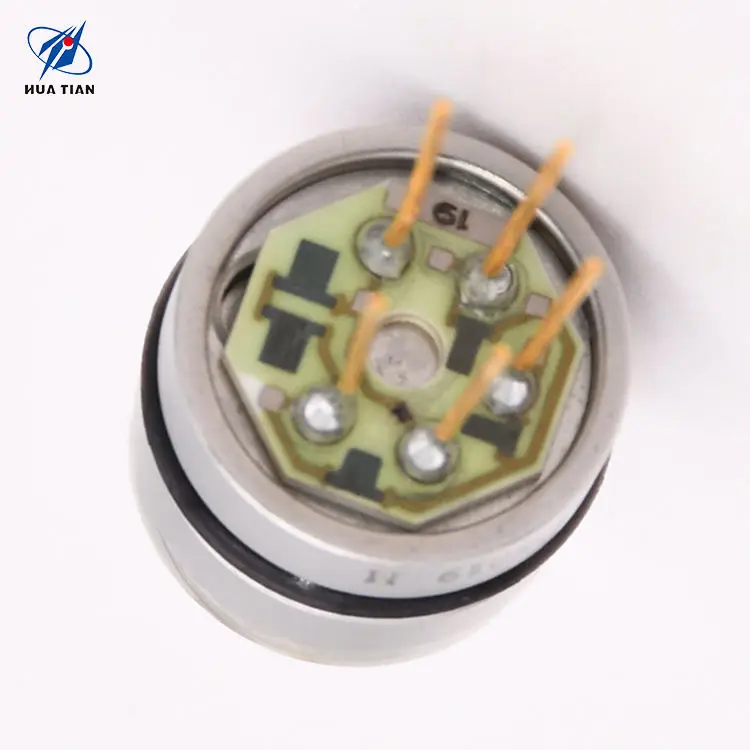

China Huatian CYX12 chemical industrial differential pressure pressure vibration sensors universal
- Category: >>>
- Supplier: Tianshui Huatian Sensor Co. Ltd.
Share on (1600575479556):
Product Overview
Description
China Huatian CYX12 chemical industrial differential pressure pressure vibration sensors universal
NOTICE:
Products Description
The piezoresistive pressure sensor imported high precision, high stability force sensitive chips, adopted advanced technology, military industry production conditions and equipment manufacturing delicately.
Widely used in petroleum, chemical, metallurgy, electric power, aviation, medical equipment.
Widely used in petroleum, chemical, metallurgy, electric power, aviation, medical equipment.
Product Parameters
Range | -100kPa~100MPa | |||
Parameters | Typical Value | Maximum Value | Unit | |
Zero Output | ±1 | ±2 | mV | |
Nonlinearity | 0.2 | 0.5 | %FS | |
Hysteresis | 0.05 | 0.1 | %FS | |
Repeatability | 0.05 | 0.1 | %FS | |
Input/ Output Impedance | 2.6 | 3.8 | kΩ | |
Zero Temperature Drift* | ±0.15 | ±0.8 | %FS,@25℃ | |
Sensitivity Temperature Drift* | ±0.2 | ±0.7 | %FS,@25℃ | |
Long-term Stability | 0.1 | %FS/year | ||
Excitation Current | 1.5(Max input voltage is 10VDC) | mA | ||
Insulation Resistance | 500(500VDC) | MΩ | ||
Compensation Temperature | 0~50; -10~80 | ℃ | ||
Operating Temperature | -40~+85 | ℃ | ||
Storage Temperature | -40~+125 | ℃ | ||
Response Time | ≤1 | ms | ||
Shell & Diaphragm Material | 316L Stainless Steel | |||
Measuring Medium | The fluid which is compatible with 316L, viton, nitrile rubber | |||
Vibration(20~500Hz) | 20 | G | ||
Useful Time(25℃) | >1*108Pressure Circulation(80%FS) | times | ||
Packing Medium | Silicon Oil / Fluorine Oil | |||
Weight | 36 | g | ||
O Ring | Φ16*1.8mm(nitrile rubber or viton) | |||

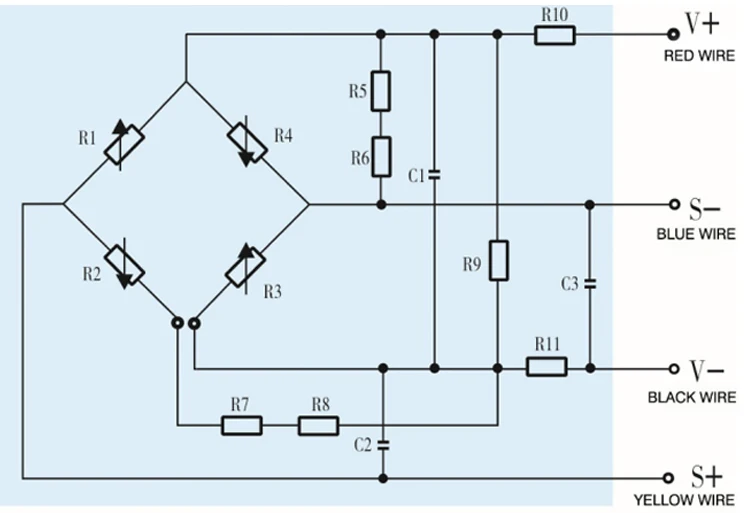

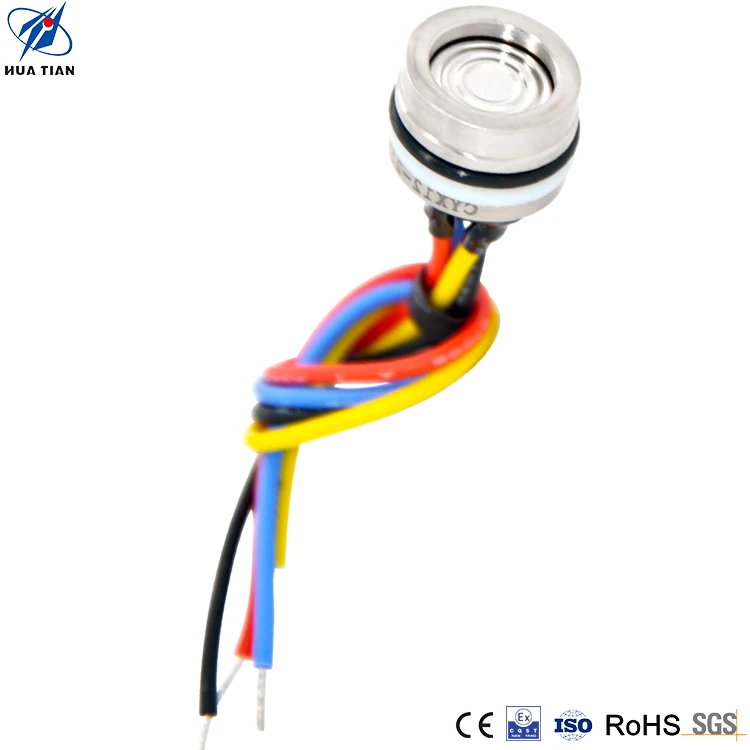

Connection:
red wire -- positive vdd black wire -- ground
yellow wire -- positive output blue wire -- negative output
red wire -- positive vdd black wire -- ground
yellow wire -- positive output blue wire -- negative output

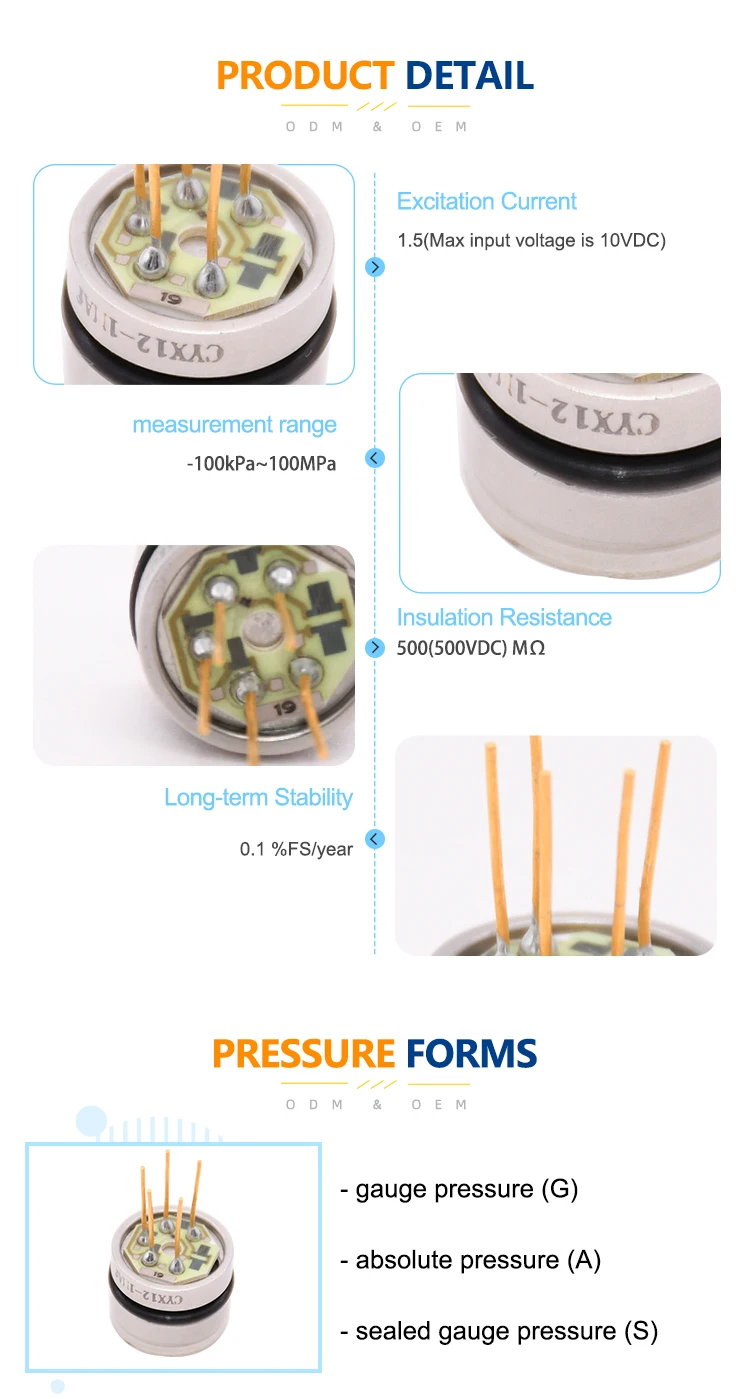

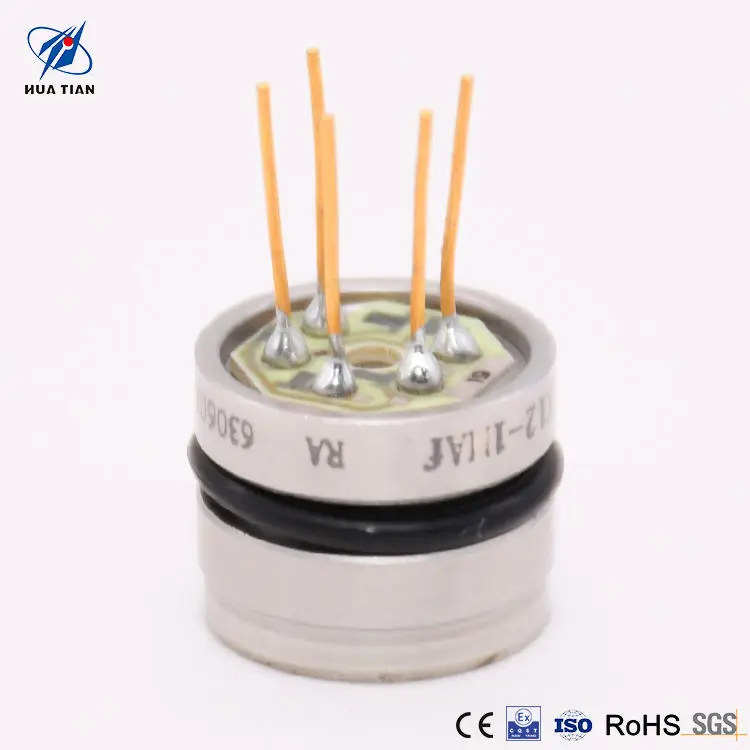

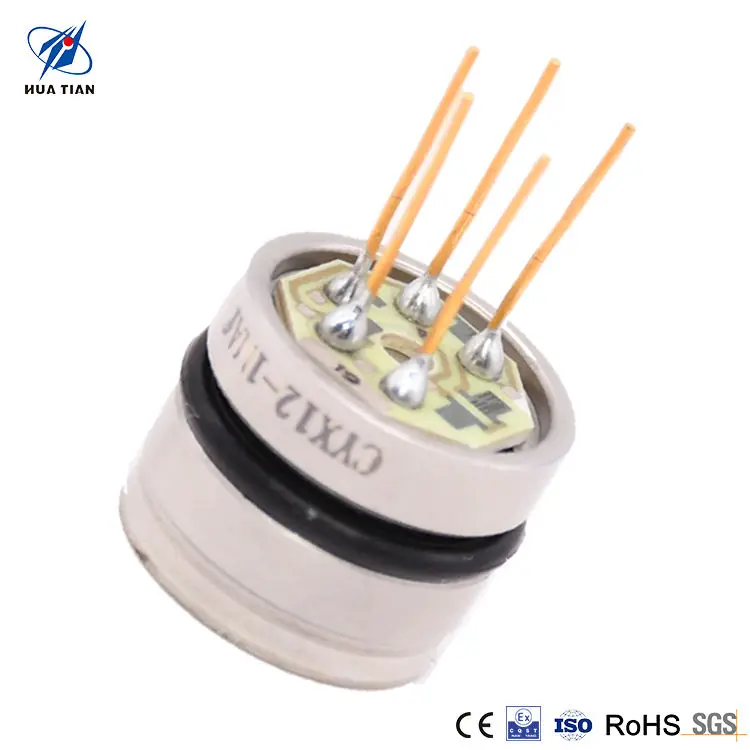

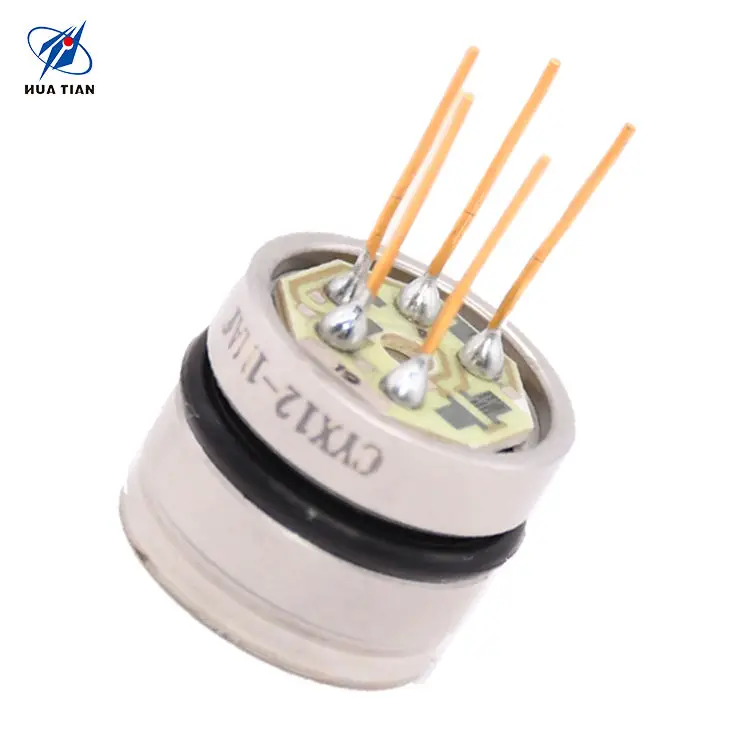

Detailed Images
Trait:
1.The accuracy can reach 0.1%
2.Full span output is 100mV(typical value)
3.Imported high stable chips
4.Long-term stability reach 0.1%FS/year
5.Cost effective.
1.The accuracy can reach 0.1%
2.Full span output is 100mV(typical value)
3.Imported high stable chips
4.Long-term stability reach 0.1%FS/year
5.Cost effective.
Application
The products are widely used in coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry and other fields.
● liquid level measurement
● gas and liquid pressure measurement
● gas and liquid pressure measurement
● pressure detection and calibration instrument
● pressure switch and hydraulic system
● pressure switch and hydraulic system
● well monitoring
● refrigeration equipment and air conditioning system
● refrigeration equipment and air conditioning system
● fire Internet of things
