Clip-on genset for used reefer container for sale in dubai
US $5.00-$15.00

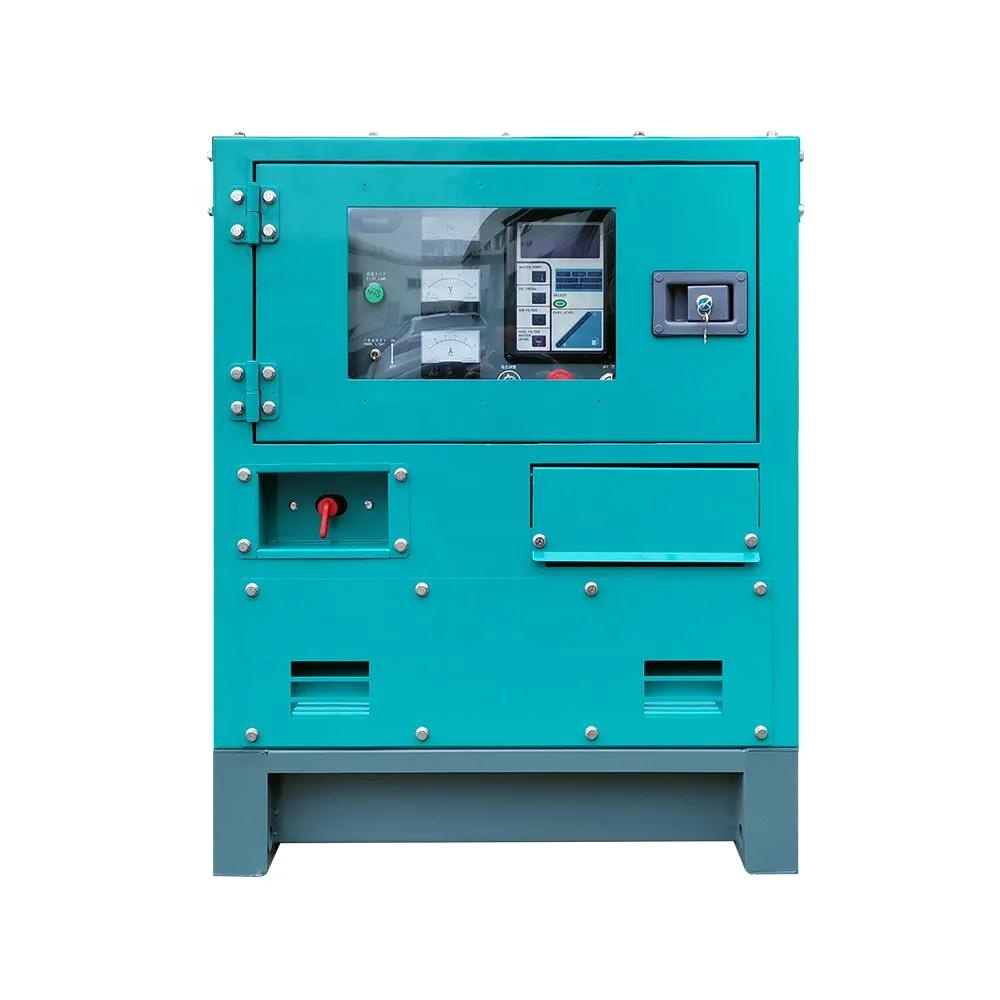

OEM 10kw 20kw single phase Yangdong Silent Diesel Generator
- Category: Generators >>>
- Supplier: Fujian,Jinlongteng,Power,Engine,And,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
GENSET MODEL | JY-20/S |
Prime power (kW/kVA) | 16/20 |
Standby power (kW/kVA) | 18/22 |
Frequency (Hz) | 50 |
Voltage (V) | 220/380,230/400,240/415 |
Rated current (A) | 30//29/28 |
Power factor | 0.8 |
Ambient temperature (°C) | 40 |
Altitude (m) | 1000 |
ENGINE MANUFACTURER | YANGDONG |
Engine Model | YSD490D |
Rated Power (kW) | 21 |
No. of cylinders & configuration | In-Line 4 cylinders |
Method of operation | 4 Stroke |
Speed regulation | Mechanical Governor |
Cooling method | Closed-circuit cooling system |
Total displacement (L) | 2.417 |
Compression ratio | 18:01 |
Bore×Stroke (mm) | 90*95 |
100% Load fuel consumption (L/h) | 5.5 |
ALTERNATOR MANUFACTURER | JLT-POWER |
Number of Phase | Three Phase |
Power Factor | 0.8 |
Protection Grade | IP21/IP23 |
Winding/ Pitch | 100% Copper 2/3 Pitch |
Cooling Fan | Cast alloy aluminum |
Exciter Type | Brushless, Self-Exciting |
Insulation Class, Temperature Rise | H/H |
Telephone Influence Factor( TIF) | TIF ＜5% / THF ＜2% |
Total Harmonic TGH/THC | ＜1.5% no load / ＜5% on load |
Voltage Regulation, Steady State | ≤+-1% |
Sustained Short-Circuit Current | 300% （3in）:10s |
Control System | Smartgen HGM6110N |
ATS | Optional |
Related Products
Company Introduction
JLT POWER
Fujian Jinlongteng Power Engine & Machinery Co.,Ltd. is a highly professional and experienced manufacturer of engines, generators and water pumps. We have specialized in this field over 10years and always dedicated to produce the engines, generators and water pumps in high quality with reasonable prices.
Why Choose Us:
1, Since 2000, with over 10years manufacturer experience.
2, Rich experience in OEM orders.
3, Advanced production equipment.
4,Own design team, can help you custom the packaging.
We are a professional manufacturer for engines, generators and water pumps withintegrating development, production and sales. Factory located in one of the early open cities -Fuzhou, with more than 100,000square meters.Warmly welcome all partners to join us for mutual benefits cooperation.
Our products include:
1, Portable Gasoline Engine: 5.5Hp, 7.0Hp, 13.0Hp and 15.0Hp.
2, Portable Diesel Engine: 4.0Hp, 6.0Hp, 10Hp, 12Hp and 15.0Hp.
3, Portable Gasoline Generators: 0.65kW - 10kW
4, Portable Diesel Generators: 2.0kW - 8.0kW.
4, Portable Diesel Generators: 2.0kW - 8.0kW.
5, Water cooled diesel generators, With power range from 10kVA to 1500kVA.
Powered by: Cummins,Perkins, Deutz, Isuzu, Lovol, Chinese Ricardo, Yangdong, Quanchai and so on.
Why Choose Us:
1, Since 2000, with over 10years manufacturer experience.
2, Rich experience in OEM orders.
3, Advanced production equipment.
4,Own design team, can help you custom the packaging.
We are a professional manufacturer for engines, generators and water pumps withintegrating development, production and sales. Factory located in one of the early open cities -Fuzhou, with more than 100,000square meters.Warmly welcome all partners to join us for mutual benefits cooperation.
Details Images
Packing&Shipping
After Sales Service
(1) Guarantee for one year or 1000hours (according to whichever reaches first) from ex-factory date.
(2) During guarantee period,our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material.
Our Service:
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, JLT-Power will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, JLT-Power provides cost spare parts maintenance of engine & alternator.
(2) During guarantee period,our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material.
Our Service:
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, JLT-Power will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, JLT-Power provides cost spare parts maintenance of engine & alternator.
FAQ
