DFQ 150W 150m water well drilling rig DTH Hammer Rock Blasting Drilling Machine Price

Product Overview

Description

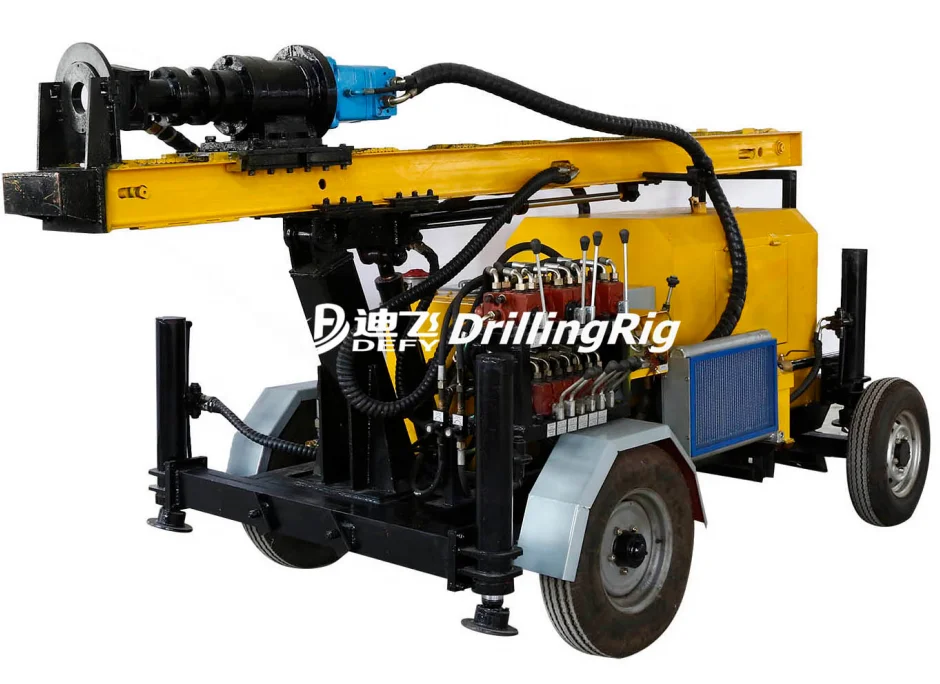

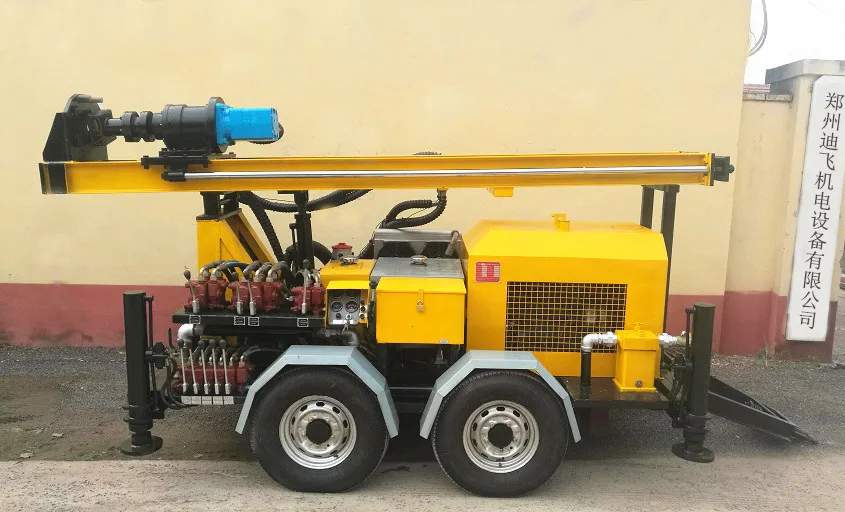

DFQ-150W 150m water well drilling rig DTH Hammer Rock Blasting Drilling Machine Price

DEFY Brand/ DTH Hammer DFQ-150W Trailer Mounted Geothermal Drilling Machine for 100m depth per day





I. Technical Parameters:

No.	Item	Specification
1	Drilling caliber	φ105-203
2	Max. drilling depth	150m
3	Work pressure	1.05-2.0 MPa
4	Gas consumption	15-24 m³/min
5	Apply to rock hardness	f=6-12
6	Power	44Kw/2000rpm
7	Gradeability	25°
8	Lifting force	10 tonf
9	Speed of spindle	Fast  120 rpm
		Slow  85 rpm
10	Rotary torque	2000 N.m

Remarks:
We provide a Turn-Key solution for drilling equipment, including every small piece you may need. Please send us an inquiry for more details, we will respond and offer you a Complete set of Drilling rigs as per your requirements.



II. Features
1. Fully hydraulic operation;
2. Hydraulic stabilizer legs;

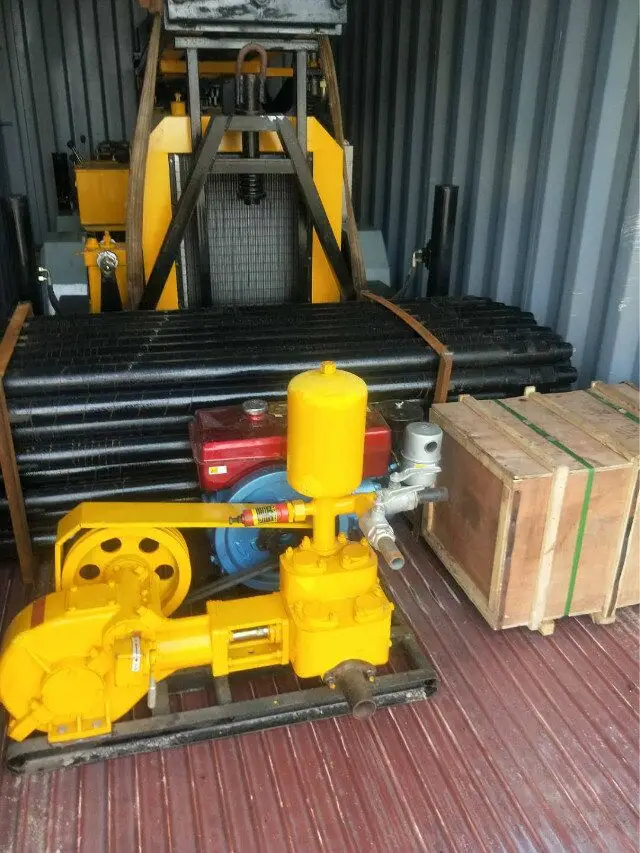

3. Working with both Air compressor and Mud pump, functional and applicable to soft soil ground and hard rock ground;

4. Can drill up to 100~200m deep per day when rock formation.

5. We have trailer type, crawler type and truck-mounted models for your needs.

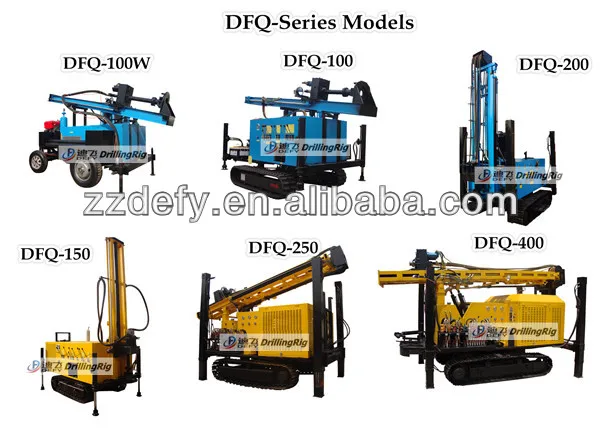

III. Other models for your choice:



Model	Drilling Caliber	Max. Drilling depth	Movable Chassis
DFQ-100	105~150mm	100m	crawler
DFQ-100W	105~150mm	100m	trailer
DFQ-150	105~203mm	150m	crawler
DFQ-150W	105~203mm	150m	trailer
DFQ-200	105~203mm	200m	crawler
DFQ-200W	105~203mm	200m	trailer
DFQ-250	115~220mm	250m	crawler
DFQ-300	105-305mm	300m	crawler
DFQ-400	105-400mm	400m	crawler
