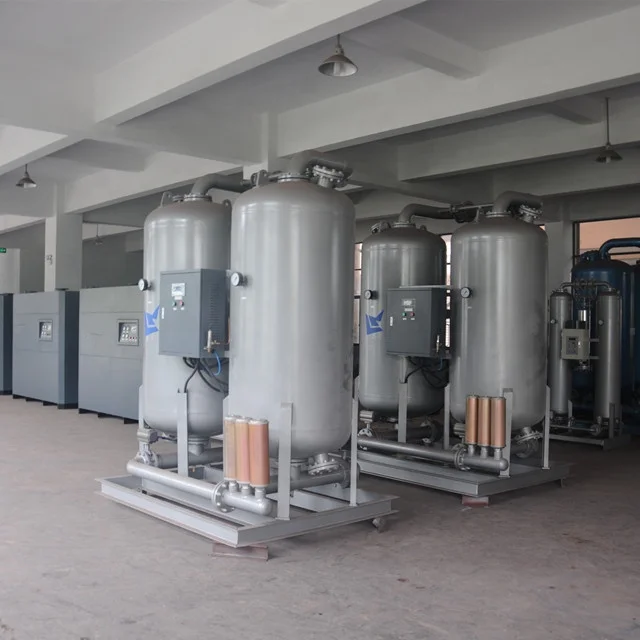

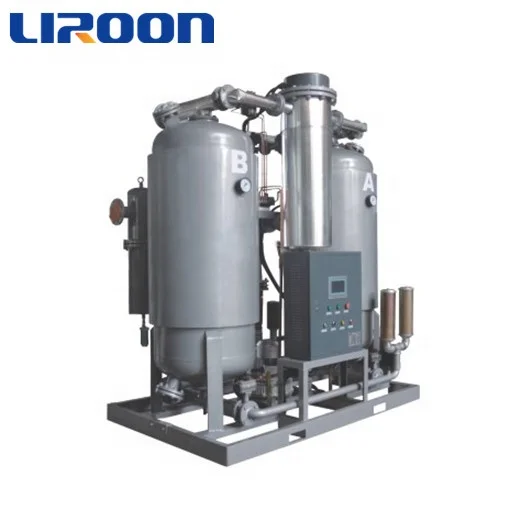

Twin tower Hot regeneration desiccant air dryer with reliable electric heater

Type: Heated Desiccant Air Dryer

Rated Inlet Temperature:≤38°C

Max Inlet Temperature :≤40°C

Inlet oil content:≤0.01ppm

Outlet Pressure Dew Point:-40°C(-70°C is optional)

Adsorbent:Activated alumina or Molecular  sieve

Rated Working Pressure:0.7MPa-1.0Mpa ( 1.0MPa above is optional)

Pressure Drop:≤0.02MPa

Control Model :CPU(Standard configuration),PLC is optional

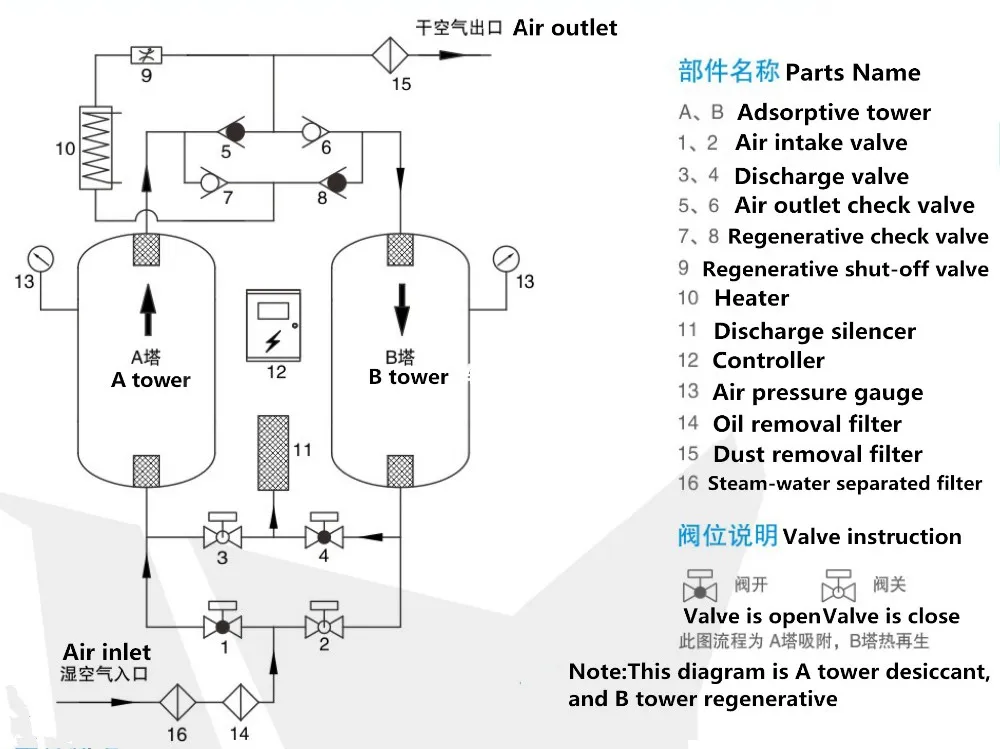

Working Mode:Automatic switching between tower A and tower B,continuous working

Regeneration Way:Heated regenerative

Regeneration Air Consumption:3-7%

Cycle Period :100-480mins,adjustable

Power Supply: 380V/50HZ(Other power can be customized)

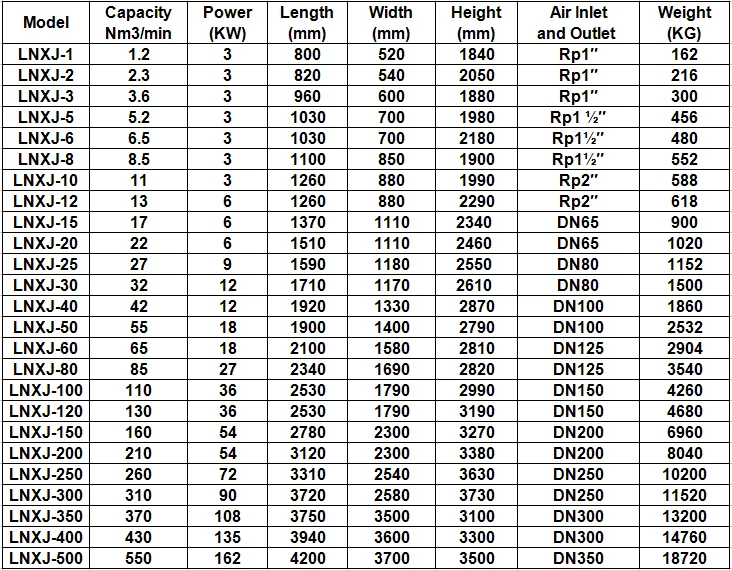

 Specifications as follows:

 If can't find the one you need ,special specification welcome to contact us .

1. Are you a Manufacturer or Trade company ?

    We are a professional manufacturer of compressed air dryer ,found in 1999.

2. Could I use my own logo or design on goods?

     Yes,customized logo and design on mass production are available.

3. What's the delivery time?

    Within 15-30 working days after receiving deposit.
