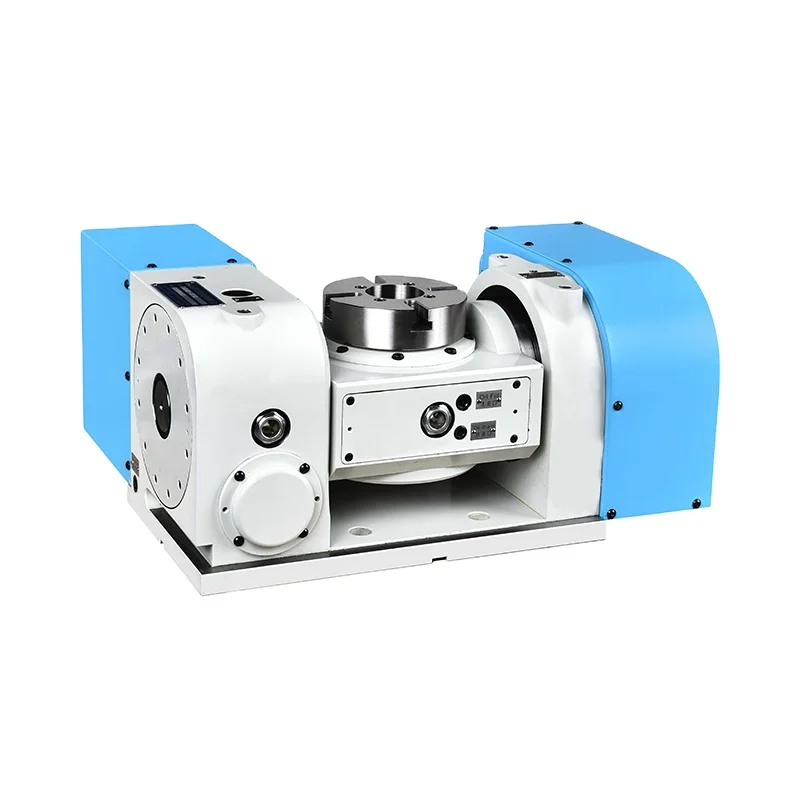

Factory Direct Sale Universal 5 Axis Cnc Rotary Table Hass Cnc Machine

Center Use 5th Axis Tilting Rotary Indexing Table


This Rotary table major used in cnc drill&tap machine center ,cnc machine center etc




FEATURES AT A GLANCE


Compact dimension
Safety frame
Cnc control
Long service life
Versatility



Front elevation
3D back elevation
3D Front elevation




PRODUCT SPECIFICATIONS


Model
MABD-130
Disc diameter
130mm
Spindle bore diameter
∅40h7
Sindle cener through hole
∅35h7
Rotate disc level 0 degree height
215mm
Rotate disc level 90 degree height
233mm
Width of T slot
x
Width of mount key
14h7
Locking force
5 pneumatic
Ambient temperature
18 ~40°
Mini division angle
0.001°
Gear ratio
1/60 of rotate axis 1/120 of tilting axis

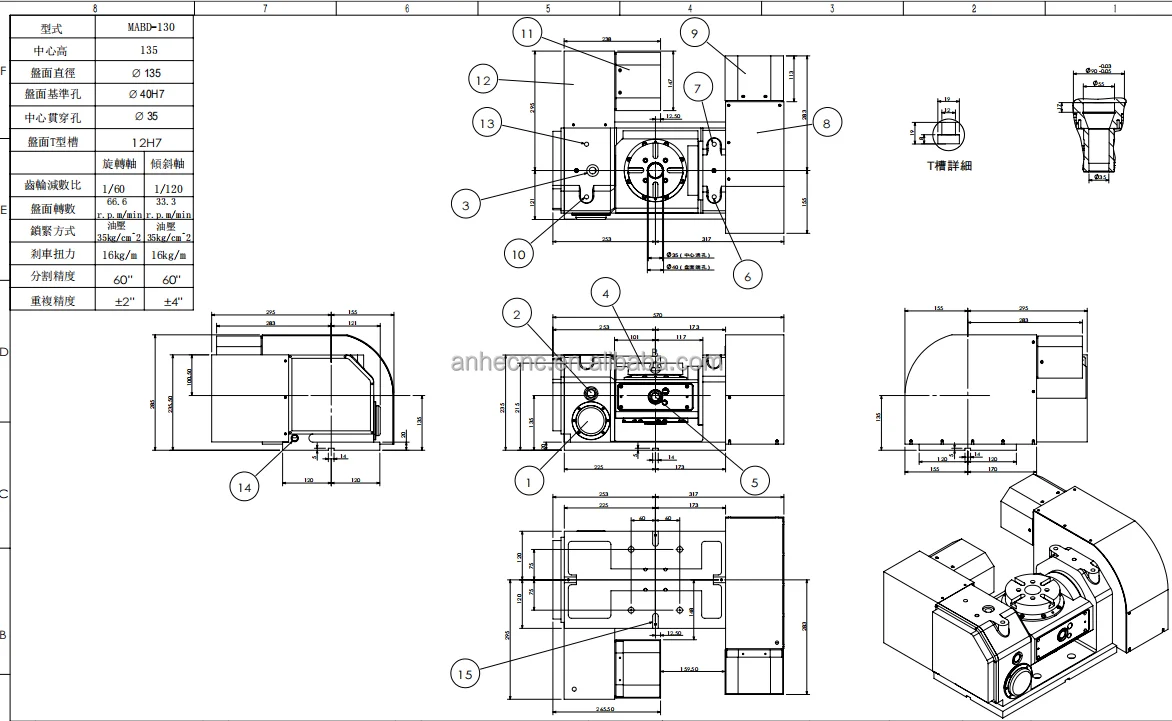

MABD-130 drawing




PRODUCT CONFIGURATION


Fanuc serve motor
Fanuc drive

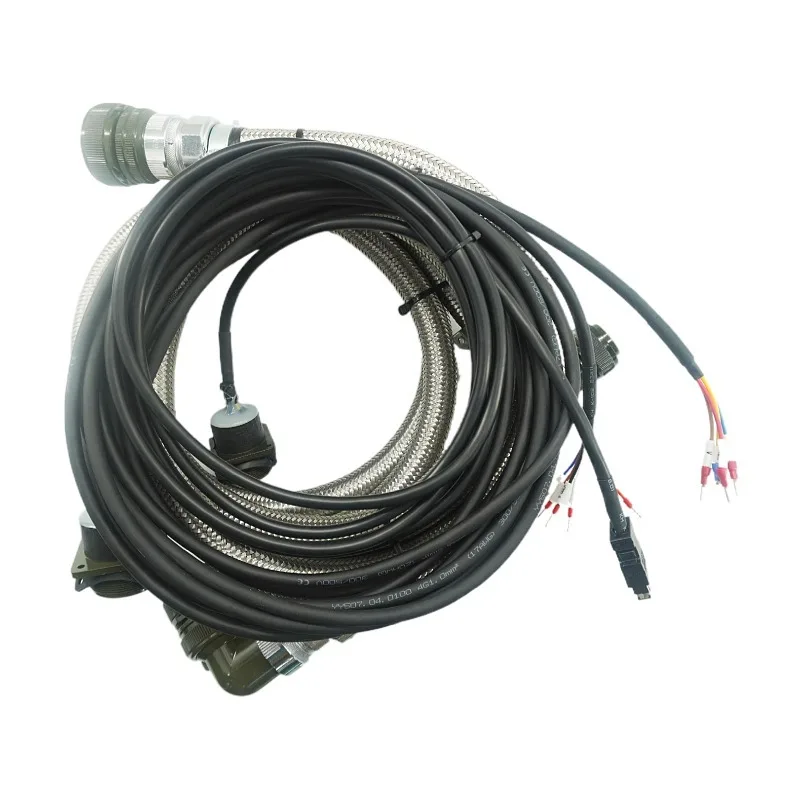

Fanuc system connect cable


SALES AND SERVICE NETWORK




Successful Project


Solution for brother drill&tap machine
Solution for Ugint drill&tap machine
Solution for Fanuc drill& tap machine


SIMILAR PRODUCTS




FAQ


Q1:What's the lead time for the cnc rotary table ?
A1：We have 4th axis cnc rotary table in stock ,the 5th axis rotary table need more than 7 days.

Q2:Which system suit for the cnc rotary table ?
A2: Fanuc ,Mitsubishi,siemens,Haas, GSK,Syntec etc .
