Brand new Zte Mc8020 Modem 5g Router outdoor cpe router
- Category: >>>
- Supplier: Shenzhen Qishun Technology Co. Ltd.
Share on (1600575563230):
Product Overview
Description
5G Modem CPE WIFI 6 Dual band 5400Mbps Up to 128 Users wireless routers with sim card slot 5G 4G LTE network mc8020
* ZTE 5G Indoor WiFi Router
* Platform: Qualcomm SDX55 + Qualcomm Maple+Pine
* 5G Dual-mode: SA & NSA
* WiFi 802.11a/b/g/n/ac/ax, 2.4G&5G dual band
* LTE+5G EN-DC Peak data rate up to 3.8Gbps
* Support up to 128 wireless users
* Platform: Qualcomm SDX55 + Qualcomm Maple+Pine
* 5G Dual-mode: SA & NSA
* WiFi 802.11a/b/g/n/ac/ax, 2.4G&5G dual band
* LTE+5G EN-DC Peak data rate up to 3.8Gbps
* Support up to 128 wireless users
* Modulation: DL 256QAM, UL 256QAM
Specifications:

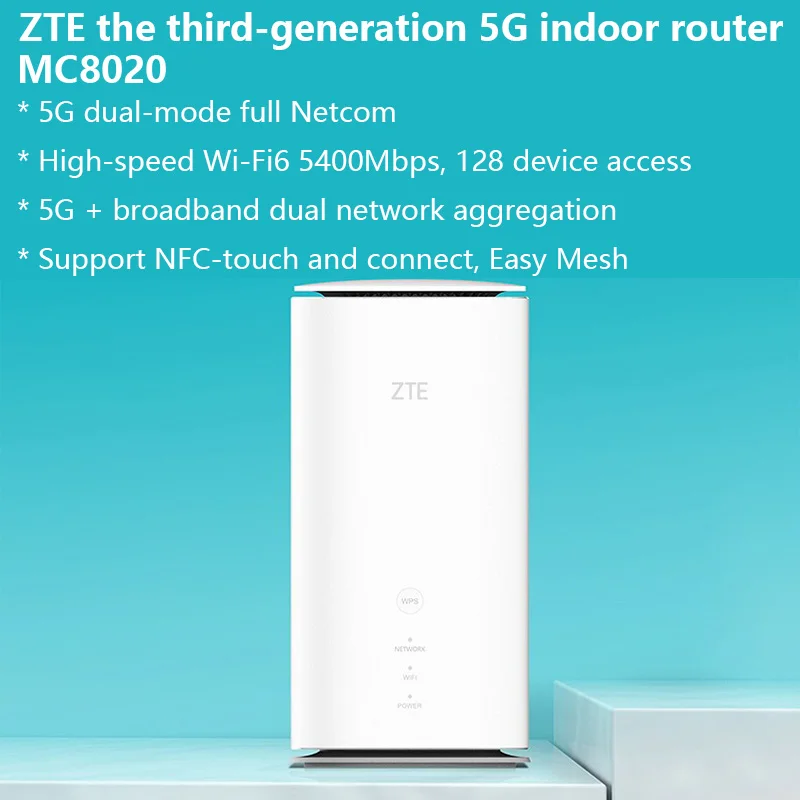

ZTE MC8020 is a new 5G wireless Indoor CPE/router supporting both 5G SA and NSA modes, as well as Sub-6GHz and mmWave spectrum bands.
With Qualcomm's latest enterprise-level NPU, the ZTE 5G Indoor CPE MC8020 delivers Wi-Fi 6, 4x4 MIMO, and 4KQAM at a peak speed rate of up to 5.4Gbps for up to 128 users simultaneously.
With new NFC functionality, ZTE 5G Indoor CPE MC8020 can be conneted to NFC-enabled smartphones with just one touch.
The advanced zLink Boost technology automatically converges wireless and wired broadband networks, doubling the upstream and downstream speeds of ZTE 5G Indoor CPE MC8020 to achieve a constant high-speed connection.

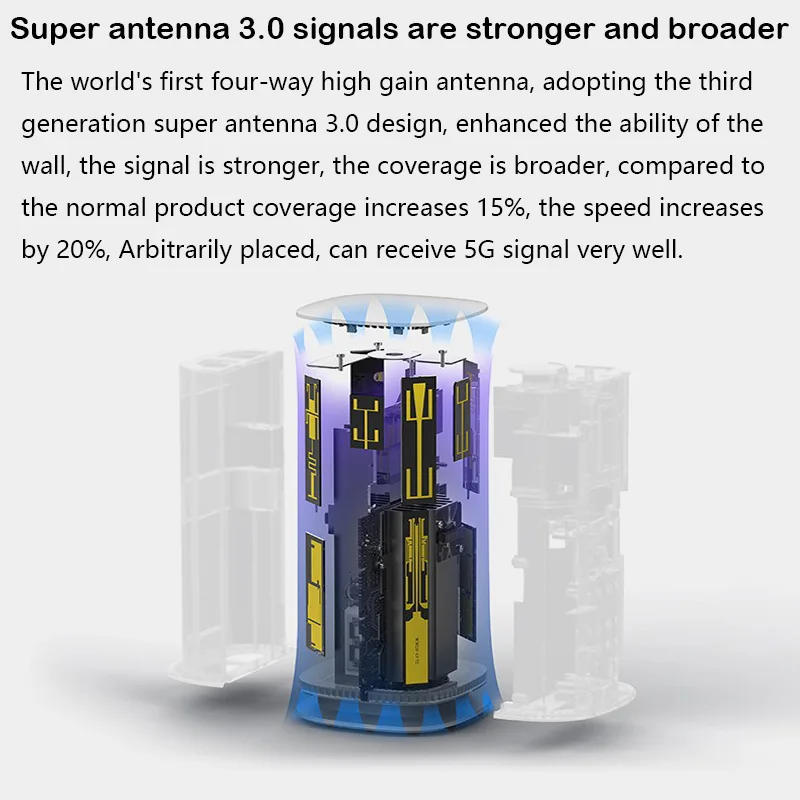

ZTE’s latest 3.0 super antenna technology achieves true omnidirectional height for improved 5G signal penetration.
With Qualcomm's latest enterprise-level NPU, the ZTE 5G Indoor CPE MC8020 delivers Wi-Fi 6, 4x4 MIMO, and 4KQAM at a peak speed rate of up to 5.4Gbps for up to 128 users simultaneously.
It supports key Wi-Fi 6 technologies such as OFDMA, TWT, and BSS coloring, and utilizes chip-level AI computing power - effectively reducing interference and power consumption while meeting higher service-level agreements (SLAs) for concurrently connected diverse usage profiles.
With new NFC functionality, ZTE 5G Indoor CPE MC8020 can be conneted to NFC-enabled smartphones with just one touch.
Connecting TVs, computers, and smart devices to the ZTE Indoor 5G CPE MC8020 can be automated without changes to Wi-Fi network settings.
The advanced zLink Boost technology automatically converges wireless and wired broadband networks, doubling the upstream and downstream speeds of ZTE 5G Indoor CPE MC8020 to achieve a constant high-speed connection.
ZTE’s latest 3.0 super antenna technology achieves true omnidirectional height for improved 5G signal penetration.
The new super antenna technology delivers 15 percent more coverage and 20 percent faster access speed than that of the ZTE 5G Indoor CPE MC801A.
ZTE MC8020 5G Indoor CPE Specifications:
* Product type: 5G Wireless Router
* Platform: Qualcomm SDX55 + Qualcomm Maple+Pine
* Network:
-5G Dual-mode: SA & NSA
- 5G Sub6G FDD: n1/2/3/5/7/8/12/20/28/66/71,TDD: n77/78/79/41/40/38
- 5G - mmW n257,258 or 260,261(optional)
- 4G LTE Global FDD and TDD,600MHz~3.8GHz,CAT22
* 5G MIMO:
5G+LTE:
- sub6G DL : 4MIMO
- 4G DL: 8layers
- LTE: 4MIMO on 5CA(4G only)
* Bandwidth (MHz): 100M
* Modulation: DL 256QAM, UL 256QAM
* LTE+5G EN-DC Peak data rate up to 3.8Gbps
* WLAN:
- WiFi 802.11a/b/g/n/ac/ax, 2.4G&5G dual band,
- 2*2 MIMO+4*4 MIMO, 5.4Gbps,
- 128users Easymesh, Bandsteering, 4096QAM
* Interface
- Led: Power, WiFi, network, Signal
- 2*RJ45 GE port, 2*Antenna ports for n78
- 1*RJ11 VoLTE, VOIP
* Size: 100*100*205mm
* Platform: Qualcomm SDX55 + Qualcomm Maple+Pine
* Network:
-5G Dual-mode: SA & NSA
- 5G Sub6G FDD: n1/2/3/5/7/8/12/20/28/66/71,TDD: n77/78/79/41/40/38
- 5G - mmW n257,258 or 260,261(optional)
- 4G LTE Global FDD and TDD,600MHz~3.8GHz,CAT22
* 5G MIMO:
5G+LTE:
- sub6G DL : 4MIMO
- 4G DL: 8layers
- LTE: 4MIMO on 5CA(4G only)
* Bandwidth (MHz): 100M
* Modulation: DL 256QAM, UL 256QAM
* LTE+5G EN-DC Peak data rate up to 3.8Gbps
* WLAN:
- WiFi 802.11a/b/g/n/ac/ax, 2.4G&5G dual band,
- 2*2 MIMO+4*4 MIMO, 5.4Gbps,
- 128users Easymesh, Bandsteering, 4096QAM
* Interface
- Led: Power, WiFi, network, Signal
- 2*RJ45 GE port, 2*Antenna ports for n78
- 1*RJ11 VoLTE, VOIP
* Size: 100*100*205mm
