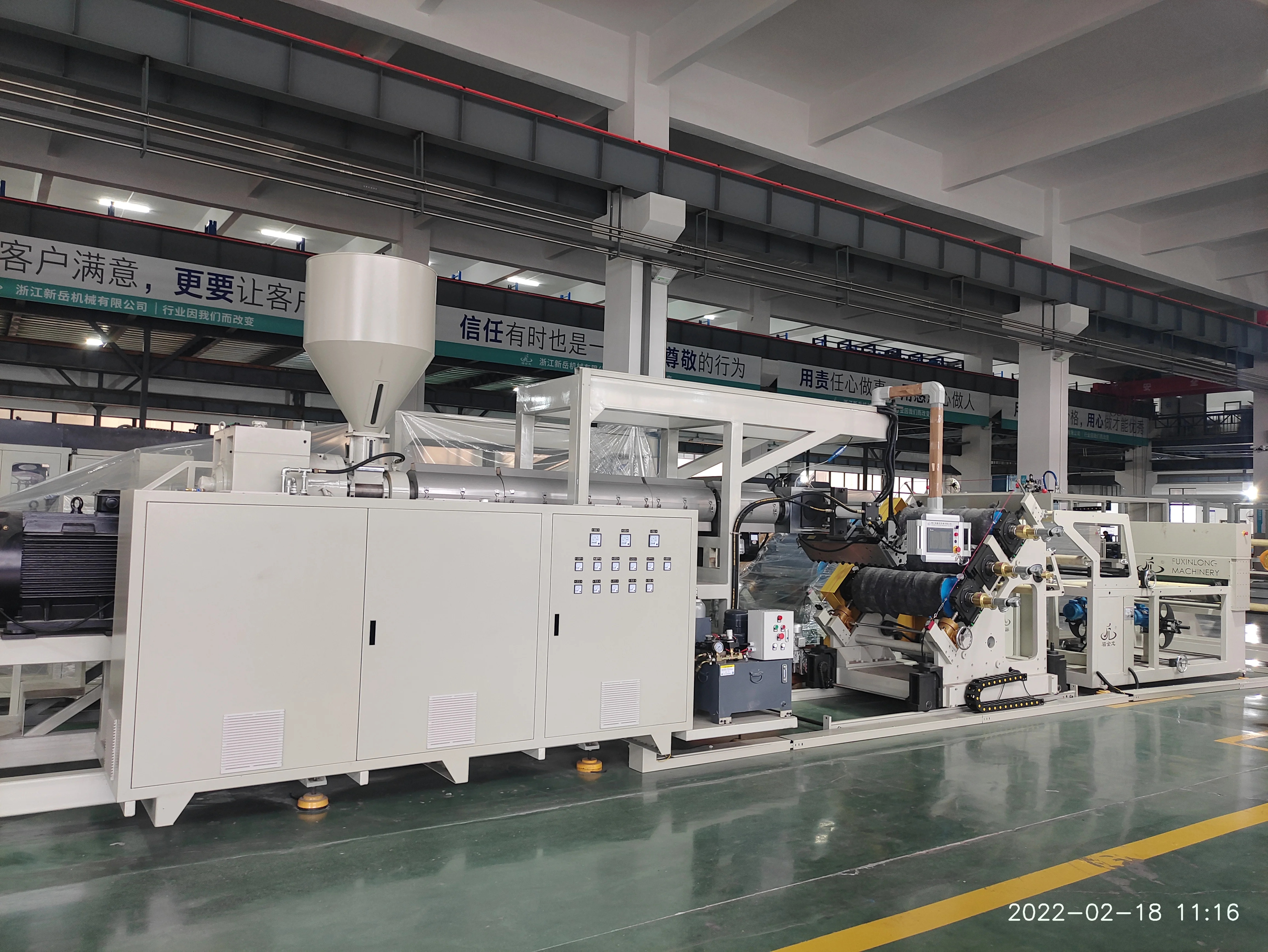

Single Screw Sheet Extruder Machinery Mini Filament Plastic Extruder
- Category: >>>
- Supplier: ZHEJIANG SAYEAH MACHINERY CO. LTD
Share on (1600575575363):
Product Overview
Description
Products Description

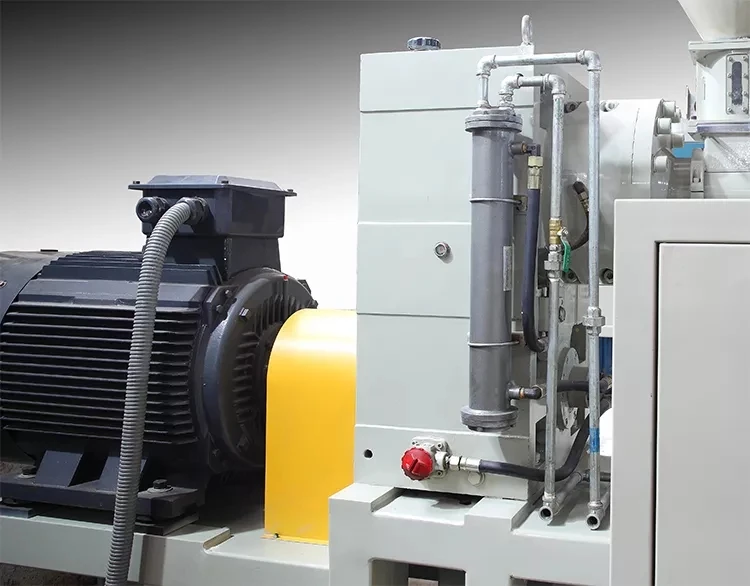

6-stage reducer
The machine uses a high-power three-phase motor with a 6-stage reducer, which has sufficient power. The reduction box is equipped with an independent water-cooling pipeline to prolong the service life of the reduction box.
Feeding barrel
The feeding barrel adopts a transparent slotted design so that you can see the remaining material in the barrel and feed the material in time. The screw feed trough adopts a water-cooled design to prevent the blockage of the feed trough caused by melt backflow.

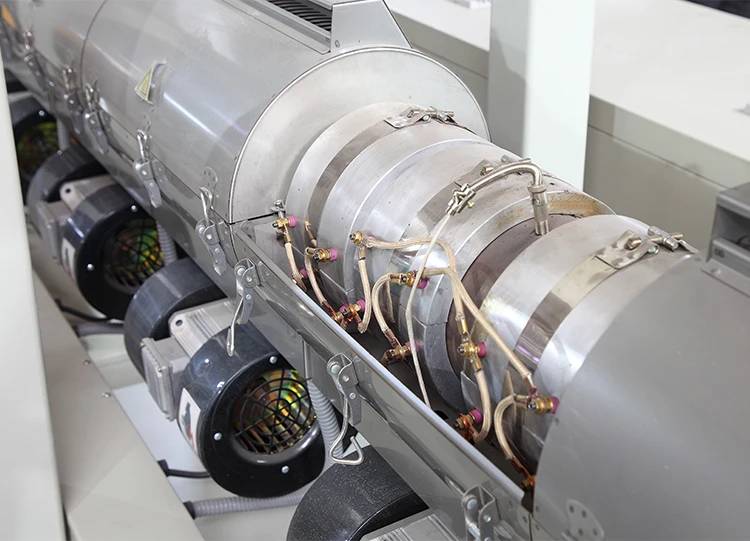

Screw
The screw is heated by 6-stage cast aluminum heating tile, using wear-resistant material 58Cr13, and the hardness reaches HV950.

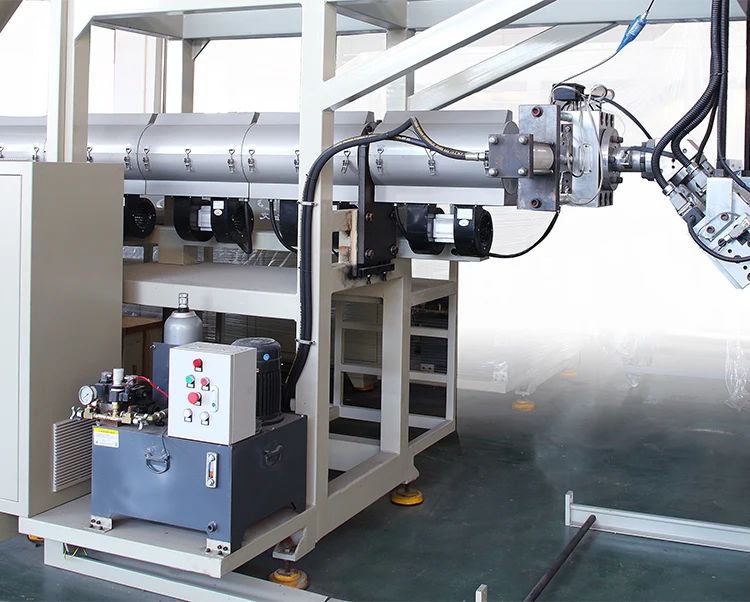

Screen changer
The screen changer adopts double stations hydraulic pressure to ensure the screen changes without stopping and uses 38CrMoAIA high-quality material to prolong the service life.
High-precision T-die
Made of high-quality alloy steel, the inner flow channel is chrome-plated. It has high hardness and strong corrosion resistance capacity.
Touch screen
The response is fast and no delay by using Delta's industrial control touch screen. The operation interface is simple and easy.
Calendering rolls
The calendering three-roller adopts 0.08mm chrome-plated layer, and the hardness can reach HRC58-62. The design of the safety rope can stop the machine immediately in case of an accident, improving safety effectively.The gap between the main calendering rolls is manually adjusted and equipped with a dial indicator to measure the distance accurately. The accuracy can reach ±0.01mm.

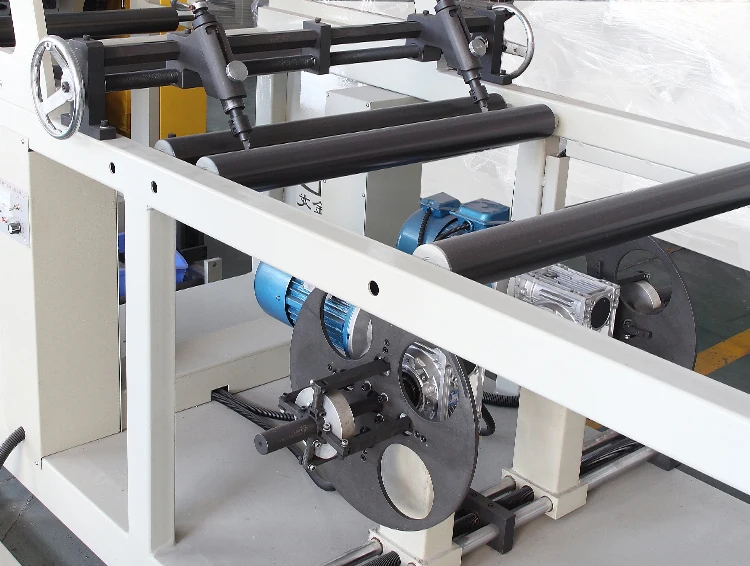

Trimming/winding/traction device
Two pair knives can adjust the trimming width and depth.The trimming and winding device is driven by an independent motor, it can be used with online-crusher. The traction device adopts aluminum alloy cooling rollers. The main traction rubber roller is driven by an independent motor.

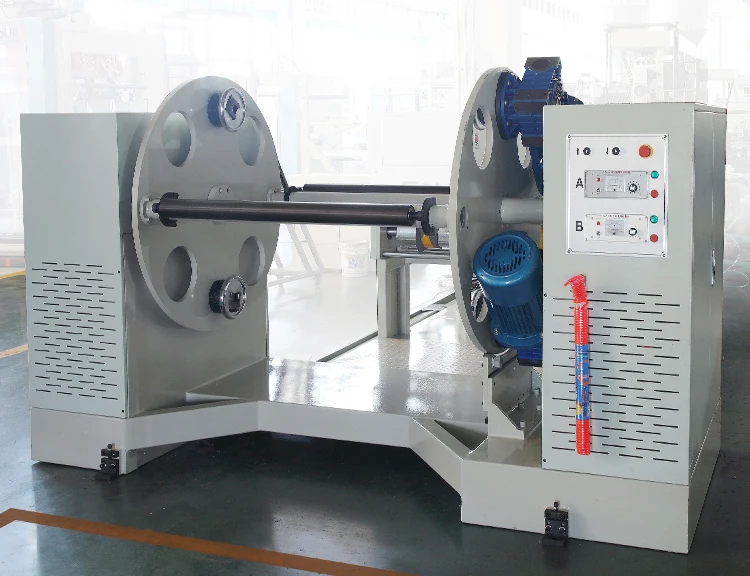

Rewinding device
Double-station non-stop rewinding device is driven by the torque motor. It has 6-speed adjustable torque, equipping a quick-release rewinding device, which can save your time and effort.
Model | SY-PC-90-A | SY-PC-110-A | SY-PC-120-A |

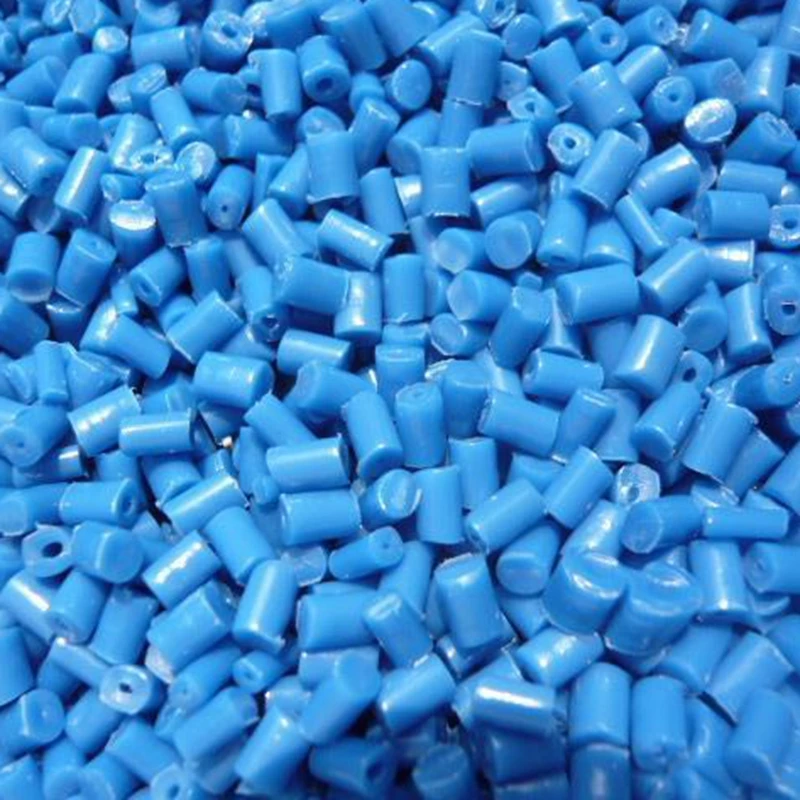

Raw Material | PP,PS,HIPS,PE | PP,PS,HIPS,PE | PP,PS,HIPS,PE |
Sheet Thickness | 0.3-2mm | 0.3-2mm | 0.3-2mm |
Layer | 1 | 1 | 1 |
Extrusion Capacity | 100kg/h | 200kg/h | 250kg/h |
Screw Dia. | 90mm | 110mm | 120mm |
L/D Ratio | 33:1 | 33:1 | 33:1 |
Roller Dia. | Φ350mm x 3 | Φ350mm x 3 | Φ400mm x 3 |
Main Motor Power | 37kw | 55kw | 110kw |
Overall Power | 90kw | 120kw | 160kw |
Weight | 5.5T | 7T | 8T |

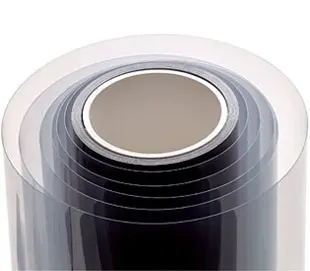

Sheets Images
Recommend Products
Company Profile
FAQ
Q1:Are you a factory or trading company?
A1:We are factory.
Q2:How does your factory do regarding quality control?
A2:We have a special QC department in charge of products'quality.
Q3: How long is the warranty period?
A3: All of our machine have one year warranty.
Q4: What's the main market of your company?
A4:We have customers all over the world.Now our products have been widely used in 62 countries.
Q5:Can we visit your machine operation in your factory?
A5:Yes, we have many customers near our factory .we can take you to see the machine operation.
Q6: Where is your factory located? How can we visit there?
A6:Our factory is located in Ruian City, Zhejiang Province, China, by high speed train to Ruian station,then 20 minutes by car.or by airplane to Wenzhou airport,then 1 hour by car.we provide free pick-up service from train station and airport.
Q7: Which payment can offer?
A7: We accept 30% payment in advance, the balance payment before shipping.We also accept UC according to the order amount.We can accept the payment by TIT, Western Union, Paypal, Private Account, Escrow,Cash,and others.
Q8:How&When can I get the price?
A1:We are factory.
Q2:How does your factory do regarding quality control?
A2:We have a special QC department in charge of products'quality.
Q3: How long is the warranty period?
A3: All of our machine have one year warranty.
Q4: What's the main market of your company?
A4:We have customers all over the world.Now our products have been widely used in 62 countries.
Q5:Can we visit your machine operation in your factory?
A5:Yes, we have many customers near our factory .we can take you to see the machine operation.
Q6: Where is your factory located? How can we visit there?
A6:Our factory is located in Ruian City, Zhejiang Province, China, by high speed train to Ruian station,then 20 minutes by car.or by airplane to Wenzhou airport,then 1 hour by car.we provide free pick-up service from train station and airport.
Q7: Which payment can offer?
A7: We accept 30% payment in advance, the balance payment before shipping.We also accept UC according to the order amount.We can accept the payment by TIT, Western Union, Paypal, Private Account, Escrow,Cash,and others.
Q8:How&When can I get the price?
A8: Email us your inquiry or communicate online, state your specifications(product, material, size, quantity,output etc).We usually quote within 24 hours. Please call us or inform in your email when it is urgent, we will regard your inquiry priority.our service number is 0086-577-65572988
