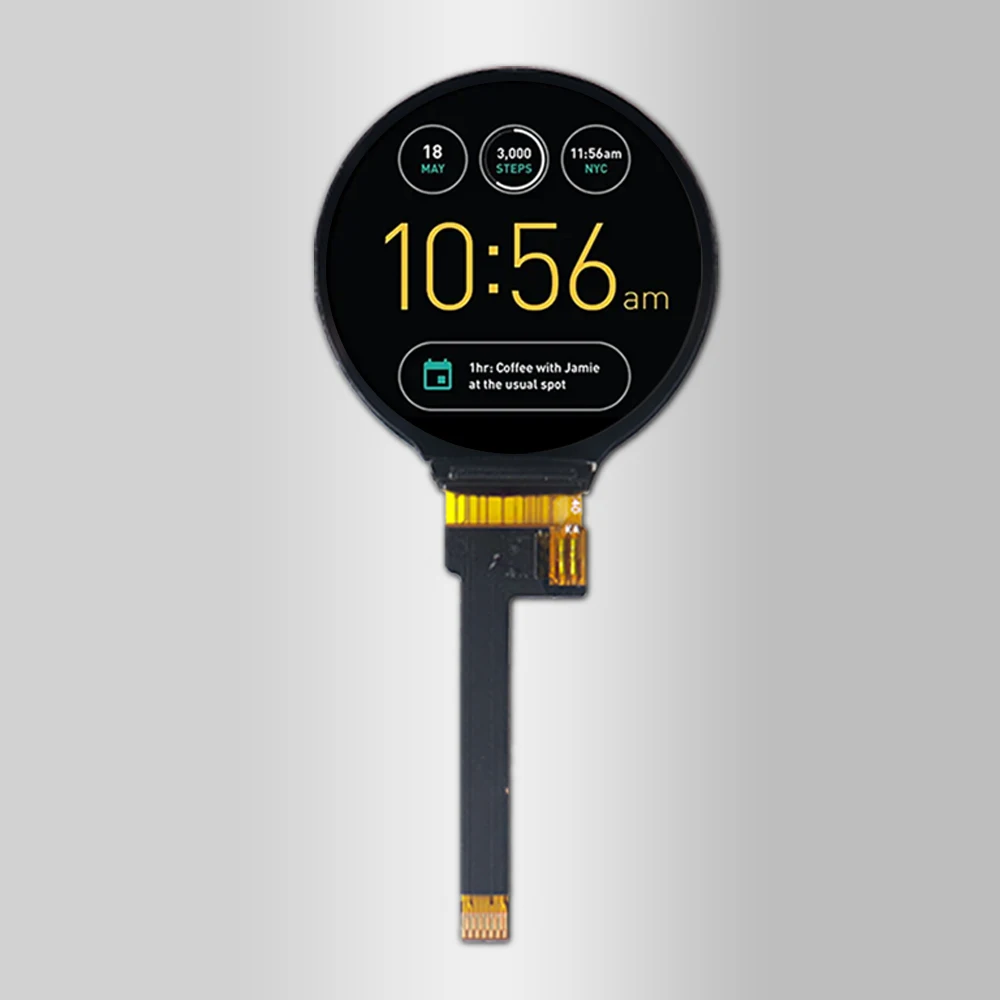

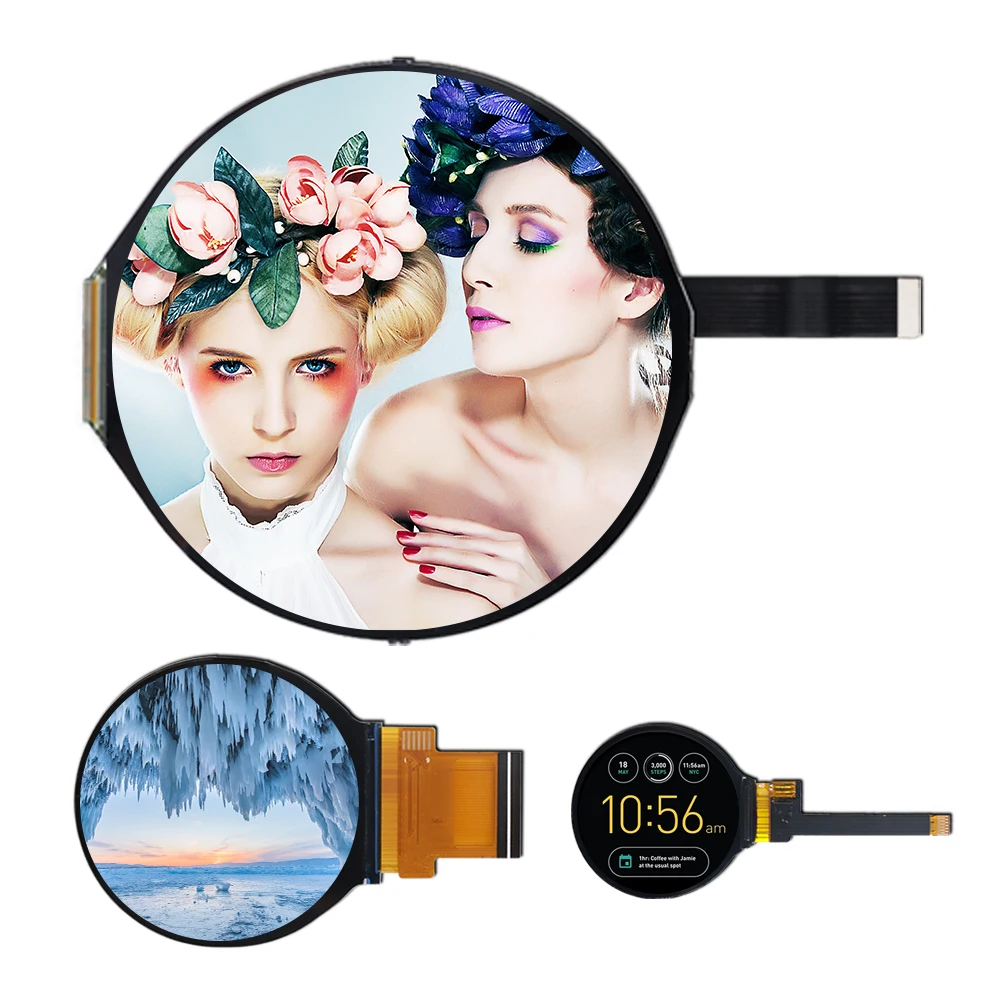

Full Color HD Spi Tft Lcd Round Display Module Screen Circular Panel Lcd Circle Display
- Category: >>>
- Supplier: Zhuhai Suny Technology Co. Ltd.
Share on (1600575607379):
Product Overview
Description

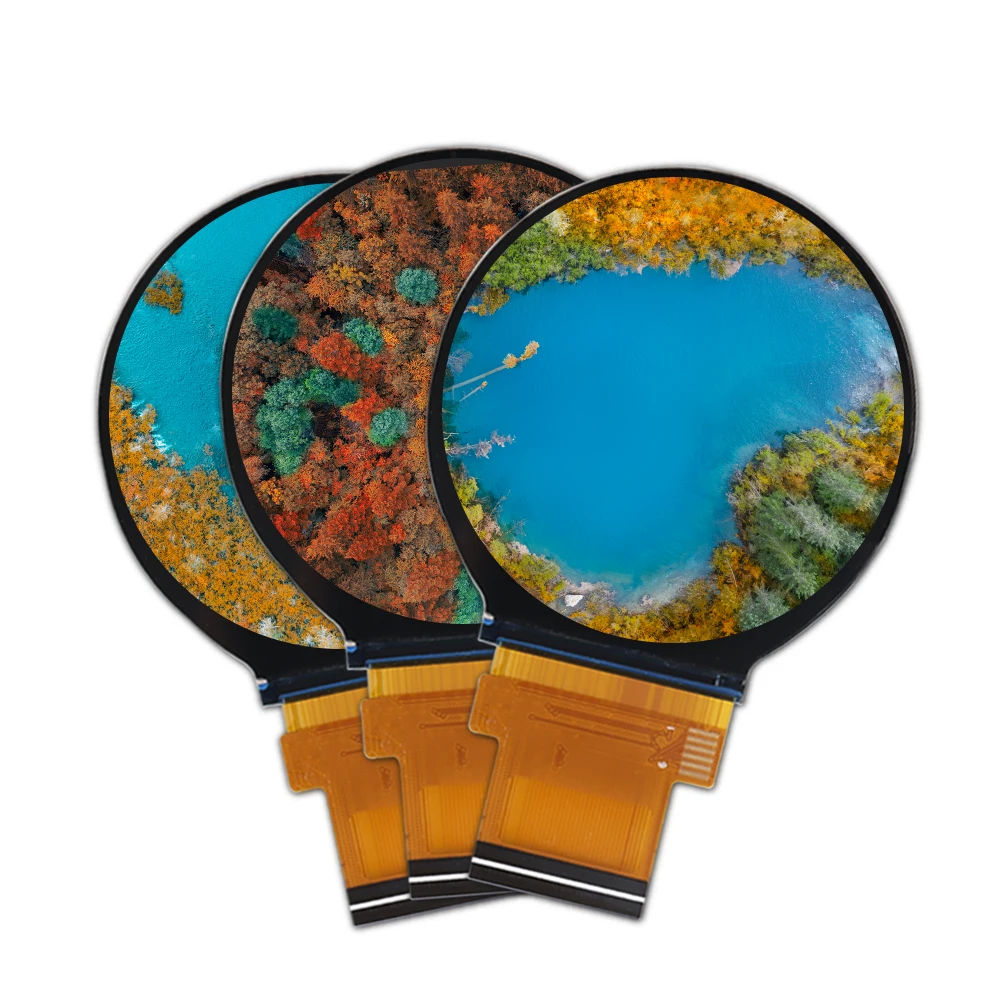

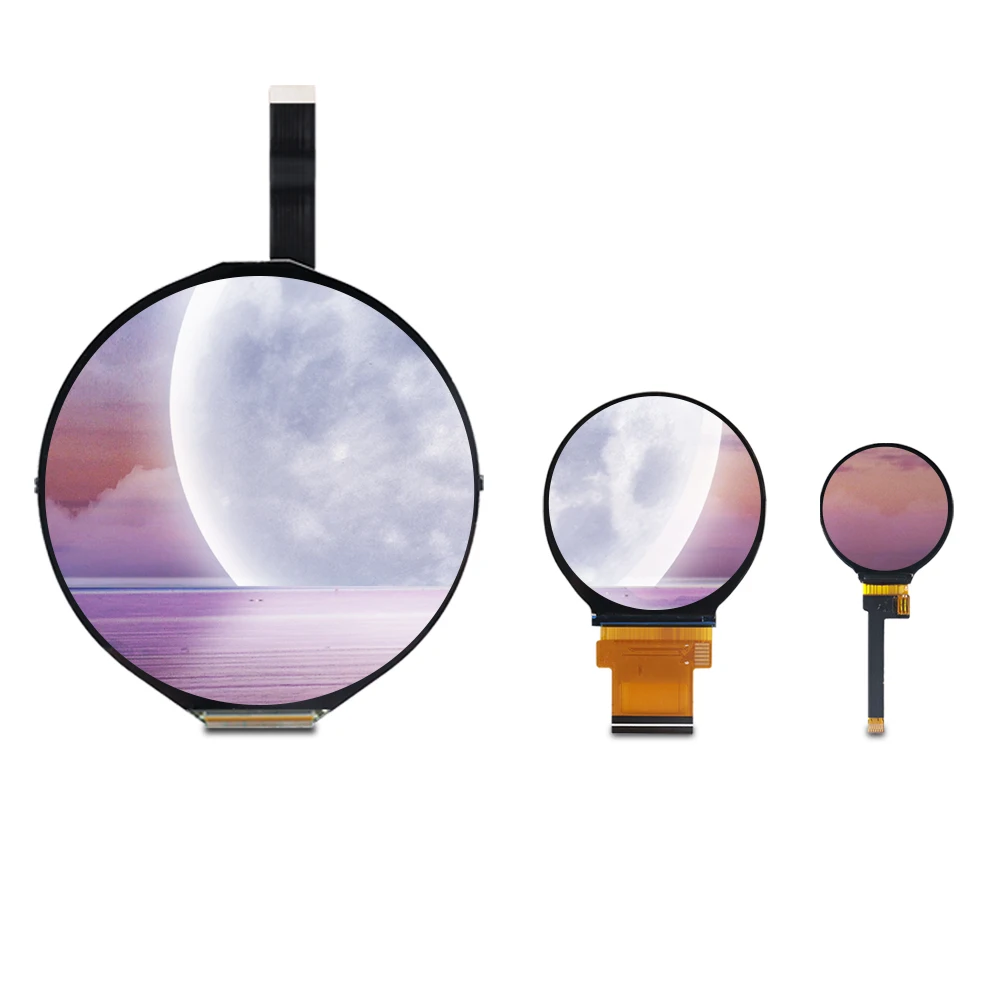

Round Shape IPS TFT LCD Display

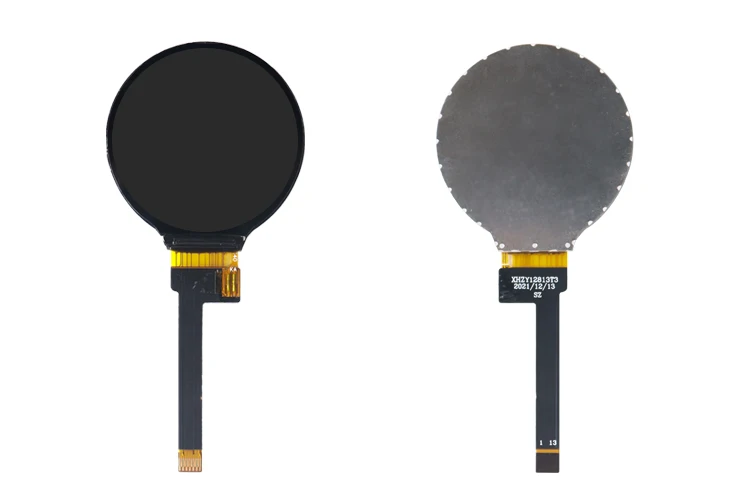

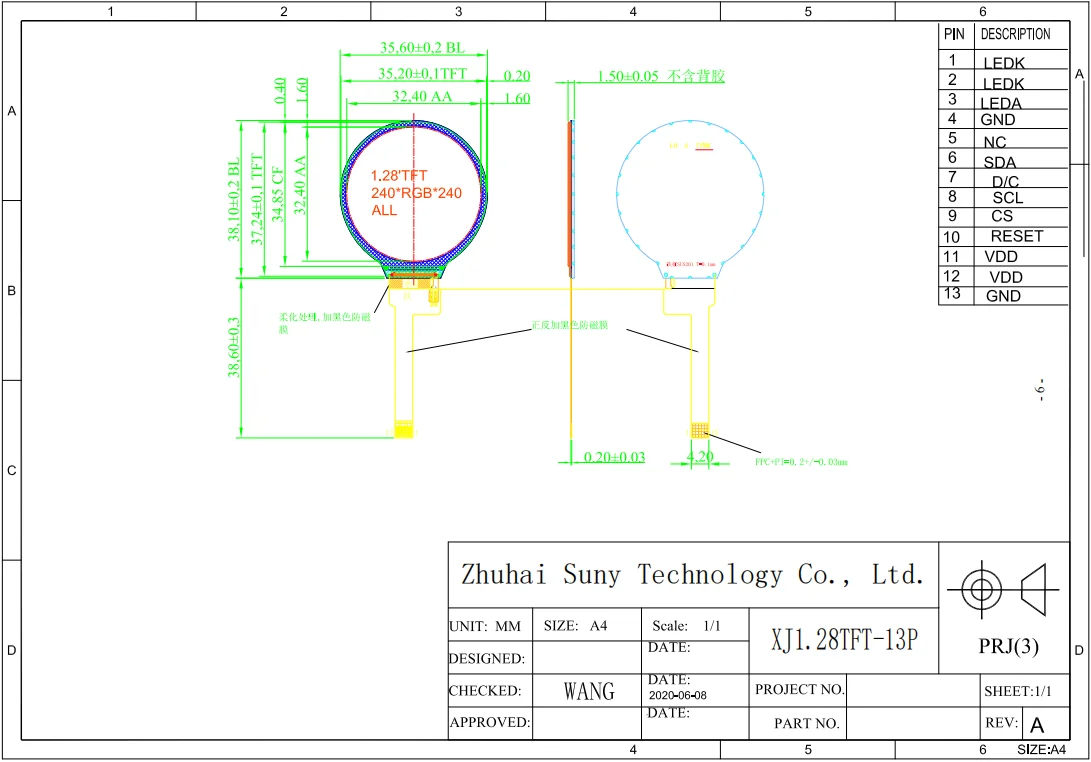

1.28 Inch IPS TFT Round LCD Display | ||||||
Item | Contents | Item | Contents | |||
LCD Type | Normally Black/Transmissive LCD | Number of LED | 2 Piece | |||
Viewing Direction | IPS(Full View) | Luminance | 300 cd/m2 | |||
Module Outline (W*H*D) | 35.60x38.10x1.6 | Colors | 262K | |||
Active Area (W*H) | 32.4*32.4 | Backlight Type | 2 LED paralleling | |||
Number Of Dots | 240(RGB) x240 | Interface Type | 4SPI | |||
Driver IC | GC9A01 | Input Voltage | 2.8~3.2V | |||

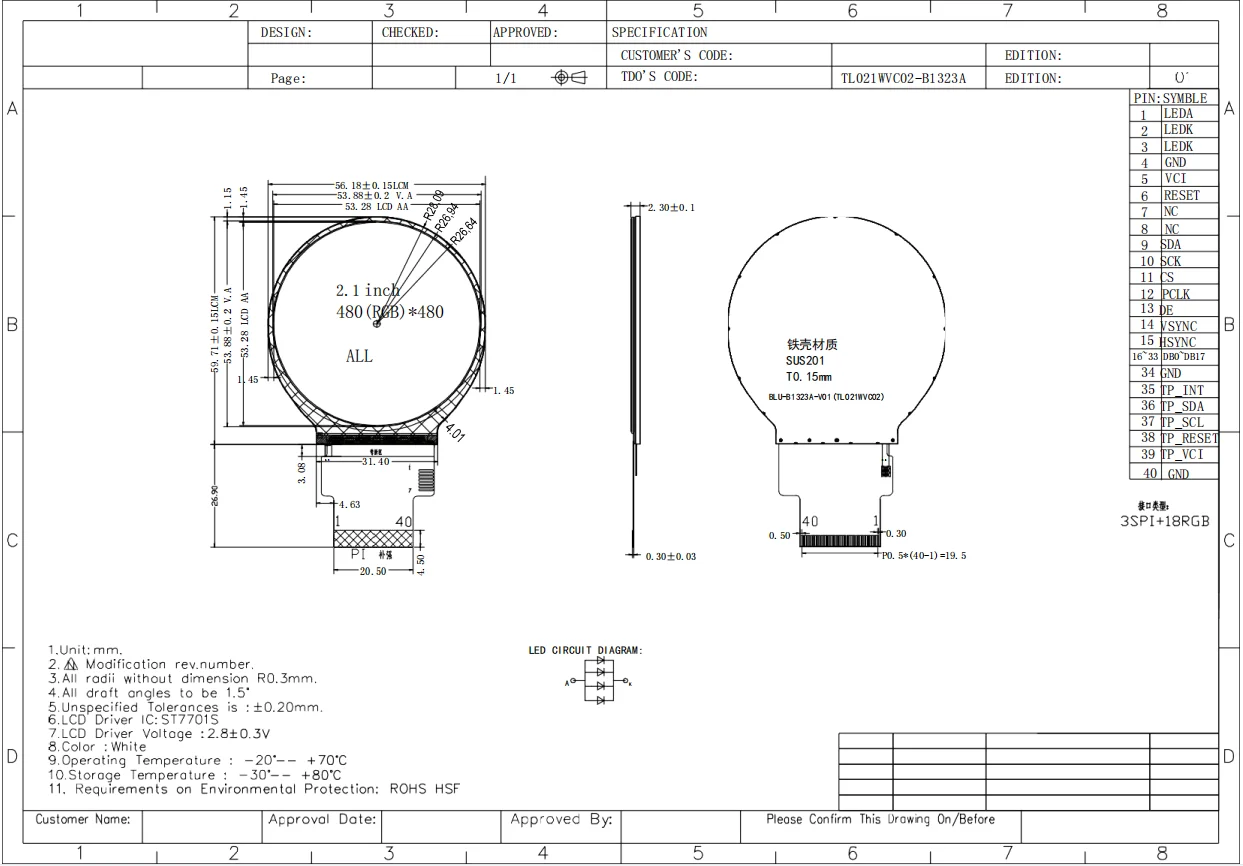

2.1 Inch IPS TFT Round LCD Display | ||
Feature | Specifications | |
Resolution (H*V) | 480(RGB)×480 | |
Technology Type | a-Si TFT | |
Connector Type | 0.5 PITCH 40PIN | |
Display Interface | 3SPI+18RGB | |
Number Of Color | 262K | |
Display Driver IC | ST7701S | |

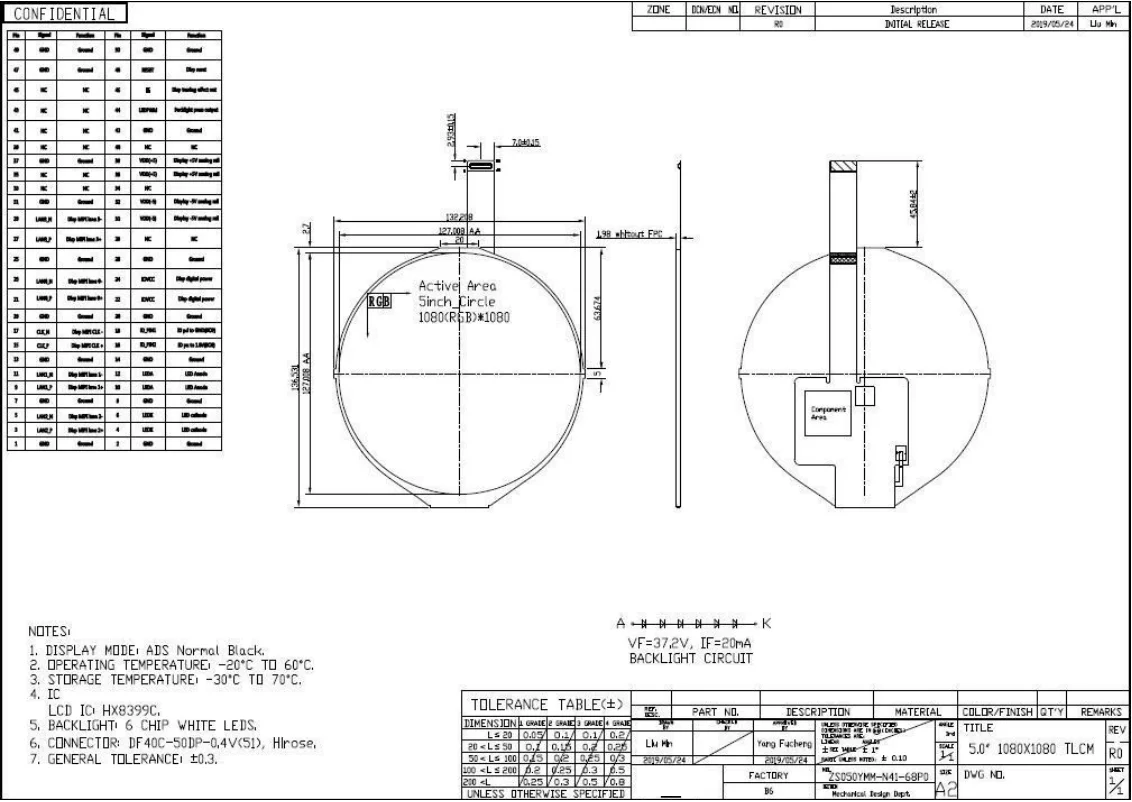

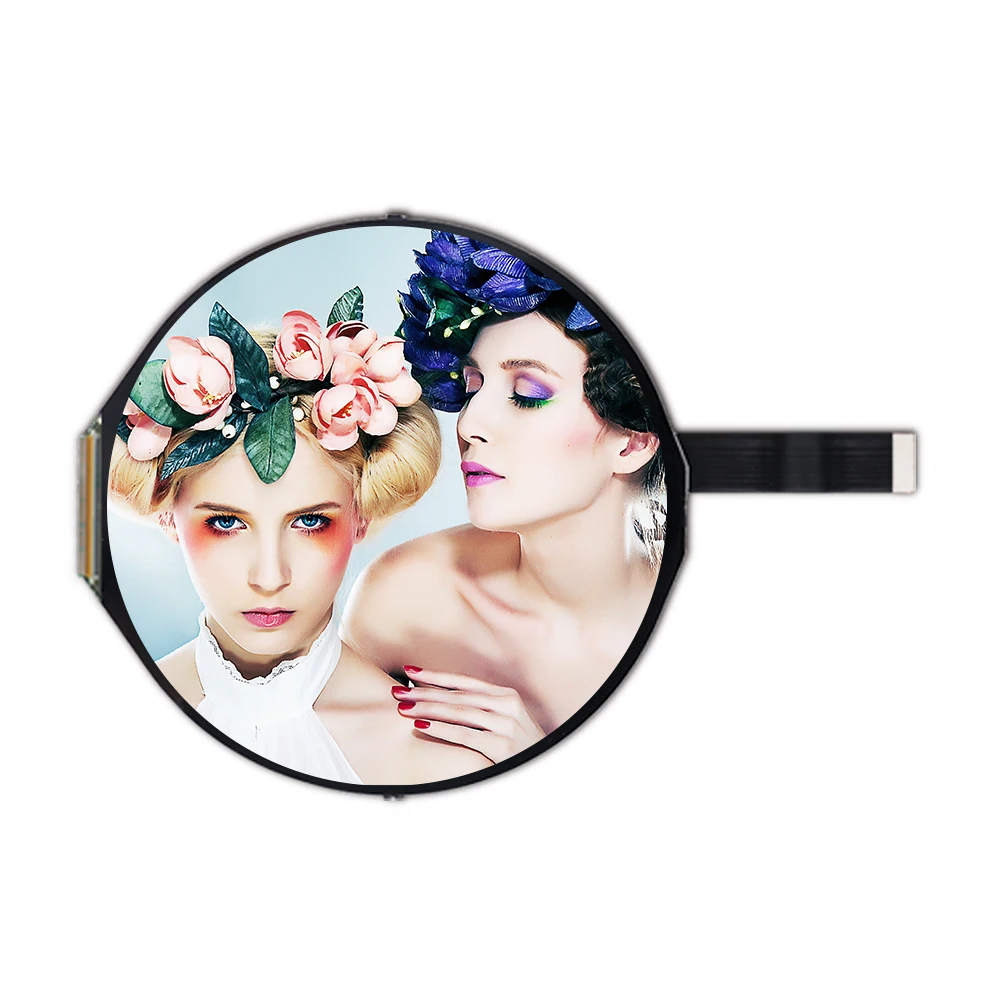

5 Inch IPS TFT Round LCD Display | ||
Item | Contents | |
Number of Pixels | 1080(H) RGB × 1080(V) | |
Display Colors | 16.7 M | |
Pixel Pitch(mm) | 0.1176 (H) ×0.1176 (V) | |
Display Mode | Normally Black, Transmissive mode | |
Dimensional Outline(mm) | 136.531x132.208x1.98 | |
Viewing Direction(Human Eye) | U/D/L/R free viewing direction | |
About Customization
1. | Customer Demand Receipt | Size, resolution, brightness, interface and other requirements, Or customize from samples (need evaluation). |
2. | Solution Customization | Customized and reasonable solutions based on needs. |
3. | Quotation Evaluation | Provide reasonable product quotations based on customer solutions. |
4. | Payment | Customer confirms the solution, pay the model fee. |
5. | Design Drawings | Professional engineers design engineering drawings. |
6. | Drawing Confirmation | Communicate with customers, improve and finalize the drawings. |
7. | Sample Production | Production of samples according to customer drawings. |
8. | Sample Confirmation | Deliver samples to customers. |
9. | Production | Confirm unit price, quantity and delivery date with customers, and produce strictly according to drawings. |
10. | Delivery | After passing quality inspection, delivery as promised. |
11. | After-Sales Services | Provide after-sales service and technical support. |
About Product
About Us
FAQ
Q:Do you have other sizes?
A:Of course.If you need more sizes, please contact our salesperson.
Q:Can I customize my products?
A:We supply OEM&ODM service.
Q:Is there a matching driver board?
A:Yes.If you have other technical requirements, our professional technicians are at your service.
Q:Which payment methods are supported?
A:We support PayPal, Credit Card, Online Transfer and T/T.
A:Of course.If you need more sizes, please contact our salesperson.
Q:Can I customize my products?
A:We supply OEM&ODM service.
Q:Is there a matching driver board?
A:Yes.If you have other technical requirements, our professional technicians are at your service.
Q:Which payment methods are supported?
A:We support PayPal, Credit Card, Online Transfer and T/T.
