Нагреватель из нержавеющей стали с толстой пленкой, 220 В, 2000 Вт, электрическая трубка для нагрева воды
- Category: >>>
- Supplier: Xinxiang Jieda Precision Electronics Co. Ltd.
Share on (1600575634256):
Product Overview
Description

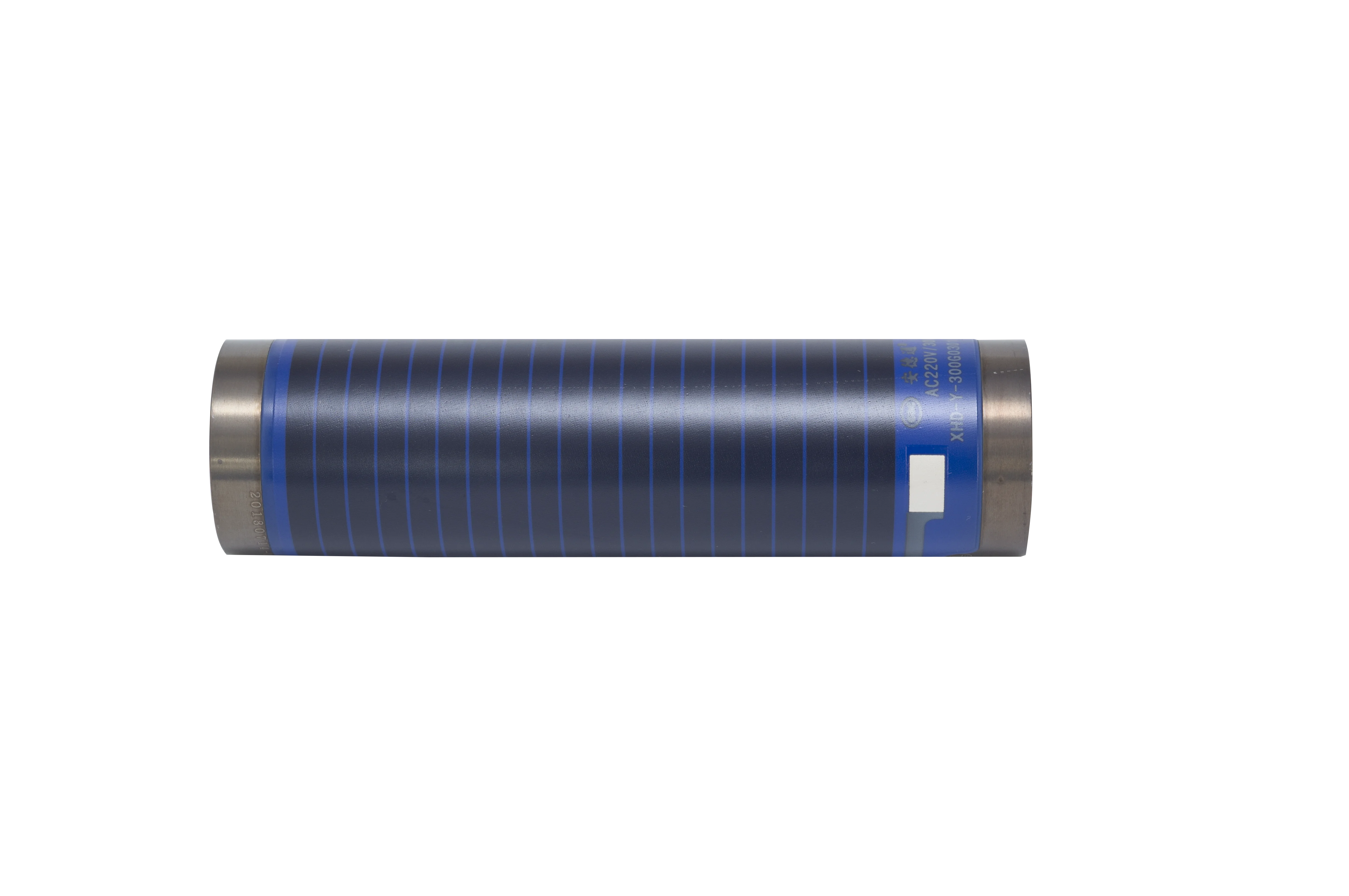

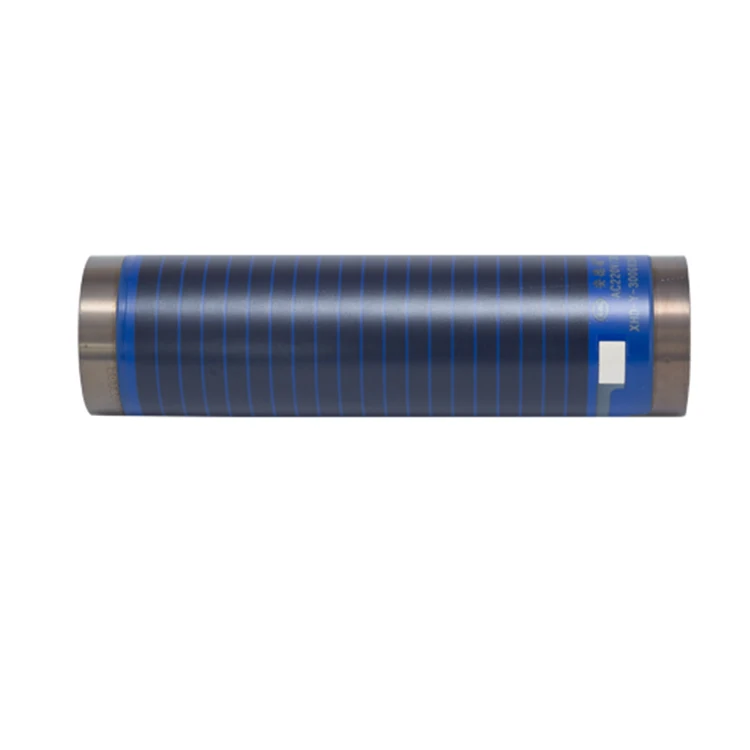

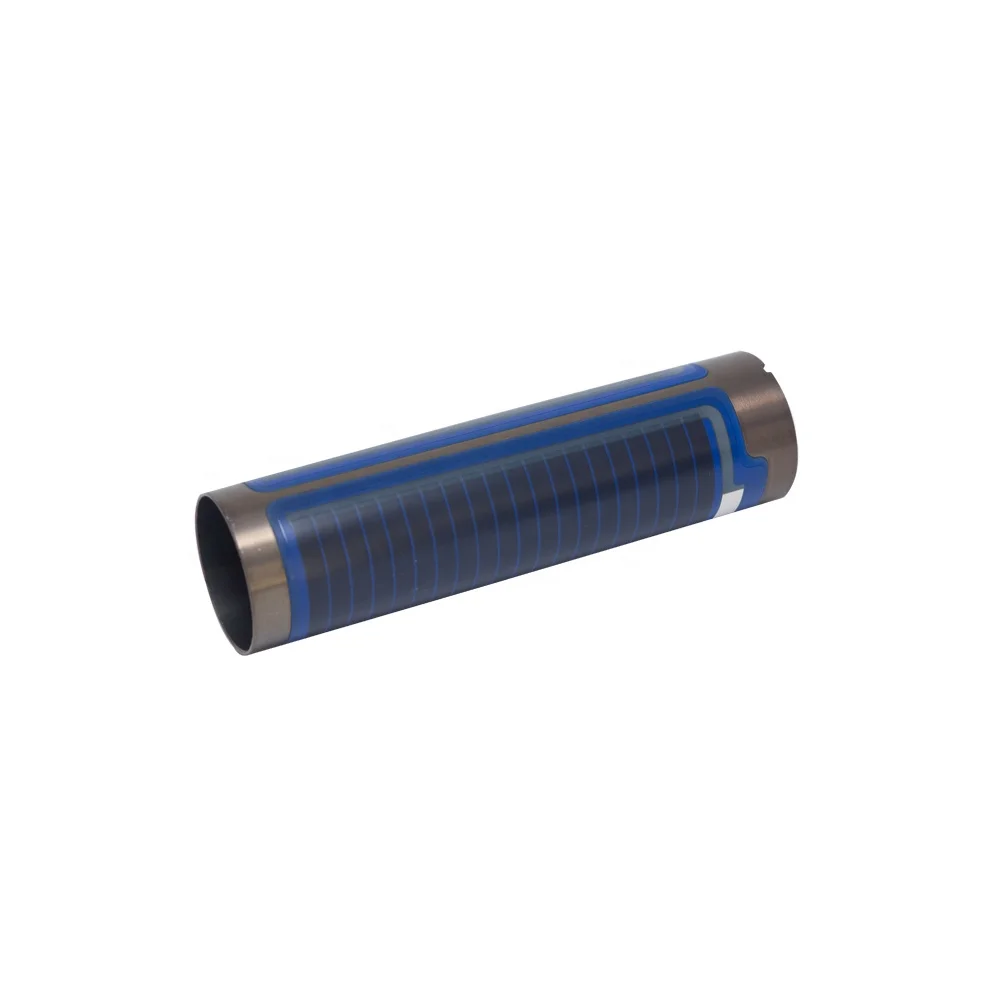

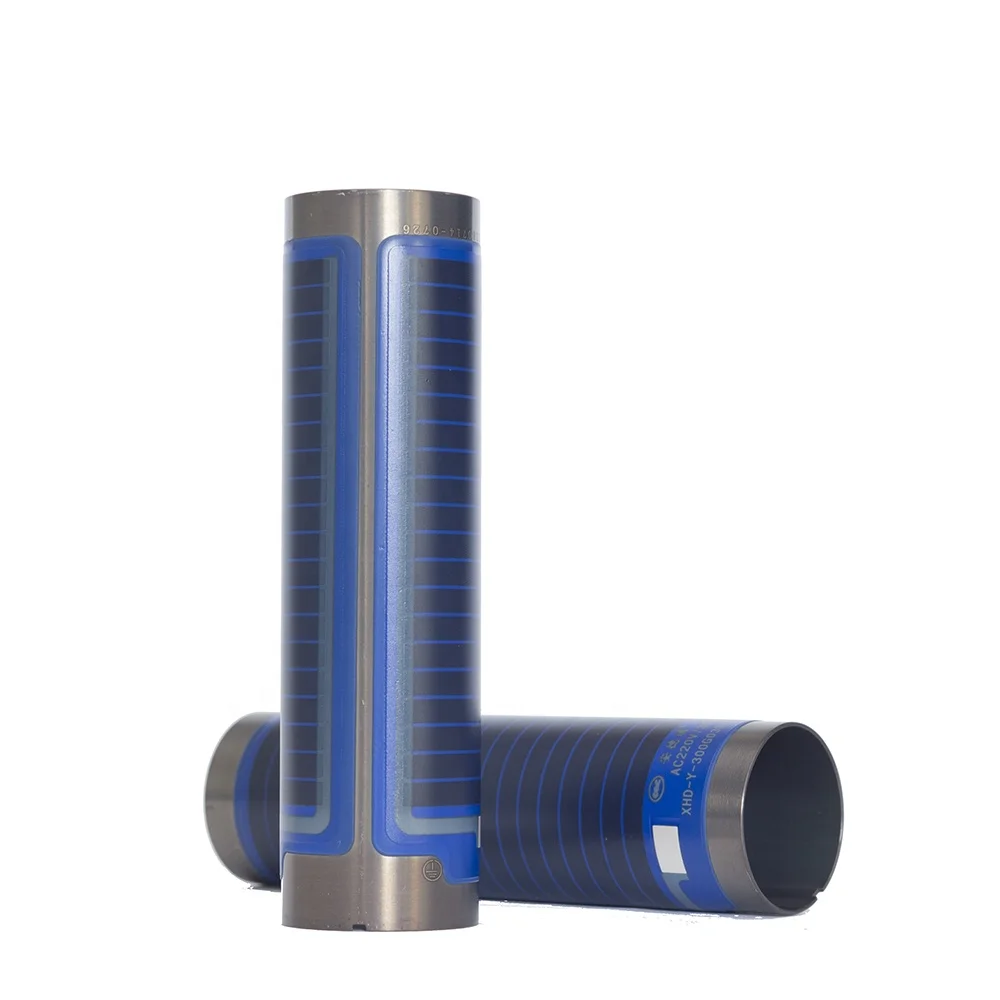

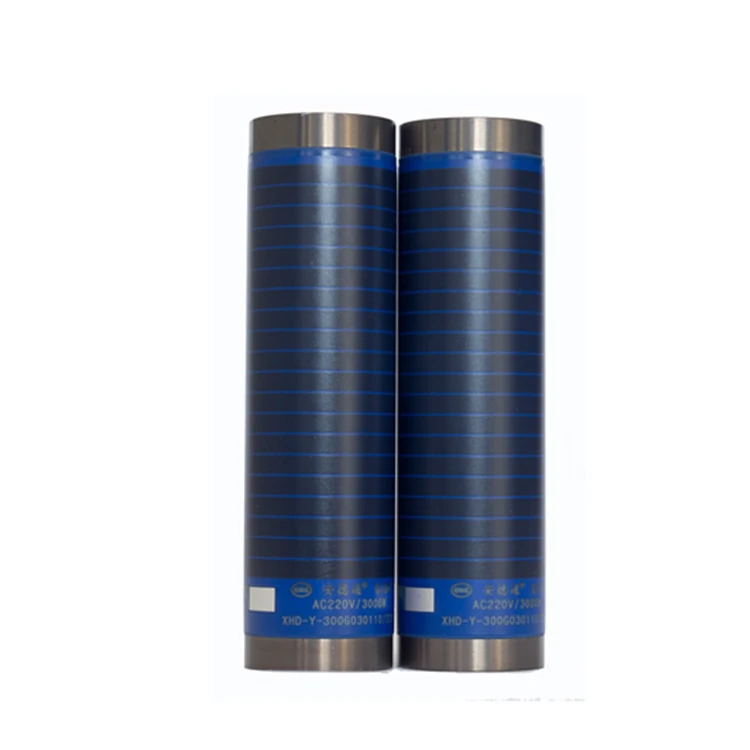

Stainless steel thick film heater 220V 2000W electric water heating tube
Descriptiom
The thick film instant water heating element is in tubular structure. It allows water flowing inside tube, heated by circuit printed and sintered between with 5 insulation layers on the surface. It connects with wire leads by spot-weld to silver conductor on the surface.
Compare with traditional immersion heater or quartz heating element, Thick Film Heating Tube is advanced in larger heating area (Tubular Structure), higher power density(60W/cm²), faster temperature response (up to 150℃/S), longer life time (>10,000 hours) and better thermal transfer(96%).
For applications where space is limited, this simple profile heating element offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass). It's the ideal heating element to boil water in seconds.
Our thick film water heating elements are widely applied in flowing water heating, such as water dispenser, water purifier, water geyser, instant coffee maker, water heater under sink, faucet, instant shower heater, etc.
It's also used in industry water flow instant heating.
It can be equipped with automatic and one shot thermostats to prevent over heating.
Specification
| Dimension | Φ20mm*120mm(length) | Heat Density | >60W/cm² |
| Ramp-Up Rate | 80℃/s | Thermal Efficiency | >96% |
| Heating Power | 1,200W, 2,200W | Service Life | >6,000 hours |
| Rated Voltage | 220v | Certificate | CQC, RoHS |
| Dielectric Strength | 1,500V/5mA/60s | Power Deviation | -10% - +5% |
| Leakage Current | ≤0.25mA | Insulation Resistance | ≥200MΩ |
| Type | Thick Film Water Flow Instant Water Heating Tube | Application | to replace iron immersion electric water heating element |
| Shield Thermistor | PTC | Grounding Type | Spot-Weld |

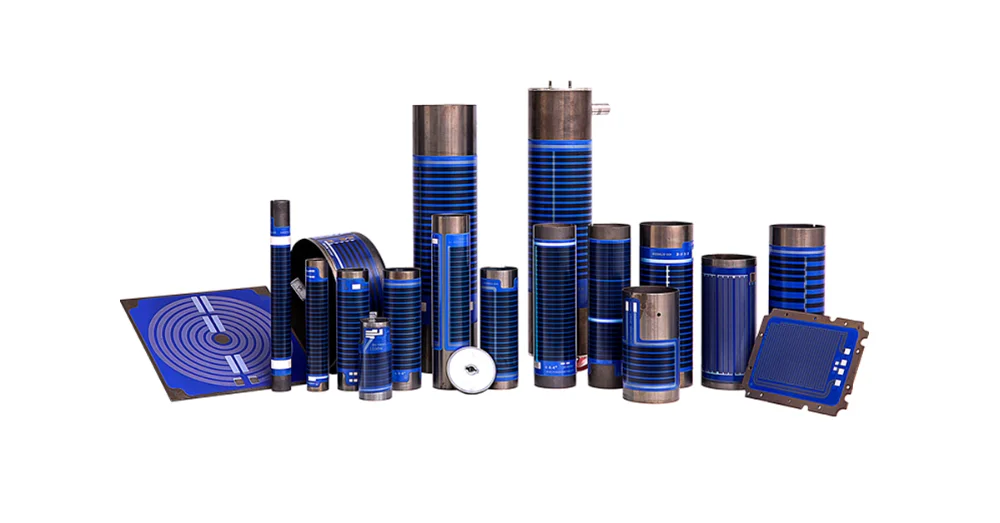

We have many models of thick film heat tubes /plates for your choice
Related Products
Applications

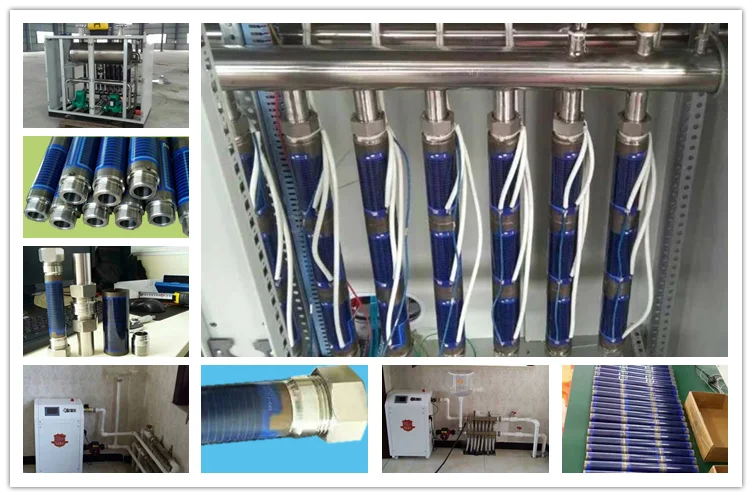

The thick film heating tubes/elements are widely applied in Instant Water Boiling, Instant Water Heater, Water Dispensers, Coffee Makers, Instant Electric Heating Faucets, Steam Generator, Air-Flow Heater, Floor Heating, Industrial Water Flow Heating, etc.
It can successfully replace the Traditional Electric Heating Tubes/Elements, change their structures and performance completely, which can reduce energy consumption, increase energy utilization and save space.
Company Information
Jieda locates in Xinxiang, Henan Provience, is founded in 2012, is a high-tech manufacturer that specializes in design, research, produce and sales rare-earth metal thick film electric heating tubes/elements.
What is Jieda advanced in?
1. More than 8 years experiences in thick film electric heating tubes.
2. Fully mastery of thick film tube surface screen printing and sintering.
3. Main Process Flow in 10000+ Grade Air Purification Workshop.
4. First manufacturer to mass produce Thick Film Electric Heating Tube/Element in China
5. Available various Solutions for fluid heating, especially for Instant Water Heating Home Appliances, House Floor Heating and Industrial water flow heating.
6. Monthly production capacity is up to 300,000 pcs.
FAQ
Q: What's Thick Film Heating Element?
A: Thick Film Heater is a new technical art which is use screen printing technology and new thick film material.
It is printed with isolation dielectric, heating element and glass prevent on a substrate that is made by stainless steel, and through drying firing process with 800°C. Thick Film Heater has become a new type of heater.
Q: What’s the advantages of Jieda Thick Film Heating Element?
A: We fully master screen printing and sintering technology on curved surface stainless steel tubes, which makes it possible to heat continuous water flow without water tank. 40W/CM² POWER DENSITY >80℃/S TEMPERATURE RANP UP
Q: What's the service life of Thick Film Heating Tube / Thick Film Heating Element?
A: It can work more than 10,000 hours, in case of no DRY HEATING.
Q: What's the inlet and outlet diameter?
A: Thick Film Heating Tube : Ø18, Ø20, Ø30, Ø35, Ø40, Ø50mm.
Thick Film Heating Element : Available with Ø10mm, Ø16mm and G1/2 OD20.9mm
Q: Can I DIY it for personal use by myself?
A: Our Products are mainly used as heating spare parts for water heaters in mass production, not recommended for Personal DIY.
Q: Can the Thick Film be applied to Copper Pipe or Aluminum Pipe?
A: It can not be applied on Copper pipe, but can work on Aluminum pipe.
Q: How to get the suitable model for our application?
A: We need to know the water temperature in inlet and outlet port, water flow rate, connection port details and other special requirements, to recommend the suitable Thick Film Heating Elements
Q: What's the operation attentions?
A: 1. The temperature ramp-up above 80°C/s, please make sure the tube fulfilled with water before use.
2. Please install it vertically, make sure water flow direction from bottom to top, to prevent DRY HEATING in partial area of heating tube.
3. Set the minimum flow rate according to tubes' power watts, ensure smooth flowing of water, to prevent vaporizing and dry heating
4. Make sure reliablility grounding.
