Fine Pulverizer Nano Machine Ball Mills Laboratory Ball Mill Wet Milling Machine Detergent Powder Grinder And Grinding Machine

Product Overview

Description

Fine Pulverizer Nano Machin Ball Mills Laboratory Ball Mill Wet Milling Machine Detergent Powder Grinder And Grinding Machine

Fly Ash Soil Small Silica Sand Metallographic Samples Vibrating Sample Horizontal Rotary Three Roller Roling Grinding Machine



WARRANTY: 1-YEAR Warranty

1. CE approved. The patented oil seal mute technology, PLC frequency conversion control, adopts the precision gear transmission designed by itself to replace the original belt transmission.

2. Two and four samples can be taken at a time, O-shaped sealed tank, safe operation, pressure resistance.

3. It is suitable for dry/wet/vacuum/protective atmosphere/low temperature/high temperature grinding to ensure the homogeneity and repeatability of the experiment and solve the deposition and adhesion problems of some materials.

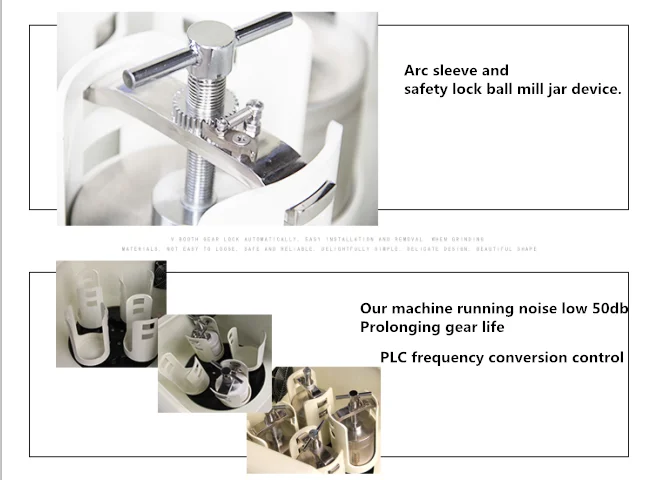

4. The equipment is equipped with a safety switch and a safety automatic gear lock. There are universal wheels to push and run, and the equipment is safe and stable.

5. Low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, low loss.





Product Description



1L Planetary Ball Mill

Beautiful appearance, easy handling, fine grinding particle size, a good helper in the laboratory.

It is used in colleges and universities, scientific research units and enterprise laboratories to quickly grind research samples to colloidal fineness in batches, and then mix, homogenize and disperse. Widely used in geological, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, beauty, environmental protection and other scientific research and industrial sectors.



Control Panel

The panel has adjustment speed, grinding plan, start and stop emergency stop function, which can be adjusted according to your experimental requirements.



Fine Grinding

Complete grinding methods, including dry grinding, wet grinding, high temperature grinding, low temperature grinding, vacuum grinding, protective atmosphere grinding, and the discharge particle size can reach 0.1 um.



Safety Device

In order to avoid emergencies during the experiment, open the lid and make an emergency stop. The instrument will stop running immediately.

Frequency Conversion Control System

The main functions of the MITR planetary ball mill frequency conversion control system are as follows:

1. Forward operation: The planetary disk rotates clockwise.

2. Reverse rotation: The planetary disk rotates counterclockwise.

3. Alternate forward and reverse operation: The planetary disk rotates clockwise and counterclockwise alternately; the alternating forward and reverse operation can improve the uniform mixing and grinding effect of materials.

4. Forward and reverse alternate running time setting: You can set the forward running time and reverse running time.

5. Intermittent operation: The combined grinding method of static and grinding, this grinding method can properly precipitate and cool the material, which is very practical.

6. Intermittent running time setting: Set the static time and running time, which can be determined according to the nature of the material or experience.

7. Speed adjustment: Adjustment of running speed, stepless speed regulation.

8. Running time setting: The setting of the total running time, the maximum duration is 9999 minutes, and the recommended duration is less than or equal to 100 hours.

9. Running: When running, the device works according to the set program.

10. Pause: Stop when running.

11. Power failure memory point recovery: This function is a special function of Miqi planetary ball mill, accidental power failure recovery memory, starting grinding from the power failure point.

12. Safety switch: On/off of the flip safety switch, after setting, it will not affect the normal operation of the device when the flip is opened or closed.

13. Restore settings: Can restore factory settings.

After the control system program is set, the set function will be retained, and the next time it is turned on, it will run according to the last running program.



Technical Details





Name	Planetary ball mill
Model	YXQM-1L(Oil seal mute)
Field of Application	Pharmaceuticals, food, geology, metallurgy, agriculture, glass, ceramics, aviation chemicals, biology, materials, lithium power, electronics, plants, biology and so on.
Feed Material	Medium or low hardness, hard, brittle, fibrous, viscous.
Size Reduction Principle	Crushing, grinding, mixing, homogenization, alloying
Main Disk Structure	Planetary main disk gear invades and reinforces in lubricating oil, noise isolation treatment
Standard	CE
Electrical Description	100-120V/200-240V AC ,50-60Hz, 0.55KW
Material Feed Size	< 5 mm  soil<10 mm
Final Fineness	< 100 nm
Batch Size / Feed Quantity	4 x 250 ml

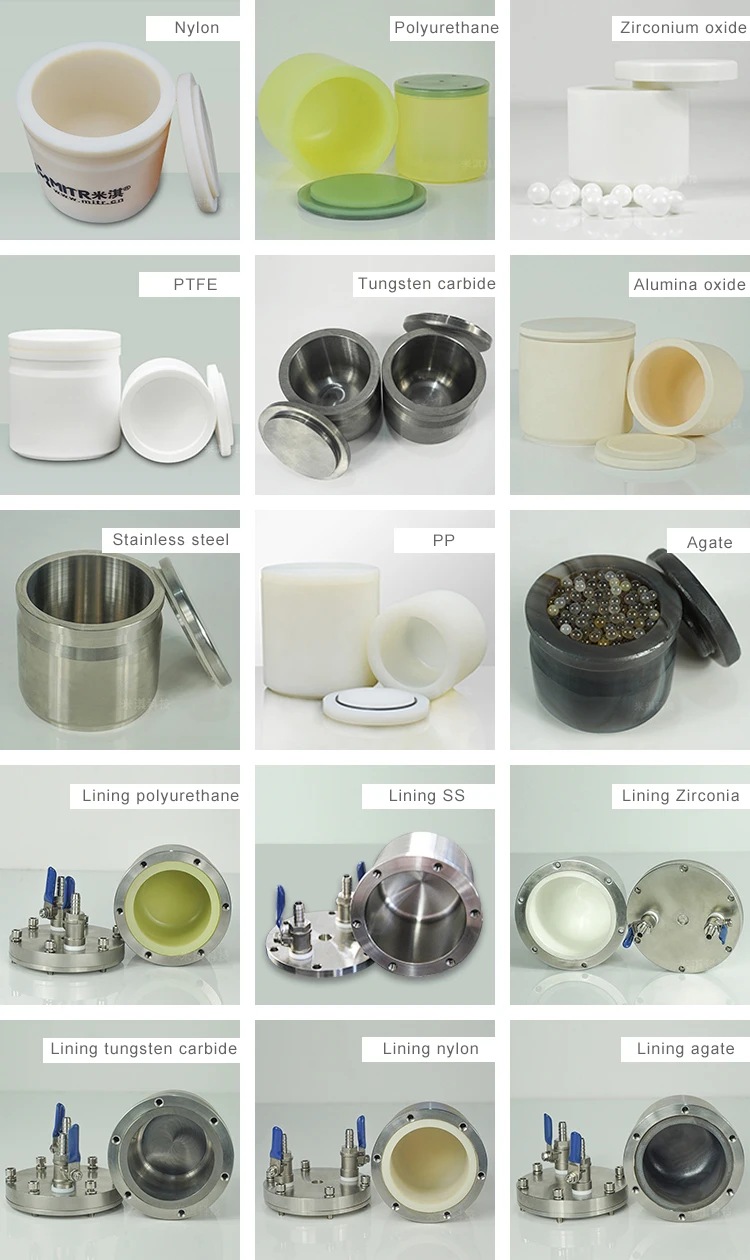

Grinding Jar Sizes	50 ml /100 ml / 250 ml
Vacuum Jar Size	50ml/100ml/250 ml( Stainless steel)
Feed Material Capacity	83 ml*4
Feed balls Capacity	83 ml*4
Sun Wheel Speed	10 - 450 r/min
Ball Mill Jar Speed	20 - 900 r/min
Total Grinding Speed	1350 /min
Speed Ratio	1:2

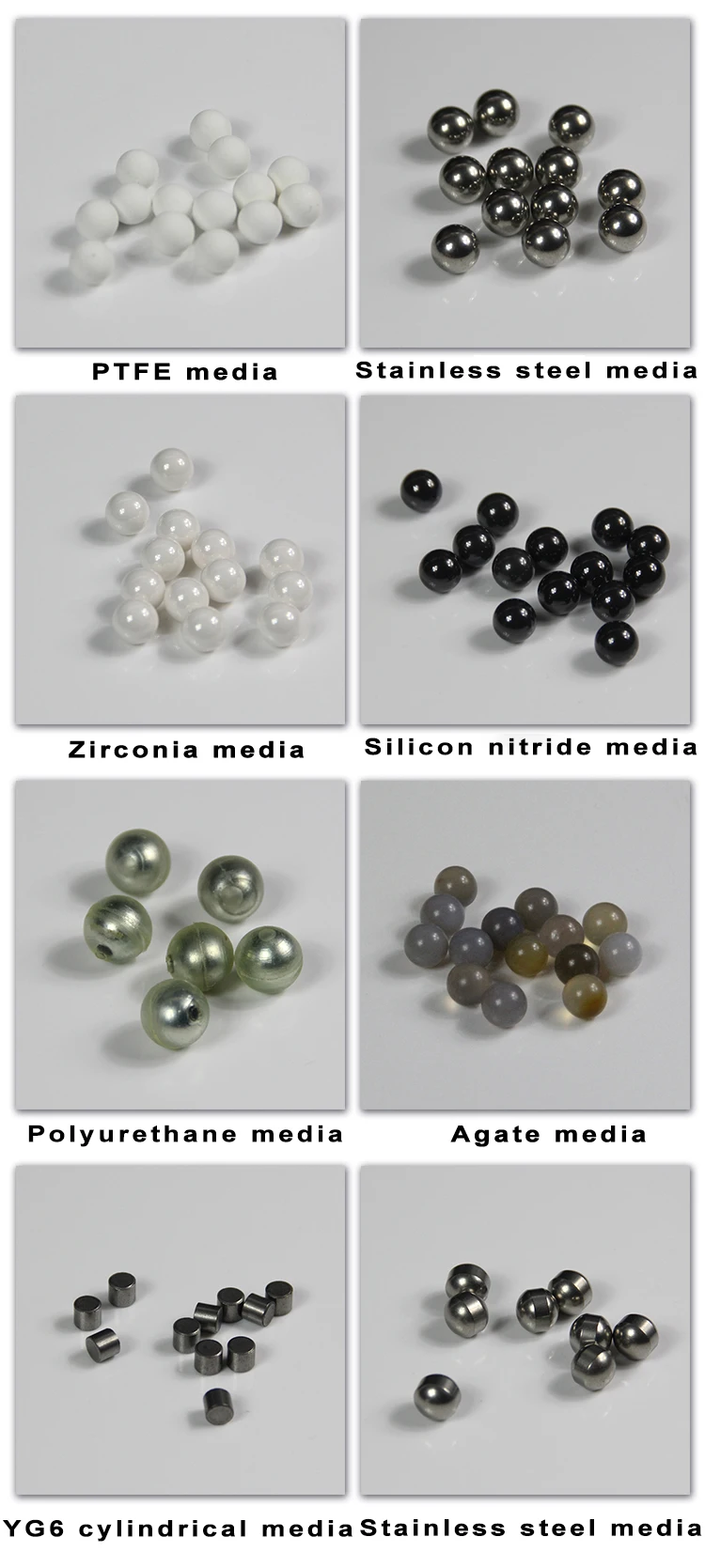

Material of Grinding Tools	Stainless steel, agate, zirconia, corundum, tungsten carbide, nylon, polyurethane, polytetrafluoroethylene, silicon carbide, etc.
Ball Size	1 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 mm
No. of Grinding Stations	2 or 4
Mode	Vertical planetary
Grinding Mode	Dry/wet
Low Temperature Cooling Treatment	Yes (air cooler added)
Oil Seal Position	The bottom of planetary main disk
Disk Dimensions	265 mm
Oil Seal Capacity	800ml(fill in before using the planetary ball mill)
Noise	< 60dB(Within 3 metre)
Protection Code	IP60
CN Patent	Safety protection (No.ZL 2015 2 0836150.6)
CN Patent	Oil seal silent  (Patent No.ZL 2014 2 0375569.1)
CN Patent	Frequency control(patent No.ZL 2016 2 0836150.6)
W x H x D Closed	600*400*500mm
Net Weight	75 kg



Details:

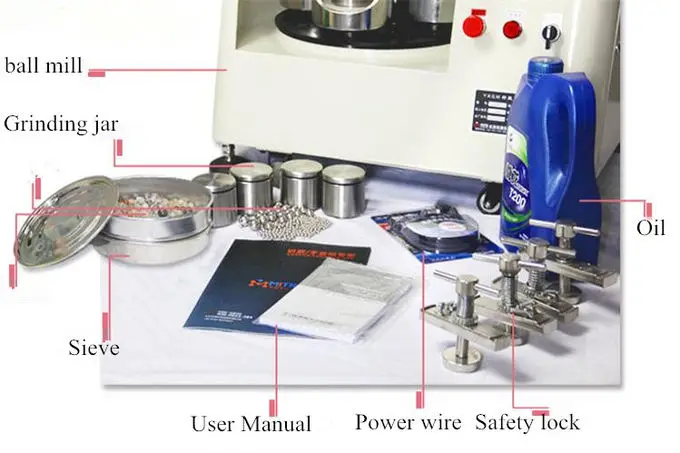

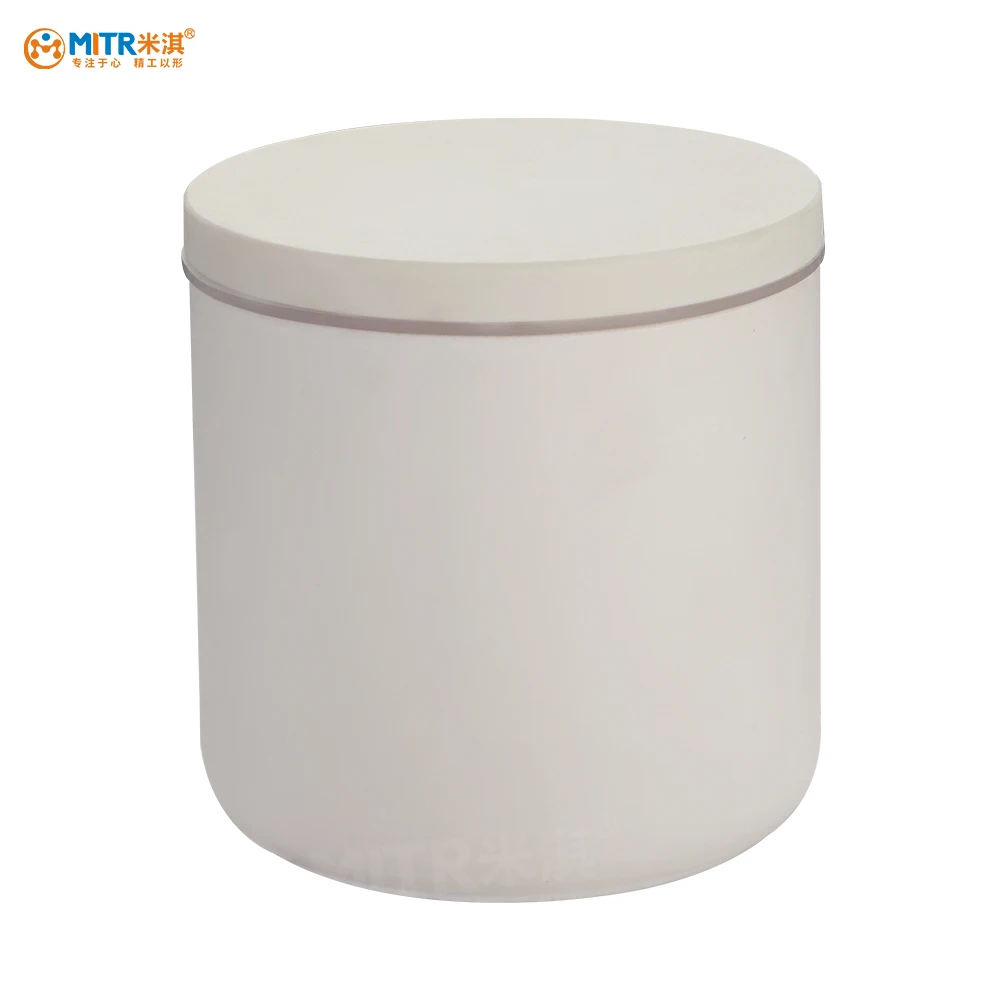

Accessories

Company Information:

Our main business is the R&D,production and marketing of experimental equipmental and related technical consultation service.

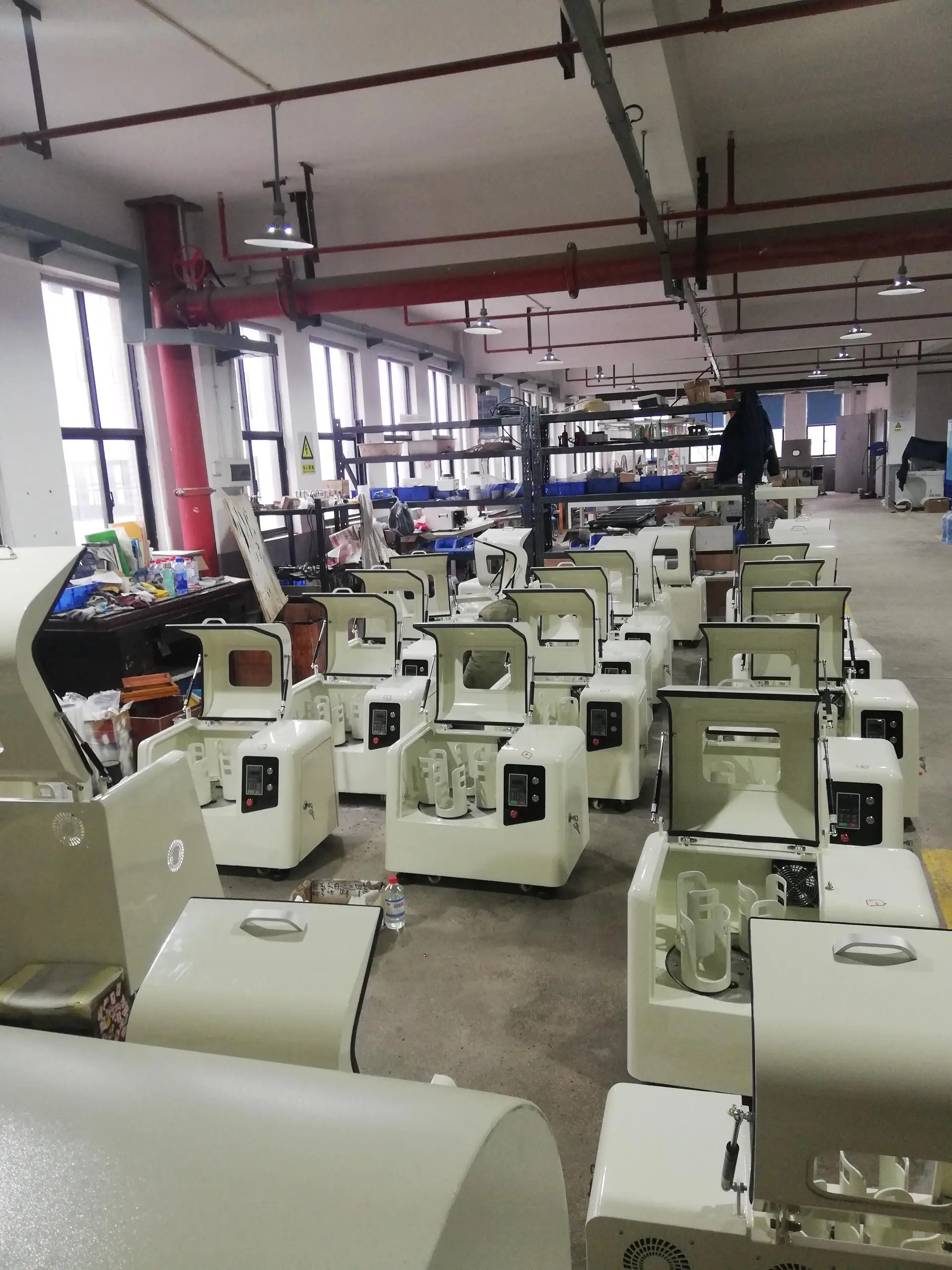

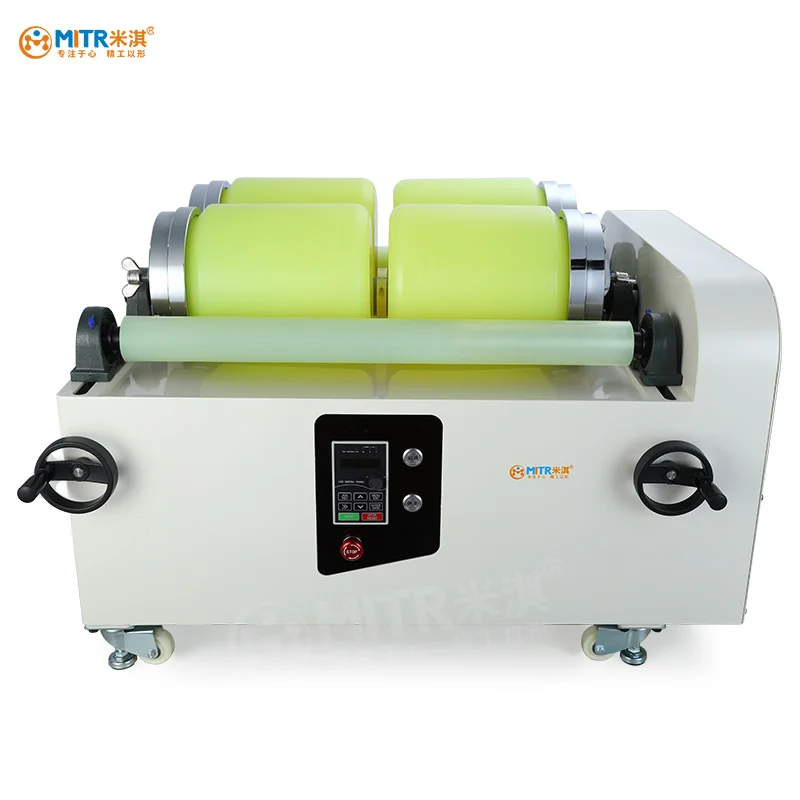

We are specialized in planetary ball mill,roller ball mill,stainless vacuum glove box,acrylic vacuum glove box,horizontal light ball mill,tablet machine and related equipment with more than 10 years. Our company have the laboratory with 1000 sets of application cases and maybe could provide you some suggestion.

We have the talented technical team members more than 30 including Ph.D.,Master,Senior engineer,Senior technician,technicians. We have more than 150 staff in the factory.
