KD KDVM855L cnc210 car rim making machine lathe and milling machine combo
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (1600575707054):
Product Overview
Description
FEATURES AT A GLANCE
Product Features
1. Aseismatic capability, high strength and good quality cast iron.
2. Wide base and Y-type column structure.

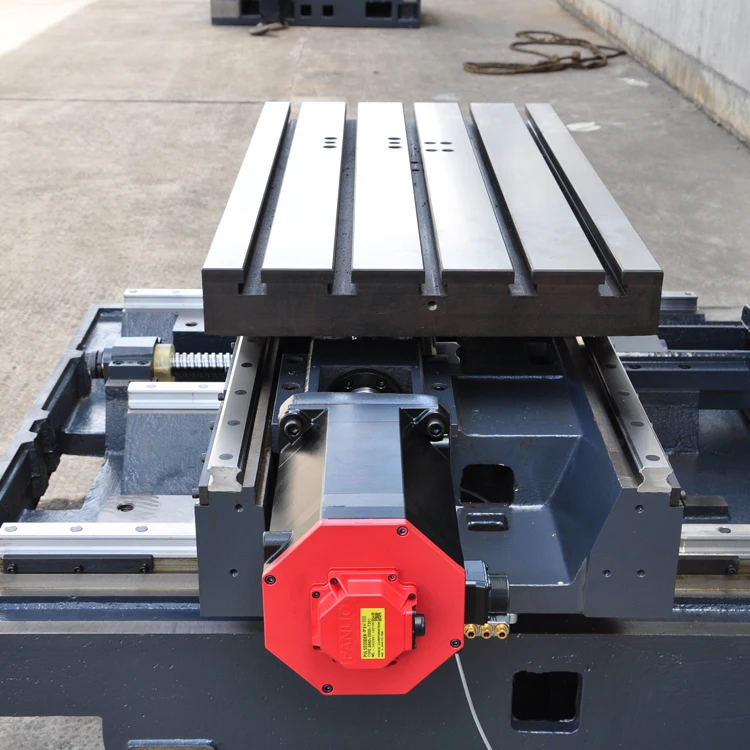

3. Taiwan high precision linear guide ways.
4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
5. Adopting Japan NSK special screws angular contact ball bearing group.
Right elevation
Left elevation
Back elevation
PRODUCT SPECIFICATIONS
MODELS | KDVM855L |
TRAVEL | |
X axis | 800mm |
Y axis | 510mm |
Z axis | 510mm |
Spindle center to column | 595mm |
Spindle end to table | 120-670mm |
TABLE | |
Tablesize | 1000×550mm |
T-slot(width×number×space) | 18mm×5×90mm |
Max.table loading | 600kg |
SPINDLE | |
Taper bore of spindle | BT40 |
Spindle power | 11/15kw |
Spindle speed | 8000rpm |
FEED | |
X/Y/Z fast feed | 48/ 48/ 36m/min |
Torque axis motors | 11/ 11/ 20Nm |
ATC | |
Tool number | 24 |
Max. tool size (With adjacent tool) | Ф78mm |
Max. tool size (Without adjacent tool) | Ф120mm |
Max.tool weight | 8kg |
Time (tool-tool) | 1.8s |
ACCURACY | |
Positioning | ≤0.010 |
Repeatability(X/Y/Z)（ISO） | ≤0.004mm |
OTHERS | |
Min.Input | 0.001mm |
Overall dimension (LxWxH) | 2800x2400x2700mm |
Net weight | 5250kg |
PRODUCT CONFIGURATION

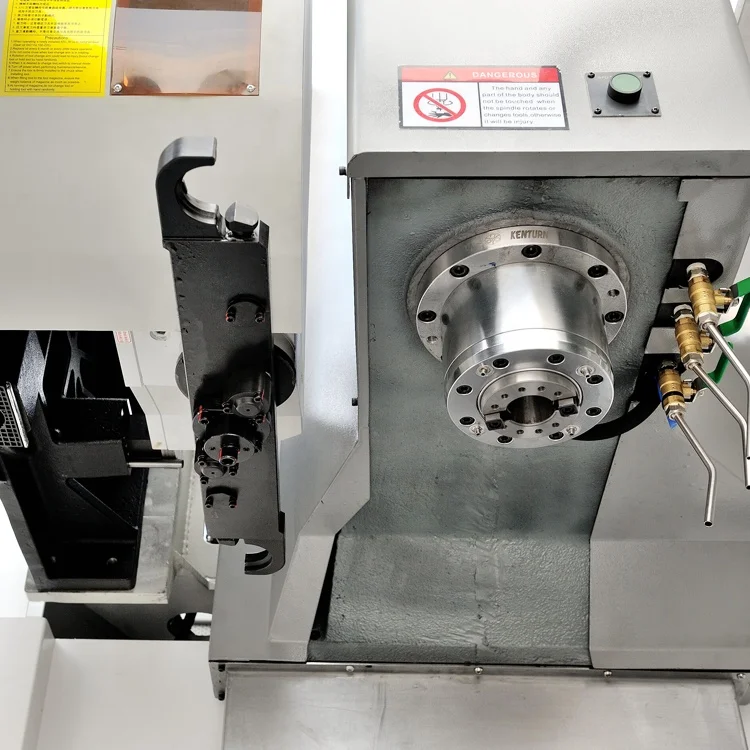

Taiwan spindle BT40/BT50
Taiwan 24T arm type auto tool changer

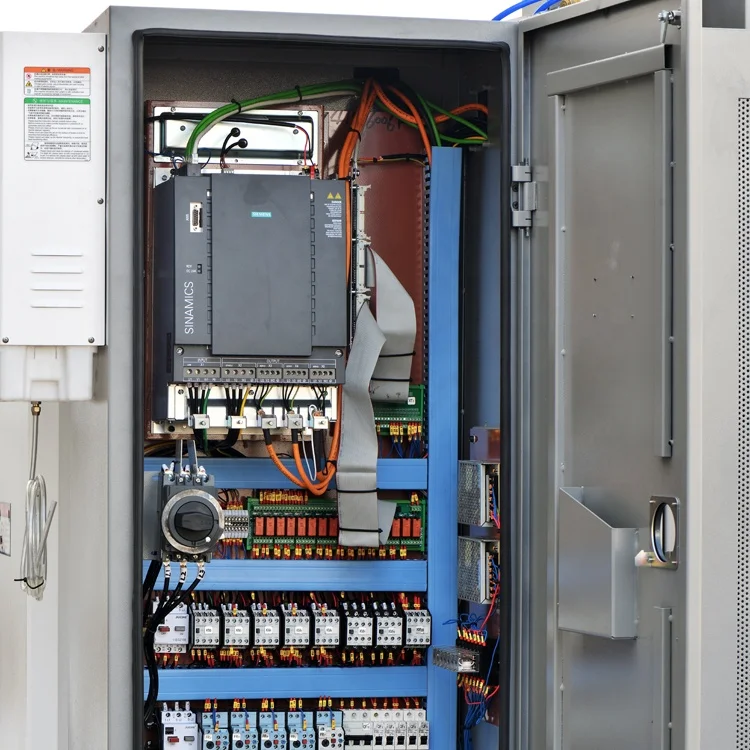

Schneider or Siemens main electrical components.
Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws.
Auto chip conveyor.

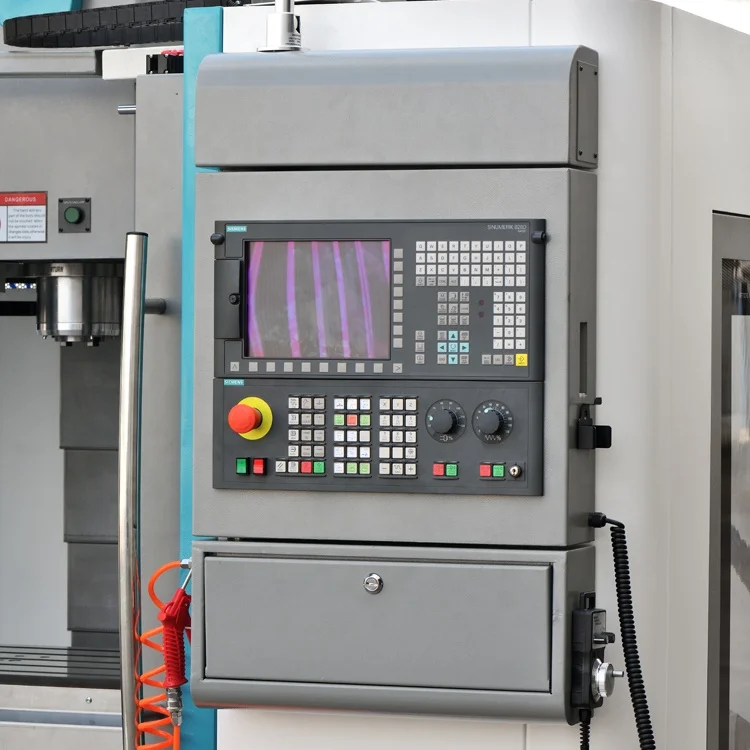

FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are optional.
Taiwan 4th or 5th axes rotary table is optional.
Tools and workpiece measuring instrument are optional.
30 bar high pressure filtering system and oil cooler are optional.
