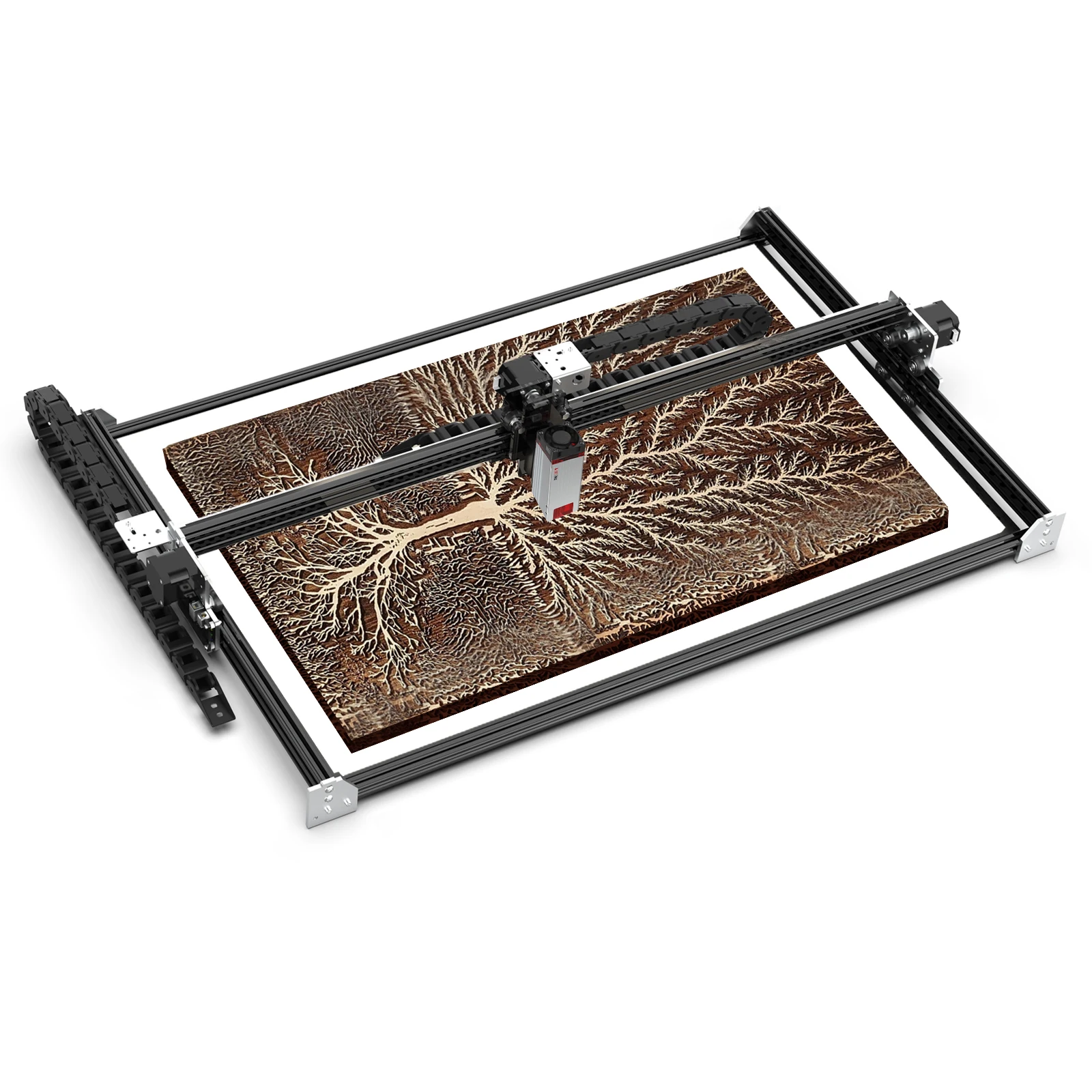

NEW Arrival NEJE Max E40 810*460mm Frame DIY Compressed Spot LD FAC Fast High Precision Laser Cut Engraver Engraving Machine
- Category: >>>
- Supplier: Shenzhen Xinghuan Trade Co. Ltd.
Share on (1600575715254):
Product Overview
Description
Products Description
NEJE 3 MAX E40 Laser Engraver & Cutter Fetures: | ||||||||
◆ At the same time, it supports NEJE software, NEJE APP, LaserGRBL, Lightburn; BLE-based wireless control, supports NEJE APP wireless control. | ||||||||
◆ NEJE optimizes the low-light experience in GRBL mode for diode lasers, and the low-light settings can be adjusted through the laserGRBL software. | ||||||||
◆ NEJE is compatible with M8, M7, Door functions, and automatically adapts to lightburn, laserGRBL and NEJE software for better automation of processes. | ||||||||
◆ NEJE 3 adopts all-metal frame + PC CNC structural parts, which improves the stability of the structure and enhances the smoothness of movement. It also adopts easy maintenance driving structure. | ||||||||
◆ The top 32-bit processor has replaced the previous two The chip processing solution is more reliable, support OTA upgrade in NEJE mode, NEJE continuously upgrades software and firmware Provide more surprising and useful interesting features. | ||||||||
Why Choose Us
RECOMMENDED REASON

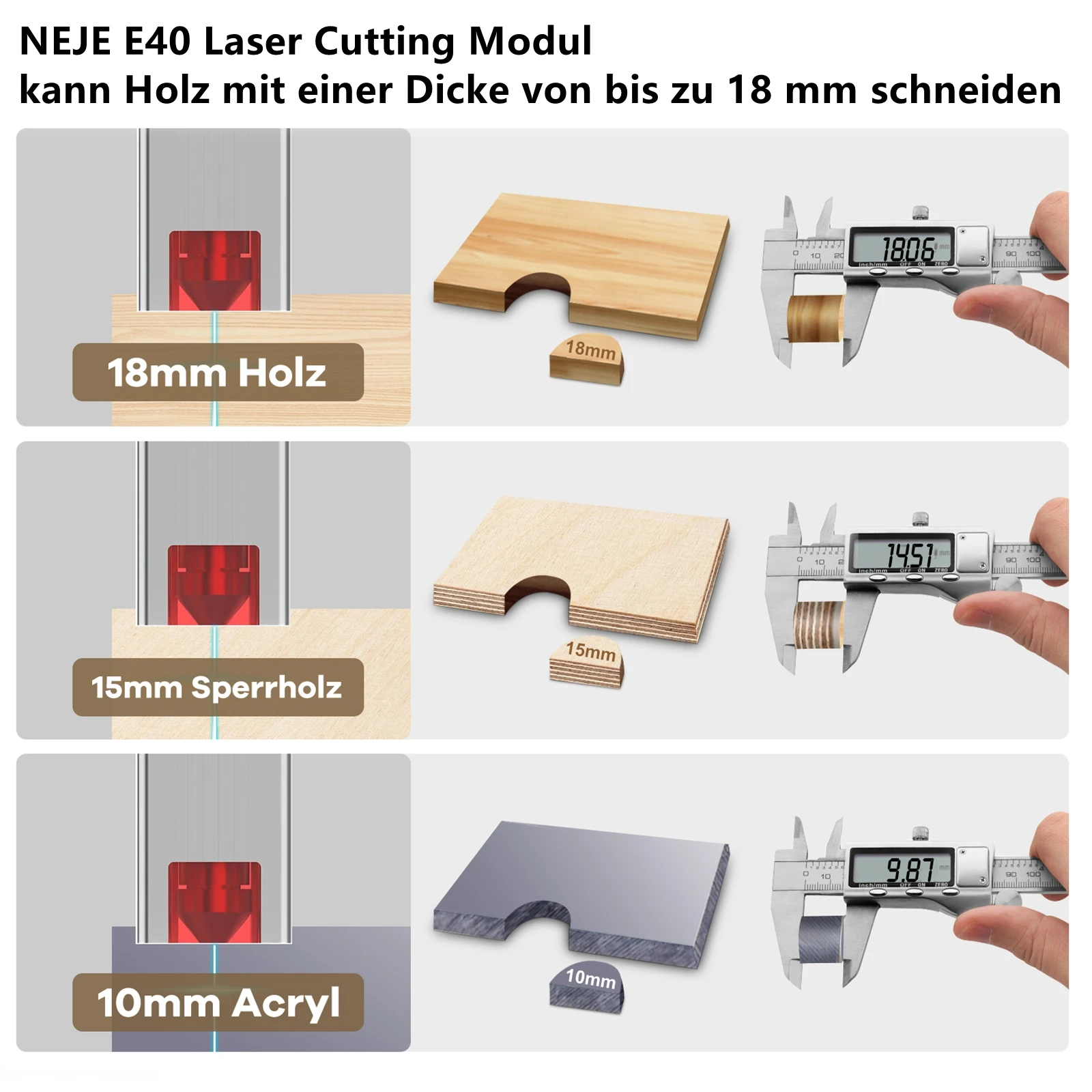

NEJE E40 is a professional cutting module specially designed for long-term safety cutting processing. It is currently the strongest power and optical performance module with 2 beams.
Compared with NEJE A40640, E40 is more focused on cutting stability, heavy-duty design, and easier to use air asisst, more stable output power for cutting, E40 also has good cutting efficiency, 300mm/min can cut 4mm plywood cleanly, NEJE has optimized the optical characteristics in the XY axis direction,
so that the XY axis cutting is balanced and more suitable for cutting;
remove it Air nozzle, E40 can also be directly used for engraving without air assistance, and the engraving ability of E40 is also very close to A40640.
If most of your work is for cutting, choose E40.
If most of your work is for carving, choose A40640.
Compared with NEJE A40640, E40 is more focused on cutting stability, heavy-duty design, and easier to use air asisst, more stable output power for cutting, E40 also has good cutting efficiency, 300mm/min can cut 4mm plywood cleanly, NEJE has optimized the optical characteristics in the XY axis direction,
so that the XY axis cutting is balanced and more suitable for cutting;
remove it Air nozzle, E40 can also be directly used for engraving without air assistance, and the engraving ability of E40 is also very close to A40640.
If most of your work is for cutting, choose E40.
If most of your work is for carving, choose A40640.
Product Paramenters
3 Max Machine | ||
Frame Size (LxWxH) | 590 x 980 x 160 mm | |

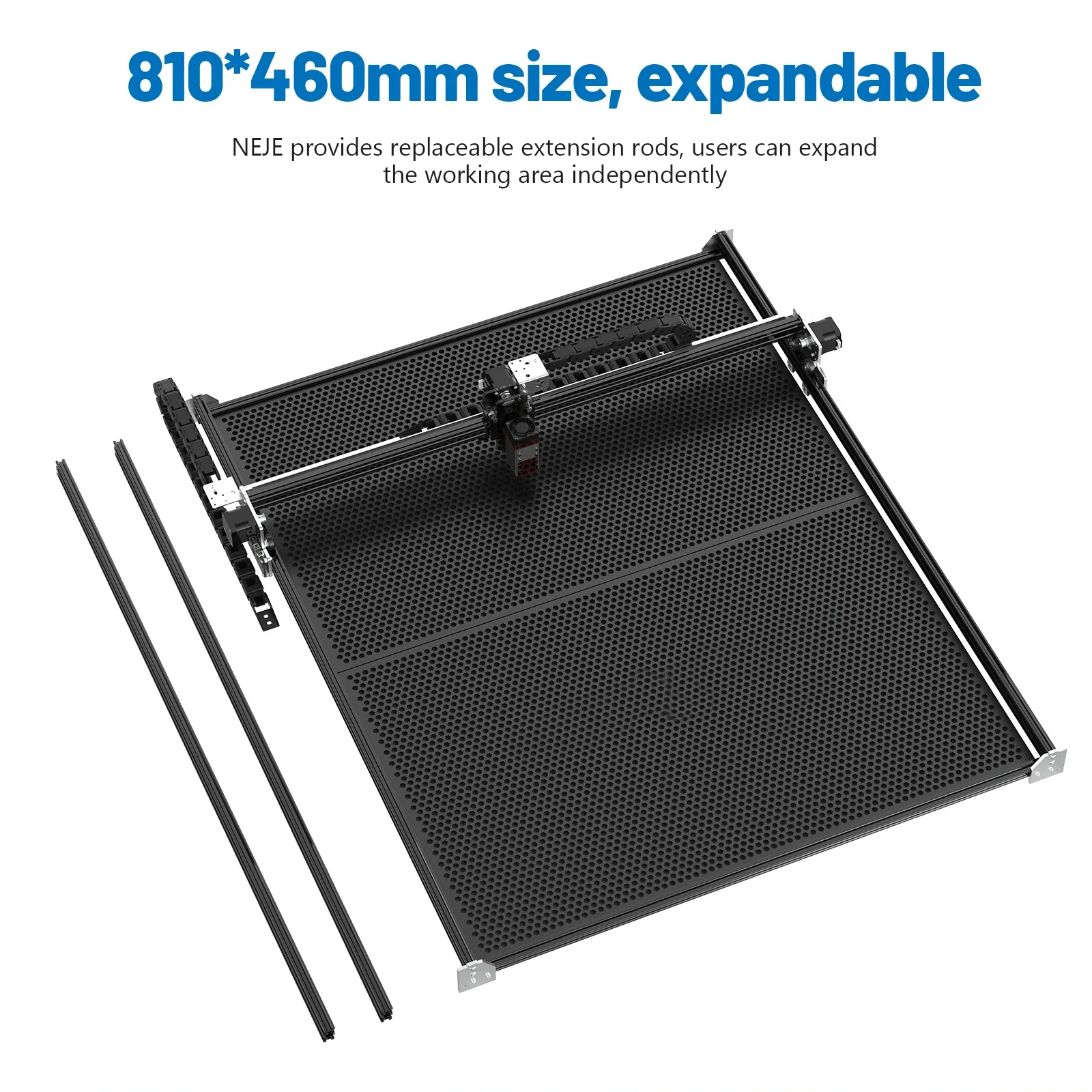

Engraving Area (XxY) | 460 x 810 mm, support extension to 1030*810mm | |
Material | Aluminum alloy + PC | |
Dot Pitch | 0.075mm | |
Pixel | 6133 x 10800 px | |
Motor Size | 42 x 42 x 40 mm | |
Motor Drive Current | 0.9A | |
Drive Design | Built-in | |
Home | Rear Left | |
Origin | Front Left | |
Max Move Speed | X:1000mm/s, Y:750mm/s | |
MCU | 32-bit MCU | |
Input | 12V 5A | |
Off-Line Working | Supported | |
Vertical Carving | YES | |
Module Height Adjuster | YES | |
Limit Switch | YES | |

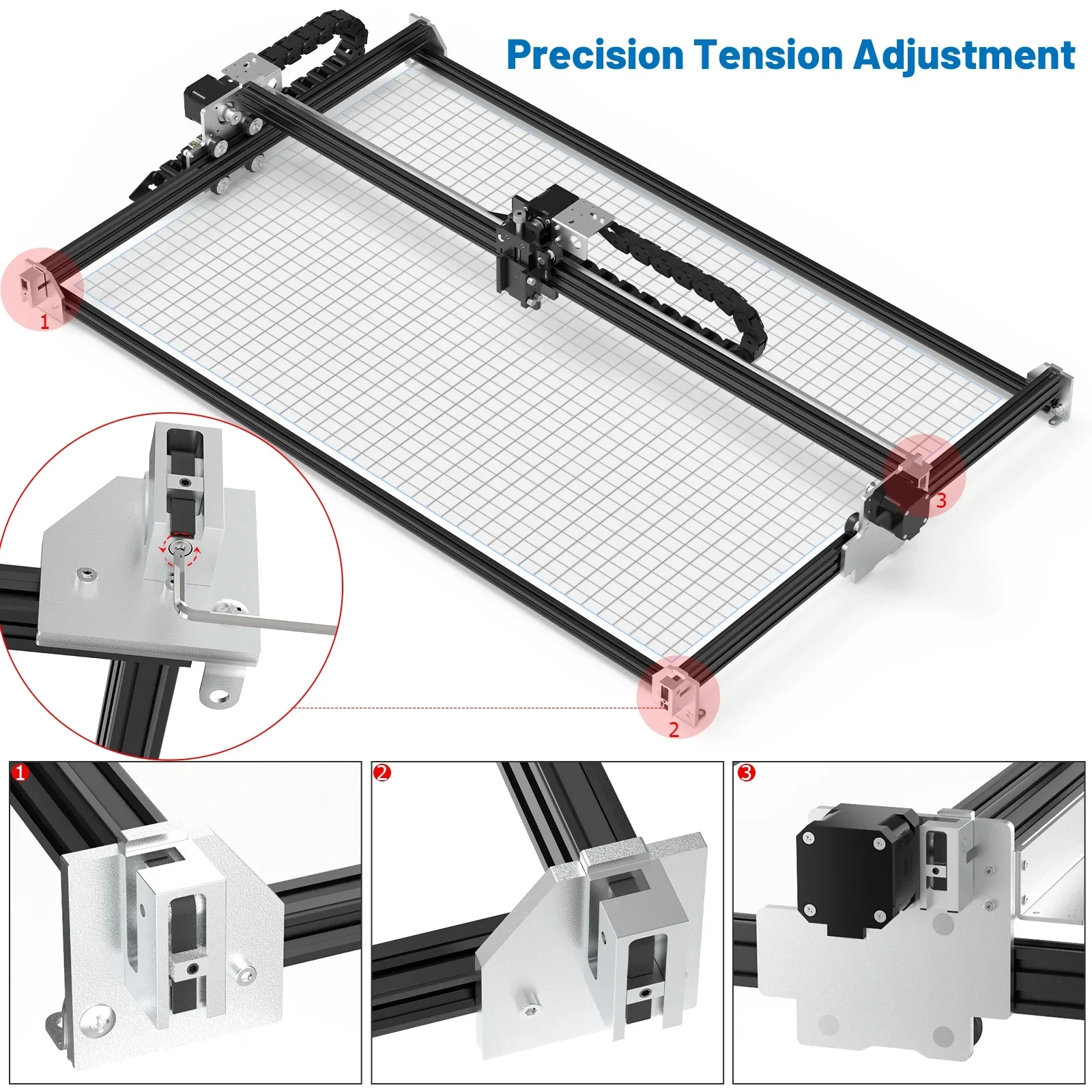

Technology | Y-axis fit adjustable design, X-axis stress fit assembly | |
Feature | Fit, high precision, stablize, smooth, no oil, easy maintenance, long life | |

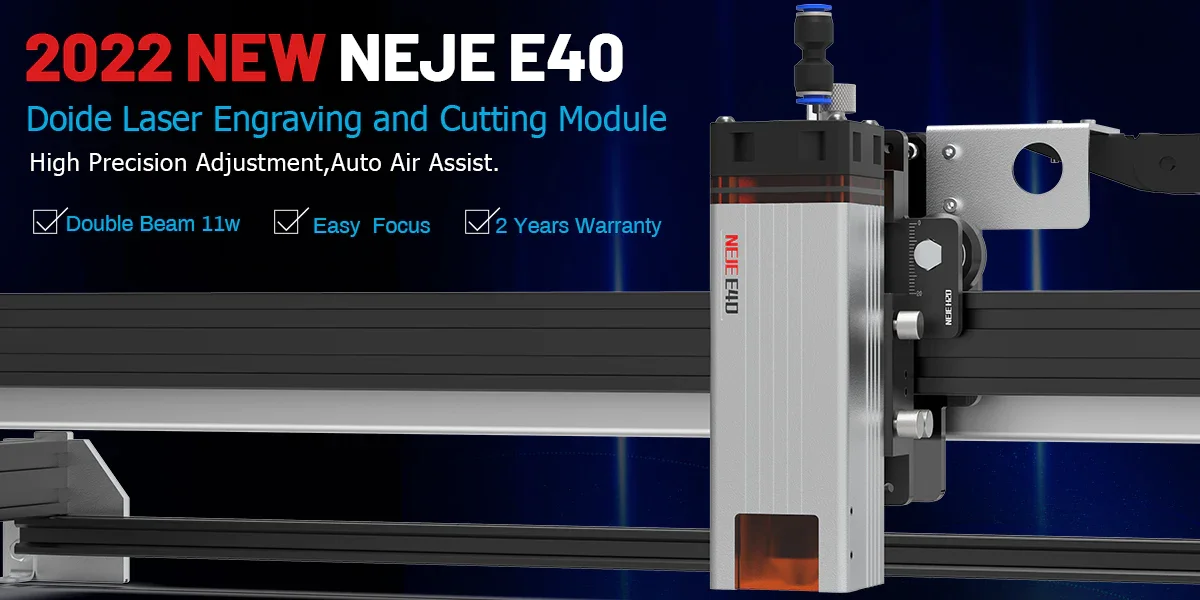

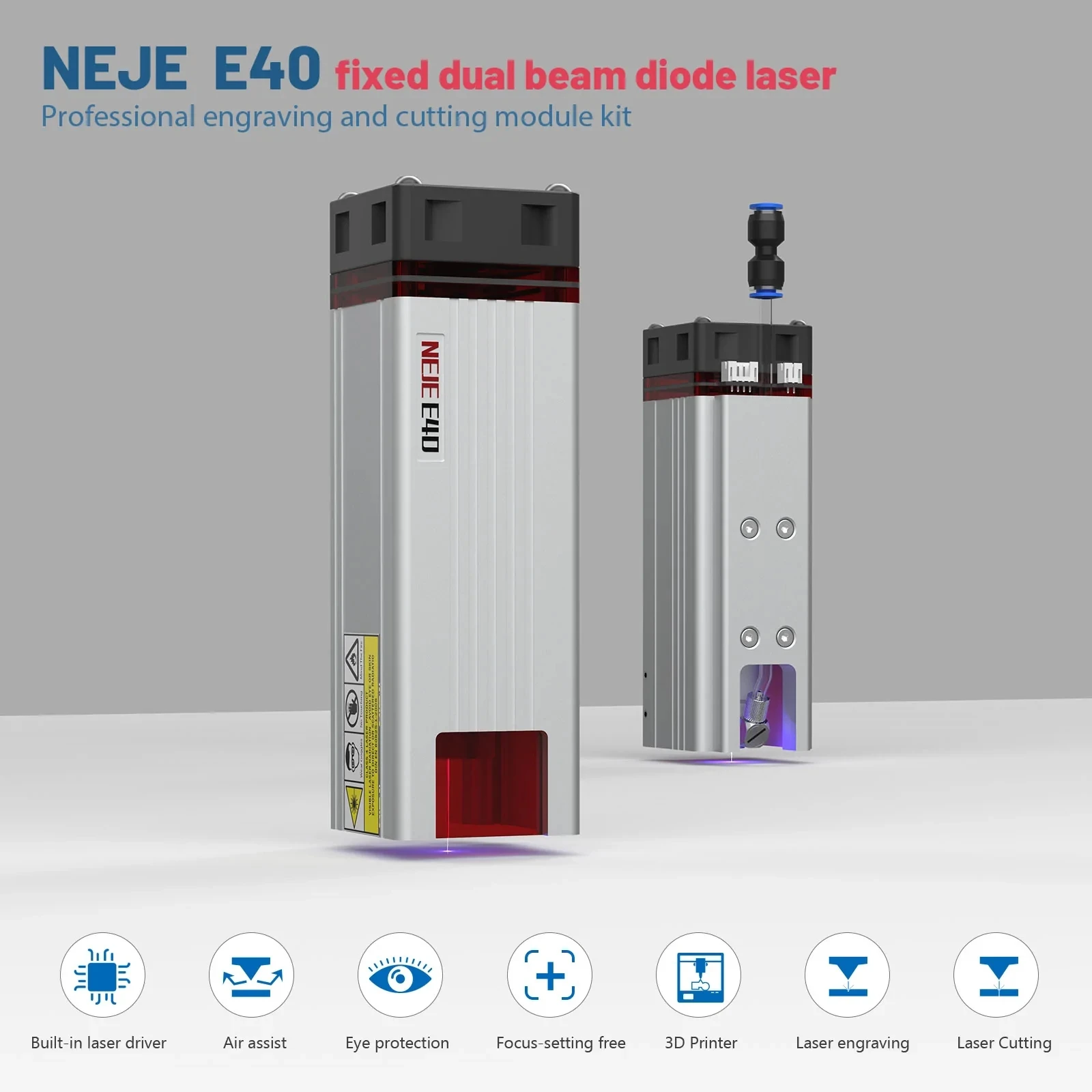

NEJE E40 Laser Module | ||
Module Size | 40 x 48x130 mm | |
Input | 12V 4A + | |
Optical Power | Pulse 11W +,CW 10W+ | |
Wavelength | 450nm | |
Warranty | 2 years | |
Light Source | 2 X LD + FAC Tech + C-Lens | |
Software | ||
Mobile Phone & Pad | NEJE Android APP NEJE iPhone & iPad APP | |
PC | NEJE macOS software NEJE Wins software LaserGRBL with firmware GRBL1.1f. LightBurn Software with firmware GRBL1.1f. LightBurn ( paid software from the official website of Lightburn.) | |
Product packaging

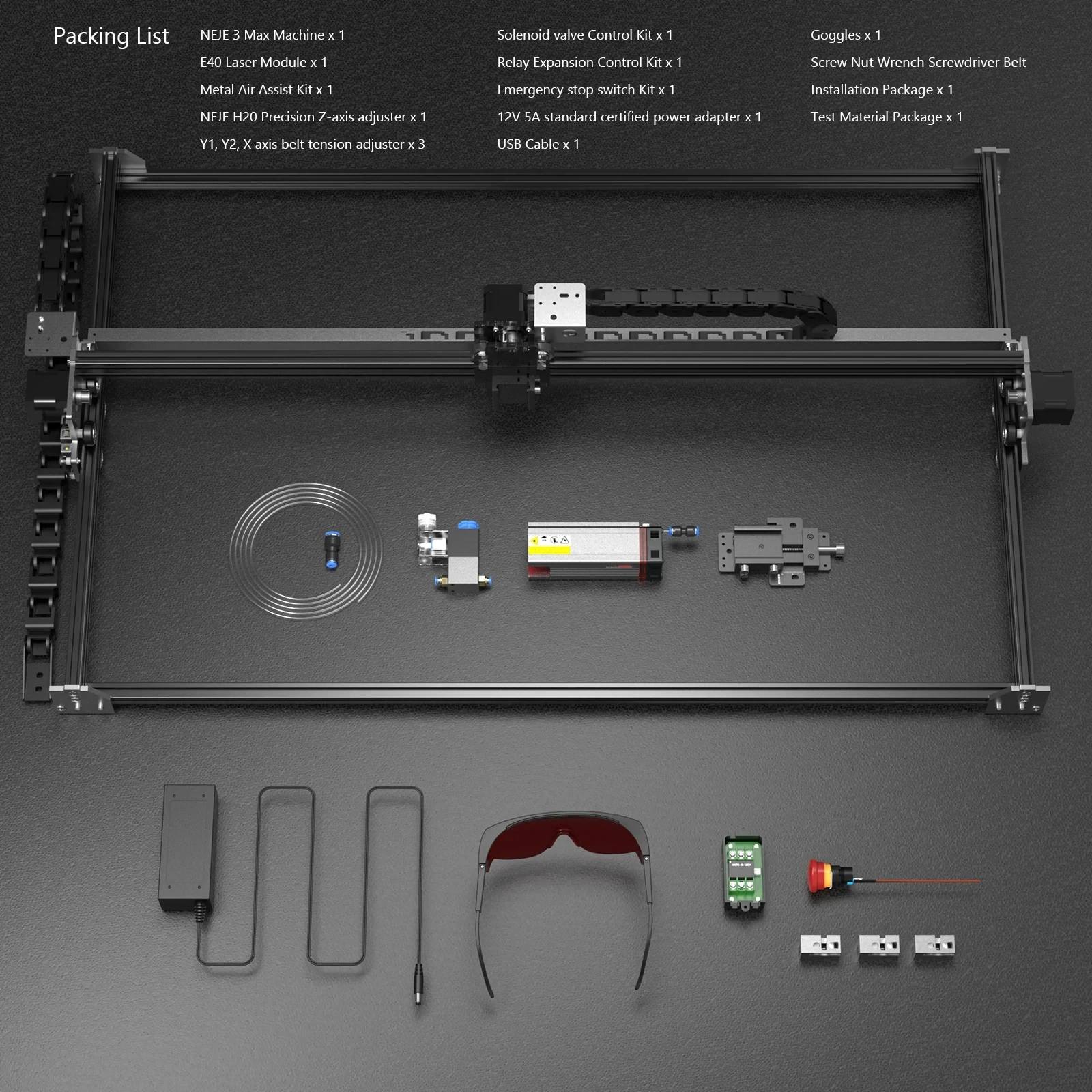

PACKING LIST:
◆NEJE 3 Max Machine(All functions of the whole machine are tested, and only 6 screws are needed to complete the assembly) x 1◆Laser Module with air Assist Kits x 1
◆12V 5A standard certified power adapter x 1
◆USB Cable + Manual + Quality Card x 1
◆Goggles x 1
◆L-shaped Crawler Aluminum Profile x 1
◆Crawler x 2
◆12V Valve Control Kit (less than 1.5mpa) x 1

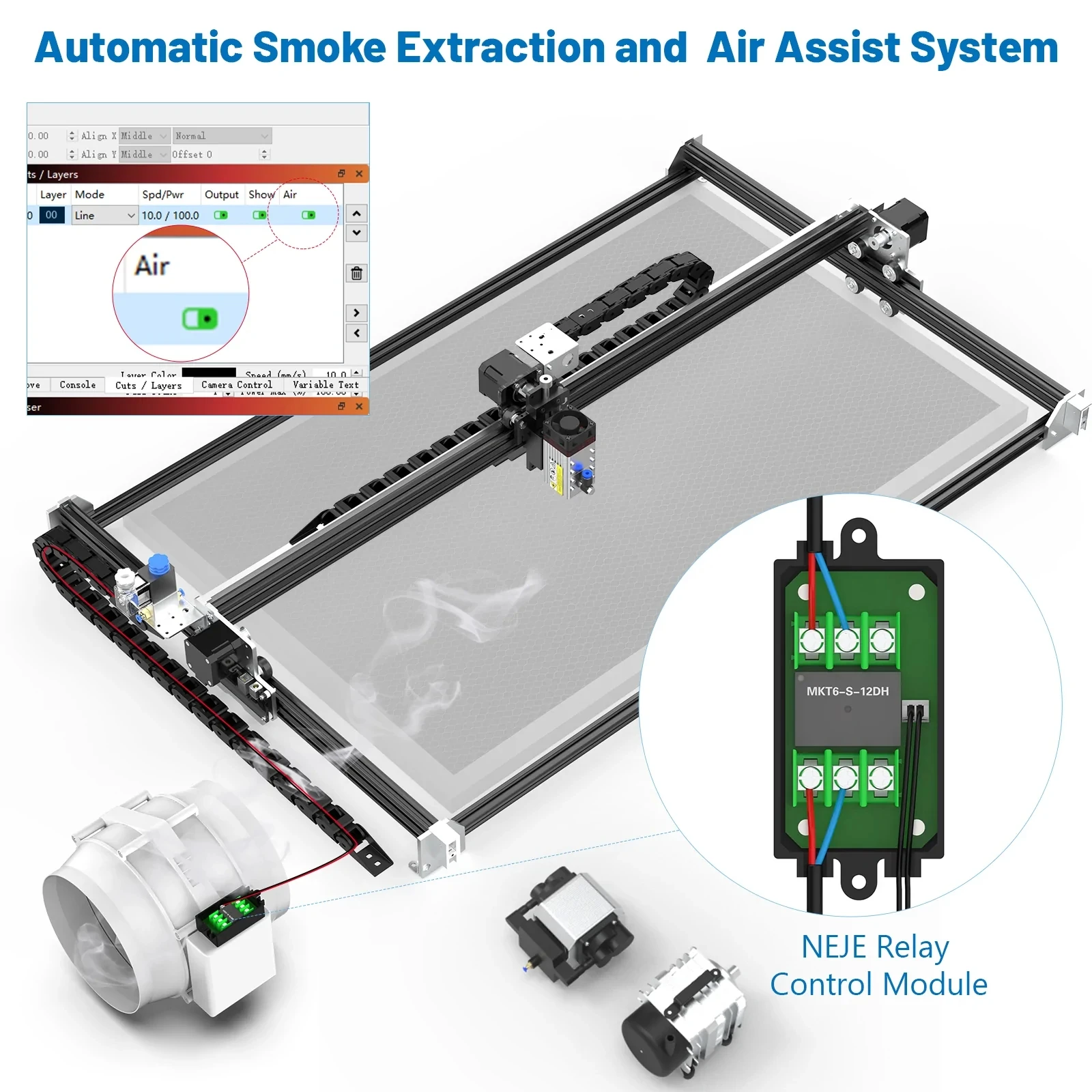

◆12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W) x 1
◆Door Control Kit x 1
◆(The length of the control line is 1 meter.)
◆Screw Nut Wrench Screwdriver Belt Installation Package x 1
◆Test Material Package x 1
Certifications
◆ Our factory is certified by ISO9001 quality system and ISO140001 environmental management system. All products have passed CE, ROHS, FCC, SDS certificates and so on.
◆ NEJE has greatly enhanced the anti-static and surge design under the new control system. NEJE has passed the very severe test in the experiment, which has greatly improved the reliability of the NEJE control system. The new system does not require additional grounding to protect equipment.
◆ NEJE has greatly enhanced the anti-static and surge design under the new control system. NEJE has passed the very severe test in the experiment, which has greatly improved the reliability of the NEJE control system. The new system does not require additional grounding to protect equipment.
FAQ
Are you a factory.
Yes, we are professional manufacturer that is concerned with the design, development and production of NEJE DIY USB Laser Engraver Printer
since 2013.
Do you have warehouse overseas.
We have warehouse in Netherlands, UK, Germany, Spain, USA, Russia, which can speed up the service all over the world.
Delivery in 2-3 working days, arriving in 7 days.
How long does it take for my order to ship?
Ex-stock product: around 3 working days after payment receipt
Customize product: around 7 working days after payment receipt
Specific delivery date: pls contact our sales team for double confirmation
What are my payment options?
We accept payment by L/C, T/T, Western Union, Paypal, Credit Card and Cash.
Yes, we are professional manufacturer that is concerned with the design, development and production of NEJE DIY USB Laser Engraver Printer
since 2013.
Do you have warehouse overseas.
We have warehouse in Netherlands, UK, Germany, Spain, USA, Russia, which can speed up the service all over the world.
Delivery in 2-3 working days, arriving in 7 days.
What is the quality assurance policy.
1-2 year warranty according to different product series. please contact for more details
Can you customize the product for me.
Yes, we can provide customize service such as logo printing, packing design...
Can you customize the product for me.
Yes, we can provide customize service such as logo printing, packing design...
We welcome OEM or ODM orders. Let's have win-win cooperation together.
How long does it take for my order to ship?
Ex-stock product: around 3 working days after payment receipt
Customize product: around 7 working days after payment receipt
Specific delivery date: pls contact our sales team for double confirmation
What are my payment options?
We accept payment by L/C, T/T, Western Union, Paypal, Credit Card and Cash.
