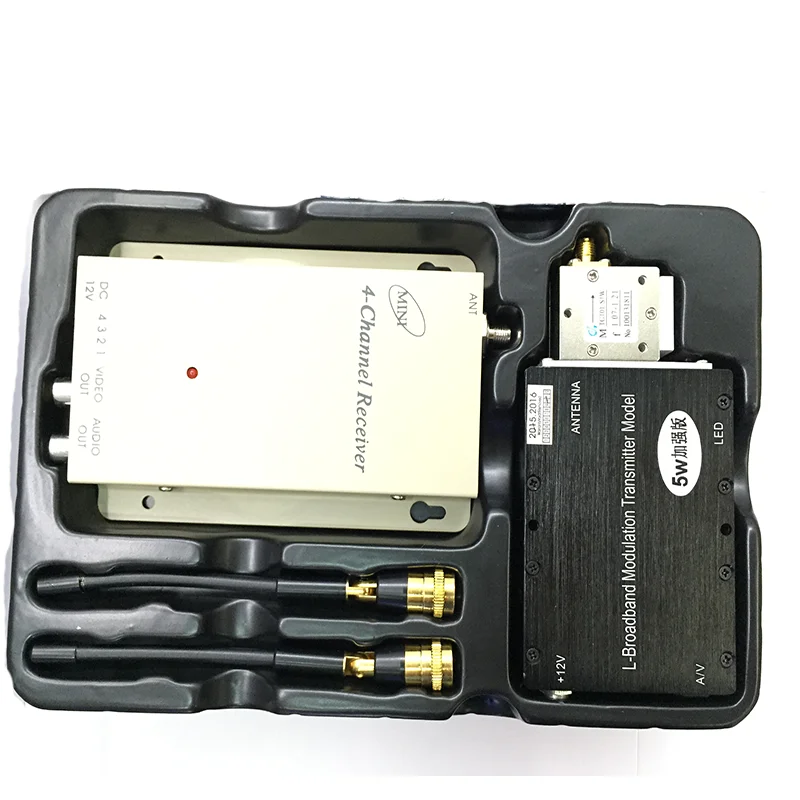

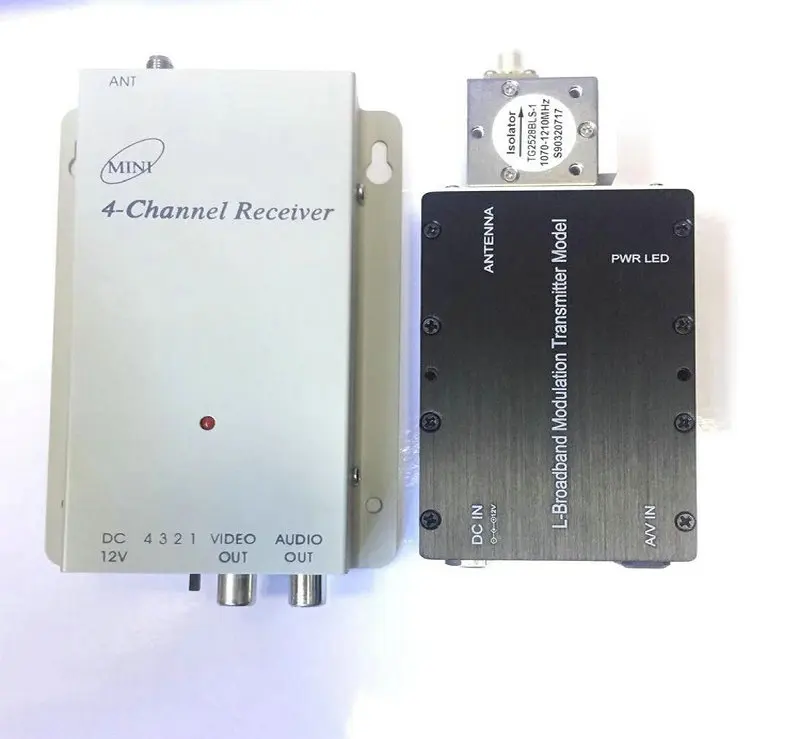

1.2G5w enhanced version of wireless audio and video transmitter wireless high power monitoring image transmitter receiver
- Category: >>>
- Supplier: Shenzhen Lvanda Technology Co. Ltd.
Share on (1600575912920):
Product Overview
Description
Product Description
Specification
item | value |
Model Number | TRX-5W1.2GEX |
Place of Origin | China |
Guangdong | |
Product name | 1.2g 4ch Transmitter and Receiver |
Type | Wireless TX+RX |
Color | Black |
Input | CVBS Video+RCA Audio(R |
Output | CVBS Video+RCA Audio(R |
Feature | Plug-and-play |
Power supply | DC 12V 2A |
Transmission distance | 3KM |
Use | Multiple Support |
Channels | 4ch |
I. Overview
The 1.2G-5w enhanced wireless transmitter is a wireless audio and video transmission device with excellent performance in all aspects. It has large power headroom and low current consumption, and consumes only about 900mA under normal working conditions. And small size, long transmission distance, more suitable for various complex practical environments. When using an omnidirectional antenna of 7dB (that is, the original small antenna), the transmission can be guaranteed to be about 1800m in the open space. If the gain directional antenna is increased, the distance can be increased to more than 1km, and it can also transmit 250-400 meters under normal blocking conditions. meters or so.
Two performance characteristics
1) Wireless transmission method: no need to erect communication cables
2) Simultaneous transmission of images and audio, compatible with color and black and white
3) Small size, light weight, easy to carry, easy to install
4) Respond quickly and timely, send and receive real-time transmission
5) Adopt frequency modulation method, strong anti-interference ability and good image quality
6) High integration, stable and reliable operation, long transmission distance
7) The camera is specially designed and integrated with the transmitter. The power supply only needs to supply power to one place, no complicated wiring is required, and the operation is simple and easy to use.

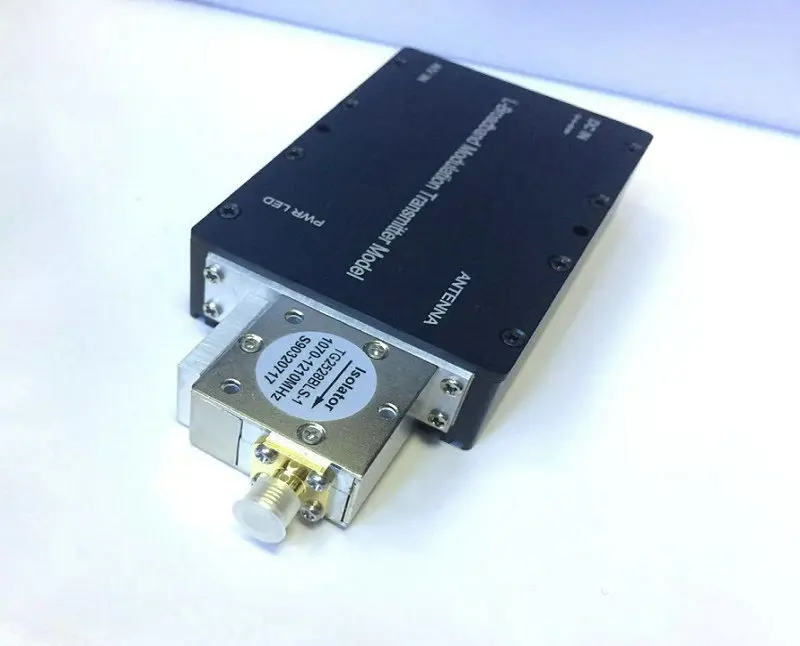

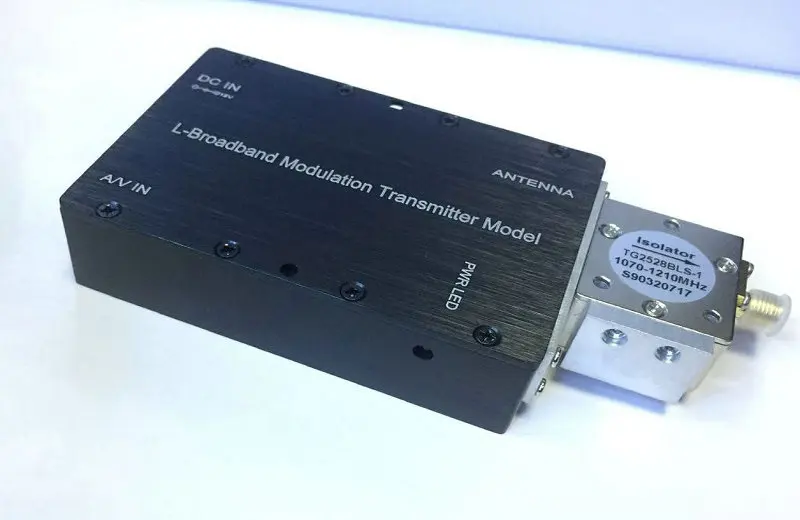

3. Basic parameters of the transmitter
Model: pt-125000+
Working voltage: DC 12V
Working current: 800MA
Transmission frequency: 0.9G-1.3G
Number of channels: 8CHS
Transmitting power: 5000MW
Video Input/Video Modulation: 1VP-P(FM)
Audio Input/Audio Modulation: 1VP-P(FM)
Audio carrier: 5.5M 6.0M
Weight: 178G
Product size: 111*58*21MM
Colour: Black
Barrier-free transmission distance: 1800-2500M
Working temperature: -5℃~+50℃
Receiver Specifications
Frequency 1:1080mhz
2:1120mhz
3:1160mhz
4:1200mhz
Voltage: DC12v
Current: 280ma
Size: 133x80x21mm
Accessories:
Transmitter conversion line 1 AV video line 1
Transmitter soft antenna 1 Receiver antenna 1

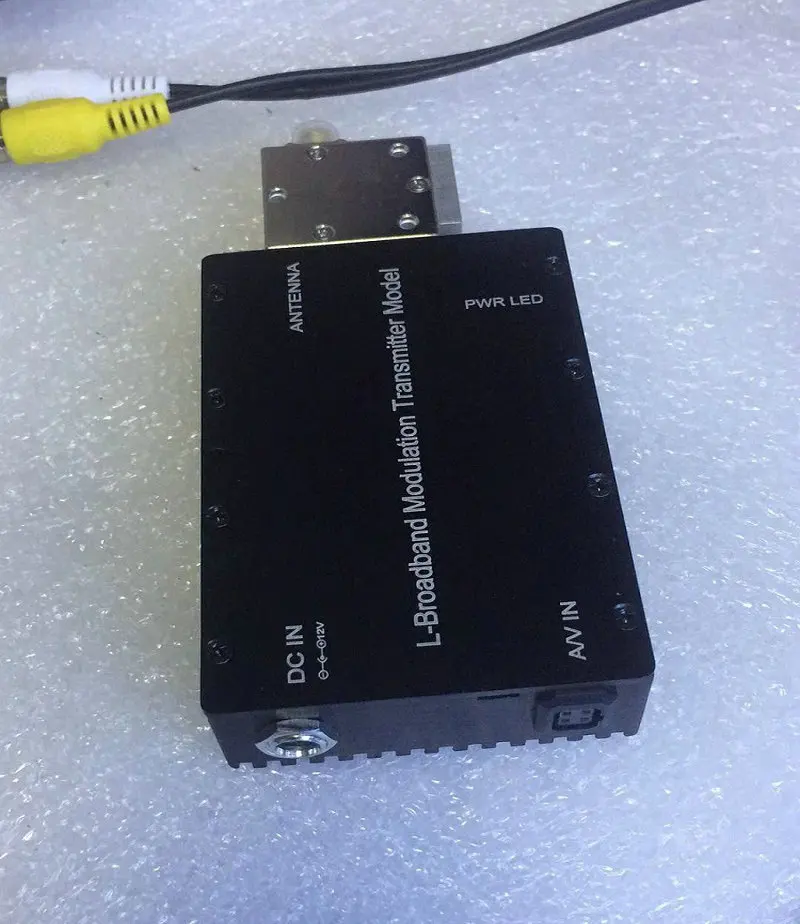

Instructions:
The transmitter adopts the power supply DC12V/1000MA regulated power supply,
The transmitter has four leads which are:
Black wire-------connect to the negative pole of the power supply
Red wire-------connect to the positive pole of the power supply
White wire-------(audio input) to the audio output port of the sound collector
Yellow wire-------(video input) connect to the video output port of the camera
Description of the four-headed line that comes out of the conversion line:
Red is the power input, black is the power output (the four camera cables can be explained at the same time:
Red is power input, black is power output (can supply power to the camera at the same time), yellow is video input, white is audio input
The 1.2G-5w enhanced wireless transmitter is a wireless audio and video transmission device with excellent performance in all aspects. It has large power headroom and low current consumption, and consumes only about 900mA under normal working conditions. And small size, long transmission distance, more suitable for various complex practical environments. When using an omnidirectional antenna of 7dB (that is, the original small antenna), the transmission can be guaranteed to be about 1800m in the open space. If the gain directional antenna is increased, the distance can be increased to more than 1km, and it can also transmit 250-400 meters under normal blocking conditions. meters or so.
Two performance characteristics
1) Wireless transmission method: no need to erect communication cables
2) Simultaneous transmission of images and audio, compatible with color and black and white
3) Small size, light weight, easy to carry, easy to install
4) Respond quickly and timely, send and receive real-time transmission
5) Adopt frequency modulation method, strong anti-interference ability and good image quality
6) High integration, stable and reliable operation, long transmission distance
7) The camera is specially designed and integrated with the transmitter. The power supply only needs to supply power to one place, no complicated wiring is required, and the operation is simple and easy to use.
3. Basic parameters of the transmitter
Model: pt-125000+
Working voltage: DC 12V
Working current: 800MA
Transmission frequency: 0.9G-1.3G
Number of channels: 8CHS
Transmitting power: 5000MW
Video Input/Video Modulation: 1VP-P(FM)
Audio Input/Audio Modulation: 1VP-P(FM)
Audio carrier: 5.5M 6.0M
Weight: 178G
Product size: 111*58*21MM
Colour: Black
Barrier-free transmission distance: 1800-2500M
Working temperature: -5℃~+50℃
Receiver Specifications
Frequency 1:1080mhz
2:1120mhz
3:1160mhz
4:1200mhz
Voltage: DC12v
Current: 280ma
Size: 133x80x21mm
Accessories:
Transmitter conversion line 1 AV video line 1
Transmitter soft antenna 1 Receiver antenna 1
Instructions:
The transmitter adopts the power supply DC12V/1000MA regulated power supply,
The transmitter has four leads which are:
Black wire-------connect to the negative pole of the power supply
Red wire-------connect to the positive pole of the power supply
White wire-------(audio input) to the audio output port of the sound collector
Yellow wire-------(video input) connect to the video output port of the camera
Description of the four-headed line that comes out of the conversion line:
Red is the power input, black is the power output (the four camera cables can be explained at the same time:
Red is power input, black is power output (can supply power to the camera at the same time), yellow is video input, white is audio input
