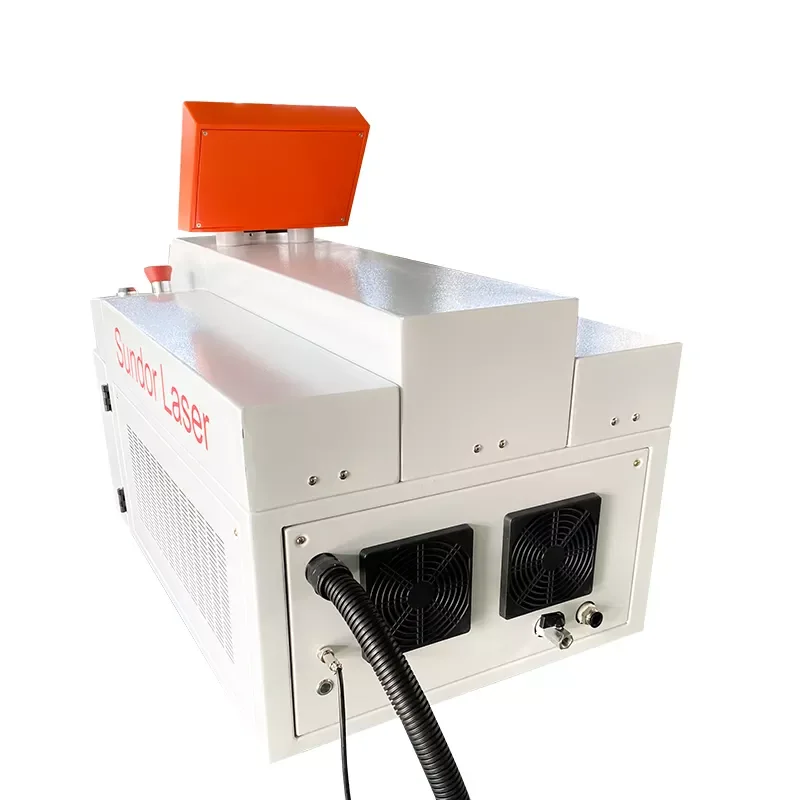

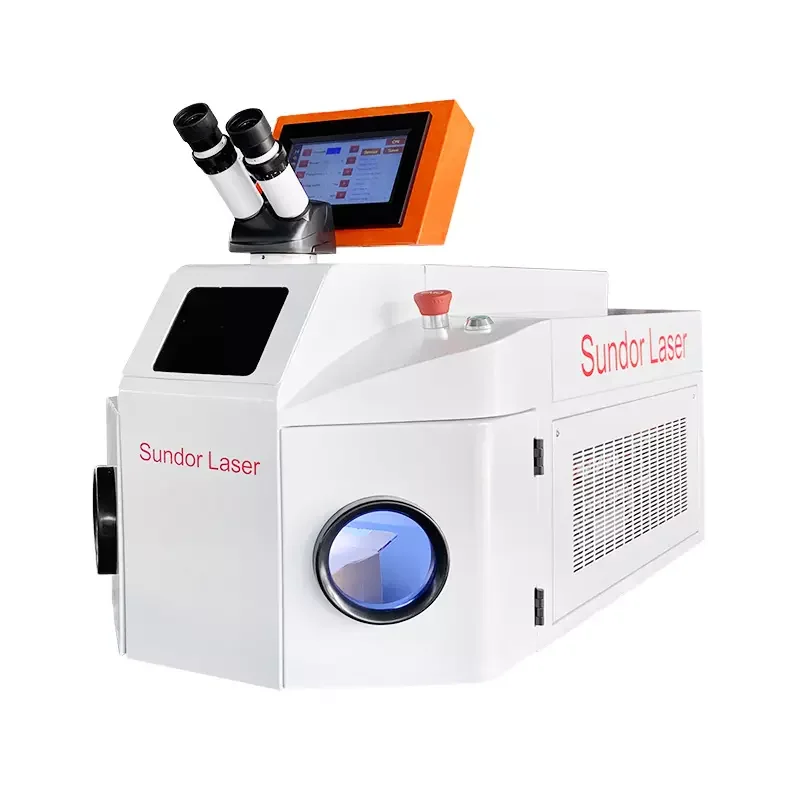

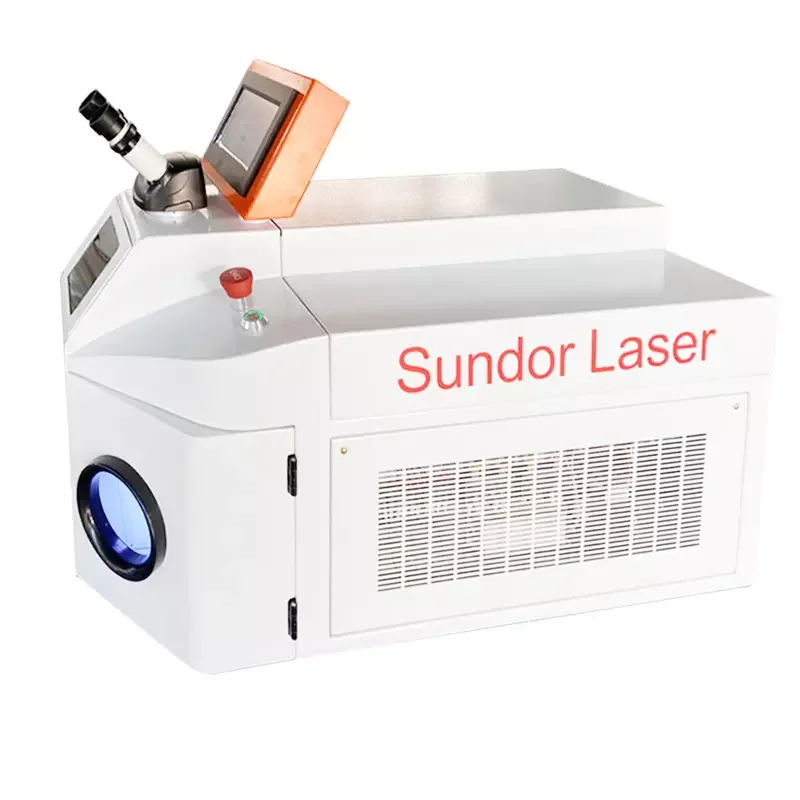

200w Yag Gold Silver Jewelry Repair Tabletop Laser Welder Spot Welding Machine

Product Overview

Description

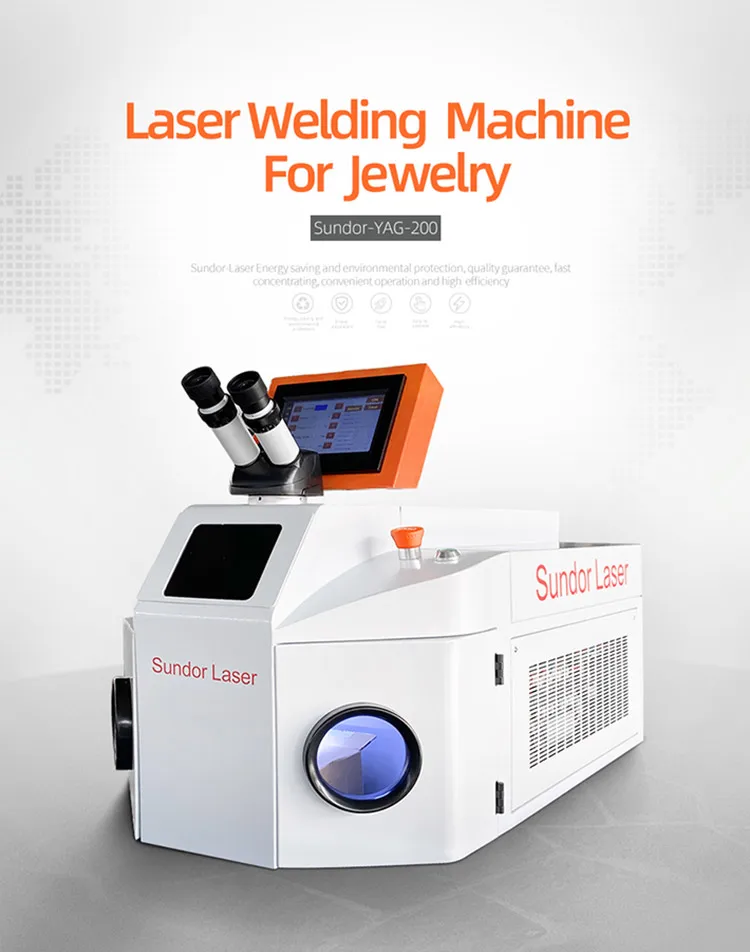

200w Yag Gold Silver Jewelry Repair Tabletop Laser Welder Spot Welding Machine

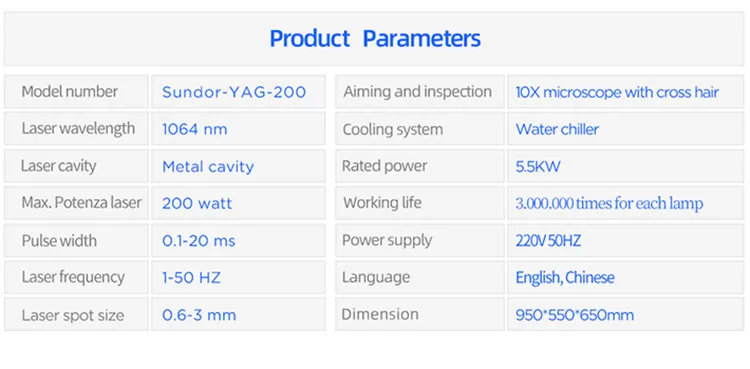

Model number	SD-YAG-200
Laser wavelength	1064 nm
Laser cavity	Metal cavity
Max. Potenza laser	200 watt
Pulse width	0.1-20 ms
Laser frequency	1-50 HZ
Laser spot size	0.6-3 mm
Aiming and inspection	10X microscope with cross hair
Cooling system	Air-cooling/Water-cooling
Rated power	5.5KW
Working life	3.000.000 times for each lamp
Power supply	220V 50HZ
Language	English, Chinese

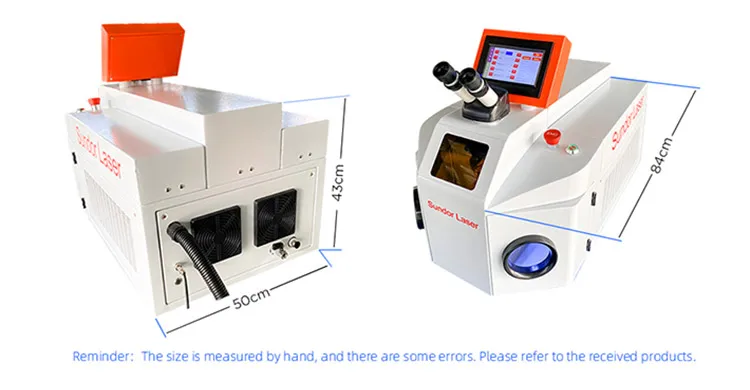

Dimension	950*550*650mm

Product description

1. The ergonomic design of the complete machine is further adapted to the jewelry industry of which the products are meticulous and artistic and the property is stable and also meets the needs of long-term continuous operation.



2. The head cushion and the bracket arm cushion have been specially added

that operation for a long time is more convenient.



3. Large interior space is convenient for setting tools and fixtures.



4. The electric focusing device is equipped with a working area and laser

the parameters are applied to the adjustment lights for the renewal of the dust screen, cleaning of the working area and recovery of welding dust.

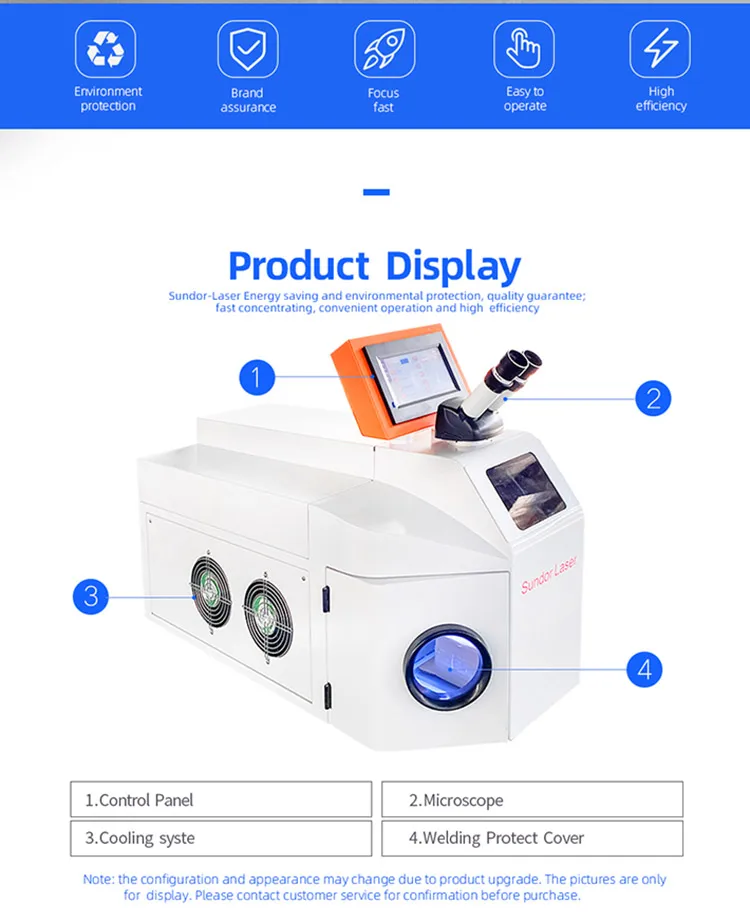

5. The observation of the welding positions is clearer using the adjustable height luminosity of the LED ring astral lamp and German brand microscope.



6. More meticulous light points meets the requirements of more meticulous



AProduct ApplicationPackaging
