Specialty Automatic filling machine for fruit jam production line

Share on (1600575976504):


Price:$25,000.00

Quantity:


Product Overview

Description



Product Description

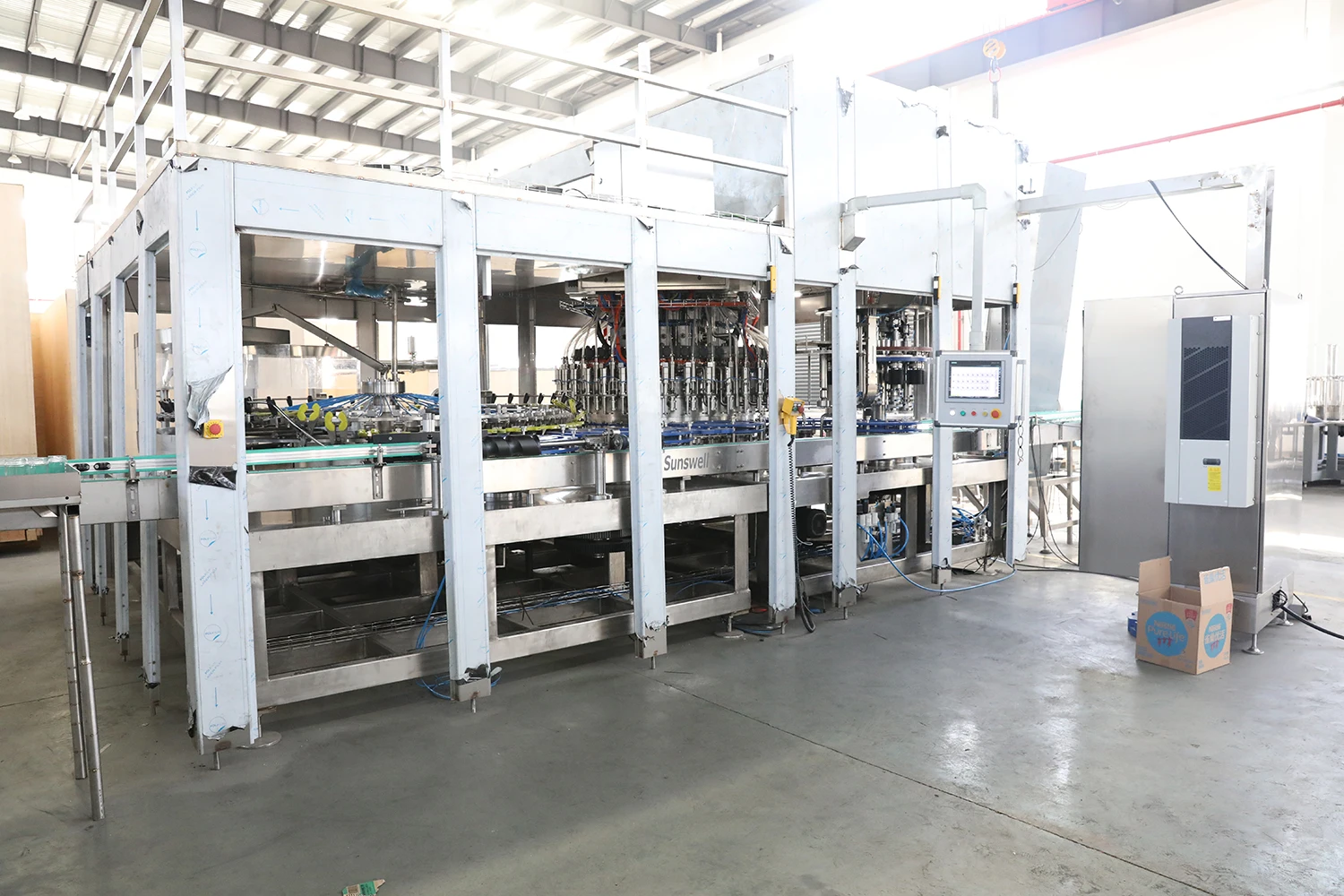

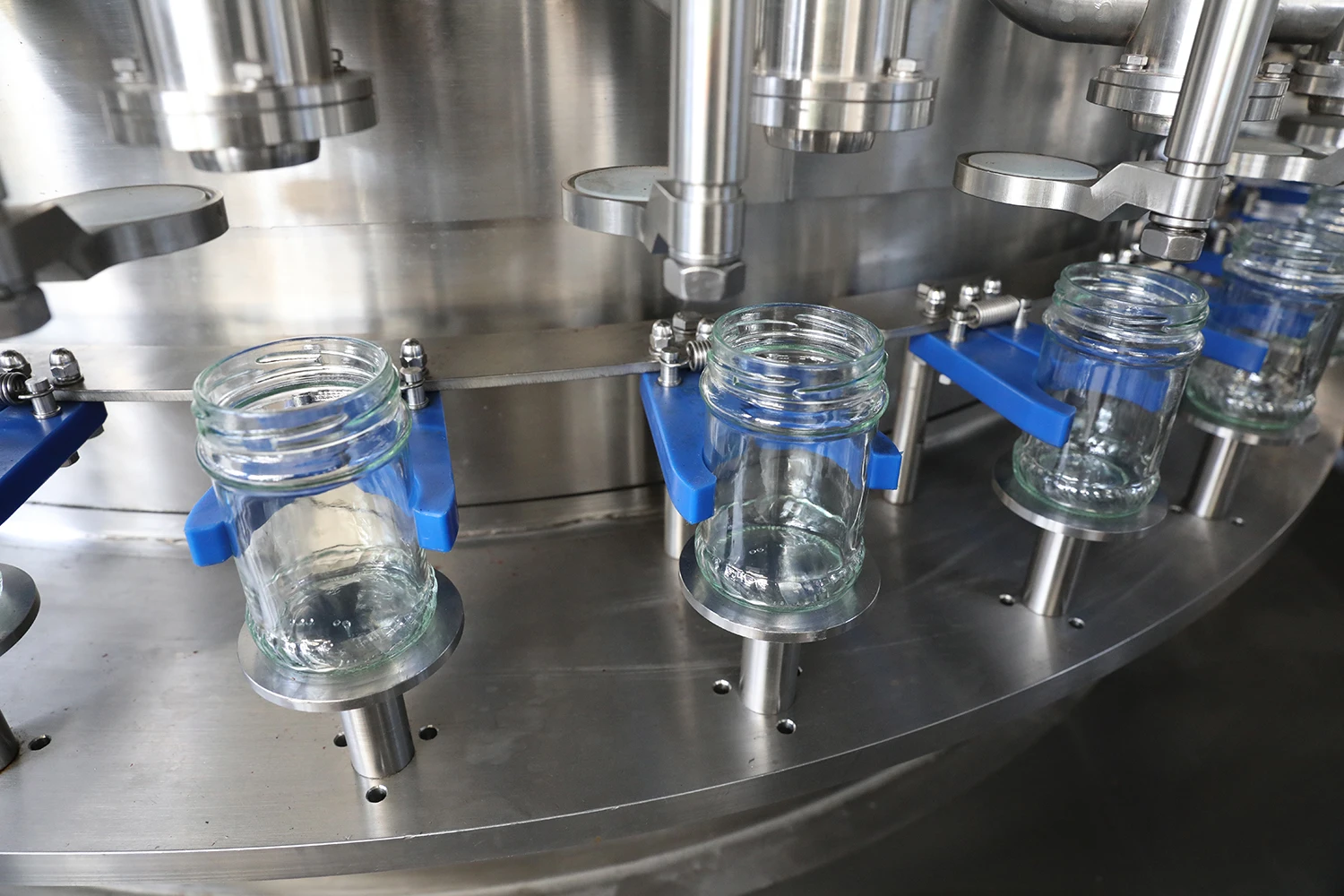

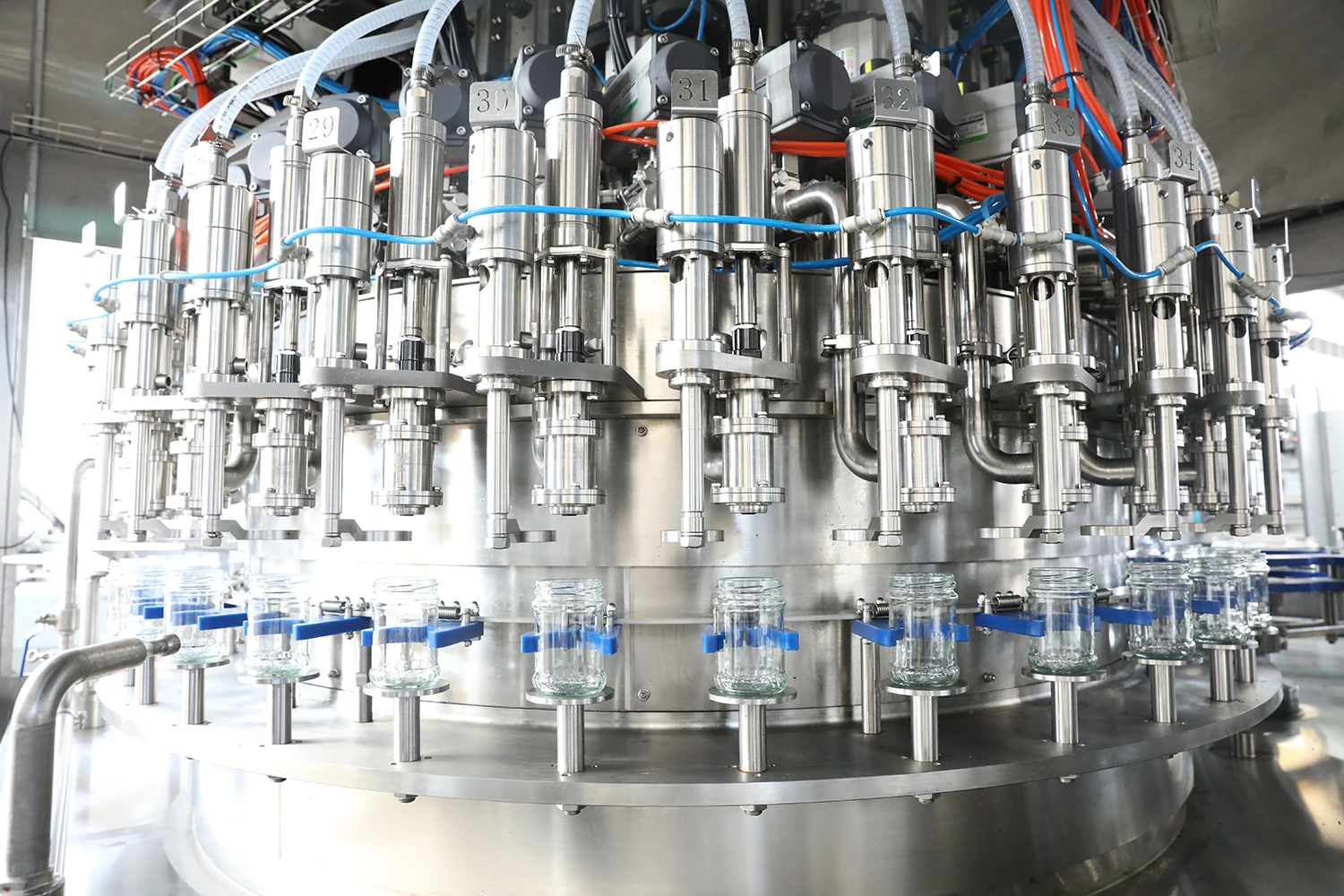

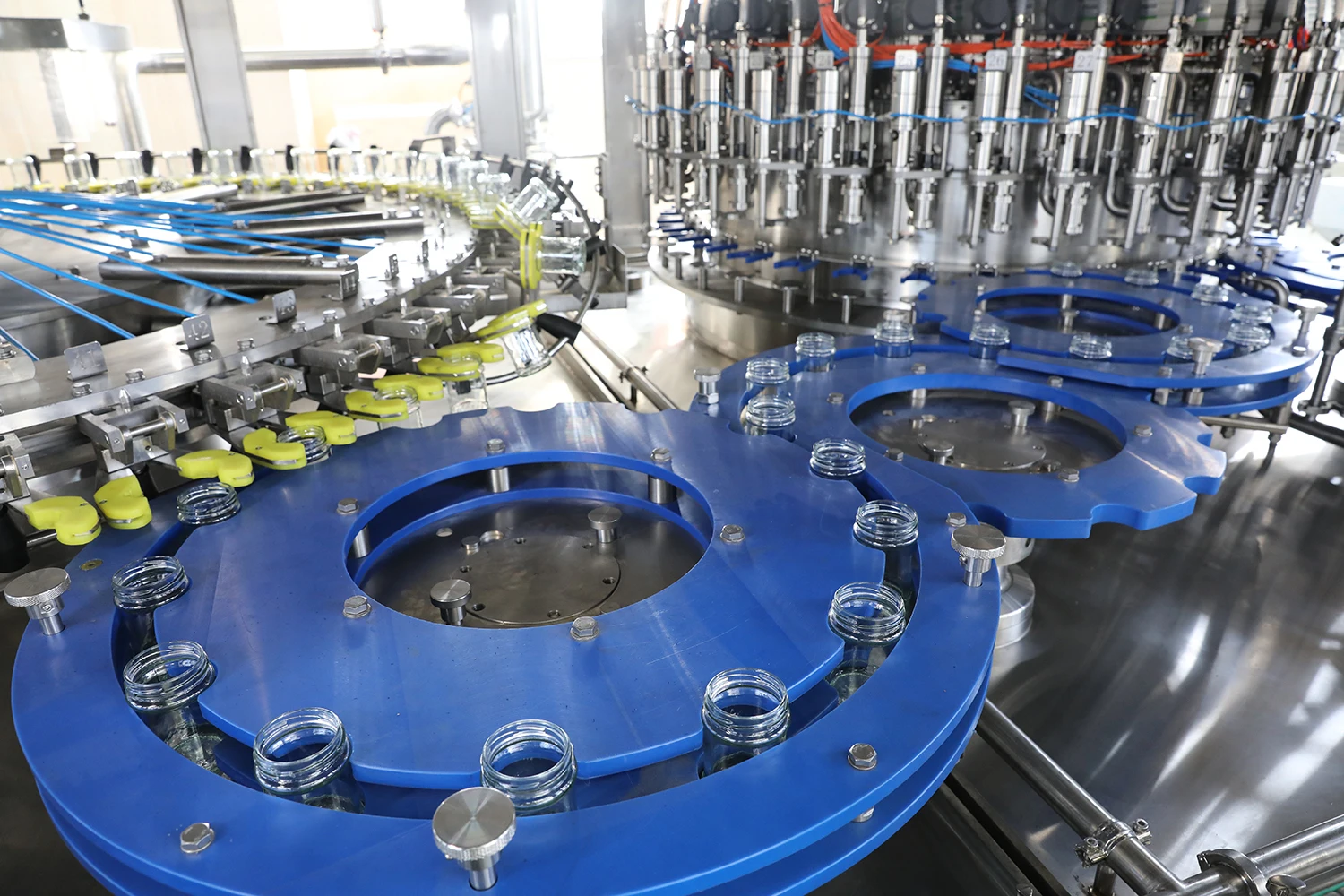

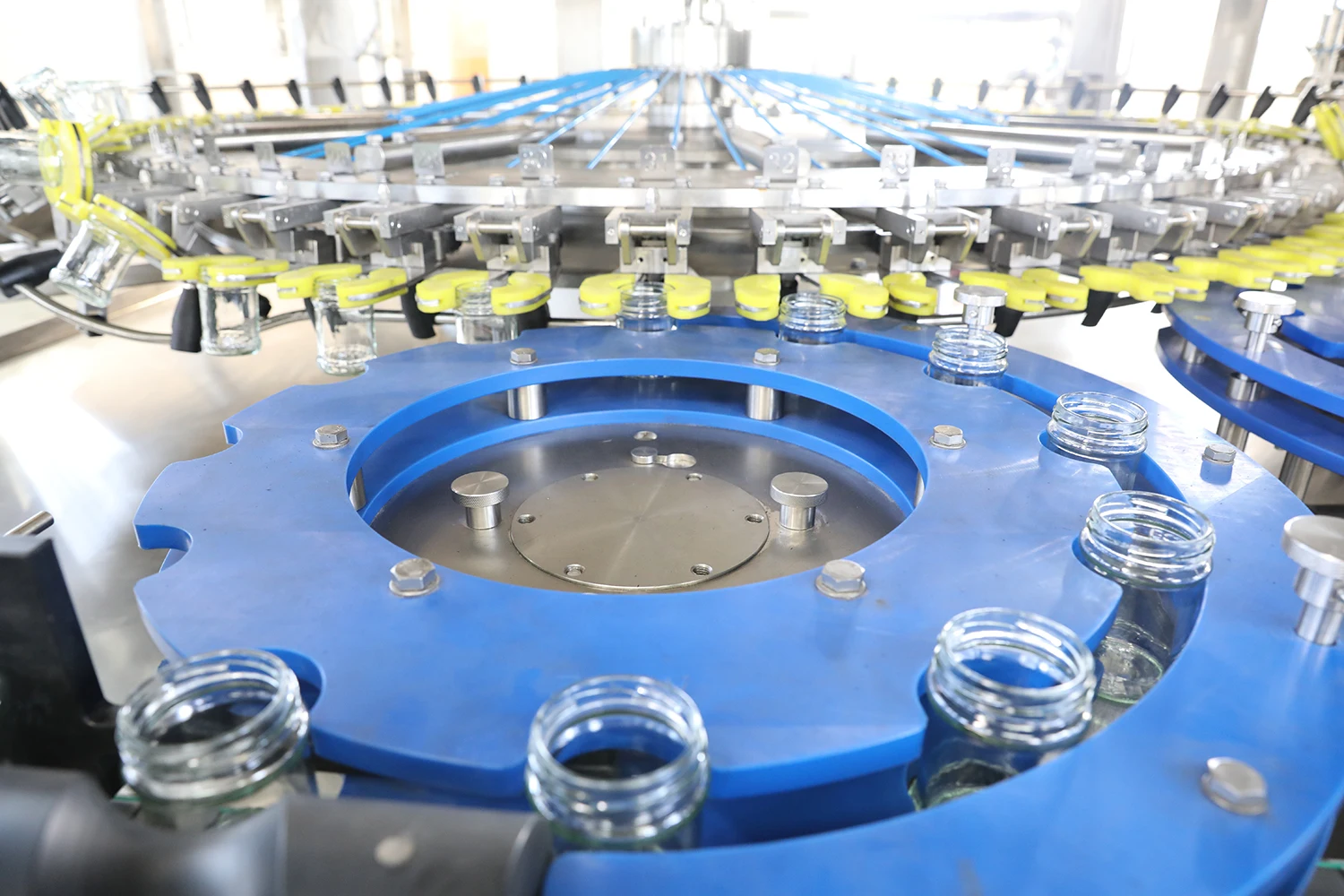

Automatic Filling system


Introduction


This machine is an automatic filling machine, suitable for quantitative filling and capping of various vegetable oils,syrups, fruit juices and chemical liquid materials.

This machine has the functions of automatic interlocking control of filling tank liquid level and feeding, air duct (or screw
chain conveying) for bottle feeding, automatic valve opening filling and cap removal for bottles, and no valve opening or cap removal if there is no bottle.

This machine has reasonable design, compact structure and convenient operation and maintenance. The main engine adopts frequency conversion speed regulation, and the operation is stable and reliable. The parts and appearance parts in contact with the materials are made of high-quality stainless steel. After replacing several parts, it can be adapted to the quantitative filling of bottles of various specifications.

Machine operation adopts advanced touch screen control, which can realize man-machine dialogue operation. The control system has functions such as production speed control, automatic shutdown of faults and output counting.









Main configurations


PLC
Siemens
frequency converter
Siemens
cable
Siemens
Touch screen
Siemens
A.C contactor
Schneider
thermorelay
Schneider
proximity switch
Omron
optoelectronic switch
Omron
solenoid valve
AirTAC



Machine details


feeding screw
Plunger
Blocked bottle shutdown


Touch screen
Centralization lubrication
Electric appliance

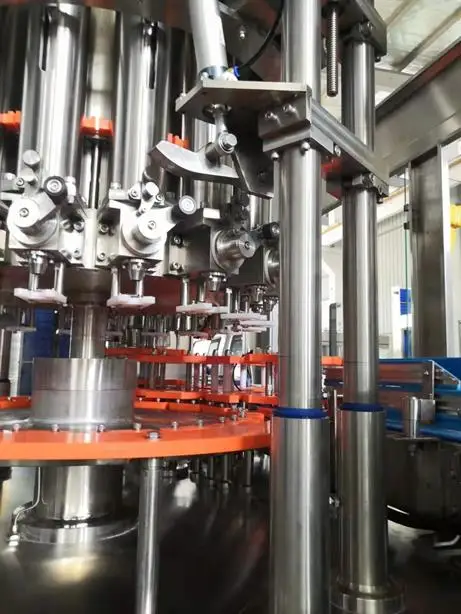

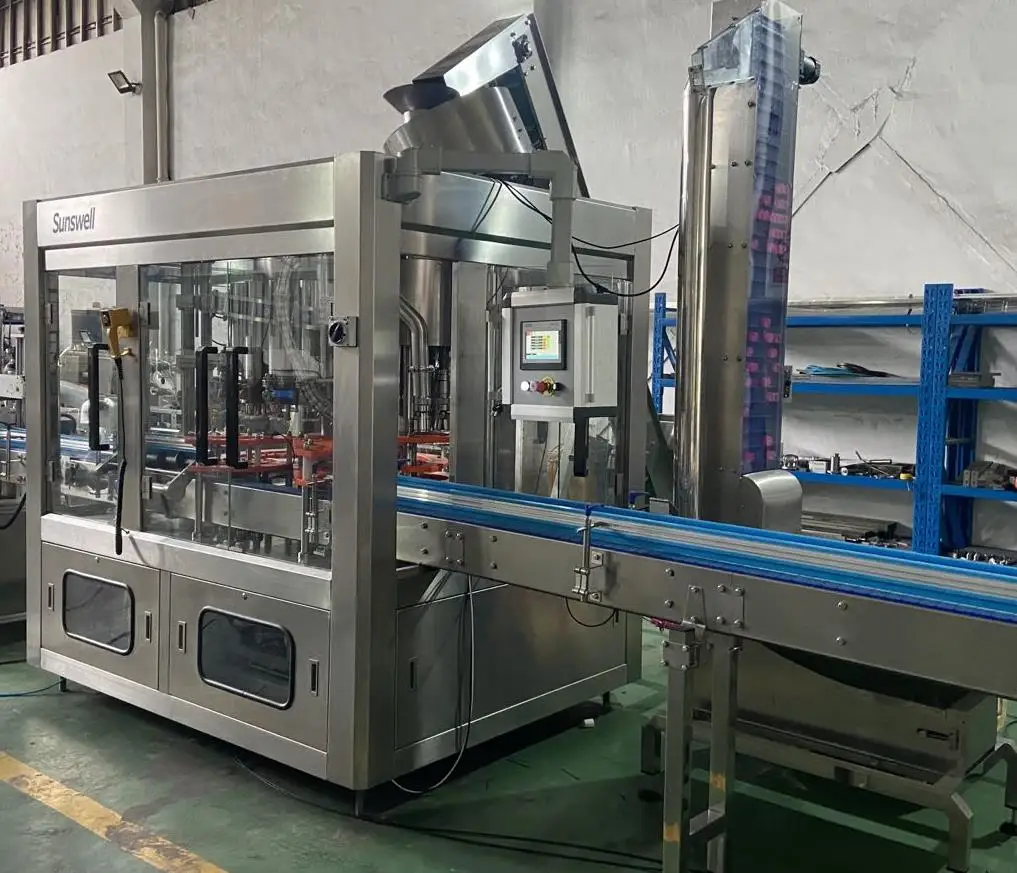

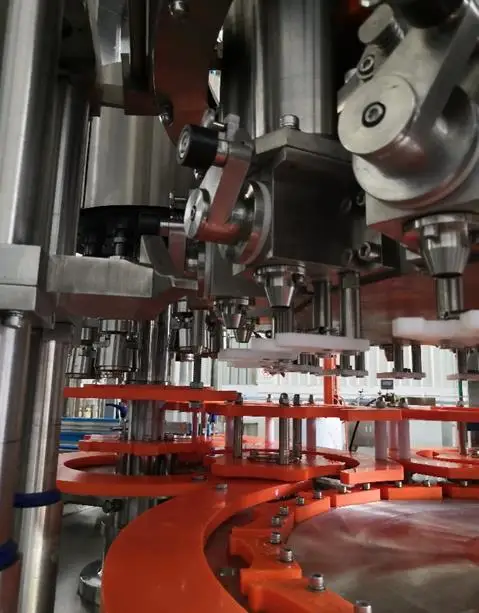

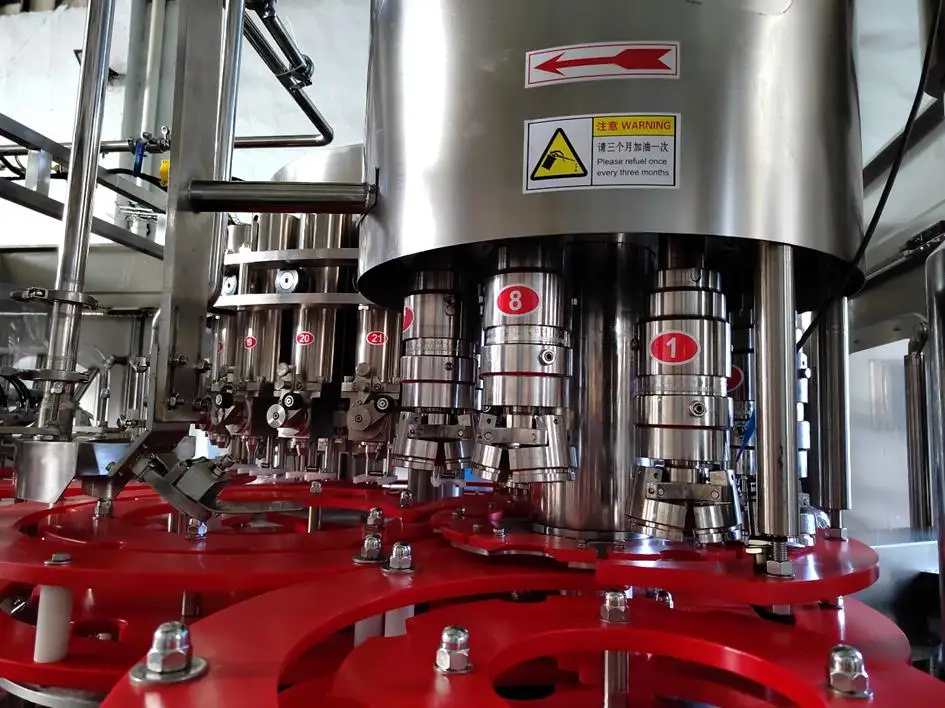

Automatic Capping system




Introduction


Automatic capping machine is suitable for plastic screw caps and screw-on sealing. It has the good sealing quality, compact structure, low noise, convenient operation and maintenance, etc.

Main structure

Transmission system: main transmission components, main shaft components, in and out bottle dial components, capping head components.
Lid feeding system: agitating lid arranging device, slide way, and cap grasping device.
Control system: manual control, frequency converter.

Working principle

After filling, the bottle is sent to the bottle feeding wheel by the conveyor belt, the caps are arranged to be consistent, and
then sent to the cap catching plate by the slide, the cap screwing head grabs the cap from the cap catching disc, and enters the bottle. The pull wheel then sends the bottle to the rotary table. The table rotates clockwise. The capping head with the bottle cap rotates and moves down. The cap is buckled on the bottle mouth and the cap is tightened until the cap screwing force exceeds The suction force between the two magnetic rings of the cap screwing head is slippery; finally, the capped bottle is sent to the bottle chain by the bottle output dial wheel for output.




About Sunswell


1.About us

Set up in 2008, Sunswell leads the market in the field of liquid bottling, blow molding, filling, labeling, packaging machinery and process technology for water, tea, juice, carbonated drinks, energy drinks, liquid, beer, edible oil, dairy and daily care products, etc.

We can customize liquid food production lines according to customers' demand. Every customer is the result of our proven experience and innovation. We continually focus on providing customers with advanced technology, engineering and facility that are designed with one motto in mind: ensure you to reach business goals with most optimized planning.


Why choose us?

(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide

(5) overseas installation team


Office & Factory & Workshop









2.Exhibitions

Sunswell,as an professional liquid filling and packing machine manufacturer,we often have chance to go out for exhibition to show our beverage filling machines and communicate processing technology with other industrial colleagues.





3.Certifications





4.Service





Spare Parts / Maintenance, Installation & Commissioning / Training

No matter whether you're a newcomer or a sectoral expert – we have the specialists who can provide the comprehensively can-do support you need for planning a new facility in terms of not only actual beverage production, but also filling, packaging, utilities and logistics. In closely responsive consultation with you, from a multiplicity of possible options, we select the technologically and commercially most effective variant, handle the design and planning work, and bring the project to a successful conclusion at your chosen location. Sunswell is not only the consultant here, but also takes responsibility for executing the entire project.



Packing & Delivery




FAQ


Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-80 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

in some country, we have local agent who are able to supply the installation and commissioning also.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
