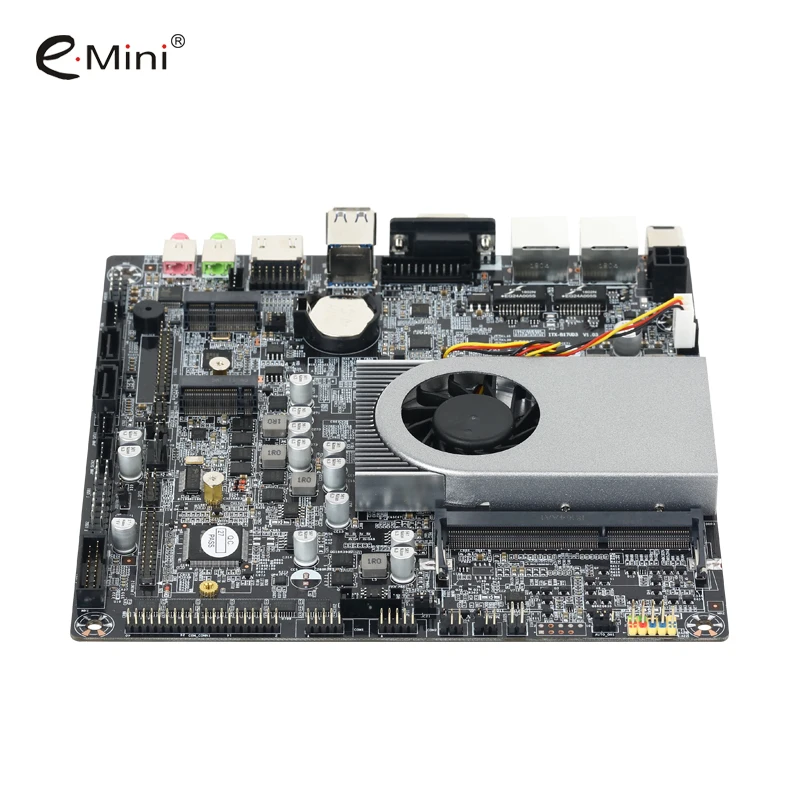

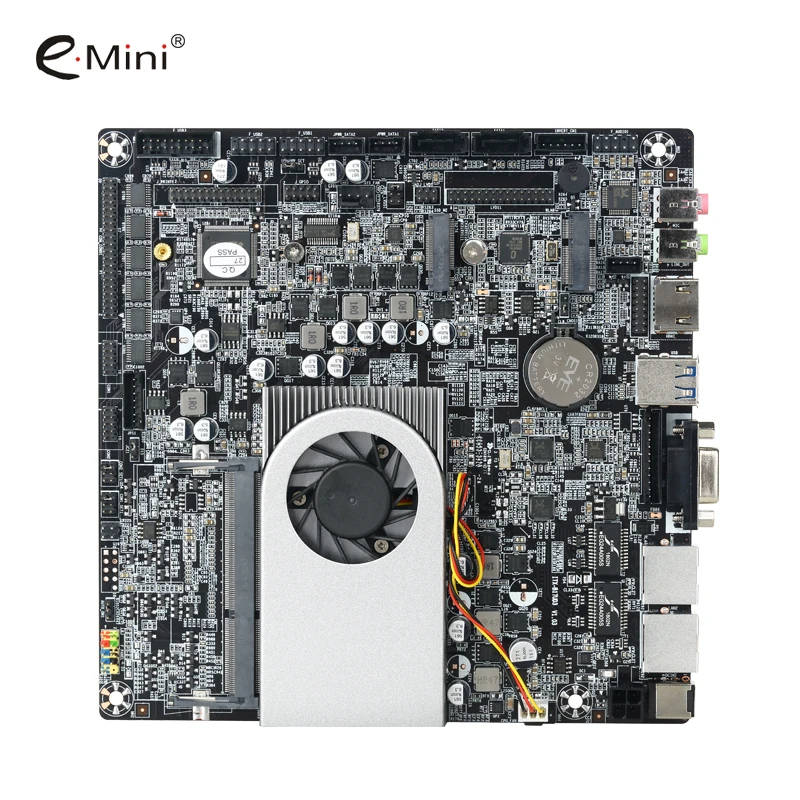

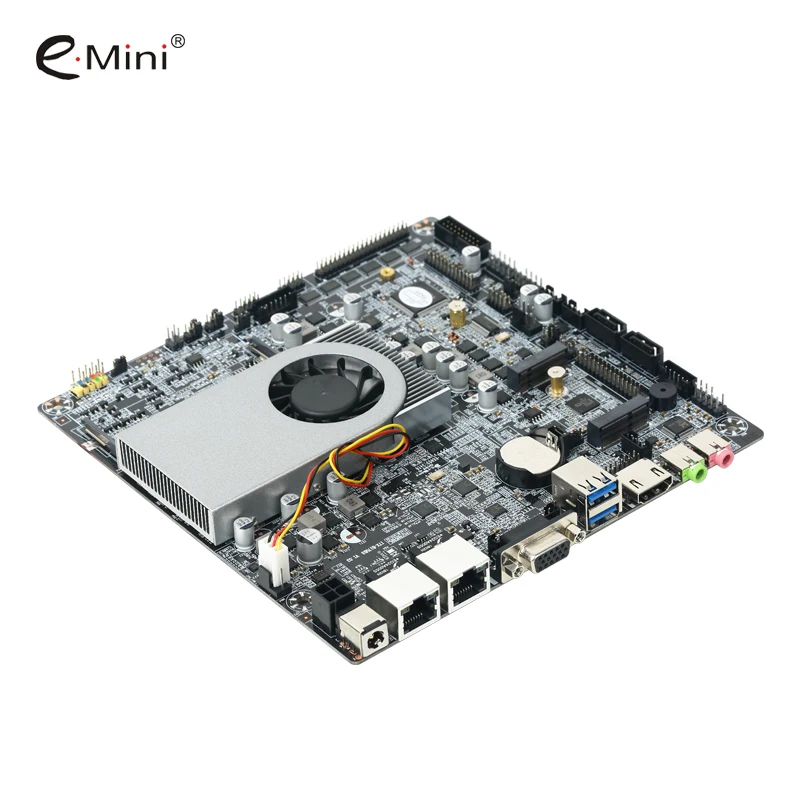

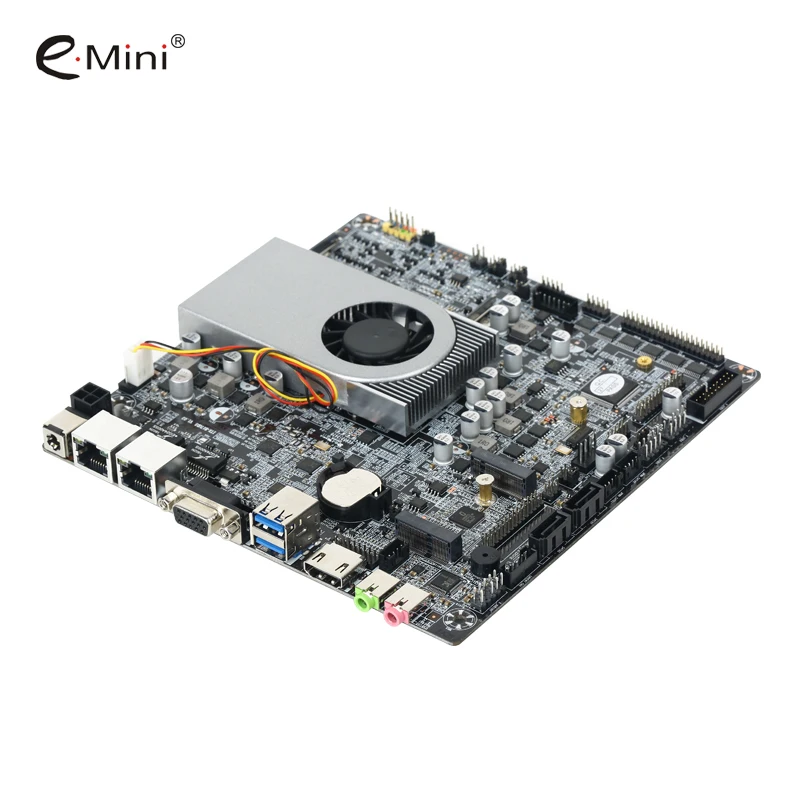

Durable Dual NIC Embedded Linux Mini PC DDR3 Compatible Motherboard

Share on (1600575987427):


Price:

Quantity:


Product Overview

Description



Product Image

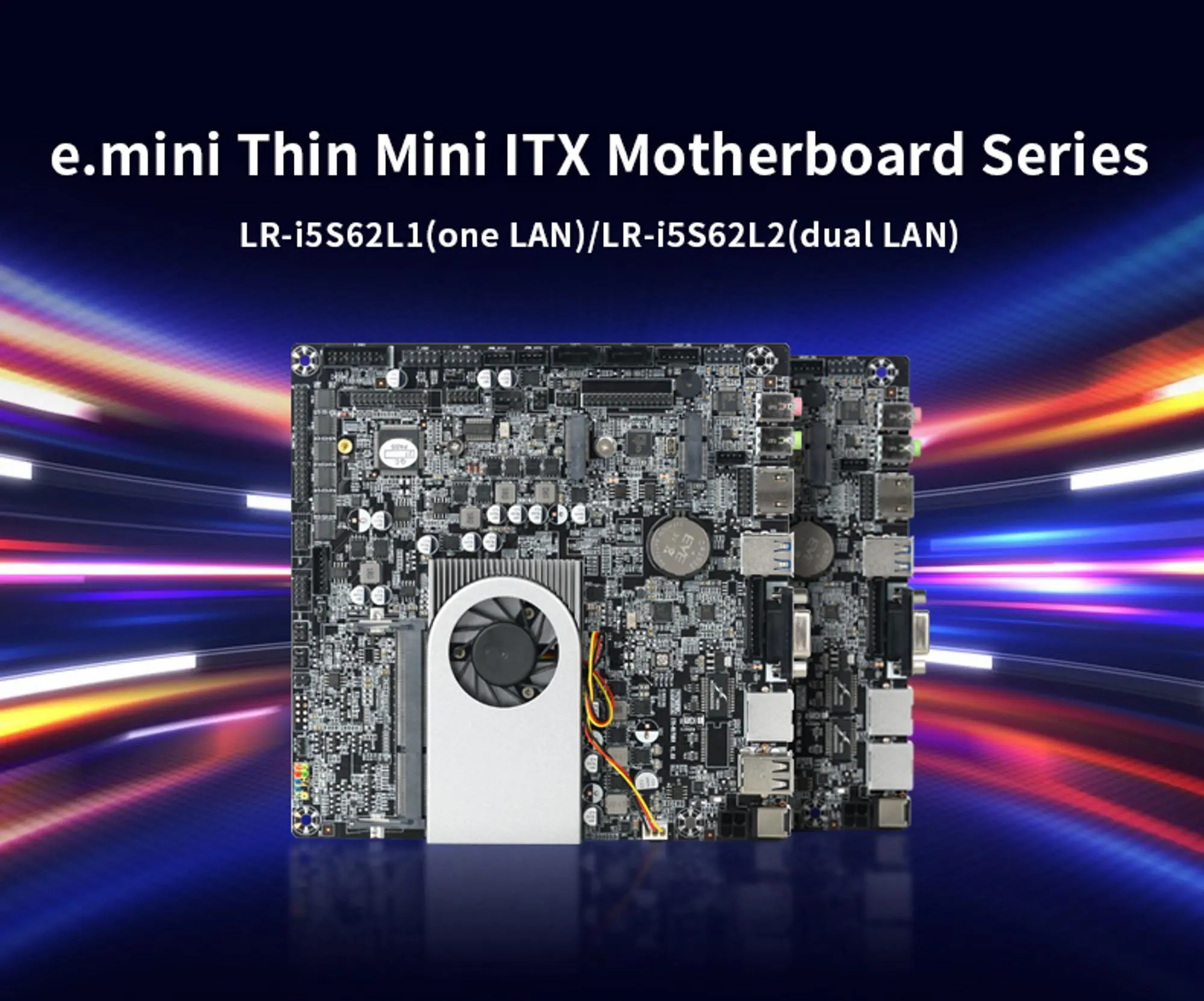

1 (1).jpg1 (2).jpg1 (3).jpg1 (4).jpg










Product Description













































































Processor




  • Intel Core i5-6200U Dual Core 2.3G Turbo Boost 2.8G

  • 3M Cache



Memory




  • 1*SO-DIMM Single Channel DDR3 Slot,Max.8 GB

  • Support 1.35V DDR3L 1600 MHz



Graphics




  • Intel HD Graphics 520

  • 1*HD_MI 1.4a,Max.Resolution 4096*2304

  • 1*VGA,Max.Resolution 1920*1200

  • 1*Dual CH 24bit LVDS,Max.Resolution 1920*1080



AUDIO




  • Realtel ALC662 HD Audio Controller

  • Supports High Definition Audio

  • Supports 2/4/5.1-CH(Via HD_MI)



LAN




  • Realtek RTL8111F

  • 10/100/1000 Base-Tx GBe Compatible



Expansion




  • 1*M.2 M Key Slot

  • 1*M.2 E Key Slot



USB







  • 4*USB 3.0 Ports(2 rear,2 via header)

  • 4*USB 2.0 Ports(via headers)

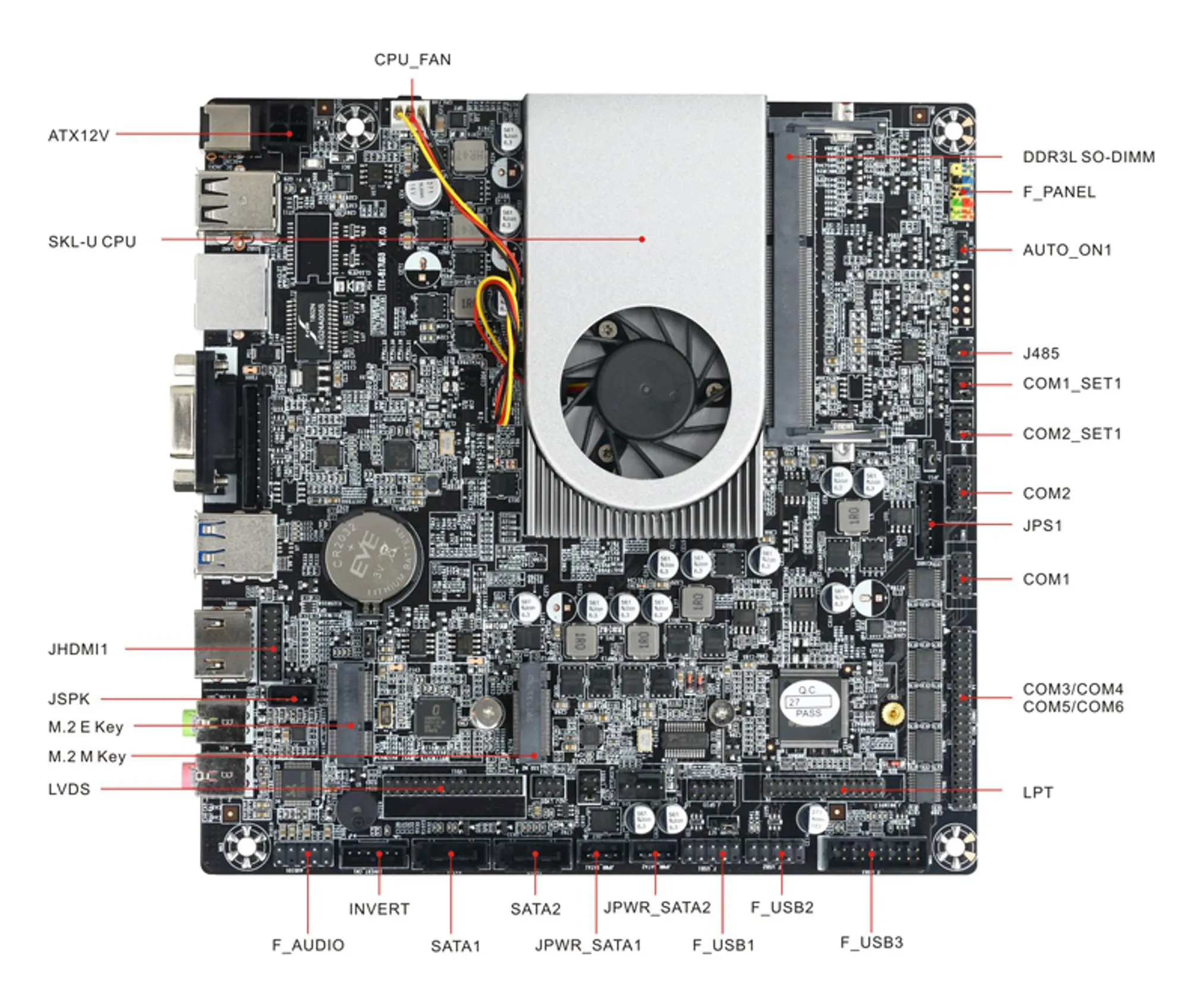

On Board I/O




  • 2*M.2 Slot

  • 1*F_Panel

  • 1*CPU_FAN

  • 1*SYS_FAN

  • 1*RTC

  • 2*SATA _PWR

  • 2*SATA

  • 1*LVDS

  • 1*LVDS_PWR

  • 1*USB3.0 Header

  • 2*USB2.0 Header

  • 1*INVERT

  • 1*BKCL

  • 6*COM

  • 1*LPT

  • 2*COM_SET



Storage




  • 2*SATA 6Gb/s,Support 2.5’ SSD/HDD

  • 1*M.2 M Key,Supports SATA 6Gb/s&PCIE X4 M.2 SSD

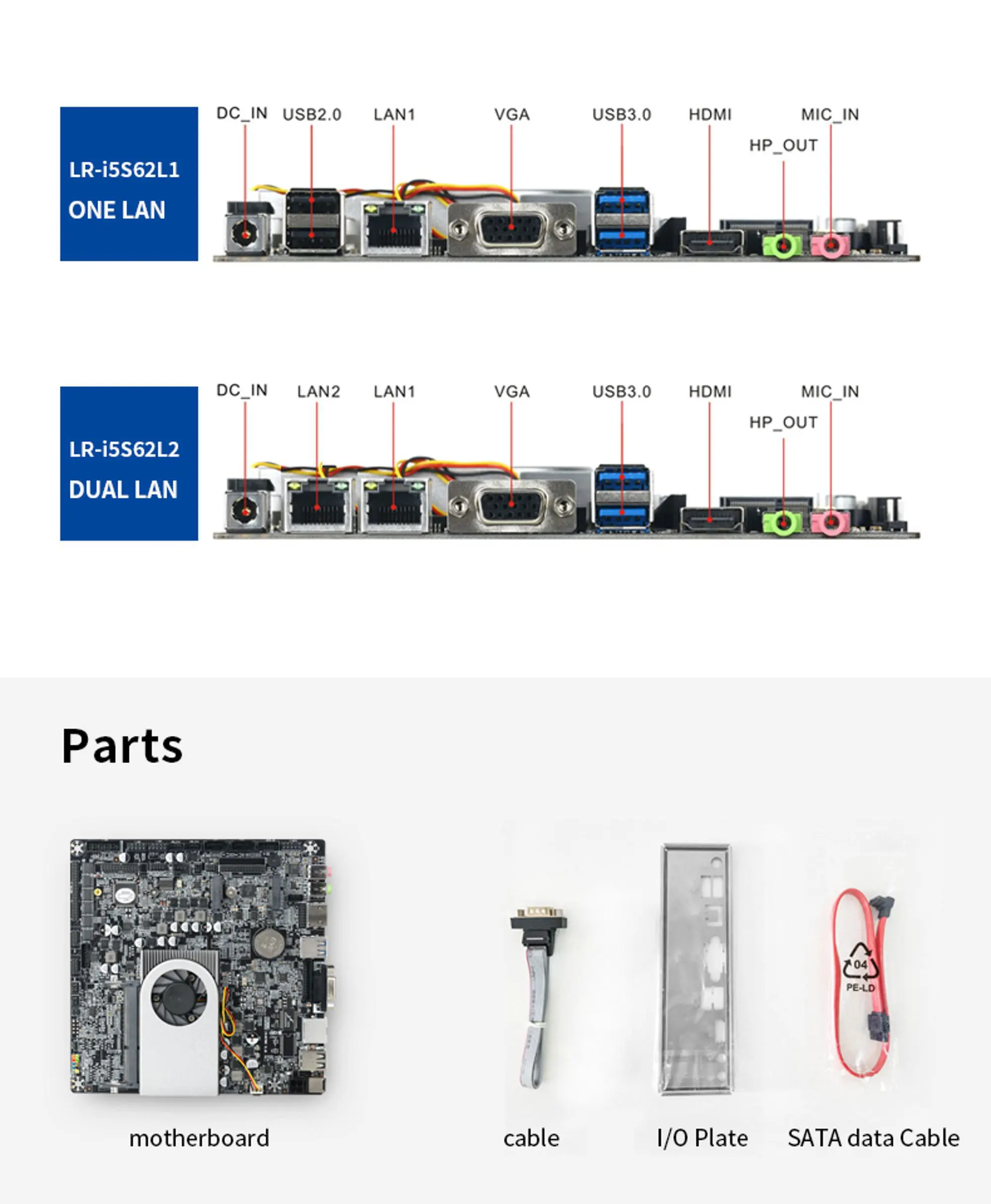

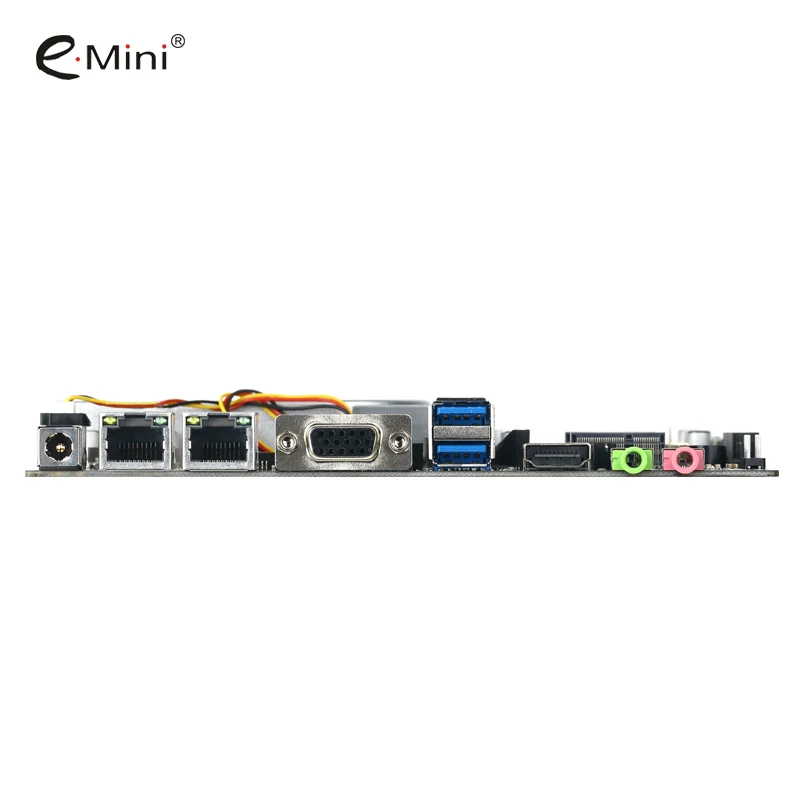

Rear I/O







  • 1*DC_IN

  • 2*LAN

  • 1*VGA

  • 2*USB3.0

  • 1*HD_MI

  • 1*HP_OUT

  • 1*MIC_IN



BIOS




  • AMl uEFI BIOS,64Mbit SPI Flash ROM



Adapter




  • 12V/5A



OS Information




  • Supports Windows 8.1/8 32-bit/64-bit

  • Supports Windows 7 32-bit/64-bit

  • Supports Windows ES 7/8

  • Supports Windows10 32bit/64bit

  • Supports Linux



Operating
Temperature




  • -15℃-60℃



Operating Humidity




  • 0%-95% Relative Humidity,Non-condensing

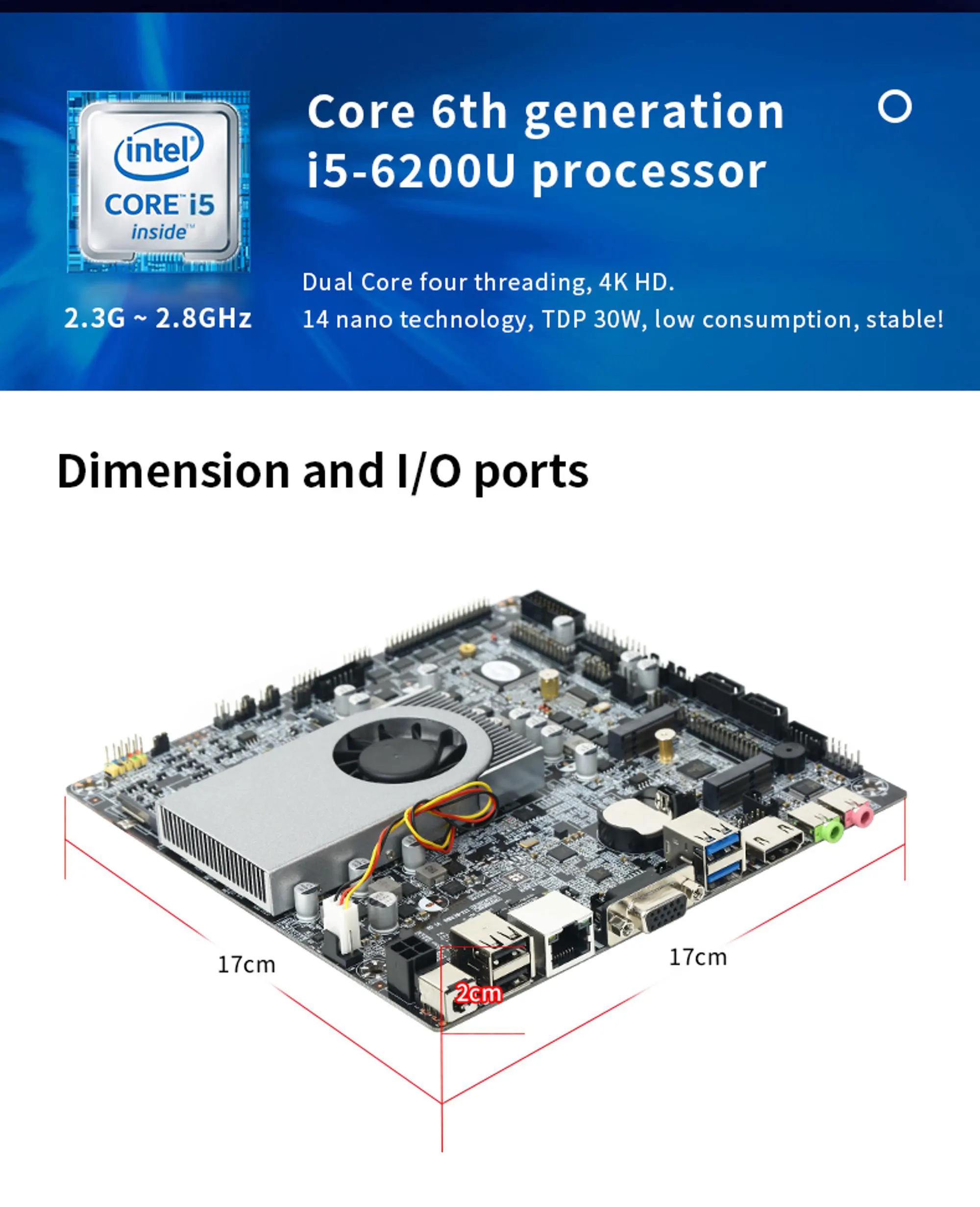

Form Factor




  • Based on Thin Mini-ITX form factor

  • 170mm*170mm
