Washing and drying insulating double glass making machine
US $2300-$5000
Efficient and low price CNC laser marking glass cutting machine automatic
- Category: Glass Processing Machinery >>>
- Supplier: Luoyang,Disai,Mechanical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product show
Product Details
Using imported cutter head, cutting effect is good.Tool head protection device.

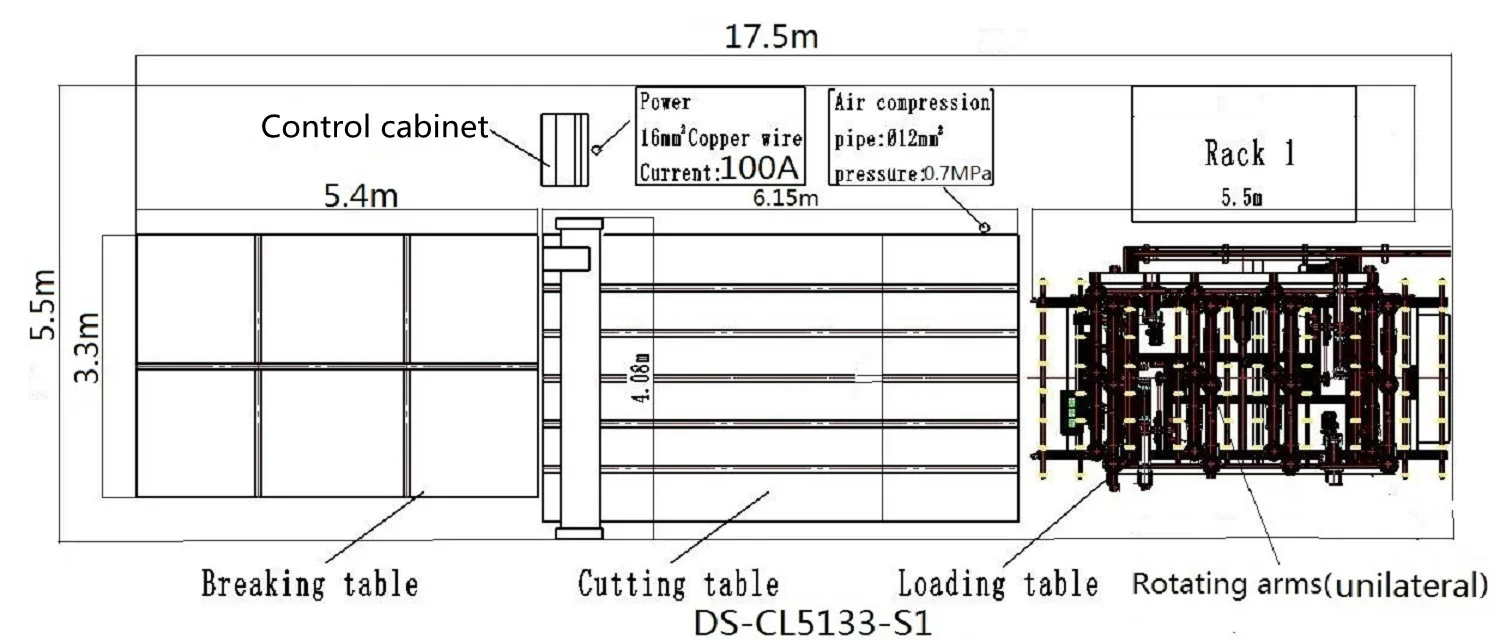

Technical Parameters | ||||||||
Loading table | Max. loading. Size | 5100mm x 3300mm | ||||||
Min. loading. size | 1300mm x 1000mm | |||||||

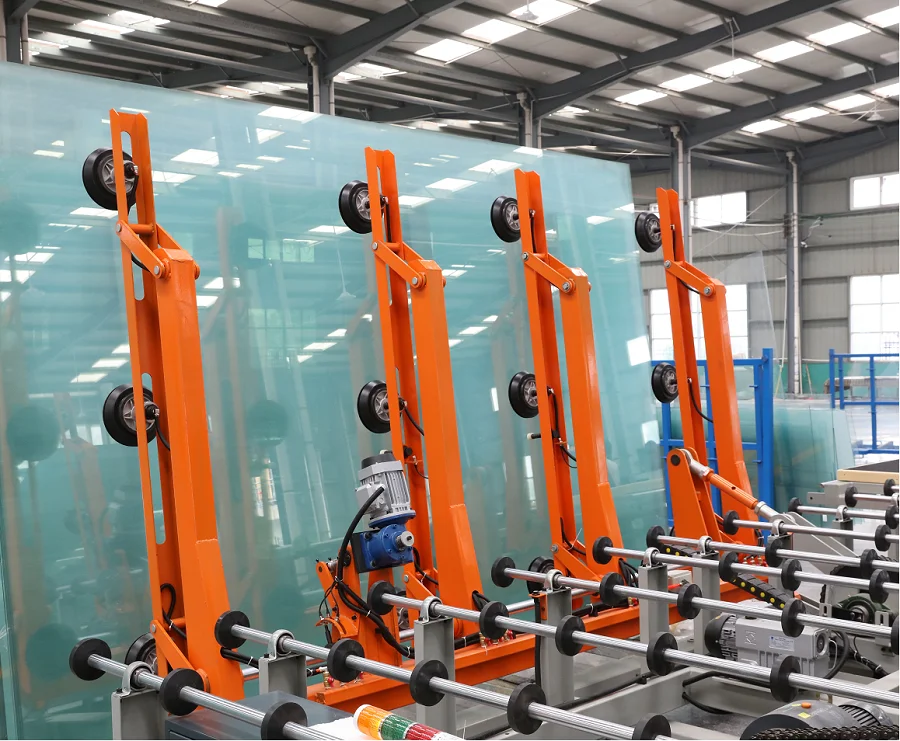

Sucker rotating arm | Double-side / Bilateral | |||||||
Glass rack | 2 | |||||||
Dimension | 5500mm x 3300mm x920mm | |||||||
Power | 11.5kw | |||||||
Cutting table | Max. cutting. Glass size | 5100mm x 3300mm | ||||||
Min. cutting | Square glass: 10mm x 10mm | |||||||
Glass size | Shaped glass: R5mm | |||||||
Cutting thickness | 3-19mm | |||||||
Cutting precision | ±0.25mm | |||||||
Max. cutting. speed | 200m/min | |||||||
Dimension | 6150mm x4150mm x920mm | |||||||
Power | 11kw | |||||||
Breaking table | Breaking bar | 3 | ||||||
Dimension | 5400mm x3500mmx920mm | |||||||
Power | 8kw | |||||||
Voltage | Customized | |||||||
Whole cutting line | Total Power( theoretical ) | 30.5kw(actual power is much lower) | ||||||
Dimension | 17300mm x 6500mm x920mm | |||||||
Our Advantages
Automatic glass cutting function

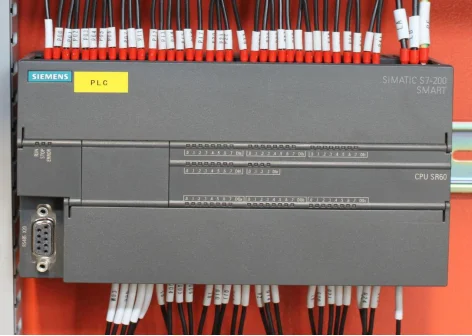

1. Adopting American Delta Tau PMAC Controller
2. Adopting German Bohle Cutter wheel, which can realize 360 degrees' free rotation----- Accurate & efficient Bi-directional glass cutting.3. Shaped glass cutting function can cut glass into all kinds of different shapes
Labelling& Printing
1. Labels→Water-proof functions
2. Labels →Adopting thermo-sensitive paper, which can print directly without printing ink.3. Labeling & Printing→Adopting automatic and intelligent module of Labeling& Printing, which is safe, efficient and precise.

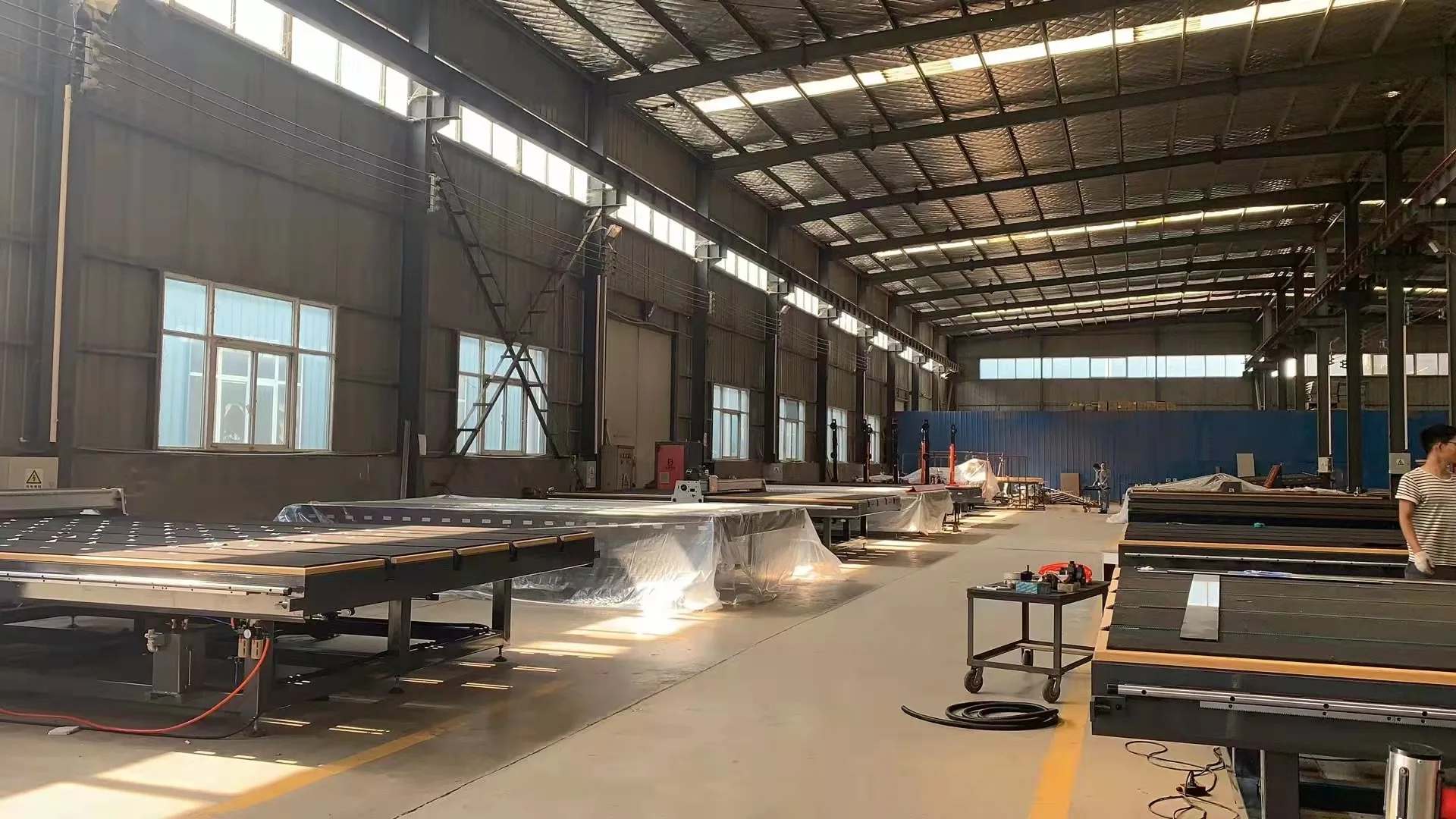

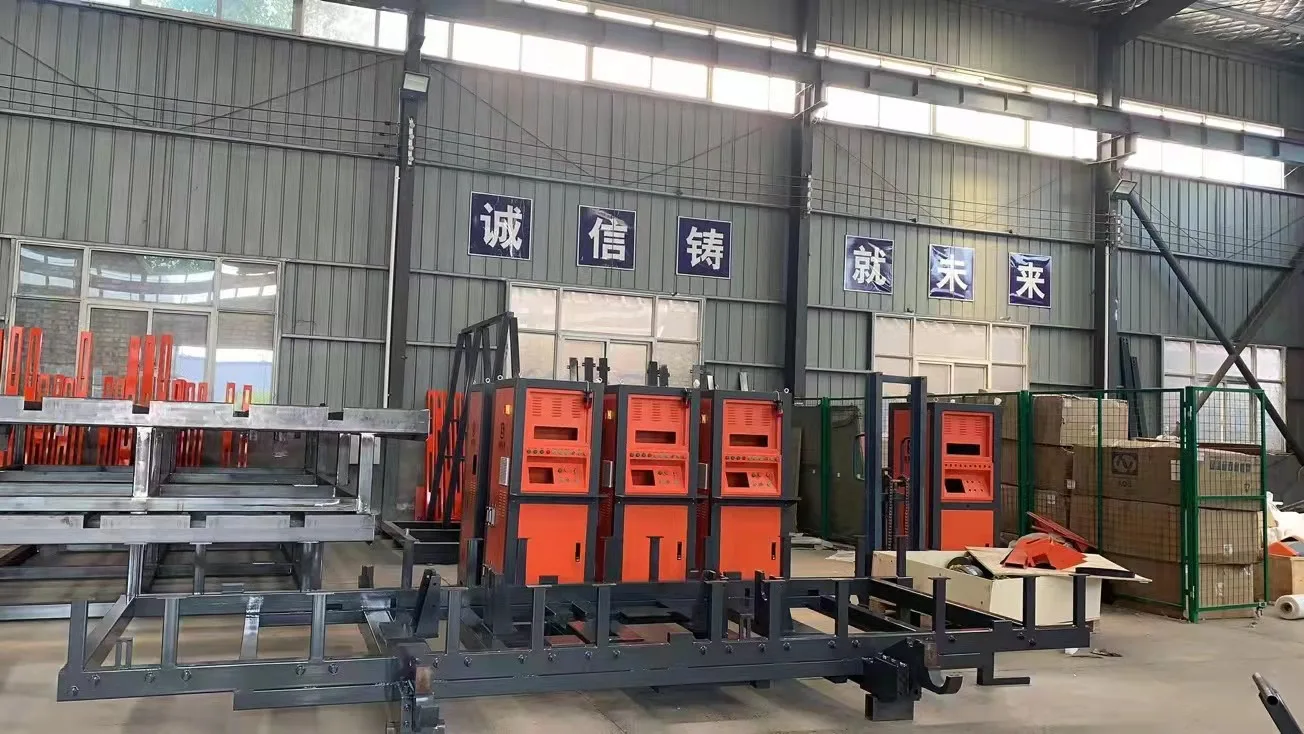

Our factory
Luoyang DISAI Mechanical Equipment Co., Ltd is a professional high-tech enterprise which is engaged in glass deep-processing equipment design, R&D, manufacturing, market & sales and after-sales service.
With the close-knit team, cutting-edge technology of R&D and state-of-the-art manufacturing process in the field of automatic glass deep-processing equipment, DISAI has been booming rapidly in the glass deep-processing equipment industry worldwide.
With the close-knit team, cutting-edge technology of R&D and state-of-the-art manufacturing process in the field of automatic glass deep-processing equipment, DISAI has been booming rapidly in the glass deep-processing equipment industry worldwide.
Our value
We keep integrity and compliance both inside and outside;
We are open and honest doing business with our partners and customers;
We are devoting ourselves to provide the superior quality products and service with passions;
We highlight innovation of R&D to keep in leading pioneer position in glass processing industry;
We ensure sustainable processes with a comprehensive quality strategy and our environmental management policy that all structures and processes in our company are continuously monitored and optimized;
We are open and honest doing business with our partners and customers;
We are devoting ourselves to provide the superior quality products and service with passions;
We highlight innovation of R&D to keep in leading pioneer position in glass processing industry;
We ensure sustainable processes with a comprehensive quality strategy and our environmental management policy that all structures and processes in our company are continuously monitored and optimized;
Product packaging
DISAI Packaging: In containers, to be packed with standard packing-materials which is suitable for long-distance ocean shipping.
FAQ
Your concerns
Q: Are you a manufacturer?
A: Yes, DISAI is a professional glass processing machinery manufacturer, committed to the glass processing machinery industry for 15years.
Q:What about the packing of the machine?
A:The machine is wrapped in film to protect it from moisture and has wooden pallets at the bottom for easy lifting.
Q:What voltage can the machine use?
A: The standard voltage used by our machine is 380V,50HZ,3 phase. And according to your requirements to provide different voltage,such as 220V, 60HZ;220 v, 50 hz;415V, 50HZ, etc. Please feel free to contact us for further information.
Q:How long will the delivery time be?
A: We usually arrange shipment within 90 days after receiving the deposit.
Q:What certificates do you have?
Q:What about the packing of the machine?
A:The machine is wrapped in film to protect it from moisture and has wooden pallets at the bottom for easy lifting.
Q:What voltage can the machine use?
A: The standard voltage used by our machine is 380V,50HZ,3 phase. And according to your requirements to provide different voltage,such as 220V, 60HZ;220 v, 50 hz;415V, 50HZ, etc. Please feel free to contact us for further information.
Q:How long will the delivery time be?
A: We usually arrange shipment within 90 days after receiving the deposit.
Q:What certificates do you have?
A: CE certificate can be provided in accordance with European standards, or other certificates can be provided according to customer needs. DISAI mainly develops and manufactures high quality glass processing equipment and has developed a number of patented products. It is a benchmark enterprise in glass processing equipment industry.
Q: Why is your price not the lowest offered by other companies or factories?
A:1) We are an innovative company, not just a product factory. We have a professional and experienced technical elite team.
2) We have the same features and components as brands in the same level, but our prices are the most competitive. At the same time, our after-sale service is also satisfactory. We enjoy a good reputation among our customers.
Q: Why is your price not the lowest offered by other companies or factories?
A:1) We are an innovative company, not just a product factory. We have a professional and experienced technical elite team.
2) We have the same features and components as brands in the same level, but our prices are the most competitive. At the same time, our after-sale service is also satisfactory. We enjoy a good reputation among our customers.

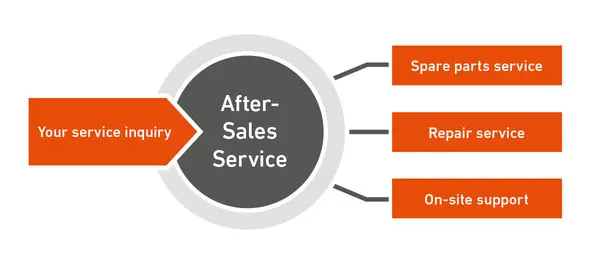

Our sevices
Postsale service
1 Equipment installation and commissioning acceptance service
Provide users with a series of work such as equipment installation, debugging, trial production, operation training, theoretical knowledge training, and common troubleshooting training guidance. When the equipment arrives at the manufacturer, one-time door-to-door installation, commissioning and basic operation training of no less than 24 hours, acceptance of the equipment and guarantee of the normal use of the equipment. If no installation and commissioning is required within three months, it will be regarded as customer acceptance. Note: Meals and accommodation for technicians or engineers during equipment installation an commissioning work at the user's premises shall be provided by the user free of charge.
2 Equipment maintenance service
The whole-process service of overhaul, maintenance and replacement of parts for the failure of the equipment is divided into: maintenance service within the warranty period (free maintenance and replacement of accessories), maintenance service outside the warranty period (charged for labor service fees, corresponding road fees and accessories fees) .
3 Equipment technical scheme design and consulting services
According to the different needs of customers, we can provide customers with personalized product packaging design services.
Provide users with a series of work such as equipment installation, debugging, trial production, operation training, theoretical knowledge training, and common troubleshooting training guidance. When the equipment arrives at the manufacturer, one-time door-to-door installation, commissioning and basic operation training of no less than 24 hours, acceptance of the equipment and guarantee of the normal use of the equipment. If no installation and commissioning is required within three months, it will be regarded as customer acceptance. Note: Meals and accommodation for technicians or engineers during equipment installation an commissioning work at the user's premises shall be provided by the user free of charge.
2 Equipment maintenance service
The whole-process service of overhaul, maintenance and replacement of parts for the failure of the equipment is divided into: maintenance service within the warranty period (free maintenance and replacement of accessories), maintenance service outside the warranty period (charged for labor service fees, corresponding road fees and accessories fees) .
3 Equipment technical scheme design and consulting services
According to the different needs of customers, we can provide customers with personalized product packaging design services.
