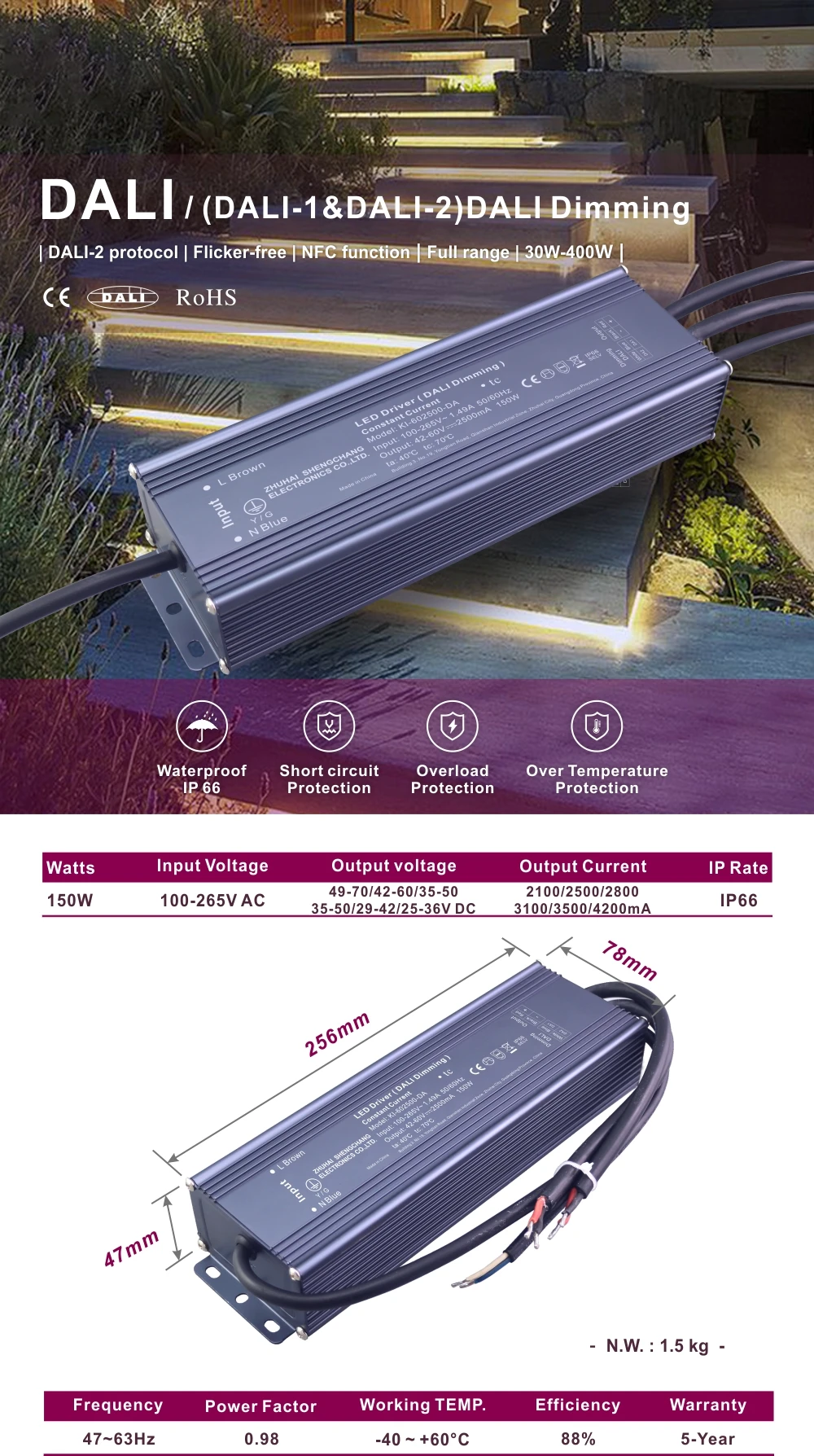

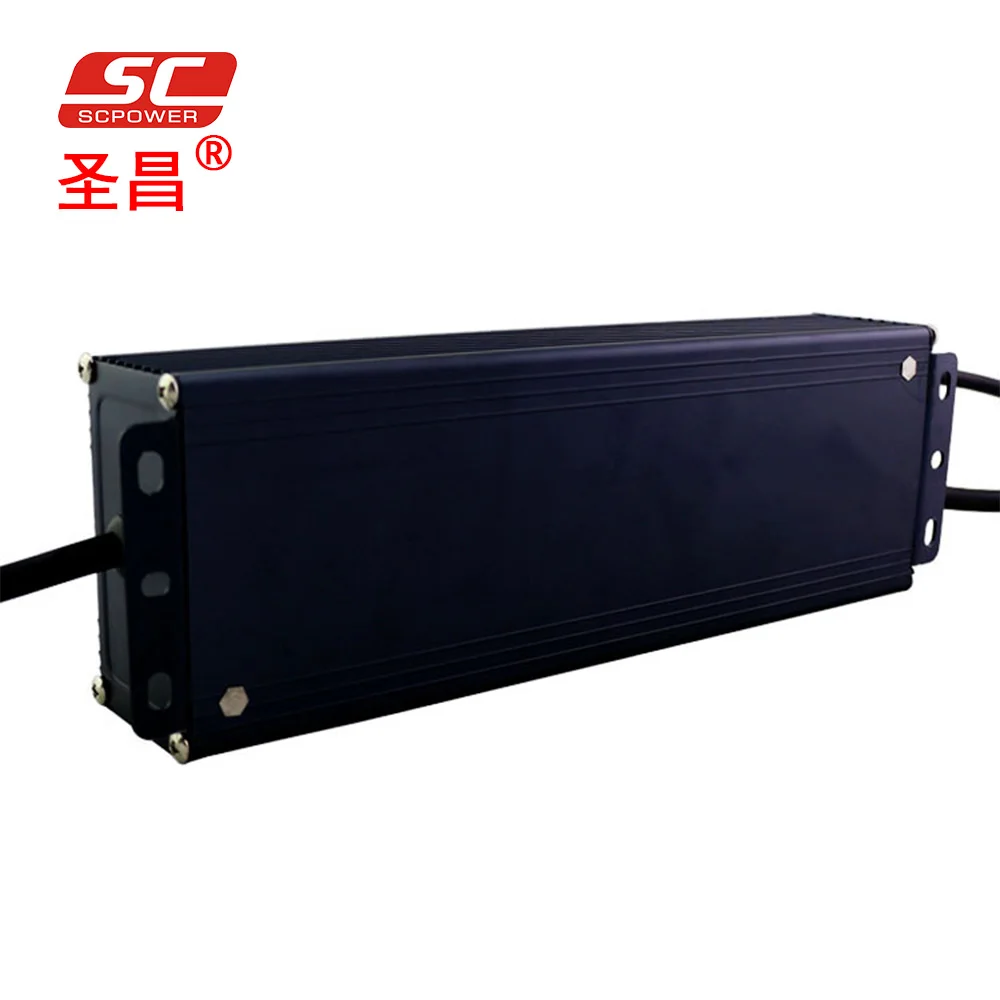

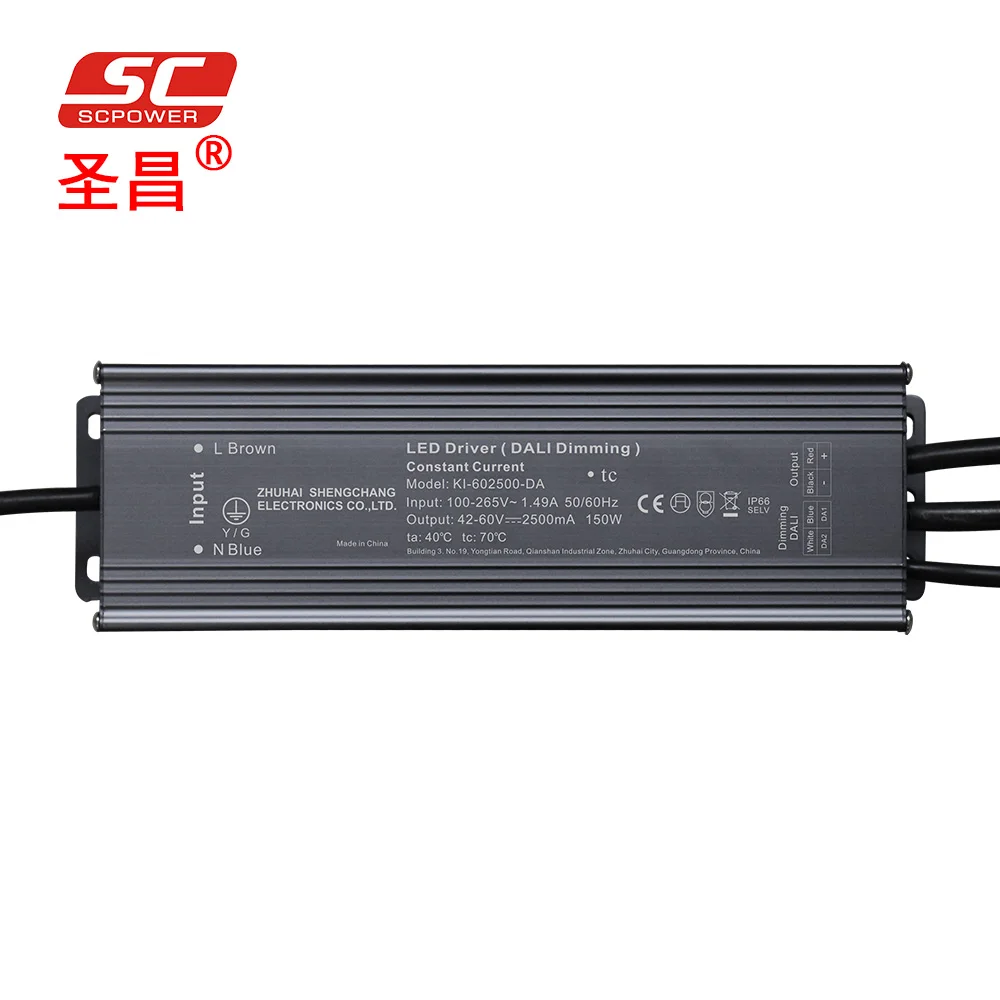

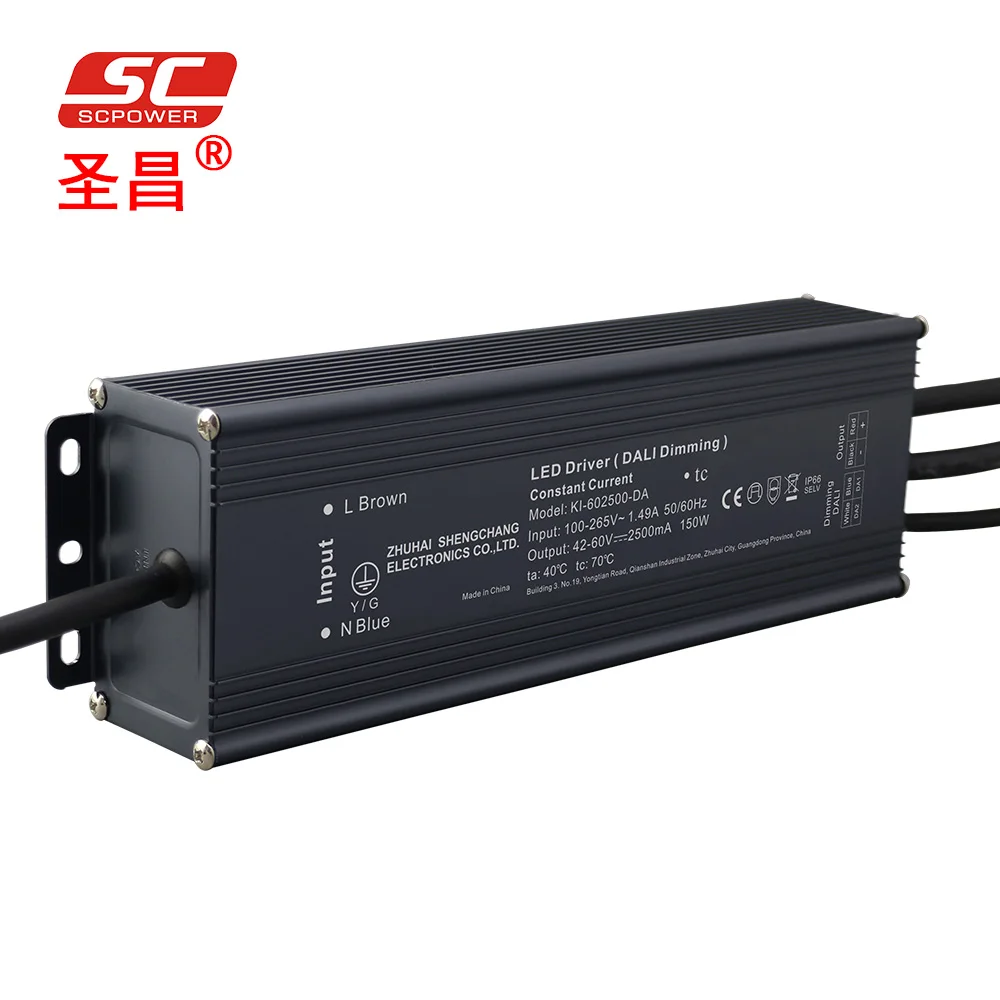

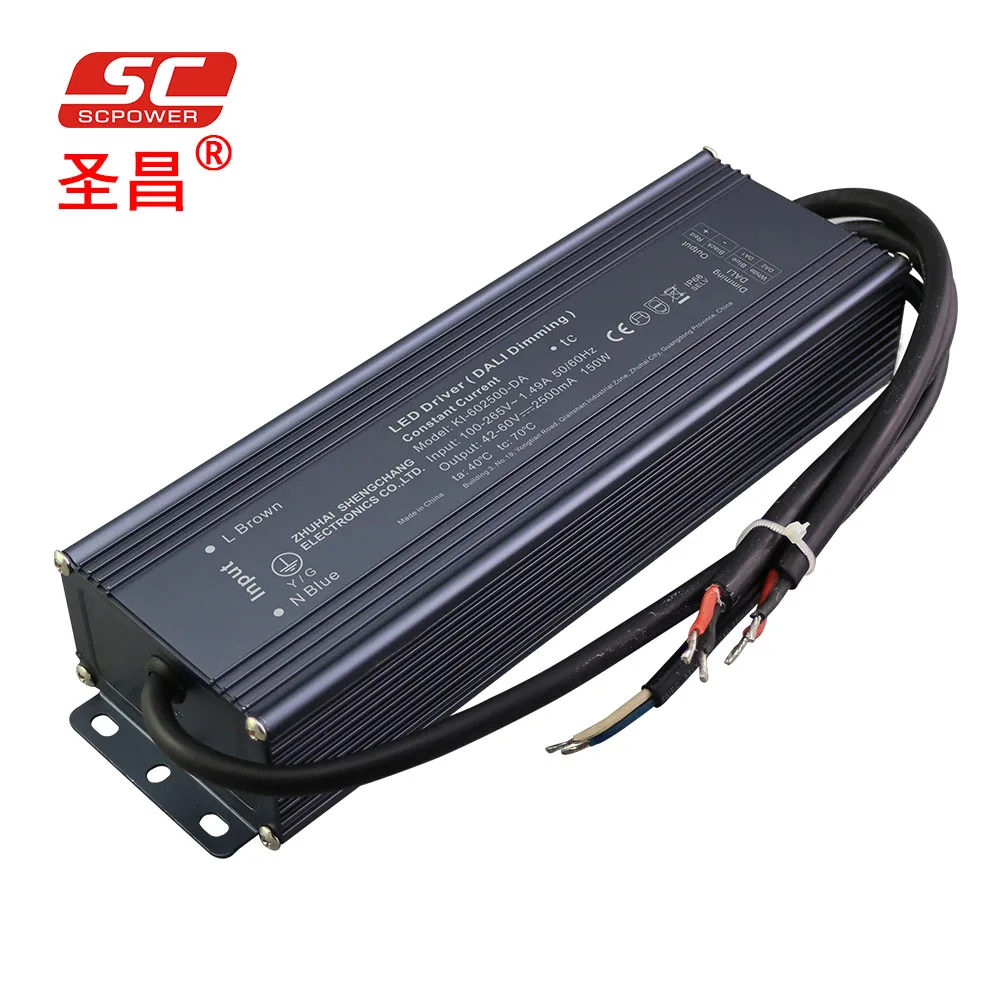

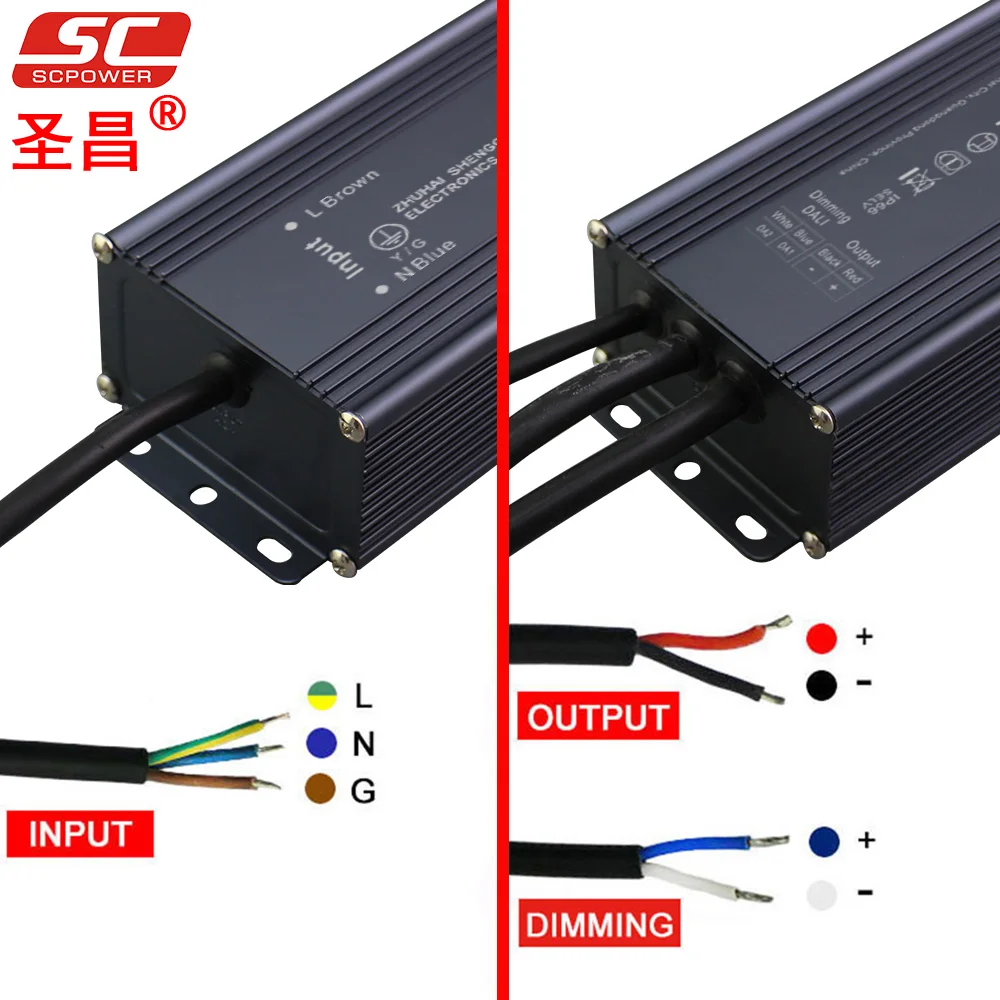

100 277VAC 49 70V DC 2100ma 150W DALI powersupply waterproof housing Dimmable LED Light DRIVER

Product Overview

Description



















Features

·Output constant Current

·Range 100-265VAC

·Built-in active PFC function

·Efficiency up to 88%

·Protections:short circuit/over load/over temperature

·Cooling by free air convection

·IP66 design for indoor and outdoor installation.

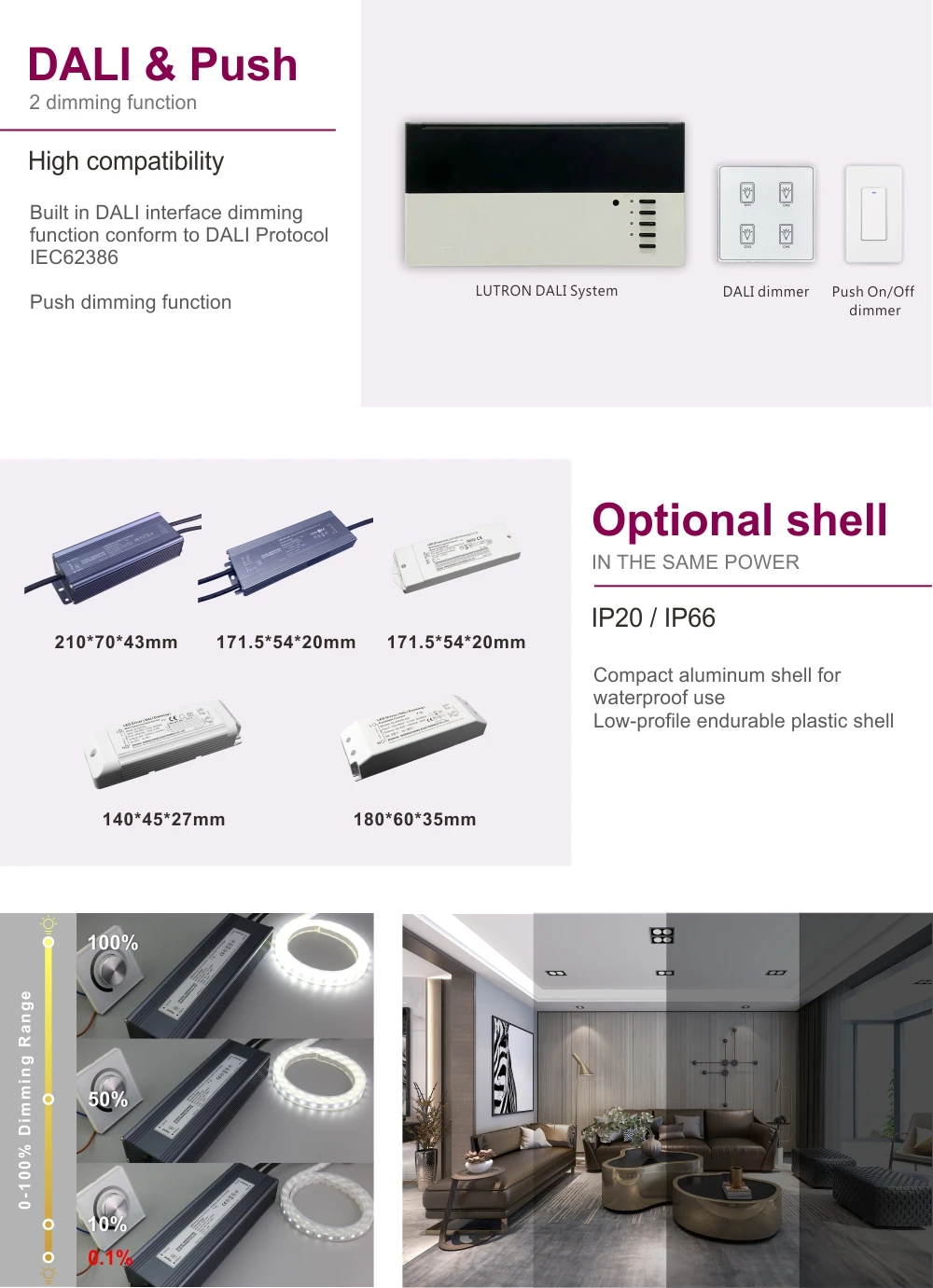

·Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386

·Dimming range from 1% to 100%

·Suitable for intelligent LED lighting

·Compliance to worldwide safety regulations for lighting

·Suitable for dry and wet locations



Specification

Output	Rated Current	2100mA	2500mA	2800mA	3100mA	3500mA	4200mA
	Current Tolerance	±5%
	DC Voltage	49-70V	42-60V	35-50V	35-50V	29-42V	25-36V
	Open Circuit Voltage (Max.)	75V	65V	55V	55V	48V	40V
	Rated Power	147W	150W	140W	155W	147W	151.2W

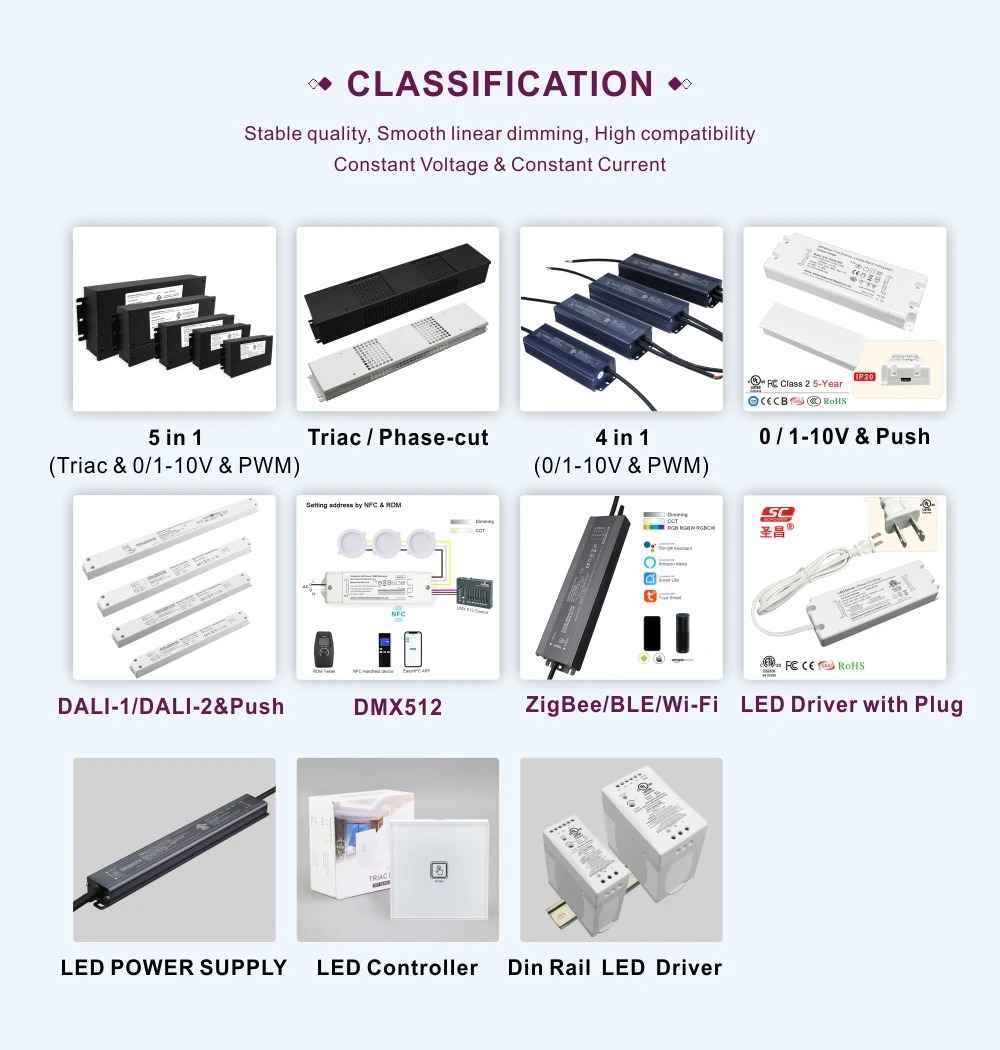

LED Drivers

Constant Voltage	Constant Current	Certification
Triac / Phase-cut ELV MLV Dimmable	Triac / Phase-cut Dimming	ISO9001:2015 UL,cUL,ETL,cETL,FCC, ENEC,TUV,CB,CE, SAA,RoSH,CCC, DALI-1,DALI-2 certificated
Triac & 0-10V 1-10V Dimmable	Triac & 0-10V 1-10V Dimming
0-10V 1-10V Dimmable	0-10V 1-10V Dimming
DALI 1 Push Dimmable	DALI 1 Push Dimming
DALI 2 Push Dimmable	DALI 2 Push Dimming
DMX512 Dimmable	DMX512 Dimming
BLE Wireless Dimmable	BLE WirelessDimming
ZigBee Wireless Dimmable	ZigBee Wireless Dimming
WiFi Wireless Dimmable	WiFi Wireless Dimming
Non Dimmable	Non Dimming



We are 13 years experience manufacturer in dimmable LED Power Supply since 2009!



Our main products including with Triac phase ELV MLV dimmable ,0/1-10V dimmable ,DALI&PUSH-DIM 2 in 1 dimmable ,DMX dimmable ,and wireless BLE ,zigbee wifi dimmable driver

Dimming ,CCT (TW) ,RGB ,RGBW ,RGBCW



from 5W to 600W C.V. 12VDC 24VDC 36VDC 48VDC ;3W to 200W C.C.

5 years warranty

Dimming range 0-100%

No noise , Flicker free

High frequency exemption level, High PF (PF>0.95)

Aluminum shell & plastic shell for output and indoor use (IP66 Waterproof ,IP20)

Slim ,linear led driver
All-round protection-Short circuit,over load, over-temperature



Sample Available,

Spot goods (warehouse area of 2,800 square meters total)
