Balkonkraftwerk Solar Energy Panels Mounting System 600w 800w Balcony On Grid Solar Generator Power Plant Photovoltaic System
- Category: >>>
- Supplier: Ningbo,Dcloud,Information,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Solar Panel | ||||||||||
Rated Power in Watts-Pmax(Wp) | 410 | 415 | Maximum Power-Pmax(Wp) | 310.7 | 314.5 | |||||
Open Circuit Voltage-Voc(V) | 41.9 | 42.2 | Open Circuit Voltage-Voc(V) | 38.97 | 39.25 | |||||
Short Circuit Current-lsc(A) | 12.47 | 12.53 | Short Circuit Current-lsc(A) | 10.22 | 10.27 | |||||
Maximum Power Voltage-Vmpp(V) | 34.89 | 35.14 | Maximum Power Voltage-Vmpp(V) | 32.38 | 32.61 | |||||
Maximum Power Current-lmpp(A) | 11.76 | 11.82 | Maximum Power Current-lmpp(A) | 9.6 | 9.65 | |||||
Module Efficiency(%) | 21.3 | 21.6 | ||||||||
Cell configuration | 120 cells(5*12+5*12) | Nominal Module Operating Temperature (NMOT) | 44°C+2°C | |||||||
Dimensions | 1754*1096*30mm | Temperature Coefficient of Voc | -0.25%/℃ | |||||||
Cables | 4.0mm2(12AWG),Positive(+)350mm, Negative(-)230mm (Connector Included) | Temperature Coefficient of Isc | 0.04%/°C | |||||||
Superstrate | • High Transmission, Low Iron, Tempered ARC Glass | Temperature Coefficient of Pmax | -0.34%/°C | |||||||
Substrate | • White Back-sheet | Operational Temperature | -40°C~+85°C | |||||||
Connector | Twinsel PV-SY02, IP68 | Maximum System Voltage | 1500VDC | |||||||
J-Box | •Potted, IP68, 1500VDC, 3 Schottky bypass diodes | Maximum System Voltage | 20A | |||||||
Weight | 22kg | Limiting Reverse Current | 20A | |||||||
Frame | High strength alloy steel | |||||||||
Micro Inverter | ||||||
Input | DC | Output | AC | |||||
Power | 800W | Peak Output Power /VA | 800 | |||
MPPT Voltage Range /V | 22-55 | Max. Continous Output Power /VA | 750 | |||
Startup Voltage /V | 24 | Rated Output Voltage /V | 230 | |||
Max. Input Voltage /V | 60 | Nominal Output Voltage Range /V | Confifigurable | |||
Max. Input Current /A | 17 x 2 | Max. Continous Output Current /A | 3.26 | |||
Overvoltage Protection Category | II | Nominal Frequency / Range /Hz | 50 / Confifigurable | |||
Power Factor (Nominal/Adjustable Range) | 1.0/0.8 leading…0.8 lagging | |||||
Effiffifficiency | AC Short Circuit Fault Current Over 3 cycles /Arms | 8.2 | ||||
Peak Effiffifficiency | 97.3% | [email protected] Power | <3% | |||
MPPT Effiffifficiency | 21kgs | Max. Units per 20A Branch | 5 | |||
Night Power Consumption /mW | 110 | Overvoltage Protection Category | III | |||
General Data | ||||||
Operating Ambient Temperature Range /℃ | -40~65 | DC Connector Type | MC4 | |||
Relative Humidity Range | 0-100% | AC Connection Type (inverter-inverter) | Trunk Cable | |||
Dimensions (W x H x D) /mm | 268 x 250 x 42 | Communication Method | PLC or WiFi | |||
Weight /kg | 2.9 | Protection Class | NEMA-6 / IP-66 / IP-67 | |||

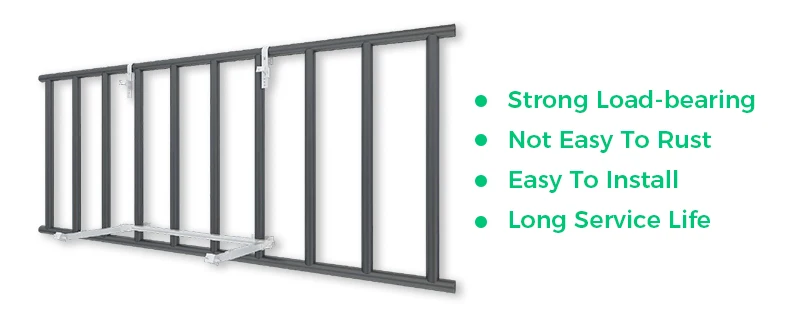

Bracket | ||||||
Installation Site | Balcony | Panel Layout | Horizontal | |||
Balcony type | Circular Metal Guard | Design Standard | European standard | |||
Tilt Angle | 23°-35° | Bracket Material | Steel &AL6005-T5 | |||
Wind Load | 50m/s | Fastener Material | SUS304 | |||
Snow Load | 1.2KN/m2 | Color | Silver or Black | |||
Applicable Solar Module | Framed | Warranty | 10-Year Warranty | |||
Applicable Solar Size | 1724*1134*30mm | |||||
FAQ
1.Do you offer sample for testing purpose?
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.
2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116.RD1699. UNE 206006 IN,UNE206007-1 IN,IEEE1547.Please double check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders, dates may vary depending on quantity.
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.
2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116.RD1699. UNE 206006 IN,UNE206007-1 IN,IEEE1547.Please double check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders, dates may vary depending on quantity.
