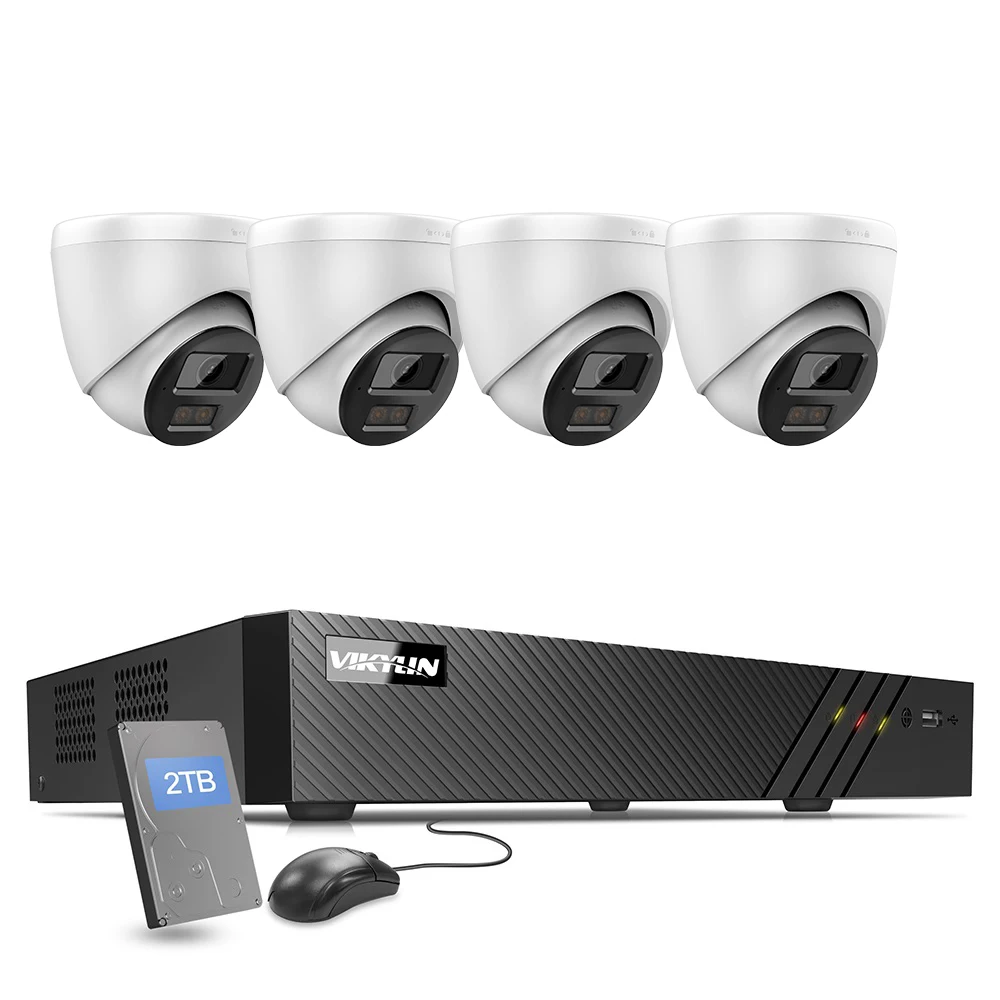

full color vikylin cube turet indoor outdoor ip67 mic sd slot 5MP motion detection 8ch poe nvr security camera cctv system
- Category: Surveillance Systems >>>
- Supplier: Shenzhen,Lin,Wei,Ke,Xun,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
What NVR WILL YOU GET
Video/Audio input | IP video input | 8-ch |
Up to 8 MP resolution | ||
Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) | |
Network | Incoming bandwidth | 80 Mbps |
Outgoing bandwidth | 80 Mbps | |
Video/Audio output | Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
HDMI output resolution | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
VGA output resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
Decoding | Decoding format | H.264/H.264+/MPEG4 |
Live view / Playback resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF | |
Synchronous playback | 8-ch | |
Capability | 1-ch @ 8 MP / 4-ch @ 1080p | |
Network management | Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
Hard disk | SATA | 1 SATA interface |
Capacity | Up to 6TB capacity for each disk | |
External interface | Network interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
USB interface | 2 × USB 2.0 | |
POE Interface | Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Power | ≤ 75W | |
Standard | IEEE 802.3 af/at | |
General | Power supply | 48 VDC |
Power | ≤ 90 W | |
Consumption(without hard disk) | ≤ 10 W (without enabling PoE) | |
Working temperature | -10 to +55º C (+14 to +131º F) | |
Working humidity | 10 to 90 % | |
Chassis | 1U chassis | |
Dimensions(W × D × H) | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") | |
Weight(without hard disk) | ≤ 1 kg (2.2 lb) |

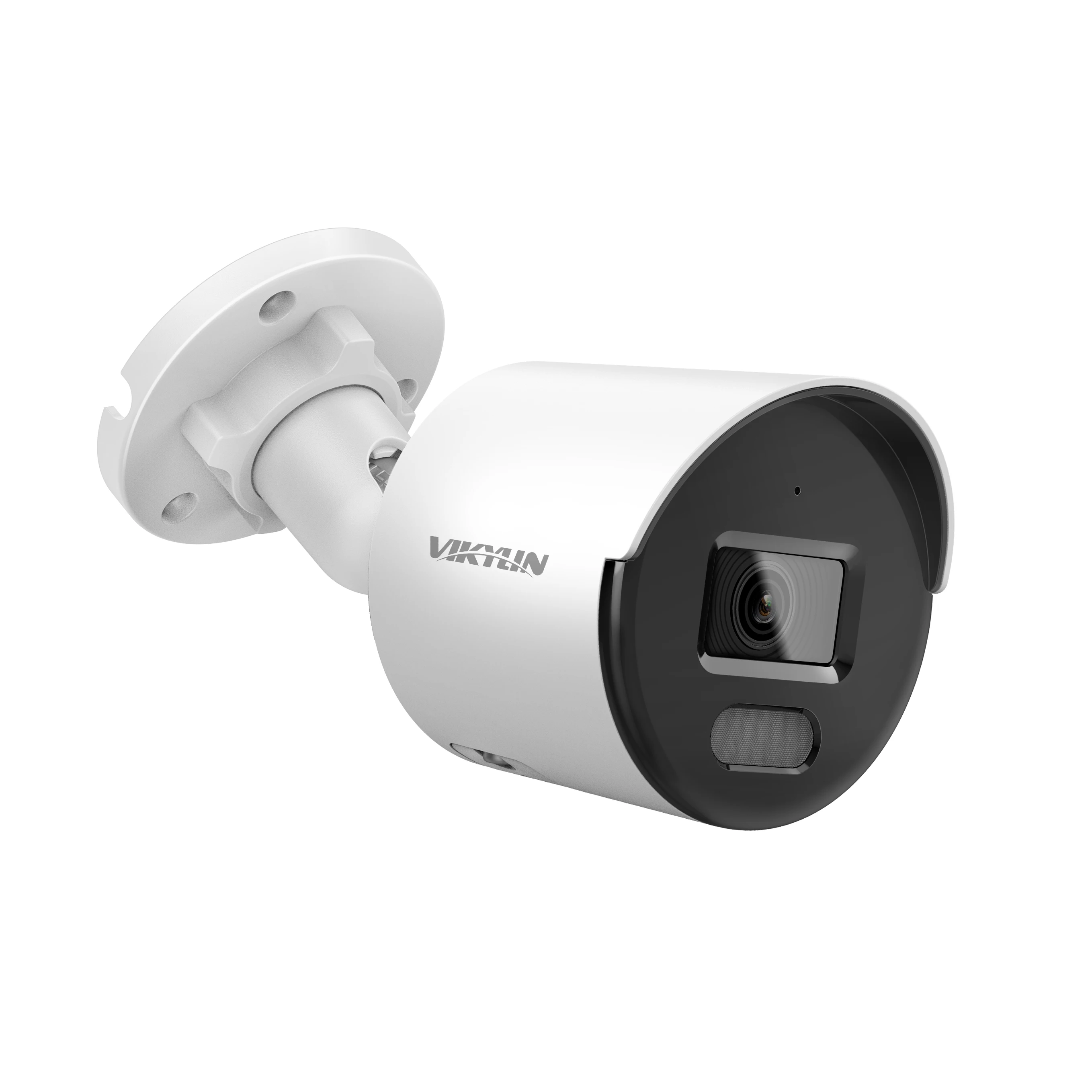

4MP Colorvu Camera Spec
Image Sensor | 1/3" Progressive Scan CMOS | |
Min. Illumination | Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light | |
Shutter Speed | 1/3 s to 1/100, 000 s | |
Slow Shutter | Yes | |
Wide Dynamic Range | 120 dB | |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | |
Lens | ||
Focal Length & FOV | 2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9° 4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1° | |
Lens Mount | M12 | |
Focus | Fixed | |
Aperture | F1.0 | |
DORI | ||
DORI | 2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m 4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m | |
Illuminator | ||
Smart Supplement Light | Yes | |
White Light Range | Up to 30 m | |
Video | ||
Max. Resolution | 2560 × 1920 | |
Main Stream | 50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) | |
Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) | |
Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG | |
Video Bit Rate | 32 Kbps to 16 Mbps | |
H.264 Type | Baseline Profile/Main Profile/High Profile | |
H.265 Type | Main Profile | |
H.264+ | Main stream supports | |
H.265+ | Main stream supports | |
Region of Interest (ROI) | 1 fixed region for main stream | |
Audio | ||
Audio Compression | -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC | |
Audio Bit Rate | -UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) | |
Audio Sampling Rate | -UF: 8 kHz/16 kHz | |
Environment Noise Filtering | -UF: Yes | |
Network | ||
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS | |
Simultaneous Live View | Up to 6 channels | |
API | Open Network Video Interface, ISAPI | |
User/Host | Up to 32 users. 3 levels: administrator, operator and user | |
Client | iVMS-4200, Hik-Connect | |
Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ | |
Image | ||
Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser. | |
Day/Night Switch | Day, Night, Auto, Schedule | |
Image Enhancement | BLC, 3D DNR | |
Interface | ||
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
On-Board Storage | -UF: Built-in memory card slot, support microSD card, up to 256 GB | |
Built-in Microphone | -UF: Yes | |
Hardware Reset | -UF: Yes | |
Event | ||
Basic Event | Motion detection, video tampering alarm, exception | |
General | ||
Linkage Method | Upload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture | |
Camera Material | Metal & Plastic | |
Camera Dimension | Ø109.9 mm × 103.6 mm (Ø4.33" × 4.08") | |
Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") | |
Camera Weight | Approx. 380 g (0.84 lb.) | |
With Package Weight | Approx. 600 g (1.32 lb.) | |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) | |
Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) | |
Web Client Language | English, Ukrainian | |
General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter | |
Firmware Version | V5.5.122 | |
Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W | |
Power Supply | 12 VDC ± 25% PoE: 802.3af, Class 3 | |
Power Interface | Ø5.5 mm coaxial power plug | |
Approval | ||
EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) | |
Our Factory
FAQ
Q. Who manufactory the products ?
A: Our Kits is made by Hik factory with vikylin logo. all the function is same as the Original HIK spec.
Q. What's ETA time and stock status?
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the products to your forwarder or will find a best shipping way for you.
Q. What's the actual products I can get?
A:we have 8mp with 8 Ch ,and 4mp with 8ch .choose what you need.
Q. What's ETA time and stock status?
A: if stock products, the ETA is about 3-5 days, and for products with bulk quantity, the delivery time is about 2-4 weeks.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the products to your forwarder or will find a best shipping way for you.
