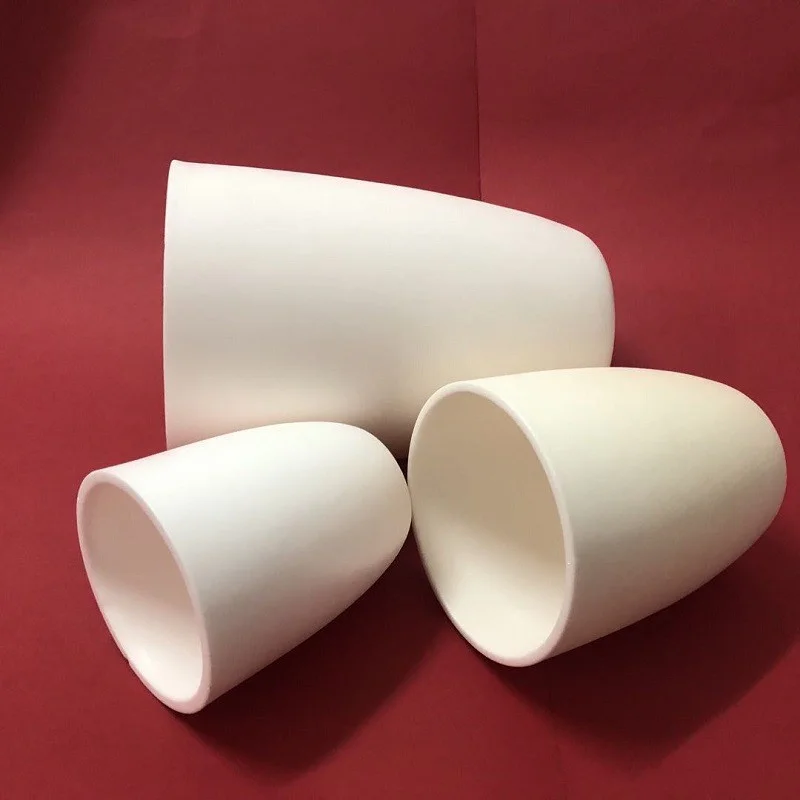

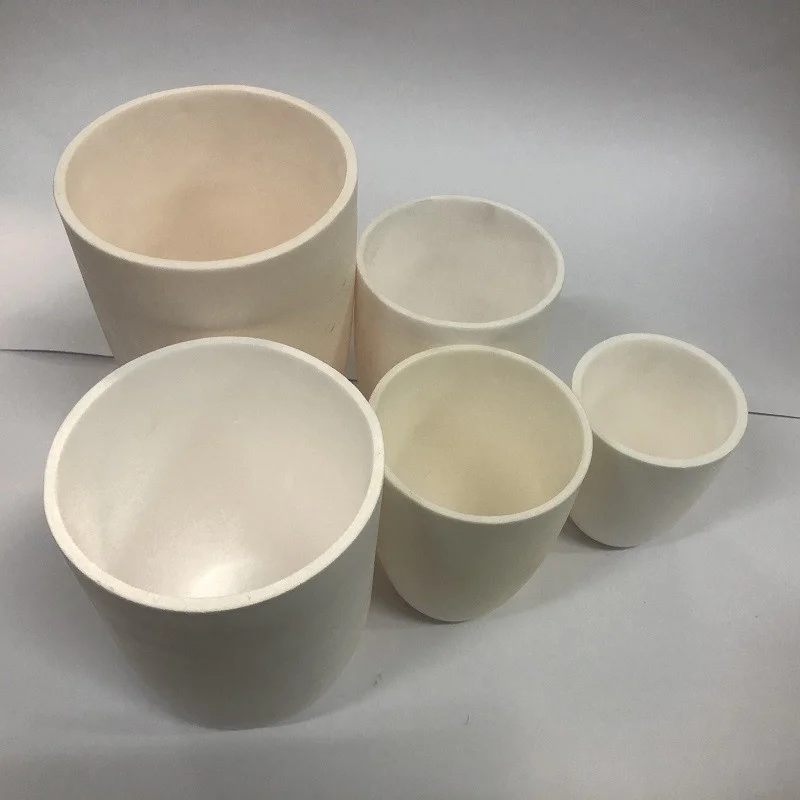

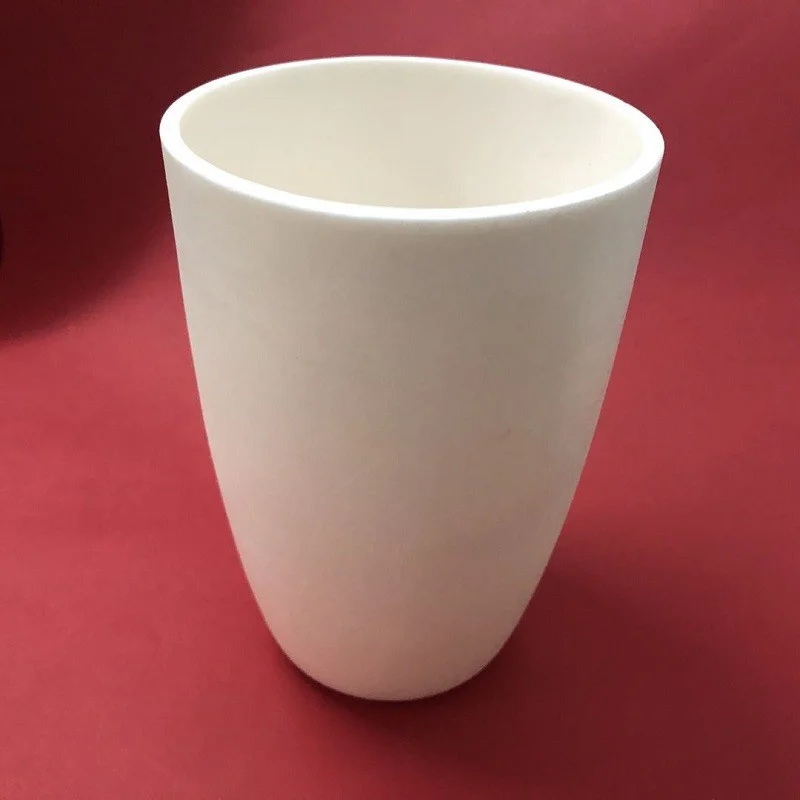

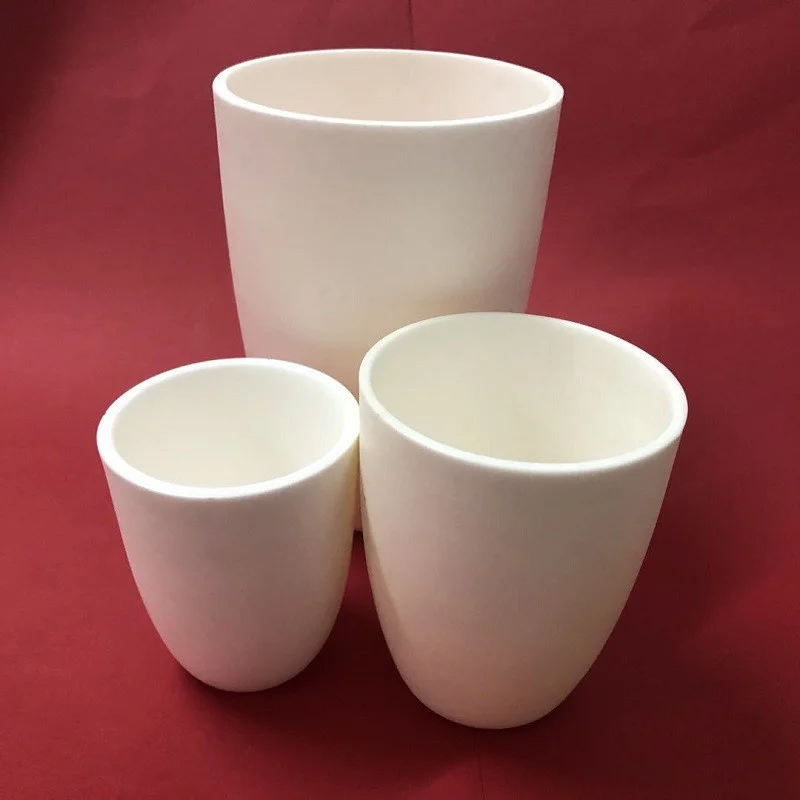

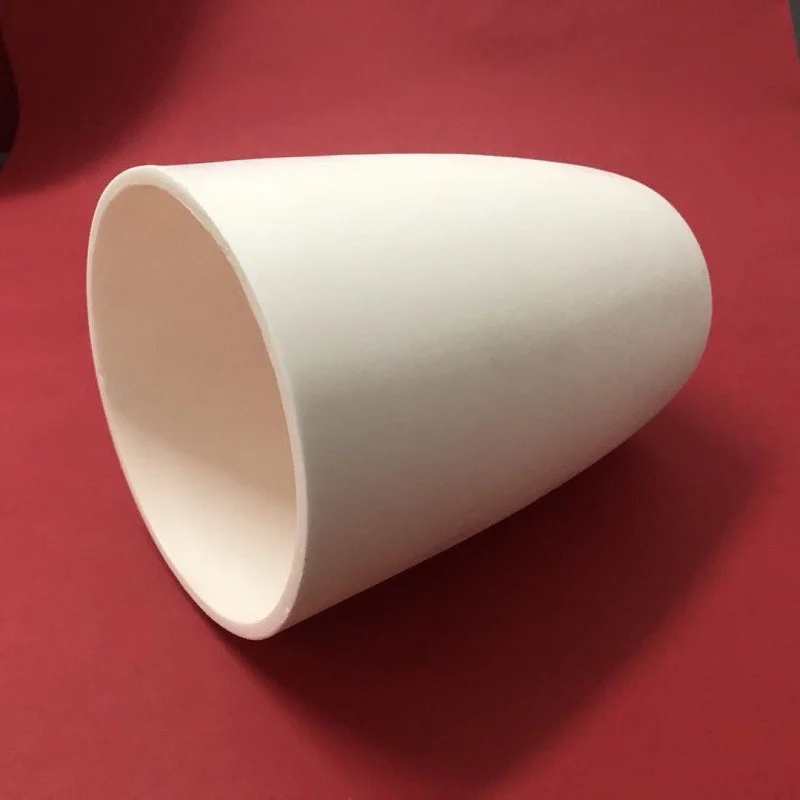

High Temperature Zirconia 99.7% Al2O3 Alumina Ceramic Boat Crucible for Melting Gold
- Category: >>>
- Supplier: Hoyue Technology (lianyungang) Co. Ltd.
Share on (1600577047005):
Product Overview
Description
Product Description
Color | Beige,Light Yellow, Light Pink | |||
Application | For Melting | |||
Material | 99% Alumina Ceramic | |||
Other Name | Melting Pot | |||
Purpose | Smelting, Melting, Thermal Analysis | |||
Lid or Cover | Can be matched with | |||
Price | Rock bottom Price | |||
Propery | High Temperature Resistance | |||
Type | Ceramic Parts | |||
Name | Indifen Crucible | |||
Product Keywords | industrial crucible for melting,crucibles alundum,corundum alumina crucible with lid | |||
And many other sizes. For more details, please contact customer service. | ||||
Features:
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products, electric heating products and wear resistant machinery parts.
Affordable Price 99% Alumina Ceramic Plate Al2o3 Tin Substrate
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products, electric heating products and wear resistant machinery parts.
Affordable Price 99% Alumina Ceramic Plate Al2o3 Tin Substrate
Processing technology Process range (mm)Outside Diameter1---300Inside Diameter0.5---300 Length0.5---1200Accuracy of working (mm)
Perpendicularity 0.01 Concentricity 0.01 Roundness 0.005 Straightness 0.005 Parallelism 0.01 Planeness 0.005 Roughness 0.05 Fit clearance 0.005
Perpendicularity 0.01 Concentricity 0.01 Roundness 0.005 Straightness 0.005 Parallelism 0.01 Planeness 0.005 Roughness 0.05 Fit clearance 0.005
Specification
ZTA | AI997 | AI950 | Zirconia | ||
% Alumina | % | 70 | 99.7 | 95 | |
Density | g/cm3 | 4.3 | 3.9 | 3.6 | |
Porosity | % | 0 | 0 | 0 | |
Firing Temp | °C | 1600 | 1700 | 1680 | |
Hardness | HV | 2000 | 1700 | 1500 | |
Flexural Strength | Kgf/cm2 | 4500 | 3500 | 3000 | |
Compressive Strength | Kgf/cm2 | 45000 | 30000 | 25000 | |
Fracture Toughness | MPa/m | 5-6 | 4 | 3-4 | |
Max Operating Temp | °C | 1500 | 1500 | 1450 | |
Coefficient Thermal Expansion | cm/cm/ °C (RT to 700°C) | 8 | 8 | 8 | |
Thermal Conductivity | 25°C- 300°C | W/m°K | 27 | 27 | 22 |
Volume Resistivity | 20°C | ohm ・ cm | 1012 | 1012 | 1012 |
100°C | 1012-1013 | 1012-1013 | 1012-1013 | ||
300°C | 1010 | 1012 | 1010 | ||
Dielectric Strength | Volts/mil | 210 | 220 | 210 |
You May Like
Packing & Delivery
Our Service
Company Profile
Hoyue technology is one of the manufacturers and suppliers of high-quality quartz glass and precision ceramics in China.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,cerami washers,ceramics pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining. Hope fora wide range of sincere cooperation with customers at domestic and abroad.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,cerami washers,ceramics pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining. Hope fora wide range of sincere cooperation with customers at domestic and abroad.
FAQ
Q: What's your samples policy?
We can provide some free samples if we have the similar products in stock, but customer needs to pay the freight cost.
Q: Do you accept customized dimension?
Yes, we can produce ceramic parts per customer's request.
Q:How to get the price?
You can provide drawings with performance requirment or samples to us for quotation, we will send price to you once received
your drawings or samples within 24 hours.
Q: Do you accept customized dimension?
Yes, we can produce ceramic parts per customer's request.
Q:How to get the price?
You can provide drawings with performance requirment or samples to us for quotation, we will send price to you once received
your drawings or samples within 24 hours.
Q: How to deal with the faulty?
Our products are produced in strict quality control system and the defective rate will be less than 0.2%.If the products you
received is not the same as drawings, we will arrange re-production.
If you only have samples, you can also send us.
received is not the same as drawings, we will arrange re-production.
If you only have samples, you can also send us.
