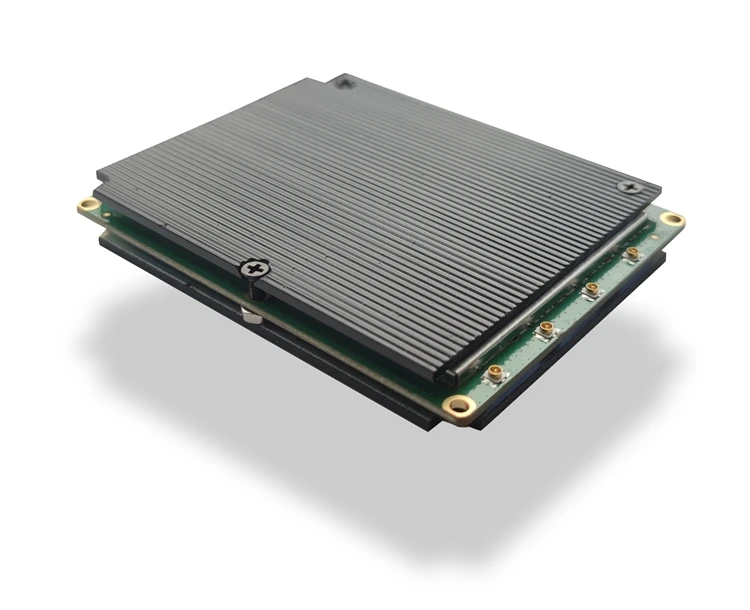

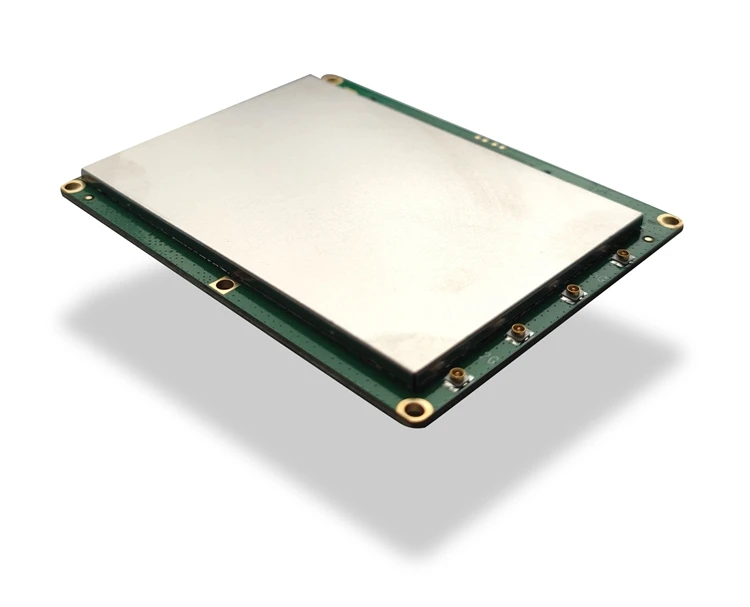

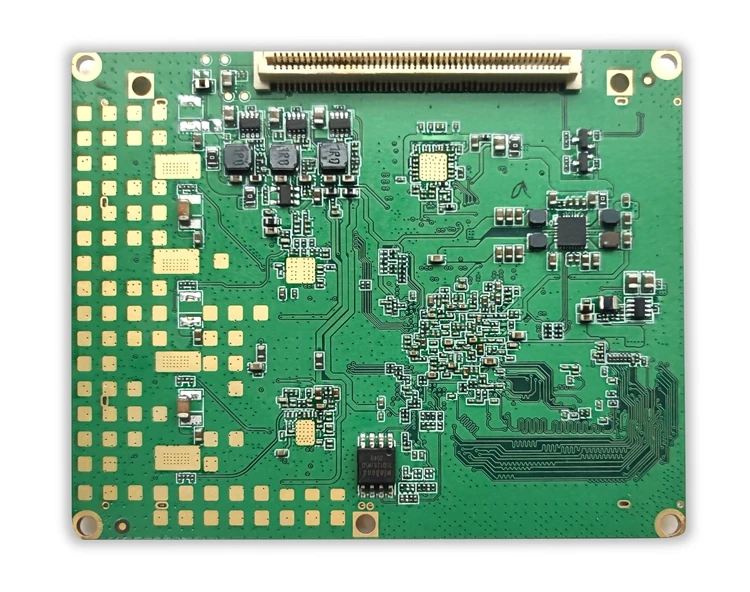

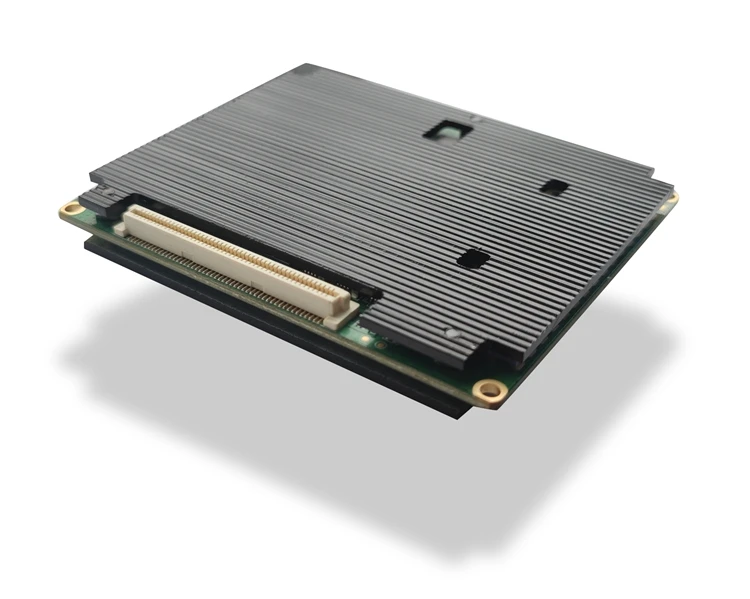

SR7220C IPQ6000 IPQ6010 wifi6 modules 802.11ax Dual band ax1800 wifi6 CPE Wireless Router Smallest WiFi6 module
- Category: >>>
- Supplier: Shenzhen Qinrun Electronics Co. Ltd.
Share on (1600577122193):
Product Overview
Description
Product Description
The module SR7220C is a complete, small form factor 802.11 a/b/g/n/ac/ax Wi-Fi6 Solution optimized for low power, low-cost, and highly integrated AP and consumer electronic devices, the module integrates all Wi- Fi functionality in a package friendly to low-cost PCB design.
The module based on the single chip IPQ6000 which integrates quad-core ARM Cortex-A53 1.2GHz CPU and dual band 802.11a/b/g/n/ac/ax 2x2 MIMO MAC/BB/ radio with external FEM. It supports 802.11 ax operations up to 1700 Mbps for 80MHz.
The module based on the single chip IPQ6000 which integrates quad-core ARM Cortex-A53 1.2GHz CPU and dual band 802.11a/b/g/n/ac/ax 2x2 MIMO MAC/BB/ radio with external FEM. It supports 802.11 ax operations up to 1700 Mbps for 80MHz.
Features
①Qualcomm Atheros IPQ6000 Quad-core ARM 64bit A53 1.2GHz Processor.
②2x2 on-board 2.4GHz radio, up to 573Mbps physical data rate
③2x2 on-board 5GHz radio, up to 1201Mbps physical data rate
④Supports Dynamic Frequency Selection (DFS)
⑤DDR3 memory up to 3 GB.
⑥SPI NOR Flash memory up to 256 Mb(32MB).
⑦NAND Flash memory up to 256MB.
③2x2 on-board 5GHz radio, up to 1201Mbps physical data rate
④Supports Dynamic Frequency Selection (DFS)
⑤DDR3 memory up to 3 GB.
⑥SPI NOR Flash memory up to 256 Mb(32MB).
⑦NAND Flash memory up to 256MB.
⑧1Gbps*3 Ethernet Port.
⑨High-speed Mini PCIe v2.0 support.
⑩USB 2.0/3.0 & MicroSD support. Uart/GPIO/LED support.
⑨High-speed Mini PCIe v2.0 support.
⑩USB 2.0/3.0 & MicroSD support. Uart/GPIO/LED support.
Recommended Operating Rating | ||||||||
Element | Min. | Typ. | Max. | Unit | ||||
Operating Temperature | -20 | 25 | 70 | Deg.c | ||||
VDD 12V | 11.80 | 12.00 | 12.20 | V | ||||
VDD IO | 1.6 | 1.8 or 3.3 | 3.6 | V | ||||
DC Characteristics | ||||||||
Element | Min. | Typ. | Max. | Unit | ||||
Standby | - | 15 | - | mA | ||||
Tx Current (4 Chain) | - | 950 | - | mA | ||||
Rx Current (4 Chain) | - | 250 | - | mA | ||||
Environment Condition | ||||||||
Temperature | Operating Temperature: -20 deg.C ~ 70 deg.C Storage Temperature: -40 deg.C ~ 90 deg.C | |||||||
Humidity | Operating Humidity: 5% ~ 95% | |||||||
VESD | Human Body Model: -2000V ~ +2000V Machine Mode: -200V ~ +200V | |||||||
Order Information | ||||||||
Part Number | Nor Flash Size | Nand Flash Size | DDR3 Size | |||||
SR7220C-3200A | 256Mb | NC | 4Gb | |||||
SR7220C-161GA | 128Mb | 1Gb | 4Gb | |||||

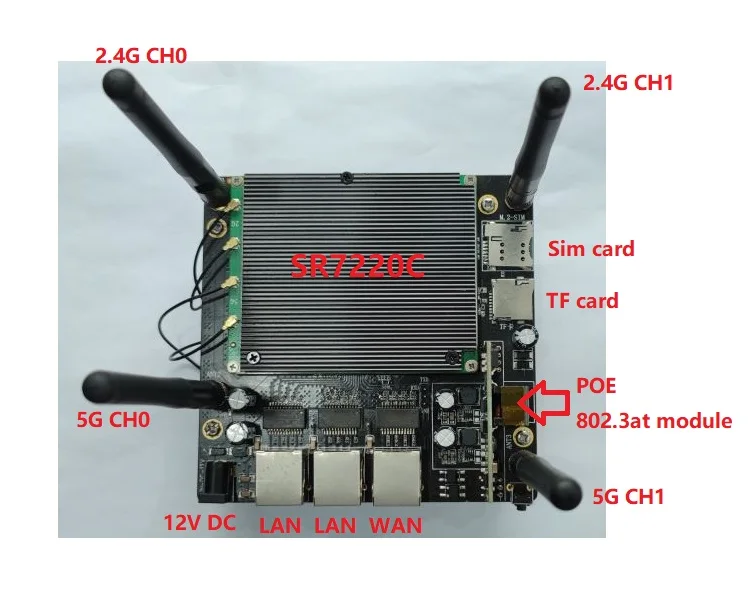

Details Images
RF Specification (5V PA)
Hardware Overview

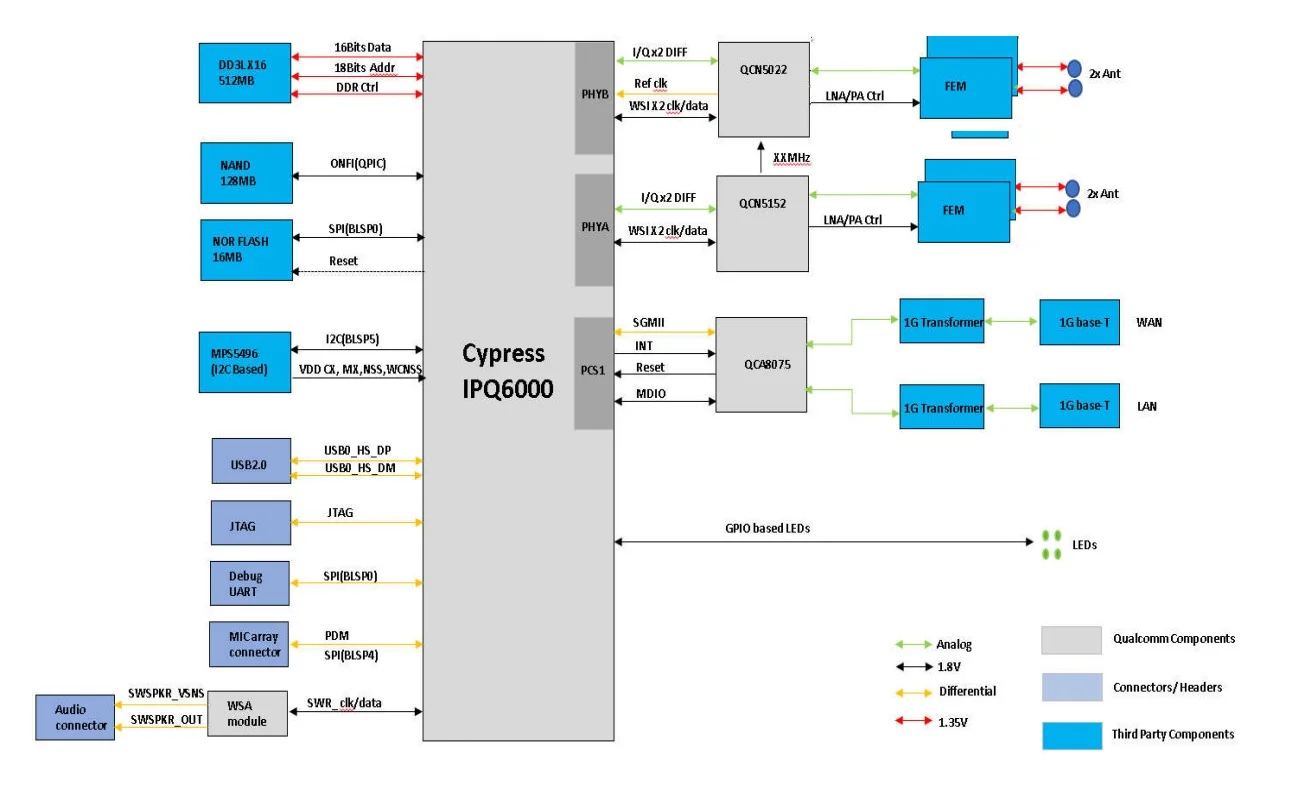

1.Block Diagram

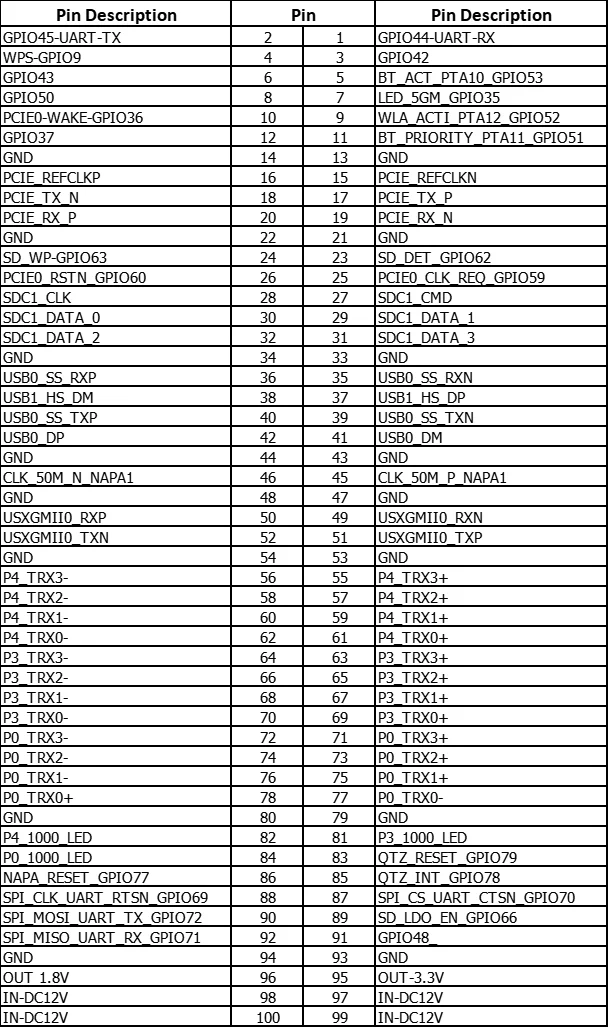

2.Pin Assignments
Dimensions

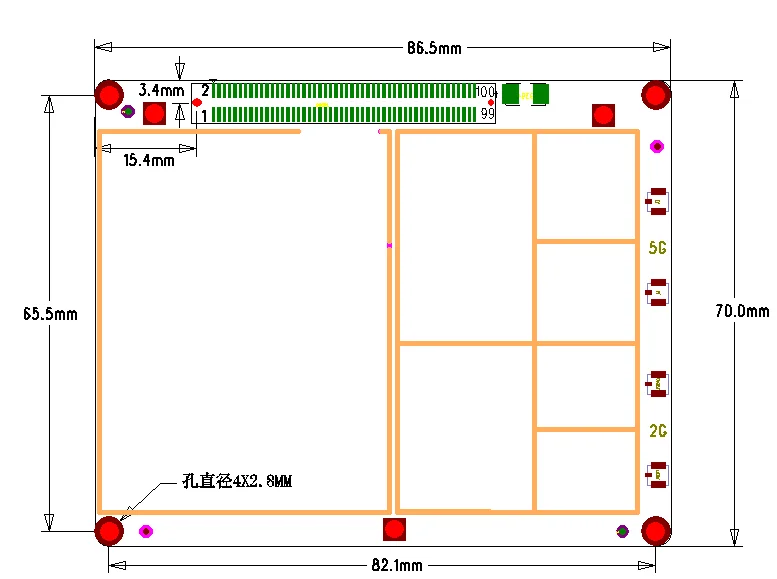

1.Physical Dimensions
5G CPE

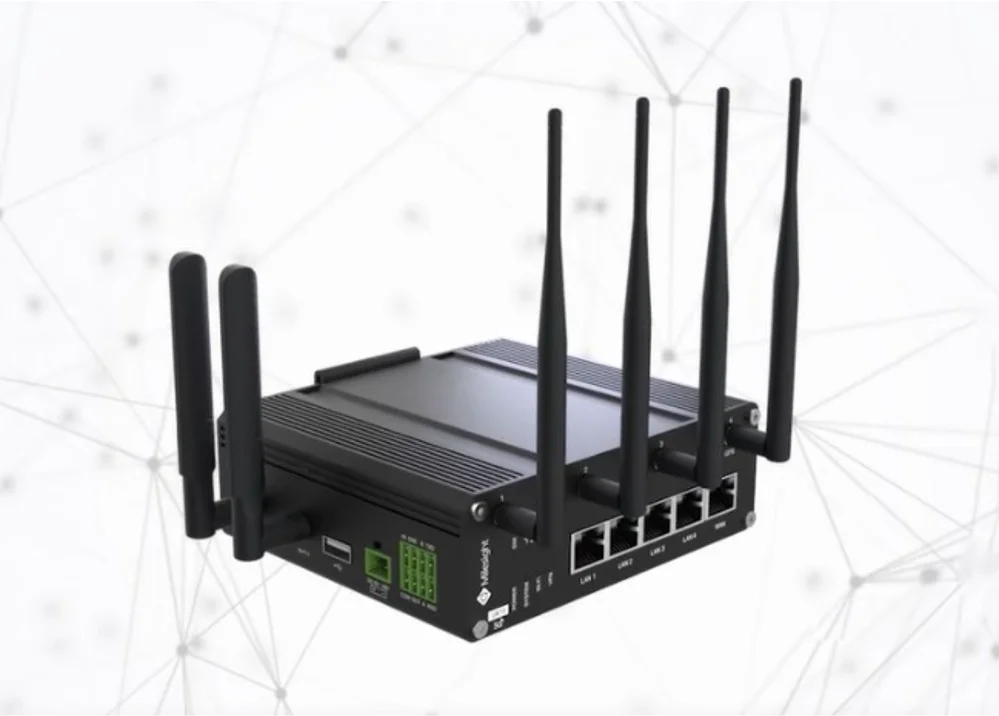

Industrial router

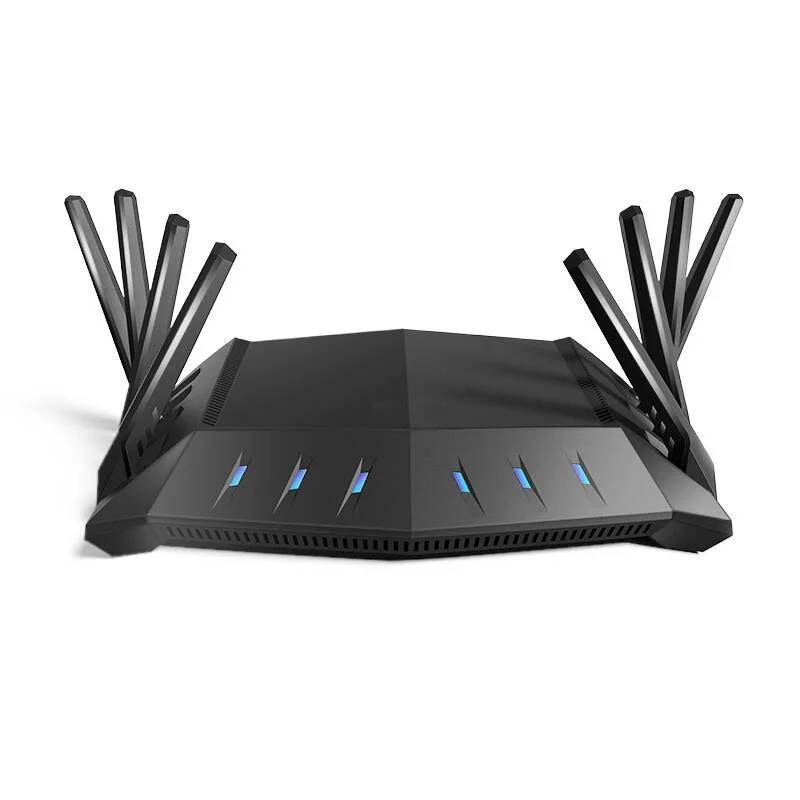

AP
Gate Way

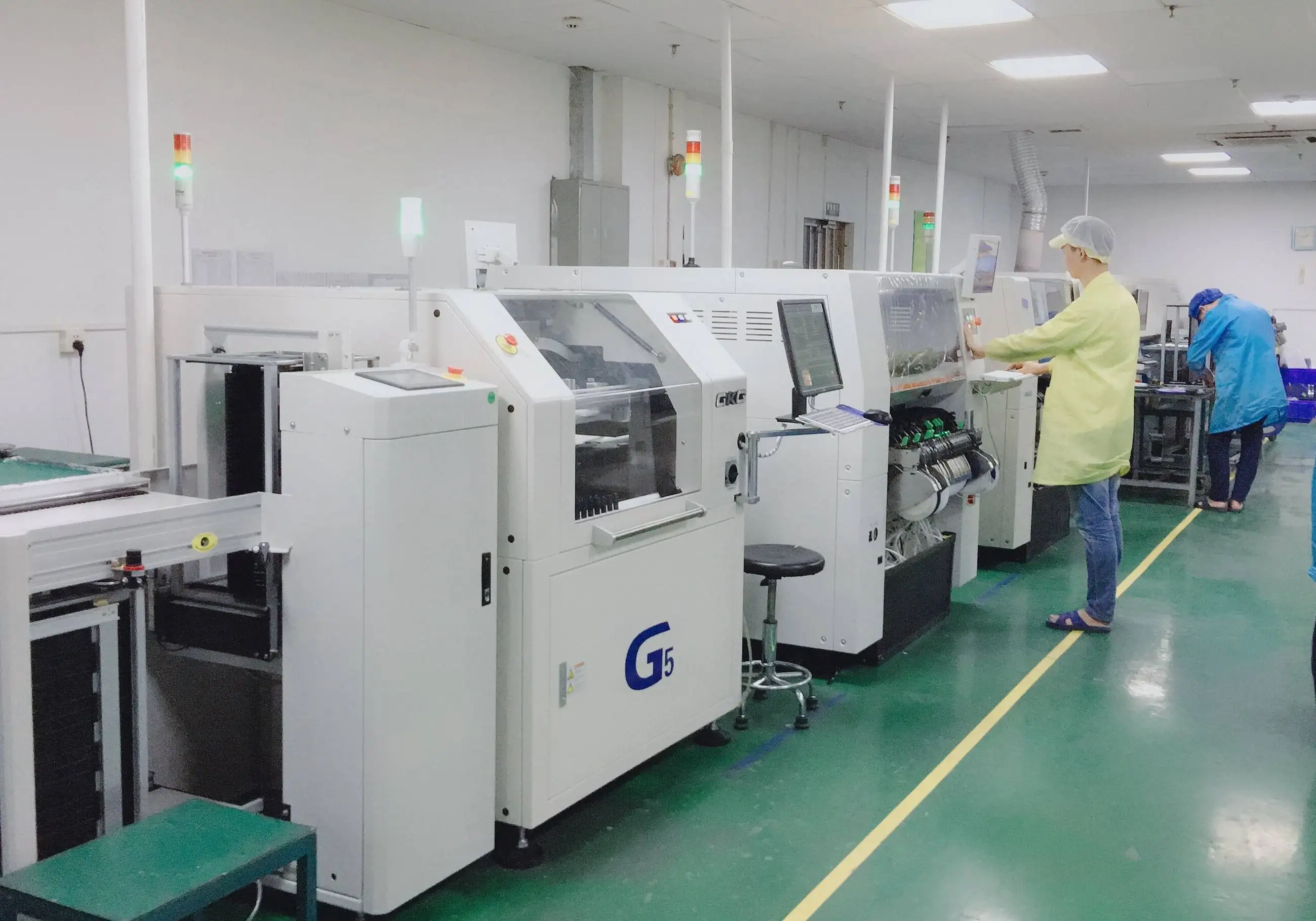

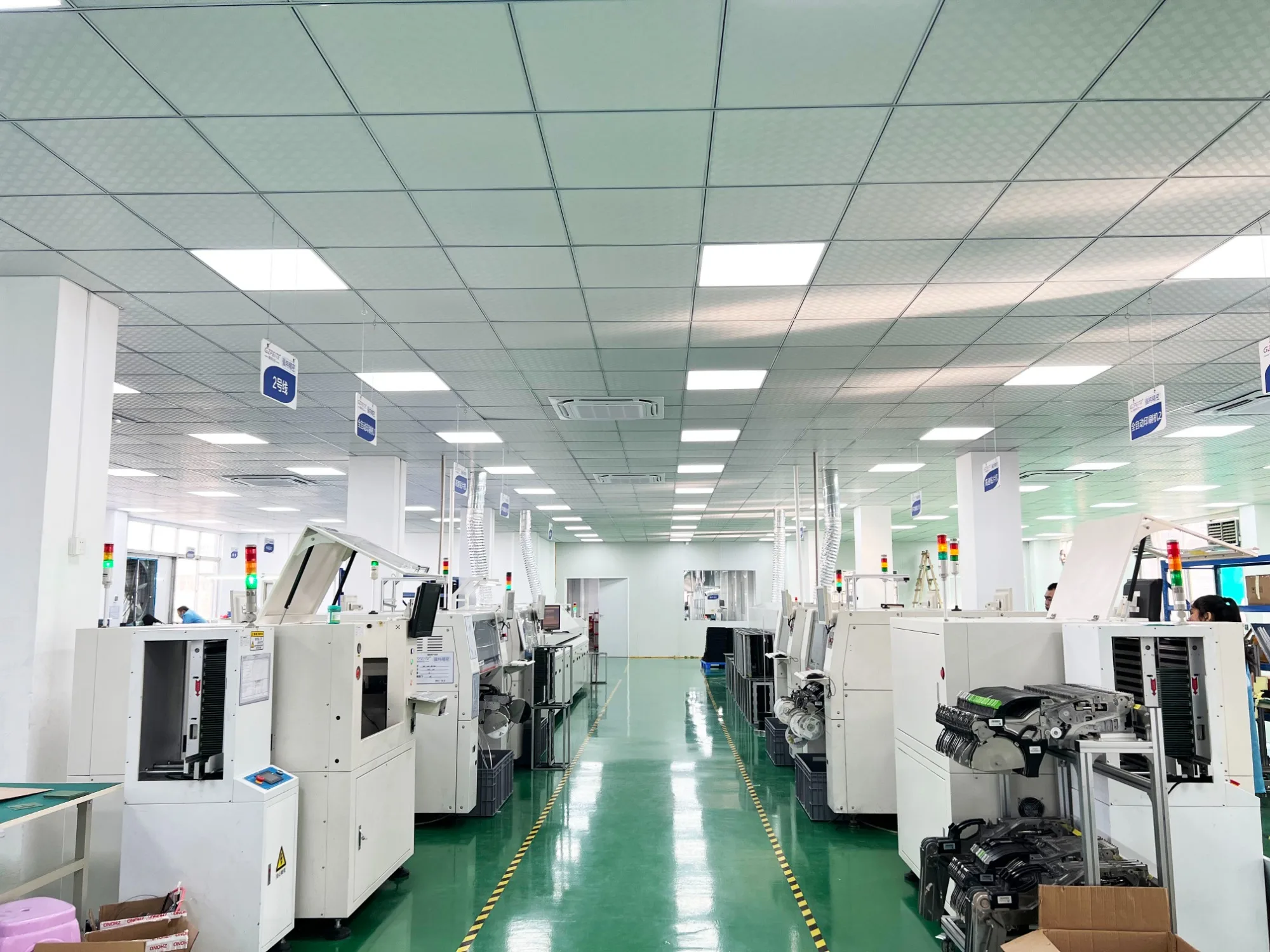

Company Introduction
Shenzhen Qinrun Electronics Co., Ltd.
Founded in October 2015,Shenzhen Qinrun Electronics Co., Ltd. is located in Bao'an Central District, Shenzhen city. We're committed to the R & D and production of modules and related solutions with Qualcomm Wi-Fi chip as the core. It can provide customized software and hardware services for Wi-Fi modules and solutions.
Team
The core team of qinrun electronics has many years of experience in the development and production of Wi Fi solutions and module software and hardware, deeply understanding the application requirements of Wi-Fi solutions in various industries, and providing customers with complete solutions quickly and accurately.
Market
The existing Wi-Fi module products are mainly for UAV image transmission, vehicle tablet, wireless monitoring, intelligent gateway and other solutions.
Service
It can provide technical support from scheme selection to hardware design, software driver support or function development to finished product performance debugging. The existing sta module has been debugged stably in Hisilicon, Fullhan, Allwinner, Guoke, Sonix, Anyka, RK and other platforms. The AP / relay module has been adapted to power on automatic configuration, private protocol remote map transmission and other schemes.
Team
The core team of qinrun electronics has many years of experience in the development and production of Wi Fi solutions and module software and hardware, deeply understanding the application requirements of Wi-Fi solutions in various industries, and providing customers with complete solutions quickly and accurately.
Market
The existing Wi-Fi module products are mainly for UAV image transmission, vehicle tablet, wireless monitoring, intelligent gateway and other solutions.
Service
It can provide technical support from scheme selection to hardware design, software driver support or function development to finished product performance debugging. The existing sta module has been debugged stably in Hisilicon, Fullhan, Allwinner, Guoke, Sonix, Anyka, RK and other platforms. The AP / relay module has been adapted to power on automatic configuration, private protocol remote map transmission and other schemes.

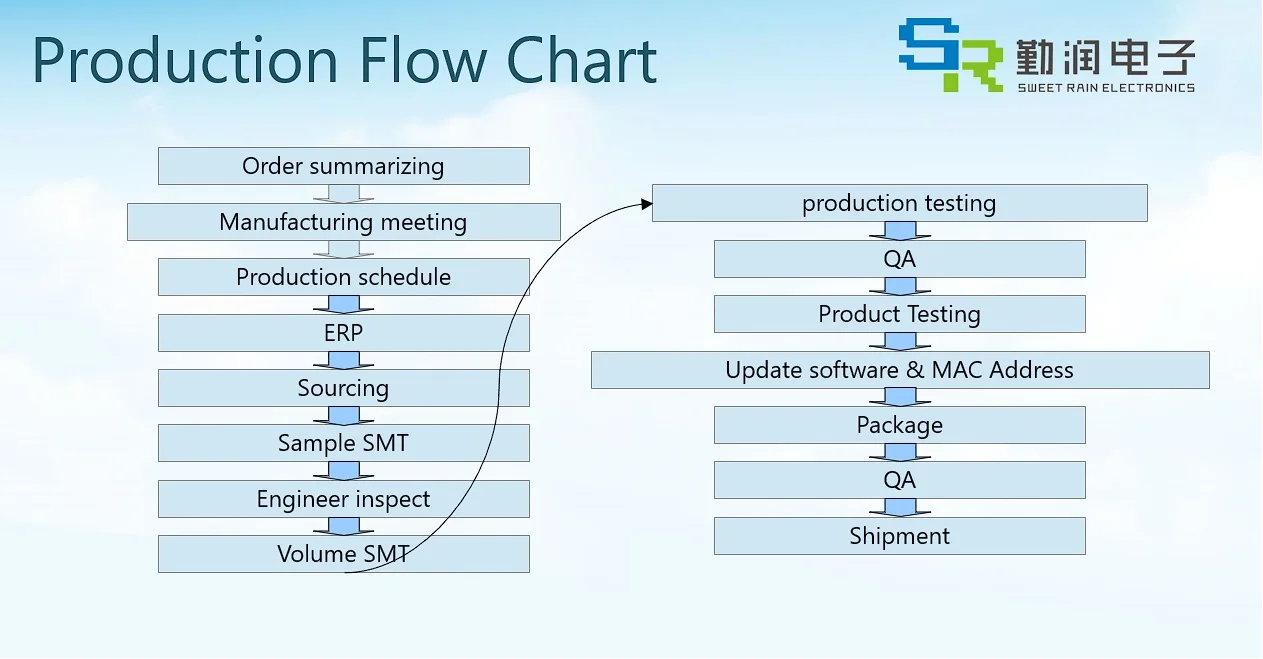

Product Line
Certifications

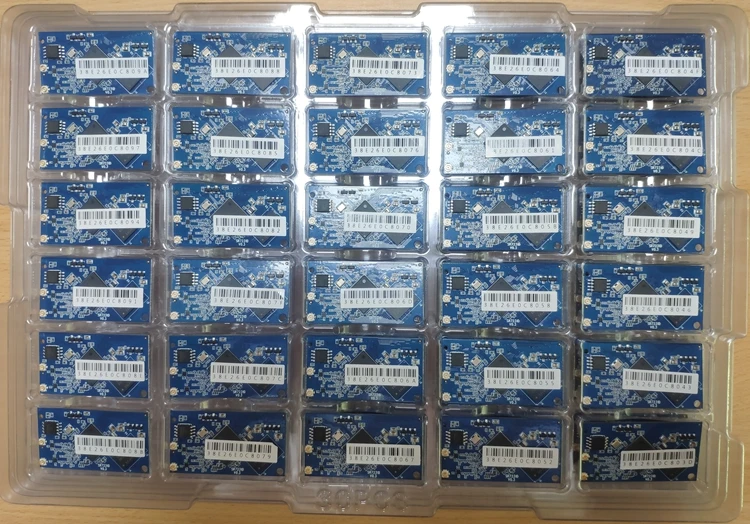

Packing&Shipping
