100L 500L cosmetic cream mixing machine vacuum homogenizing emulsifier machine high shear mixer homogenizer
- Category: >>>
- Supplier: Guangzhou Hone Machinery Co. Ltd.
Share on (1600577126542):
Product Overview
Description
Products Description
HYDRAULIC LIFITNG VACUUM EMULSIFYING MIXER MACHINE

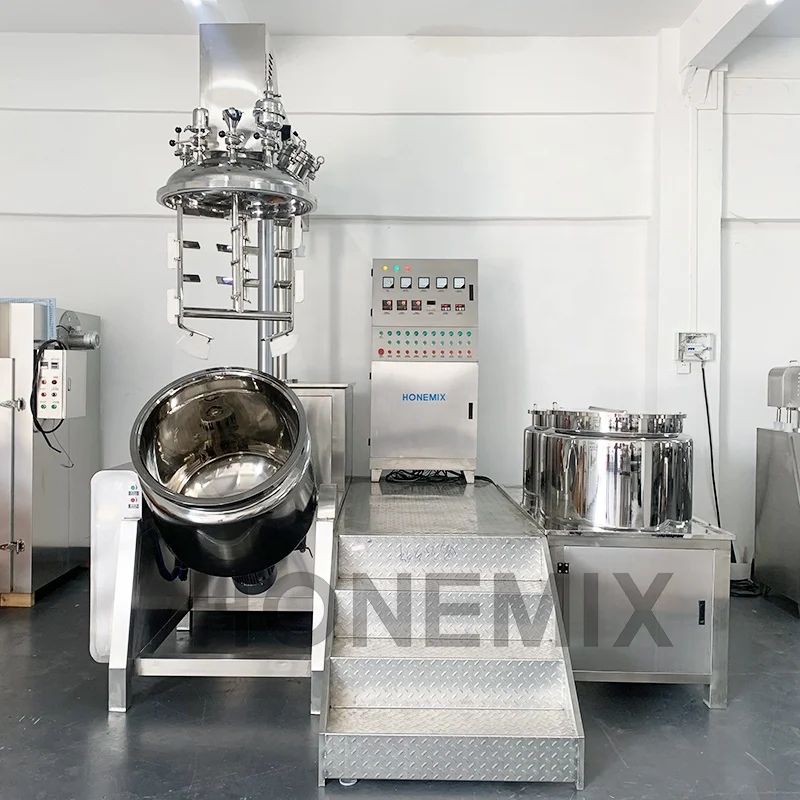

Vacuum emulsifying mixer machine consist of Water and Oil pot, Main emulsifying tank, Vacuum system, Tilting discharge system, Hydraulic lifting system, Mixing system, Homogenizer system and Heating/Cooling system. All those functions work together to produce batches of good cosmetics products.
Products name | 100L-500L cosmetics shampoo lotion show oil face cream making machine,silverson vacuum emulsifier emulsifying homogenizer mixer | ||||||
Capacity(L) | Wall Scraper Mixer | Homogenizer | Water and Oil Pot(L) | Disperser | |||
100 | 1.5KW, 0~65RPM | 4KW, 0~3600RPM | 90/60 | 0.55/0.55KW | |||
200 | 3KW, 0~65RPM | 5.5KW, 0~3600RPM | 180/120 | 0.75/0.75KW | |||
300 | 4KW, 0~65RPM | 7.5KW, 0~3600RPM | 270/180 | 1.1/1.1KW | |||
500 | 5.5KW, 0~65RPM | 11KW, 0~3600RPM | 450/300 | 1.5/1.5KW | |||

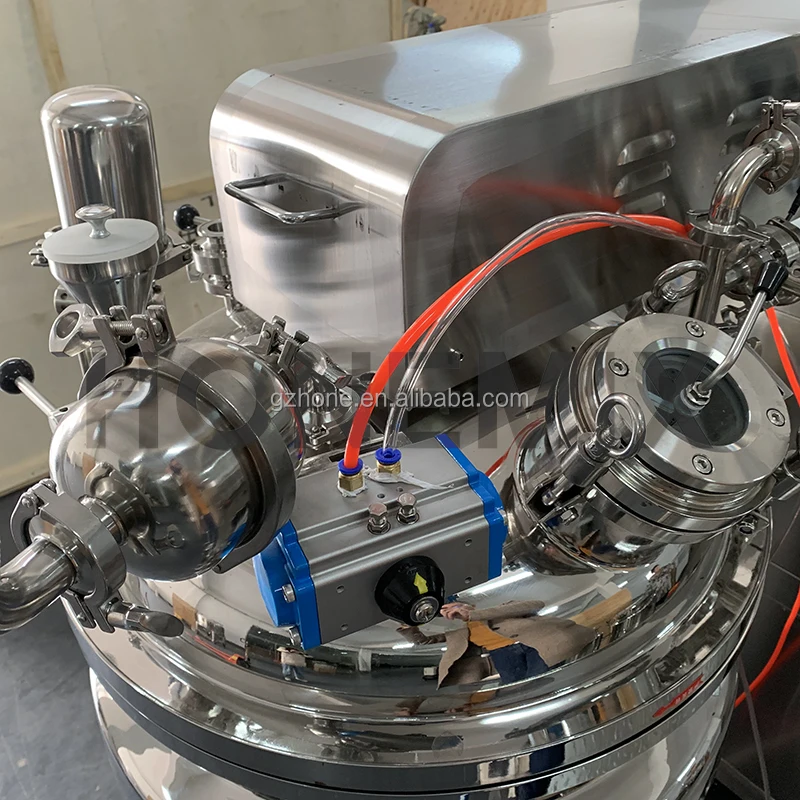

Lip Part
Seal Head：SUS316L
Material filter,
vacuum pressure meter,
vacuum discharge valve,
vacuum inlet,
CIP system (Spray ball),
sight glass light,
sight glass light,
sight window,
man-hole,
perfume hopper

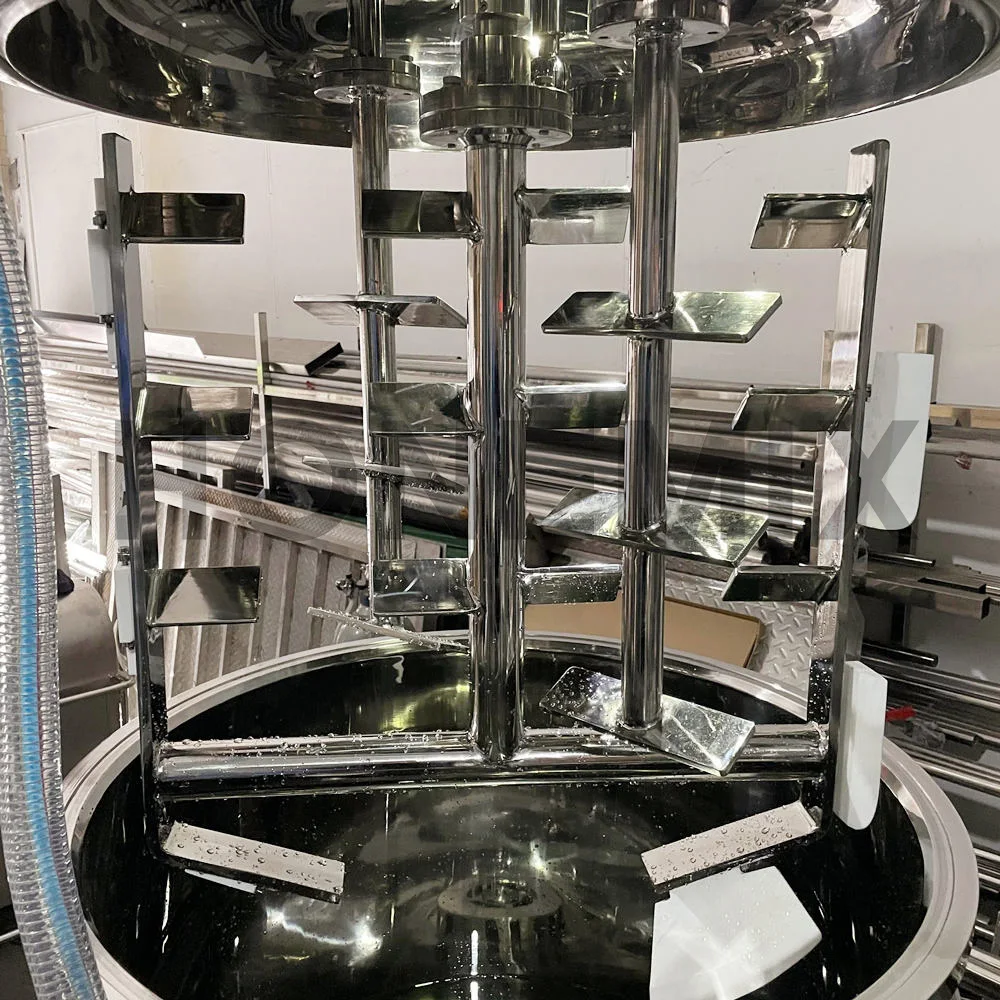

Frame Wall Scrapper Mixer
SUS316L Wall scrapper mixer
PTFE scraper
Fixed propeller
45degree blades on opposite angles to make sure mixture complete
Siemens motor drive
0-65rpm with variable speed control
※ TWO WAYS wall scrapper mixer
※ HELIX scrape mixer(OPTION)

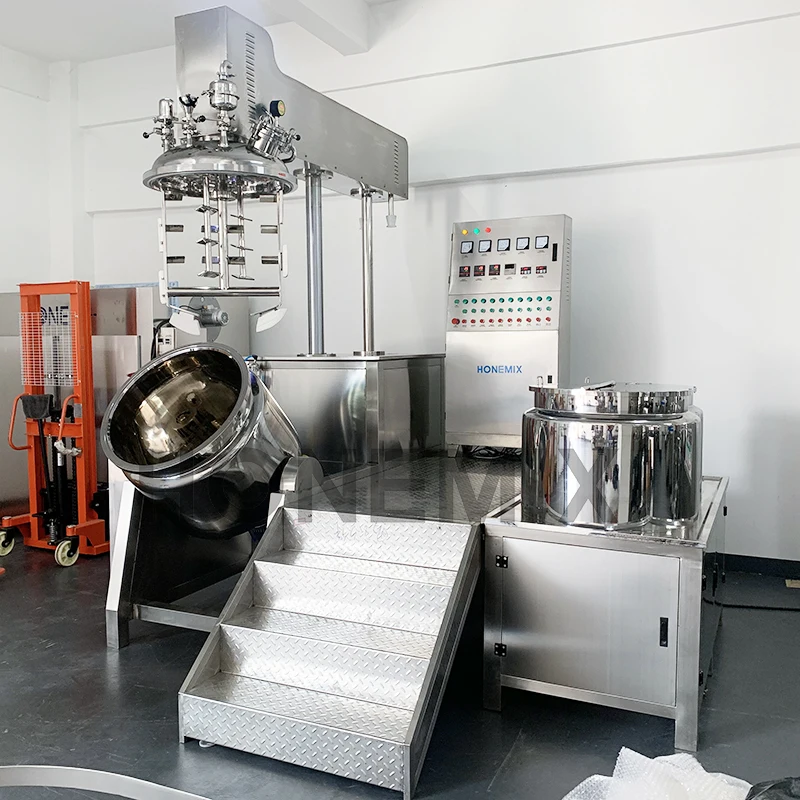

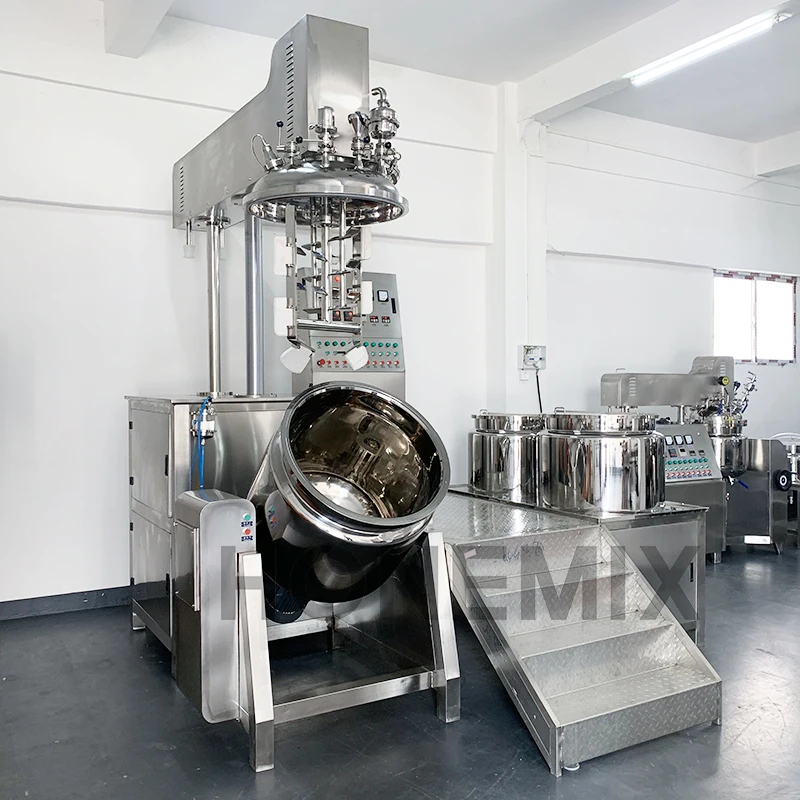

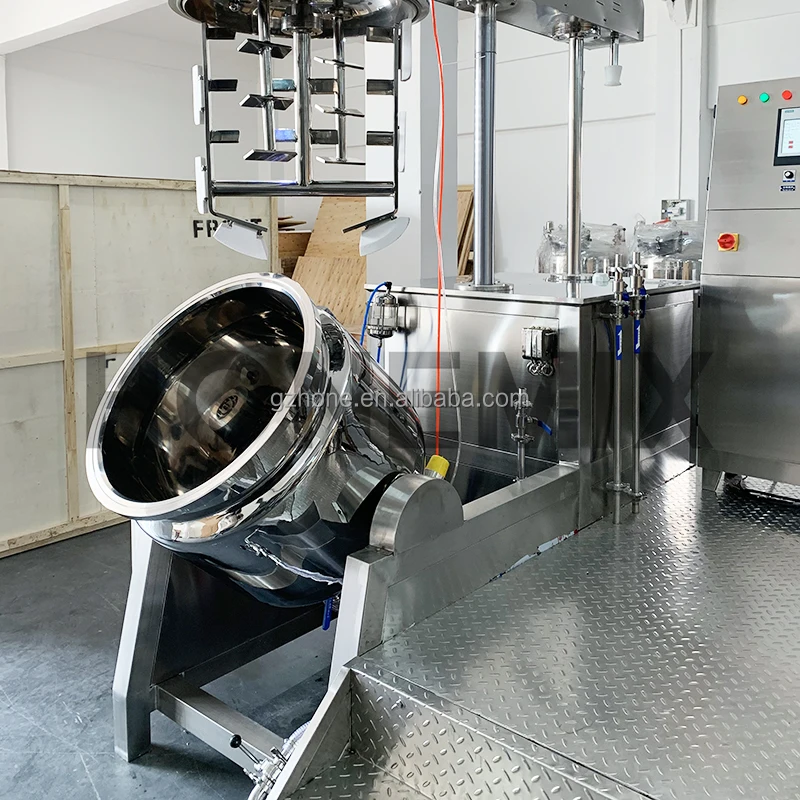

Titling Function
SUS316L valve, NO dead angle design. Manual/button tilting.
gradient (between pot and floor)≤90°

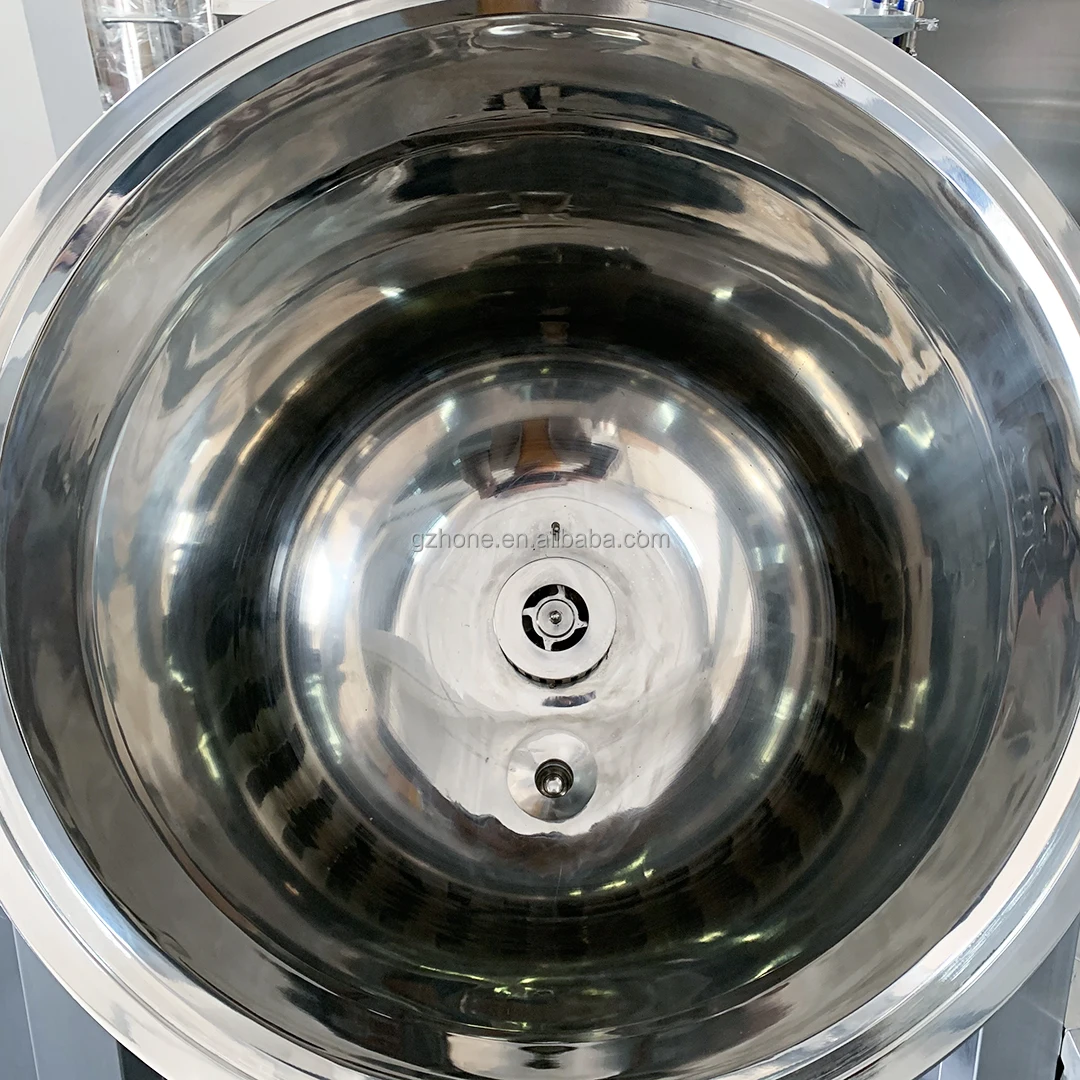

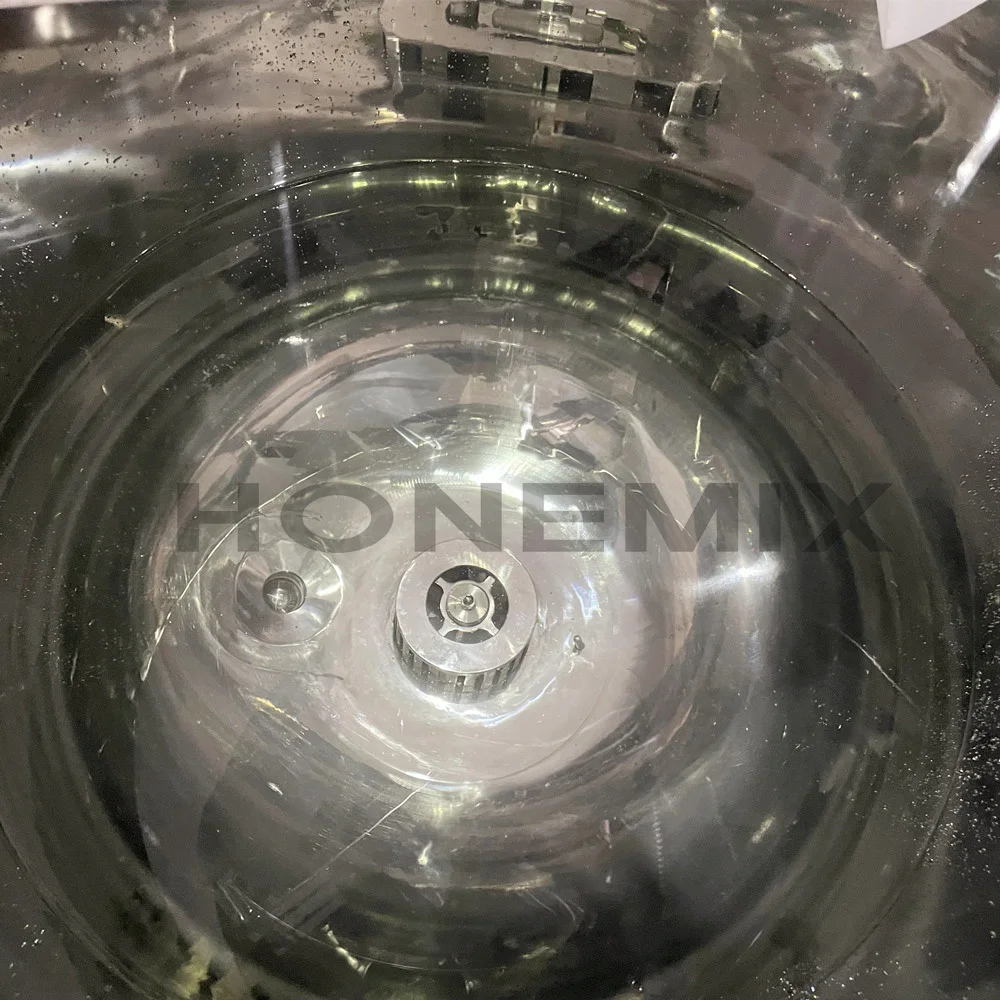

Bottom Homgoenizer
SUS316L High Shear Bottom Homogenizer
Siemens motor drive.
0-3600rpm with variable speed control.
Siemens motor drive.
0-3600rpm with variable speed control.
※ EXTERNAL HOMOGENIZER (OPTION)
※ UPPER HOMOGENIZER (OPTION).
※ UPPER HOMOGENIZER (OPTION).

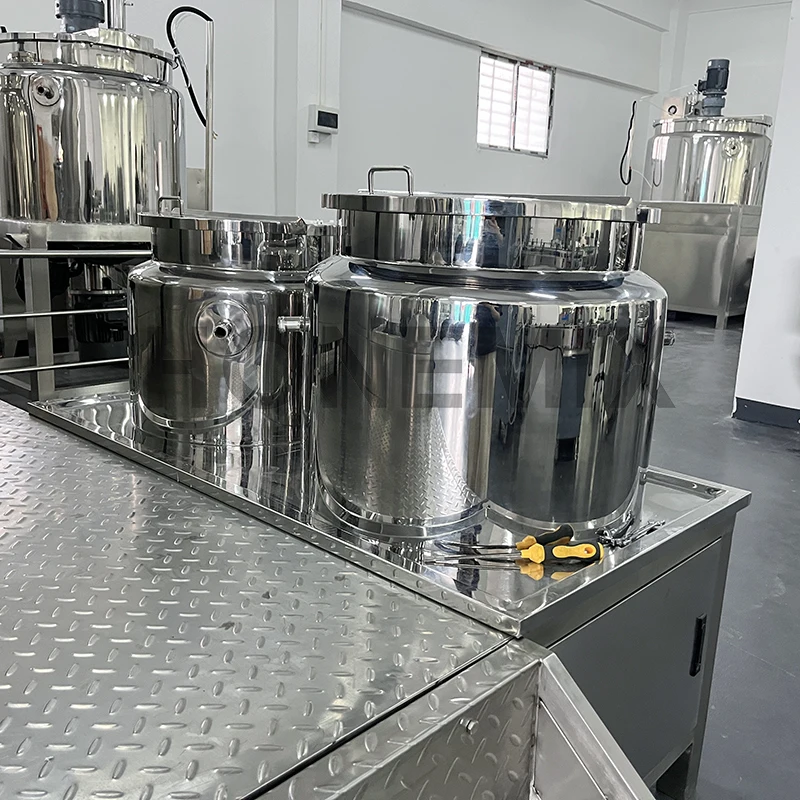

Water and Oil Pot
Machine equipped A set of water and oil pot
Siemens motor, 1440RPM.
Electric heating by Water or Conduction Oil
Mixing: High shearing Disperser plates with baffle on the wall.
Half open hinged lid for easy operation.

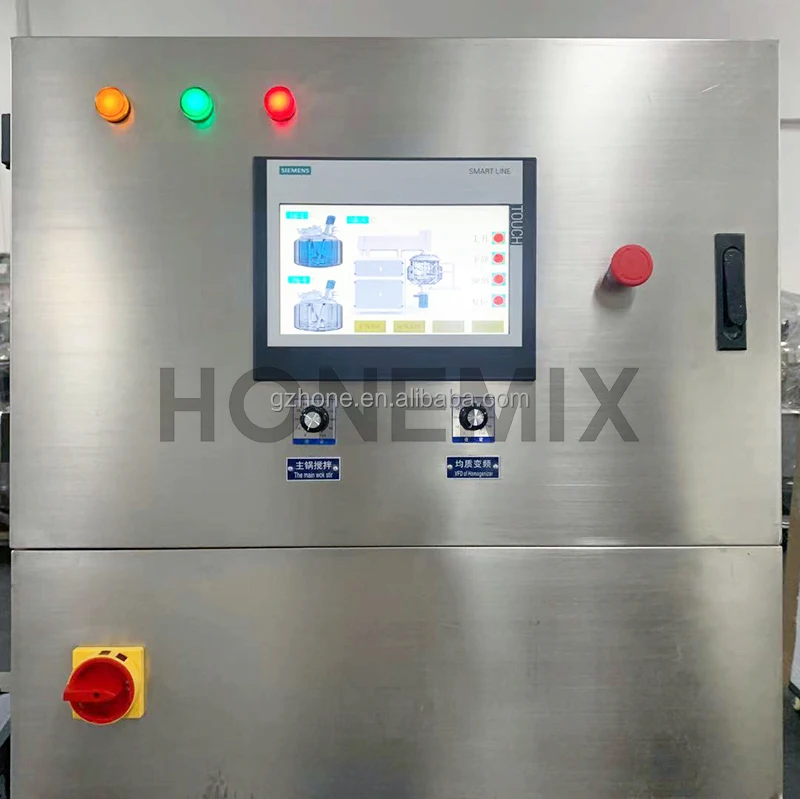

PLC Controller
SIEMENS PLC Touch Screen Control.
Clear and concise content.
English & Chinese Language.
