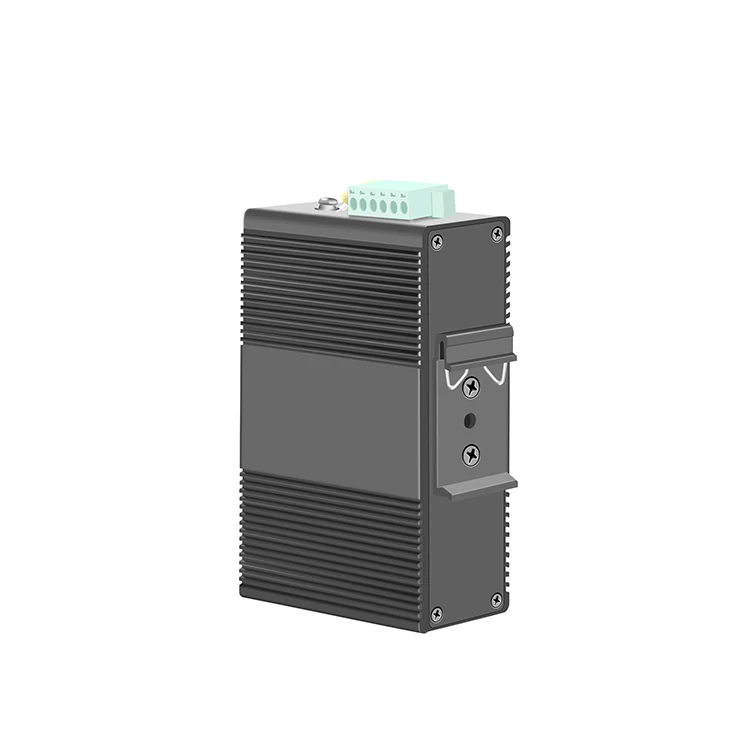

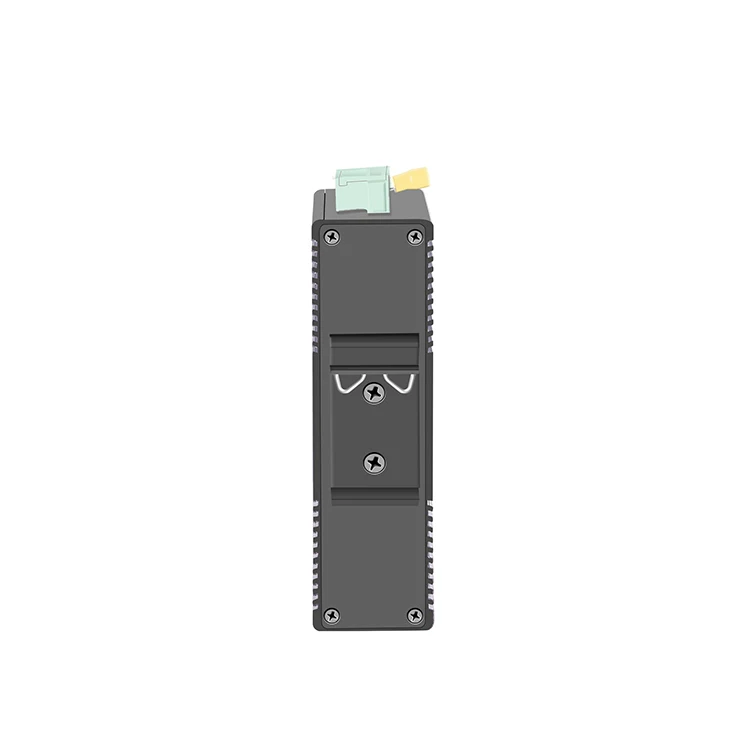

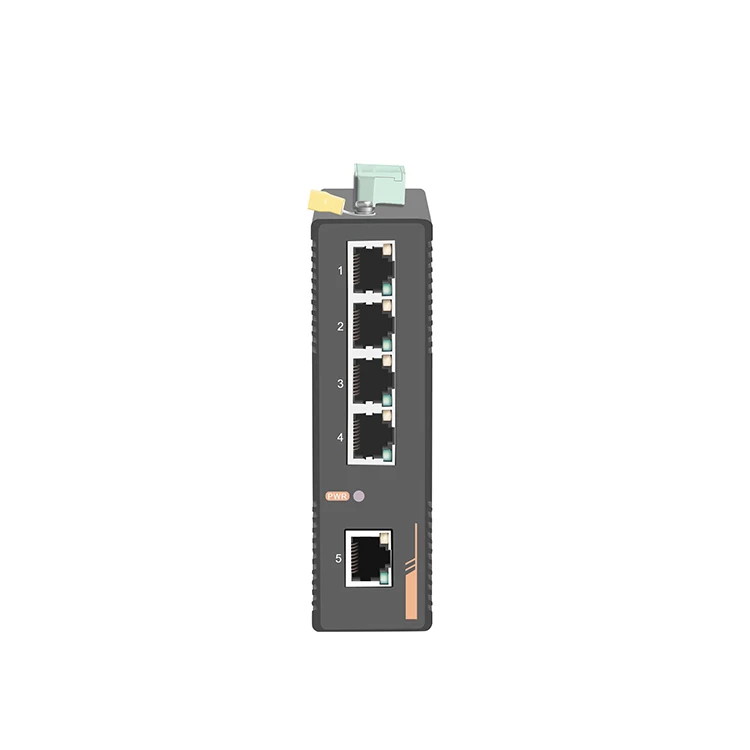

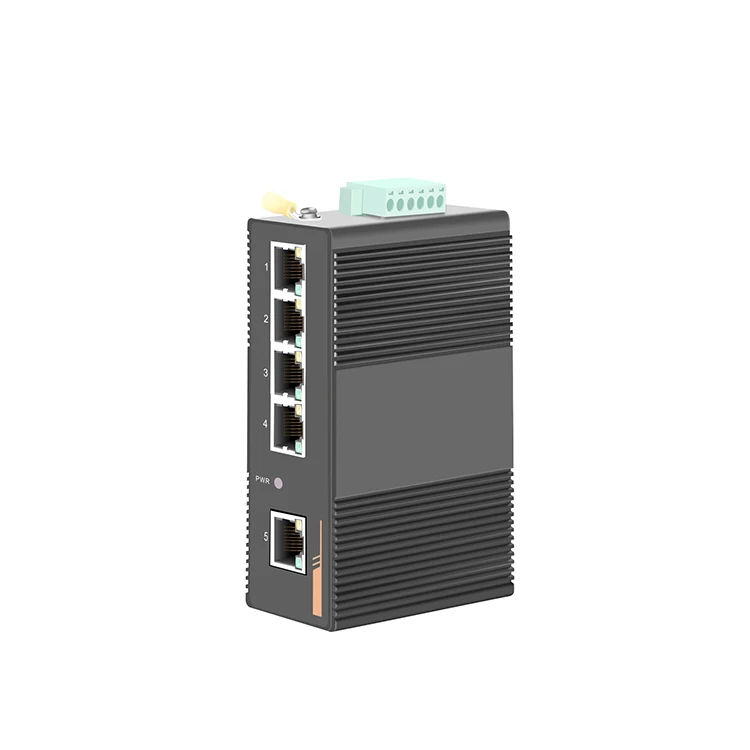

12V 24V 48VDC 5 port 100base industrial grade din rail industrial ethernet switch 100m 5 ports
12V 24V 48VDC 5 port 100base industrial grade din rail industrial ethernet switch 100m 5 ports
12V 24V 48VDC 5 port 100base industrial grade din rail industrial ethernet switch 100m 5 ports
12V 24V 48VDC 5 port 100base industrial grade din rail industrial ethernet switch 100m 5 ports
12V 24V 48VDC 5 port 100base industrial grade din rail industrial ethernet switch 100m 5 ports
12V 24V 48VDC 5 port 100base industrial grade din rail industrial ethernet switch 100m 5 ports
12V 24V 48VDC 5 port 100base industrial grade din rail industrial ethernet switch 100m 5 ports

12V 24V 48VDC 5 port 100base industrial grade din rail industrial ethernet switch 100m 5 ports

Share on (1600577133178):


Price:$26.00 - $30.00

Quantity:


Product Overview

Description



Product Description


Industrial Grade Ethernet Network Switch 12vdc /24vdc /48vdc input
5 port fast ethernet switch 10/100Base ,
IP40,
Dual power input 12vdc, 24vdc, 48vdc,
Din rail stallation ,
Working temperature : -40 to +85
OEM/ODM : support ,
MOQ: 1pieces

Contact details :
Jacky Zhang / General manager
Shenzhen Xunwei Communication Technology Co.,Ltd.
Tel/ WhatsApp : +86 13530642251
Skype : jacky110922@163.com




Specification


Model
XW-IES05F
Product Name
5 port industrial ethernet switch
PoE power
each port 15W/25W/30W
Uplink Ports
1 port LAN 100Mbps
Ethernet
10/100Mbps
Input Voltage
DC 12~57V
Device Performance
Surge 6KV, ESD 15KV
PoE Standard
IEEE802.3af/IEEE802.3at
Throughput
14.88Mpps
Packet Buffer
2M
MAC Address
4K
Jumbo Frame
4096bytes
Fiber Media
Multi-mode: 2km; Single-mode: 20/40/60/80KM
Transfer Mode
Store and forward
MTBF
100,000 hours
Protection
Lightening protection, IP40 protection
Power Supply
Input Voltage: DC12-57V /Terminal block
Shell
IP40 protect grade, metal shell
Installation
DIN-Rail or Wall mounts
Warranty
5 years
Network Protocols
IEEE802.3
IEEE802.3i
IEEE802.3u
IEEE802.3ab
IEEE802.3z
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Working Environment
Working temperature: -40~75℃ ;
Storage temperature: -40~85℃
Relative Humidity: 5%~95 %( no condensation)
Weight & Size
Product size (L×W×H): 118mm× 86mm× 39mm
N.W: 0.3kg
G.W: 0.4kg
