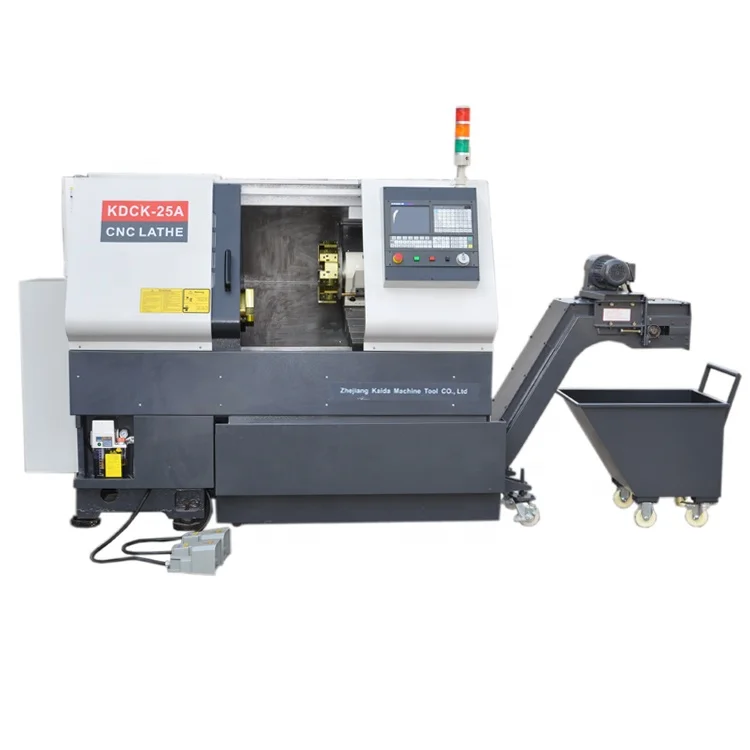

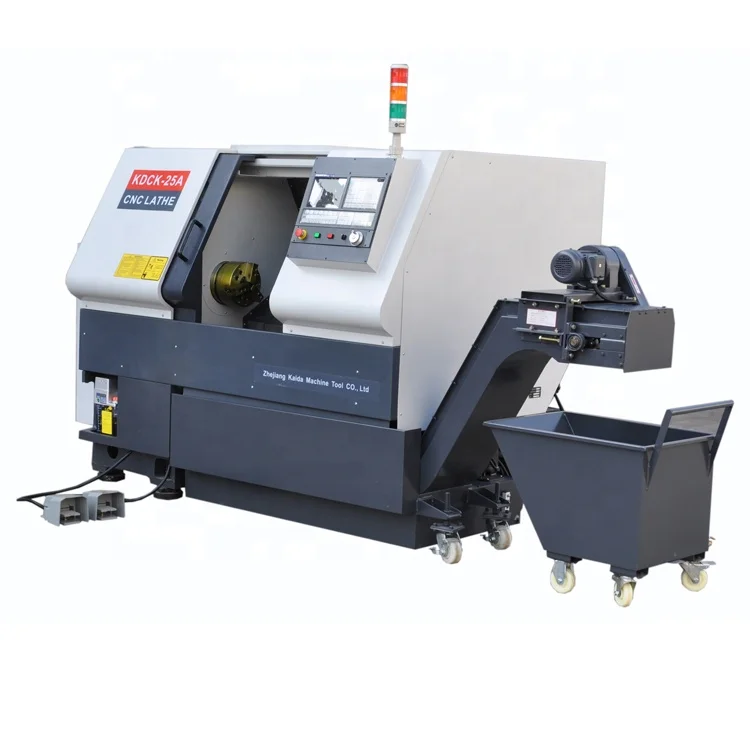

KD KDCK 25 cnc lathe slant turret station 12 barfeeder cnc lathe machine laser tornos cnc machine
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (1600577381785):
Product Overview
Description
FEATURES AT A GLANCE
Product Features
1. Aseismatic capability, high strength and good quality cast iron.
2. Main motor and spindle driven through wide-angle belt.
3. Taiwan high precision linear guide ways.
4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
5. Adopting Japan NSK special screws angular contact ball bearing group.
PRODUCT SPECIFICATIONS
MODELS | KDCK-25 |
CAPACITY | |
Max. swing over bed | Ф500mm |
Max. cutting diameter for disc parts | Ф300mm |
Max. cutting diameter for axle parts | Ф250mm |
Max. length of workpiece | 420mm |
TRAVEL | |
Max. cross travel(X) | 180mm |
Max. longitudinal travel(Z) | 500mm |
FEED | |
Rapid feed for axis X | 12m/min |
Rapid feed for axis Z | 20m/min |
SPINDLE | |
Max. speed of spindle | 3000rpm |
Spindle nose | Ф170mm/ A2-6mm |
Spindle bore | Ф63mm |
Type of spindle motor | Variable frequency |
Spindle motor power | 7.5/11kw |
Hydraulic chuck | 8″ |
TOOL POST | |
Tool number | 8 |
Outside diameter of cutting tool shank | 25×25mm |
Inner dia. of cutting tool shank | Ф40mm |
TAILSTOCK | |
Tailstock sleeve dia. | Ф63mm |
Tailstock sleeve travel | 115mm |
Taper hole of tailstock quill | M.T.No.4 |
OTHERS | |
Repeatability | ≤0.006mm |
Min. input | 0.001mm |
Bed structure | 30° slant bed (two pieces of bed stand) |
Overall dimensions(L×W×H) | 1950×1650×1680mm |
Net weight | 3400kg |
PRODUCT CONFIGURATION

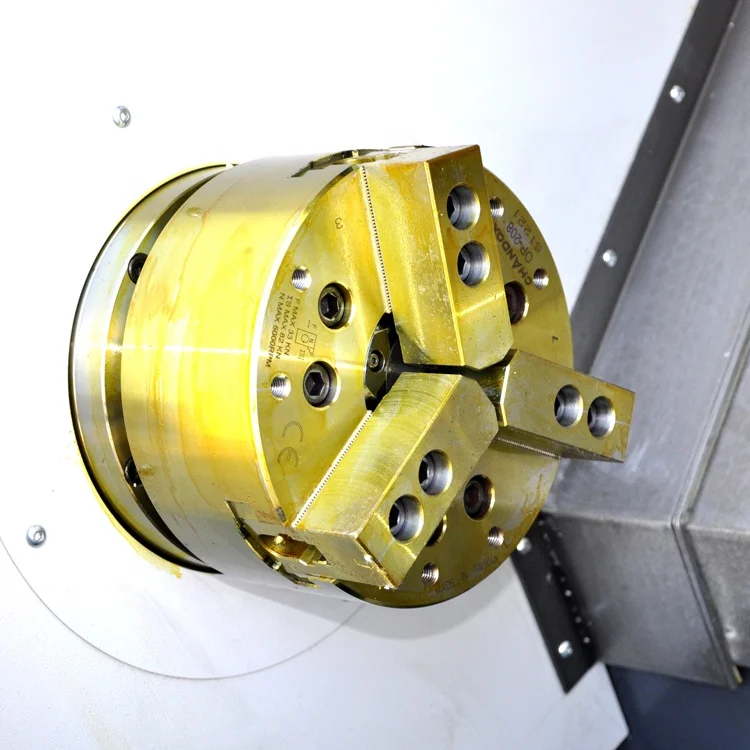

Taiwan 3-jaw hydraulic chuck

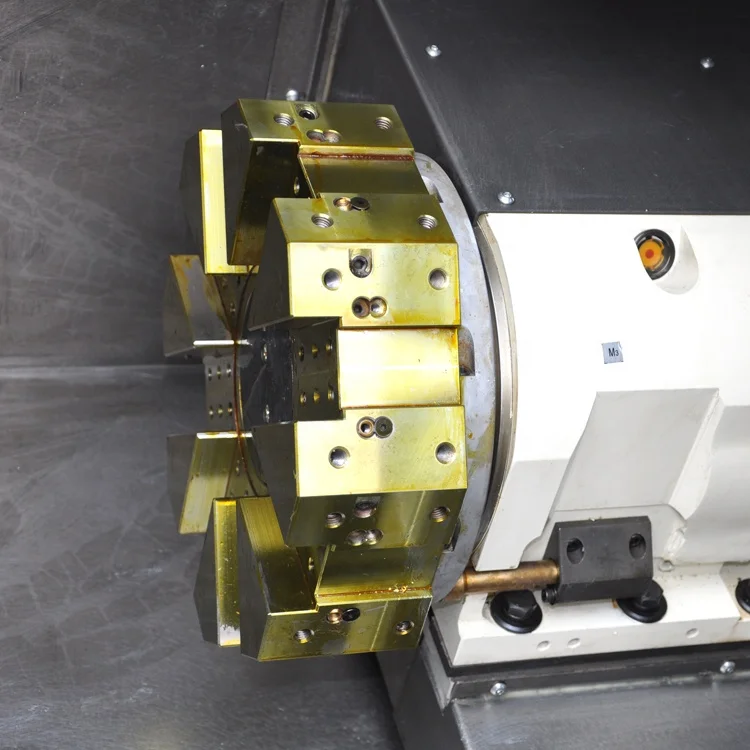

Taiwan hydraulic turret.
Hydraulic tailstock or programmable tailstock is optional.
Taiwan P-grade high precision linear guide ways.
Taiwan C3 grade precision ball screws.
FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are optional.
Auto bar feeder is optional
Parts catcher is optional.
Renishaw tool pre-setter is optional
