Load 2 tons differential drive wheel TZCS 750 30 with absolute position detection for agv
- Category: >>>
- Supplier: Zhejiang Tongzhu Technology Co. Ltd.
Share on (1600577427942):
Product Overview
Description
Product Overview

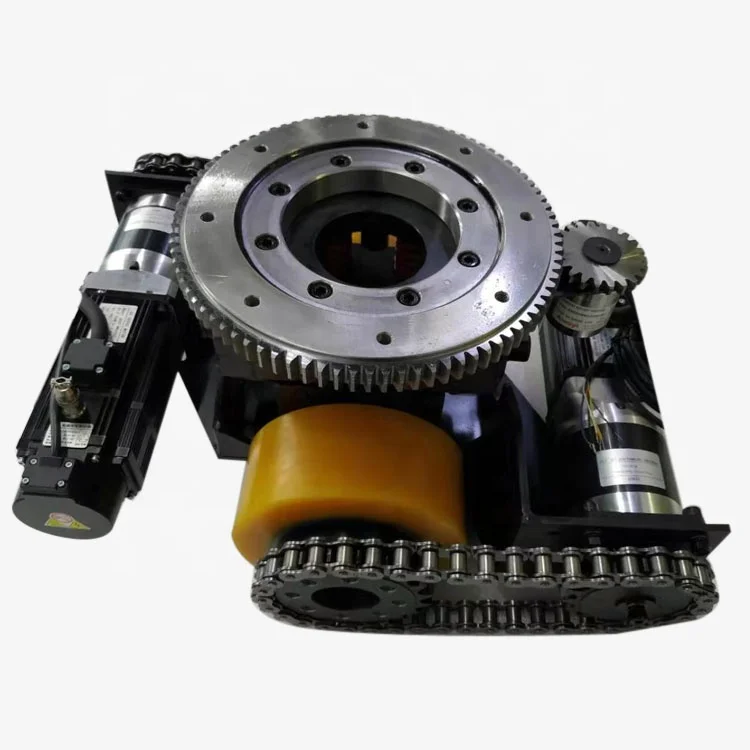

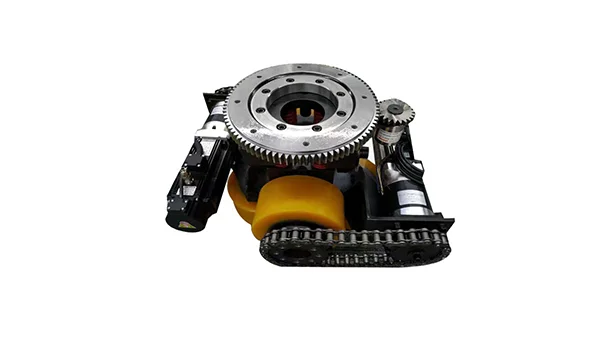

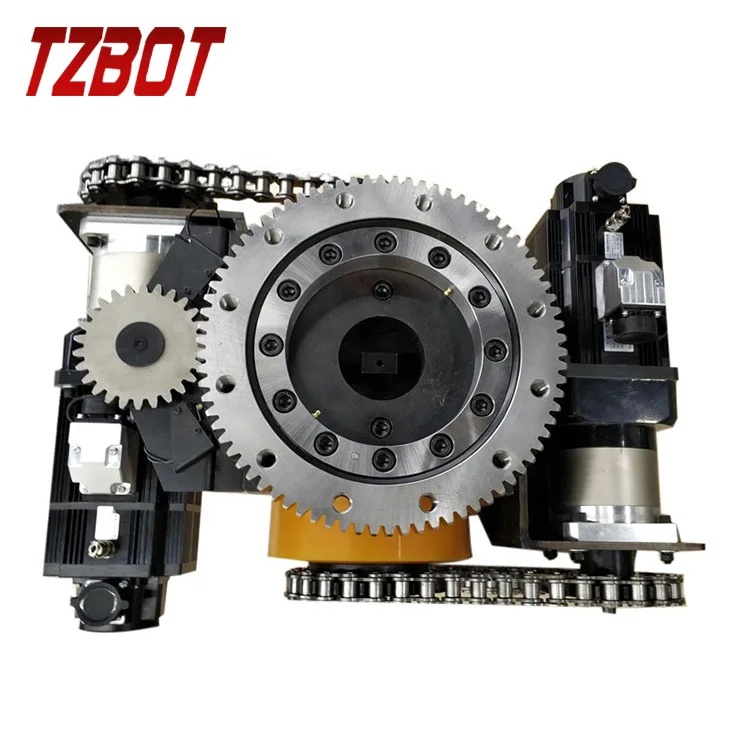

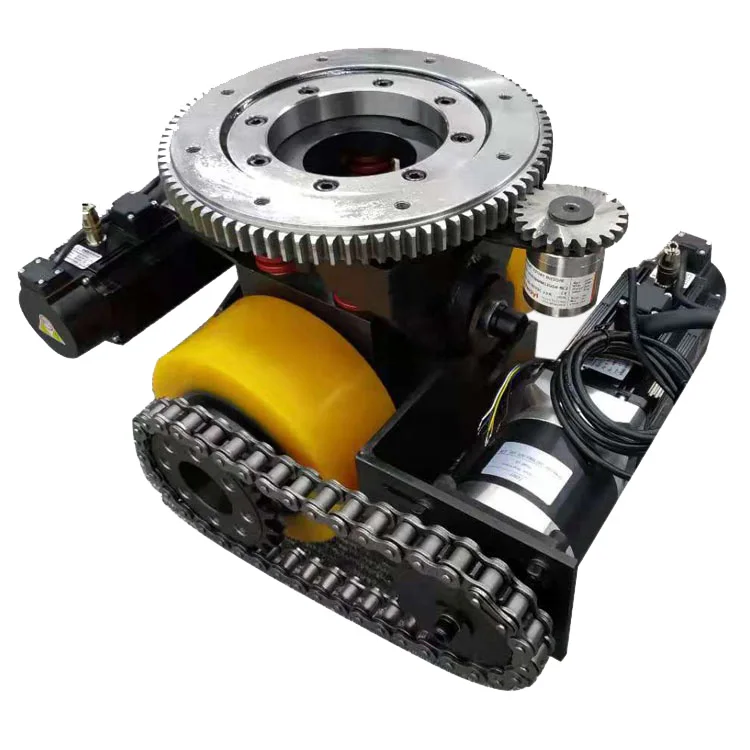

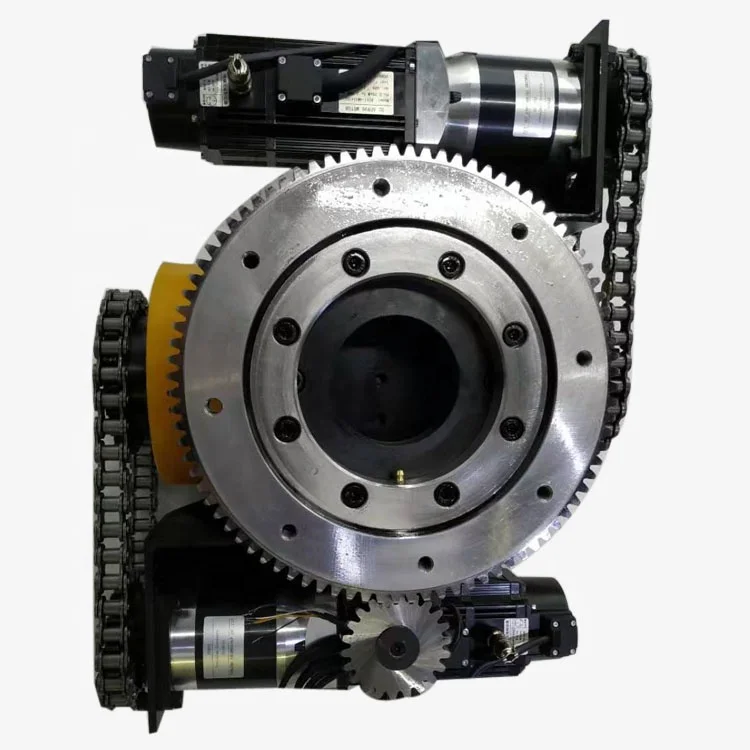

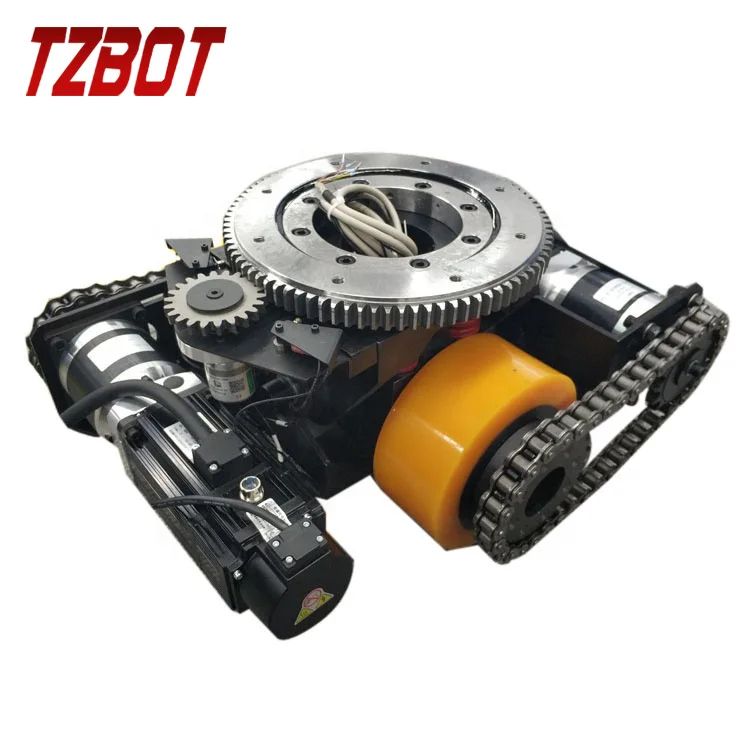

TZCS-750-30 Heavy Load Diffierential Drive Wheel
The maximum load of this product is 3 tons, it can be used in heavy load application such as parking AGV etc.
PRODUCT SPECIFICATIONS
Item | Data |
Motor type | Servo |
Power | 750W |
Rated voltage | 48VDC |
Rated speed | 3000rpm |
Rated torque | 2.39Nm |
Max drive speed | 1.47m/s |
Gear Ratio | 30i |
Max wheel load | 2000kg |
Wheel diameter | 150mm |
Rated current | 22A |

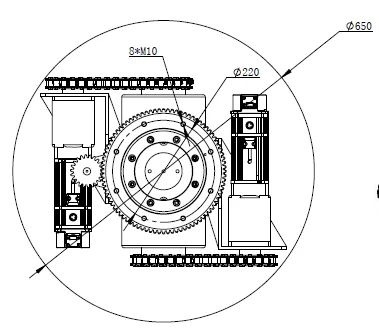

Dimension
Advantages
Strong ground adaptability
With suspension
for shock absorption
High precision servo control
Precise angle control
(absolute position detection)

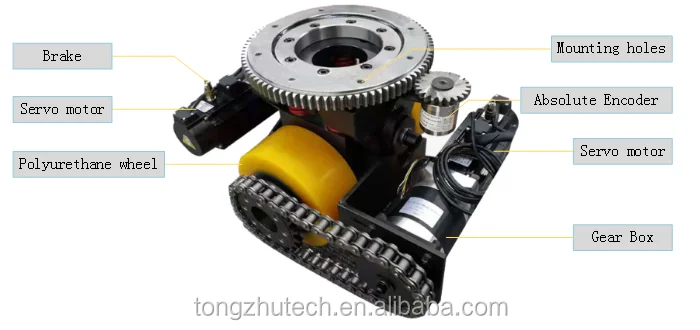

Structure Diagram
SIMILAR PRODUCTS
TZCS-2000-50
Our latest design
The load capacity can reach to 4 tons
Company Profile
Zhejiang Tongzhu Technology Co., Ltd founded 2015, in ZHEJIANG designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, reducer, controller, caster wheel, gear, Pu wheel, motor in wheel units and all over the world.
TZBOT continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.
The factory, is 1000 sq. feet, and employs 50 people. The company is certified to ISO9001:2015.
The core to TZBOT's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. TZBOT has come to be recognized as one of the biggest suppliers of electric drive.
Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.
Today, TZBOT can quickly design and produce engines and special parts request from customers.
TZBOT's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.
