Sublimation Transfer Paper Coating Machine
- Category: >>>
- Supplier: Taicang Yuyu Plastic Products Co. Ltd.
Share on (1600577468386):
Product Overview
Description

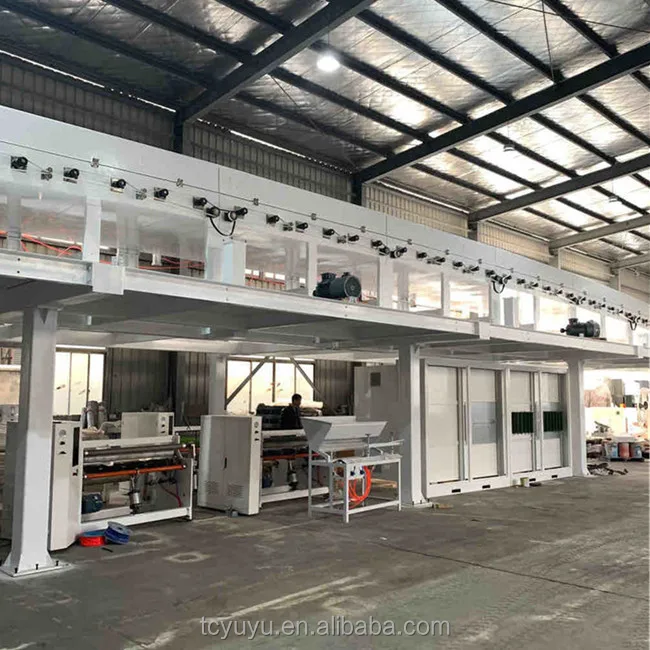

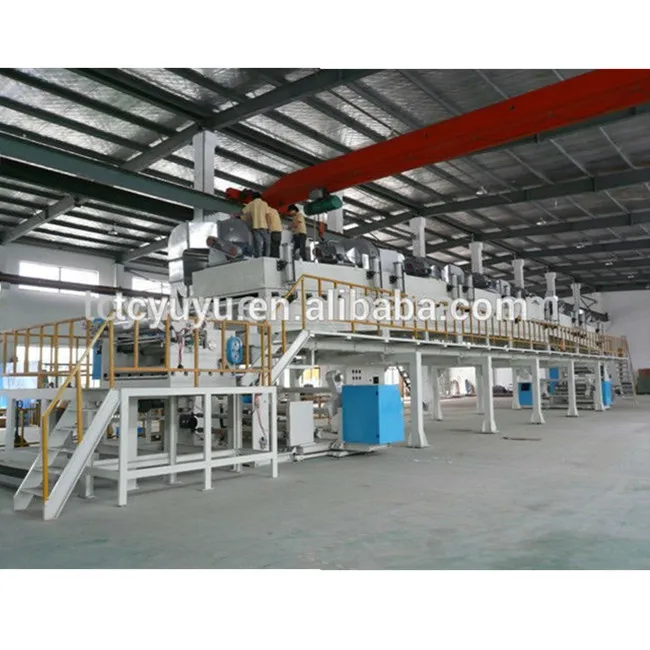

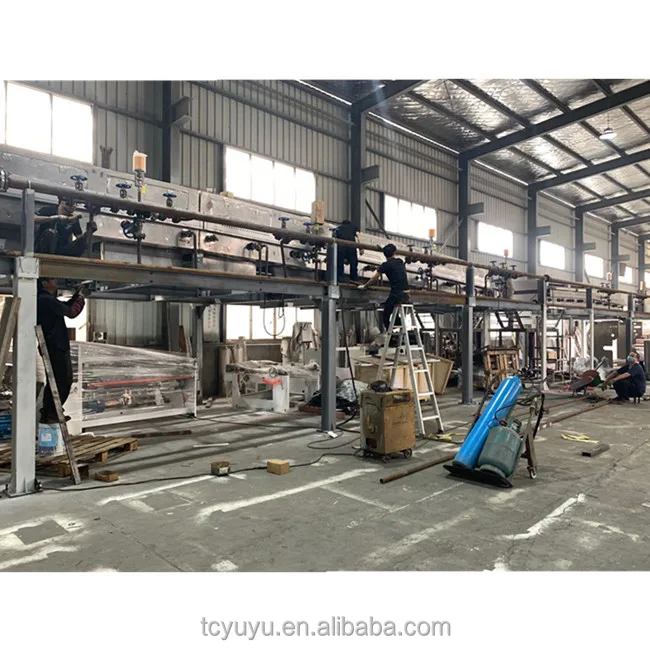

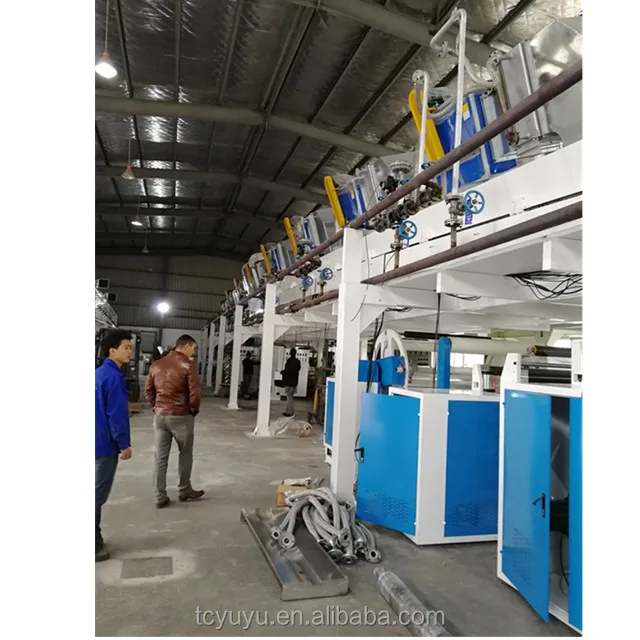

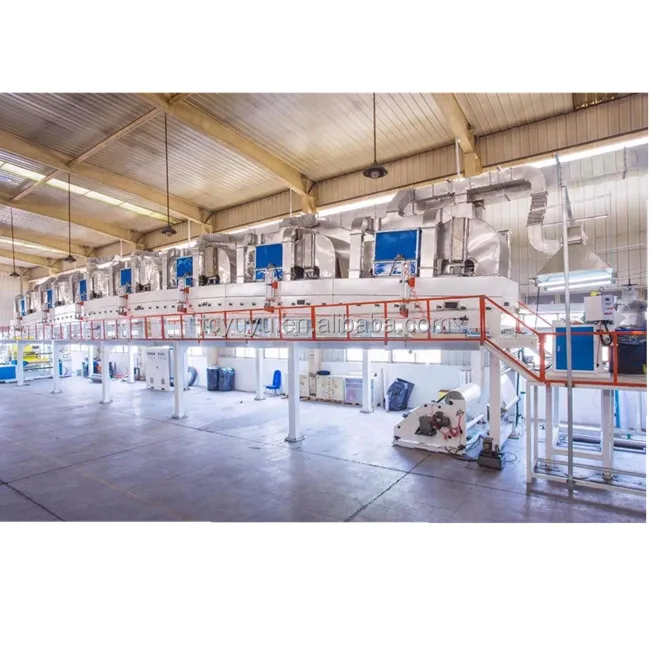

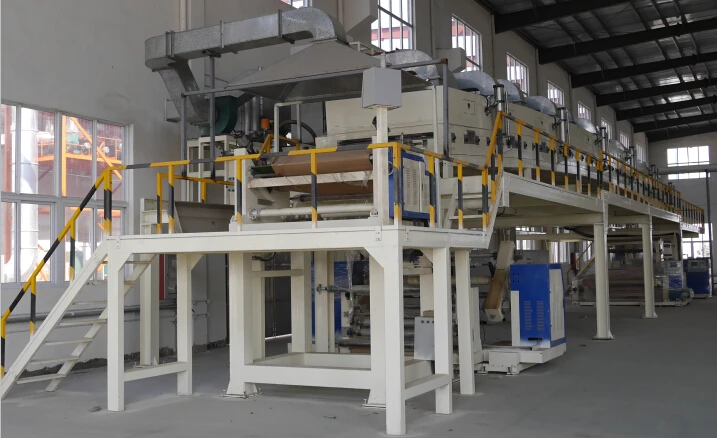

Sublimation Transfer Paper Coating Machine
I. Main Application Sublimation Transfer Paper Coating Machine :
1.1 Used to produce sublimation heat transfer paper;
1.2 Suitable material:
1.2.1 Paper: 60-120g/m2;
1.2.2 Adhesive: Water base glue;
1.2.3 Solid content of adhesive:.
II. MAIN FUNCTION AND CHARACTERS OF COATING LINE
2.1 Unwinding unit: It adopts Constant tension and Automatic Edge control system to keep the film in stable tension and reliable operation;
2.2 Electrostatic eliminator: It adopts electrostatic eliminator before coating in order to eliminate the electrostatic and height the coating quality;
2.3 Coating technology: It adopts accurate comma roller coater with advanced scraper servo position control system to fulfill coating evenly;
2.4 Heating ovens: They adopt electric proportional control valves to guarantee the accuracy of the temperature control; they adopts half open structures which is convenient for cleaning and film traversing;
2.5 Rewinding unit: It adopts single-position constant tension winding to keep the tension balance;
2.6 Transmission rollers: They are all by dynamic balance processing to guarantee the flexible operation and prevent the film scratches.
III. COATING TECHNOLOGY
Unwinding→Coating→Drying→Soaking→Cooling→Winding
Technical parameters Sublimation Transfer Paper Coating Machine:
Basis weight of base paper: 60-120gsm
The moisture of the base paper: 4-7%
The machine deckle: 500-1800mm
The dynamic balance speed: 50-150m/min
The working speed: 150-250m/min
Coating system: comma blade coating and air knife coating
Unwinder & winder: auto splicing
Drying system: steam or gas burnning
Tension control: high precision DFE loadcell control
Electrical control system: Siemens PLC system
The steam pressure required: 0.8-1.0Mpa
Power supply: 3phase*380V/50Hz
Control voltage: 220V/50Hz & 24 VDC
Compressed air required: 0.6MPa, Dewatered with filtration treatment
You can also contact us directly:
Ms Anna
Tel/wechat/WhatsApp:+008613902480274

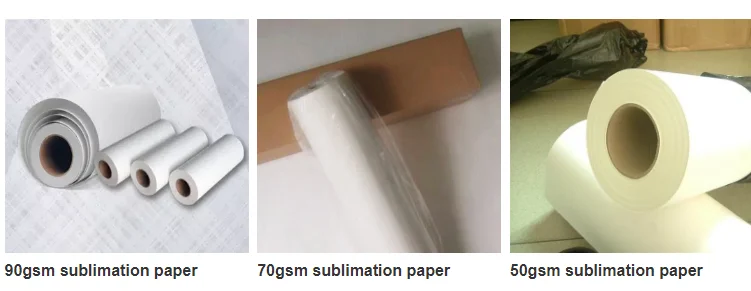

Final Product sublimation paper :
Our Services
| 1 | Reasonable suggestions for selection of equipment. |
| 2 | Provide detailed description and assembly drawing , to make you more aware of the device's ability to work. |
| 3 | Engineers on-site equipment installation and commissioning. |
| 4 | Train and teach your worker to operate the paper machine. |
| 5 | Professional technical guidance and technical support during your production, make sure the device's work properly and production. |
| 6 | Equipment modification and updating. |
| 7 | We will testing installation machine in the factory workshop , to ensure safety and quality. |
| 8 | Supply Carbonless paper and Paper coating chemicals ,formulation ,technology and other suggestion to customers. |
| 9 | After-sales service for one year: equipment maintenance guidance. |
Packaging & Shipping
Packaging Type: Case, Film
Packaging Material:Wood , Plastic
Shipping Port : NormallyShanghai Port Also Can According To Your Demands
Company Information
Yu Yu Plastic Co., Ltd is located in China Tape Technology Industry Park, Taicang City, Jiangsu Provience where is near to Shanghai City .The company is a professional manufacture of adhensive tape device after the Steel Machinery. We provide professional technology, perfect service,so that every customer can feel free to buy and feel comfortable to use.
The company is a research and development, design, production, sale , trade in one large multi-functional integrated modern enterprise, which specializing in automatic rewinding machine,slitting machine,cutting machine,manufacturing machines for tape.
With a coating machine,slitting machine,cutting machine prototype,ready and waiting for your visit.Customers are free to choose the style,working site to customize and have a train operation for you. Zhao Manjun, the general manager has the experience for many years to solve your questions on technology,production and operation in 24 hours.ordinary bopp adhesive tape coating machine
