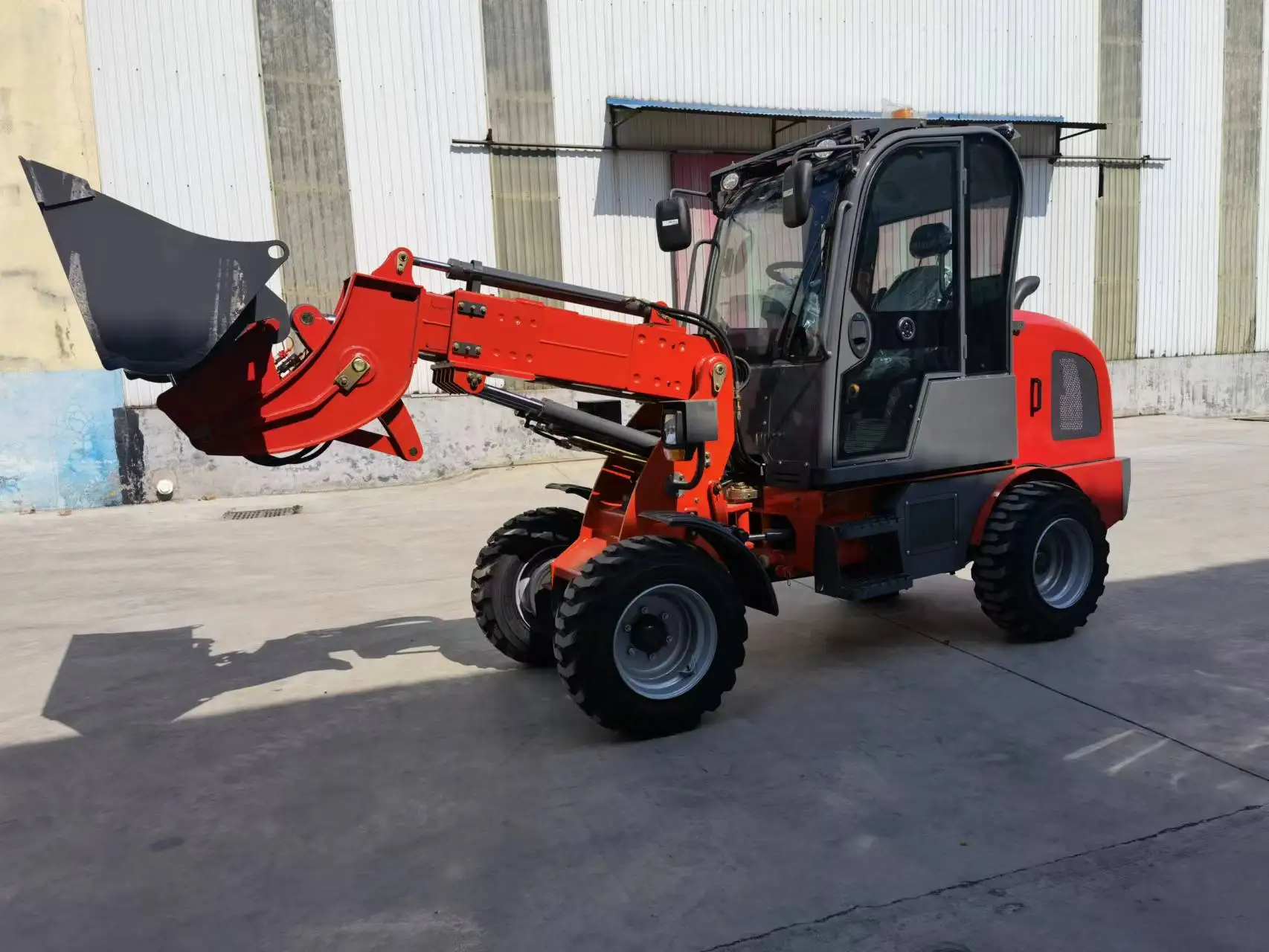

HZM810BT small Telescopic loader 1ton with euro5 engine

Specification

Overall weight(kg)

2800

L×W×H(mm)

4610X1270X2450mm

Rated bucket capacity(m³)

0.4-0.5

Rated load(kg)

1000

Maximum dump height (mm)

2180

Pallet fork lift height (mm)

2650

Bucket indicator

Yes

Engine

Model

XINCHAI490/YUNNEI Euro5

Type

Vertical, In-line , Water cooling, four-stroke diesel engine

Rated power(kw)

36.8kw/18.2kw

Rated speed(r/min)

2400

Transmission system

Model of torque converter

YJ240

Gearbox type

Fixed-spindle power shift

Gear shift

2 gears ahead,2 gear astern

Hydraulic system

Working pressure

16Mpa

Boom lifting time

4.8s

Fuel tank capacity

35L

Steering system

Type

hydraulic steering

Min. turning radius(mm)

2750

10-16.5/31X15.5-15
