Price:$19,999.00

Quantity:


Product Overview

Description



Products Description

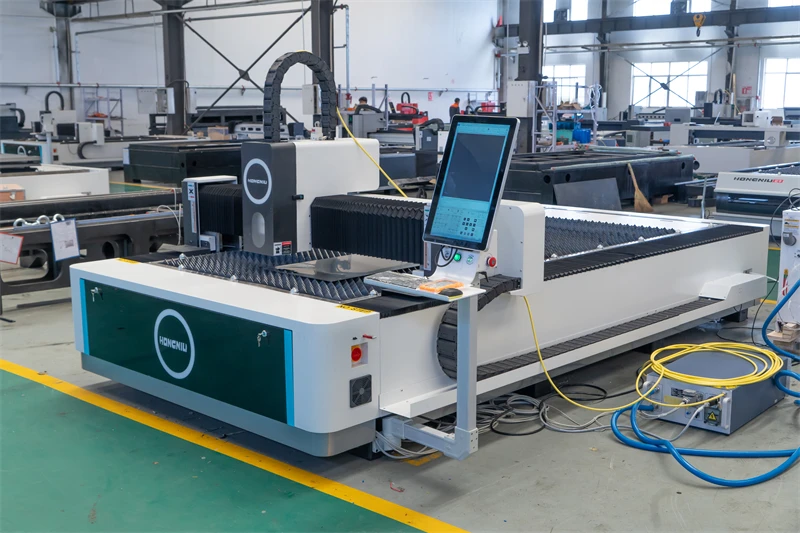

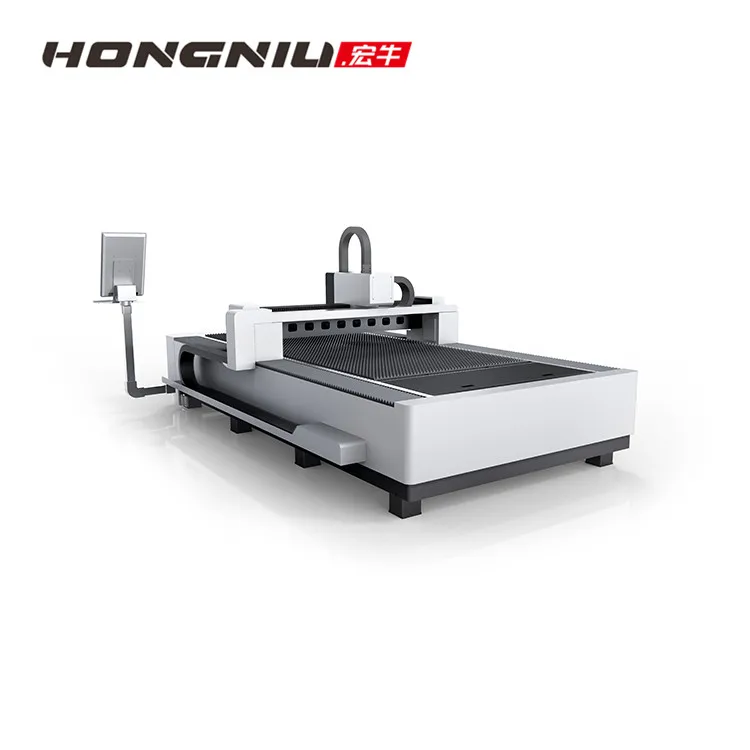

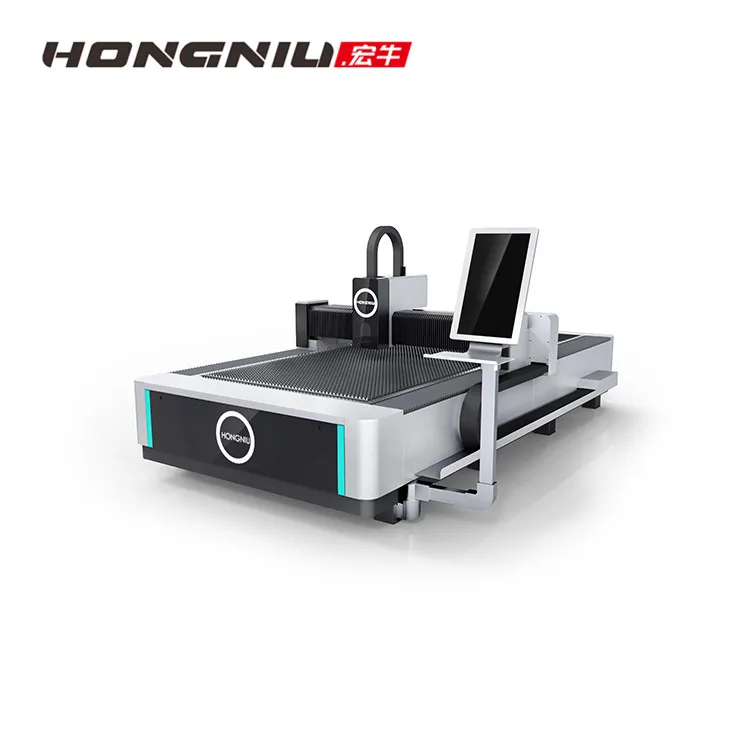

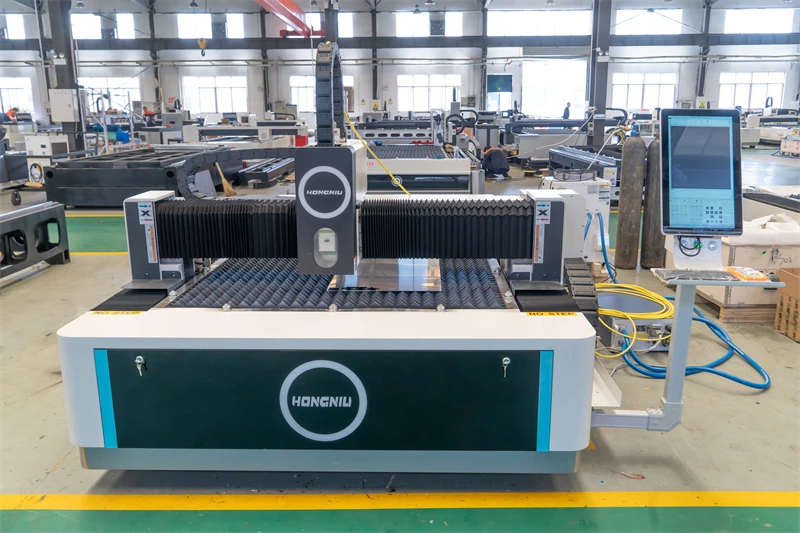

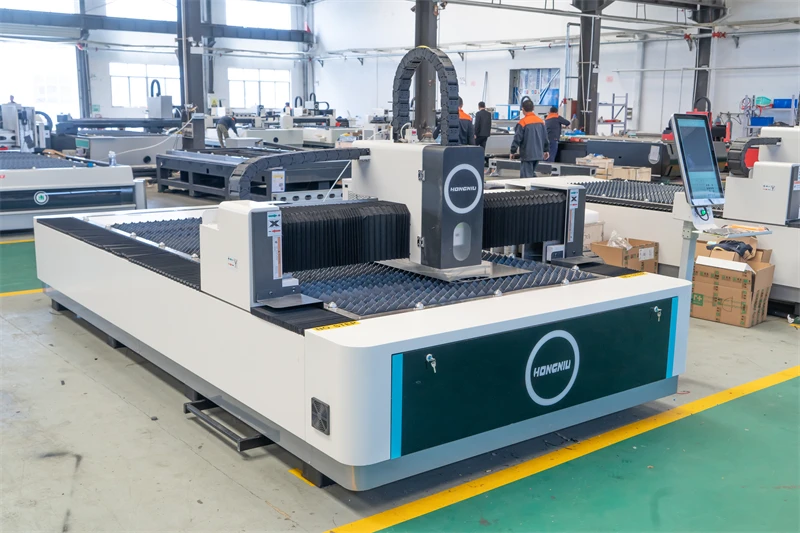

3015F is fast speed mild steel CNC fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool, motion parts, electrical equipment control parts, and other assist parts.

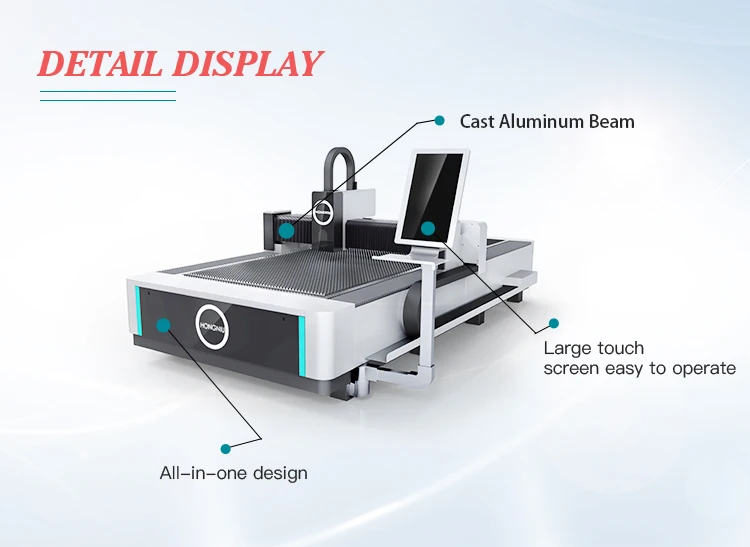

Show details

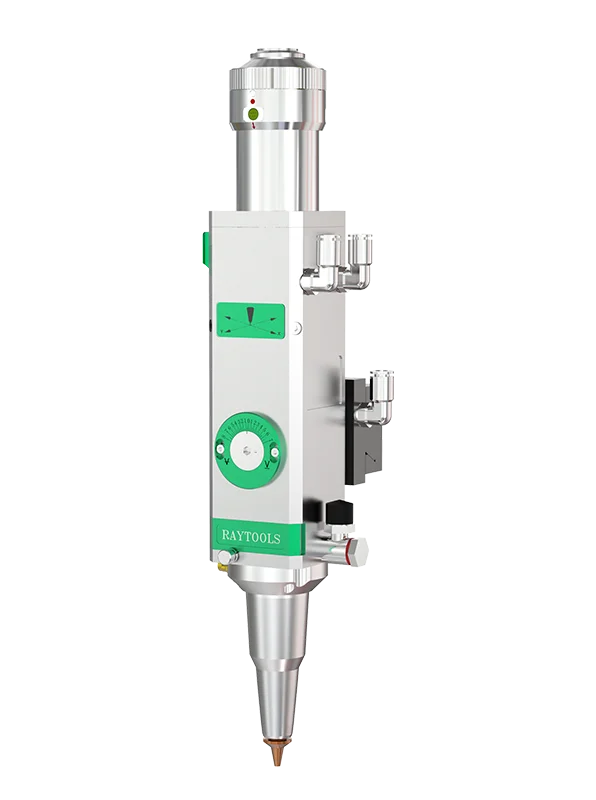

Raytool laser head
Fiber cutting head with Swiss technology and a professional QBH fiber optic output interface for a highly sealed and precise focus calibration. Owing to the excellent performance of high-speed capacitive sensor, the cutting gap can be as short as 0.1mm, which not only improves the cutting performance, but also reduces the gas consumption.


S&A Water Chiller
With excellent quality and leading research retrength, S&A has become a leading enterprise in the China industrial refrigeration industry.
Raycus Laser Source
Raycus/Max/IPG, multiple choice, different brands, different laser power are available. The higher power, the thicker cutting thickness.

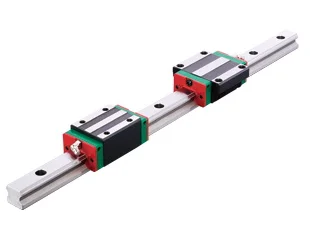

TaiWan HIWIN
HG series linear guide is a four-row single circular arc tooth contact linear guide. At the same time, the integrated and optimized structure design of heavy load precision linear guide improves the load and rigidity capacity compared with other linear
guide. With four-direction load characteristics, and automatic self-aligning function, can absorb the assembly error of mounting surface, high precision requirements.


Product Paramenters


Model
HN6020F
Machine bed
Square tube Welding
Gantry structure
Cast Aluminum
Working area
6000x2000
Table load bearing
2200kg
Machine overall dimensions
7719*2877*1950
Overall weight
3330kg
laser head
Raytools
Laser source
Raycus/IPG
X-axis、Y-axis、Z-axisServo motor and driver
Japan Fuji
Control system
FSCUT1000
Display size
21.5 inches
Max. linkage speed
60m/min
Max. acceleration
0.8G
Positioning accuracy
±0.03mm
Repositioning accuracy
±0.02mm

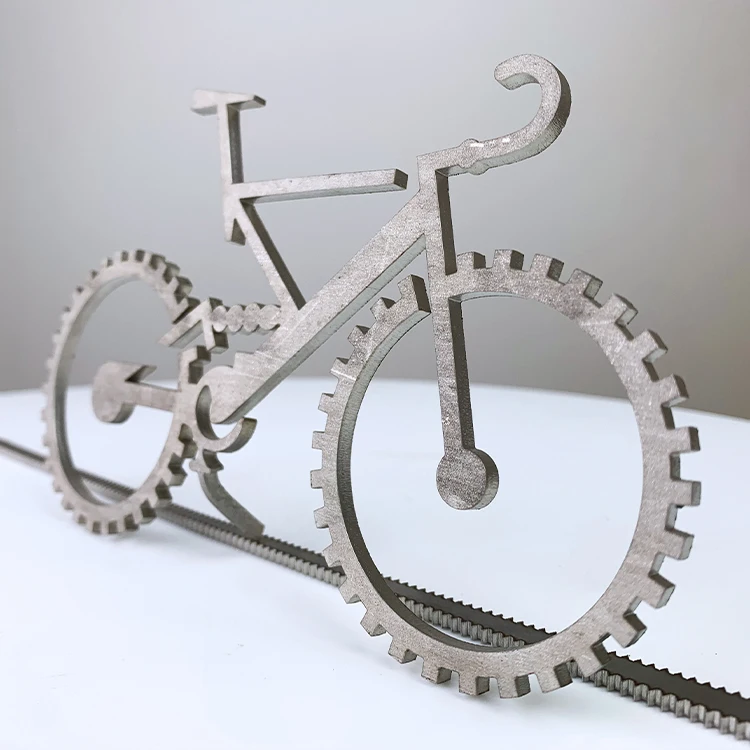

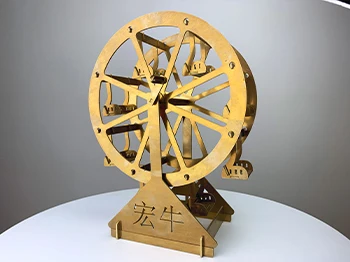

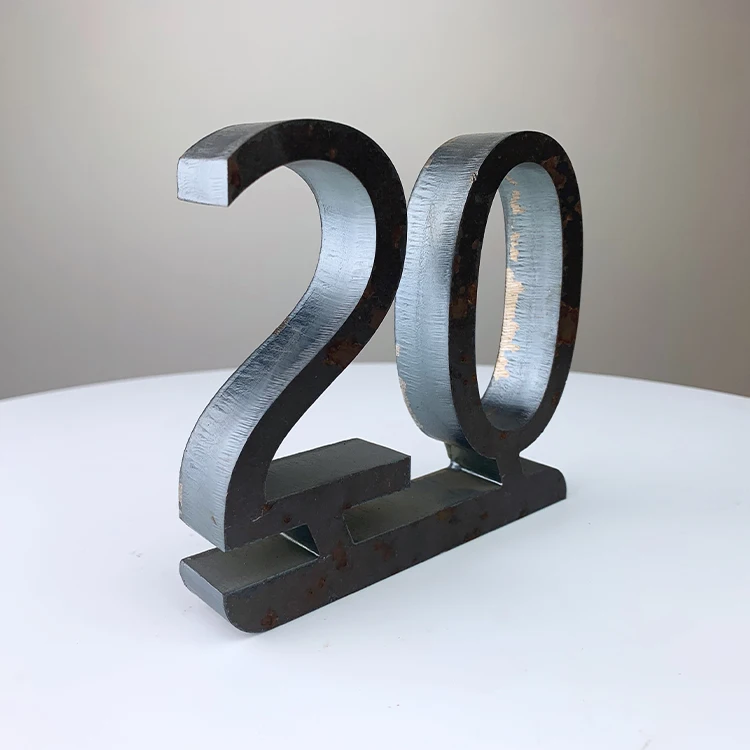

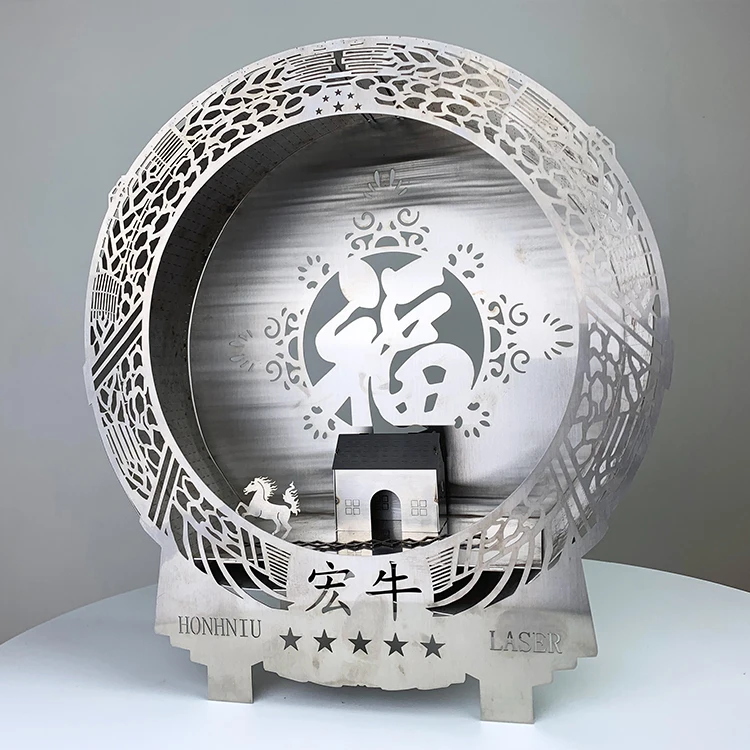

Application




Packaging&Delivery

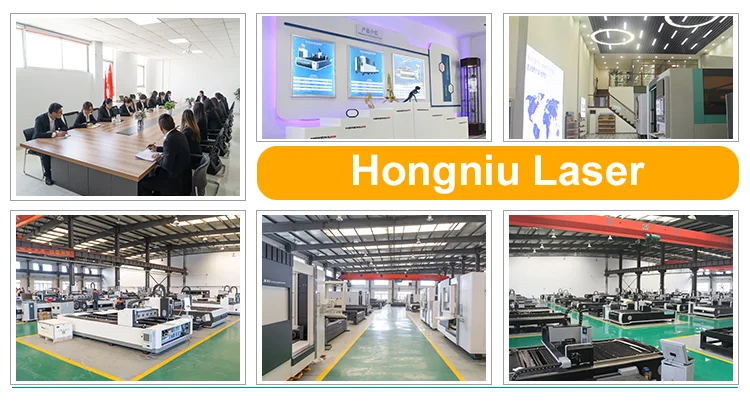

Company Information

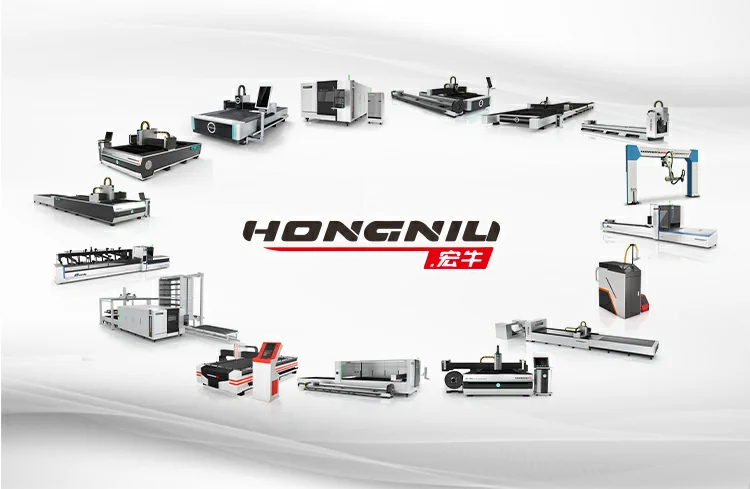

Shandong Hongniu laser Equipment Co., Ltd is specialized in RD, manufacturing and marketing of large scale CNC cutting machines and welding equipment. Our main products include fiber laser cutting machine, CNC plasma cutting machine, gantry plasma cutting machine, CNC punching machine, laser cutting machine, 3D laser cutting machine, 3D welding machine and so on. As a domestic specialized CNC researching company. we dedicated to providing excellent after-sale service, technology-leading and reliable products as well as integrated technology solutions for our business parther.Customers satisfaction is always the exclusive purpose of our service.


Why Choose Us






FAQ


Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.

Q: I don’t know how to use after I receive or I have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.

Q: I don’t know which one is suitable for me ?
A :Just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
