Warranty 3 Years Cycle Life 3000 Times Lifepo4 12v 200ah Battery For Home Appliances
- Category: >>>
- Supplier: Suzhou Ebak Electronics Co. Ltd.
Share on (1600577608584):
Product Overview
Description
Why Choose Us
Products Description
Specification
Specification | ||||||
NO | Item | General Parameter | Remark | |||
1 | Model | SE12F200SP | Single | |||
2 | Casing material for single cell | Nickel plated steel | ||||
3 | Standard capacity(0.2C3A) | 200Ah | ||||
4 | Mininum Capacity(1C3A) | 200Ah | ||||
5 | Rated voltage | 12.8V | 3.20V(Work voltage:3.20V) | |||
6 | Max.Charging voltage | 14.6V | 3.65V(Single Ave. charge Voltage) | |||
7 | Charge Method | CC-CV | ||||
8 | Cut-off voltage | 10.0V | 2.50V(Single Ave. Discharge Voltage) | |||
9 | Standard charge current | 100A | 1C | |||
10 | Charging Time | 5.5h | 0.2C | |||
11 | Max Continuous discharge current | 100A | 1C | |||
12 | Peak discharge current | 300A | 3C 10seconds | |||

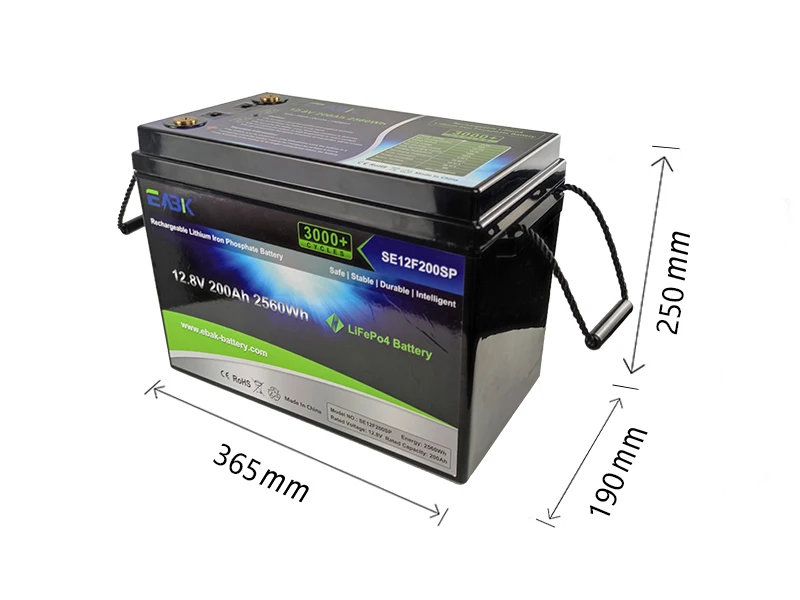

13 | Battery dimension | 365*190*250mm | ||||
14 | (Approx.)Total weight(Approx.) | About 22kg | ||||
15 | (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) | ≤ 45mΩ | ||||
16 | Series Connection | Up to 4 | ||||
17 | Parallel Connection | Up to 4 | ||||

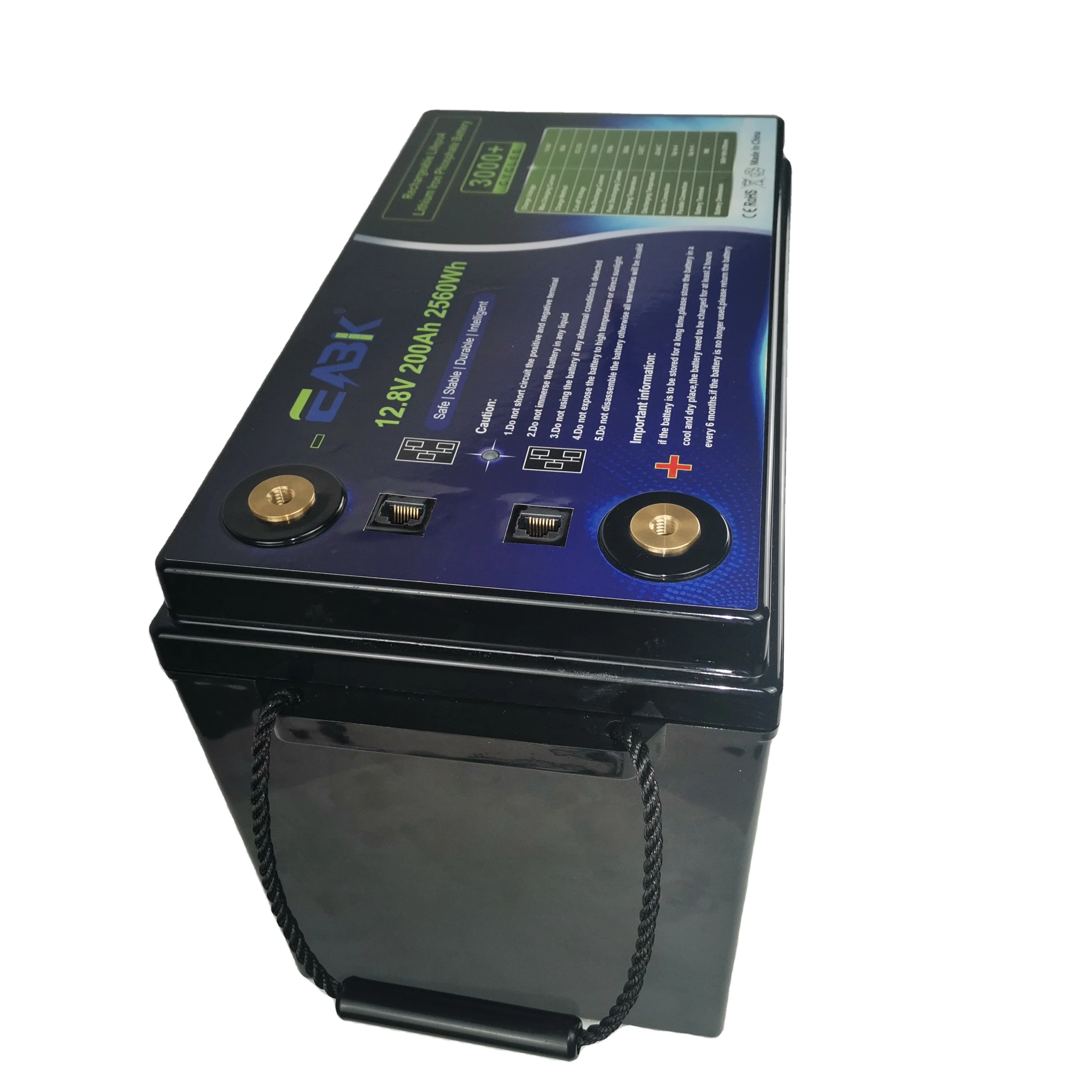

18 | Battery Terminal | M8 | ||||
19 | (CC/CV) Charge method (CC/CV) | Standard | 0℃~55℃ | |||
discharge | -20℃~60℃ | |||||
storage | -20℃~45℃ | |||||
Details Images

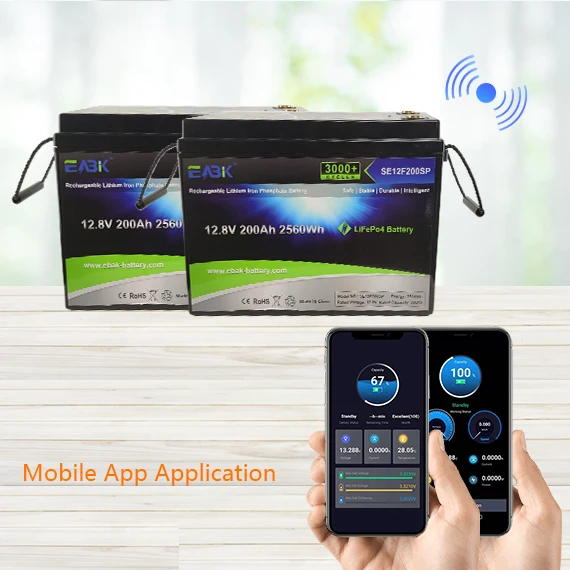

By connecting a Bluetooth or WIFI module, there are a multitude of possibilities for manufacturers and end users. This integration of a Bluetooth or WIFI module in the battery (a key part of a battery-powered application) not only allows access to data and parameters in the battery but also to information in the end application and the charger. The processing of service operations also becomes child’s play.
EBAK developed an app for Android and iPhone mobile phone, with which all relevant information from the battery can be read, displayed and evaluated. As required, access to battery and end device is possible. Using this app, the live data from the battery can also be graphically displayed and logged. The app can be provided with access rights or restrictions. Software can be tailored for your specific application in order to adapt the advantages of the system in devices already available on the market.
Features
1. Lighter in weight, heavier on power

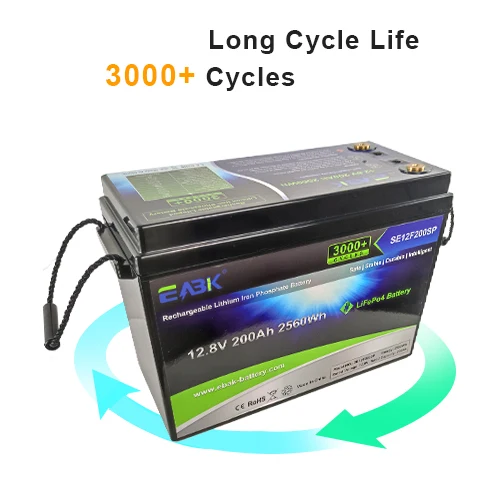

2. Excellent cycle life. More than 3000 cycle times and there is a 3-year warranty
3. Deep cycle. can be discharged to 100% depth of discharge.
4. Maintenance free
5. Safer performance. Our batteries have passed different safety tests.
6. Blue-tooth function and heated function can be added.
Built in BMS overall protection
1. Over-charge protection
2. Over-discharge protection
3. Over-current protection
4. Over-load protection
5. Temperature protection
1. Lighter in weight, heavier on power
2. Excellent cycle life. More than 3000 cycle times and there is a 3-year warranty
3. Deep cycle. can be discharged to 100% depth of discharge.
4. Maintenance free
5. Safer performance. Our batteries have passed different safety tests.
6. Blue-tooth function and heated function can be added.
Built in BMS overall protection
1. Over-charge protection
2. Over-discharge protection
3. Over-current protection
4. Over-load protection
5. Temperature protection
Battery Testing & Quality Control:
Company Profile
Our company was founded in 2012, which focused on the development, manufacturing and marketing of lithium battery. The company address is in jingling Road, Suzhou Industrial Park. It has more than 5000 square meters of factory area. The company is based on advanced enterprise management. Leading production technology and superior quality control level can provide high performance-price ratio solutions for electric power tools, electric bicycle/moped, AGV, electric cars, reserve energy systems, and to provide cost-effective high-end lithium ion battery solutions.
Our company total has 400+ employees now and there are 28R&D engineers, 25quality staff. The key R&D engineers are working in lithium battery field more than 12 years. Our Rich expertise, experience, and producing technology can deliver a higher performance and dependability of batteries you would like.
We have 8 battery pack production lines and annual sales value is around US$20Million-US$80 Million. The annual Pouch Cell Battery
Pack is more than 3,000,000PCS and Cylindrical Cell Battery Pack is around 80,000PCS. The ISO9001 quality management system to ensure each battery has the same good quality.
