PP PE HDPE extrusion line from Chinese manufacturer high quality fully automatic hdpe pe pipe production line
- Category: >>>
- Supplier: Zhangjiagang Horserider Machinery Co. Ltd.
Share on (1600577622338):
Product Overview
Description

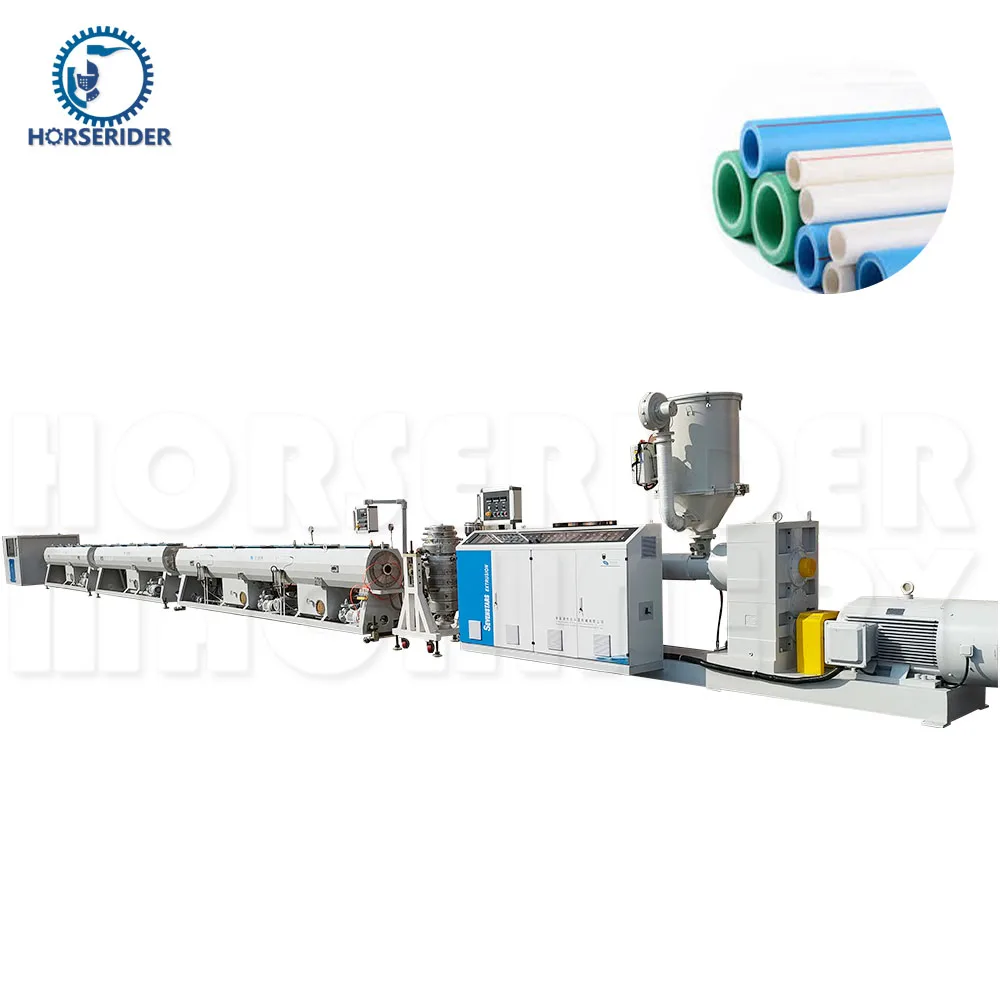

PE/PPR pipe extrusion production line
Application :
This single screw plastic pipe extrusion production line can produce pe/ppr pipes of various diameters and thicknesses,it has advanced plastic extrusion technology and cooling calibration technology. The entire extrusion production line can collocation a PLC control system which interface to achieve the synchronization function and the winding machine.
This single screw plastic pipe extrusion production line can produce pe/ppr pipes of various diameters and thicknesses,it has advanced plastic extrusion technology and cooling calibration technology. The entire extrusion production line can collocation a PLC control system which interface to achieve the synchronization function and the winding machine.
At the same time, we can also have coextrusion machines to produce color coded pipes, double-layer and three-layer pipes. Different customized schemes can meet various needs of customers.
PE/PPR pipe:

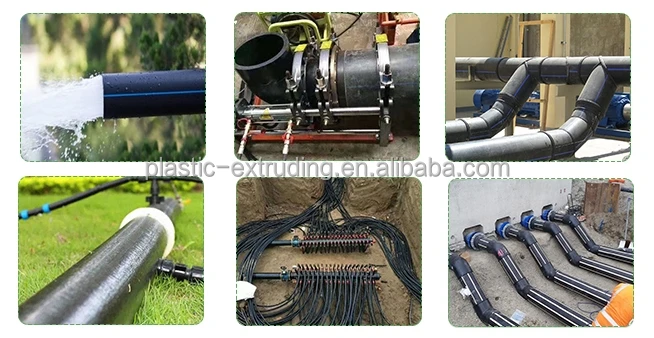

PE pipes are usually use for Urban water supply、Natural gas and gas transmission、Food chemical industry、Ore and slurry transportation、Replacement of cement pipes, cast iron pipes and steel pipe.
PE pipes are usually use for Urban water supply、Natural gas and gas transmission、Food chemical industry、Ore and slurry transportation、Replacement of cement pipes, cast iron pipes and steel pipe.
PPR pipes are widely used in construction, municipal, industrial and agricultural fields such as building water supply and drainage, urban and rural water supply and drainage, urban gas, electric power and optical cable sheath, industrial fluid transmission and agricultural irrigation.
PRODUCT PARAMETERS
Model | Pipe range | Extruder machine | Main Power | Output |
PE-75 | 20-75 | SJ50/38 | AC55 | 200 kg/h |
PE-160 | 20-160 | SJ60/38 | AC75 | 320 kg/h |
PE-200 | 50-200 | SJ65/38 | AC90 | 400kg/h |
PE-315 | 110-315 | SJ75/38 | AC110 | 450kg/h |
PE-450 | 110-450 | SJ90/38 | DC160 | 600kg/h |
PE-630 | 315-630 | SJ120/38 | DC280 | 900kg/h |
PE-1200 | 500-1200 | SJ150/38 | DC400 | 1100kg/h |
Co-extruder | Main Power | Output |
SJ 25/25 | 1.5kw | 5kg/h |
SJ 30/25 | 3kw | 8kg/h |
SJ 45/25 | 7.5kw | 25kg/h |
Production process：
preparation of raw materials → vacuum feeding machine＆hopper dryer→single screw extruder （+co-extruder）→ extrusion die → Vacuum calibration tank→ Cooling tank→printer → haul-off machine→ cutter machine→ winding machine → finished product inspection and packaging.
You can configure and select some other auxiliary machines according to your specific needs.
We will provide customized solutions to every customer.

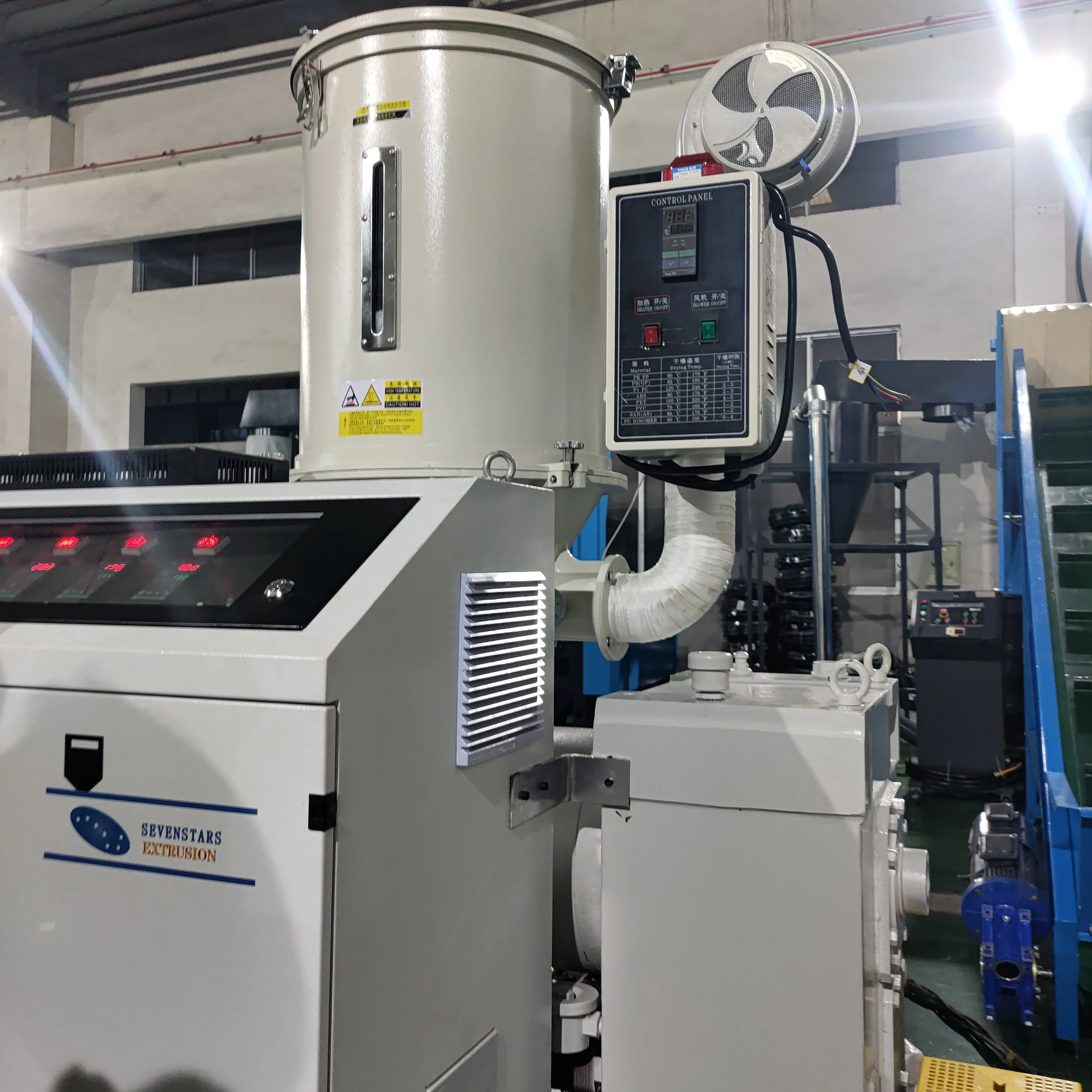

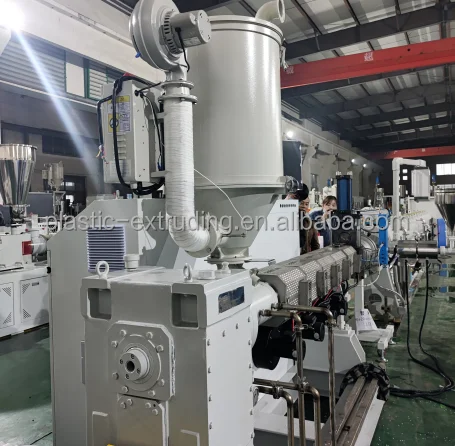

Single screw extruder and feeding
Co-extruder machine

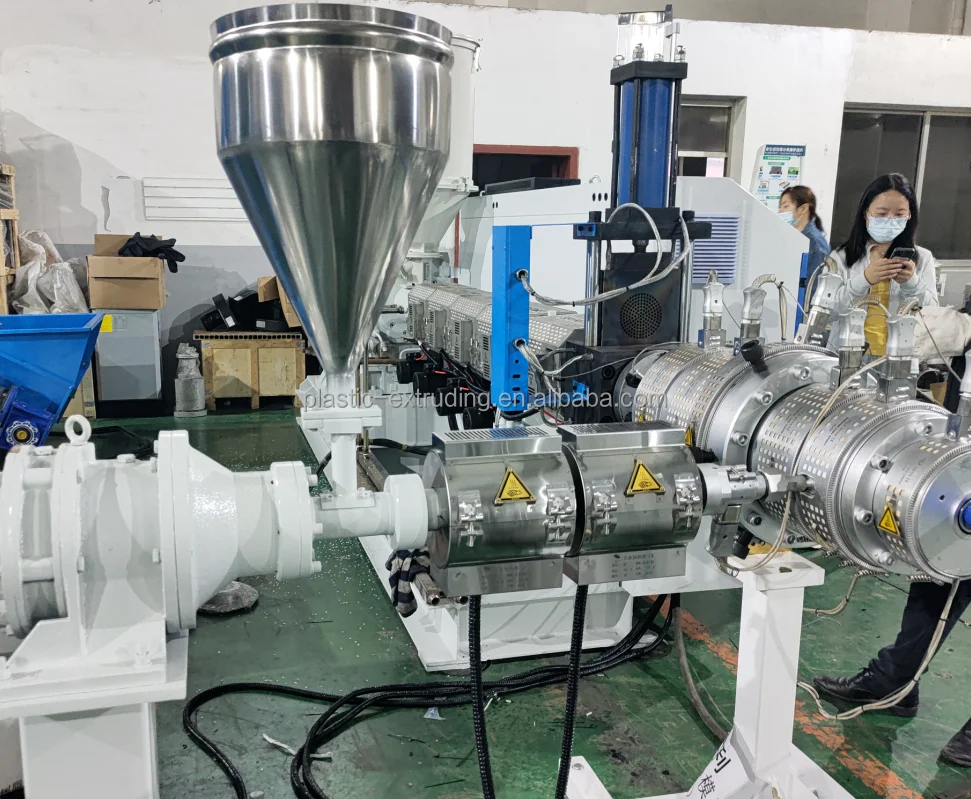

Single screw extruder ＆Co-extruder machine
Mould

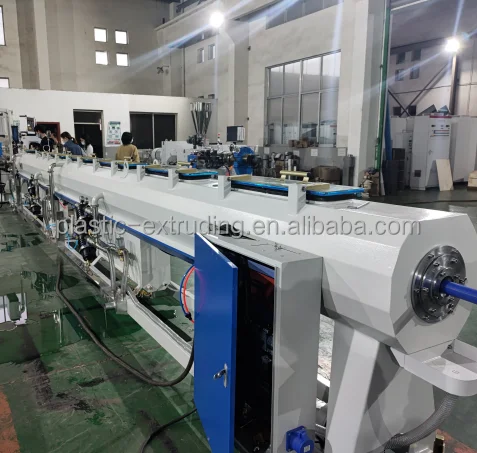

Vacuum calibration tank
Cooling tank
Hauling machine

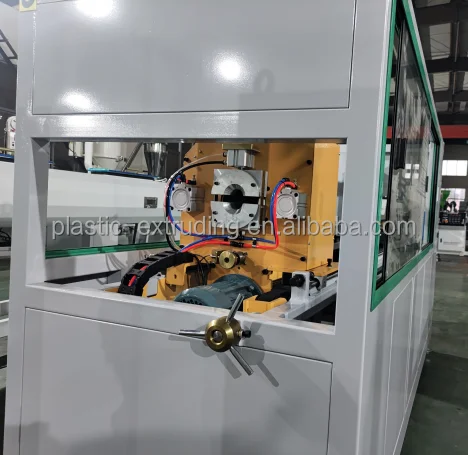

Cutting machine
Winding machine
Final product
