Ltime Wireless Onboard Audio System with USB Charger for bus entertainment tour guide (music /audio/voice) Buspad

Product Overview

Description

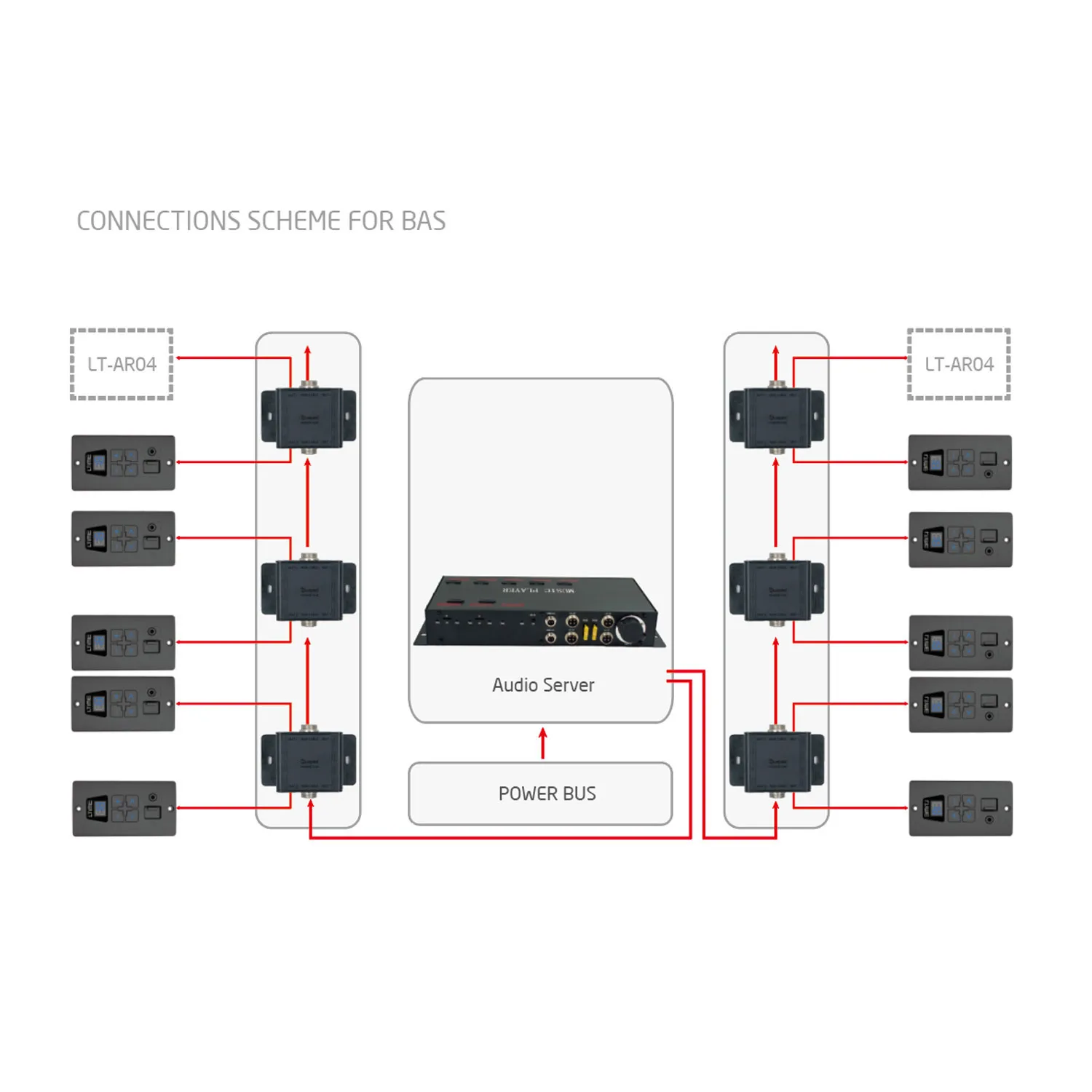

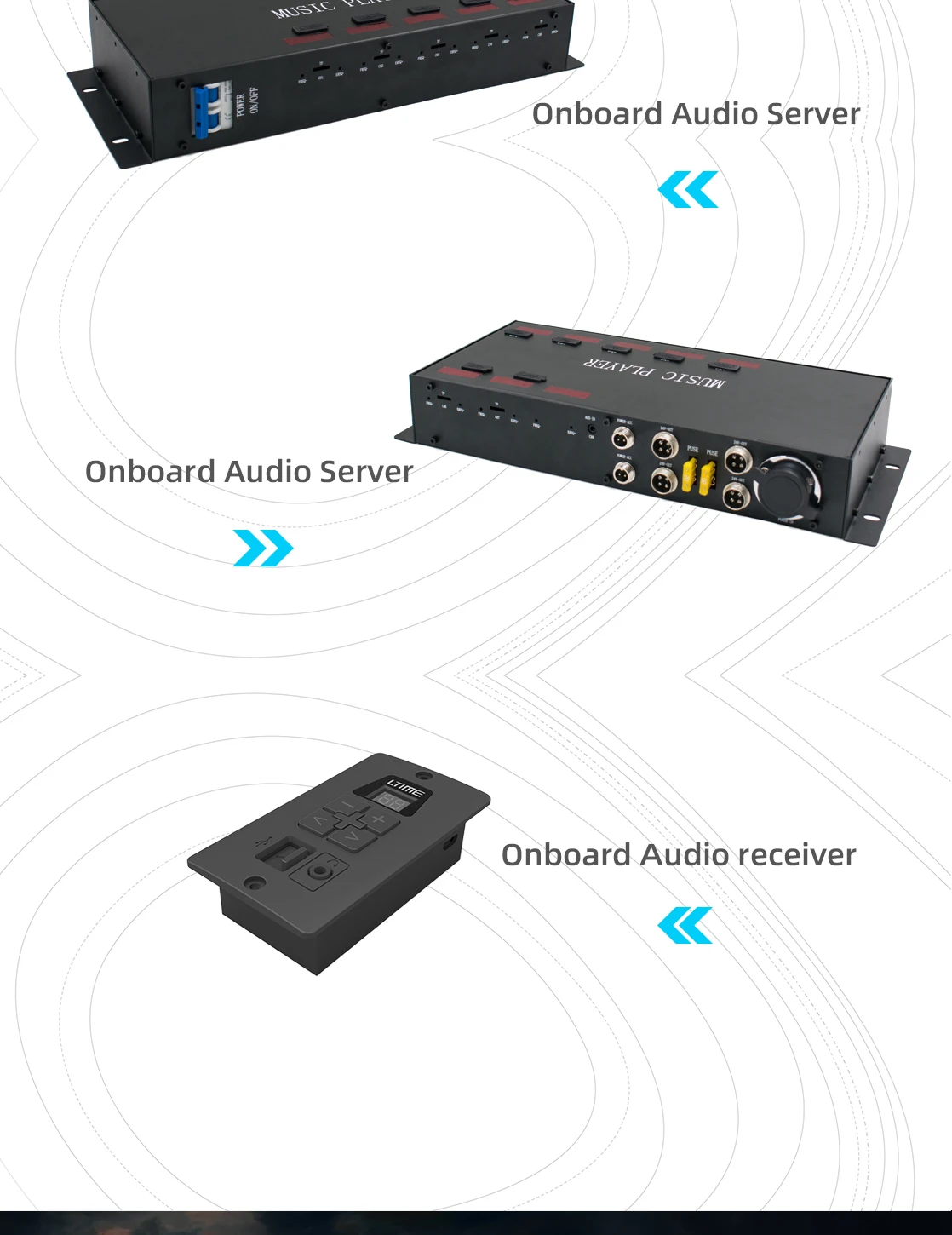

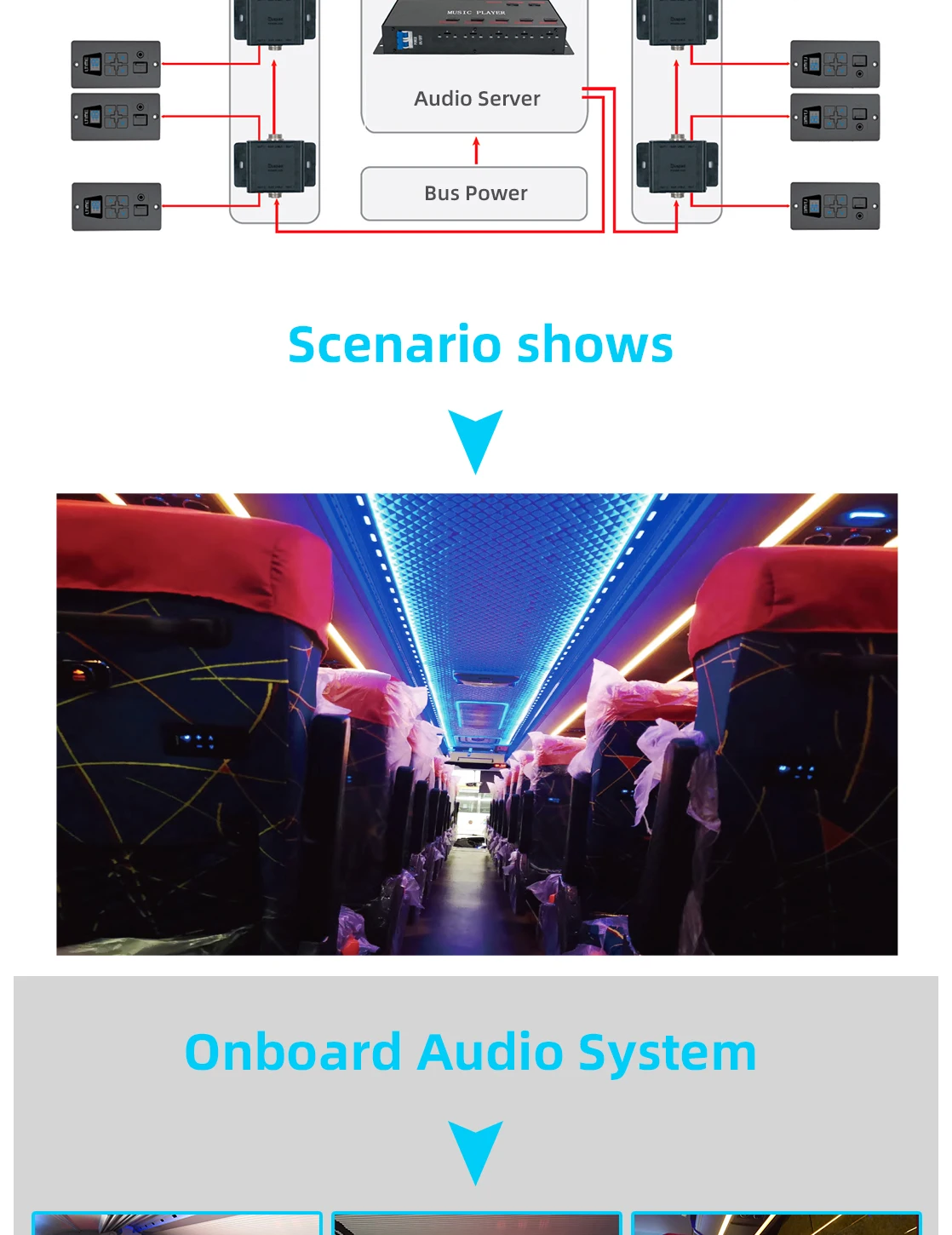

Ltime's multi-channel onboard audio system is applied to various passenger and tourist bus, passenger trains and cruise ships. The system adopts the latest advanced technology and consists of an 8-channel audio server (LT-AS03), multiple audio receivers (LT-AR04) and power supply hubs (BP-H2-5).

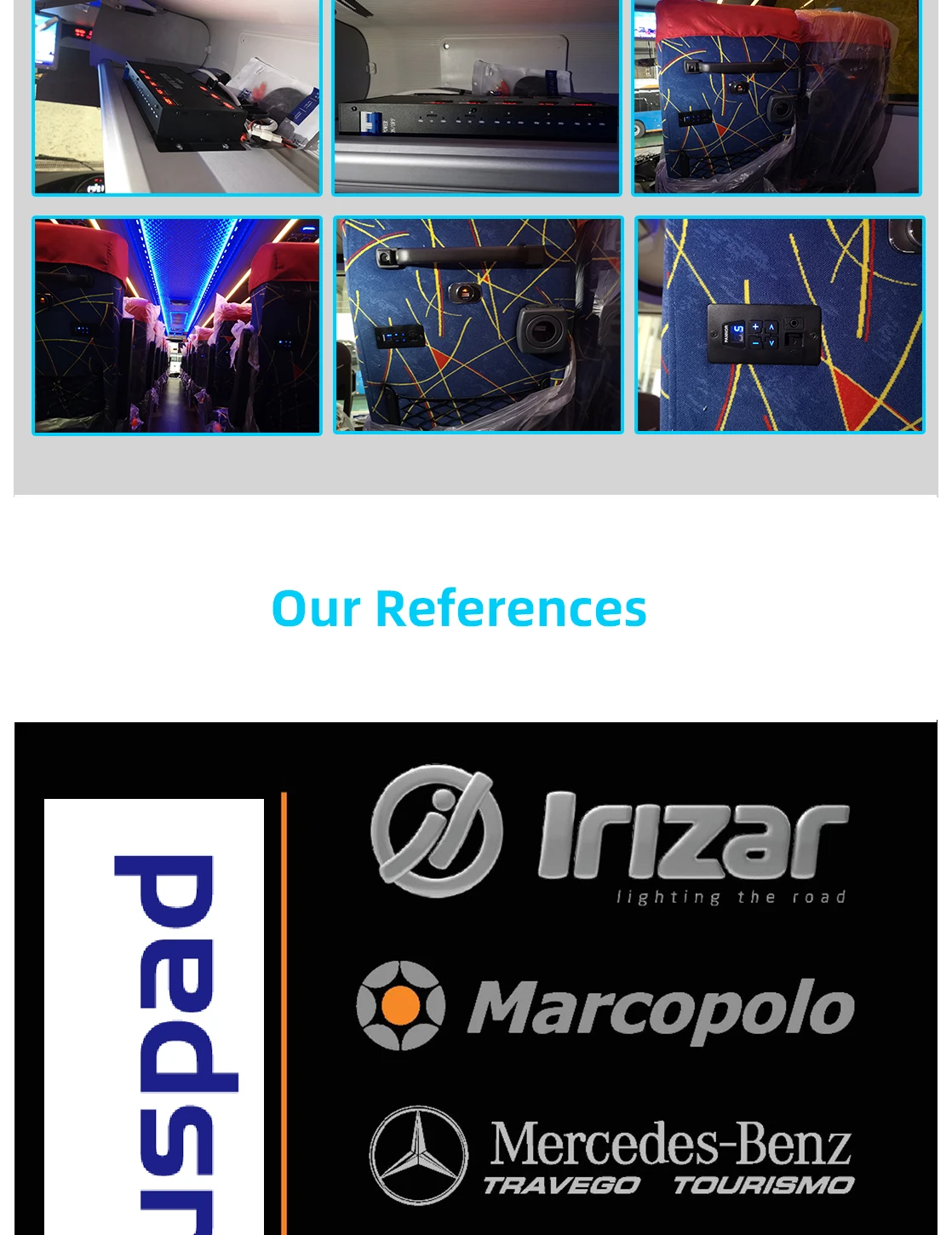

The audio receiver is usually installed in the front or rear of the seat for passengers to use. The preferred audio program is selected through multiple playback channels of the audio receiver. At the same time, the audio receiver also has the function of charging the mobile terminal device through its USB interface. The audio server supports TF card or U disk to store audio resources, and connects with each audio receiver, which is easy to update and maintain. The system supports emergency broadcast function. When the driver starts an emergency broadcast, all audio receivers will go to silent mode automatically, so that all passengers can listen to the speakers in time.



A large number of high-precision electronic components are widely used in the design and manufacture, which have passed EMC test. The frame is made of PC material which has passed anti-flame and odor test. All products have obtained E-MARK certification to ensure the quality and performance.

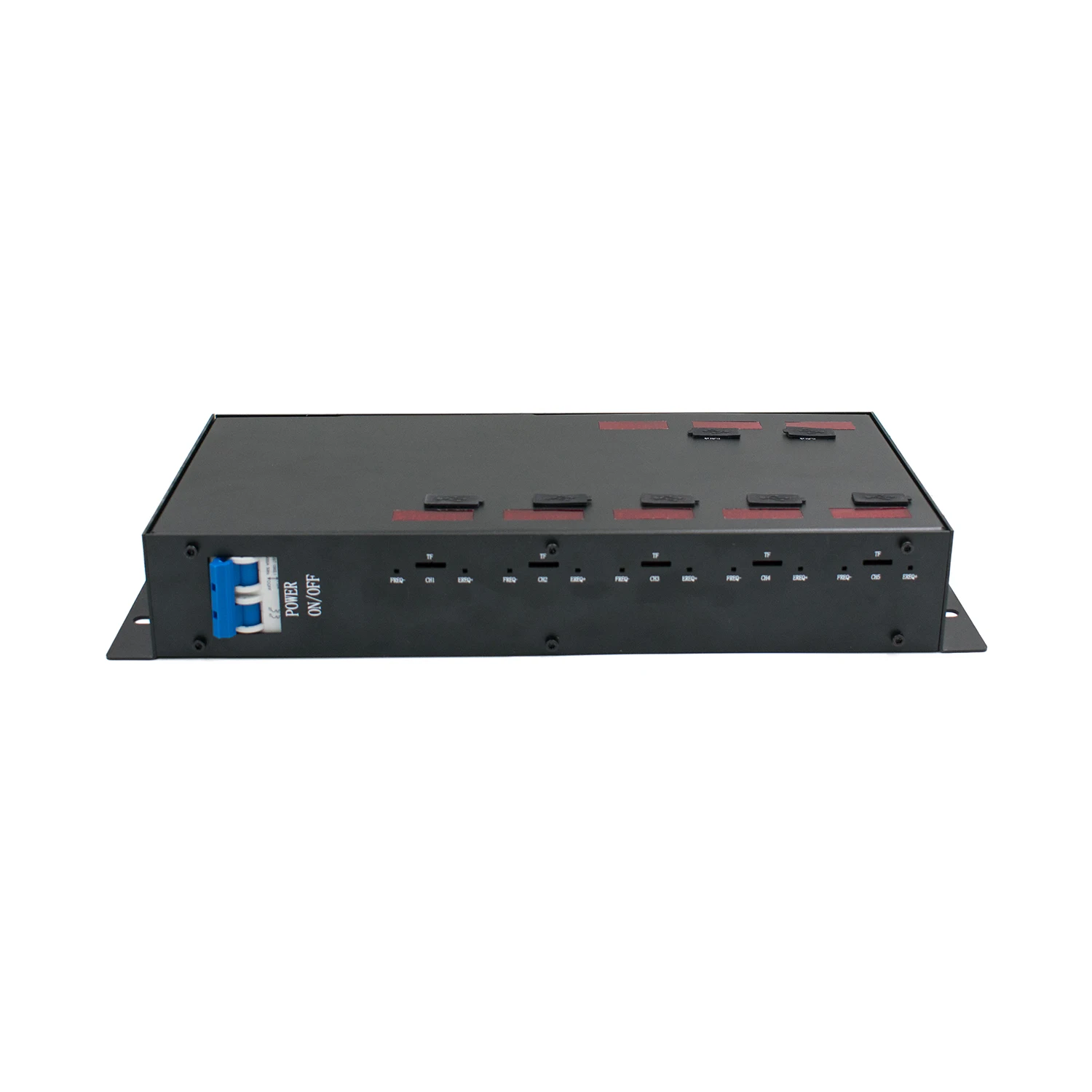

1. AUDIO SERVER, MODEL: LT-AS04

Operating Voltage	DC 12/24V
Working Current	500mA@24V
Product Size	34.5*14.2*5.2cm
Net Weight	Net Weight

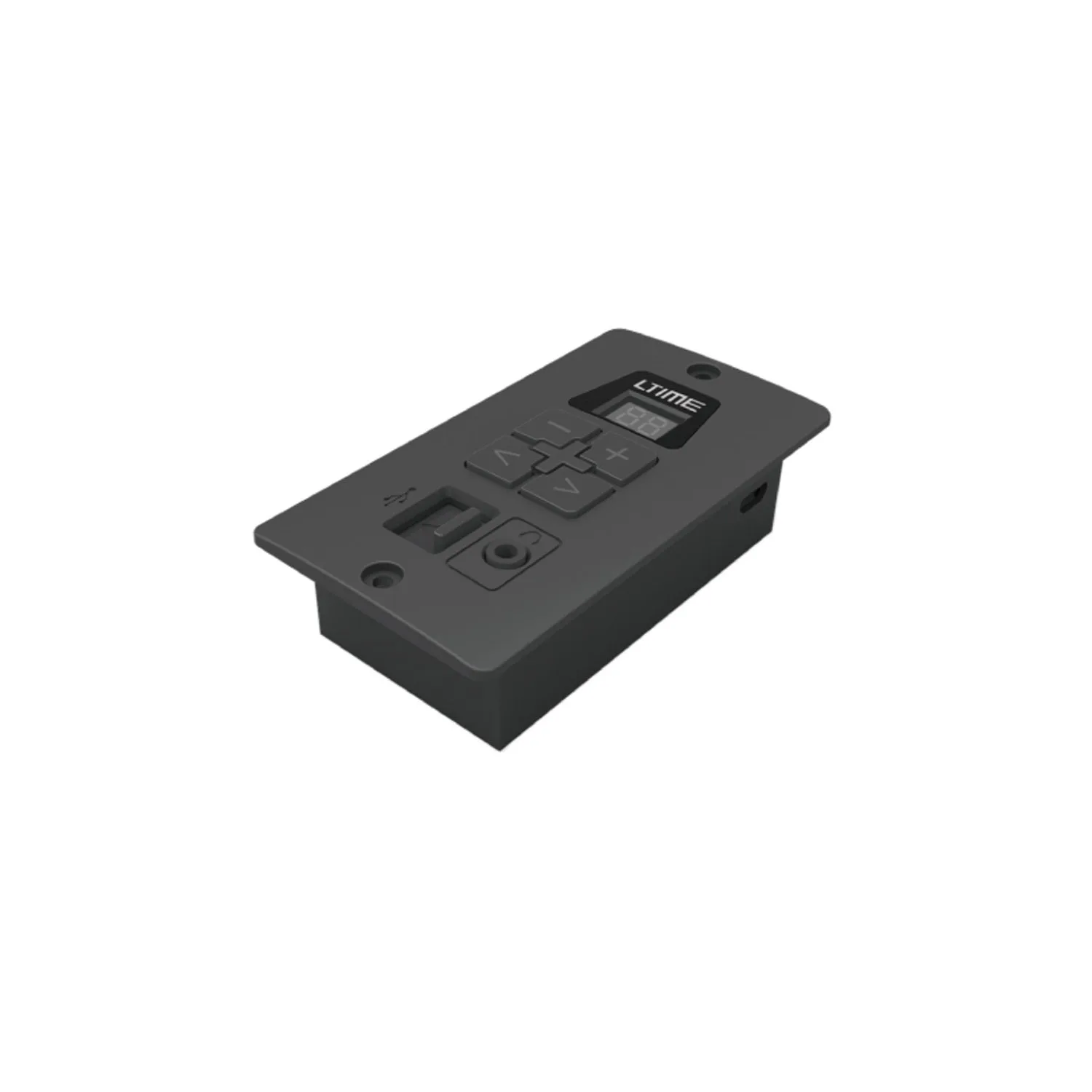

2. AUDIO RECEIVER, MODEL: LT-AR04

Operating Voltage	DC 5V
Working Current	2.5A@5V
Max Power(USB Charging Included)	7.5W
Product Size	Product Size
Net Weight	100g

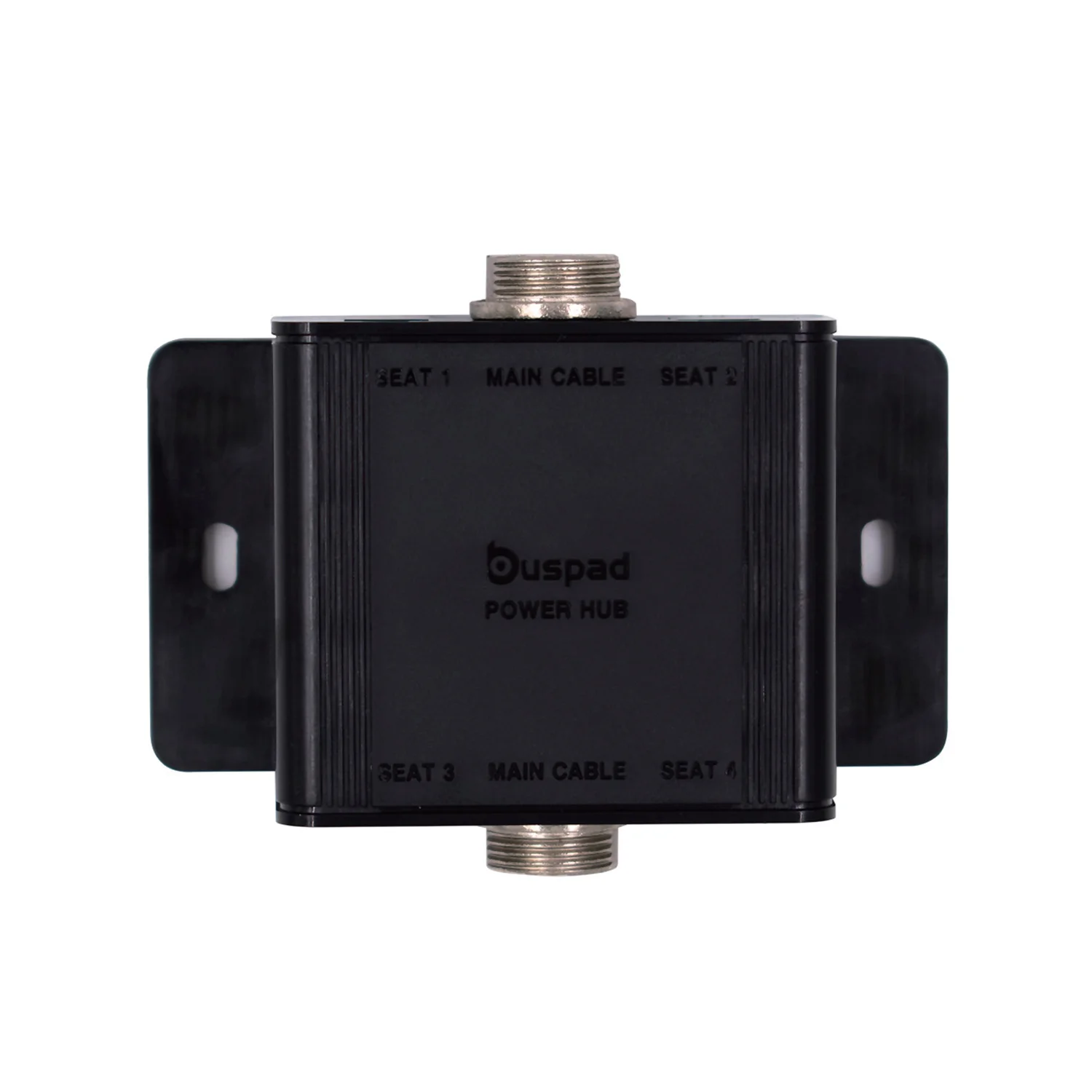

3. HUB (Power distribution unit), MODEL: BP-H2-5

Input Voltage	DC 9~32V
DC 9~32V	DC 5V
Operating Temperature	-20℃~+80℃
Product Size	90*66.5*30mm
Net Weight	100g
