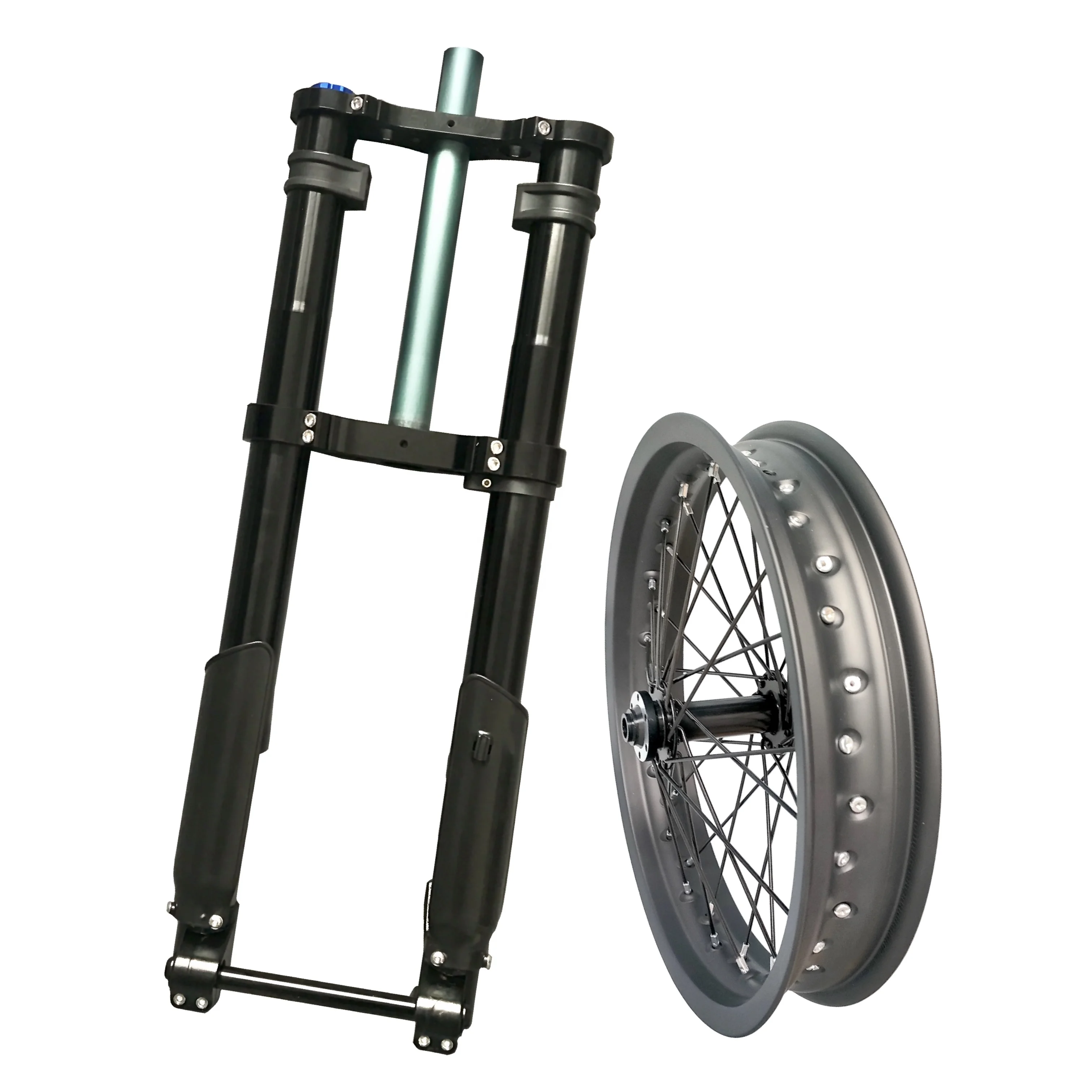

20inch 135*15 thru axle front fork fat tire fork and WM2.5 16 inch wheel/Doodlebike
- Category: >>>
- Supplier: Kunshan Doodle Electromechanical Science-Technology Co. Ltd.
Share on (1600577634297):
Product Overview
Description
Product Description

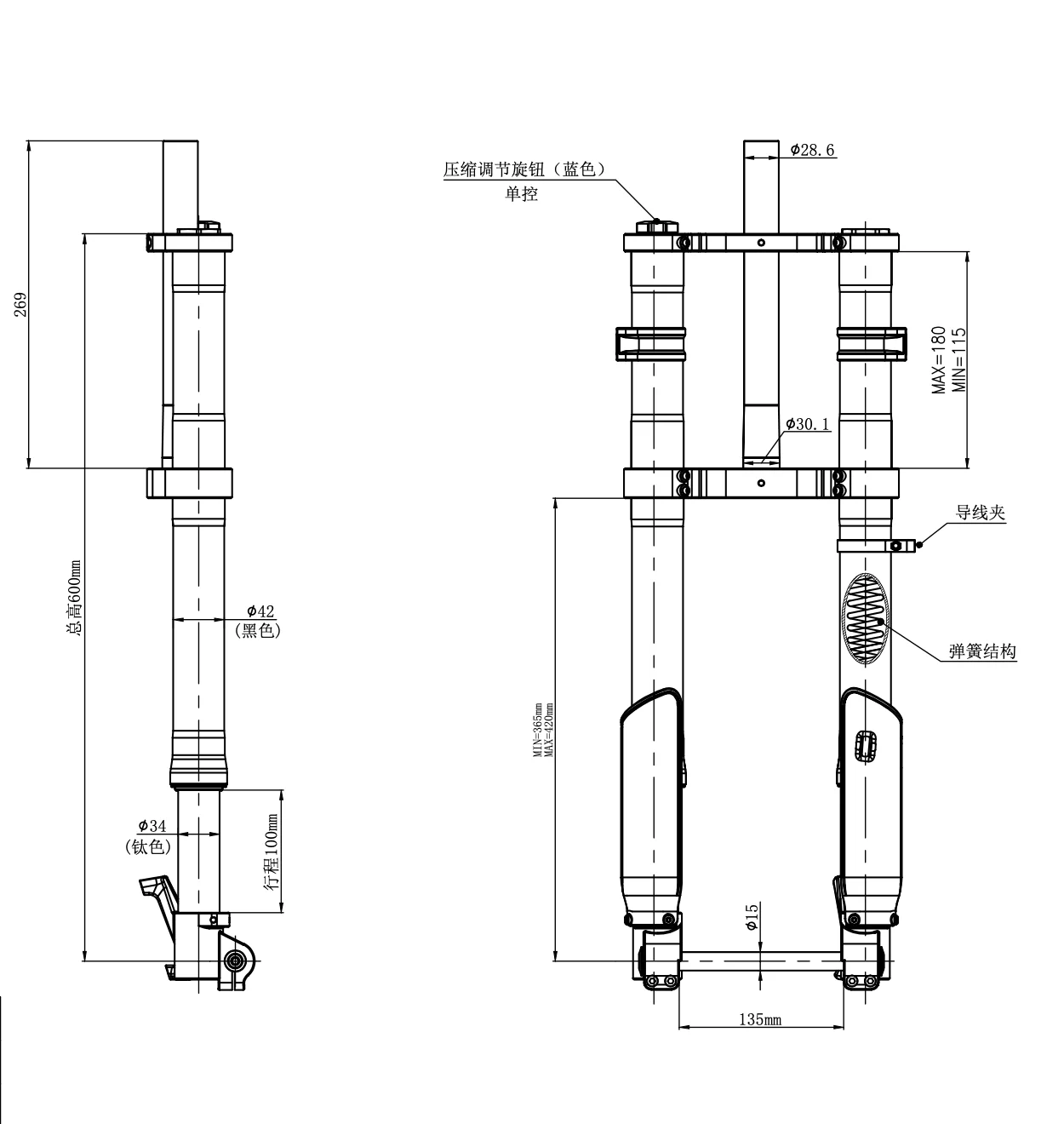

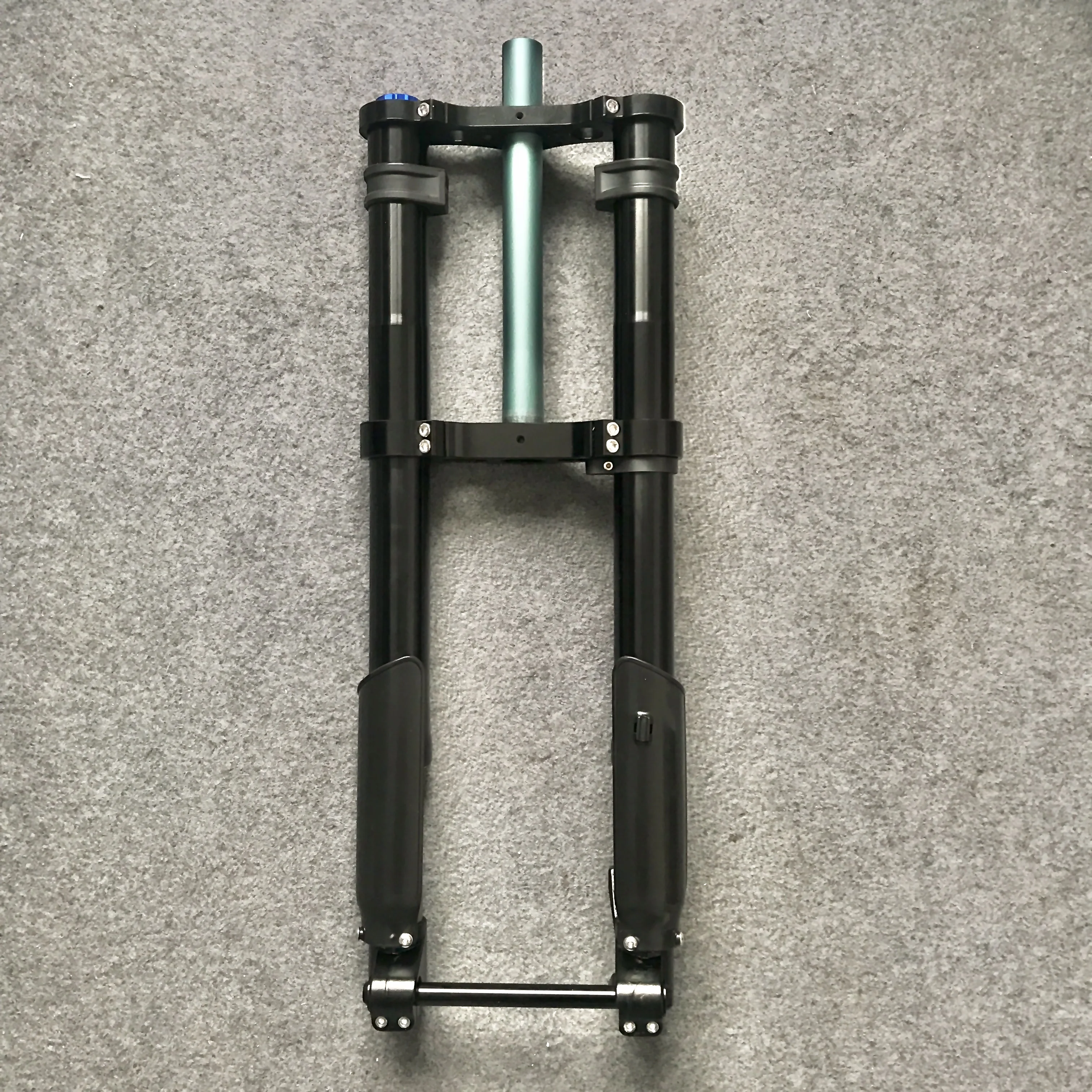

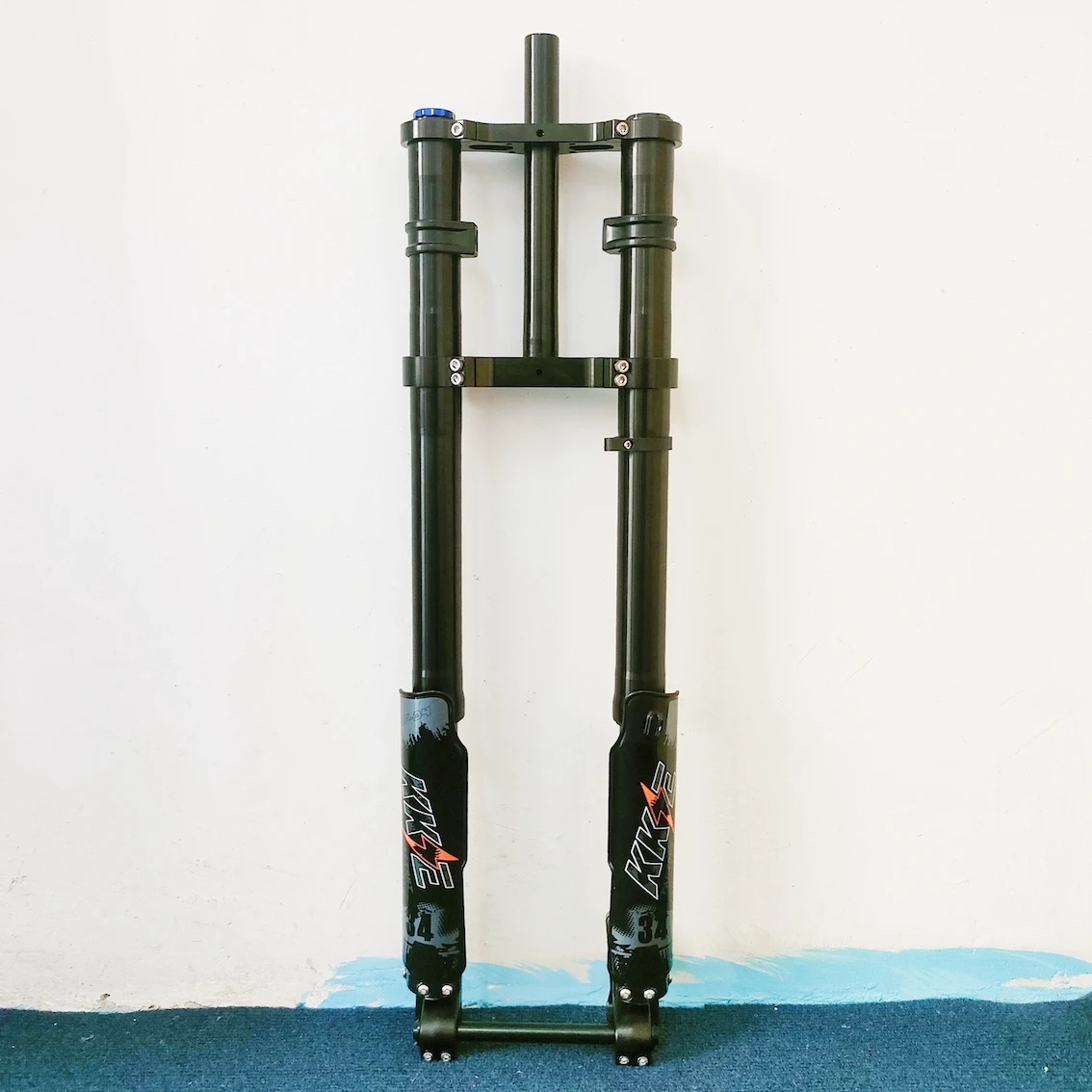

135*15" fat fork - 20*4.0inch fat bike use | Front wheel for 16" motorcycle = 20inch bike | |

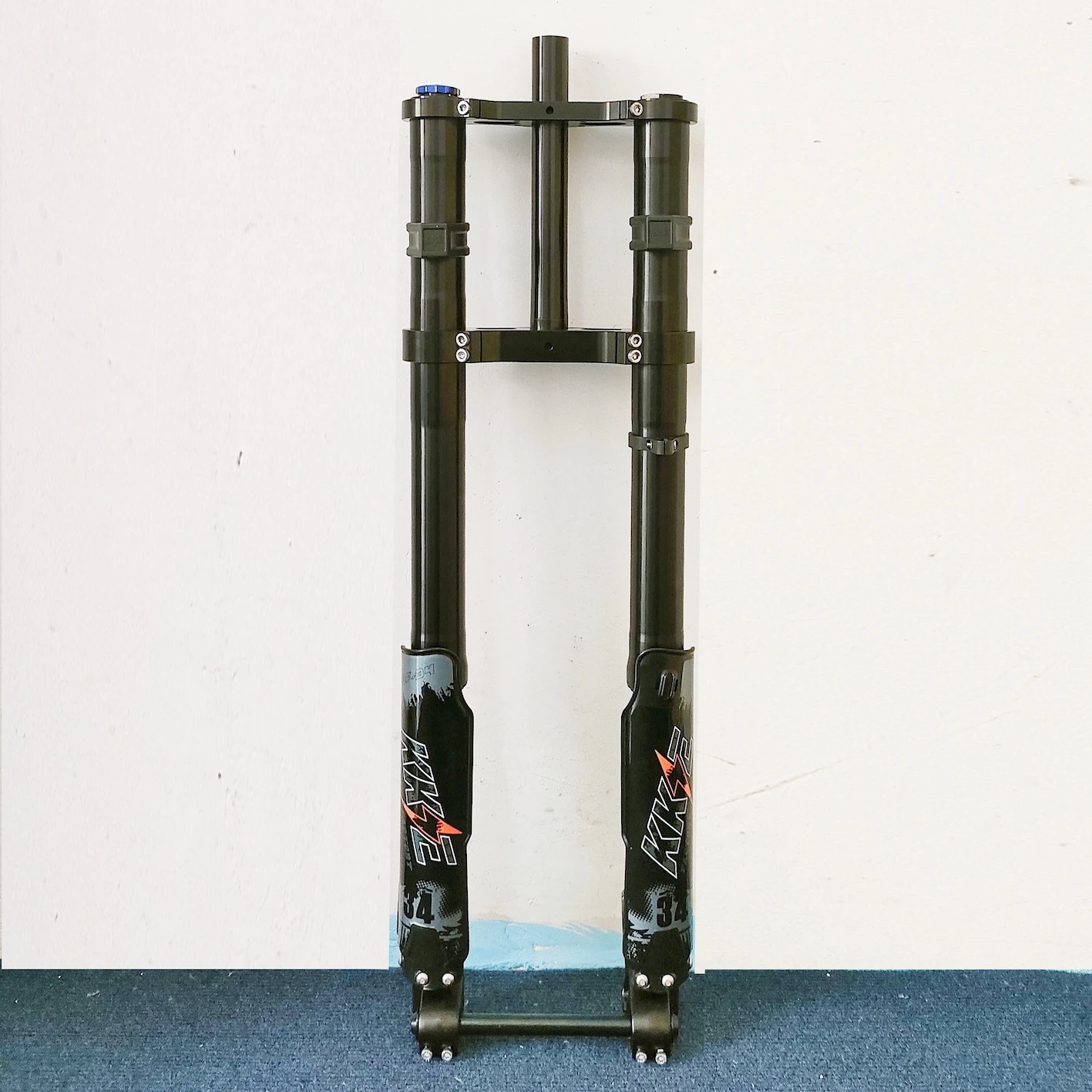

Model Number | KKE R135 | |
Material | AL-7075/6061 | |
Weight | 3.8Kg | |
Travel | 100mm | |
Length | 600 mm | |
Adjustment | Compression/ Rebound/Big impact | |
Axle Type | 135*15mm screw thru axle | |
Suspension | Hydraulic Oil + Spring | |
Treatment | Anodized Black | |
Disc brake | Disc brake with adpater 74mm distance | |

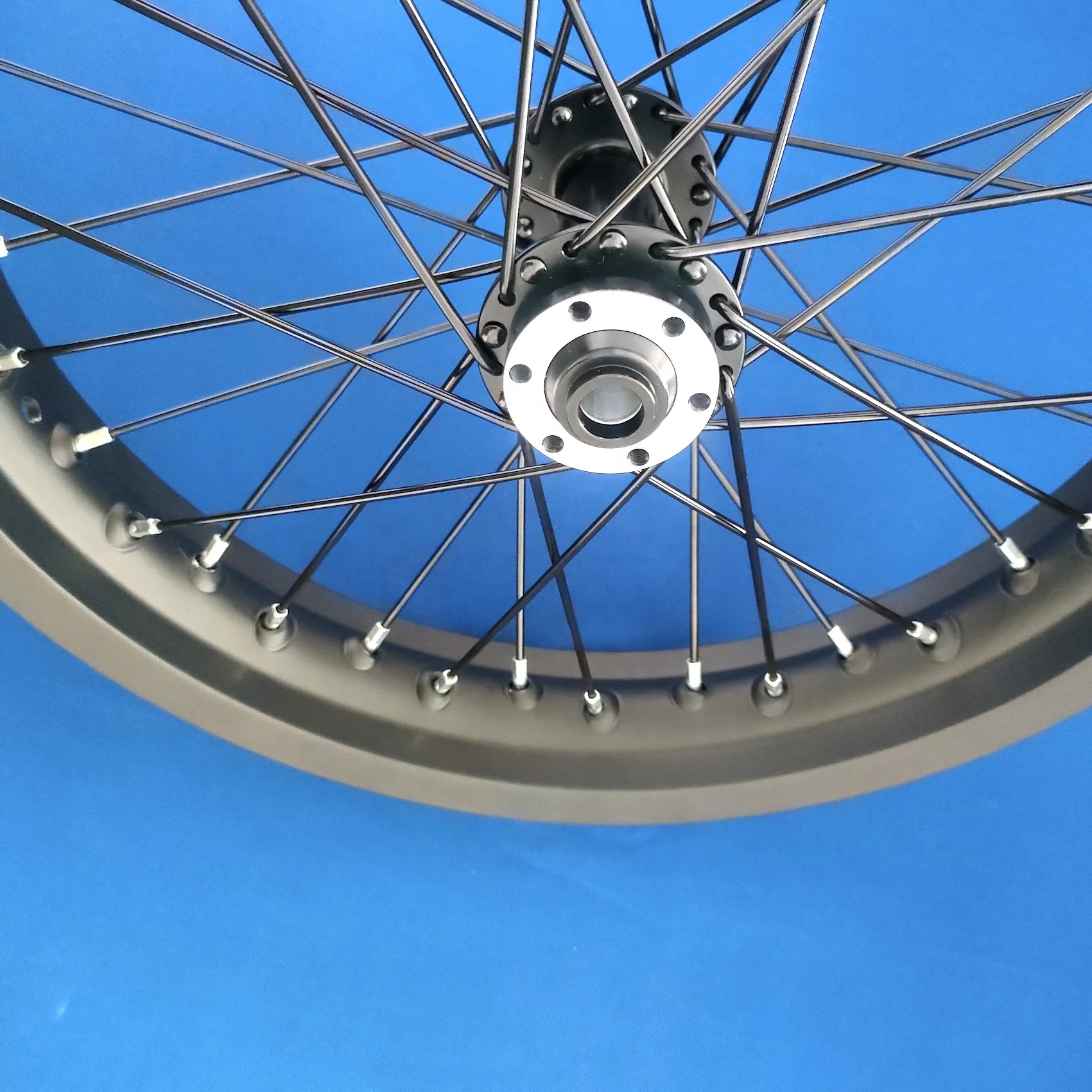

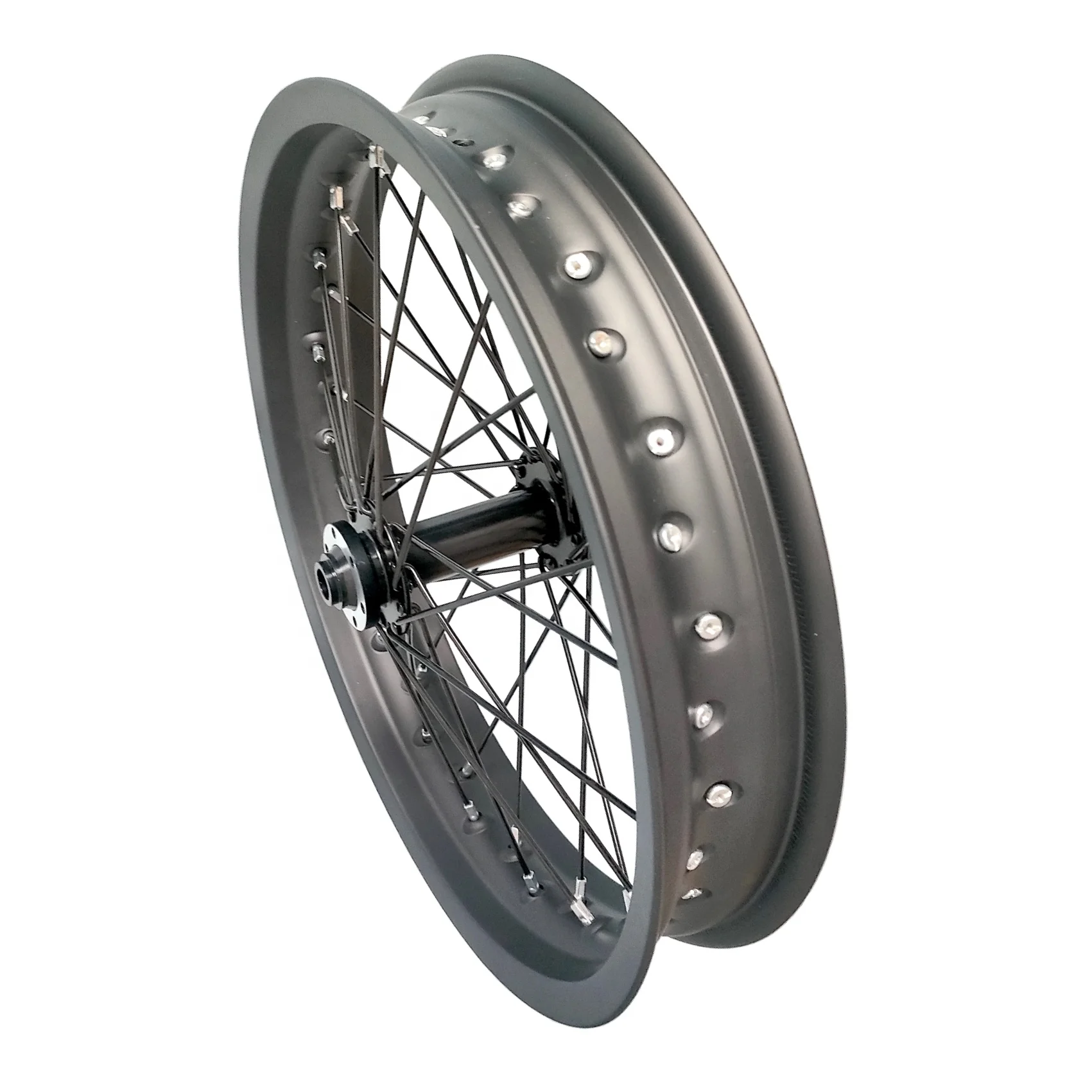

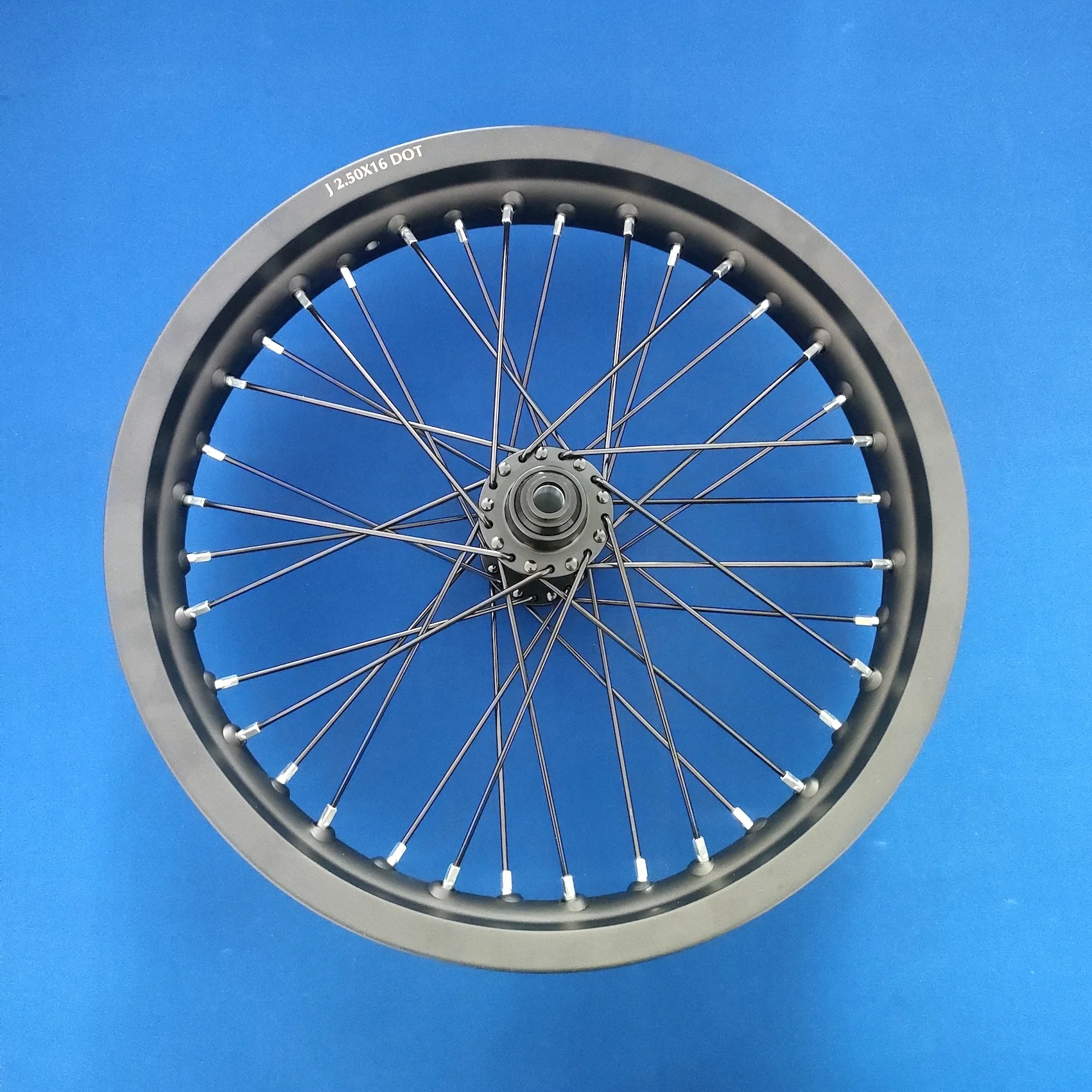

W/M2.5-16 (20inch bicycle size) wheel | ||
Model Number | 2.5*16" | |
Brand | Doodle | |

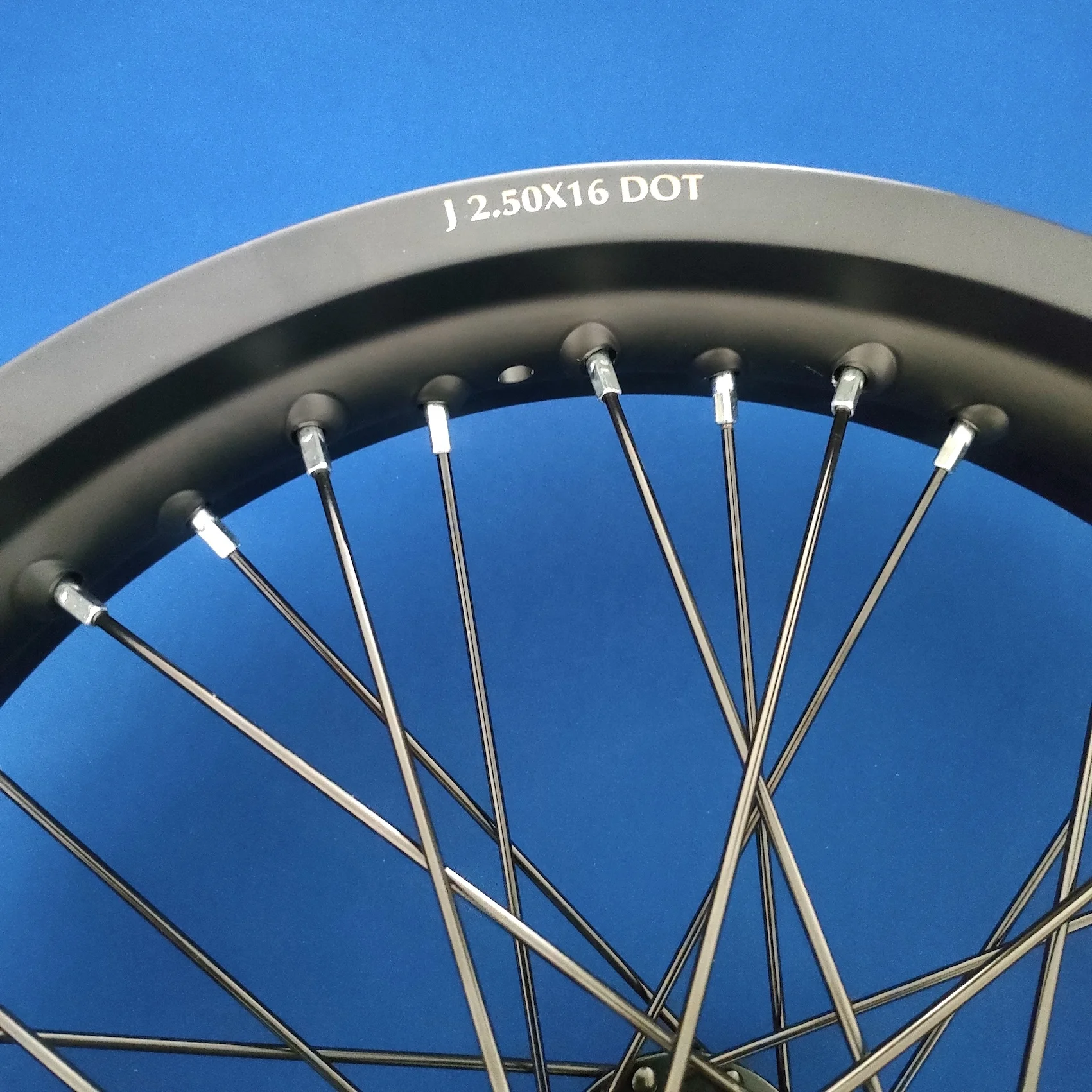

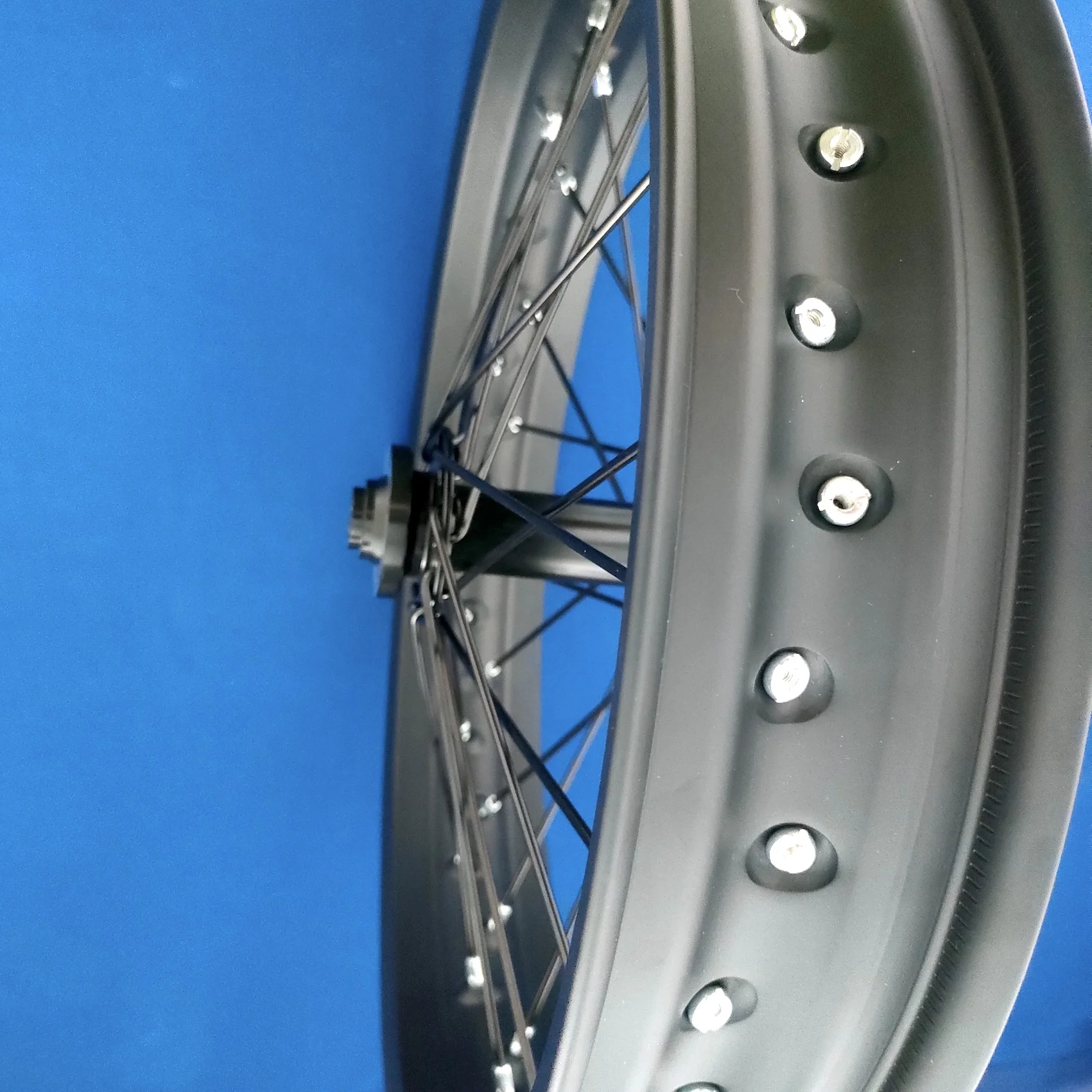

Rim | 2.5*16", 36H, 10G, Double Walls, BK, Aluminum alloy, | |

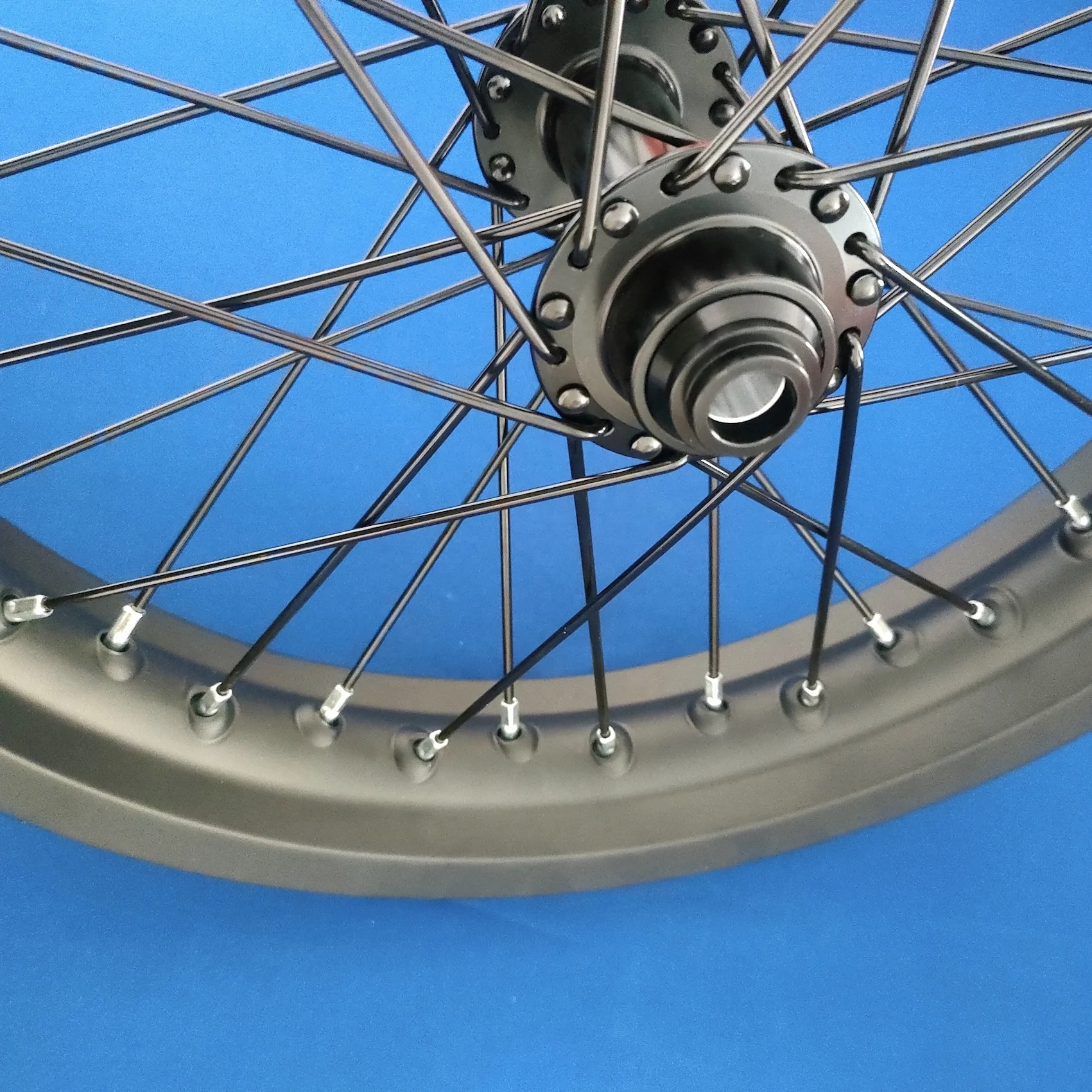

Hub | 135*15, thru-axle, disc brake, 36H, 10G, BK, CNC, Aluminum alloy | |
Spoke/Nipple | 10G, 36H, stainless, BK | |
Use | Fat bike 20*4.0" width tire/or 16" motorcycle | |
The Smallest Order Quantity | 1Pc | |
Detailed Images
Recommend Products
135*15 thru-axle front fork for 20*4.0" fat bike use
135*15 thru-axle front fork for 24*4.0" fat bike use
135*15 thru-axle front fork for 26*4.0" fat bike use
Packing&Shipping
Manufacturing Technique
Strict Material Management
A simple bike part even contains over hundred of small raw material, plus surface treatment, a small suspension does not a simple
product.
With strict raw material management system,
Every order and suspension product will be provided correctly and in order.
product.
With strict raw material management system,
Every order and suspension product will be provided correctly and in order.
Customized CNC Machines
28Pcs of high rank customized CNC machines makes customized orders can be taken.
With these machines, the production lead time is shorter and contralable.
With these machines, the production lead time is shorter and contralable.
Well-Equipped Test Machines
High quanlity suspension products need intensive and massive test before packing and delivery.
Every batch of production will select random suspension products and do test before packing and delivery approval.
Every batch of production will select random suspension products and do test before packing and delivery approval.
Company Introduction
All kinds of parts for bike can be provided by Doodlebike.Main brand can be massive provided is DNM.
DNM has been an integraed part of the suspension industry for more than 40 years.
High quality suspension products, after sale service and tech support.
Distributors are all over the world could help end user get service in the first place.
DNM has been an integraed part of the suspension industry for more than 40 years.
High quality suspension products, after sale service and tech support.
Distributors are all over the world could help end user get service in the first place.
Catalog
FAQ
1. Are you manufacturer?
Yes, factories are in Taiwan and China.
2. What is your delivery time?
All the parts we have at least small quantity in stock. Bulk order delivery time 2-3 months.
3.Can you customize products?
Yes, we can support OEM for customers.
4. Do you have web site?
www.dnmshocks.com
5. Can you send Catalog?
Yes, please dont hesitate to contact us.
6. How can i purchase your product?
Please contact us.
Yes, factories are in Taiwan and China.
2. What is your delivery time?
All the parts we have at least small quantity in stock. Bulk order delivery time 2-3 months.
3.Can you customize products?
Yes, we can support OEM for customers.
4. Do you have web site?
www.dnmshocks.com
5. Can you send Catalog?
Yes, please dont hesitate to contact us.
6. How can i purchase your product?
Please contact us.
