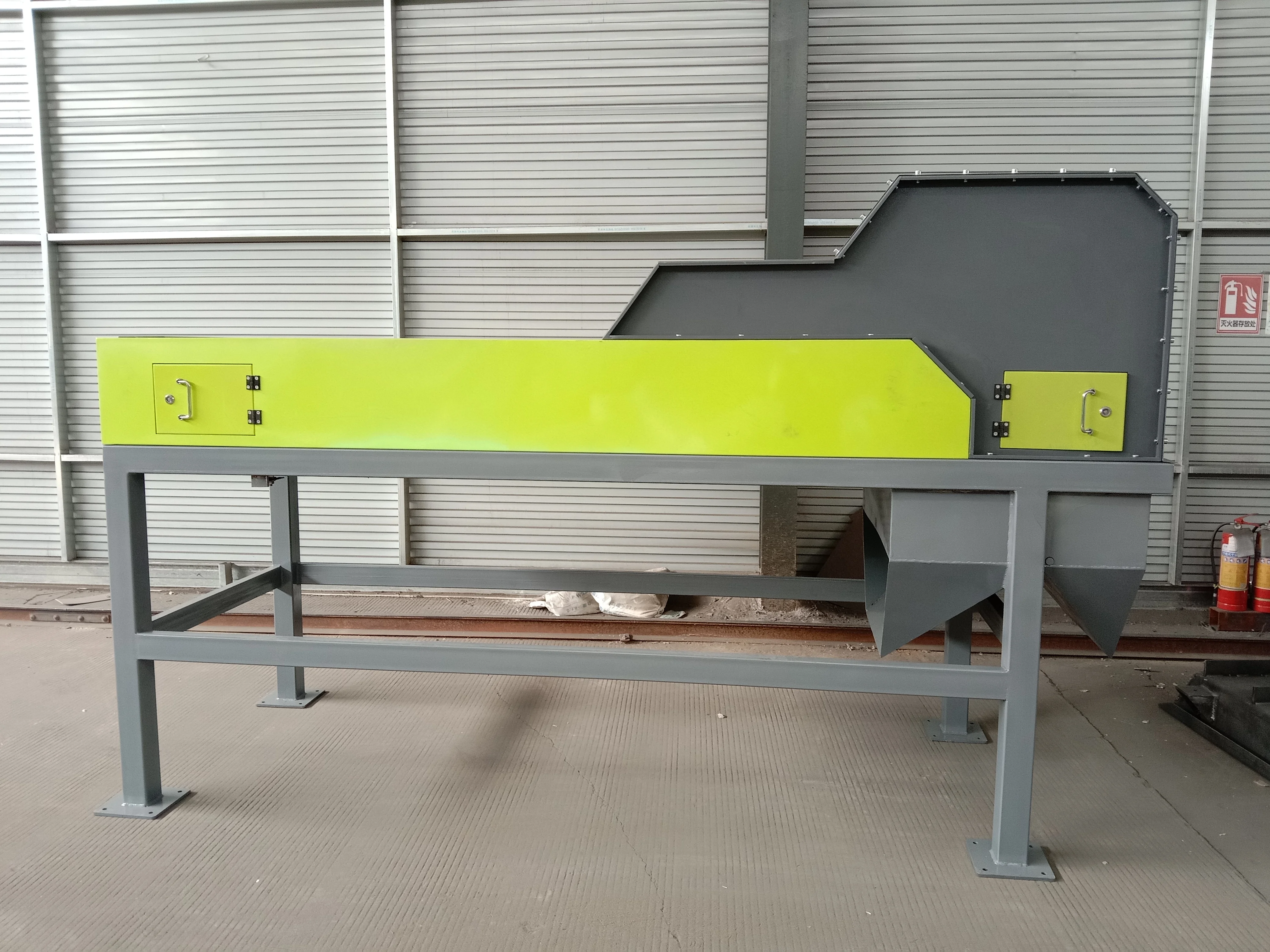

High performance waste management machinery mineral processing equipments remove iron automatic magnetic separator machine price
- Category: >>>
- Supplier: Shijiazhuang Jiarun Technology Co. Ltd.
Share on (1600577637137):
Product Overview
Description
Product Overview
Strong magnetic sorting machine
Working principle of magnetic separator:
When the material in the transport belt through the magnetic roller, it has been sorted, magnetic metal moved to the top of the magnetic roller is attracted, turn to the bottom of the automatic off, and non-magnetic materials along the horizontal parabolic trajectory directly fall, magnetic materials and non-magnetic materials will be separately into different hopper.
Magnetic roller is equipped with magnets at 360°, forming a magnetic system with a corresponding rotating magnetic field, which is effective around the entire circumference. The magnetic field attracts the magnetic metal particles in the material, and the conveyor belt running on the magnetic roller carries these magnetic metal particles to the lower side of the magnetic roller. When the magnetic metal is under the magnetic roller and leaves the magnetic field, the magnetic metal falls off the belt belt to achieve the separation effect.
For wet or fine metal particles, we install a scraper to prevent them from sticking to the belt.
Application industry
Magnetic separator is mainly used to remove ferromagnetic impurities in powdery, flake and granular raw materials, widely used in ceramics, electric power, mining, plastic, chemical, rubber, pharmaceutical, food, environmental protection, pigments, dyes, electronics, metallurgy and other industries.
Product overview
Strong magnetic roller magnetic separator is mainly used in coarse weak magnetic minerals (limonite, manganese ore, etc.) coarse particle tailing or purification; Processing of non-metallic minerals (andalusite, sillimanite, kyanite, garnet, feldspar, quartz, zircon, corundum, diamond, etc.) raw materials and products (in addition to iron, titanium and other impurities) : remove weak magnetic harmful impurities of various abrasive products, catalysts and other materials.
Characteristics of strong magnetic separator;

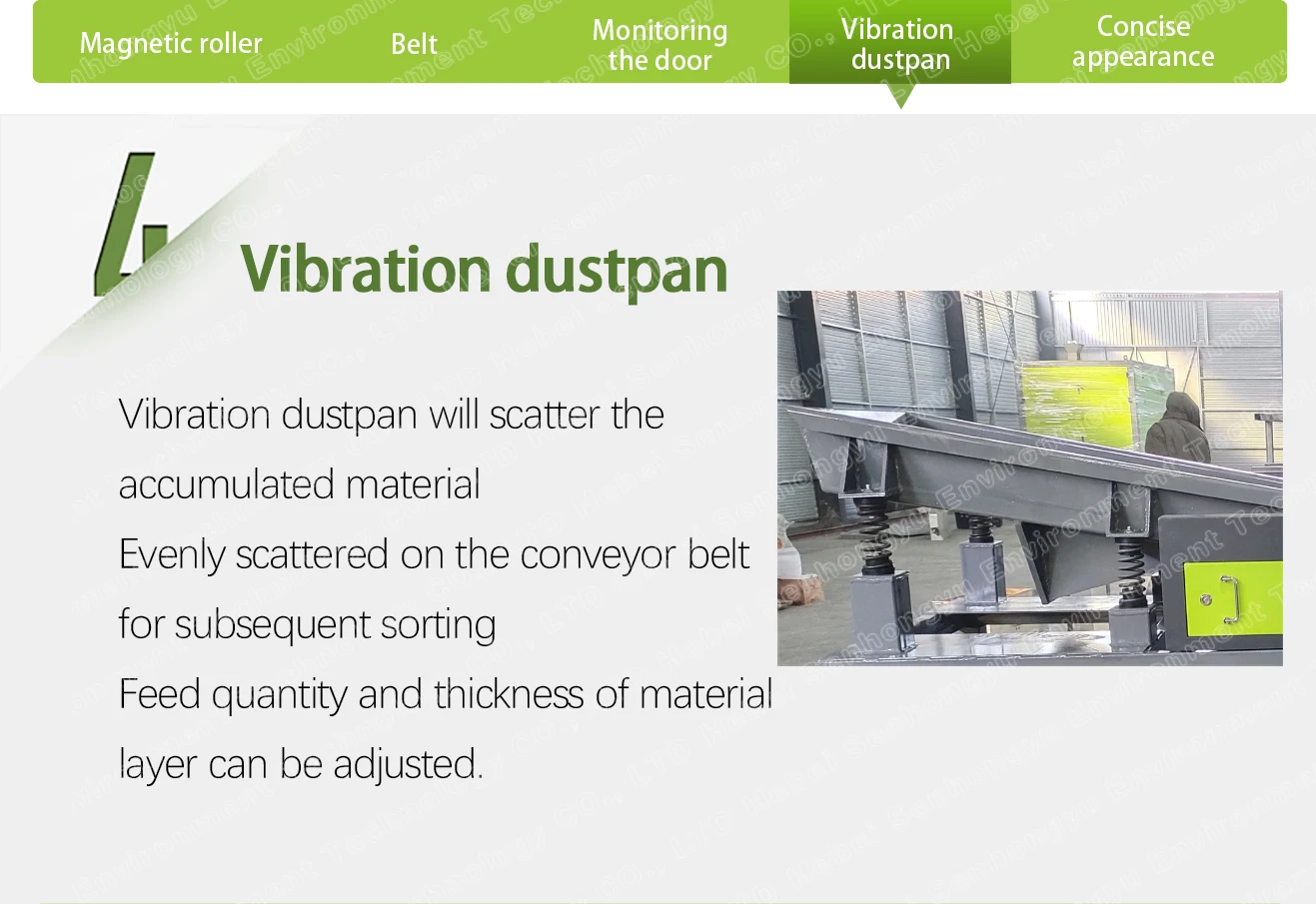

Vibration feeder uniform cloth, feed quantity and material layer thickness can be adjusted.
The belt speed is controlled by frequency converter and the speed can be adjusted.
Supply voltage: 220V/380V.
Total power: less than 1.0kW.
The size range of sorting materials is large, and the materials of 2mm-100mm can be effectively sorted
High strength permanent magnet Ndfeb as a magnetic source, magnetic stability and lasting, magnet suction is stronger than ordinary magnets
Low cost of installation, maintenance and production and operation, easy to operate.
Material is not blocked, high sorting efficiency.
Magnetic roller protected by conveyor belt, no wear, not easy to demagnetization.
When the material in the transport belt through the magnetic roller, it has been sorted, magnetic metal moved to the top of the magnetic roller is attracted, turn to the bottom of the automatic off, and non-magnetic materials along the horizontal parabolic trajectory directly fall, magnetic materials and non-magnetic materials will be separately into different hopper.
Magnetic roller is equipped with magnets at 360°, forming a magnetic system with a corresponding rotating magnetic field, which is effective around the entire circumference. The magnetic field attracts the magnetic metal particles in the material, and the conveyor belt running on the magnetic roller carries these magnetic metal particles to the lower side of the magnetic roller. When the magnetic metal is under the magnetic roller and leaves the magnetic field, the magnetic metal falls off the belt belt to achieve the separation effect.
For wet or fine metal particles, we install a scraper to prevent them from sticking to the belt.
Application industry
Magnetic separator is mainly used to remove ferromagnetic impurities in powdery, flake and granular raw materials, widely used in ceramics, electric power, mining, plastic, chemical, rubber, pharmaceutical, food, environmental protection, pigments, dyes, electronics, metallurgy and other industries.
Product overview
Strong magnetic roller magnetic separator is mainly used in coarse weak magnetic minerals (limonite, manganese ore, etc.) coarse particle tailing or purification; Processing of non-metallic minerals (andalusite, sillimanite, kyanite, garnet, feldspar, quartz, zircon, corundum, diamond, etc.) raw materials and products (in addition to iron, titanium and other impurities) : remove weak magnetic harmful impurities of various abrasive products, catalysts and other materials.
Characteristics of strong magnetic separator;
Vibration feeder uniform cloth, feed quantity and material layer thickness can be adjusted.
The belt speed is controlled by frequency converter and the speed can be adjusted.
Supply voltage: 220V/380V.
Total power: less than 1.0kW.
The size range of sorting materials is large, and the materials of 2mm-100mm can be effectively sorted
High strength permanent magnet Ndfeb as a magnetic source, magnetic stability and lasting, magnet suction is stronger than ordinary magnets
Low cost of installation, maintenance and production and operation, easy to operate.
Material is not blocked, high sorting efficiency.
Magnetic roller protected by conveyor belt, no wear, not easy to demagnetization.
FEATURES AT A GLANCE
Bearing seal protection
Spindle has thermal protection function
Stable and durable magnetic performance
Eccentric magnetic roller
Frequency Control
Large size range of sorting
Low energy consumption of equipment
Run smoothly
Spindle has thermal protection function
Stable and durable magnetic performance
Eccentric magnetic roller
Frequency Control
Large size range of sorting
Low energy consumption of equipment
Run smoothly
PRODUCT SPECIFICATIONS
Type | Spindle motor/Kw | Belt motor/Kw | Vibration motor/w | Sorting materials（m³/h） | Dimensions/mm | Weight/Kg |
JR450 | 3 | 0.75 | 100 | 1-3 | 3300*820*1500 | 800 |
JR550 | 3 | 0.75 | 100 | 3-5 | 3300*920*1500 | 870 |
JR650 | 3 | 0.75 | 100 | 4-7 | 3300*1020*1500 | 950 |
JR800 | 4 | 0.75 | 100 | 5-9 | 3300*1140*1500 | 1050 |
JR1000 | 5.5 | 0.75 | 200 | 6-11 | 3300*1345*1500 | 1150 |
JR1200 | 5.5 | 1.5 | 200 | 8-13 | 3300*1545*1500 | 1300 |
JR1500 | 7.5t | 1.5 | 370 | 10-15 | 3300*1845*1500 | 1500 |
Built-in inverter
Free adjustment
Windowable design
Inverter could adjust the running belt's speed and baffle's gap
Wide adjustment range for the baffle, suitable for different materials
Multiple inspection visual windows are convenient for maintenance and real-time monitoring of alarm system
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
FAQ
Q：Which kinds of materials is suitable for your magnetic sorter ?
A：Mainly used for the recovery of magnetic metals from industrial and domestic waste.
Q: Could you manufacture the special sorting machine to meet our demand?
A: Sure, we welcome your OEM and ODM order. We are glad to help you to get the sorting machine with our factory's practical technical staffs and experienced R & D staffs.
Q: How long will i get the machine?
A: Usually 10-30 workdays, depends on the quantity you order and if in stock.
More questions pls kindly contact us, we accept your inquiry anytime!
Q: Could you manufacture the special sorting machine to meet our demand?
A: Sure, we welcome your OEM and ODM order. We are glad to help you to get the sorting machine with our factory's practical technical staffs and experienced R & D staffs.
Q: How long will i get the machine?
A: Usually 10-30 workdays, depends on the quantity you order and if in stock.
More questions pls kindly contact us, we accept your inquiry anytime!
Company Profile
Shijiazhuang Jiarun Technology Co., Ltd located in South side of the Road, 180 meters from Vocational Education Center, Luancheng District, Shijiazhuang,China. We have our own factory which was founded in the year of 2014. There are about 100 employee in the production line currently. We mainly manufacture Eddy Current Separator, Metal crusher machine, Book glue cutting machine, belt conveyor, roller conveyor waste paper baler and so on. All the accessories are available. Jiarun has established a set of manufacturing to service from the perfect system. Each machine has protected by our own patent application. We have also open up a branch company. The facility have been exported to many countries such as South Africa, Kenya Southeast Asia and so on.
