Tobee Effluent Handling
$12,600
LEO Submersible Pump Submersible Deep Well Pump Dc Solar Power Borehole Water Pump System For Irrigation
- Category: >>>
- Supplier: Leo Group Pump (zhejiang) Co. Ltd.
Share on (1600577638267):
Product Overview
Description
Banner
Products Description

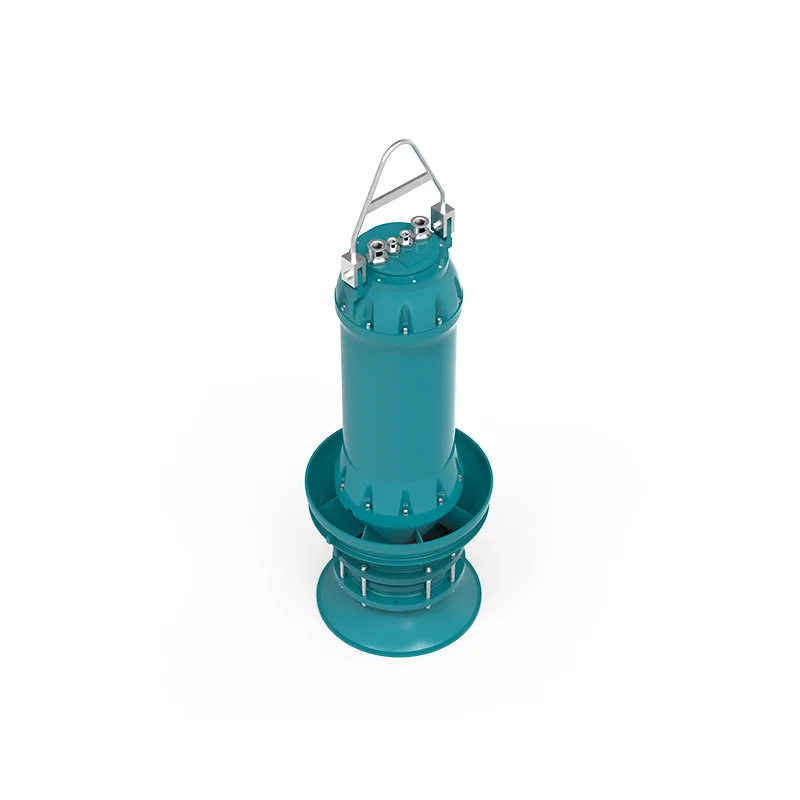

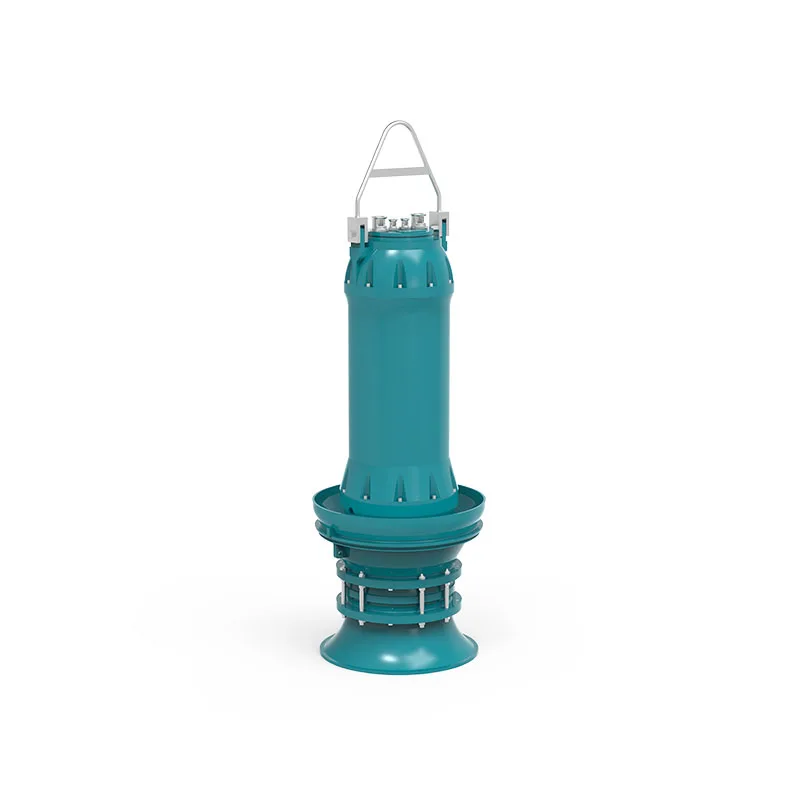

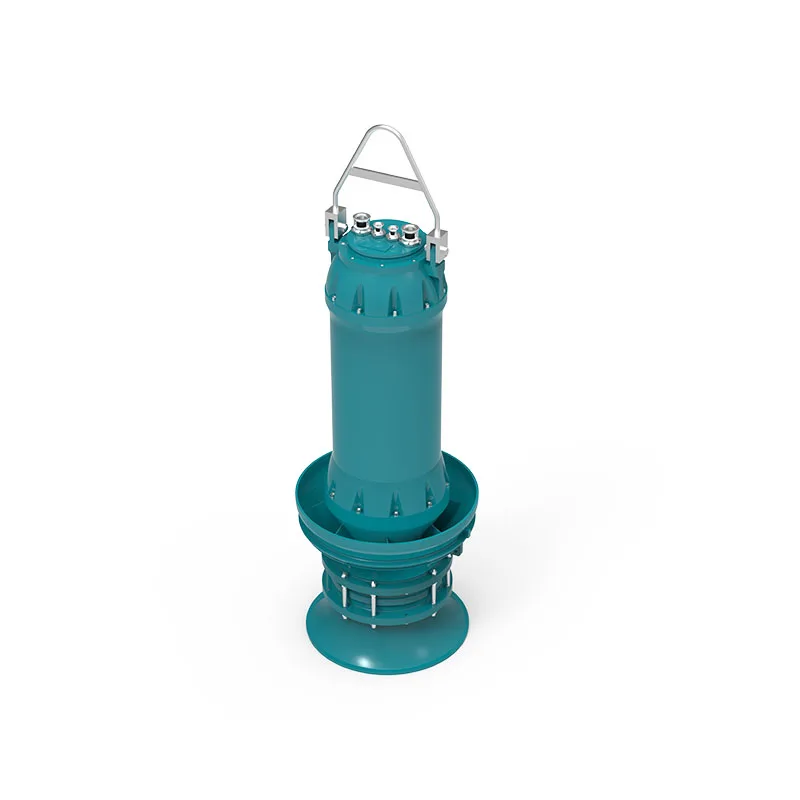

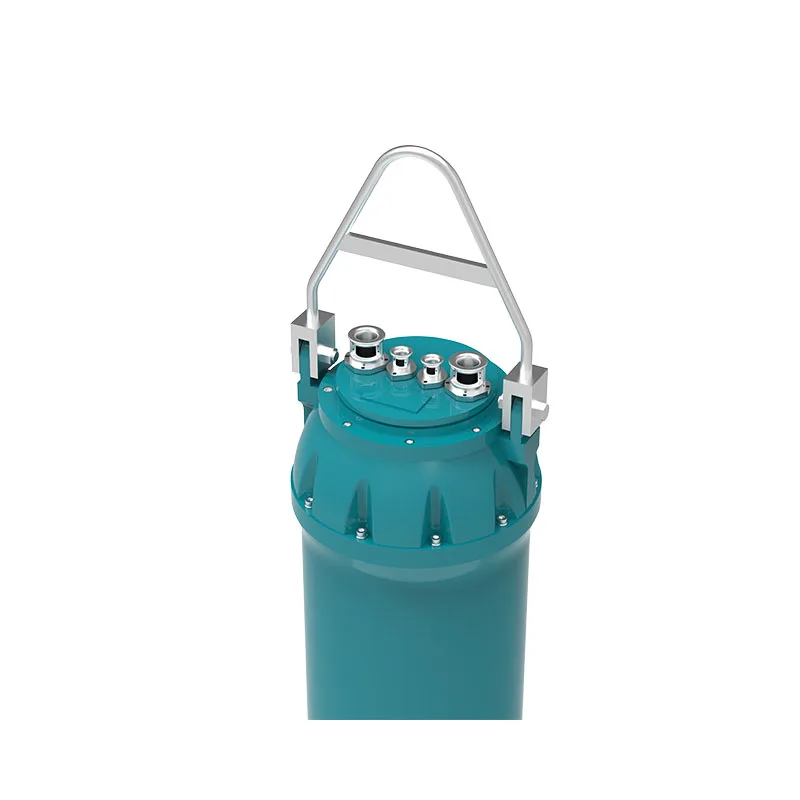

LEO Rated voltage 380V deep well submersible pump stainless steel submersible pump
Technical Data
Model | Flow(L/s) | Installation angle | Head(m) | Efficiency (%) | Shaft power(kW) | Speed(rpm) | Outlet diameter(mm) |
800QZ-125 | 5917.51 | -2 | 4.1 | 84.5 | 78.6 | 730 | 650 |
6729 | 0 | 4.1 | 85 | 88.1 | |||
7112.07 | 2 | 4.3 | 85.2 | 98.7 | |||
7545.65 | 4 | 4.6 | 84.1 | 111.4 | |||
7889.64 | 6 | 4.9 | 83.9 | 126.1 | |||
800QZ-70 | 6636.46 | -2 | 7.9 | 86.6 | 164.5 | 730 | 650 |
6886.06 | 0 | 8.3 | 86.7 | 180 | |||
7167.37 | 2 | 8.8 | 86.6 | 198.3 | |||
7517.63 | 4 | 9.3 | 86.4 | 220.2 | |||
7865.67 | 6 | 9.7 | 86.3 | 239.7 | |||
800QZ-85 | 6677 | -2 | 6.6 | 86.4 | 139.1 | 730 | 650 |
7005.15 | 0 | 7.1 | 86.5 | 156.4 | |||
7270.24 | 2 | 7.5 | 86.6 | 171.9 | |||
7453.48 | 4 | 7.8 | 86.4 | 183.6 | |||
7697.18 | 6 | 8.1 | 86.7 | 196.3 | |||
800QZ-100 | 6853.98 | -2 | 5.9 | 86.6 | 126.7 | 730 | 650 |
7206.45 | 0 | 6 | 86.6 | 136 | |||
7580.31 | 2 | 6.2 | 86.7 | 148.3 | |||
7999.88 | 4 | 6.5 | 87 | 162.8 | |||
8326.54 | 6 | 6.8 | 87.4 | 175.3 |
Working Condition
The medium: Clear water，rain water，river water,sewage, waste water.Any of various liquids whose physico-chemical properties resemble those of water
Rated voltage: 38ov or 660v、3KV、6KV、10kv, etcFrequency: 50Hz three-phase AC power
Medium temperature:≤43℃
Starting mode: Soft start or frequency conversion
Direction of rotation: from the drive end, the pump is ro-tated in clockwise
Rated voltage: 38ov or 660v、3KV、6KV、10kv, etcFrequency: 50Hz three-phase AC power
Medium temperature:≤43℃
Starting mode: Soft start or frequency conversion
Direction of rotation: from the drive end, the pump is ro-tated in clockwise
Applications Field
TThis series of products can be used for clear water orother liquids with physical and chemical properties close towater whose temperature of conveying medium is no morethan 43°℃. They are widely used in municpal engineering,large-scale water conservancy projects, farmland irrigation,industrial conveying water. The thermal power station car-ries circulating water. shipyard level, urban water supplyand drainage and water diversion projects.
Company Profile
TO KNOW LEO
LEO Group (stock code 002131) is a national high-tech enterprise engaged in R&D, design, manufacture, sales and service of all series pumps and systems.
Wenling Headquarters
300,000 ㎡
Hunan Manufacturing base
92.635 ㎡
Liaoning Manufacturing Base
10.000 ㎡
Exhibition
Packing&Shipping
FAQ
Q1. Are you a manufacturer or a trading company?
A1: We are the biggest pump manufacture of China.
Q2. Where is LEO factory?
A2: Wenling city, Zhejiang province.
Q3. What about the pay ment?
A3: T/T: 30% before shipment, the rest paid against B/L copyL/C: L/C at sight, L/C 30 days, L/C 60days.
Q4. What about delivery time?
A4: 35 days after the receipt of the payment.
Q5. About shipment?
A5: By sea, By air and By express delivery.
Q6. About sample?
A6: Available.
