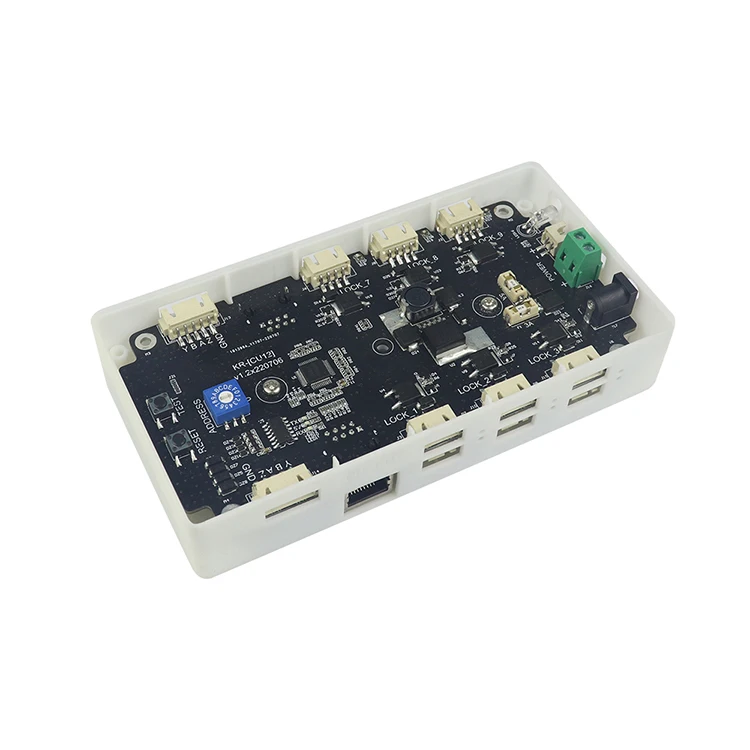

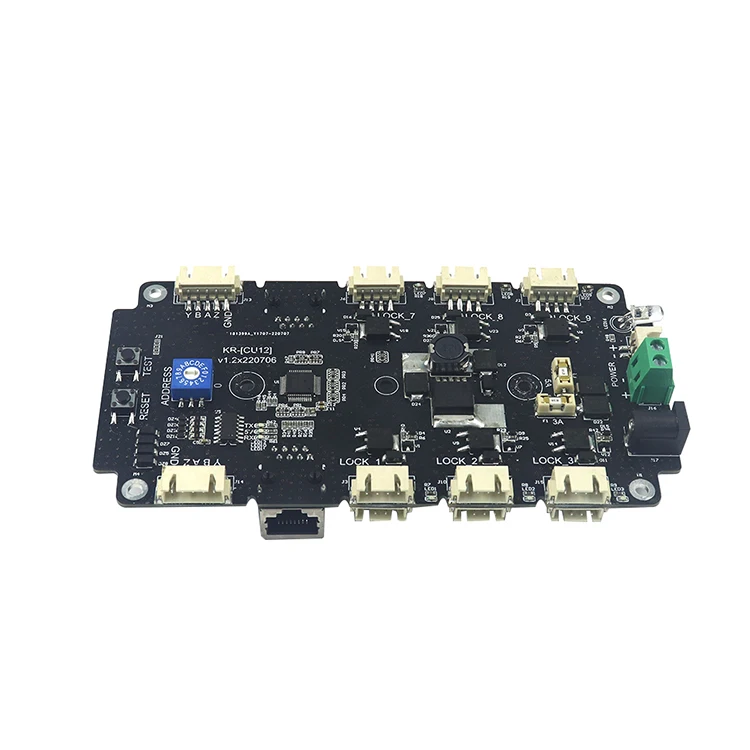

KERONG Electronic Cabinet Lock Control Board FOR PCB
- Category: >>>
- Supplier: Shenzhen Kerong Electronic Technology Co. Limited
Share on (1600577668168):
Product Overview
Description

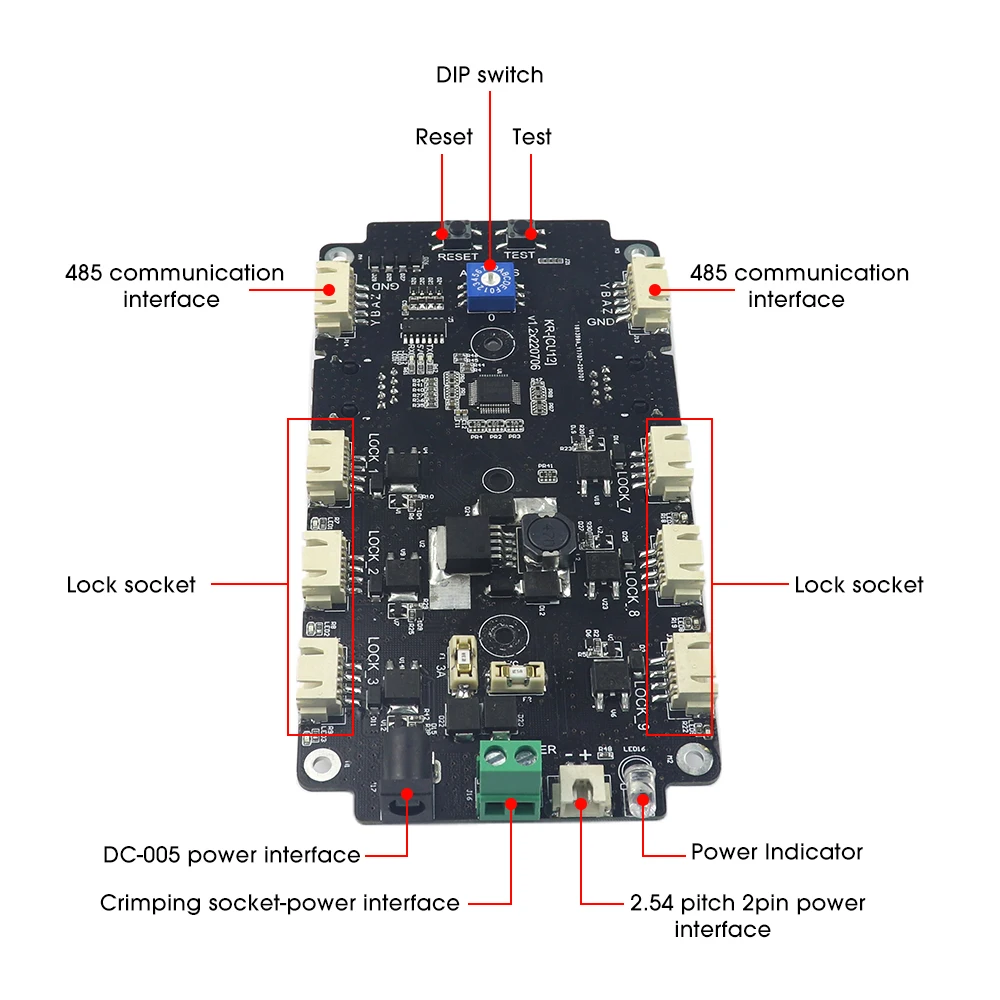

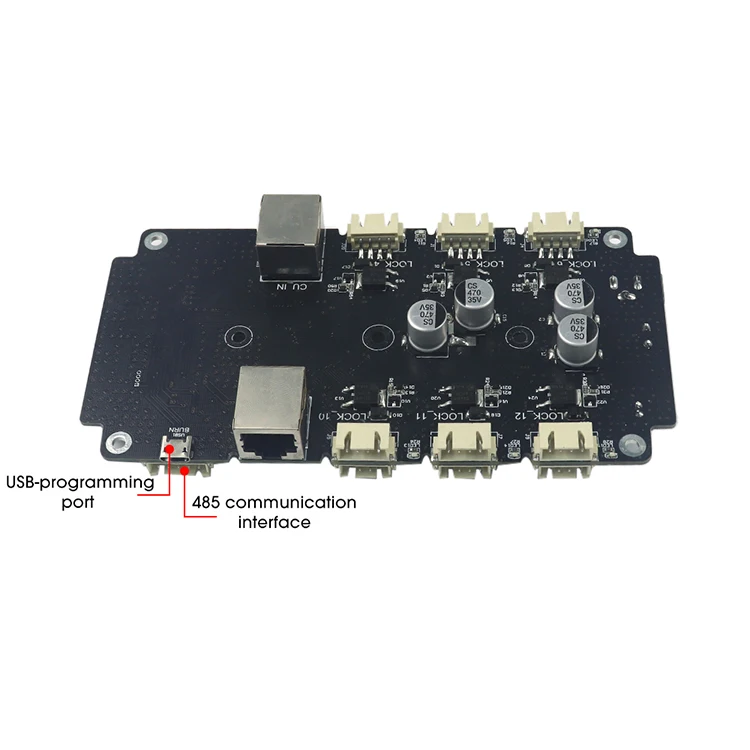

Electronic Cabinet Lock Control Board FOR PCB
Product Features
Product Name | Lock Control Board |
Model Name | KR-12 |
Factory | KERONG |
Definition | Electronic rotary latch controller |
Function | Receive commands to control lock and feedback status |
Material | Silicon |
Material of protect shell | ABS |
Dimension of board | 146.5*74.5mm |
Dimension of shell | 153*79*36mm |
Micro processor module | STM8S103K3T6 QFP32(P0.8mmBS7*7mm) |
Connector model | RJ45, 8P8C |
Working voltage | 8V~24V |
Standby current | 20mA~12v |
Dynamic power consumption | 200mA~3000mA |
Reaction time | Less than 1s |
Working temperature | -25℃ ~ +65℃ |
Working humidity | 10% ~ 90%RH |
Working life | 500000 times |
Certification | CE; RoHS;FCC |
OEM | Accepted |
Product Description
1. Used to control the lock, can connect 12 locks at the same time.
2. 16 control boards can be connected in series.
3. The software can be designed according to the customer's needs.
4. Support two communication methods: TCP/IP and RS485.
5. Can work with computers, pads, and Raspberry Pi.
6. Feasible to work on I0S, Windows, and Linux.
7. Working temperature: -25 °C ~ 65 °C.

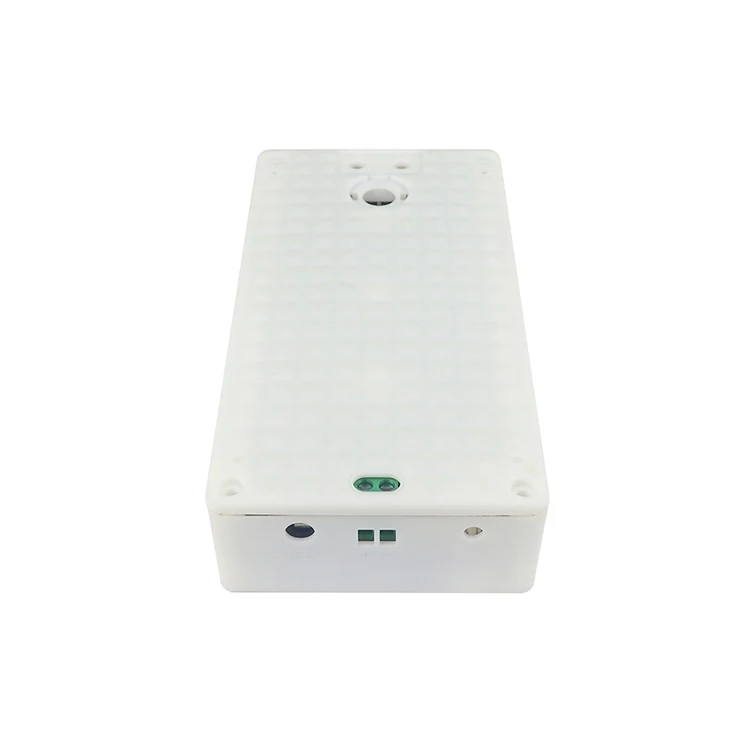

8. With protective box, dustproof.
9. High quality module, work stably.
2. 16 control boards can be connected in series.
3. The software can be designed according to the customer's needs.
4. Support two communication methods: TCP/IP and RS485.
5. Can work with computers, pads, and Raspberry Pi.
6. Feasible to work on I0S, Windows, and Linux.
7. Working temperature: -25 °C ~ 65 °C.
8. With protective box, dustproof.
9. High quality module, work stably.

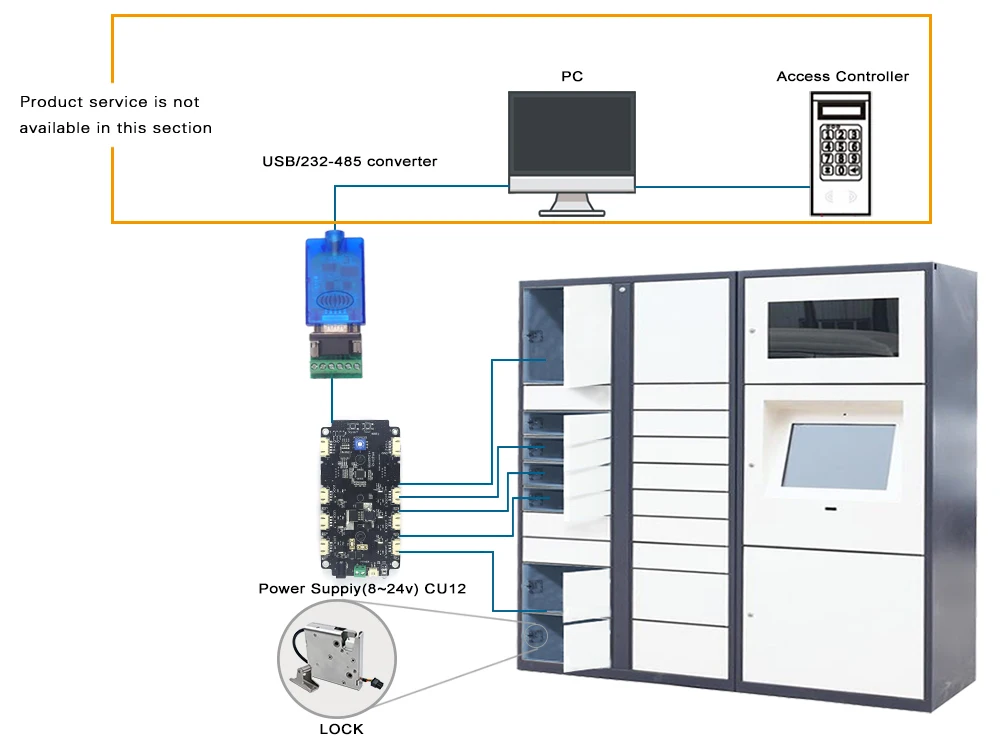

PC: With PC:software to manage all parts.
Router: Providing internet.
Lock: With lock tongue detection. Unlock when received commands from CU. Send lock condition (locked or not) to CU.
Router: Providing internet.
Lock: With lock tongue detection. Unlock when received commands from CU. Send lock condition (locked or not) to CU.
Packing&Shipping
Company Introduction
Product Application
Locker Control Board is widely applicated in Cabinets, mailbox, drawers, lockers, deposit lockers, logistics cabinets/lockers, express lockers, parcel lockers, gym lockers, sauna lockers, wardrobe lockers, document cabinets,wardrobes, vending kiosk locker, phone charging cabinets, shoe cabinets,centralized control box ark, etc.
Product Show
Top selling products
FAQ
1. Q: Are you a factory or trading company?
A: We are a company which has our own trading department and factory.
2. Q: What is your sample policy?
A: Free samples could be sent to the test as request. We can arrange a sample by DHL or UPS, but the courier fee would be paid by the customer.
A: We are a company which has our own trading department and factory.
2. Q: What is your sample policy?
A: Free samples could be sent to the test as request. We can arrange a sample by DHL or UPS, but the courier fee would be paid by the customer.
3.Q: How many days do you need to prepare samples?
A: If without extra demand, it will be sent within 7days.
4. Q: How many days for mass production?
A: It depends on the order quantity. If the order quantity is less than 1000pcs, delivery would be within 3 working days.
5. Q: What payment terms do you do?
A: We can accept T/T, L/C, D/P, Paypal, West Union, MoneyGram.
6. Q: What's package do you use for the products?
A: We have a professional package for the products. Customized packages are also available based on certain MOQ.
7. Q: Can I print my own brand logo on your product?
A: OEM orders are highly welcome. Please write us the details of your logo color, logo position; user manual before you send us an inquiry. In this way, we can offer you the most accurate answer for the first time.
A: If without extra demand, it will be sent within 7days.
4. Q: How many days for mass production?
A: It depends on the order quantity. If the order quantity is less than 1000pcs, delivery would be within 3 working days.
5. Q: What payment terms do you do?
A: We can accept T/T, L/C, D/P, Paypal, West Union, MoneyGram.
6. Q: What's package do you use for the products?
A: We have a professional package for the products. Customized packages are also available based on certain MOQ.
7. Q: Can I print my own brand logo on your product?
A: OEM orders are highly welcome. Please write us the details of your logo color, logo position; user manual before you send us an inquiry. In this way, we can offer you the most accurate answer for the first time.
Cantact US
If you are interested in our products, please contact us directly for more information. We sincerely welcome your inquiry.
