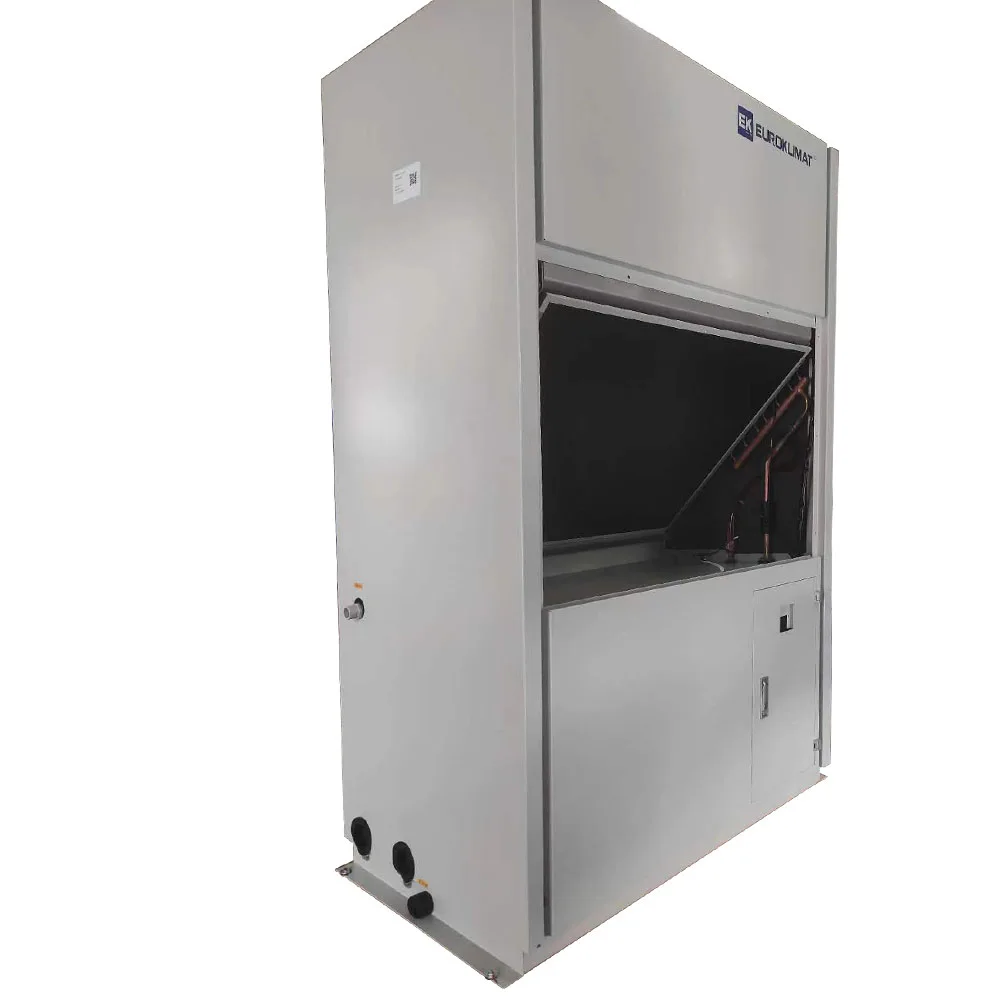

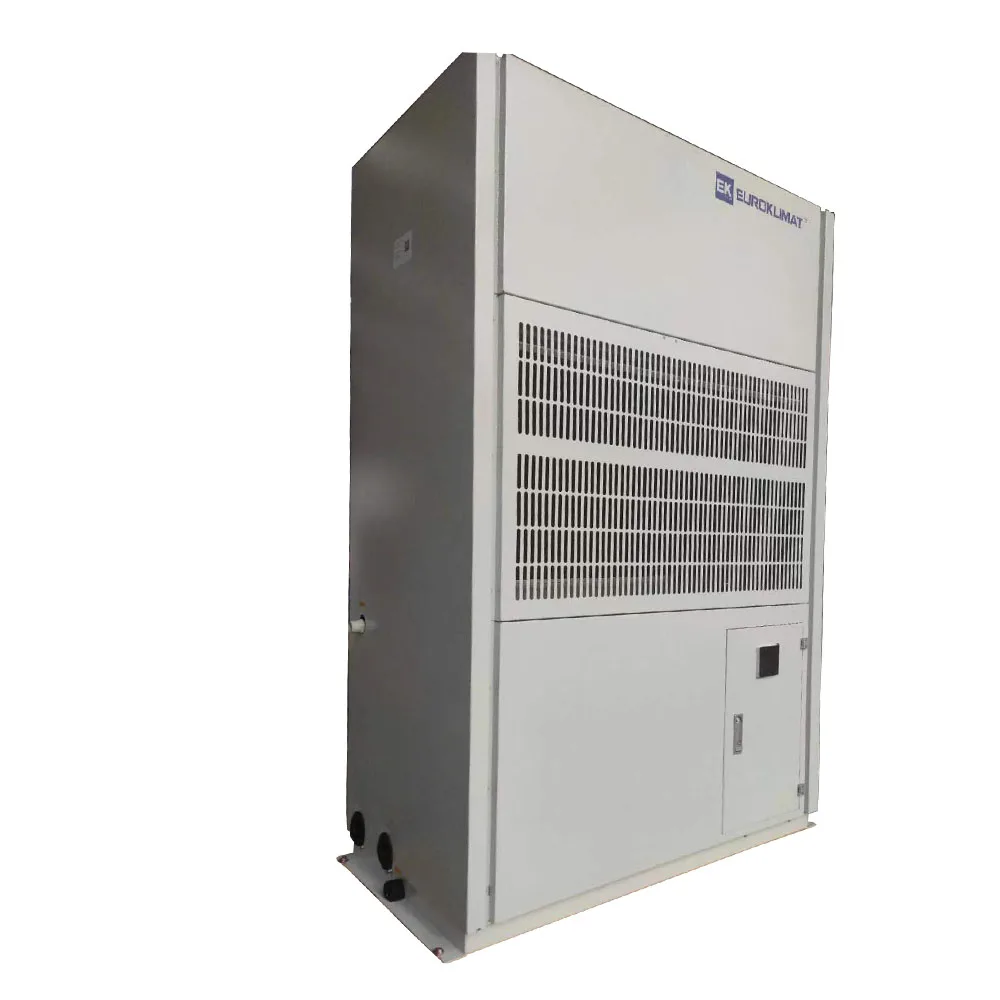

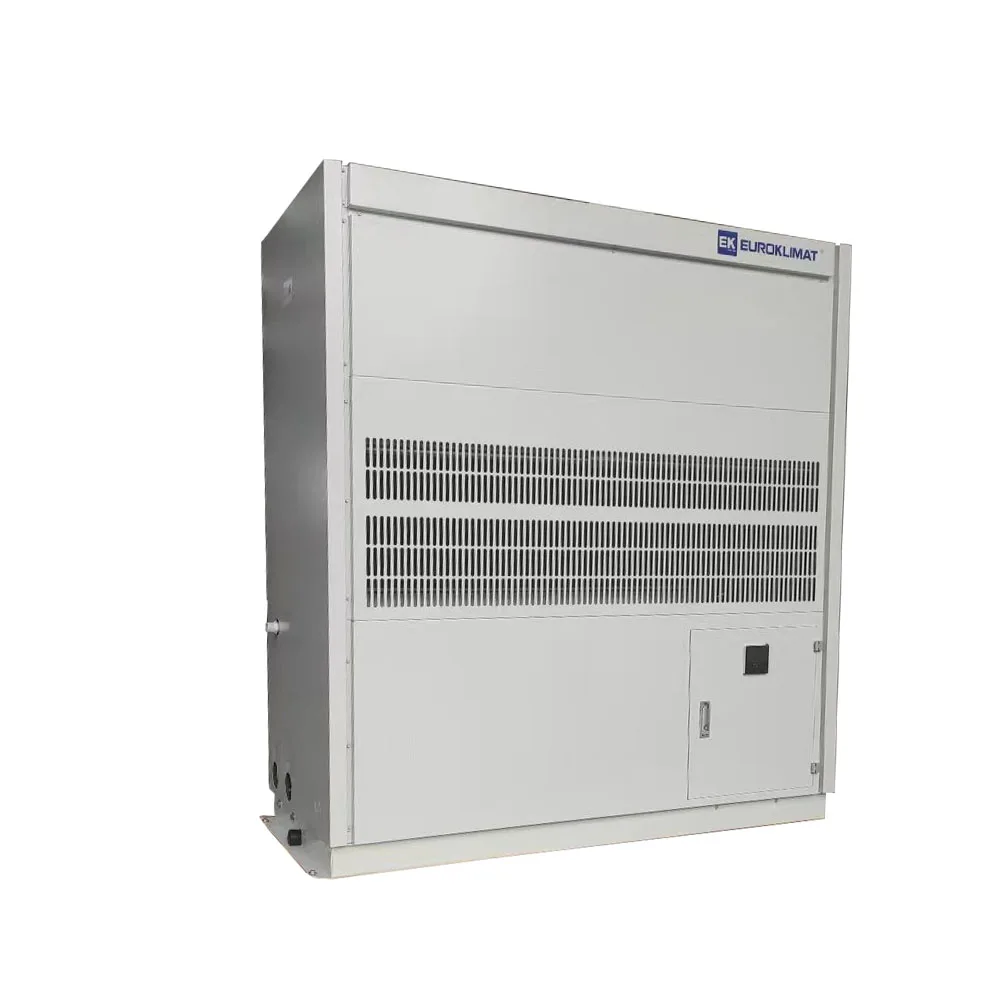

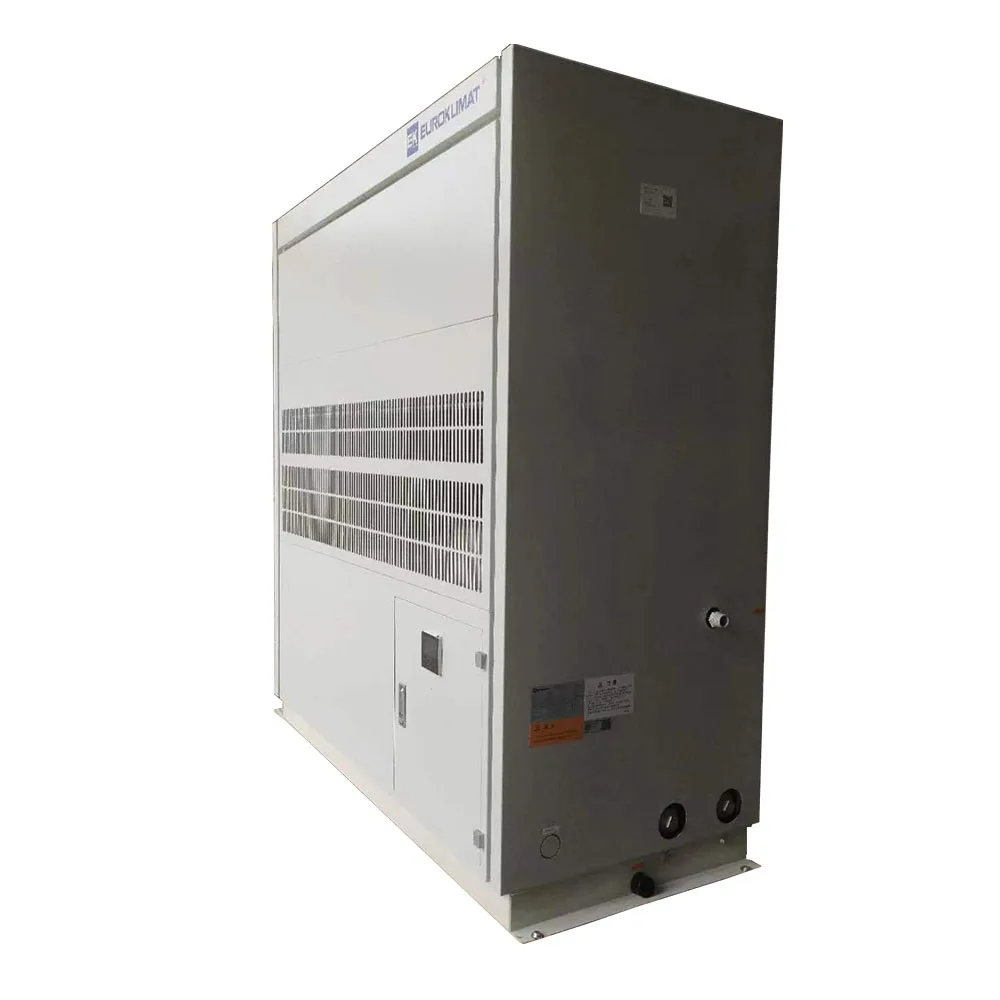

100KW Environment friendly R410a Refrigerant Series Water cooled Floor Stand Unit Commercial Air Conditioner
- Category: >>>
- Supplier: Shenzhen Monchrui Industrial Development Co. Ltd.
Share on (1600577678382):
Product Overview
Description
Why Choose Us
EUROKLIMAT Group was established in Italy in 1963. Over the past half century of development along with continuous innovation and exploration, it has grown into a leading energy-saving air conditioning brand in Italy, Spain and the entire European market. Our products are exported to Europe, Australia, Southeast Asia, the Middle East and other countries and regions. Products cover modular air cooled chiller (heat pump), precision air conditioner, VRF air conditioner, air and water cooled screw chiller, magnetic levitation centrifugal chiller, air handing unit, fan coil unit, etc.
Product Introduction
R410A Environment-Friendly Refrigerant Series Water-Cooled Floor Standing Unit is the new generation of unitary air conditioner of EK. Equipped with the latest design of EK, the system features efficient running, low noise, and flexible application. Many models are available to meet various requirements. The static pressure box is optional, which applies to scenarios that require a direct air supply. The electric heater is also available for heating. The unit is widely used in small venues, shopping malls, restaurants, department stores, and factories.
Products Description
Nomenclature
1、 EKWP Water-cooled floor standing unit
2、 100 Cooling capacity code
3、 C Design No.
4、 D Electric heating type: cooling only (default)
5、 1 Refrigerant code: 0: R407C; 1: R410A; R22 (default)
6、 S Condenser pressure gauge code: T: double-pipe, without
pressure gauge; S: shell-and-tube, without pressure
gauge; G: double-pipe, with pressure gauge; Q: hell-and-
tube, with pressure gauge
7、 20 Static pressure code: 20: external static pressure is
200Pa, and so on
8、 F Power feature: F: 380V/3N~/50Hz
9、 AA Specific description of product specification changes
2、 100 Cooling capacity code
3、 C Design No.
4、 D Electric heating type: cooling only (default)
5、 1 Refrigerant code: 0: R407C; 1: R410A; R22 (default)
6、 S Condenser pressure gauge code: T: double-pipe, without
pressure gauge; S: shell-and-tube, without pressure
gauge; G: double-pipe, with pressure gauge; Q: hell-and-
tube, with pressure gauge
7、 20 Static pressure code: 20: external static pressure is
200Pa, and so on
8、 F Power feature: F: 380V/3N~/50Hz
9、 AA Specific description of product specification changes
Application Scenarios
Catering and entertainment, Supermarkets and shoppingmalls, Industrial factory buildings and Small venues etc.......
System Features
Environmental protection refrigerant for enhanced energy efficiency
● The ozone-friendly R410A refrigerant (ODP=0) features better heat exchange performance. The charging quantity of refrigerant can be substantially reduced.
● The unit adopts water cooling. The heat exchange efficiency is higher than air-cooled unit. The system running is more efficient and the operation costs are lower.
● Parallel design of multi-compressor supports a wide adjustment range. The system is efficient and environmental friendly.
Simple design and less initial investment
The evaporator, condenser, compressor and other parts of the water-cooled floor standing unit adopt the integrated design. The system control is simple and the waterway can be easily configured. With a short design cycle, it requires only the connection of cooling water system during engineering installation, and there is no need for water pipe insulation. The initial investment is low and the duration of construction is short.
● The ozone-friendly R410A refrigerant (ODP=0) features better heat exchange performance. The charging quantity of refrigerant can be substantially reduced.
● The unit adopts water cooling. The heat exchange efficiency is higher than air-cooled unit. The system running is more efficient and the operation costs are lower.
● Parallel design of multi-compressor supports a wide adjustment range. The system is efficient and environmental friendly.
Simple design and less initial investment
The evaporator, condenser, compressor and other parts of the water-cooled floor standing unit adopt the integrated design. The system control is simple and the waterway can be easily configured. With a short design cycle, it requires only the connection of cooling water system during engineering installation, and there is no need for water pipe insulation. The initial investment is low and the duration of construction is short.
Convenient installation and simple maintenance
The unit can be directly installed in the air conditioning area to achieve free air return. It can also be installed in an equipment room. The installation is flexible, and the cooling water system maintenance is easy
The unit can be directly installed in the air conditioning area to achieve free air return. It can also be installed in an equipment room. The installation is flexible, and the cooling water system maintenance is easy
Even air supply for enhanced comfort
The static pressure is adjustable. Through the static pressure box and the corresponding duct, the unit can evenly distribute cold air to every corner of the room, bringing about optimum comfort for users.
The static pressure is adjustable. Through the static pressure box and the corresponding duct, the unit can evenly distribute cold air to every corner of the room, bringing about optimum comfort for users.
Characteristics
1. Comprehensive range of models EKWP water-cooled floor standing unit features a wide cooling range. These series include 14 models, covering 24kW~200kW, to flexibly meet various cooling capacity requirements.
2. Efficient and reliable components of
famous brands All parts and components of EKWP water-cooled floor standing unit are of famous brands at home and abroad. The installation positions of parts are optimized for safer unit operation and longer service life. Therefore, the unit boasts higher efficiency and enhanced reliability.
The Germany Optibelt Super X-POWER M=S V-belts feature outstanding resistance to heat and oil, as well as ultra-low elongation, so as to increase the reliability of belt transmission with minimal maintenance. The U.S. Copeland high-efficiency scroll compressor boasts low noise and low rate of malfunction. The excellent patented radial and axial flexible design of the compressor provides unprecedented impact resistance and tolerance of impurities, to guarantee safe and stable operation of the compressor. The scroll plate adopts the grinding-in design. With the uptime increases, the performance will get even better, the service life is longer, and the running is more stable and reliable.
The dual-inlet forward centrifugal fan, through the highly reliable belt transmission, propels the rotation of impellers. Together with the matched static pressure box, it can achieve different external static pressure. The fan is compact and light-weighted, and features reliable operation. It applies to scenarios with different requirements for air flow and air pressure. Silencing operation inside the cabinet can be achieved, meeting even stricter noise requirements. The entire running efficiency is high and the noise level is low.
3. Optional parts for flexible applications EKWP water-cooled floor standing unit comes with multiple optional parts to meet various requirements of users. Users can select the PTC electric heater, static pressure box with global nozzle outlet, louver static pressure box, high-efficiency filter, flange unit with front air outlet, manual/electric fan valve, and others as required.
4. Rational structure and convenient installationThe unit adopts the frame structure. The panel can be easily disassembled. Models after EKWP100 use the frame dual-fan structure to facilitate hoisting. Noise-reduction measures have been taken for the entire structure and pipeline. Therefore, they are quieter than common fans. All models support the change of water pipe connection position (left/right) on site.
2. Efficient and reliable components of
famous brands All parts and components of EKWP water-cooled floor standing unit are of famous brands at home and abroad. The installation positions of parts are optimized for safer unit operation and longer service life. Therefore, the unit boasts higher efficiency and enhanced reliability.
The Germany Optibelt Super X-POWER M=S V-belts feature outstanding resistance to heat and oil, as well as ultra-low elongation, so as to increase the reliability of belt transmission with minimal maintenance. The U.S. Copeland high-efficiency scroll compressor boasts low noise and low rate of malfunction. The excellent patented radial and axial flexible design of the compressor provides unprecedented impact resistance and tolerance of impurities, to guarantee safe and stable operation of the compressor. The scroll plate adopts the grinding-in design. With the uptime increases, the performance will get even better, the service life is longer, and the running is more stable and reliable.
The dual-inlet forward centrifugal fan, through the highly reliable belt transmission, propels the rotation of impellers. Together with the matched static pressure box, it can achieve different external static pressure. The fan is compact and light-weighted, and features reliable operation. It applies to scenarios with different requirements for air flow and air pressure. Silencing operation inside the cabinet can be achieved, meeting even stricter noise requirements. The entire running efficiency is high and the noise level is low.
3. Optional parts for flexible applications EKWP water-cooled floor standing unit comes with multiple optional parts to meet various requirements of users. Users can select the PTC electric heater, static pressure box with global nozzle outlet, louver static pressure box, high-efficiency filter, flange unit with front air outlet, manual/electric fan valve, and others as required.
4. Rational structure and convenient installationThe unit adopts the frame structure. The panel can be easily disassembled. Models after EKWP100 use the frame dual-fan structure to facilitate hoisting. Noise-reduction measures have been taken for the entire structure and pipeline. Therefore, they are quieter than common fans. All models support the change of water pipe connection position (left/right) on site.
Intelligent Control
Microcomputer control system
1 EKWP water-cooled floor standing unit is controlled by a microcomputer control system.The smart control is easy to use and stable and reliable.
2 User-friendly interface with easy operations
Mode: Cooling/Heating/Air (for cooling only models, only Cooling is available; in Heating mode, all functions are invalid)
3 Temperature setting range: 16°C~30°C
4 Automatic recovery of temperature set
5 Timed ON/OFF function: 1~24 hours
6 Controller locking
7 Auto alarm: LCD can display set temperature/timed setting, and alarms
1 EKWP water-cooled floor standing unit is controlled by a microcomputer control system.The smart control is easy to use and stable and reliable.
2 User-friendly interface with easy operations
Mode: Cooling/Heating/Air (for cooling only models, only Cooling is available; in Heating mode, all functions are invalid)
3 Temperature setting range: 16°C~30°C
4 Automatic recovery of temperature set
5 Timed ON/OFF function: 1~24 hours
6 Controller locking
7 Auto alarm: LCD can display set temperature/timed setting, and alarms
Multi-protection mechanism
EK has a testing laboratory accredited by CNAS, which is qualified to carry out comprehensive performance tests on water-cooled floor standing units. Our quality system has passed the ISO 9001 certification and comes with multi-protection mechanism to guarantee product quality and stable and safe operations.
EK has a testing laboratory accredited by CNAS, which is qualified to carry out comprehensive performance tests on water-cooled floor standing units. Our quality system has passed the ISO 9001 certification and comes with multi-protection mechanism to guarantee product quality and stable and safe operations.
Centralized control and BAS
Users can achieve centralized monitoring and control of up to 32×32 (1024) water-cooled floor standing units through a special data converter. The communication distance is within 1000m. Besides, with the data converter, gateway, and optional ModBus protocol (standard RS485 digital interface), users can also achieve BAS connection and control.
Product Paramenters
Product Images
Company Profile
About us
Our products covered China, India, Thailand, Indonesia, Myanmar, South Africa, UAE, Chile, Bangladesh and many other countries and regions. Adhering to the concept of taking technological innovation as the motivation and energy saving and environmental protection as the guide, we are committed to making EK central air conditioner into the world's leading environmental system integrator and service provider. After years of experience and continuous exploration, EK Air Conditioner currently has 1,200 employees in China, covering marketing, R&D, manufacturing, after-sales and other departments.
Our currently has three major R&D centers in Italy, Germany, and China, and multiple production bases of nearly 280,000 square meters, with thousands of models of products in nine series. We also have 13 CNAS accredited testing laboratories and 276 patented technologies. With strong worldwide presence, we have 72 service outlets globally and 35 sales and service organizations in China.
--EuroKlimat Industrial Park has modern steel structure workshops, including manufacturing workshops, assembly workshops, warehousing logistics and testing, and R&D centers.
--The main production equipment includes fully automatic sheet metal punching machines, bending machines, Jingda punching machines, Jingda tube expansion Machines, and other internationally renowned equipment, all factory floors are treated with epoxy coating.
--The company has formulated a complete management system, equipped with advanced testing equipment, to continuously monitor the production process.
--The company has five centers, including: functional center, technology The center, quality center, production center and sales center have formed a relatively complete management system from design and development, procurement, production, quality assurance, marketing and service.
