Product Overview
Description
Product Description
| Hydraulic dynamometer model | YP60 | YP120 | YP250 | YP380 | YP520 | YP660 | YP880 | YP1200 | YP1900 | YP2500 | YP3300 |
| Maximum absorption rate (KW) | 60 | 120 | 250 | 380 | 520 | 660 | 880 | 1200 | 1900 | 2500 | 3300 |
| Torque measurement accuracy (FS) | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% |
| Speed measurement accuracy (FS) | ±0.5‰ | ±0.5‰ | ±0.5‰ | ±0.5‰ | ±0.5‰ | ±0.5‰ | ±0.5‰ | ±0.5‰ | ±0.5‰ | ±0.5‰ | ±0.5‰ |
| Spindle rotation direction | unidirectional | unidirectional | unidirectional | unidirectional | unidirectional | unidirectional | unidirectional | unidirectional | unidirectional | unidirectional | unidirectional |
| Brake force measurement range (N) | 0~180 | 0~550 | 0~1000 | 0~1300 | 0~2500 | 0~3300 | 0~6000 | 0~12000 | 0~18000 | 0~27000 | 0~35000 |
| Maximum braking torque (Nm) | 172 | 525 | 980 | 1240 | 2450 | 3150 | 5700 | 11760 | 17200 | 26460 | 33400 |
| Maximum water consumption (Kg/h) | 1200 | 2400 | 5000 | 8000 | 10400 | 13900 | 18500 | 24000 | 36300 | 50000 | 66000 |
| Drainage maximum temperature (°C) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Total length of the spindle | 448 | 510 | 500 | 500 | 600 | 600 | 802 | 1296 | 1296 | 1440 | 1440 |
| Spindle cone length and taper | 63, 1:30 | 70, 1:30 | 70, 1:30 | 70, 1:30 | 70, 1:30 | 80, 1:30 | 100, 1:30 | 192, 1:30 | 192, 1:30 | 170, 1:30 | 170, 1:30 |
| The center of the spindle is high to the bottom of the base | 255 | 300 | 300 | 300 | 350 | 350 | 650 | 760 | 760 | 840 | 840 |
| Dynamometer dimensions (length × width × height) | 450×400×370 | 655×530×430 | 640×536×460 | 640×536×460 | 760×620×543 | 760×620×543 | 1078×845×905 | 1598×.51310×1135 | 1598×.51310×1135 | 1452×1558×1310 | 145×21558×1330 |
| Base size (length × width × height) | 640×400×90 | 640×394×110 | 640×400×100 | 640×400×100 | 760×490×120 | 760×490×120 | 1060×820×310 | 1476×1200×260 | 1476×1200×260 | 1256×1559×260 | 1256×1559×260 |
| Foot screw hole position | 590×340 | 600×335 | 580×330 | 580×330 | 700×420 | 700×420 | 990×650 | 1350×1074 | 1350×1074 | 1421×1116 | 1420×1116 (×690) |
| Dynamometer net weight (Kg) | 170 | 180 | 200 | 200 | 410 | 435 | 950 | 2800 | 2900 | 3200 | 3300 |
| Maximum spindle speed (r/min) | 9000 | 7500 | 7500 | 5000 | 5000 | 3500 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Moment of inertia (Kg.M2) | 0.012 | 0.041 | 0.065 | 0.074 | 0.480 | 0.511 | 0.721 | 3.6 | 4 | 6.8 | 7.1 |
YP series (pressure type) hydraulic dynamometers have been widely used abroad in the 1960s and 1970s. In 1985, through license trade, China introduced the technology of Zoller Company, West Germany, to develop and produce this type of advanced dynamometer. At present, the process technology has been used in the production of a whole series of products in China. Internationally, there are Fraud in England and Cairn Company in the United States. In addition, two domestic companies have produced this series of products in small batches through imitation. Our company digests and absorbs foreign technology, carries out new optimization design and production, and can provide a full range of products.
YP series hydraulic dynamometer has 12 specifications, all of which are controlled by electric drainage butterfly valve. That is, by changing the opening of butterfly valve to change the size of absorption power. The braking power range is from 20KW to 5900KW, and the variety is complete. Domestic and foreign users choose the right type according to their engine power range.

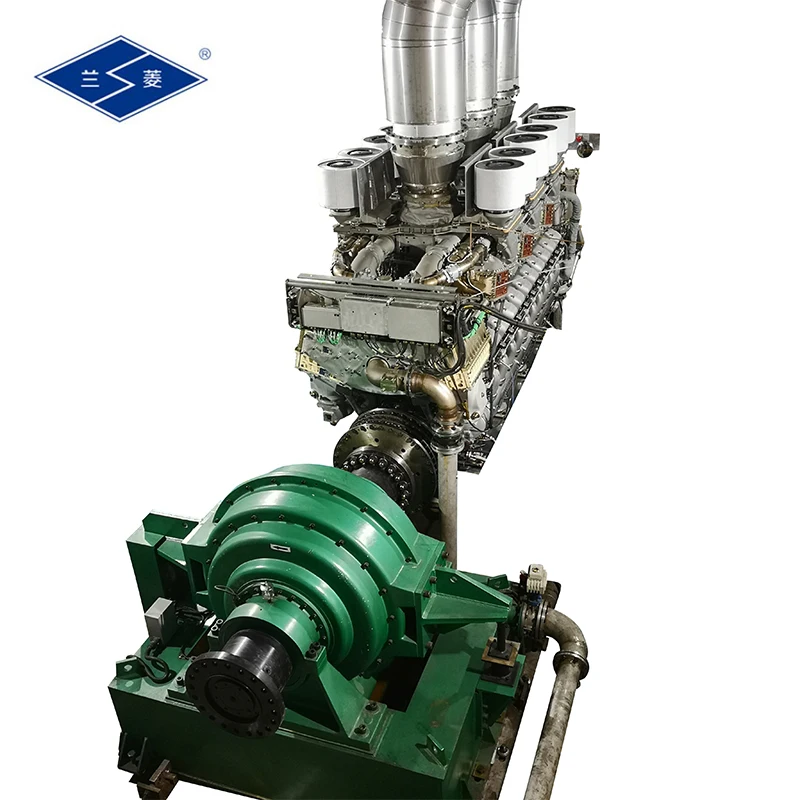

This product is mainly used to test the effective power of various diesel engines, gasoline engines, motors and other power engines. It is an indispensable test equipment in the performance test of power engine and the efficiency test of transmission machinery.
The basic model of this product is one-way test. If users need to order with two-way test at the same time, please make a request and our company will give special customization.
The basic model of this product is one-way test. If users need to order with two-way test at the same time, please make a request and our company will give special customization.
